Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

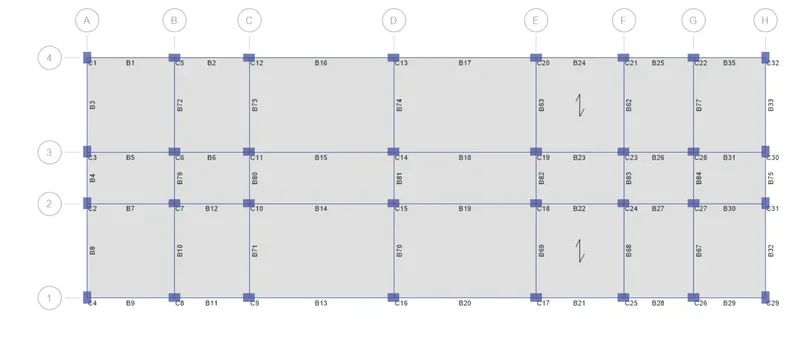

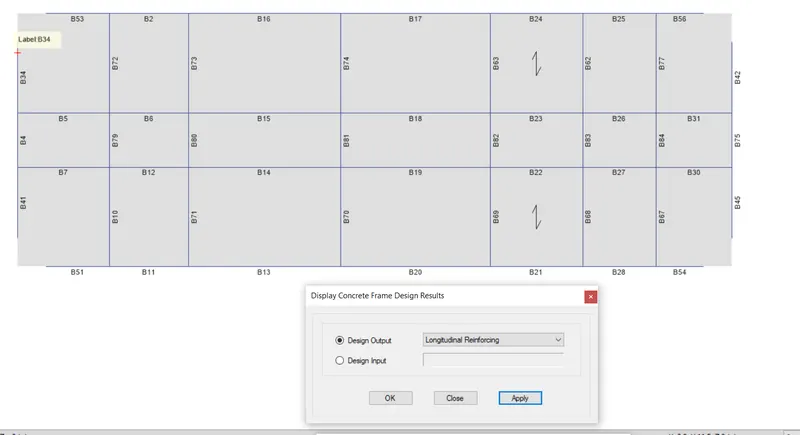

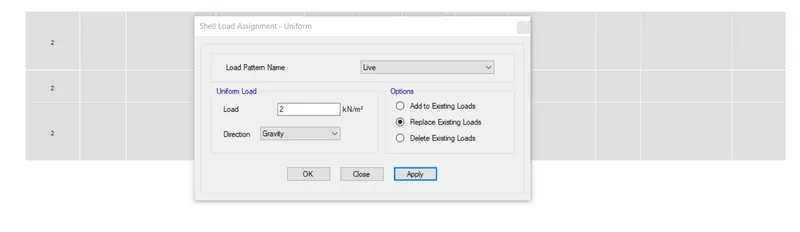

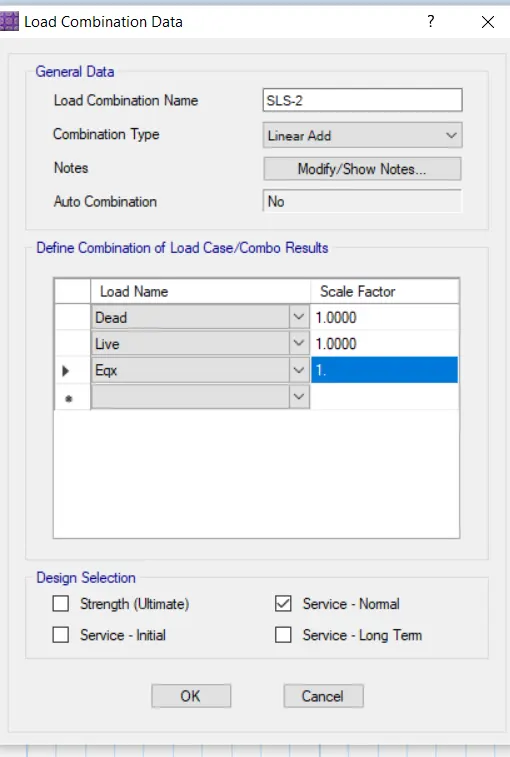

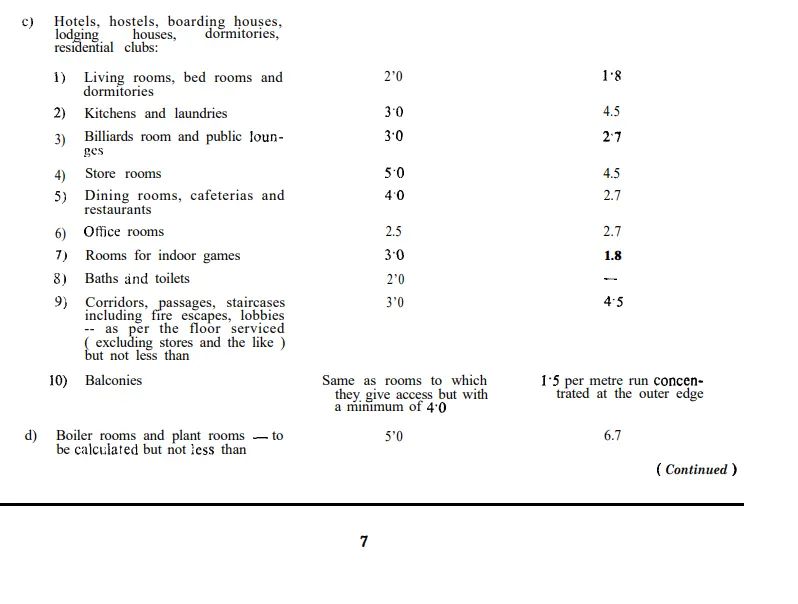

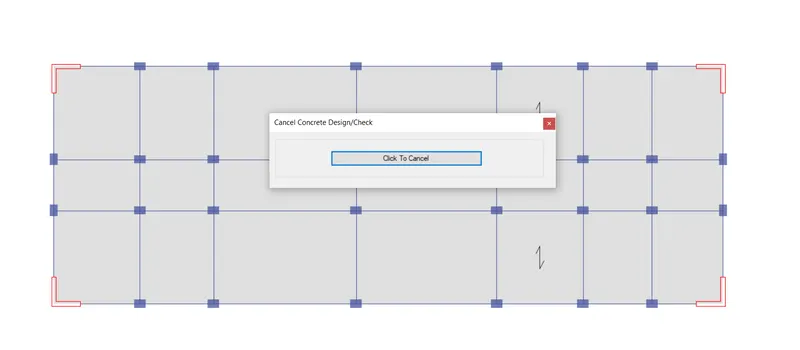

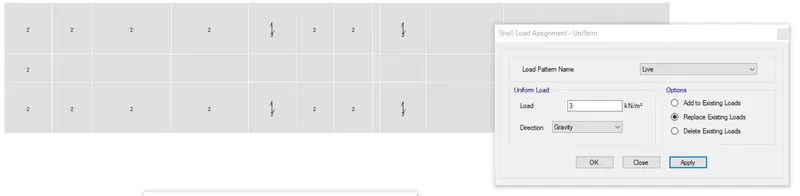

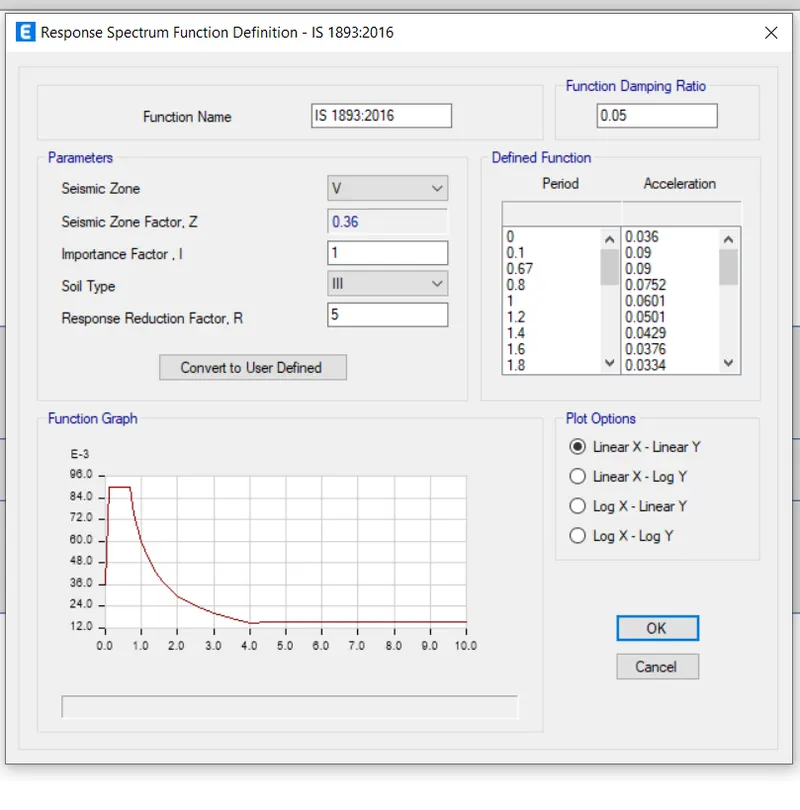

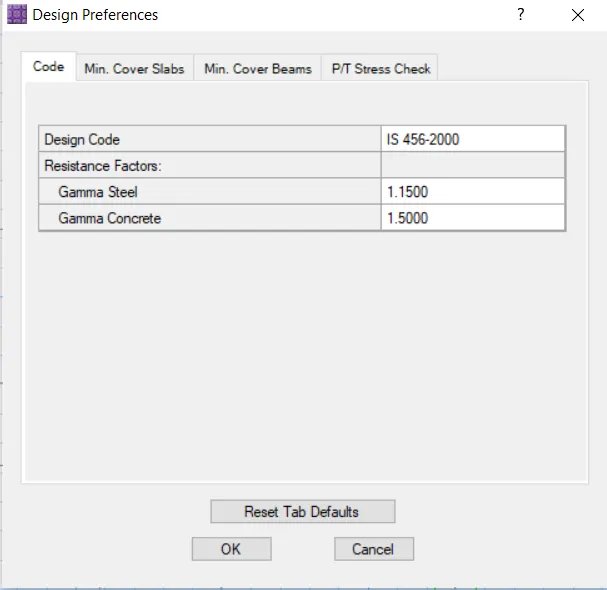

1. Summarize the user interface in TSD with the for the following items: - 2. Create a new file in TSD and set up the settings for a steel building to have member grade FE410 and concrete grade of M30 as per IS codes. The covers for the members to be as per the following input:   Model grid lines and construction…

1) What are HVAC systems? Why are they essential in the modeling of buildings          The initials HVAC stand for Heating, Ventilation and Air Conditioning.They describe the functions of an HVAC system.This mechanical system's design is primarily an attempt to take control of the environmental…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class:   2) Use Navigate Tool to walk around the model and walk through the rooms created and record your moving as…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. 2) Create a conceptual layout of floor plan in dynamo . Using the tools available in dynamo link the lines to appropriate model elements in Revit by choosing the wall types and wall parameters. Make use of the sliders…

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box is BX           b. To create similar doors and windows in a floor plan layout is CS       …

1) I Select the type of structure  to build from one of the three below is:        a. Multi-Unit Residential Apartment.          2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected…

1) I Select the type of structure  to build from one of the three below is:        a. Multi-Unit Residential Apartment.          2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. Aim: To set project base point and project shared coordinates for the project. Procedure: STEP:1 Open architectural template. Open manage tab Click on project coordinates -specific shared coordinates.…

1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit         The main purpose of building codes are to protect public health,safety and general welfare as they relate to the construction and occupancy of buildings and structures.The buliding code becomes…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level:   2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1) What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. BIM is used for creating and managing data during the design, construction, and operations process. BIM integrates multi-disciplinary data to create detailed digital representations that are managed in an open cloud…

1.From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately.  2.Save the new project file. Close and open using icons from file toolbar. 3) From the architecture/ structure toolbar familiarize with options to draw a wall. Create a rectangular…

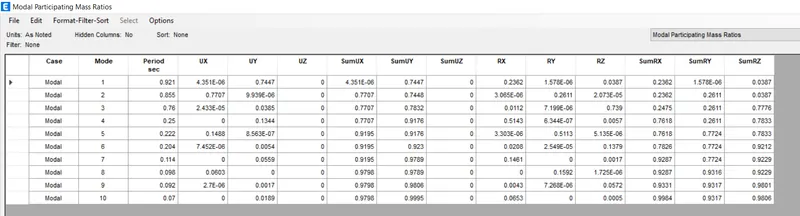

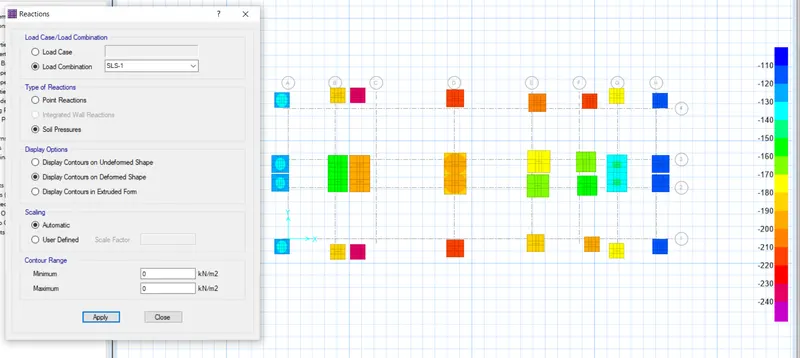

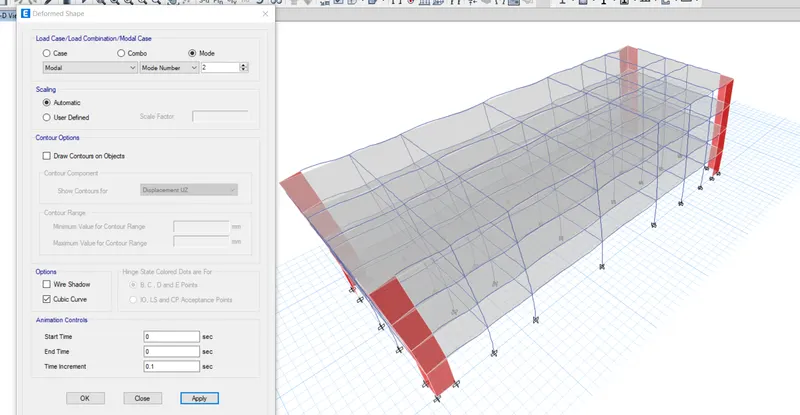

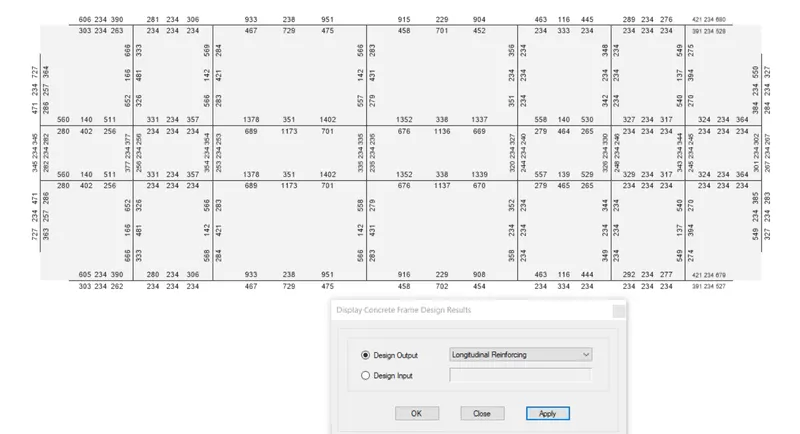

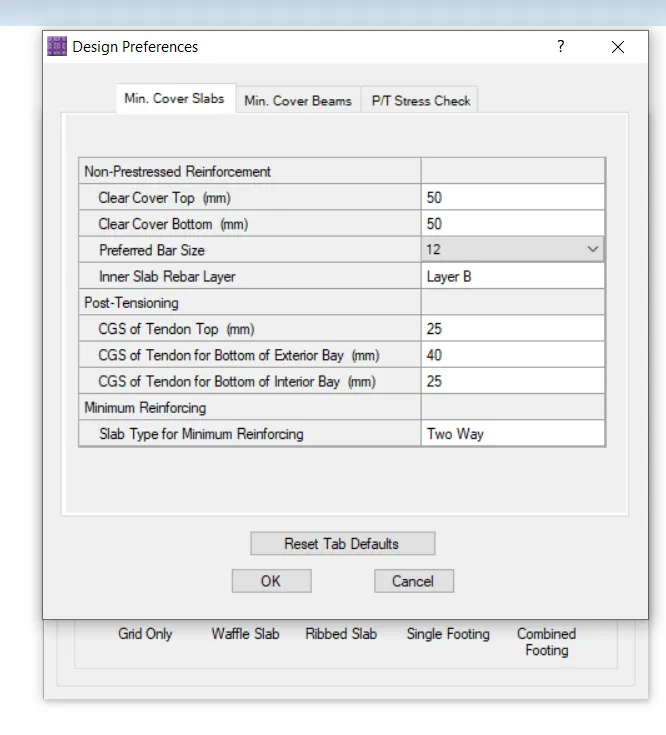

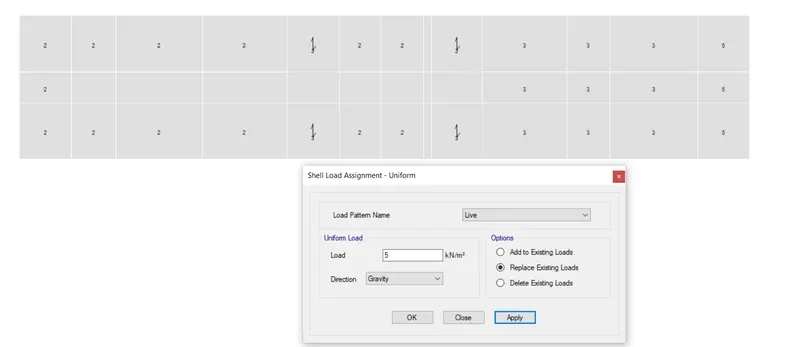

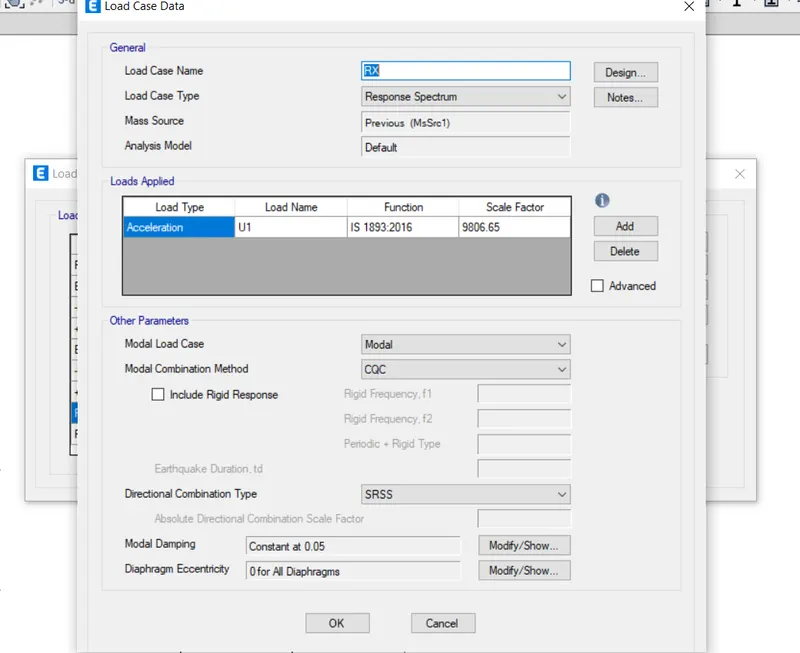

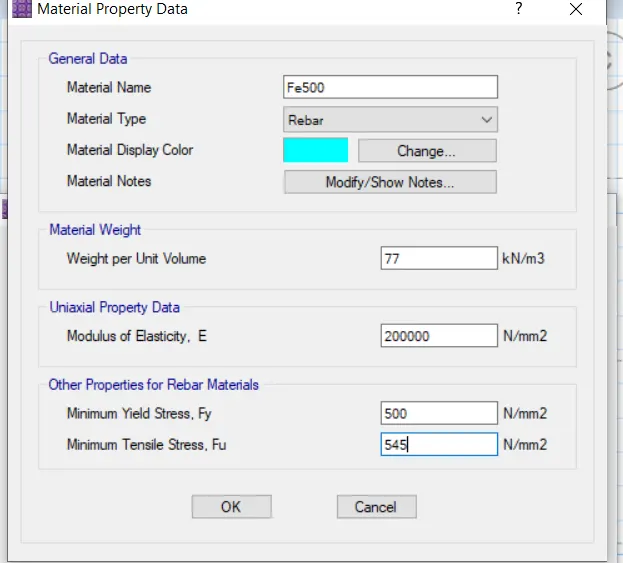

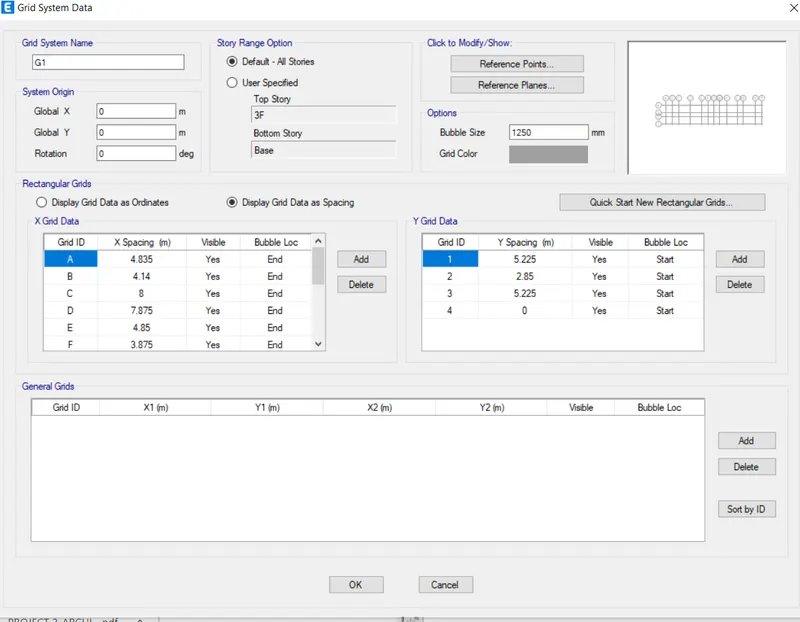

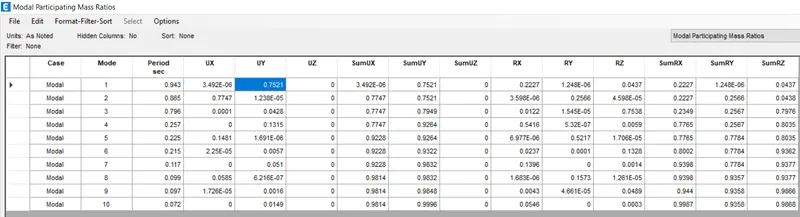

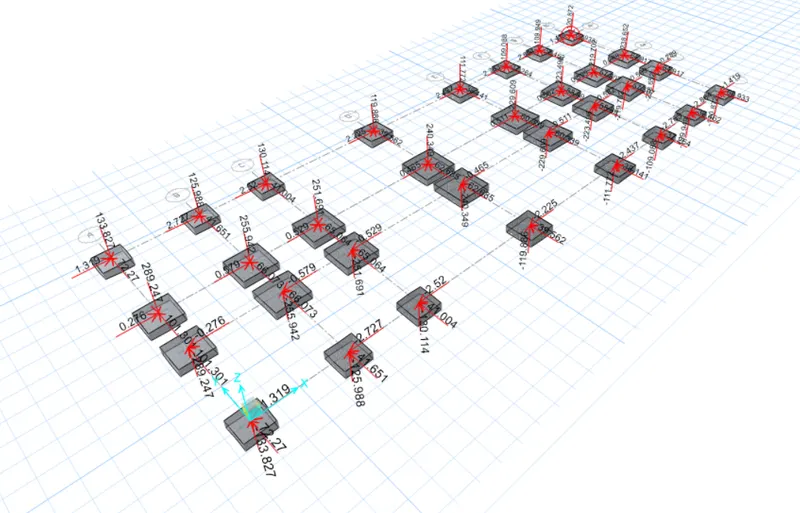

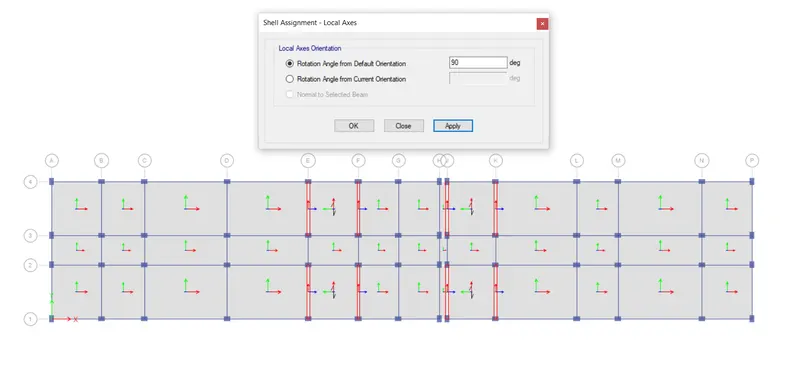

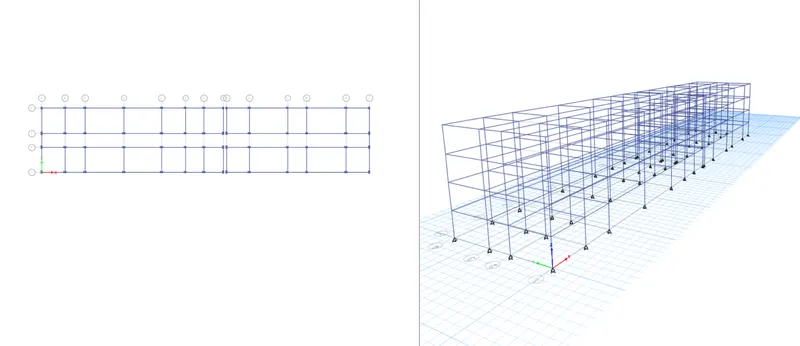

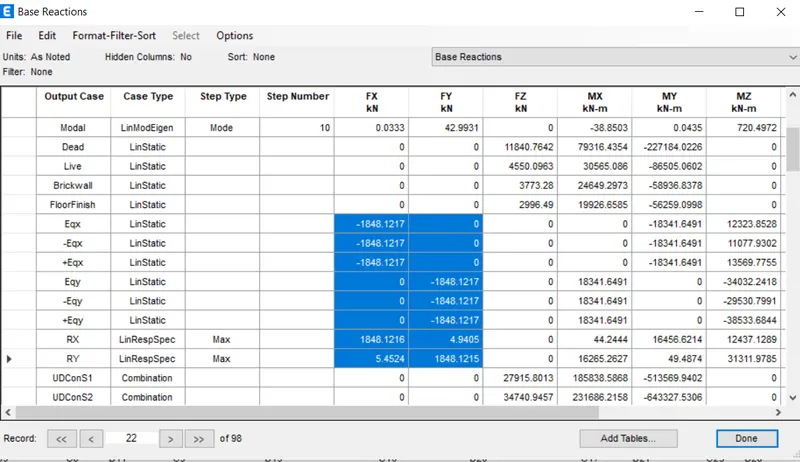

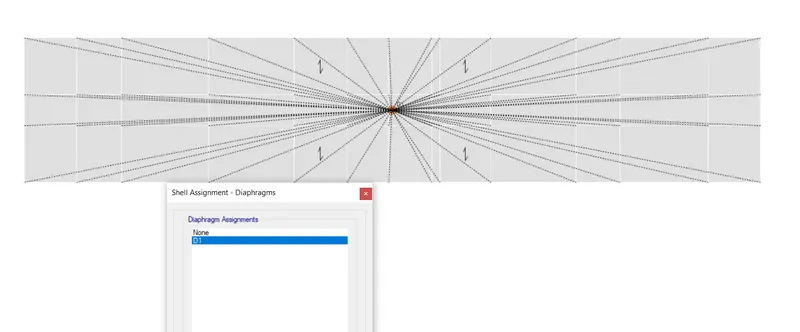

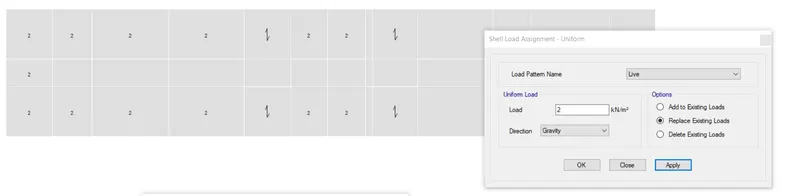

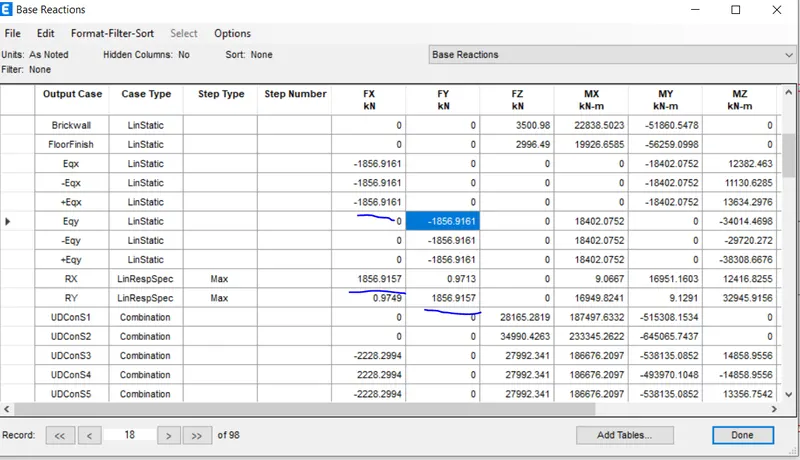

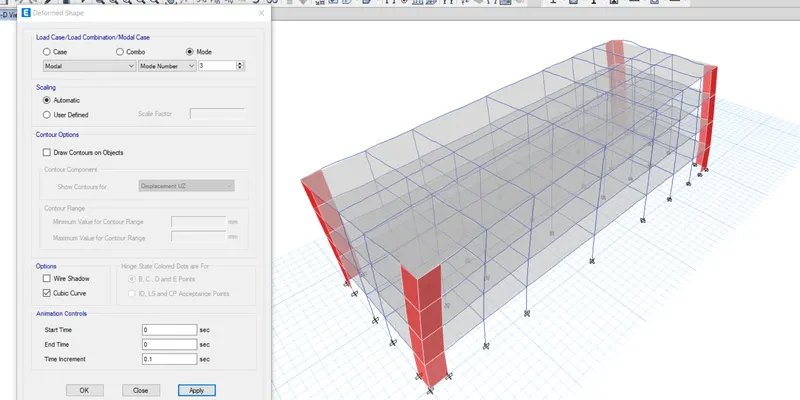

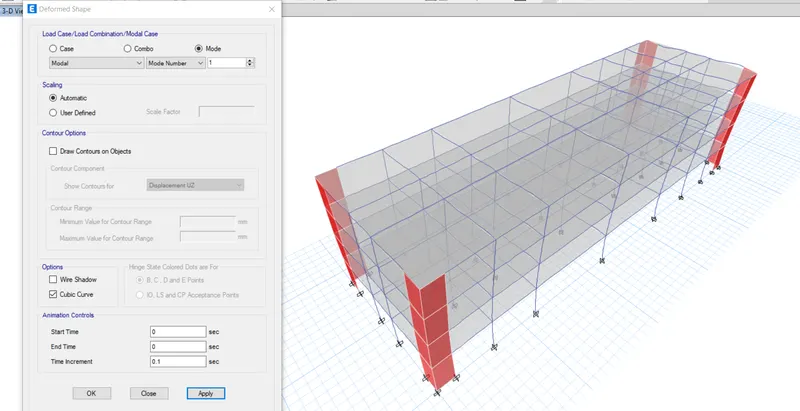

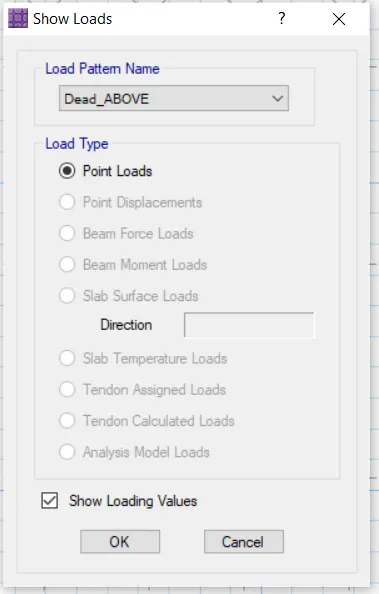

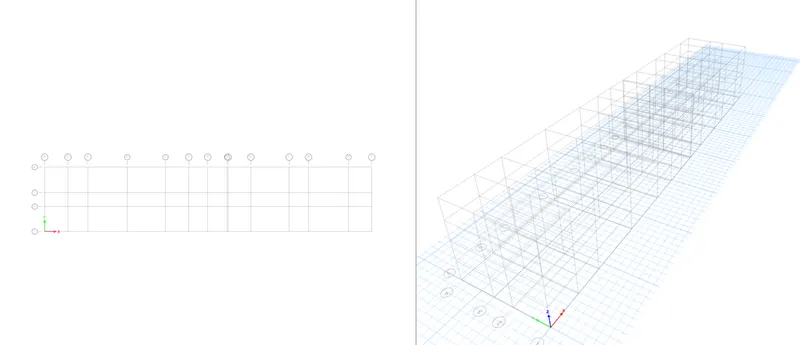

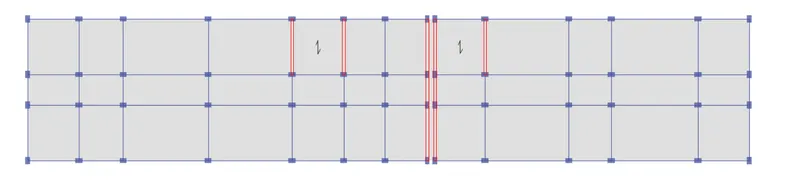

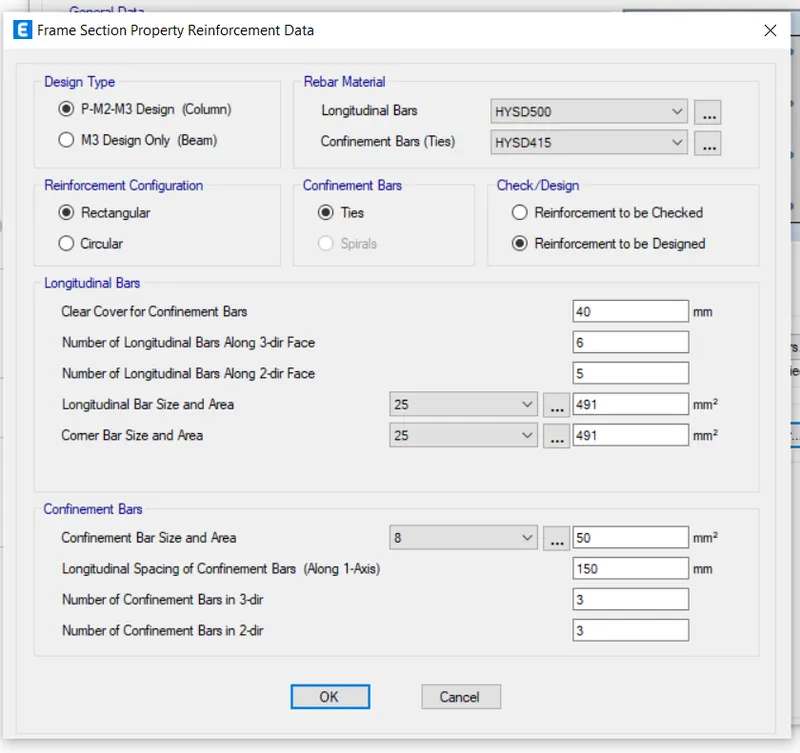

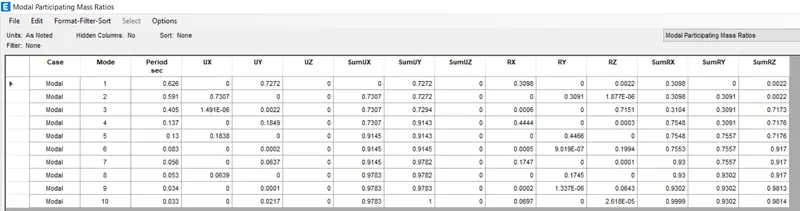

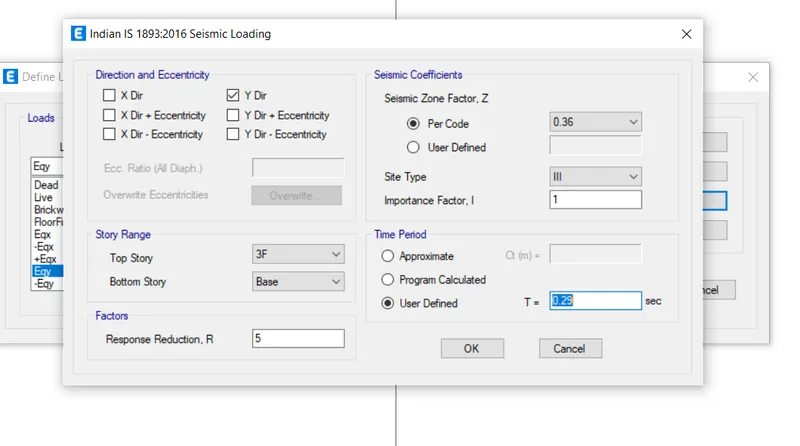

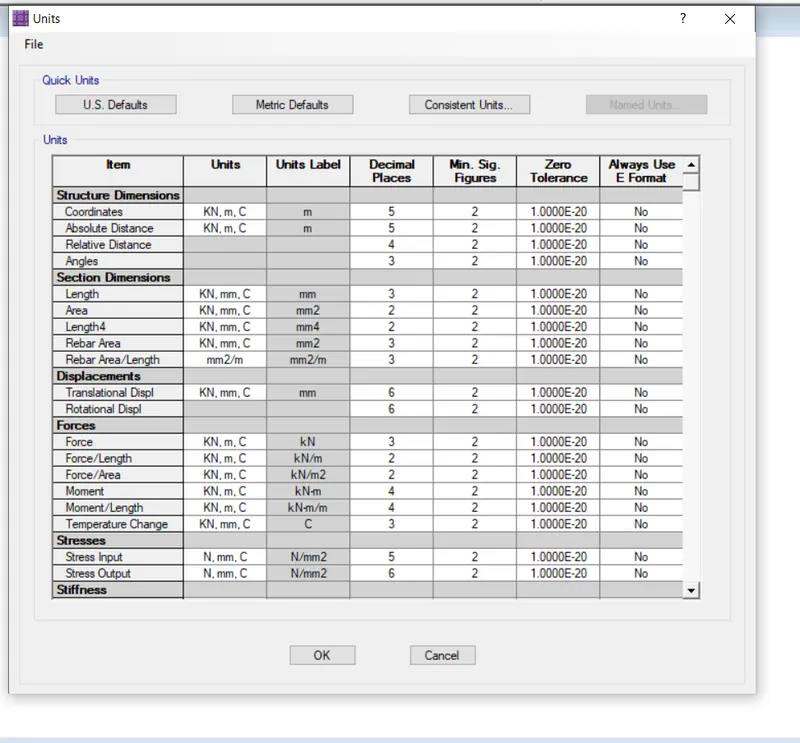

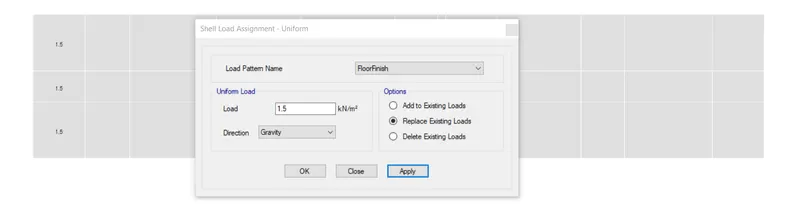

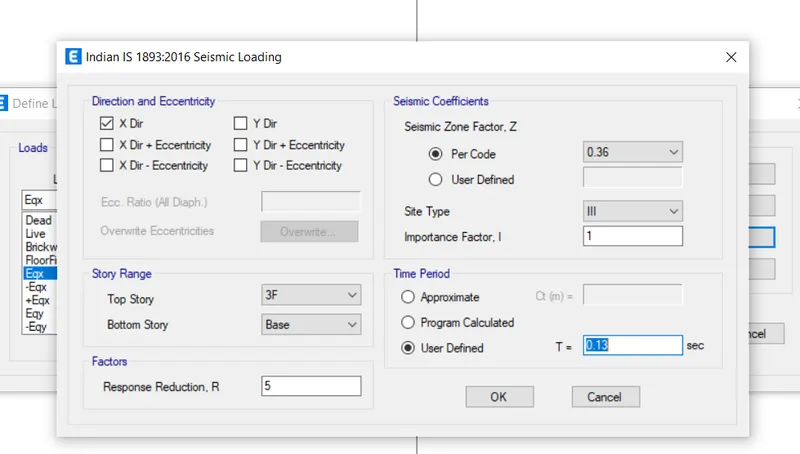

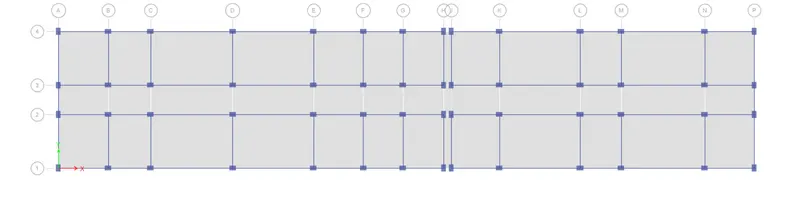

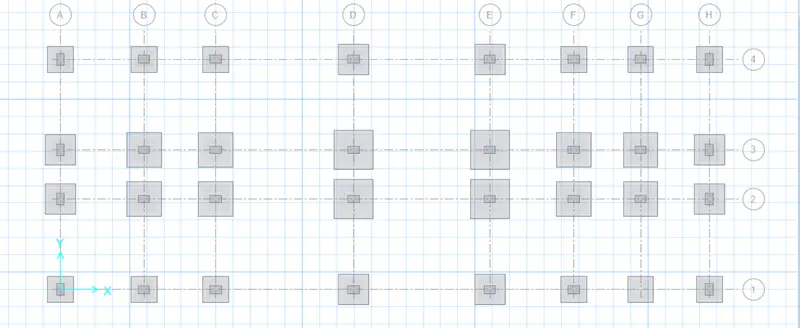

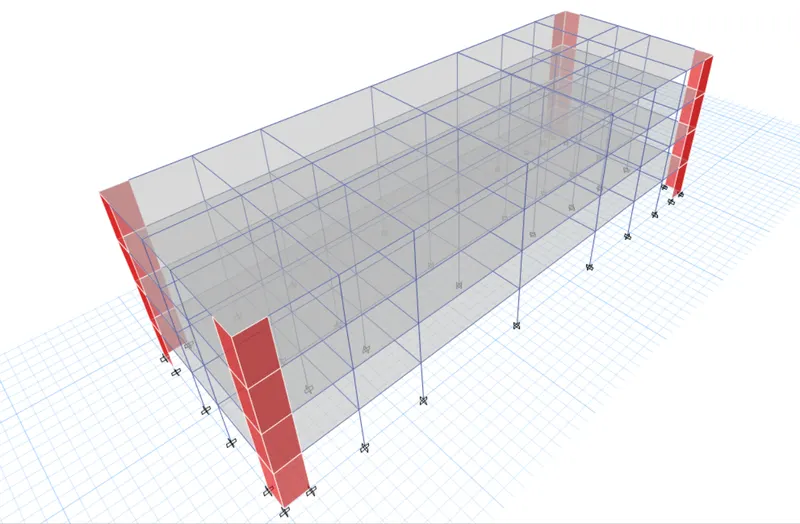

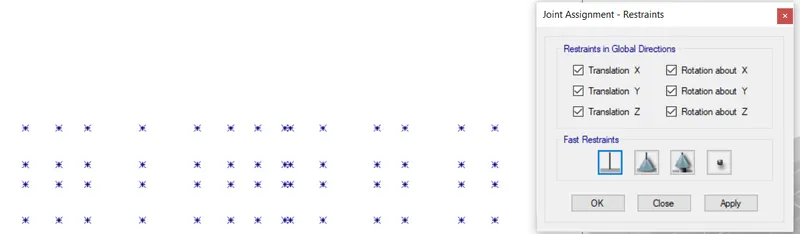

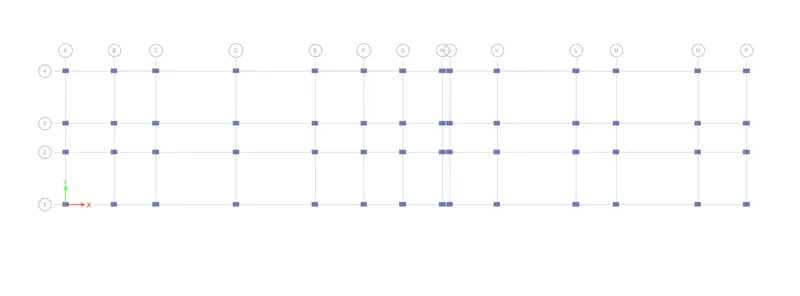

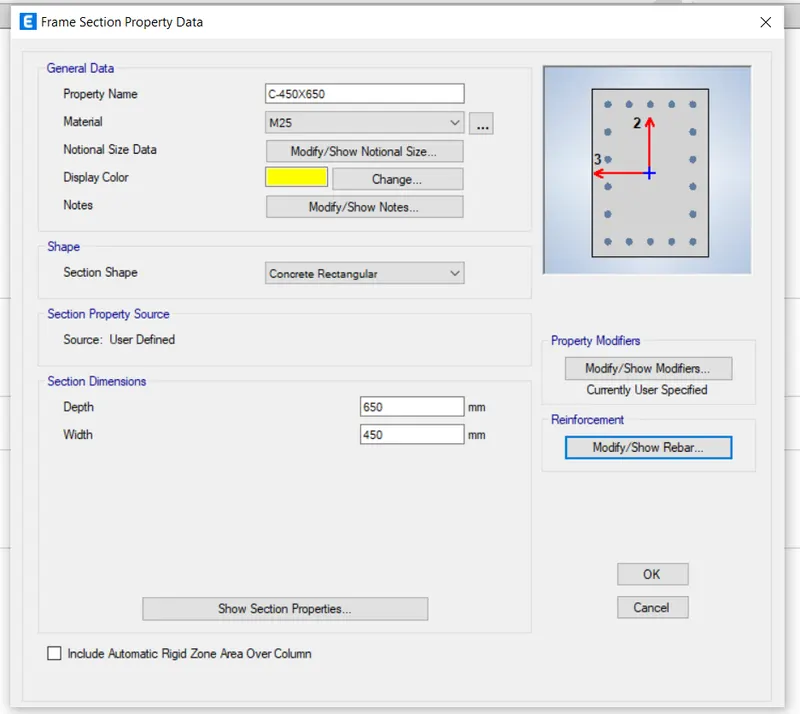

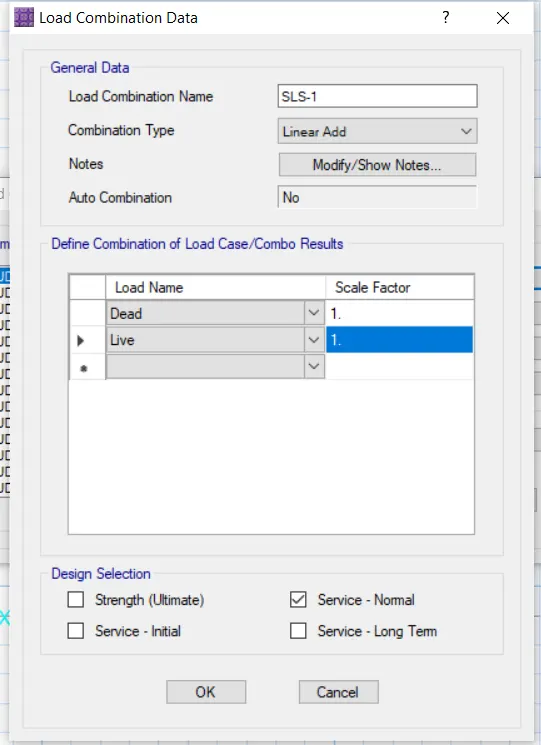

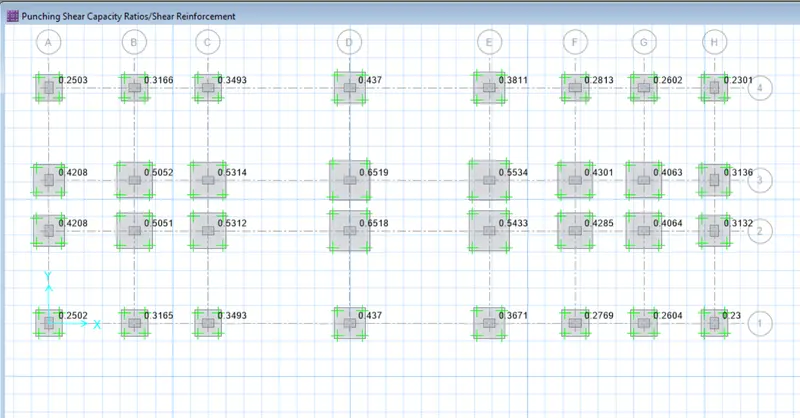

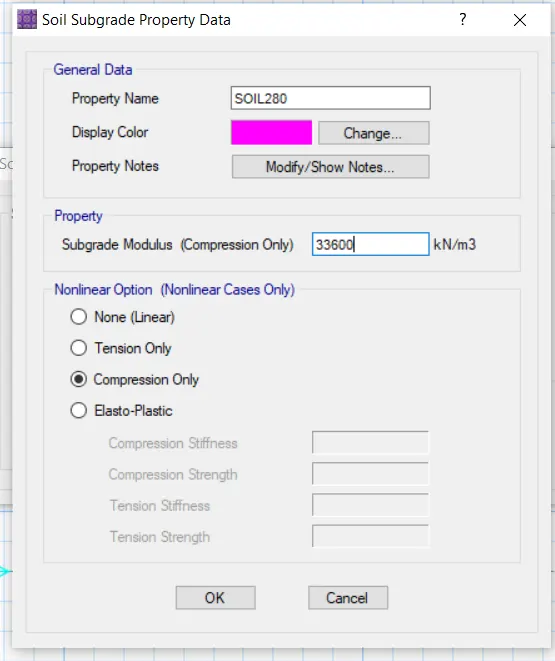

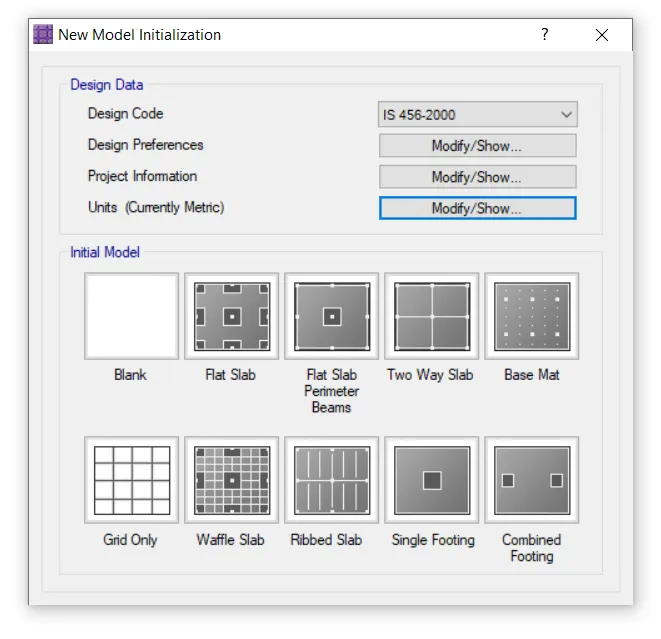

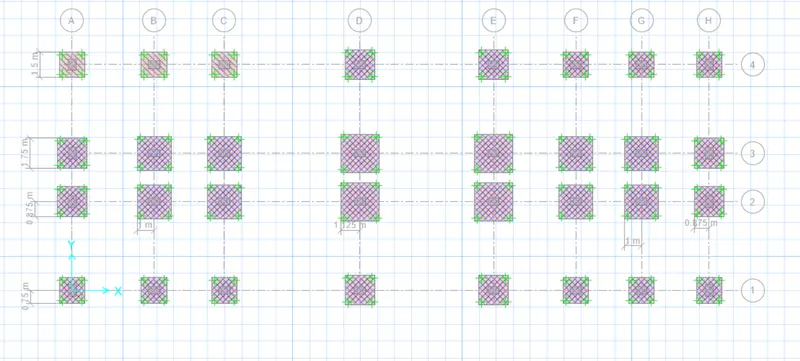

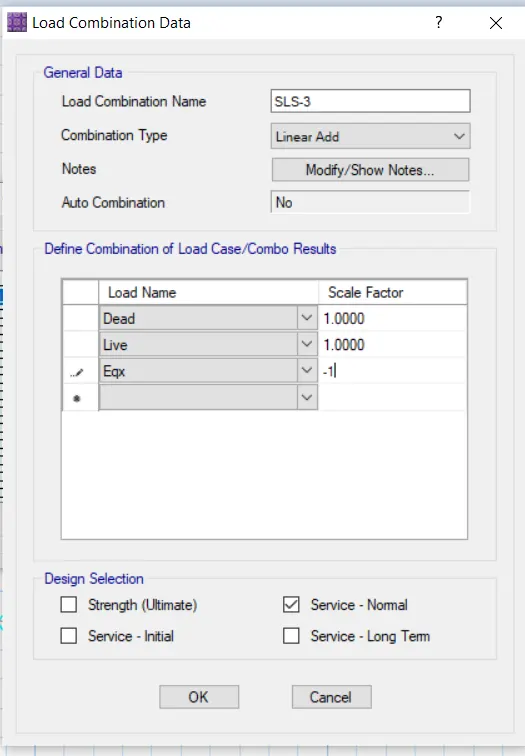

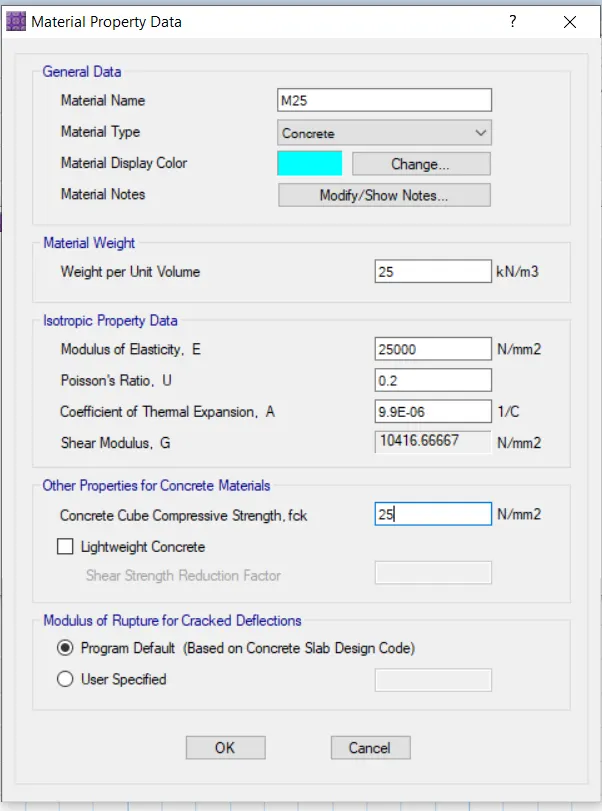

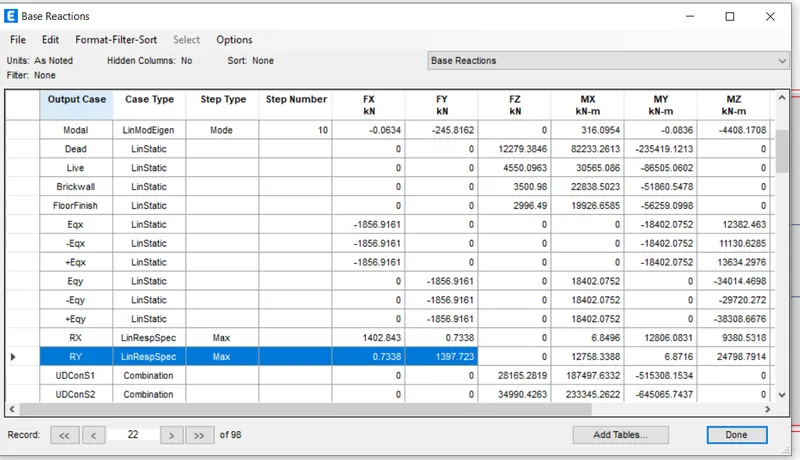

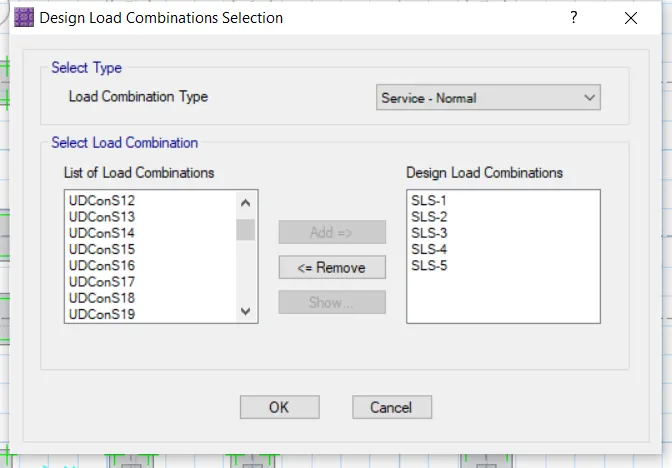

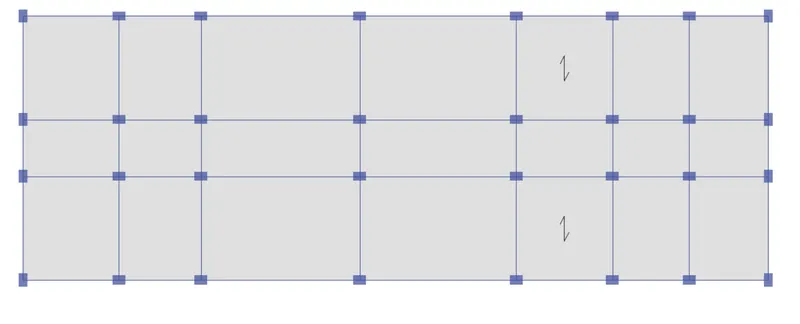

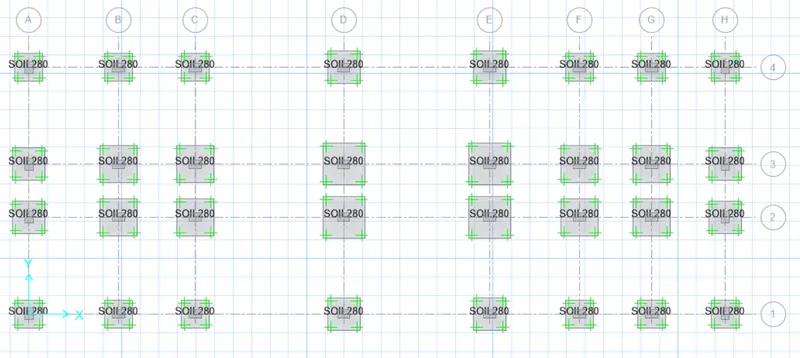

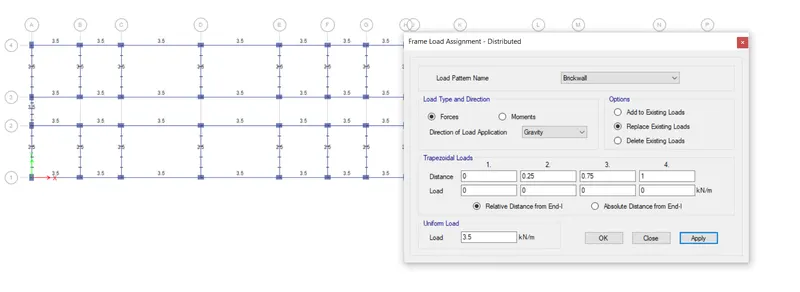

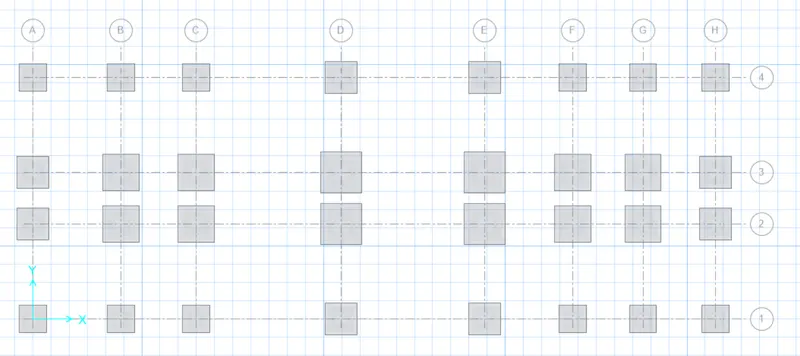

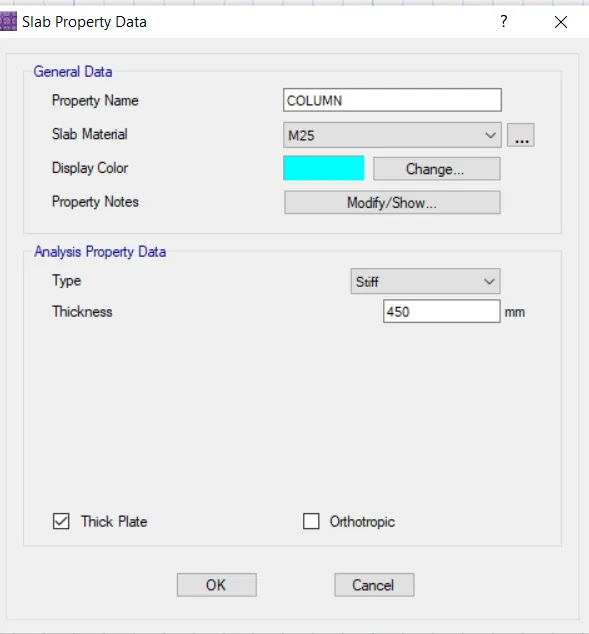

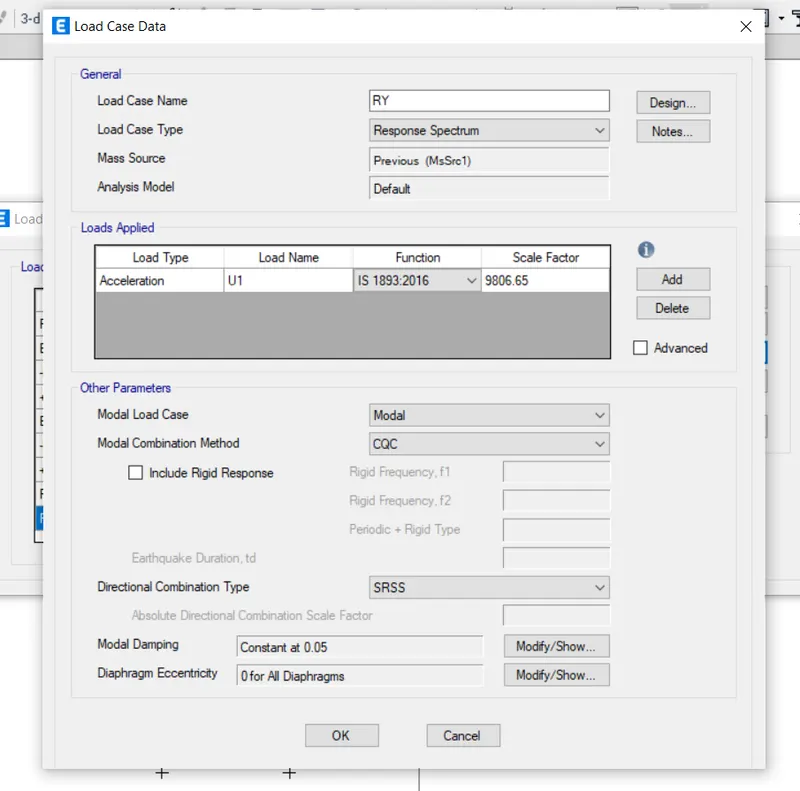

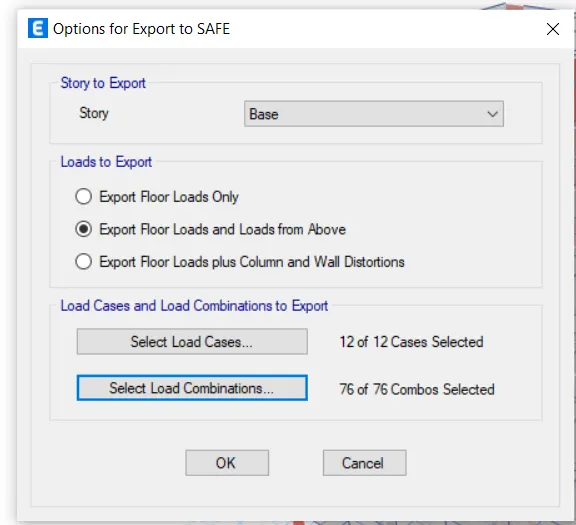

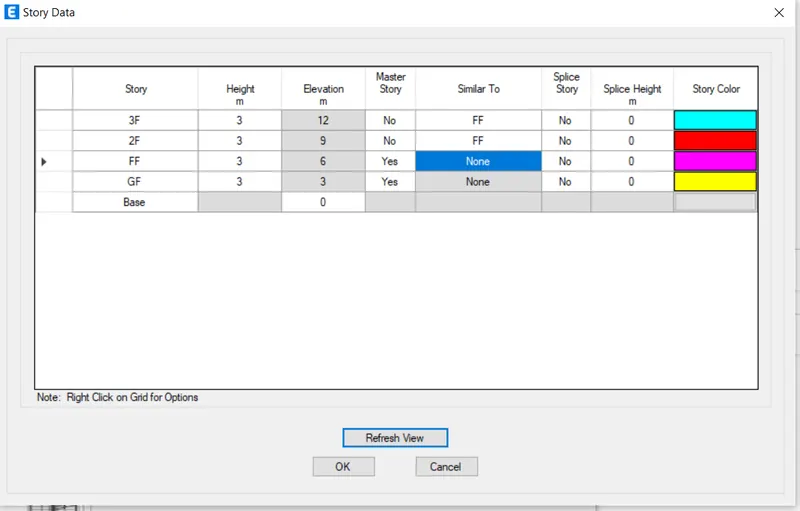

1.In this project, participants will get to experience the entire design process from modelling, analysis, design, and preparation of construction drawings. The architectural drawings of a G+3 RCC building is provided. The following information on the building is to be used: Location – Guwahati, Assam Function –…

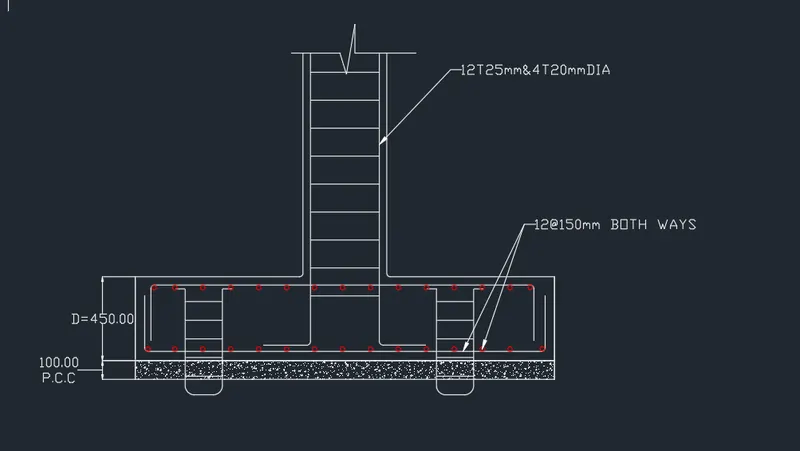

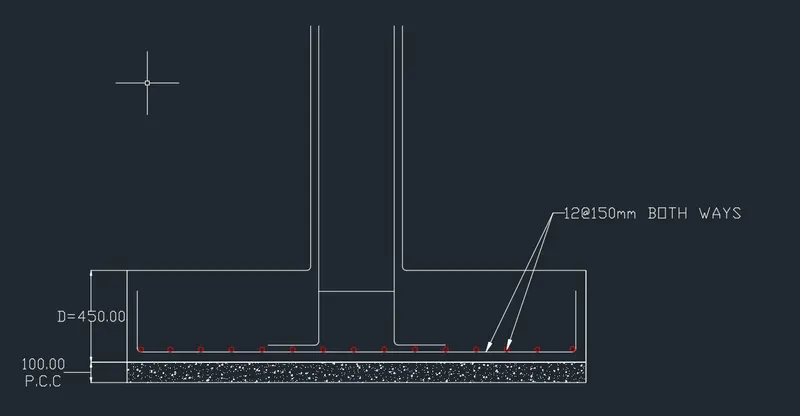

1.Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 metres below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial load,…

1.AIM:     The architectural drawings for a G+7 residential building in zone 5 has been provided. Step by Step procedure: Screenshot are apply  below.

1.The etabs file for a G+6 building is provided. Run the analysis and design the RCC shear walls (show in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model.

The ETABS file for a G+4 building is provided. Run the analysis and design the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. 3A 3B

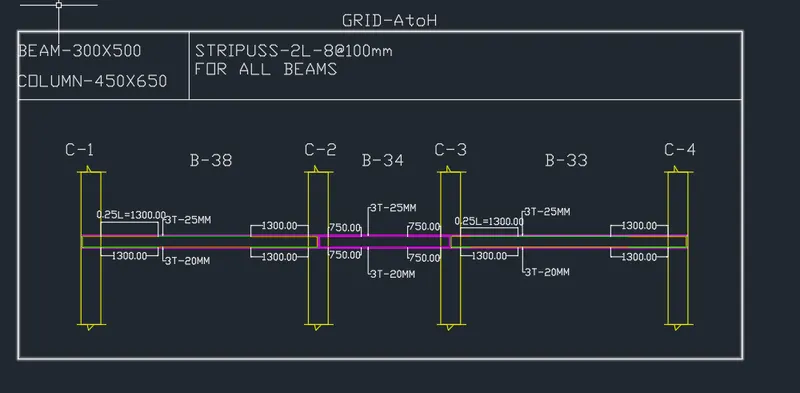

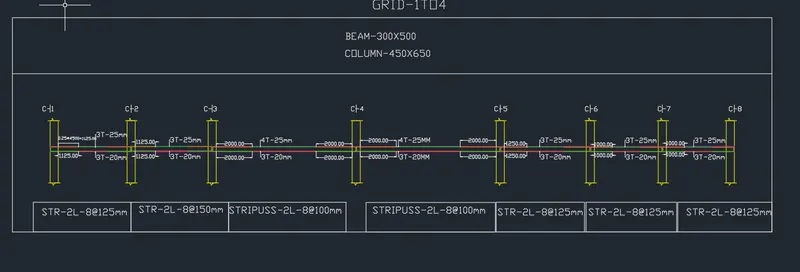

1. 3 span continuous beam along grid A:    2) 7 span continuous beam along grid 3: Calculate value of the maximum shear force in any one of the spans in both the continuous beams, as per clause 6.3.3 (b) in IS 13920 – 2016:

1.Effect of stiffness on T: Compare fundamental natural periods of buildings E & F as well as G & H. Why is there a marginal or significant difference in the fundamental natural periods: The column size increases both stiffness and mass of building.When the column size is increase mass of the building is increase,the…

1.Factor influncing the natural period building

1.AIM:     Model a 25 storey building on ETABS 2018 with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres. Step by Step producdure:   Result:    In…

1.The building shown, 20 × 35 m in plan, has columns on a 5 × 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements, (a), (b), (c), all with the same total cross-sectional area of the shear walls. Compare the three alternatives, taking into account the…

1.Aim:       The layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility. Layout of the framing plan: In this plan we have seen a symmetry…

1.AIM:      A five storey structure with 5 translational DOF is shown here. Each storey has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. Step:1   For mode 1:      …

1.AIm:     Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc . Lateral stiffness of the one story frame: This structure can be analyzed by any of the standard methods, including momentdistribution.…

1.Aim:    The mode of failure or damage of the beams . Would you characterize the case as damage or as a failure. Are the damages repairable. The mode of failure or damage of the beams: These are the various types of cracks from in the concrete structure. These mode not a failure its is damades of beam it can…

1.AIM:      Create a 3 dimensional model of the residential building with a rendered view.   Create a 3 dimensional model of the residential building: First step we need create the 2d plan for residential building. First we need to study the plan and get planed to draw. First we need start from a left…

1.AIM:      Create a 3D Isometric View of the building with plan and elevation given. Create a 3D Isometric View: First to click 'Units" to change as per given plan. Then Click 'REC' rectangle command to start the plan. The create the window opening as per dimension. Now offset the line by window dimension…

1.AIM:      Create a 3D Furniture element . Assume dimensions which are missing. Create a 3D Furniture element: First click 3Dmodeling view in setting. Then change a 'Units' as per given in drawing. Click a '3D view' in right coner of the screen. Click "Line" and draw the element given in the drawing After…

1.AIM:     Create the layouts of the Kitchen and provide hatches pattern. INTRODUCTION: The layouts of the Kitchen and provide hatches pattern Also, use blocks wherever required. Provide appropriate dimensions in the plan. Create the layouts of the Kitchen: Frist create the "Layout" command. Then Click 'templete' option…

1. AIM:       Create the templates as shown in Figures. INTRODUCTION: TCreate a layout of the Plan and Section A of the project in Challenges 7, using the template TutorialmArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size asshown in Figure. Also, use…

1. AIM:       Create the templates as shown in Figures. INTRODUCTION: Take the size of the title block as per industry standards oryou can assume it as per the size of the paper. Use text and attributes wherever required. After creatingthe title block you need to save it as a block with names: Custom1_titleblock…

1.Aim:     To Create a Floor Plan for Plot Size 60'X20, by using Auto Cad. INtroduction: To Create a Floor Plan for Plot Size 60'X20by  using a various command.  Now we see the Step by Step Producre to Create a Drawing. Floor for Plot Size 60'X20:  we create a Floor Plan  elevation and with…

1.Aim:     To Create a Floor Plan 1,2&3 by using Auto Cad. INtroduction: To Create a Floor Plan 1,2&3 by using a various command.  Now we see the Step by Step Producre to Create a Drawing. Floor Plan 1,2&3:  we create a Floor Plan 1,2&3 elevation,plan, and with section. First we…

1.Aim:     To Create a Cabinet drawing by using Auto Cad. INtroduction: To Create a Cabinet drawing by using a various command.  Now we see the Step by Step Producre to Create a Drawing. Cabinet Drawing:  we create a Cabinet Drawing elevation,plan, and with section. And we need Draw the plan as…

1.Aim:     To Create a Column Schedule by using Auto Cad. INtroduction: To Create a Column Schedule by using a Dtext  Now we see the Step by Step Producre to Create a Text. Column Schedule:  we create a column schedule with the help of lines. Also insert text with help of Dtext command or Single Line…

1. AIM:   To  create the plan, Residence Layout,Seating Plan,Toilet and Utility room plan by using autocad. 1.Residence Layout plan: In this drawing we create a Residence Layout plan. Now we can see the command used for this drawing as step by step. Step: First we need to study the plan and get planed to…

AIM:   To  create the Drafting of Various geomentric using Champer,fillet tool by using autocad. 1.The unit used by decimal drawing. In this drawing we create a simple drawing. Now we can see the command used for this drawing as step by step. Step: First check the dimension as we start before a line. Next…

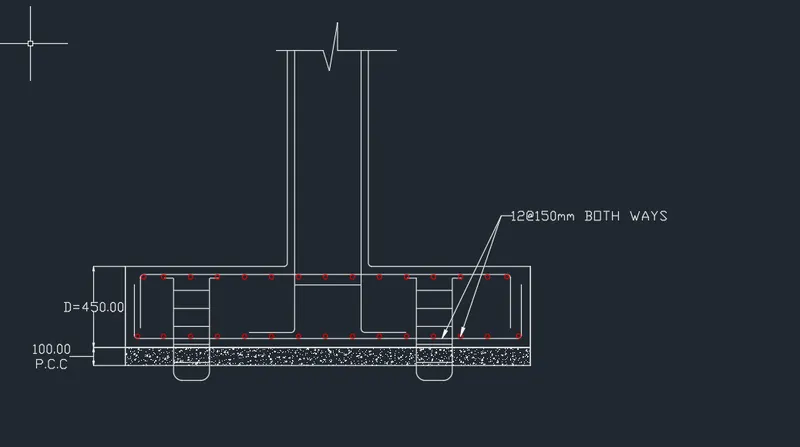

AIM:   To  create the plan, footing detais and isometric view by using autocad. 1.CS Foundation Details for Load Bearing Wall: In this drawing we create a cs foundation deatails for Load Bearing Wall. Now we can see the command used for this drawing as step by step. Step: First check the dimension as…

AIM:     To Create a the geometries from P1 to P2 using all the coordinates system methods. INTRODUCTION: In this Challenge we create a basic drawings that followed by given dimensions using all coordinates system and the help of Line and Circle Command. Use the Imperial Template and the Decimal Units…

Residential plan, according to Vaastu Shastra: For a house to become a home, it needs to radiate the right kind of energy. According to a number of traditional beliefs, each home comes with its own energy type. A person dwelling in a house comes under the influence of a specific energy field, which in turn influences him…

The Concrete Mix Design for M35 grade concrete with fly ash: Step-1 Stipulations for Proportioning: Grade designation                            :M35 Type  of Cement                       …
