Project 2 Adaptive Cruise Control
Adaptive Cruise Control- Model Based Development
Adaptive cruise control:-

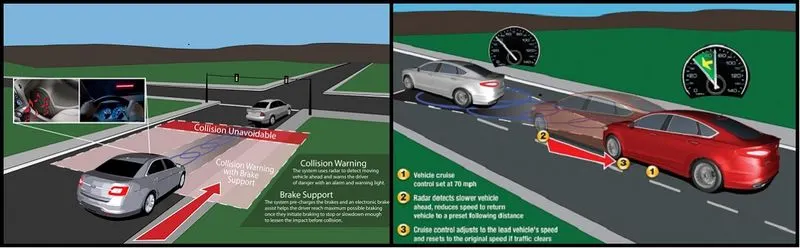

Adaptive cruise control (ACC) is a system designed to help vehicles maintain a safe following distance and stay within the speed limit. This system adjusts a car's speed automatically so drivers don't have to.
ACC functions by sensory technology installed within vehicles such as cameras, lasers, and radar equipment, which creates an idea of how close one car is to another, or other objects on the roadway. For this reason, ACC is the basis for future car intelligence.
These sensory technologies allow the car to detect and warn the driver about potential forward collisions. When this happens, red lights begin to flash, and the phrase 'brake now!' appears on the dashboard to help the driver slow down. There might also be an audible warning.
Overview of the project:-
Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe distance to the preceding vehicle calls for a high level of concentration. The Adaptive Cruise Control feature can reduce the stress on the driver by automatically controlling the vehicle speed & maintaining a predefined minimum distance to the preceding vehicle. As a consequence, the driver enjoys more comfort & can concentrate on the road little better.
A radar sensor is usually at the core of the Adaptive Cruise Control. Installed at the front of the vehicle, the system permanently monitors the road ahead. As long as the road ahead is clear, cruise control feature maintains the speed set by the driver. If the system spots a slower vehicle within its detection range, it gently reduces speed by releasing the accelerator or actively engaging the brake control system. If the vehicle ahead speeds up or changes lanes, the cruise control automatically accelerates to the driver’s desired speed.
Standard Adaptive Cruise Control can be activated from speeds of around 30 km/h (20 mph) upwards and supports the driver, primarily on cross-country journeys or on freeways. The cruise control stop & go variant is also active at speeds below 30 km/h (20 mph). It can maintain the set distance to the preceding vehicle even at very low speeds and can decelerate to a complete standstill. When the vehicle remains stopped longer, the driver needs only to reactivate the system, for example by briefly stepping on the gas pedal to return to cruise control mode. In this way, cruise control stop & go supports the driver even in heavy traffic and traffic jams.
Since Adaptive Cruise Control is a comfort and convenience system, brake interventions and vehicle acceleration only take place within defined limits. Even with Adaptive Cruise Control switched on, it remains the driver’s responsibility to monitor the speed and distance from the vehicle in front.
Aim for the project:-
- Developing Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.
- Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.

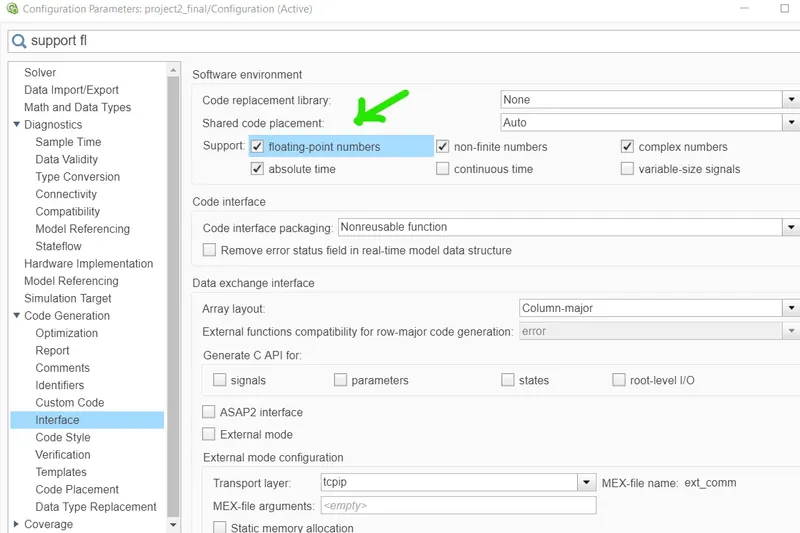

- In Configuration Parameters: enable “Support Floating Numbers” under Code Generation settings.
- Use Embedded Coder to generate the code.
- If choosing code generation, Storage class for Input signals: ImportedExtern; Storage class for Output signal: Export to File; Storage class for local signals: localizable; Storage class for calibration signals: Const.
- Choose sample time for all signals as 0.01s
Project Description:-
Provided Requirements:-
Requirement 1– Lead Vehicle:
- Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
- Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.
- We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
- Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm

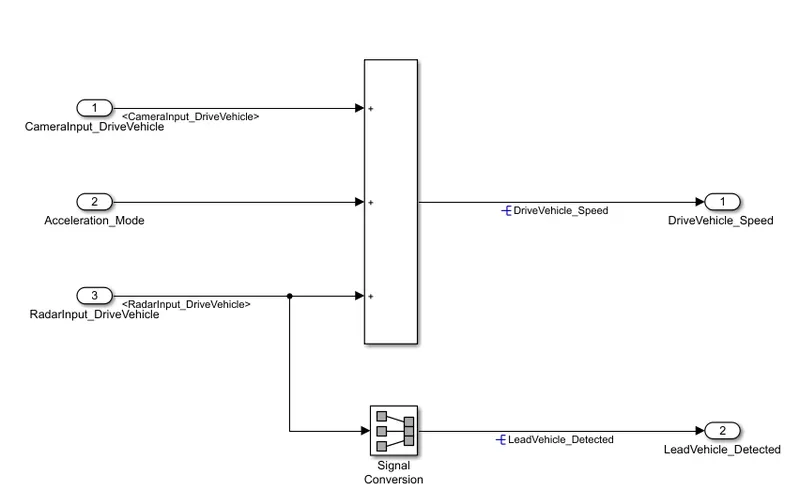

Requirement 2 – Drive Vehicle:
- Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
- Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
- Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
- Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
- Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.
Requirement 3 – Adaptive Cruise Control Algorithm:
- Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
- The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
- Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
- Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
- Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.

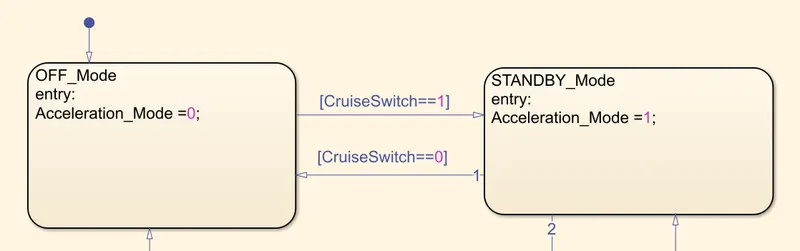

Requirement 3a – ACC OFF MODE state logic:
- This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
- This state is governed by input signal CruiseSwitch.
- If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
Requirement 3b – ACC STANDBY MODE state logic:
- This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
- This state is governed by both input signals CruiseSwitch & SetSwitch.
- If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
- If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.
Requirement 3c – ACC ON MODE state logic:
This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:
- LeadVehicle_Detected_Follow (Default)
- LeadVehicle_Not_Detected
- LeadVehicle_Detected_Resume
- LeadVehicle_Not_Detected_Resume
- LeadVehicle_Speed_lessthan_Set_Speed
- LeadVehicle_Speed_equal_Set_Speed
Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):
- This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
- Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
- Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).
Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 1.
- Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]
Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 3.
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
- Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]
Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 1.
Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 4.
- Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
- Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]
Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):
- Output signal Acceleration_Mode is equal to 5.
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
- Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed<Set_Speed) && (LeadVehicle_Speed<DriveVehicle_Speed) || (Time_Gap == 0.75*Set_Gap)]
All these requirements were encoded with the state flow and it will appear as follows:-

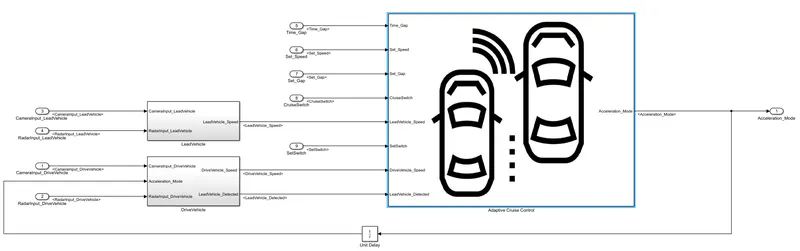

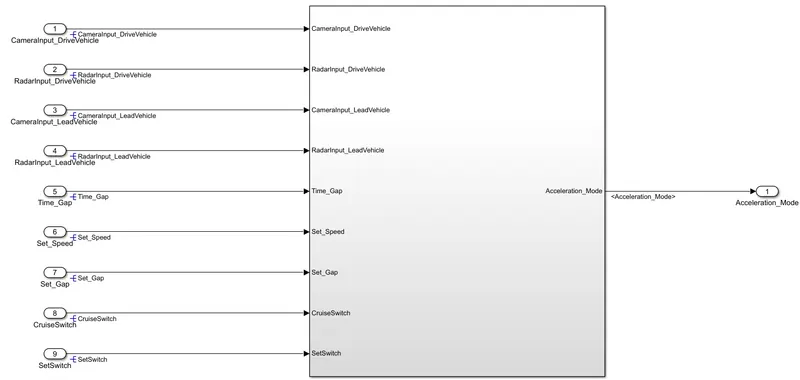

FINAL SIMULINK MODEL:-

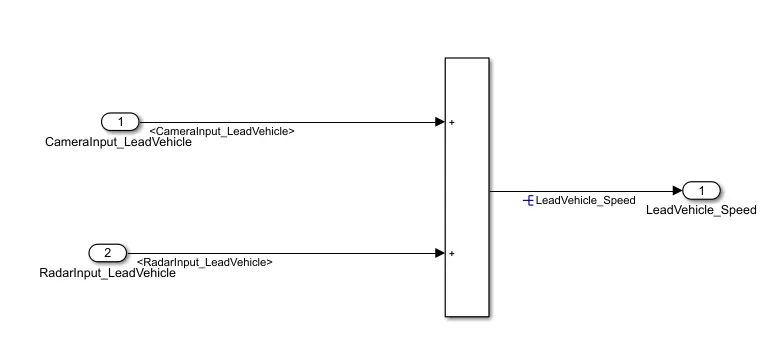

SUBSYSTEM:-

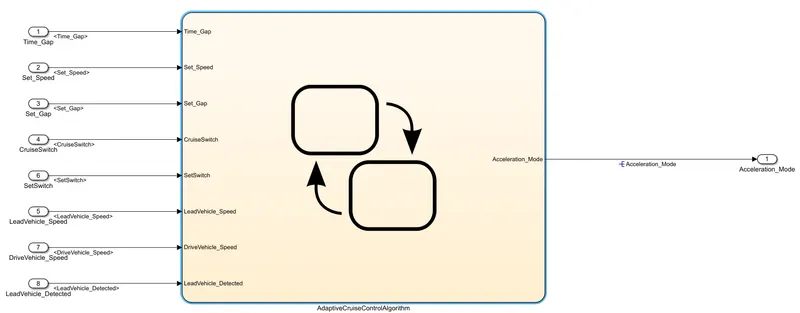

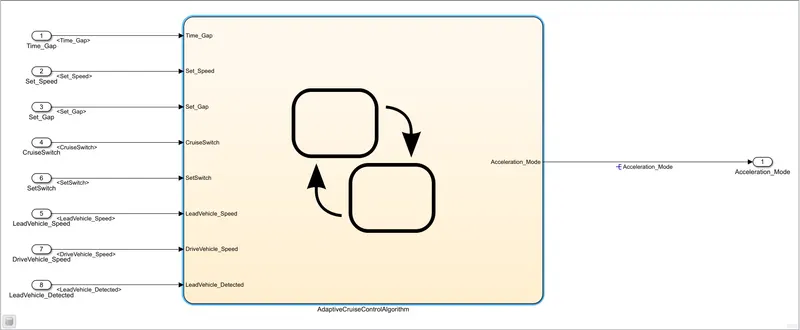

ADAPTIVE CRUISE CONTROL ALGORITHM:-

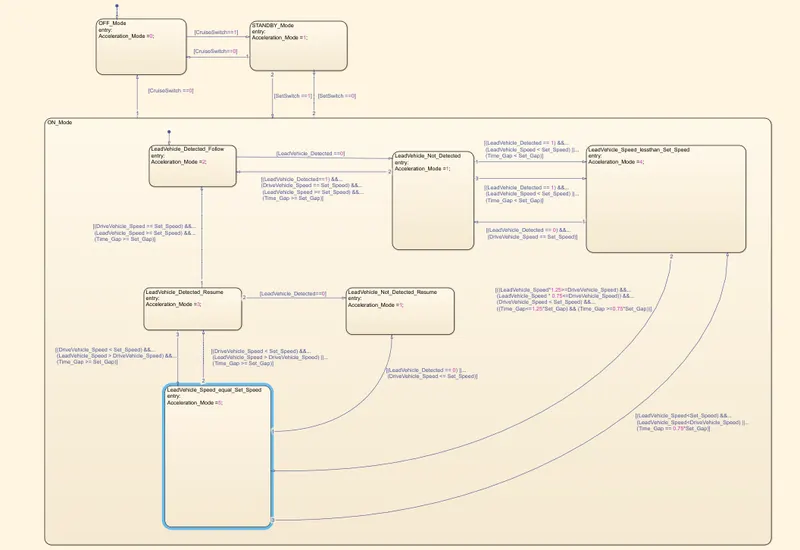

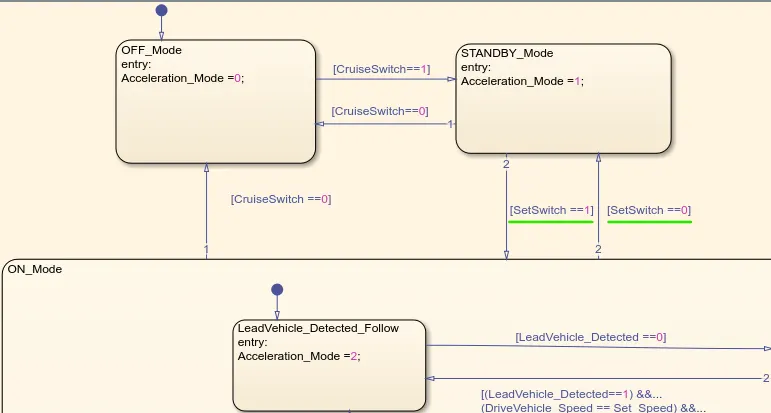

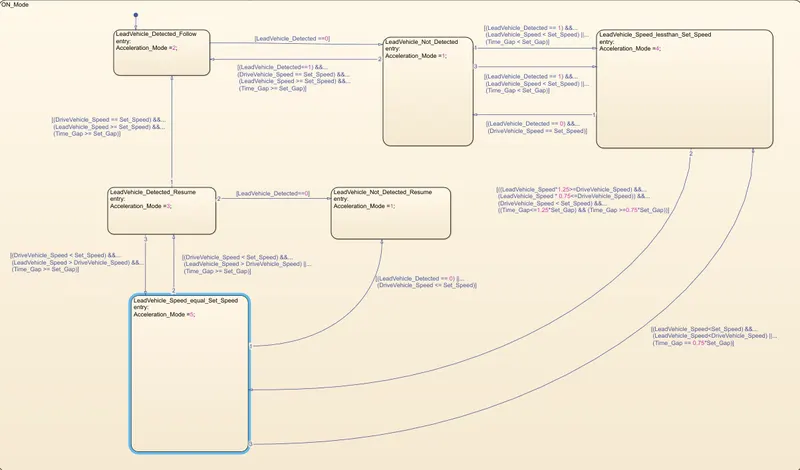

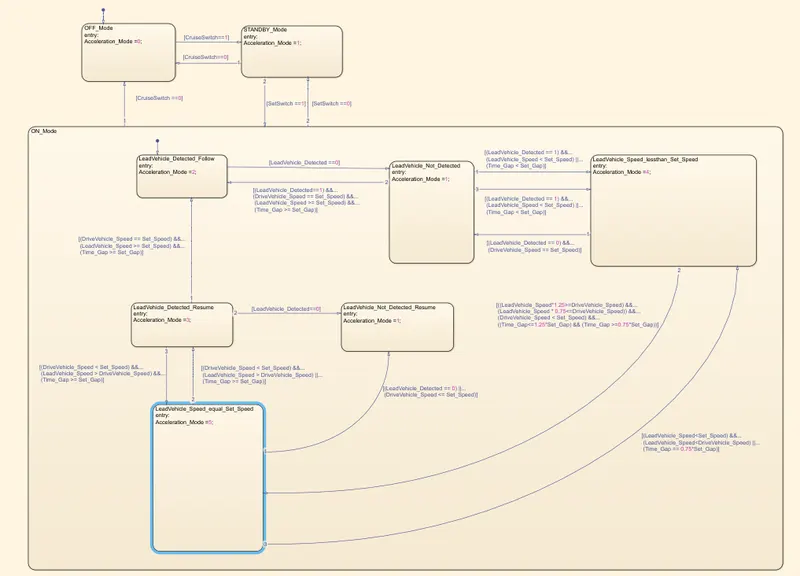

STATE FLOW LOGIC:-
And hence, the simulink model is created for all the given requirements and the model is sucessfully updated by giving ctrl+D command.

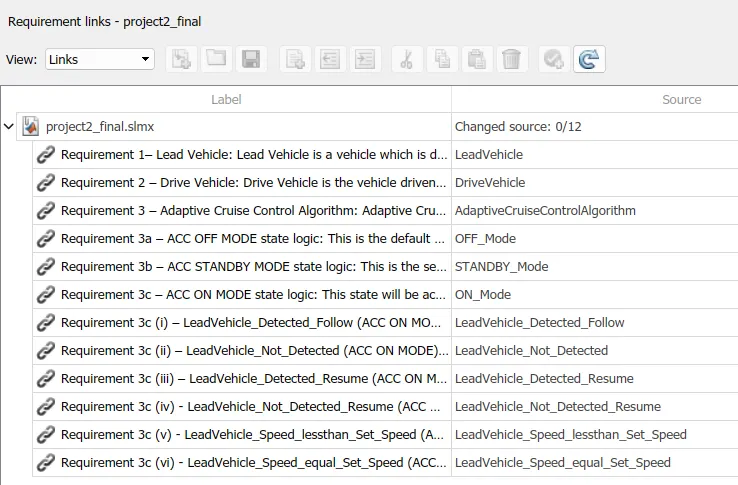

Requirement Tagging:-
Now the next process is to tag all the requirements to the respective model and that can be achieved by Right click ---> Requirements ---> Link selection to word and hence the respective requirements were tagged to the corresponding subsystems or blocks.

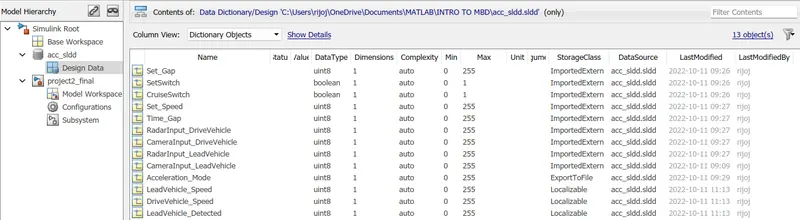

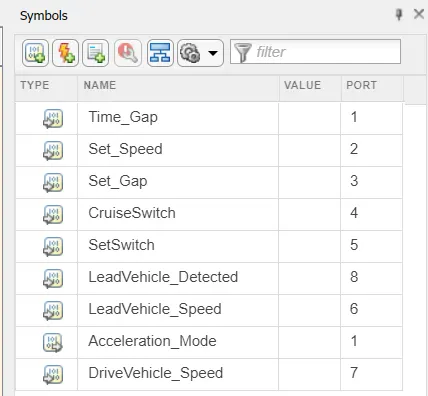

Creating SLDD:-
Then, the Data dictionary has been created for all of the signals and parameters by Modelling ---> Link to Data Dictionary. And there all the details like Data type, Dimensions, Min and Max values and the sample time are updated accoringly.

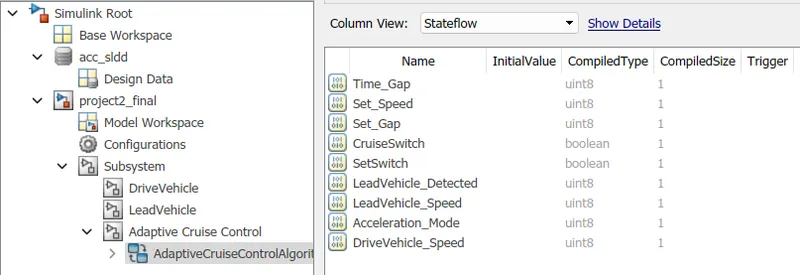

SLDD FOR THE SUBSYSTEM:-
Model Advisory Report:-
The next step is to generate the Model advisory report. Before generating it, some of the configration settings were done on the Model settings tool. And specifically in our project Configuration Parameters: enable “Support Floating Numbers” has been asked and along with different model settings, this is also done.
Now to generate the model advisor report choose, Apps ---> Model advisor is chosen.
Then the Model advisor diaglog box will appear and then choose the entire model name for model check.
And then in the dialog box select the tasks which you want to go for the check. In this project, I have chosen only MAAB guidelines for the advisory check. But depending upon our project we can go for our required checks and after selecting the guideline click on ' Run the selected checks '. And hence the checks will be done and our results will be displayed as follows:-

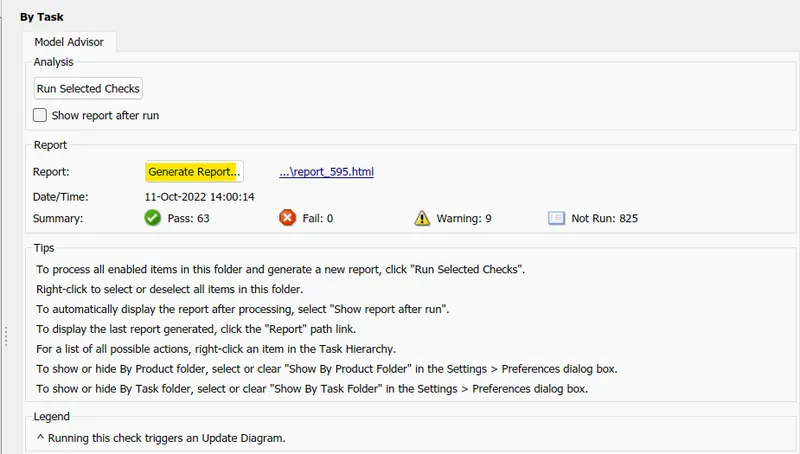

After the process, 'Generate Report' command is given to generate the advisory report as follows:-
Note:- The model advisory report is attached with the answer box
CODE GENERATION:-
The final step of the project is to develop the C- code.This is done by giving the command, Apps ---> Embbedded coder ---> Build ---> Generate code and build model. And hence the C code is generated and stored for the model sucessfully.
C- Code:-
File: project2_final.c
1 /*
2 * File: project2_final.c
3 *
4 * Code generated for Simulink model 'project2_final'.
5 *
6 * Model version : 1.13
7 * Simulink Coder version : 9.2 (R2019b) 18-Jul-2019
8 * C/C++ source code generated on : Tue Oct 11 14:17:34 2022
9 *
10 * Target selection: ert.tlc
11 * Embedded hardware selection: Intel->x86-64 (Windows64)
12 * Code generation objectives: Unspecified
13 * Validation result: Not run
14 */
15
16 #include "project2_final.h"
17 #include "project2_final_private.h"
18
19 /* Named constants for Chart: '/AdaptiveCruiseControlAlgorithm' */
20 #define IN_LeadVehicle_Detected_Follow ((uint8_T)1U)
21 #define IN_LeadVehicle_Detected_Resume ((uint8_T)2U)
22 #define IN_LeadVehicle_Not_Detected_Res ((uint8_T)4U)
23 #define IN_LeadVehicle_Speed_equal_Set_ ((uint8_T)5U)
24 #define IN_LeadVehicle_Speed_lessthan_S ((uint8_T)6U)
25 #define pro_IN_LeadVehicle_Not_Detected ((uint8_T)3U)
26 #define project2_fin_IN_NO_ACTIVE_CHILD ((uint8_T)0U)
27 #define project2_final_IN_OFF_Mode ((uint8_T)1U)
28 #define project2_final_IN_ON_Mode ((uint8_T)2U)
29 #define project2_final_IN_STANDBY_Mode ((uint8_T)3U)
30
31 /* Exported data definition */
32
33 /* Definition for custom storage class: ExportToFile */
34 uint8_T Acceleration_Mode; /* '/AdaptiveCruiseControlAlgorithm' */
35
36 /* Definition for custom storage class: Localizable */
37 static uint8_T DriveVehicle_Speed; /* '/Add' */
38 static uint8_T LeadVehicle_Detected; /* '/Signal Conversion' */
39 static uint8_T LeadVehicle_Speed; /* '/Add' */
40
41 /* Block states (default storage) */
42 DW_project2_final_T project2_final_DW;
43
44 /* Real-time model */
45 RT_MODEL_project2_final_T project2_final_M_;
46 RT_MODEL_project2_final_T *const project2_final_M = &project2_final_M_;
47
48 /* Forward declaration for local functions */
49 static void project2_final_ON_Mode(void);
50 real_T rt_roundd_snf(real_T u)
51 {
52 real_T y;
53 if (fabs(u) < 4.503599627370496E+15) {
54 if (u >= 0.5) {
55 y = floor(u + 0.5);
56 } else if (u > -0.5) {
57 y = u * 0.0;
58 } else {
59 y = ceil(u - 0.5);
60 }
61 } else {
62 y = u;
63 }
64
65 return y;
66 }
67
68 /* Function for Chart: '/AdaptiveCruiseControlAlgorithm' */
69 static void project2_final_ON_Mode(void)
70 {
71 int32_T tmp;
72 int32_T tmp_0;
73 uint8_T tmp_1;
74 uint8_T tmp_2;
75 boolean_T guard1 = false;
76
77 /* Inport: '/CruiseSwitch' incorporates:
78 * Inport: '/SetSwitch'
79 */
80 if (!CruiseSwitch) {
81 project2_final_DW.is_ON_Mode = project2_fin_IN_NO_ACTIVE_CHILD;
82 project2_final_DW.is_c3_project2_final = project2_final_IN_OFF_Mode;
83 Acceleration_Mode = 0U;
84 } else if (!SetSwitch) {
85 project2_final_DW.is_ON_Mode = project2_fin_IN_NO_ACTIVE_CHILD;
86 project2_final_DW.is_c3_project2_final = project2_final_IN_STANDBY_Mode;
87 Acceleration_Mode = 1U;
88 } else {
89 guard1 = false;
90 switch (project2_final_DW.is_ON_Mode) {
91 case IN_LeadVehicle_Detected_Follow:
92 Acceleration_Mode = 2U;
93 if (LeadVehicle_Detected == 0) {
94 project2_final_DW.is_ON_Mode = pro_IN_LeadVehicle_Not_Detected;
95 Acceleration_Mode = 1U;
96 }
97 break;
98
99 case IN_LeadVehicle_Detected_Resume:
100 Acceleration_Mode = 3U;
101
102 /* Inport: '/Set_Speed' incorporates:
103 * Inport: '/Set_Gap'
104 * Inport: '/Time_Gap'
105 */
106 if ((DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) &&
107 (Time_Gap >= Set_Gap)) {
108 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Detected_Follow;
109 Acceleration_Mode = 2U;
110 } else if (LeadVehicle_Detected == 0) {
111 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Not_Detected_Res;
112 Acceleration_Mode = 1U;
113 } else {
114 if ((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
115 DriveVehicle_Speed) && (Time_Gap >= Set_Gap)) {
116 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Speed_equal_Set_;
117 Acceleration_Mode = 5U;
118 }
119 }
120 break;
121
122 case pro_IN_LeadVehicle_Not_Detected:
123 Acceleration_Mode = 1U;
124 if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed)) ||
125 (Time_Gap < Set_Gap)) {
126 guard1 = true;
127 } else if ((LeadVehicle_Detected == 1) && (DriveVehicle_Speed == Set_Speed)
128 && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)) {
129 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Detected_Follow;
130 Acceleration_Mode = 2U;
131 } else {
132 if (((LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed)) ||
133 (Time_Gap < Set_Gap)) {
134 guard1 = true;
135 }
136 }
137 break;
138
139 case IN_LeadVehicle_Not_Detected_Res:
140 Acceleration_Mode = 1U;
141 break;
142
143 case IN_LeadVehicle_Speed_equal_Set_:
144 Acceleration_Mode = 5U;
145
146 /* Inport: '/Set_Speed' incorporates:
147 * Inport: '/Set_Gap'
148 * Inport: '/Time_Gap'
149 */
150 if ((LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)) {
151 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Not_Detected_Res;
152 Acceleration_Mode = 1U;
153 } else if (((DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed >
154 DriveVehicle_Speed)) || (Time_Gap >= Set_Gap)) {
155 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Detected_Resume;
156 Acceleration_Mode = 3U;
157 } else {
158 if (((LeadVehicle_Speed < Set_Speed) && (LeadVehicle_Speed <
159 DriveVehicle_Speed)) || ((int32_T)rt_roundd_snf(0.75 * (real_T)
160 Set_Gap) == Time_Gap)) {
161 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Speed_lessthan_S;
162 Acceleration_Mode = 4U;
163 }
164 }
165 break;
166
167 default:
168 /* case IN_LeadVehicle_Speed_lessthan_Set_Speed: */
169 Acceleration_Mode = 4U;
170
171 /* Inport: '/Set_Speed' */
172 if ((LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)) {
173 project2_final_DW.is_ON_Mode = pro_IN_LeadVehicle_Not_Detected;
174 Acceleration_Mode = 1U;
175 } else {
176 tmp = (int32_T)rt_roundd_snf((real_T)LeadVehicle_Speed * 1.25);
177
178 /* Inport: '/Set_Gap' */
179 tmp_0 = (int32_T)rt_roundd_snf(1.25 * (real_T)Set_Gap);
180 if (tmp < 256) {
181 tmp_1 = (uint8_T)tmp;
182 } else {
183 tmp_1 = MAX_uint8_T;
184 }
185
186 if (tmp_0 < 256) {
187 tmp_2 = (uint8_T)tmp_0;
188 } else {
189 tmp_2 = MAX_uint8_T;
190 }
191
192 /* Inport: '/Time_Gap' incorporates:
193 * Inport: '/Set_Gap'
194 */
195 if ((tmp_1 >= DriveVehicle_Speed) && ((int32_T)rt_roundd_snf((real_T)
196 LeadVehicle_Speed * 0.75) <= DriveVehicle_Speed) &&
197 (DriveVehicle_Speed < Set_Speed) && (Time_Gap <= tmp_2) && (Time_Gap
198 >= (int32_T)rt_roundd_snf(0.75 * (real_T)Set_Gap))) {
199 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Speed_equal_Set_;
200 Acceleration_Mode = 5U;
201 }
202 }
203 break;
204 }
205
206 if (guard1) {
207 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Speed_lessthan_S;
208 Acceleration_Mode = 4U;
209 }
210 }
211
212 /* End of Inport: '/CruiseSwitch' */
213 }
214
215 /* Model step function */
216 void project2_final_step(void)
217 {
218 /* Sum: '/Add' incorporates:
219 * Inport: '/CameraInput_LeadVehicle '
220 * Inport: '/RadarInput_LeadVehicle'
221 */
222 LeadVehicle_Speed = (uint8_T)((uint32_T)CameraInput_LeadVehicle +
223 RadarInput_LeadVehicle);
224
225 /* Sum: '/Add' incorporates:
226 * Inport: '/CameraInput_DriveVehicle'
227 * Inport: '/RadarInput_DriveVehicle'
228 * UnitDelay: '/Unit Delay'
229 */
230 DriveVehicle_Speed = (uint8_T)((uint32_T)(uint8_T)((uint32_T)
231 CameraInput_DriveVehicle + project2_final_DW.UnitDelay_DSTATE) +
232 RadarInput_DriveVehicle);
233
234 /* SignalConversion: '/Signal Conversion' incorporates:
235 * Inport: '/RadarInput_DriveVehicle'
236 */
237 LeadVehicle_Detected = RadarInput_DriveVehicle;
238
239 /* Chart: '/AdaptiveCruiseControlAlgorithm' incorporates:
240 * Inport: '/CruiseSwitch'
241 * Inport: '/SetSwitch'
242 */
243 if (project2_final_DW.is_active_c3_project2_final == 0U) {
244 project2_final_DW.is_active_c3_project2_final = 1U;
245 project2_final_DW.is_c3_project2_final = project2_final_IN_OFF_Mode;
246 Acceleration_Mode = 0U;
247 } else {
248 switch (project2_final_DW.is_c3_project2_final) {
249 case project2_final_IN_OFF_Mode:
250 Acceleration_Mode = 0U;
251 if (CruiseSwitch) {
252 project2_final_DW.is_c3_project2_final = project2_final_IN_STANDBY_Mode;
253 Acceleration_Mode = 1U;
254 }
255 break;
256
257 case project2_final_IN_ON_Mode:
258 project2_final_ON_Mode();
259 break;
260
261 default:
262 /* case IN_STANDBY_Mode: */
263 Acceleration_Mode = 1U;
264 if (!CruiseSwitch) {
265 project2_final_DW.is_c3_project2_final = project2_final_IN_OFF_Mode;
266 Acceleration_Mode = 0U;
267 } else {
268 if (SetSwitch) {
269 project2_final_DW.is_c3_project2_final = project2_final_IN_ON_Mode;
270 project2_final_DW.is_ON_Mode = IN_LeadVehicle_Detected_Follow;
271 Acceleration_Mode = 2U;
272 }
273 }
274 break;
275 }
276 }
277
278 /* End of Chart: '/AdaptiveCruiseControlAlgorithm' */
279
280 /* Update for UnitDelay: '/Unit Delay' */
281 project2_final_DW.UnitDelay_DSTATE = Acceleration_Mode;
282 }
283
284 /* Model initialize function */
285 void project2_final_initialize(void)
286 {
287 /* (no initialization code required) */
288 }
289
290 /* Model terminate function */
291 void project2_final_terminate(void)
292 {
293 /* (no terminate code required) */
294 }
295
296 /*
297 * File trailer for generated code.
298 *
299 * [EOF]
300 */RESULT:-
And hence, the Model is created for the Adaptive Cruise Control model, and the following things were done as the part of the Model Based Development.
Learnings:-
- Requirement analysis
- Model creation
- Requirement tagging
- Configuration settings changes
- Model advisory Check
- Model Advisory report generation
- C- Code generation
