Project 2

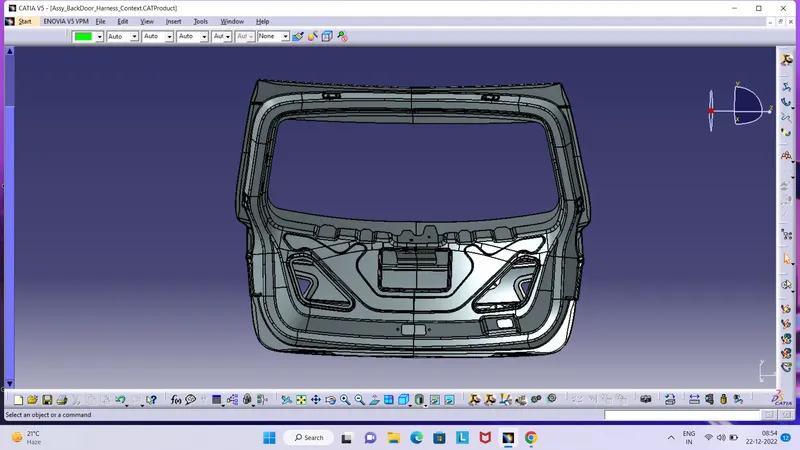

- First download the Backdoor assembly and assume it with real backdoor of car for which equipment and system are provide by manufacturer company like tail-light,indicators,wiper etc.

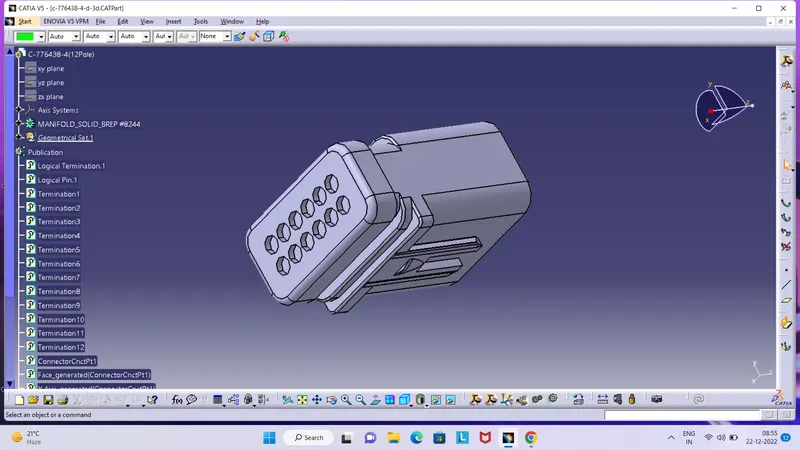

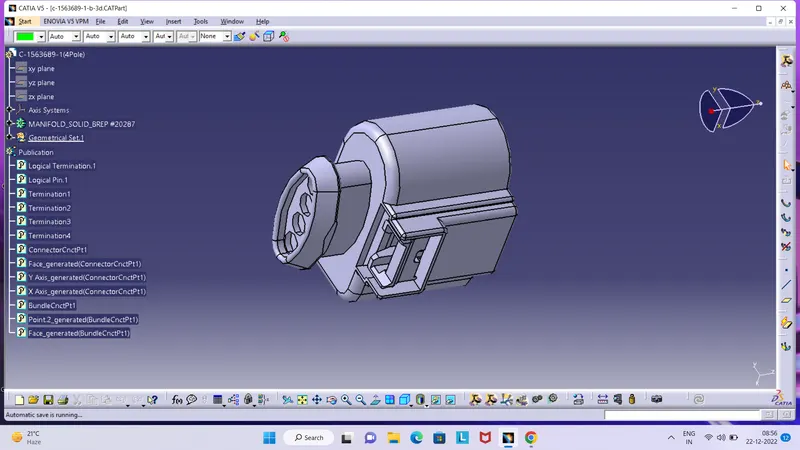

- Then as per assumption select connector and define them electrically and store in connector catalog which file is attaching below the first connector is inline connector(12 pole) and other one is 4 pole connector which is use for both tail-light and wiper motor sensor, number plate and inner side light system.

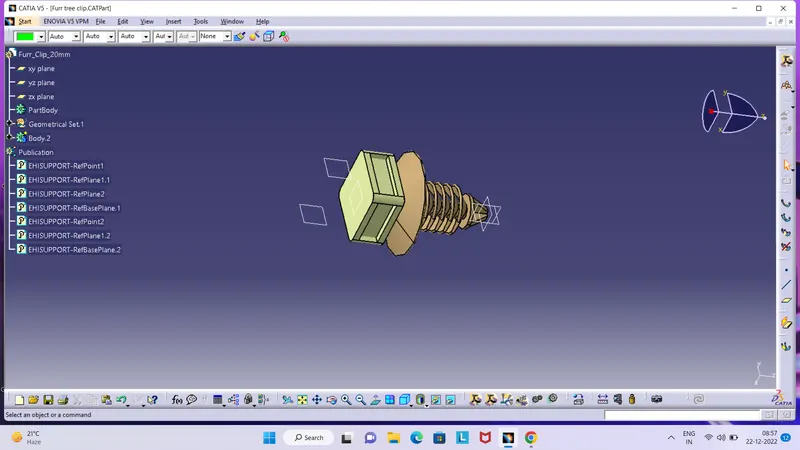

- Select the furrty clip for bundle routing and clamping purpose.

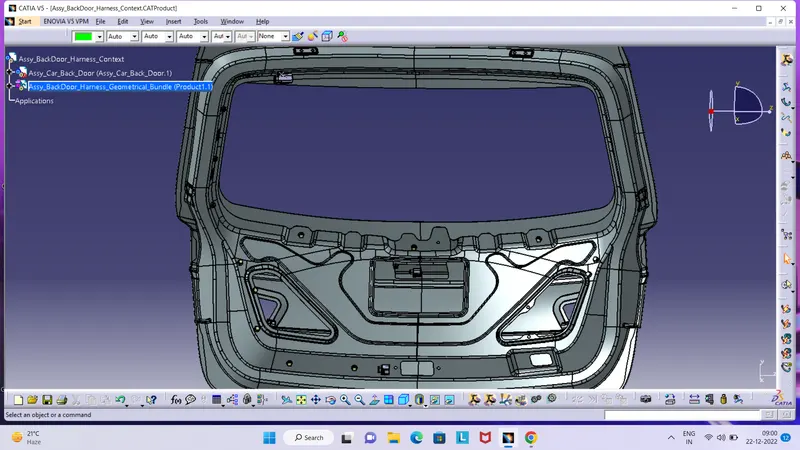

- Then as per assume rauting path of bundle, place the connector and clamping clips as per bellow image shown.

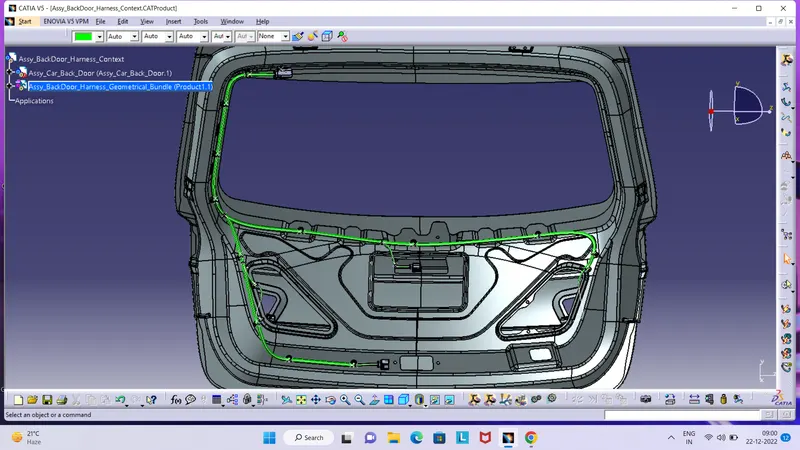

- Then rauting a bundle from inline connector to 4 pole connector through the furrty clip, we use 10 and 5mm bundle diameter for rauting.
- Then provide proctective covering as corrugated tube 15 and 10mm diameter to all wiring bundle.

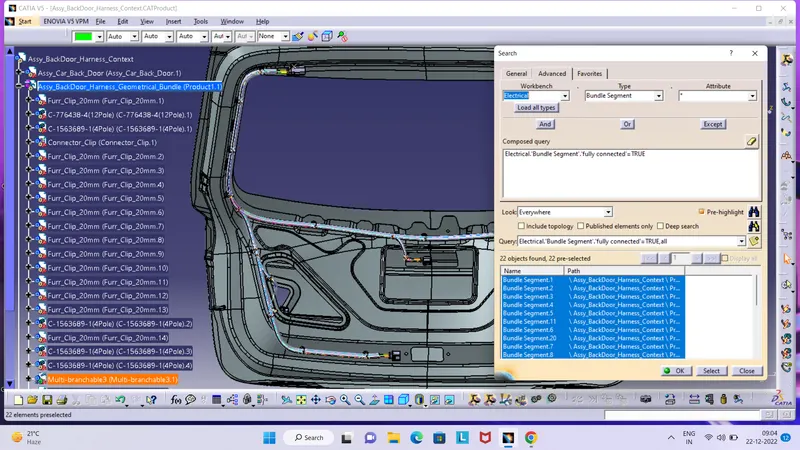

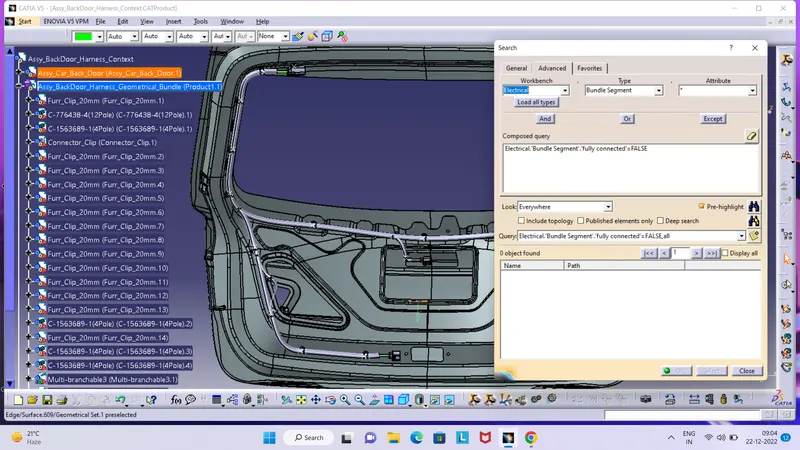

- Then check bundle continuity by using search command with "TRUE" AND "FALSE" option, all bundles are connected.

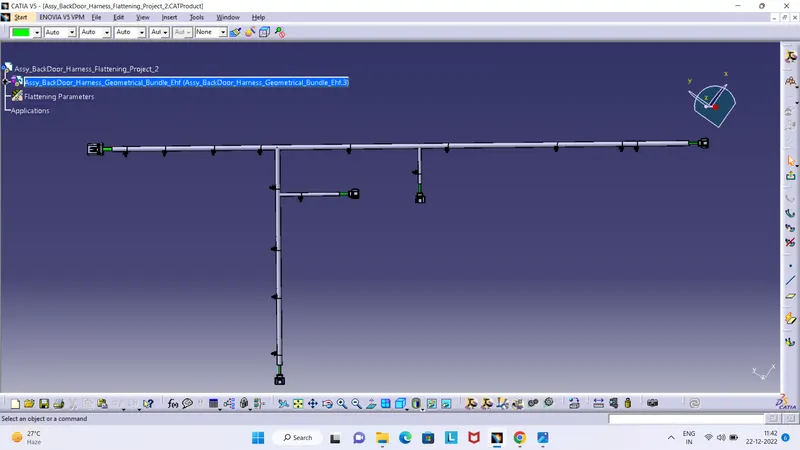

- Then create new product file for harness flattening purpose and import the geometrical bundle in it then flatten command using through generate the flatten harness by selecting the x-y plane, then arrange the connector and clip for specified view by using the manupulation command in mechanical design assembly workbench.

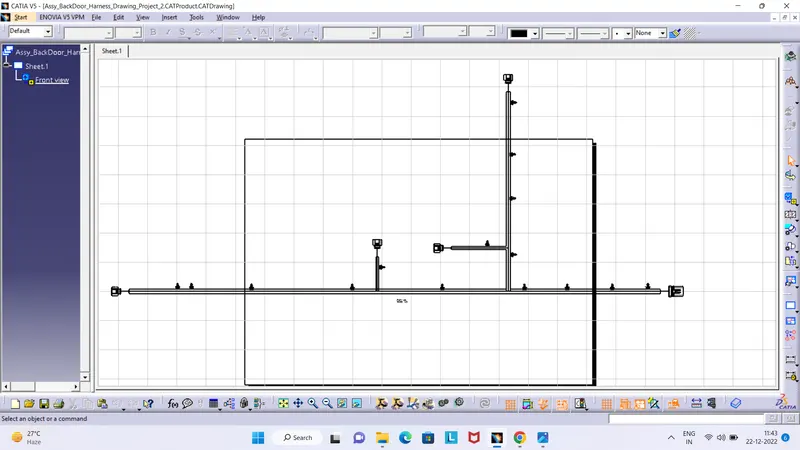

- Then create one more new file as DRAWING and import the budle into it by using front view command and generate the drawing.
