Blood pressure is the pressure that the blood exerts against the walls of the arteries as it passes through them. Pulse refers to the periodic ejection of blood from the heart's left ventricle into the aorta. The left ventricle, or chamber, receives blood from the left atrium, another of the heart's chambers. By contracting, the left ventricle drives the blood into the aorta, a central artery through which blood is relayed into the arteries of all limbs and organs except the lungs. Pulse, transmitted though the arteries as a repeated pressure wave, is the mechanism that moves blood through the body.

The high and low points of this pressure wave are measured with the sphygmomanometer, or blood pressure monitor, and are expressed numerically in millimeters of mercury. The higher number, systolic pressure, measures the maximum pressure exerted on arteries and the heart muscle; the lower figure, diastolic pressure, measures the minimum pressure exerted. The reading of the two measurements indicates how hard the human system is working. All physicians consider a patient's blood pressure when determining general health or diagnosing disease.

The blood pressure monitor is used in conjunction with a stethoscope. After fastening the constricting band, or cuff, around one of the patient's arms above the elbow, the clinician inflates the cuff by pumping air into it with a rubber squeeze bulb until the mercury column or the needle of the gauge (also known as an aneroid dial) stops moving, usually at a point between 150 and 200 millimeters of mercury. The stethoscope is then placed over the brachial artery, on the inside of the arm at the elbow, while air is slowly released from the system via a small valve attached to the bulb. The technician watches carefully as the air escapes and the pressure indicator correspondingly declines. The point on the gauge at which the pulse can first be heard through the stethoscope indicates systolic pressure, and the gauge's reading when the sound disappears indicates diastolic pressure. Normal pressures vary with the individual, but systolic pressure typically ranges between 110 and 140, while diastolic runs from 65 to 80. Pressure above normal levels predisposes the patient to such health problems as heart disease, stroke, and kidney failure.

Many early attempts at measuring blood pressure involved attaching an instrument directly to one of the patient's arteries, a painful and dangerous practice. The first sphygmomanometer to use an inflated armband was developed in 1876 by Samuel Siegfried von Basch. Twenty years later, the Italian physician Scipione Riva-Rocci developed a more accurate device that soon replaced von Basch's instrument. Riva-Rocci's design was much like today's monitor, but its operating procedure allowed for measuring blood pressure only while the heart was contracted. In 1905, the measurement procedure was further refined by Nikolai Korotkoff, who added the use of a stethoscope to detect pulse rate, thereby enabling doctors to measure blood pressure while the heart was relaxed as well. Korotkoff suspected that both pressure readings were important, and today we realize that certain indications, such as a rise in the systolic with a stable or falling diastolic pressure, may suggest brain damage.

Bladder: It is an inflatable bag that, when filled, squeezes the arms to block the artery.

Cuff: The cuff has an inflatable rubber bladder that is cloaked around the upper arm. A pressure meter indicates the cuff's pressure.

Valve: The deflation valve allows for controlled deflation of the cuff and it’s critical for accurate measurement. An end check valve prevents air from escaping.

Bulb: A small, handheld air pump inflates the blood pressure inside the cuff.

Manometer: It is the portion of the sphygmomanometer that measures the blood pressure in mmHg. This aneroid gauge contains a watch-like movement that measures the air pressure applied to the cuff. Within the gauge, there is a series of diaphragms (of copper or beryllium) that expands when air is filled and contains gears that transform the linear motion of diaphragms, turning the needle on a dial calibrated in mmHg.

• All blood pressure monitors feature an air pump device equipped with a control valve, a means of indicating pressure, a constricting band to be attached to the patient, and the various connecting hoses that operate the system.
• Although three distinct types of blood pressure monitors exist, they differ basically in their means of registering pressure: one type uses a pressure gauge or dial; another type uses a mercury manometer (a manometer is an instrument that measures the pressure of liquids and gases); and the third uses an electronic or digital display.
• Despite the availability of electronic display sphygmomanometers, instruments that use a manometer or a dial are still more popular because they are easier to service as well as accurate, durable, and inexpensive. This article will focus on the dial or pressure gauge type.
• A typical blood pressure monitor features a neoprene or rubber pump bulb that a medical technician squeezes to build air pressure in the system. Increasing air pressure inflates the constricting band and provides a pressure signal to the manometer or indicating gauge.
• The process is controlled by a valve, which has a hose fitting to attach the tube leading to the constricting band and gauge. Integral to the valve is a one-way flow device that operates only when the valve is closed.
• It usually consists of a small rubber disk or ball that is placed over the air passage from the squeeze bulb opening and secured by a screw or clip.
• The compressed air raises the ball slightly when the bulb is squeezed, sealing the opening to the atmosphere and forcing air to enter the cuff. Upon release of the bulb, the ball seals the opening between the bulb and the hose, opening the former to the atmosphere and allowing it to refill with air.
• This cycle is repeated until the correct starting pressure is reached. The manual valve opens a bypass route to release the air while readings are being taken.

BLOCK DIAGRAM

There are three types of sphygmomanometers that are used to gauge human blood.

1. Mercury Sphygmomanometer

• The mercury sphygmomanometer is considered the “gold standard” among all other types of devices representing the classic and time-tested method of assessing blood pressure.
• The device consists of an inflatable bladder along with a column of mercury. Varying pressures cause different levels of mercury in the column. Once the column is made, recalibration is not required to take place to their exactness.

2. Aneroid Sphygmomanometer

• The aneroid sphygmomanometer is a device that stands on the stans or walls, consists of a spring device and metal membrane that translates the signals from the cuff and operates a needle in the gauge. The absence of a liquid provides mobility, as this device can be moved easily from one location to another.
• Since these devices require calibration checks that’s why they provide imprecise results. The needle has to be kept to zero before its use. The accurate results are possible by frequent calibrations.

3. Digital Sphygmomanometer

• When you want to measure the blood pressure at your home effortlessly, the diastolic and systolic blood pressure, the digital sphygmomanometer comes out to be handy without preparations. You just need to connect the node of the rubber inside the hole of the monitor and cloak the cuff around your upper arm, as you click on the button, it would evaluate your bp and heart rate by means of oscillometric detection.
• The monitor has an audio device inbuilt to tell you the results in accordance with the WHO standards. The best part of having such a device is, it is portable and has expediency, it can be charged and we can also see the average results.

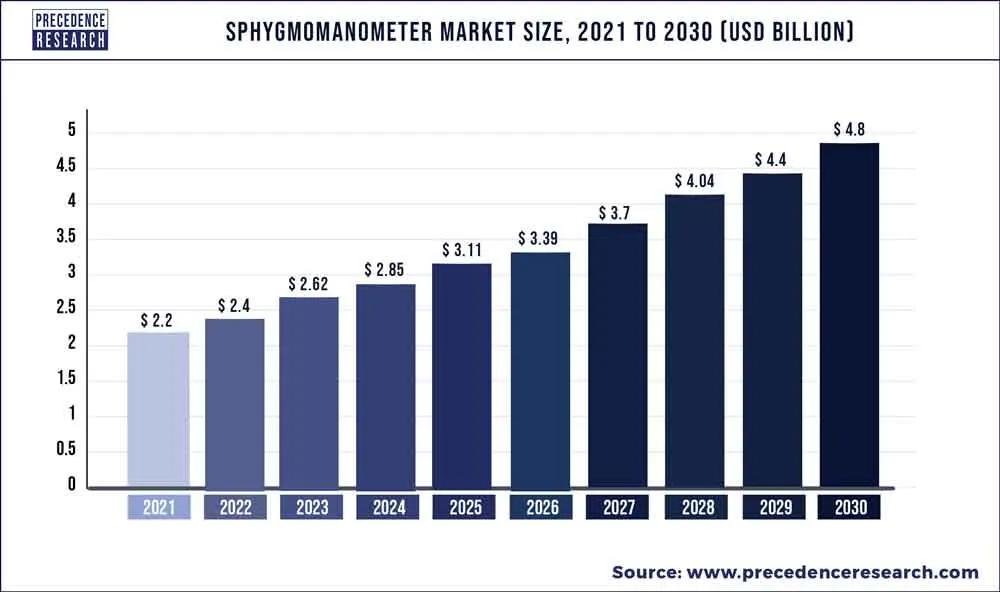

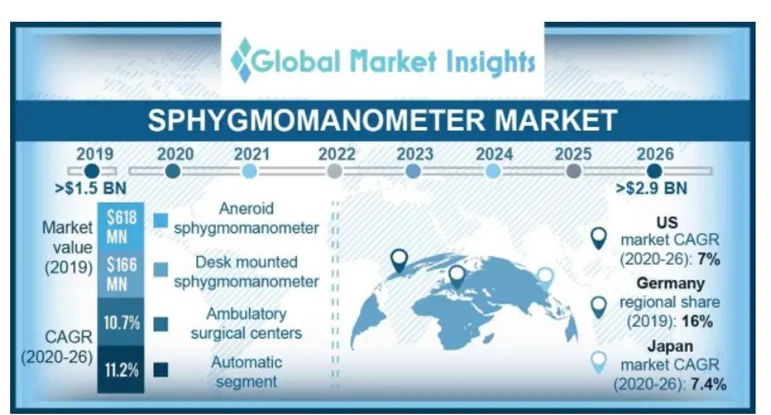

The global sphygmomanometer market size was valued at USD 2.2 billion in 2021 and is expected to hit around USD 4.8 billion by 2030, growing at a notable CAGR of 9.06% from 2022 to 2030. The rising number of persons suffering from blood-related diseases such as hypertension has boosted the market growth.

Growth Factors

The global sphygmomanometer market is predicted to develop significantly as a result of the evolution of improved sphygmomanometers, rising innovations in sphygmomanometer devices, and increased usage of sphygmomanometer for self-monitoring to limit the risk of infection. The market will be hampered by a decline in the use of mercury thermometers and an increase in the use of blood pressure monitors by healthcare providers that carry numerous diseases and germs. The development of a cloud-based healthcare system is a component generating market growth opportunities.

Key Market Drivers

Increasing incidences of hypertension

• Increasing prevalence of hypertension as a result of changing lifestyles is the primary factor driving industry expansion during the anticipated period. According to a World Health Organization (WHO) report published in 2019, around 1.28 billion individuals worldwide suffered from hypertension, which is a major cause of early mortality. The demand for blood pressure monitors is quite strong due to the expanding senior population base and the increased risk of lifestyle-related illnesses across a broad population base due to rising obesity and sedentary lifestyle rates.
• Blood pressure should be monitored twice daily for seven consecutive days, preferably in the morning and evening, with two measurements taken 1-2 minutes apart on each occasion, according to the American Heart Association and the American Society of Hypertension, as well as the European Society of Hypertension and the National Institute for Health and Care Excellence (NICE), fueling demand for BP monitors.

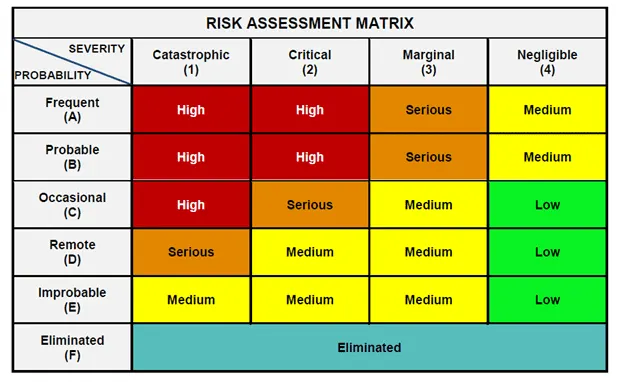

Key Market Challenges

• Lack of skilled professionals-: Over the projection period, the aneroid sphygmomanometer market may be hampered by a shortage of skilled staff that is unable to operate this equipment.
• Also, despite the increased frequency of the disorders, the expensive cost of these devices may impede the growth of the worldwide aneroid sphygmomanometer market.

Key Market Opportunities

• Increase in healthcare professionals: Sphygmomanometers are now used by practically all doctors and nurses to treat patients. According to a recent Athena Health report, the overall number of doctors in the United States has expanded by around 150% over the previous several decades. With a rise in the number of doctors, there is a greater need for and adoption of basic diagnostic equipment, such as blood pressure monitors.

PURCHASE OF RAW MATERIAL AND SERVICES

• The dial, or aneroid type, instrument is a mechanical pressure gauge that has a pointer and dial calibrated in millimeters of mercury. The pressure gauge consists of three basic groups of parts: a pressure element and socket assembly; a movement and dial assembly; and a protective case and lens assembly enclosing them.
• The pressure element comprises two phosphor-bronze disks of approximately .010 inch (.025 centimeter) with a formed lip on the outer edge. The movement is usually made of polycarbonate and brass materials and contains a small gear train that amplifies the short travel distance of the disks.
• The movement assembly also supports the dial, which may be brass, aluminum, or plastic. The output shaft of the movement is mounted with the aluminum pointer.
• The squeeze bulb is usually rubber or neoprene, as are the connecting hoses. The band, or cuff, is basically a fabric-covered neoprene bladder with a hook and loop (Velcro) fastener. The bladder is enclosed in a nylon or synthetic fiber fabric, which protects it from cuts during use by on-scene rescue technicians and reduces patient discomfort.
• The band must be very flexible and durable to accommodate the infinite differences in patients and situations. The control valve can be made of polycarbonate, brass, stainless steel, or combinations of these materials.


Many manufacturers purchase the components of the blood pressure monitor separately, then assemble and package the unit for sale. Each part has its own manufacturing and assembly process.

The bulb

• 1 The bulb can be made using various processes, but it is most commonly produced using vacuum-assisted injection molding. Compressed air is used to blow the melted rubber or neoprene material into the cavity of a two-piece metal die set featuring the negative image of the bulb (the operation resembles blowing a gum bubble inside a bottle). The die also contains small holes through which air is drawn out just before the material is injected, helping it flow into the die cavity at a uniform thickness. While these holes are large enough to allow air to escape, they are too small to permit significant amounts of the rubber to seep out. The remnant of the rubber material that is drawn into the holes produces small protuberances that resemble the small "whiskers" visible on a new tire. Within a few seconds of its injection, the material has cooled so that the die may be opened, revealing the finished bulb. After a minimal amount of hand work to remove the whiskers, the bulb is ready to be attached to the other components.

The valves

• 2 The valves are made by die casting, plastic injection molding, and machining from bar material. They incorporate connection features that allow the bulb and hose to be attached. Machined valves can be made on a lathe controlled by a computer program that instructs it to turn the shape, threads, and other features.

The gauge

• 3 The gauge consists of further sub-assemblies, each of which contains machined, molded, and stamped parts. The most important component of the gauge is the pressure element. It is constructed by soldering two disks together at the formed lip to construct a hollow wafer. The pressure from the system is introduced into the wafer though a hole in the socket connection, which in turn is connected to the squeeze bulb and cuff. As the internal pressure increases, the wafer swells. It is this swelling that is detected by the movement assembly, causing the pointer to rotate about the dial. After assembly, the gauge must be calibrated. This is accomplished by connecting it to a pressure source with a master gauge of known accuracy. Slight adjustments are made in the movement linkage until the pointer of the gauge reflects the correct pressure readings.

The cuff

• 4 The constricting cuff, or bladder, is made by heat sealing two rubber sheets together to form a flexible band. A tubing fitting is incorporated into this sealing process, providing a connection for the air supply. A fabric covering is then sewn to the bladder by conventional methods.

The hoses

• 5 The hoses are made by continuous extrusion, a process in which pellets of rubber or similar material are heated to the melting point, at which they become clay-like and viscous. Within the same machine, a rotating screw device forces this molten material through a die block, which is simply a hole in an aluminum block the same size as the outside of the tubing. Secured within the block is a rod that is the same size as the inside of the tubing and positioned in the center of the hole. As the material flows around the rod and out the hole, it cools and assumes the shape of the tubing. At this point, it is cut to length and coiled onto spools for shipment to the assembly facility.

Assembling the components

• 6 At final assembly, hoses are used to connect the components discussed above. The hoses are then checked for leaks and the calibration is verified. This is a good example of JIT (just-in-time) material requirements planning and TQC (total-quality-concept) management. Missing any one of the components, the entire assembly is useless. The plant must receive the parts and supplies in a timely manner to assure delivery of the finished product to the customer. The items must be of satisfactory quality, so they can be assembled correctly and without compromising the design. Many companies today have established quality management procedures. These procedures are simply intensive studies of all aspects of manufacture to eliminate or reduce the possibility of producing a defective part. It is not just making the part, but also designing it, selecting the materials, choosing packaging selection, and all other aspects that determine the quality of the finished product.

How to Use a Sphygmomanometer?

Following is the procedure to use this device:

• Use the properly-sized bp cuff and the length of the cuff's bladder should be at least equivalent to 80% of the circumference of your upper arm.

• Wrap the cuff around your upper arm and lightly press the stethoscope's bell over the brachial artery just below the cliff's edge.

• Inflate the sphygmomanometer (blood pressure cuff) to 180 mm Hg.

• Slowly release air by mildly turning the air valve, and observing the pressure drop.

• Listen with the stethoscope and simultaneously notice the mercury gauge.

• The first sound you hear via a stethoscope, that will determine the systolic blood pressure.

• Continue to watch the pressure drop, when you no longer hear any sound, that will be the Diastolic blood pressure.

PERIODIC MAINTENANCE

Sphygmomanometers are built to handle the challenges you face in the field every day. With proper care and maintenance, you will experience a lifetime of excellent quality and performance from your ADC product.

Storage:-

For Aneroid (Pocket) Gauges: After measurement, fully exhaust cuff, then wrap cuff around gauge and bulb and store in zippered carrying case.

For Palm Gauges: After measurement, fully exhaust cuff and store in zippered carrying case. If unit will not be used for an extended period of time, leave the trigger valve in the full exhaust position.

For Clock Gauges: After measurement, fully exhaust cuff, then wrap cuff around bulb and store in storage compartment.

NOTE: In order to ensure that you have the best experience with your sphygmomanometer, we recommend storing them at temperatures ranging from 50°F to 104°F (10°C to 40°C) at a relative humidity level of 15% to 85%.

Manometer: The manometer (gauge) attached to your sphygmomanometer requires minimal care and maintenance. The manometer may be cleaned with a soft cloth, but should not be dismantled under any circumstances. Gauge accuracy can be checked visually; simply be certain the needle rests within the printed oval when the unit is fully deflated.

Should the indicator needle of the manometer rest outside of this calibration mark, then the manometer must be re-calibrated to within ±3 mmHg when compared to a reference device that has been certified to national or international measurement standards. A manometer whose indicator needle is resting outside of this mark, is NOT acceptable for use. We recommend that you perform a calibration check every 2 years.

Cuff Cleaning and Disinfecting:

Use one or more of the following methods and allow to air dry:

• Wipe with mild detergent and water solution (1:9 solution). Rinse.
• Wipe with Enzol per manufacturer’s instructions. Rinse.
• Wipe with .5% bleach and water solution. Rinse.
• Wipe with 70% isopropyl alcohol.
• Launder with mild detergent in warm water, normal wash cycle. (Note: Remove bladder first. Cuff is compatible with 5 wash cycles).

Low Level Disinfection:

Remove the bladder from the cuff. Prepare Enzol enzymatic detergent according to the manufacturer’s instructions. Spray detergent solution liberally onto cuff and use a sterile brush to agitate the detergent solution over entire cuff surface for five minutes. Rinse continuously with distilled water for five minutes. To disinfect, first follow the cleaning steps above, then spray cuff with 10% bleach solution until saturated, agitate with a sterile brush over entire cuff surface for five minutes. Rinse continuously with distilled water for five minutes. Wipe off excess water with sterile cloth and allow cuff to air dry.

CAUTION: Do not iron cuff.

CAUTION: Do not heat or steam sterilize cuff.
