Project 2

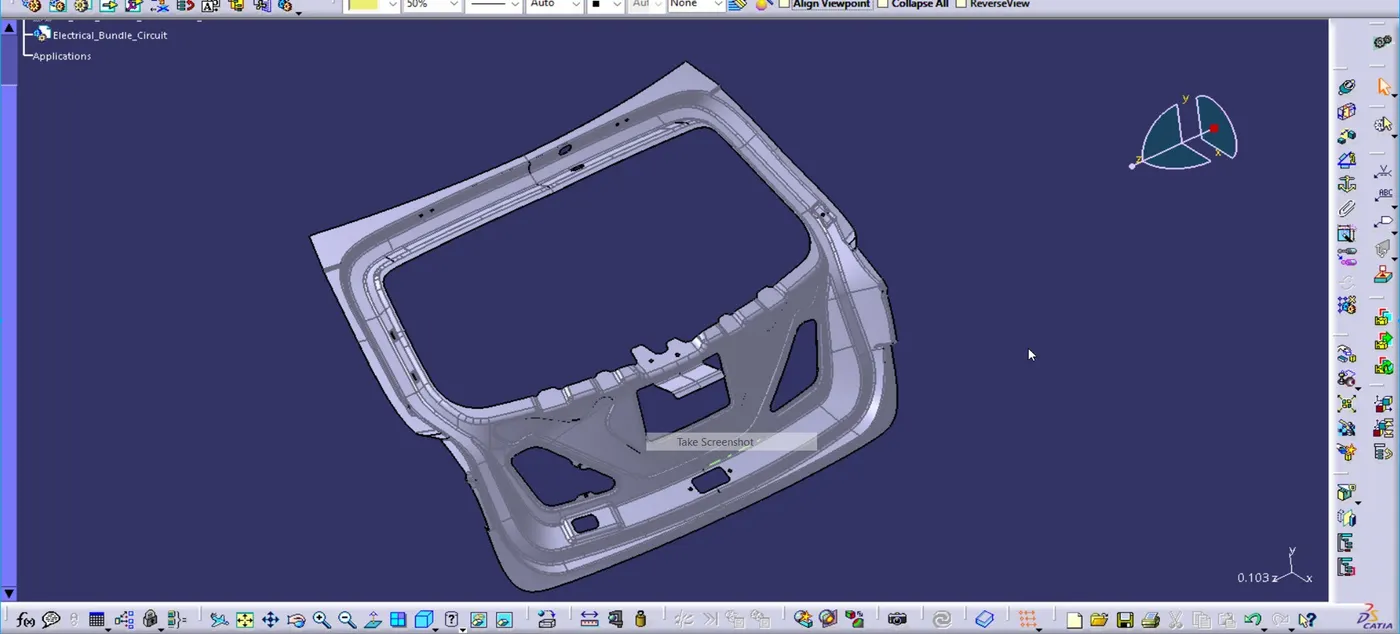

Object: To route the wiring Harness on the Tail Gate and create the drawing

2. Equipment and components for routing the Bundle

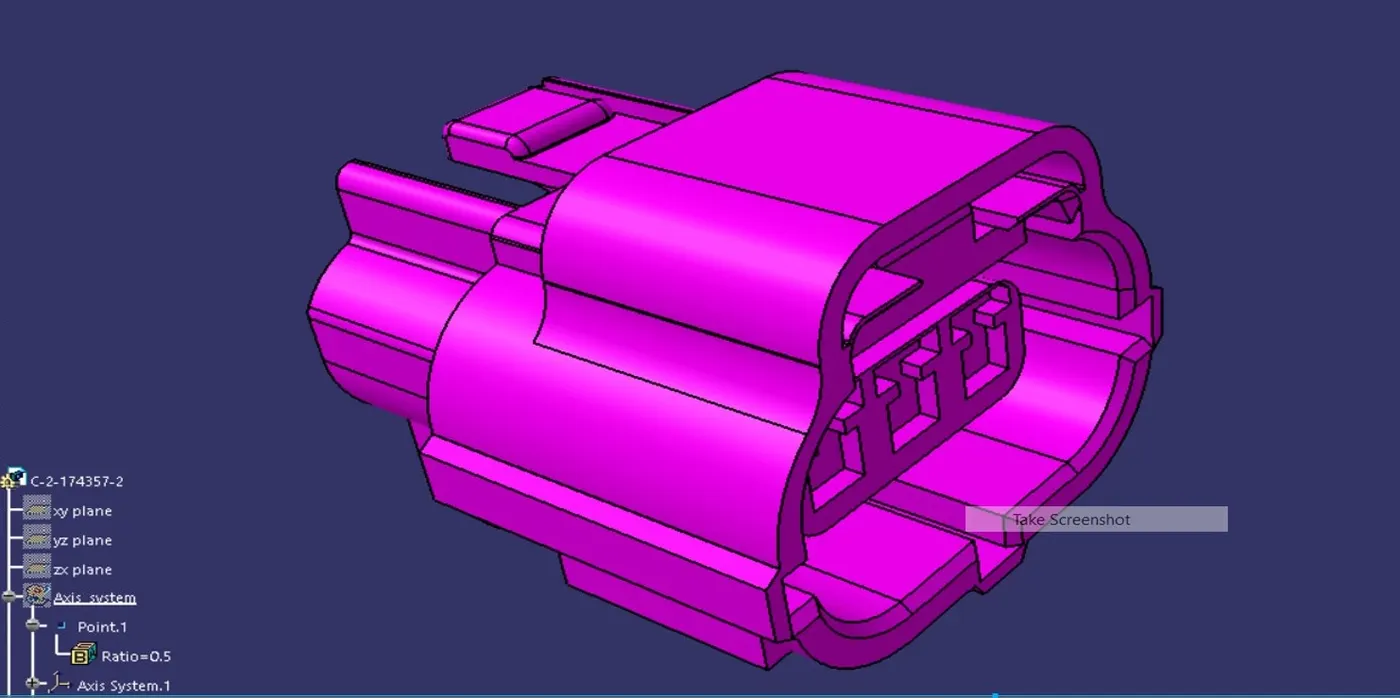

• 3-pin connector for the Wiper motor and Tail gate lock actuator

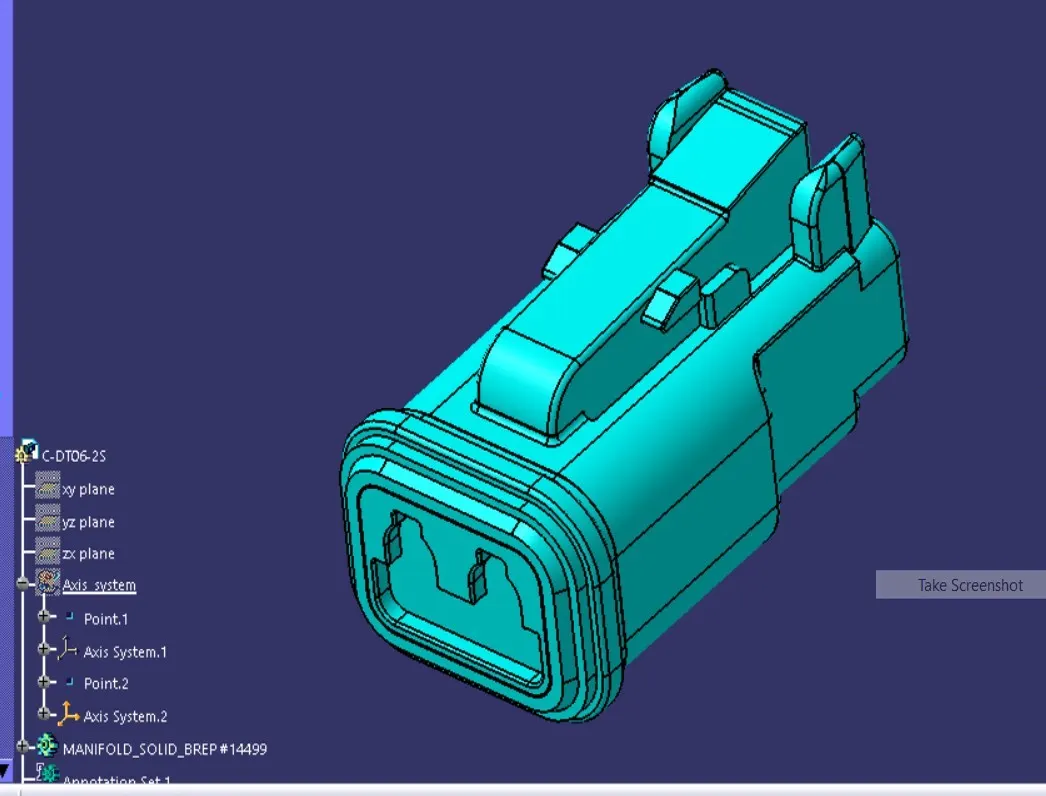

• 2 Pin connector for Rear lamp, Speaker, Rear Defogger and Licence plate light

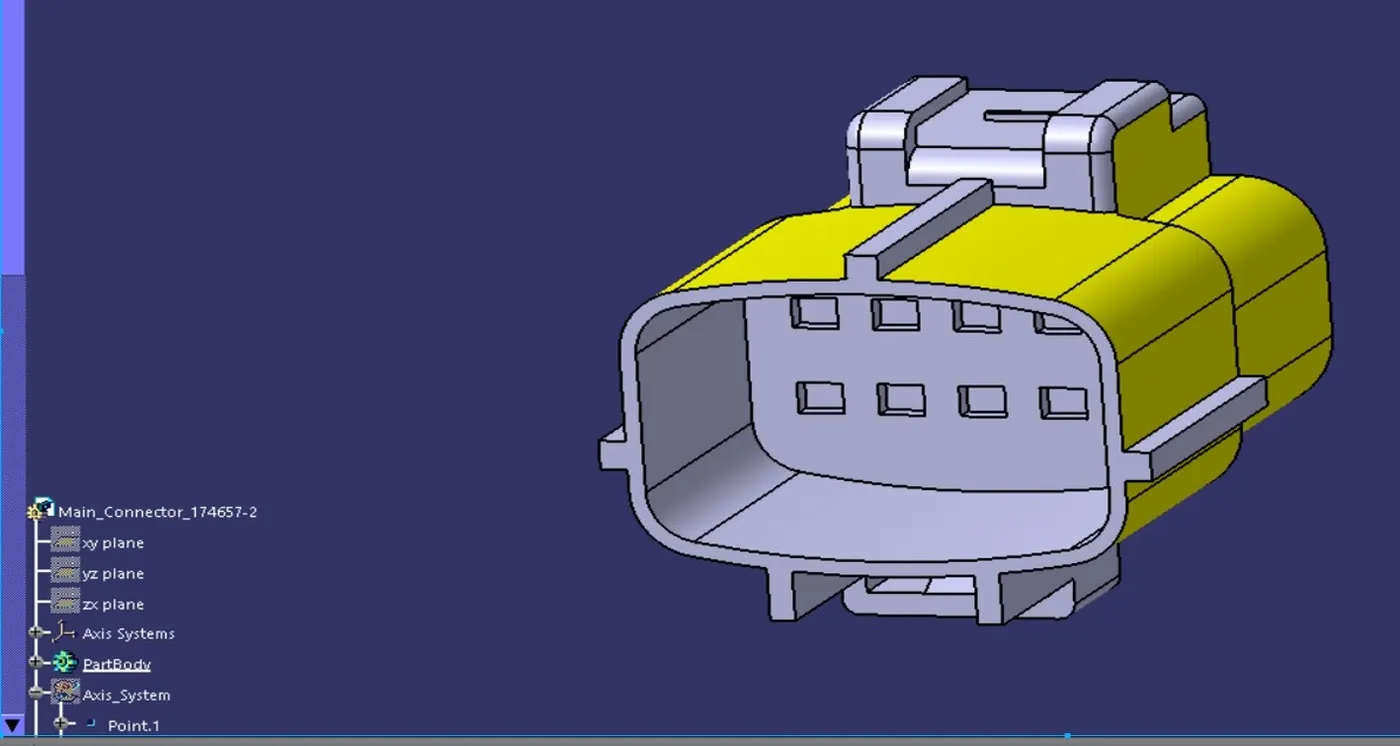

• 10-pin main connector 12-volt Supply

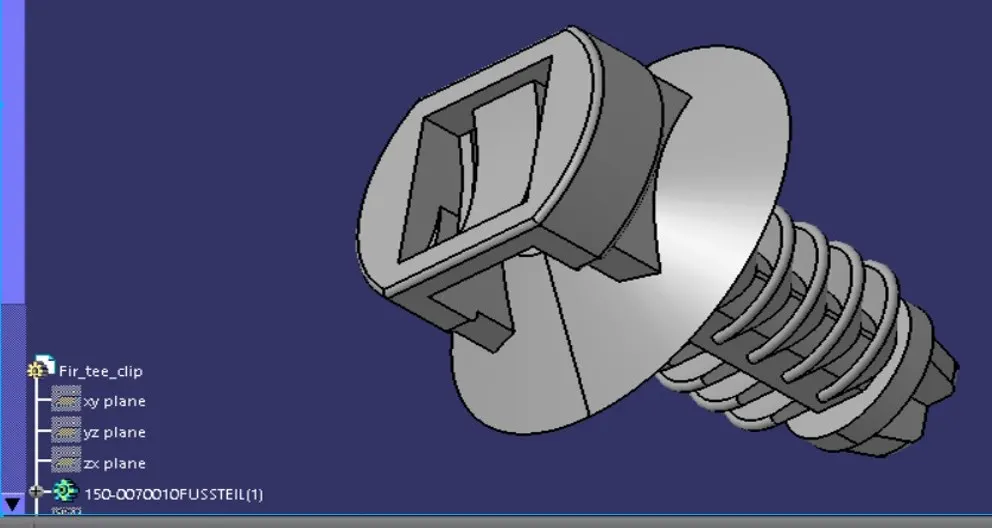

• 25 mm Tie clip

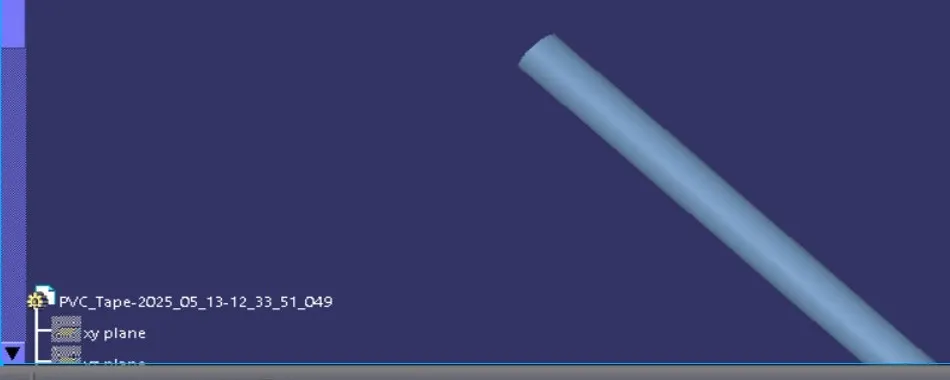

• PVC Tape for Wrapping a Bundle

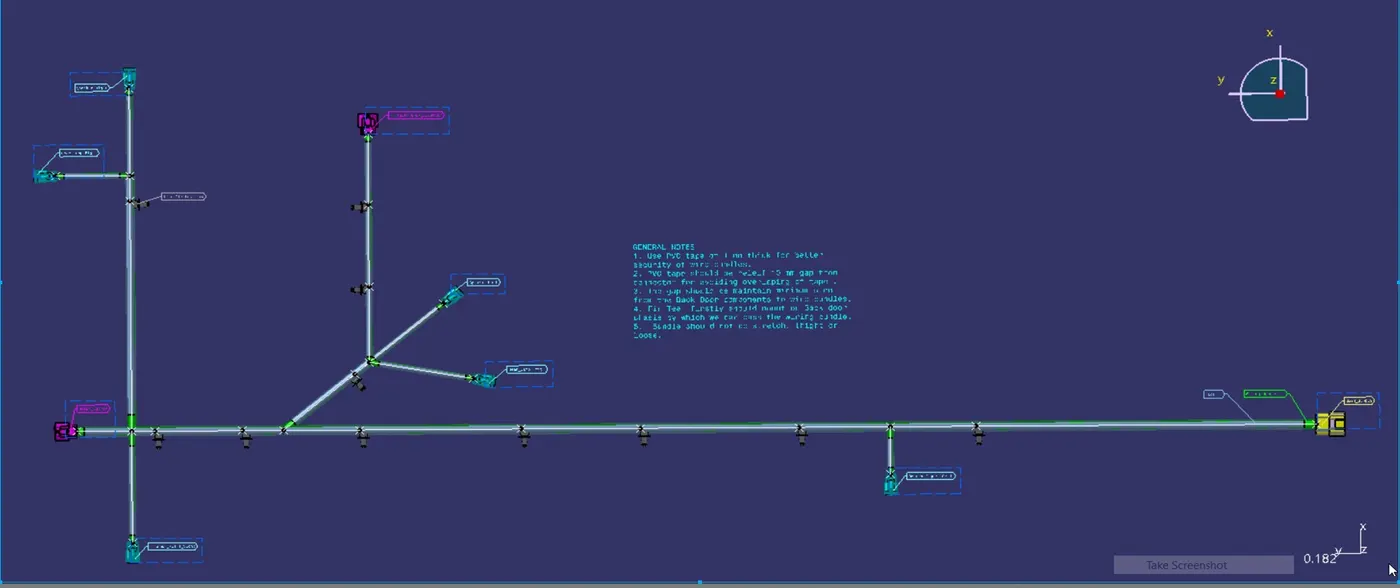

• Flattered Wiring Connection Views

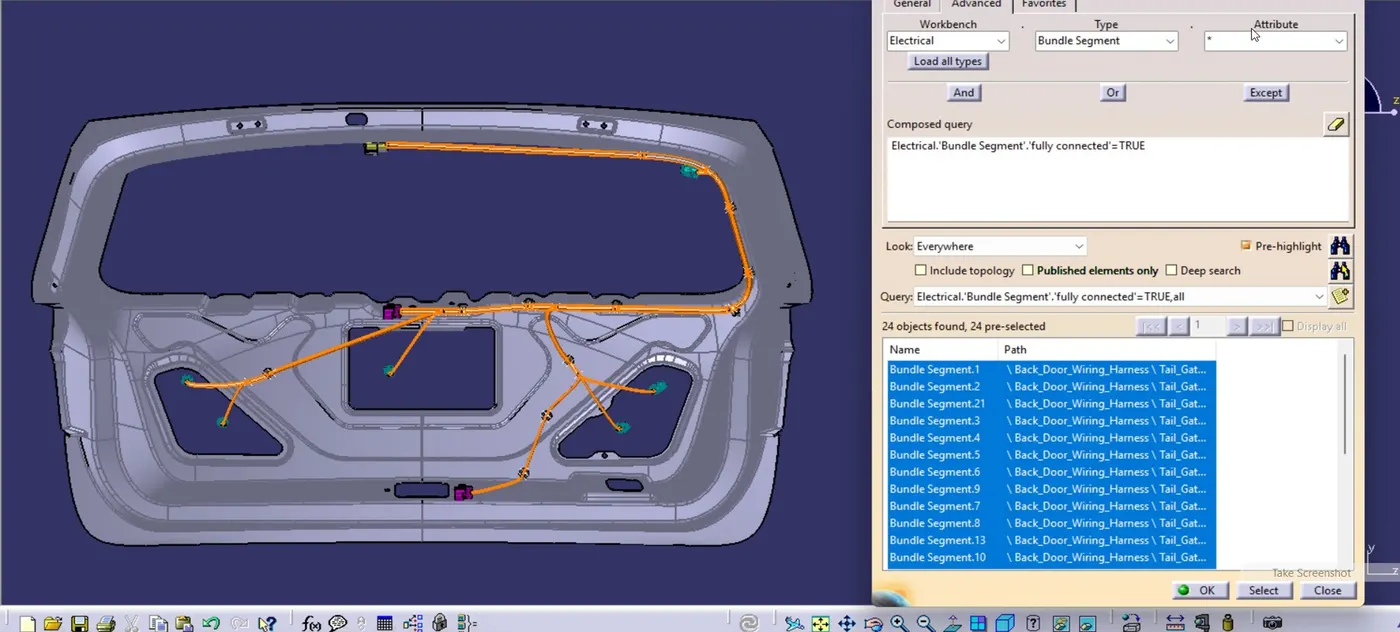

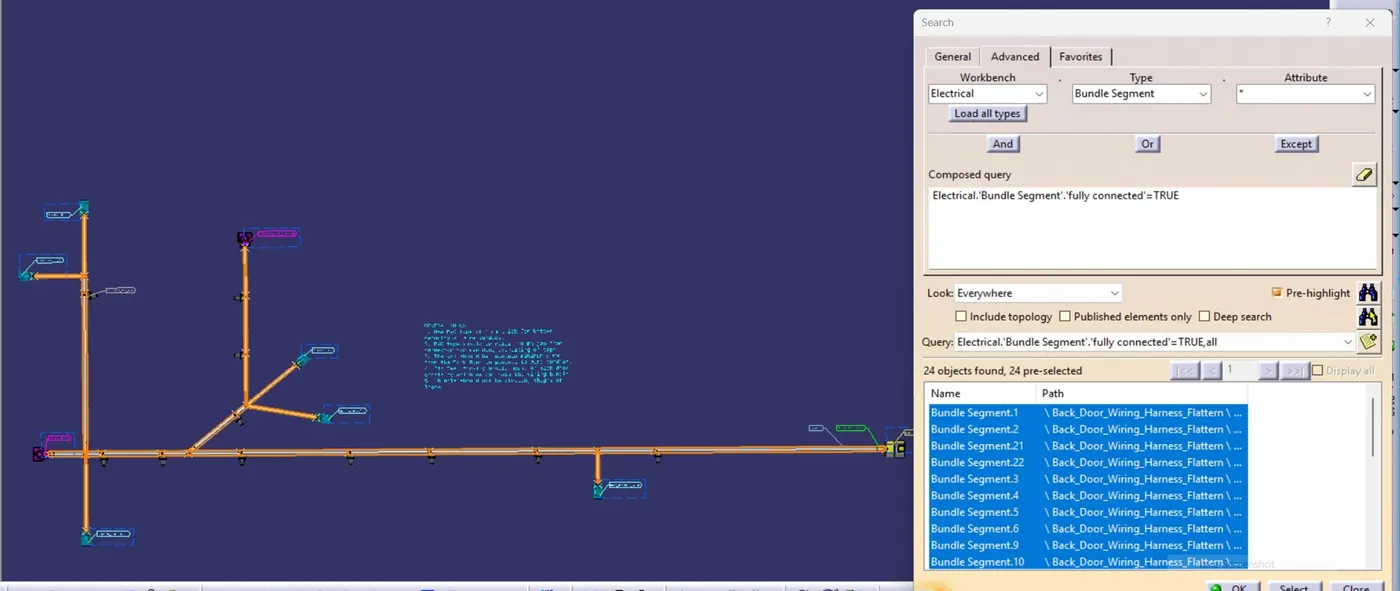

• Bundle Connection Continuity

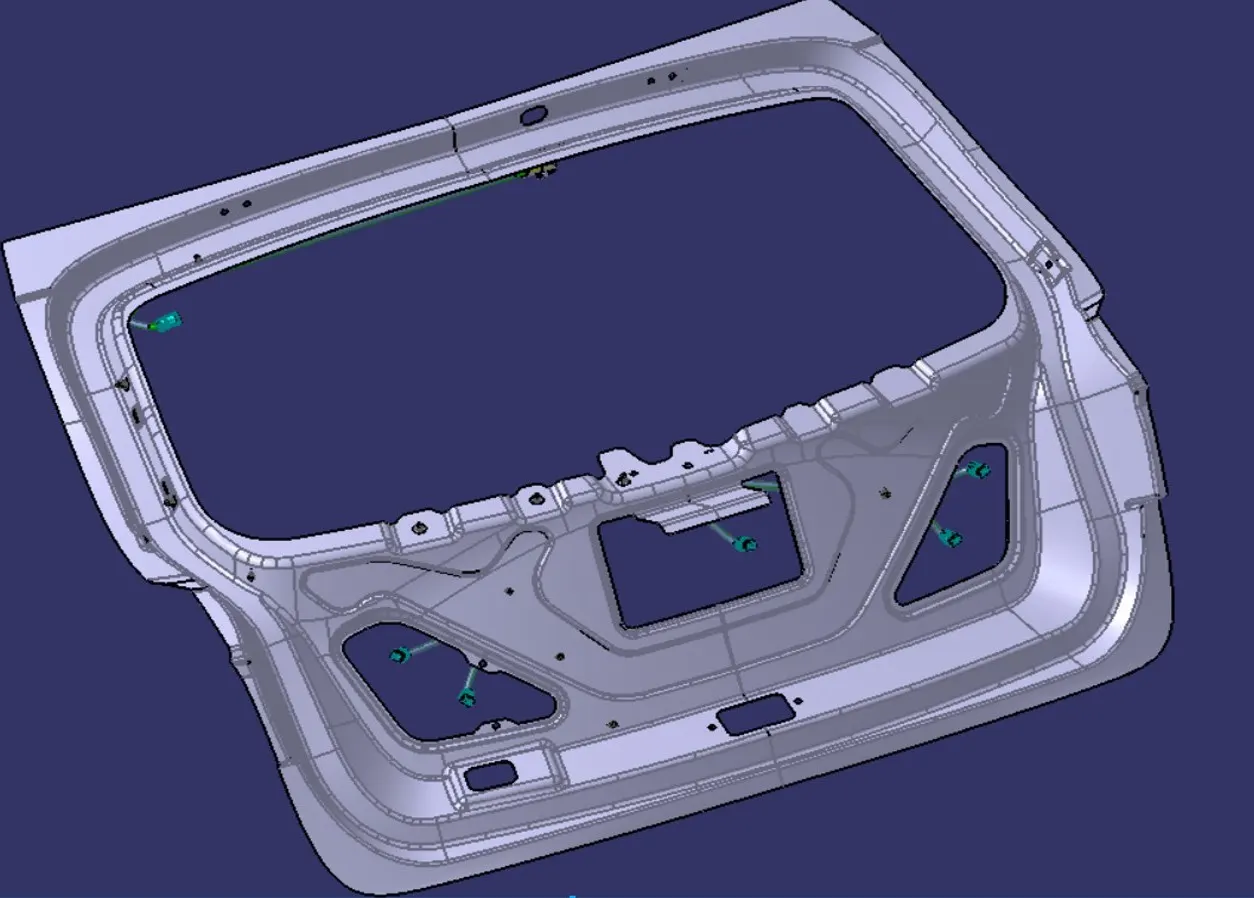

• Wiring Harness Without Back Door

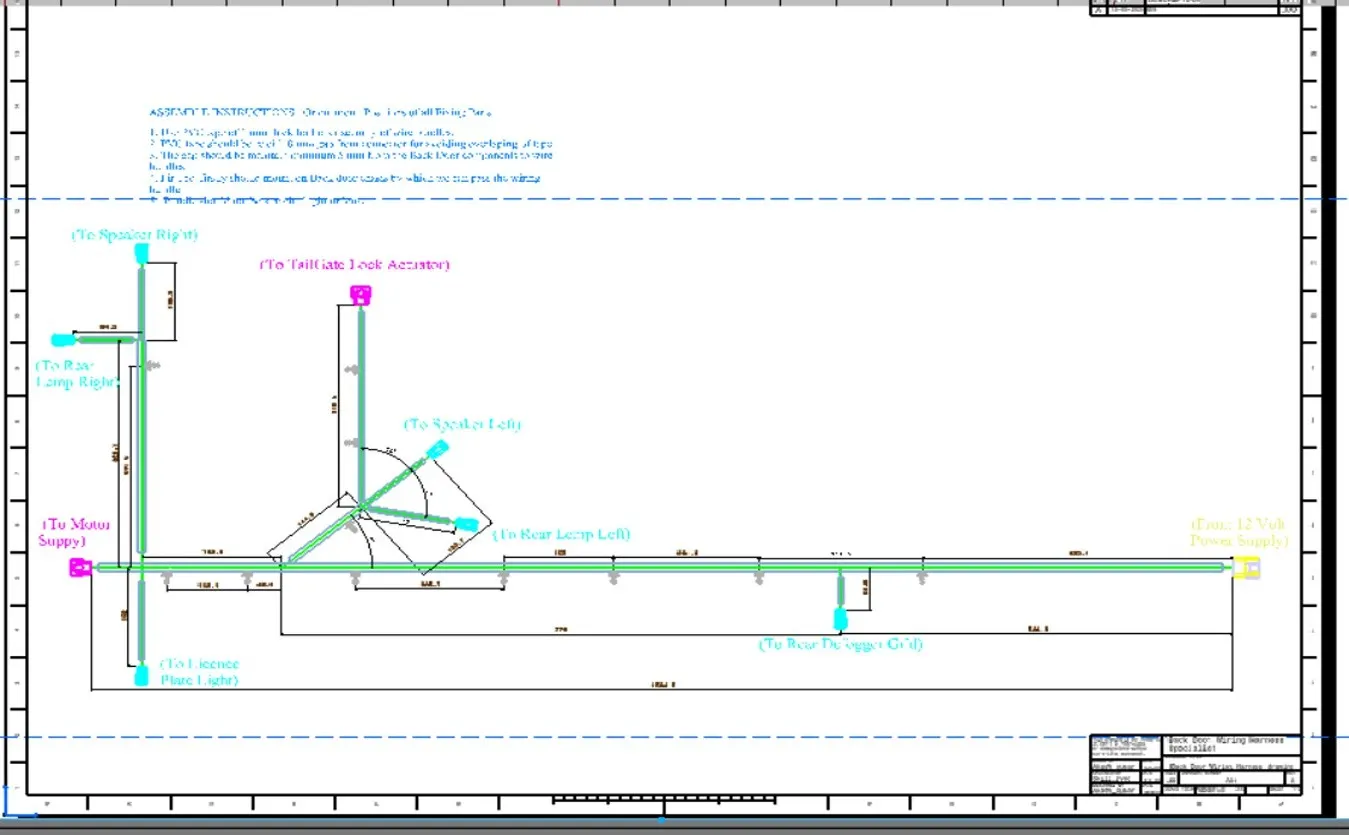

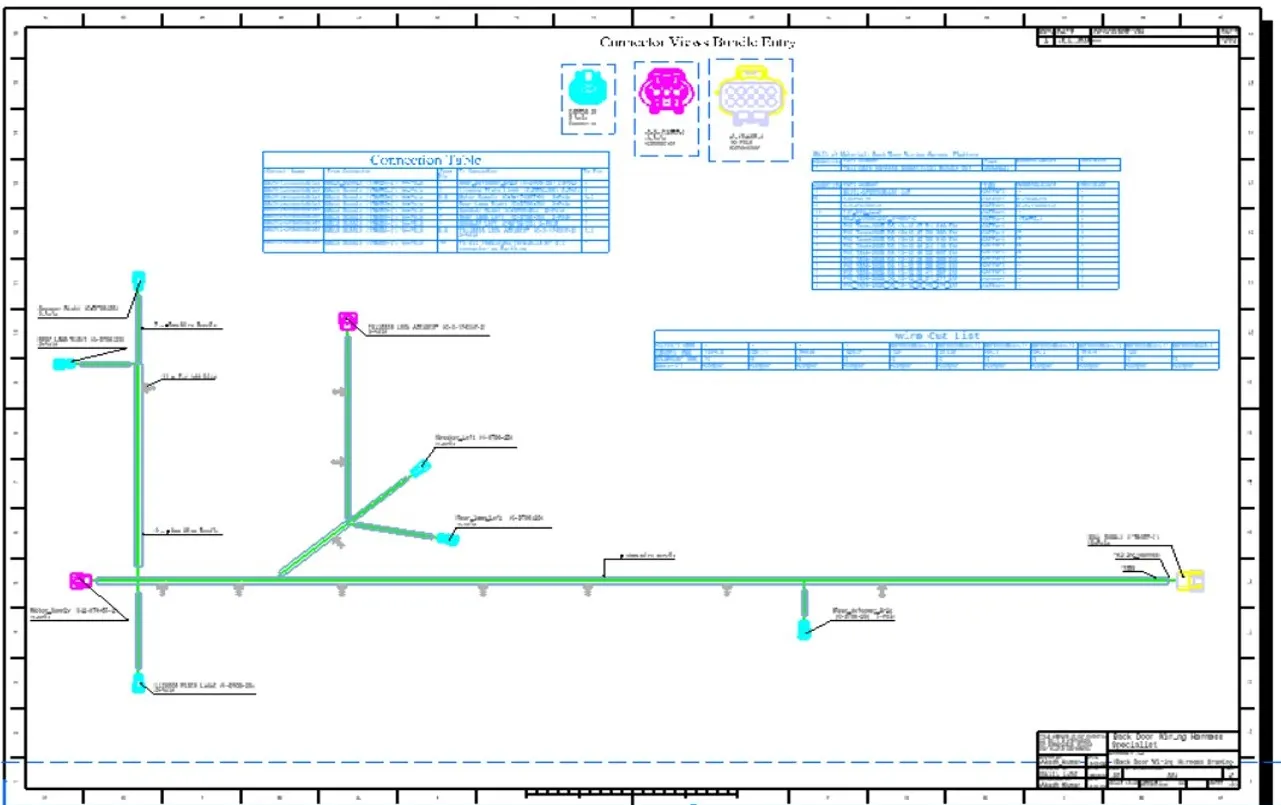

• Wiring Harness Drawing (Dimensions, assembly notes )

• Wiring Harness Drawing ( BOM , Connection table )

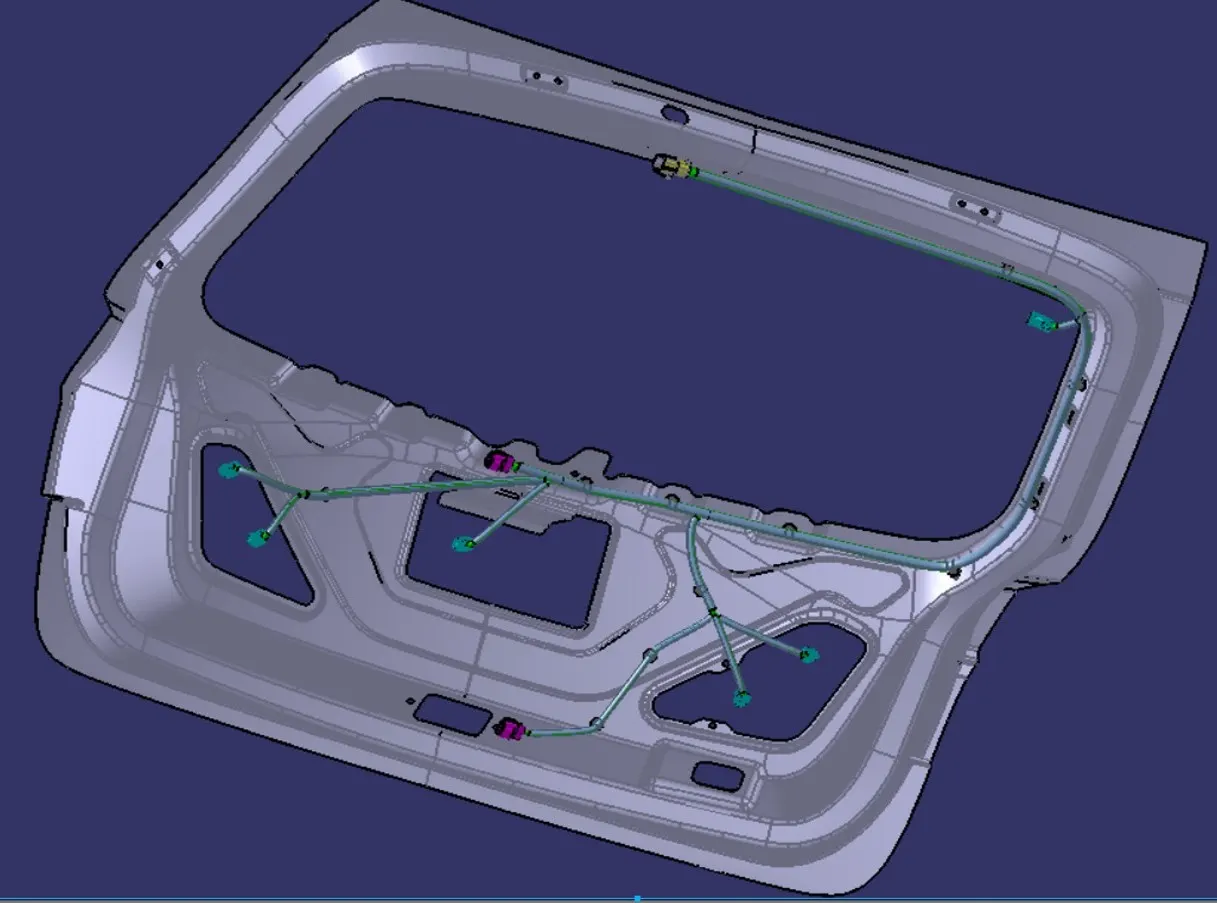

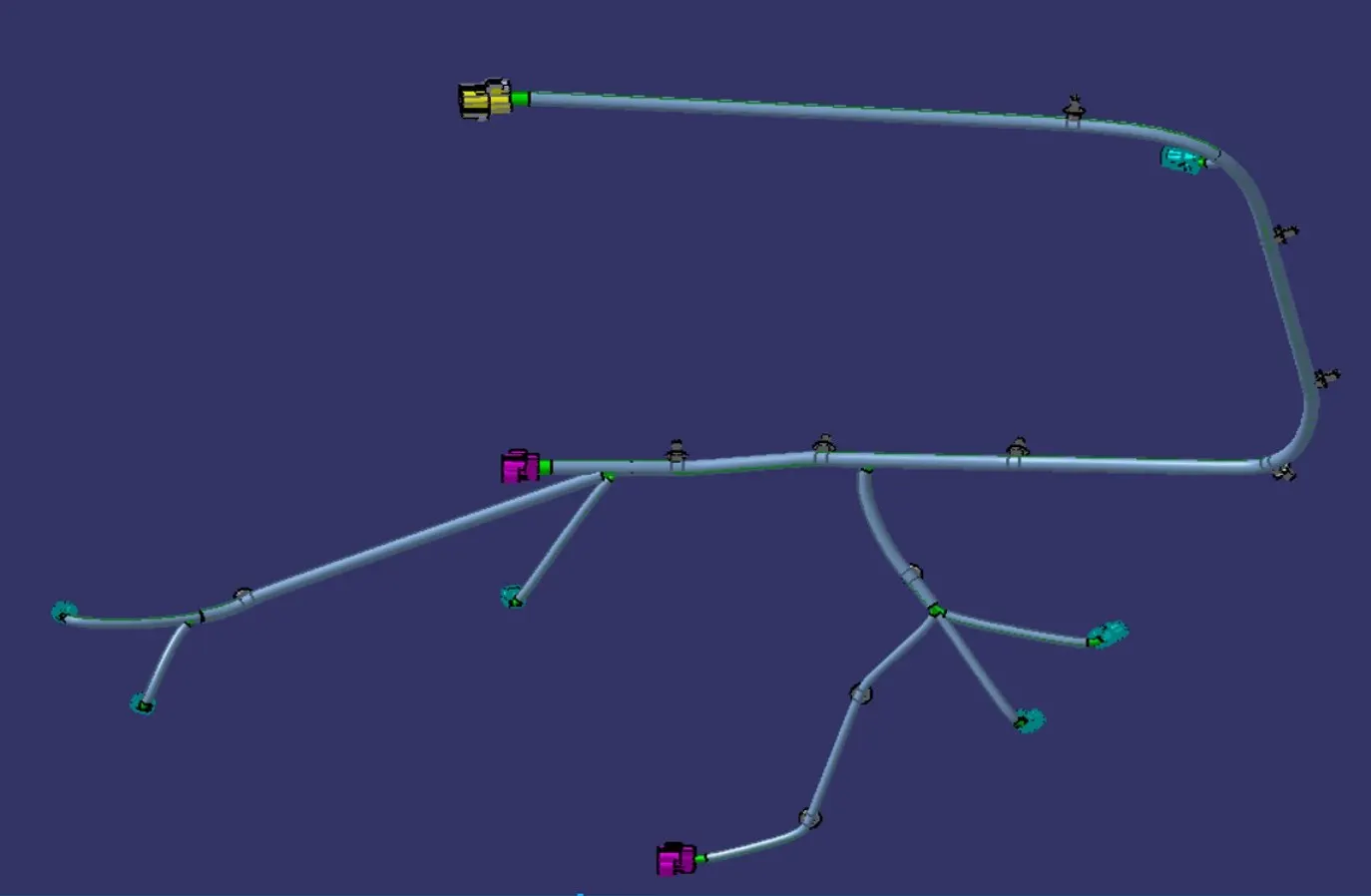

• Wiring Harness Within Back Door

For More information, please collect my 3D DATA

Thank You
