Challenge

Project:-Career choices of alumni of two Universities will be analysed with respect to their passing year as well as the course they completed.

AAniket Yadav7 Aug 2022

Project 2

Aim:-Once a student is passed out from a Institute or College, he/she is known as Alumni of the Institute. Alumni’s career growth plays important role in Institute’s ranking and other networking activities. In this project, career choices of alumni of two Universities will be analyzed with respect to their passing year as well as the course they completed.

Dataset: Six .csv file (Alumni record of College A and College B) Higher Studies, Self Employed and Service/Job record

  • College_A_HS ~ Higher Studies Record of College A
  • College_A_SE ~ Self Employed Record of College A
  • College_A_SJ ~ Service/Job Record of College A
  • College_B_HS ~ Higher Studies Record of College B
  • College_B_SE ~ Higher Studies Record of College B
  • College_B_SJ ~ Higher Studies Record of College B
-- Q1. Create new schema as alumni-----
CREATE SCHEMA alumni;
USE alumni;
SELECT * FROM college_a_sj;
-- ------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q3.Run SQL command to see the structure of six tables ------------------------------------------------------------------------
DESC college_a_hs;
DESC college_a_se;
DESC college_a_sj;
DESC college_b_hs;
DESC college_b_se;
DESC college_b_sj;
-- -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q4.Display first 1000 rows of tables (College_A_HS, College_A_SE, College_A_SJ, College_B_HS, College_B_SE, College_B_SJ) with Python.
-- It Is Peroform On python(Jyupter Notebook)
-- ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q5.Import first 1500 rows of tables (College_A_HS, College_A_SE, College_A_SJ, College_B_HS, College_B_SE, College_B_SJ) into MS Excel.
-- -- It Is Peroform On MS Excel
-- ---------------------------------------------------------------------------------------------------------------------------------------
-- Q6.Perform data cleaning on table College_A_HS and store cleaned data in view College_A_HS_V, Remove null values.

CREATE VIEW college_A_HS_V AS (SELECT * FROM college_a_hs WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND HSDegree IS NOT NULL AND EntranceExam IS NOT NULL AND Institute IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM college_A_HS_V;
-- ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q7.Perform data cleaning on table College_A_SE and store cleaned data in view College_A_SE_V, Remove null values.

CREATE VIEW College_A_SE_V AS (SELECT * FROM college_a_se WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND Organization IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM College_A_SE_V;
-- -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q8.Perform data cleaning on table College_A_SJ and store cleaned data in view College_A_SJ_V, Remove null values.

CREATE VIEW College_A_SJ_V AS (SELECT * FROM college_a_sj WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND Organization IS NOT NULL AND Designation IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM College_A_SJ_V;
-- -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q9.Perform data cleaning on table College_B_HS and store cleaned data in view College_B_HS_V, Remove null values.

CREATE VIEW College_B_HS_V AS (SELECT * FROM college_b_hs WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Branch IS NOT NULL AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND HSDegree IS NOT NULL AND EntranceExam IS NOT NULL AND Institute IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM College_B_HS_V;
-- ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q10.Perform data cleaning on table College_B_SE and store cleaned data in view College_B_SE_V, Remove null values.

CREATE VIEW College_B_SE_V AS (SELECT * FROM college_b_se WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Branch IS NOT NULL AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND Organization IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM College_B_SE_V;
-- ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q11.Perform data cleaning on table College_B_SJ and store cleaned data in view College_B_SJ_V, Remove null values.

CREATE VIEW College_B_SJ_V AS (SELECT * FROM college_b_sj WHERE RollNo IS NOT NULL AND LastUpdate IS NOT NULL AND Name IS NOT NULL AND FatherName IS NOT NULL AND MotherName IS NOT NULL
AND Branch IS NOT NULL AND Batch IS NOT NULL AND
Degree IS NOT NULL AND PresentStatus IS NOT NULL AND Organization IS NOT NULL AND Designation IS NOT NULL AND Location IS NOT NULL);
SELECT * FROM College_B_SJ_V;
-- ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q12.Make procedure to use string function/s for converting record of Name, FatherName, MotherName into lower case for views

SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_A_HS_V;
SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_A_Se_V;
SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_A_Sj_V;
SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_B_HS_V;
SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_B_Se_V;
SELECT LOWER(Name),LOWER(FatherName),LOWER(MotherName) FROM College_B_Sj_V;
-- -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q13.Import the created views (College_A_HS_V, College_A_SE_V, College_A_SJ_V, College_B_HS_V, College_B_SE_V, College_B_SJ_V) into MS Excel and make pivot chart for location of Alumni.
-- It Is Peroform On MS Excel

-- -----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q14.Write a query to create procedure get_name_collegeA using the cursor to fetch names of all students from college A.
DROP PROCEDURE get_name_collegeA
DELIMITER $$
CREATE PROCEDURE get_name_collegeA
(
         INOUT name1 TEXT(40000)
)
BEGIN
    DECLARE na INT DEFAULT 0;
    DECLARE namelist VARCHAR(16000) DEFAULT "";

    DECLARE namedetail
           CURSOR FOR
				SELECT Name FROM college_a_hs UNION SELECT Name FROM college_a_se UNION SELECT Name FROM college_a_sj;

	DECLARE CONTINUE HANDLER
            FOR NOT FOUND SET na =1;

	OPEN namedetail;

    getame :
         LOOP
         FETCH FROM namedetail INTO namelist;
         IF na = 1 THEN
              LEAVE getame;
		END IF;
        SET name1 = CONCAT(namelist,";",name1);

        END LOOP getame;
        CLOSE namedetail;
END $$
DELIMITER ;

SET @Name = "";
CALL get_name_collegeA(@Name);
SELECT @Name Name;
-- ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q.15 Write a query to create procedure get_name_collegeB using the cursor to fetch names of all students from college B.
DROP PROCEDURE get_name_collegeB
DELIMITER $$
CREATE PROCEDURE get_name_collegeB
(
         INOUT name1 TEXT(40000)
)
BEGIN
    DECLARE na INT DEFAULT 0;
    DECLARE namelist VARCHAR(16000) DEFAULT "";

    DECLARE namedetail
           CURSOR FOR
				SELECT Name FROM college_b_hs UNION SELECT Name FROM college_b_se UNION SELECT Name FROM college_b_sj;

	DECLARE CONTINUE HANDLER
            FOR NOT FOUND SET na =1;

	OPEN namedetail;

    getame :
         LOOP
         FETCH FROM namedetail INTO namelist;
         IF na = 1 THEN
              LEAVE getame;
		END IF;
        SET name1 = CONCAT(namelist,";",name1);

        END LOOP getame;
        CLOSE namedetail;
END $$
DELIMITER ;

SET @Name = "";
CALL get_name_collegeB(@Name);
SELECT @Name Name;
-- -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-- Q16.Calculate the percentage of career choice of College A and College B Alumni (w.r.t Higher Studies, Self Employed and Service/Job)

SELECT "Higher Studies" Present_status,(COUNT(college_a_hs.RollNo) /(college_a_hs.RollNo))*100 College_A_Persentage,(COUNT(college_b_hs.RollNo)/(college_b_hs.RollNo))*100 College_B_Persentage   FROM college_a_hs CROSS JOIN college_b_hs UNION
SELECT "Self Empolyment" Present_status,(COUNT(college_a_se.RollNo) /(college_a_se.RollNo))*100 College_A_Persentage,(COUNT(college_b_se.RollNo)/(college_b_se.RollNo))*100 College_B_Persentage   FROM college_a_se CROSS JOIN college_b_se UNION
SELECT "Service Job" Present_status,(COUNT(college_a_sj.RollNo) /(college_a_sj.RollNo))*100 College_A_Persentage,(COUNT(college_b_sj.RollNo)/(college_b_sj.RollNo))*100 College_B_Persentage    FROM college_a_sj CROSS JOIN college_b_sj;

Q4.Display first 1000 rows of tables (College_A_HS, College_A_SE, College_A_SJ, College_B_HS, College_B_SE, College_B_SJ) with Python.

Ans:-

#Display first 1000 rows of tables (College_A_HS, College_A_SE, College_A_SJ, College_B_HS, College_B_SE, College_B_SJ) with
#Python.

import mysql.connector
testdb =mysql.connector.connect(
    host = "localhost",
    user = "root",
    password = "Use Your Mysql Password",
    database = "alumni")

display = testdb.cursor()

A_HS = "SELECT * FROM college_a_hs LIMIT 1000"
A_SE = "SELECT * FROM college_a_se LIMIT 1000"
A_Sj = "SELECT * FROM college_a_sj LIMIT 1000"
B_HS = "SELECT * FROM college_b_hs LIMIT 1000"
B_SE = "SELECT * FROM college_b_se LIMIT 1000"
B_Sj = "SELECT * FROM college_b_sj LIMIT 1000"

display.execute(A_HS)
for a in display:
    print(a)

display.execute(A_SE)
for b in display:
    print(b)

display.execute(A_Sj)
for c in display:
    print(c)

display.execute(B_HS)
for d in display:
    print(d)

display.execute(B_SE)
for e in display:
    print(e)

display.execute(B_Sj)
for f in display:
    print(f)

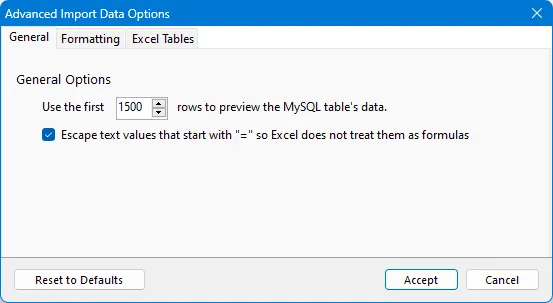

Q5.Import first 1500 rows of tables (College_A_HS, College_A_SE, College_A_SJ, College_B_HS, College_B_SE, College_B_SJ) into MS Excel.

Ans:-(Same procedure for all other columns)

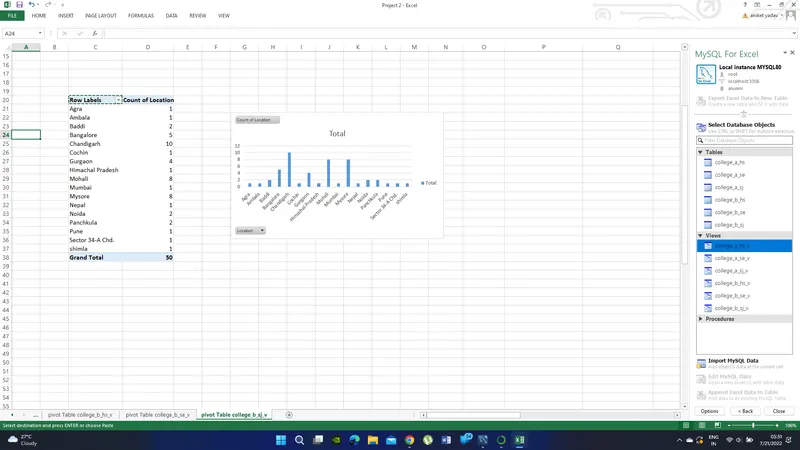

Q13.Import the created views (College_A_HS_V, College_A_SE_V, College_A_SJ_V, College_B_HS_V, College_B_SE_V, College_B_SJ_V) into MS Excel and make pivot chart for location of Alumni.

Ans:-(Same procedure for all other columns)
