Project 2

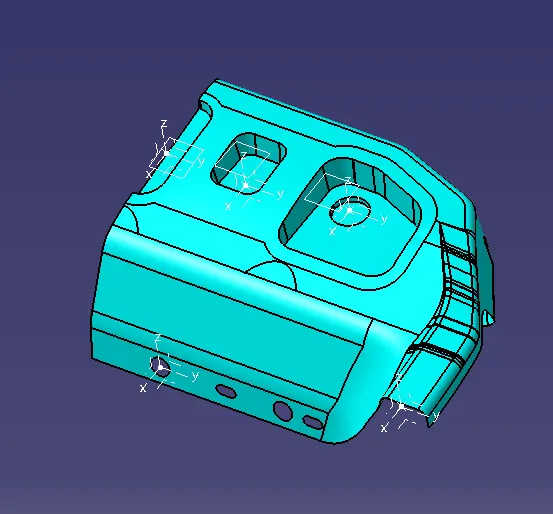

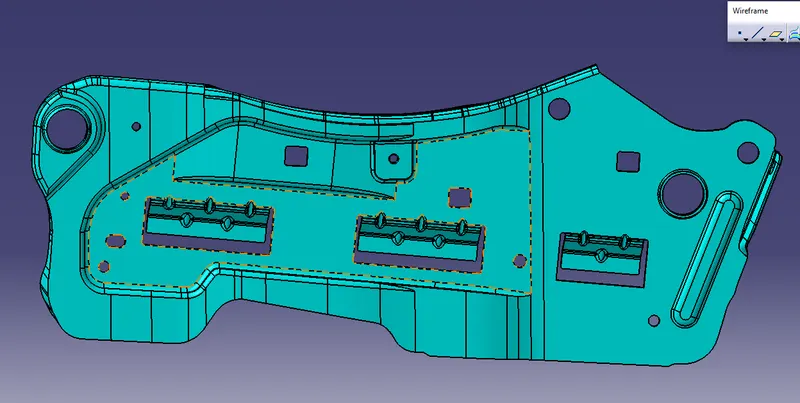

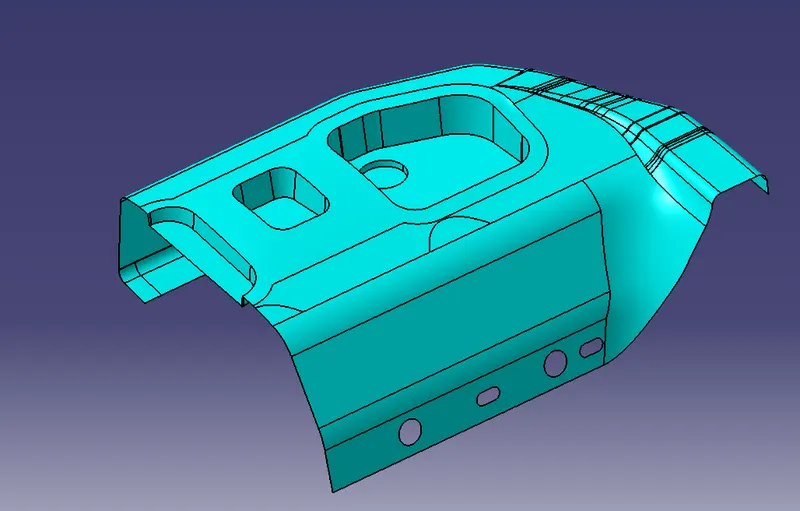

1. Aim : To Remaster thegive parts using part design workbench in CATIA V5

In order to complete the part following steps are followed.

• Download the given cad Igs files.
• Join the surface and make aclosed surface out of it
• The insert a geometrical set in which creat a point on which whole remaster part will depend
• Add the axis system to that part and start to creat the sketch on one of the plane
• First create the sketch the master section and pad it for required length and add it tpo part body
• Then in order to create the different features on the part create indivisule sketch and create the differnt bodies and use Boolean oprations to insert the bodiesin main part body in oreder make the Model.

2.

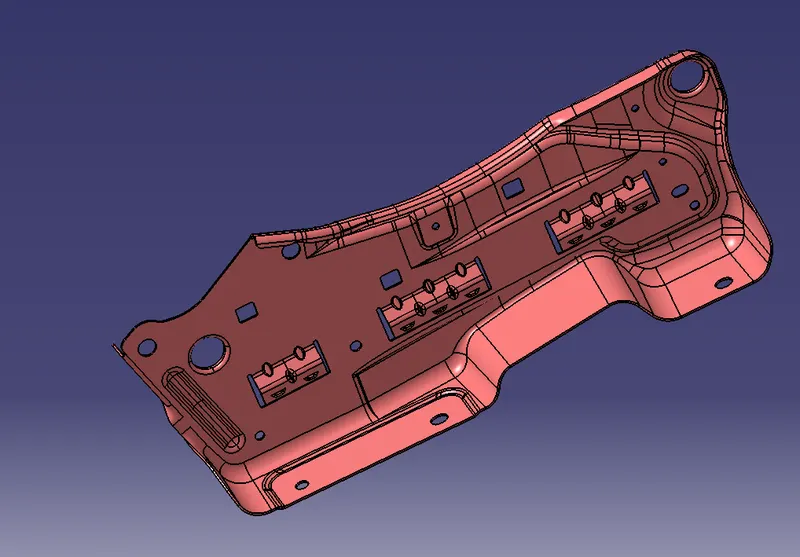

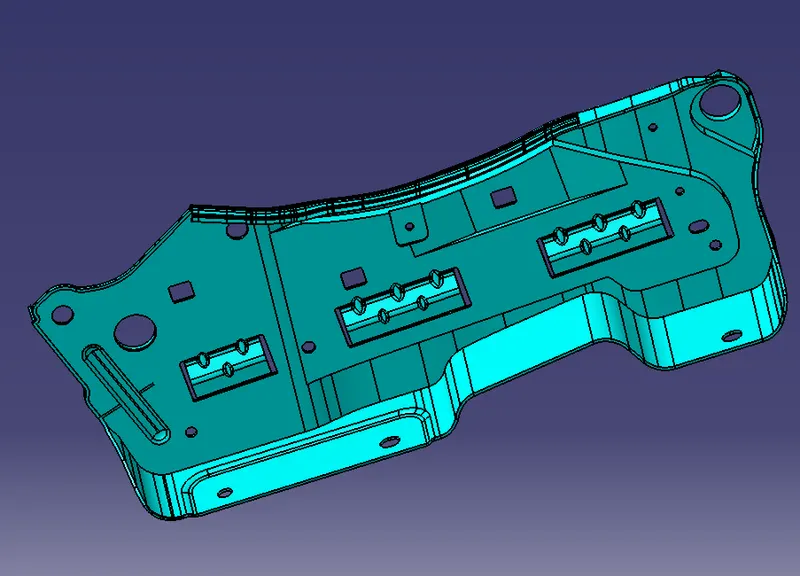

Aim : To Remaster thegive parts using part design workbench in CATIA V5

In order to complete the part following steps are followed.

• Download the given cad Igs files.
• Join the surface and make aclosed surface out of it
• The insert a geometrical set in which creat a point on which whole remaster part will depend
• Add the axis system to that part and start to creat the sketch on one of the plane
• First create the sketch the master section and pad it for required length and add it tpo part body
• Then in order to create the different features on the part create indivisule sketch and create the differnt bodies and use Boolean oprations to insert the bodiesin main part body in oreder make the Model.

3.
