Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

Aim :- To draw the given assembly and details using Autocad. To draw the given drawing folloeing commands are used. limits units rectangle annotate circle offset trim  extend Hatch Block Block Edit Diamensions Symbols Part List.

1. Aim :  To Remaster thegive parts using part design workbench in CATIA V5 In order to complete the part following steps are followed. Download the given cad Igs files. Join the surface and make aclosed surface out of it The insert a geometrical set in which creat a point on which whole remaster part will depend…

Title : To Build Class A surface on given Seat Back STO and completing the cushion STO Procedure: For given seat back STO crate an extract of seat back part and isolate it in order to Break the link between given STO and the new class A surfacs. Create an geometrical set and add the extracted surface to it then joint the…

OEM :- Original Equipment Manufacturer Rest of the answers are in file attached.

Aim : To route the wiring harness on given Backdoor model. Procedure: 1. For defining all the connectors electrically :- Open the part in mechanical part design. On the mating side of the connector create a point and axis system with y axis facing in locking direction. Similarlly create one more point on the bundle entry…

Aim : TO route the wiriing harness on given engine assembly.  1. For defining all the connectors electrically :- Open the part in mechanical part design. On the mating side of the connector create a point and axis system with y axis facing in locking direction. Similarlly create one more point on the bundle entry side…

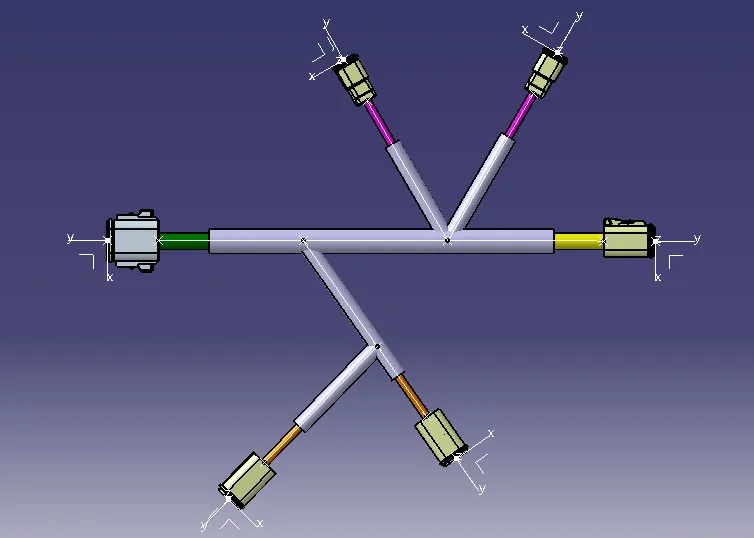

1. The first step is to define the mechanical parts as elctric connectors. For that in mechanical part design creat the required point and axis system. Next in electric part design the part as connector by selecting Define connector and after that define the connector connection point and bunddle entry point. Create a…

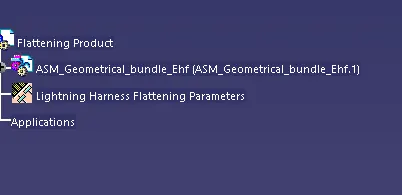

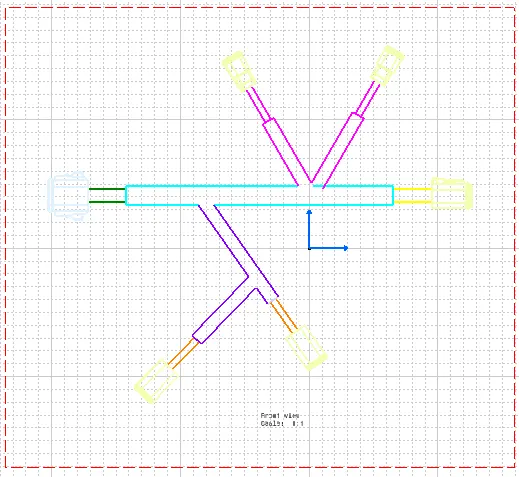

For falttening the assembly go to harness flatning workbench and give the flatning properties and the import the assembly in flattning workbench then in next step strighten the harness and prform the opration like rotate and roll etc. then take a new drawing and add the harness assembly to it and then define the properties…

1. The first step is to define the mechanical parts as elctric connectors. For that in mechanical part design creat the required point and axis system. Next in electric part design the part as connector by selecting Define connector and after that define the connector connection point and bunddle entry point. Create a…

Q. 1. For defining the P clamp as electric support-  1. In mechanical part design creat the requird geometry like 2 points and 3 planes.  2. Go to electrical part design and select the define support command click on the clamp.  3. Define the entry and exist for calmp by selecting the resprctive points and…

                           For connector connection point axis system is defied and also bunddle connection point is also defiened.               For the connector the connectoe connection point, cavity connection and…
