Project 2

CPU FAN BEZEL MOLD DESIGN

AIM- In this assignment we have to create core and cavity block for the CPU FAN BEZEL model, and also create slider for undercut present in the model.

As there was undercut present in the model therefore, we create the slider and for slider we create washer and locking mechanism. Also create gate runner sprue, air vent and colling channel.

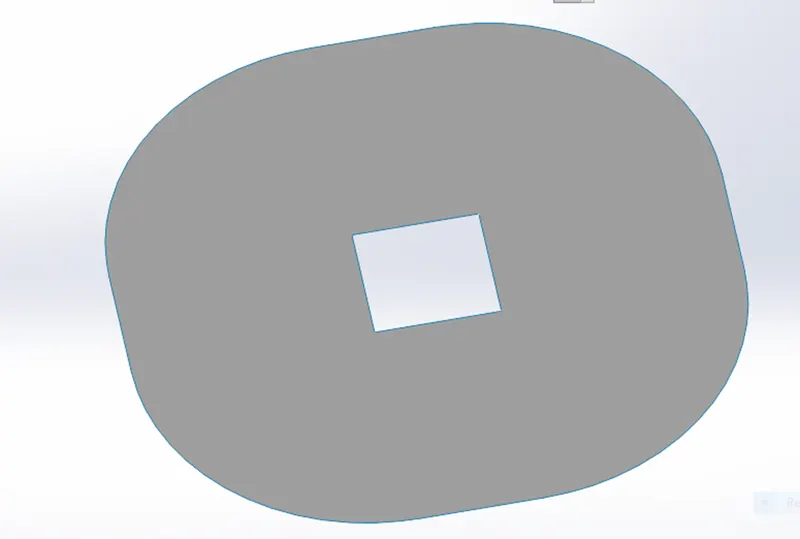

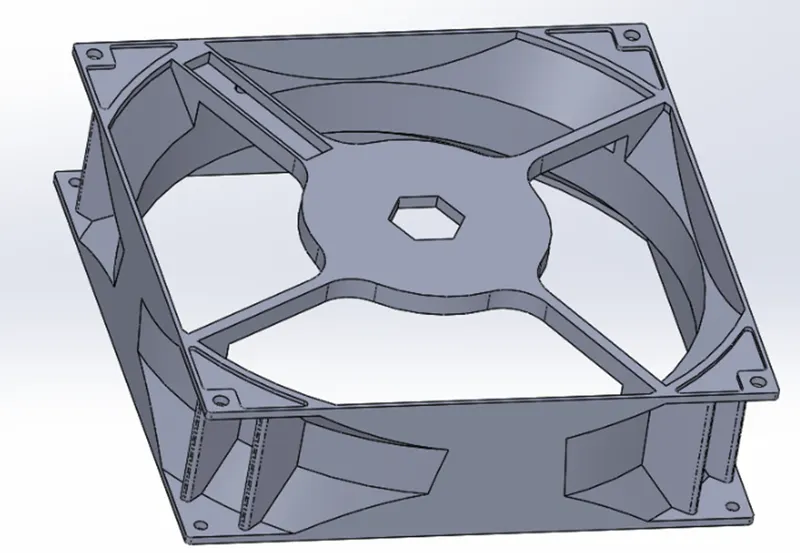

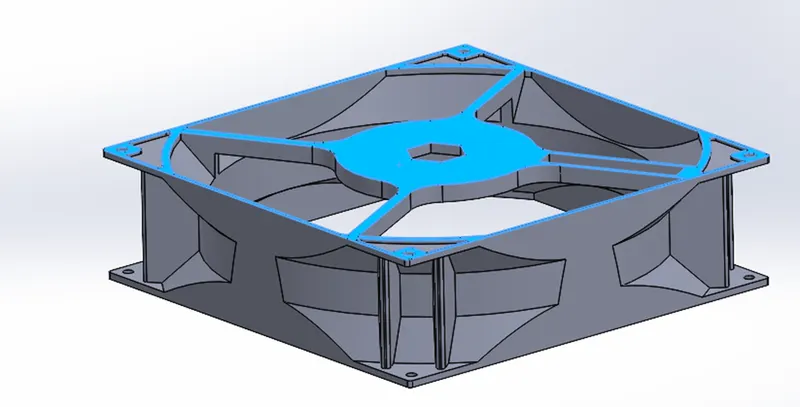

GIVEN MODEL

Mold Tools used

1.TOOLING DIRECTION- The direction in which the mold blocks move the cavity or the direction in which the component eject from the mold is called tooling direction.

The selection of tooling direction always be minimum number of undercuts is formed and the overall difficulty of the mold reduces.

In this model all the feature extruded in vertical direction, so we choose y direction as tooling and select the top face for tooling direction.

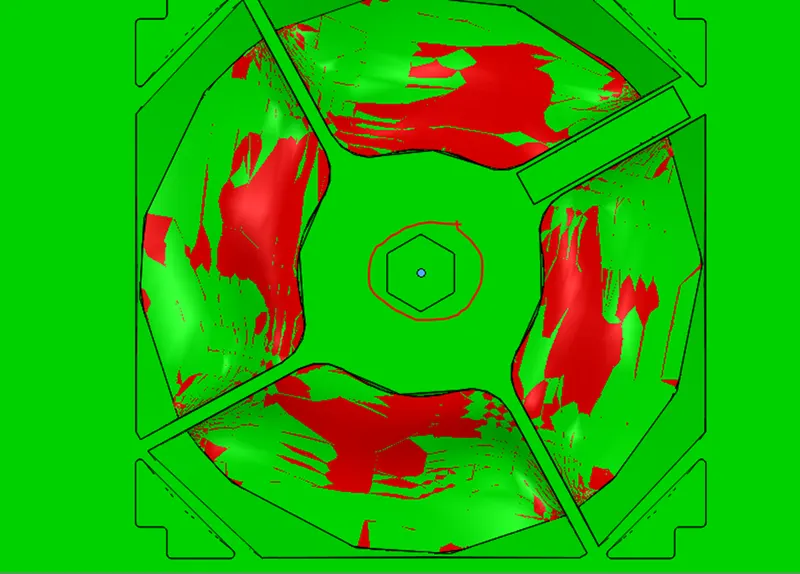

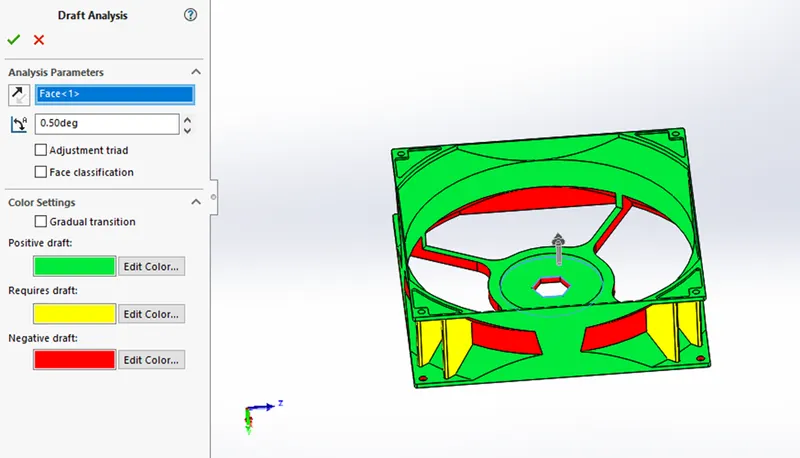

2.DRFAT ANALYSIS- At first, we check the model adequate draft are provided or not. if not then we tell the product team that they should provide the adequate draft where it needed. We see that some regions are yellow that means adequate draft are not provided in this model.

SCALE- scale the model by a specified factor based on the material provided. Assume the, material for the model as ABS (shrinkage -0.6%) the scale value is determined (0.6/100) +1=1.006.

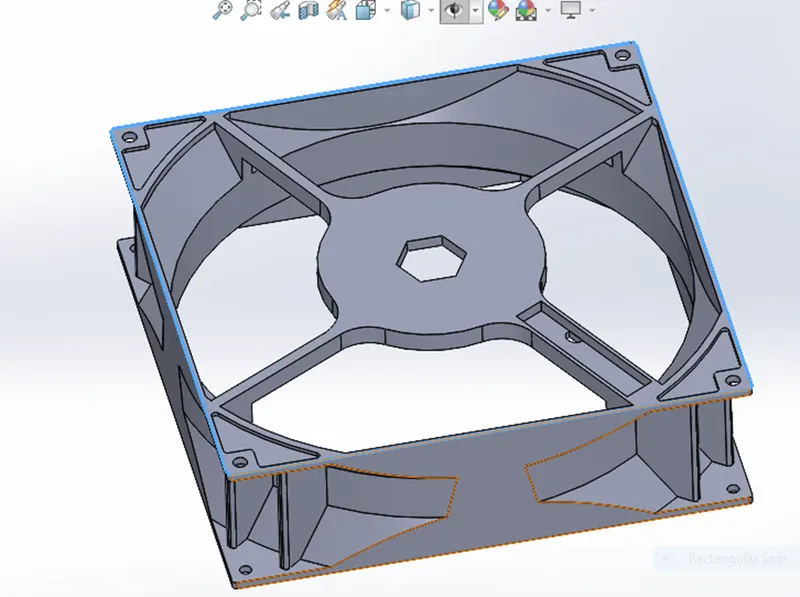

PARTING LINE- The parting line is where the two halves of the mold meet around the parameter of the part. All parting lines need to seal properly when the mold is clamped in a molding machine. The form of parting line depends on the specific situation of the plastic part, but

Parting line separates the core and cavity surface.

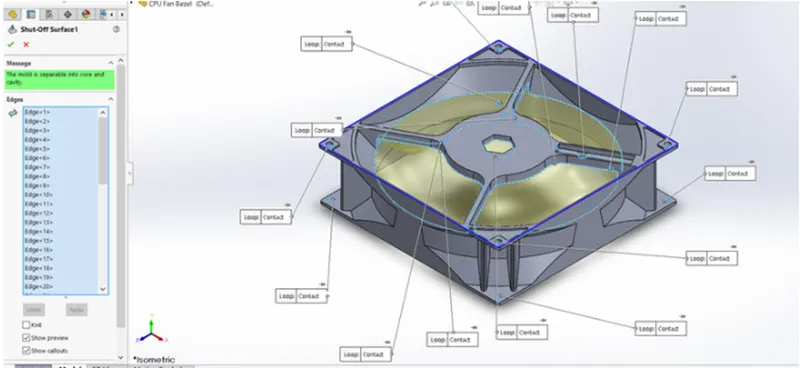

SHUT- OFF SURFACES- Creates mold shut-off surfaces by creating a surface patch along a parting line or edges that formed a continuous loop. these prevent any through holes in the cavity or core surfaces bodies.

To cut a tooling block into two pieces, you need two complete surfaces (a core surface and a cavity surface) without any through holes. Shut-off surfaces close up the through holes. You create shut-off surfaces after you create the parting lines.

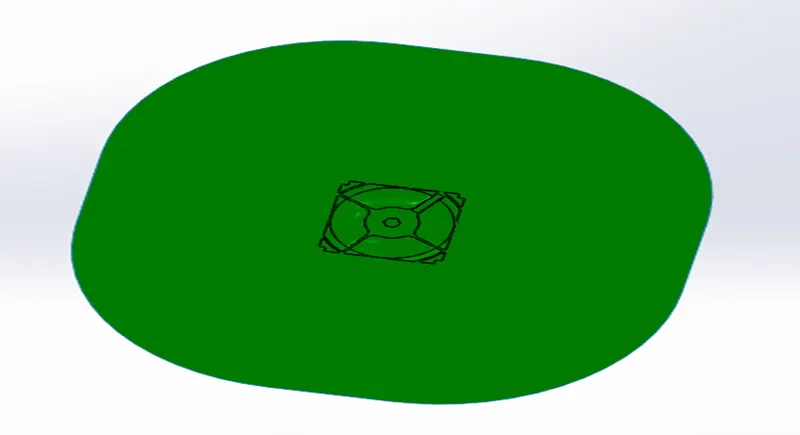

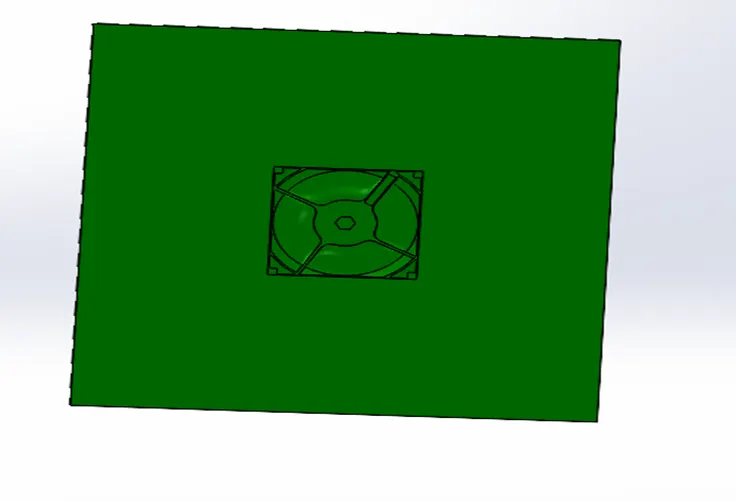

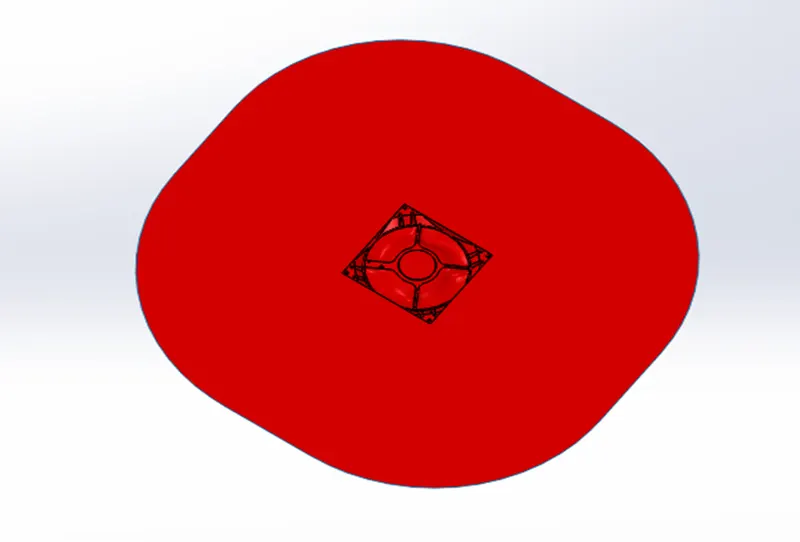

PARTING SURFACE- We create the parting surface along the parting line command and extend it.

CORE&CAVITY SURFACE- Go to direct editing option move/copy bodies tool copy of parting surface and knit with core and cavity surface.

SPRUE ALLIGNMENT- create an assembly create new part one is core and another is cavity. the core and cavity block are created as individual part in assembly by inserting the component as core and cavity surface created for plastic knob design. In this model actual inlet point not provide but when work as mold designer team provided the inlet point.

CORE&CAVITY BLOCK- create an assembly create new part one is core and another is cavity. the core and cavity block are created as individual part in assembly by inserting the component as core and cavity surface created for plastic knob design.

The core block is created using core surface. there will be 2 block internal and external block which are created considering minimum distance between mold and outer edge and base of the slider these two-block due to a curvature in parting line and these two-block act as single block.

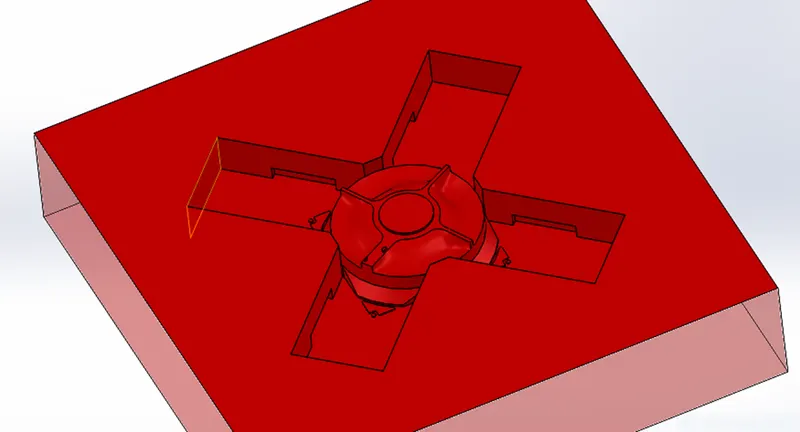

Core block

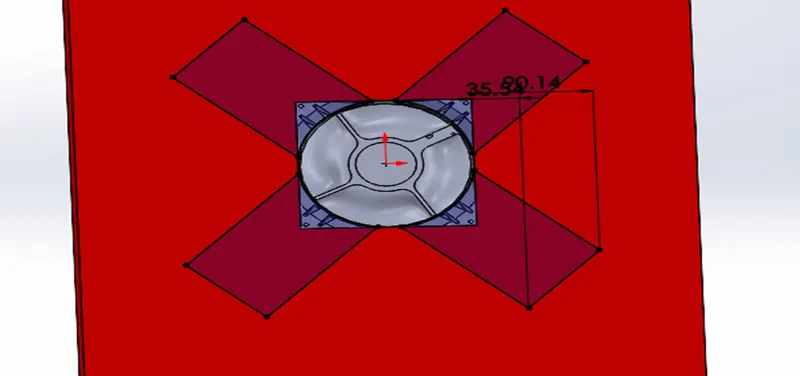

Create a plane at the distance of top plane and start creating sketch of externaul block,and after that create inner block sketch as same plane and using split option,split it with the externaul block.

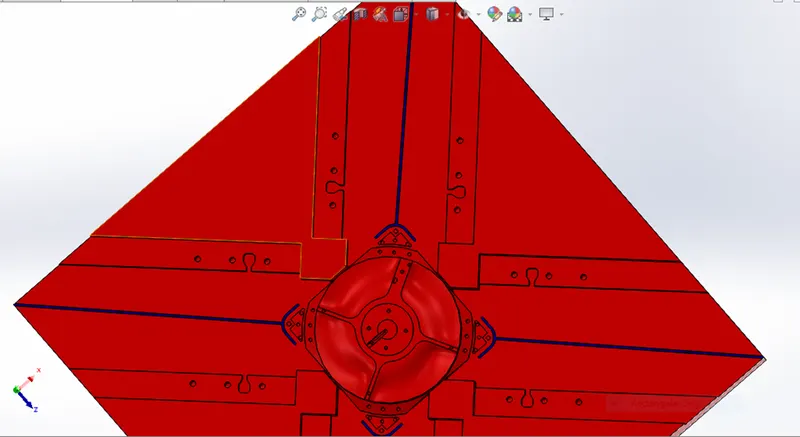

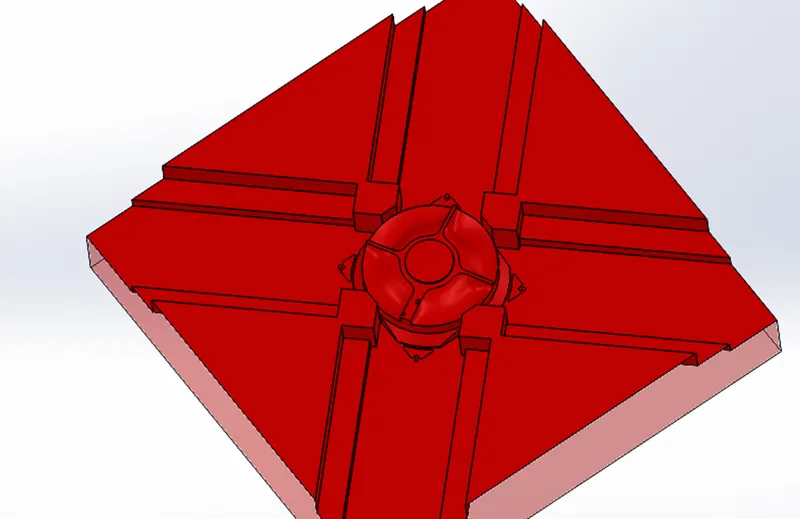

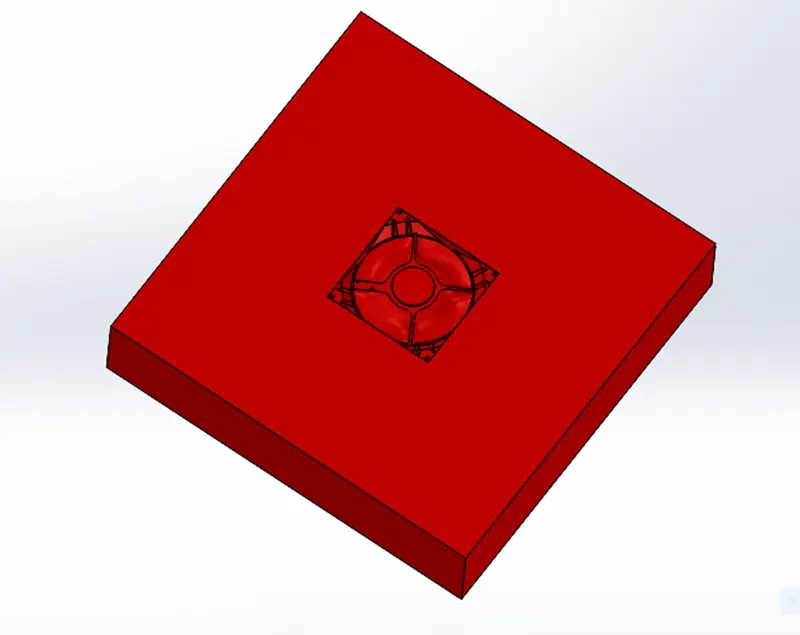

CAVITY BLOCK- Using same sketch and same procedure we create the cavity block.

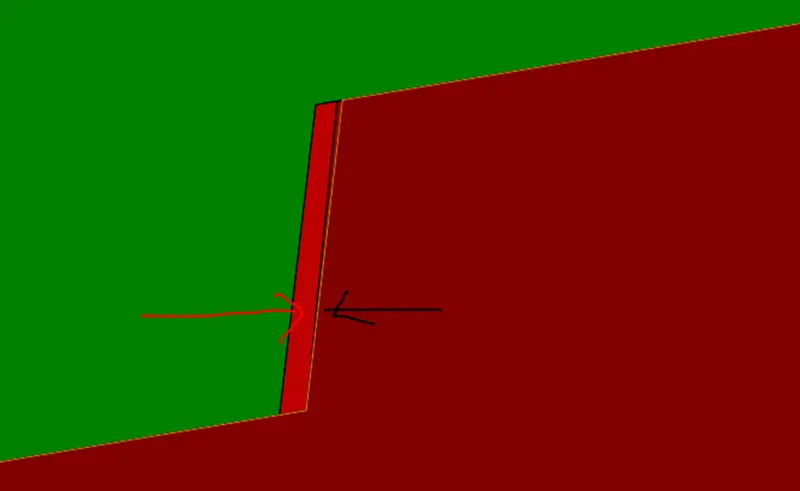

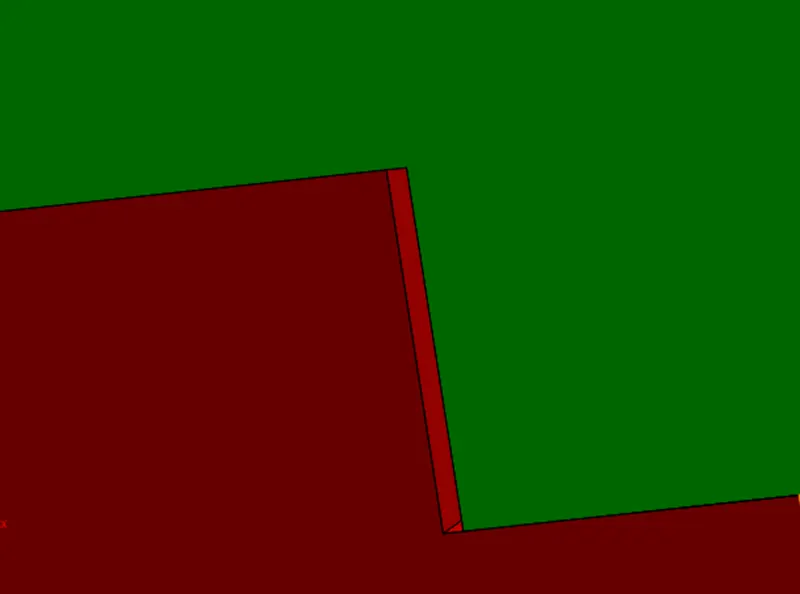

During the movement of blocks away from each other there will be rubbing of the block so relief should be provided.

During mold design of plastic knob in the step of draft analysis we clearly see that there was undercut present in the model to optimize the undercut slider will be used.

FEATURE USED FOR CREATING SLIDER-

REFERENCE PLANE – This command is used for creating plane and axis. the reference plane is created perpendicular to the line of undercut region.

SKETCH – using this command we create a new sketch on created new plane.

CONVERT ENTITIES- You can create one or more curves in a sketch by projecting an edge, loop, face, curve, or external sketch contour, set of edges, or set of sketch curves onto the sketch plane.

SPLIT- it is available in feature tab use to split the body into two pieces along the sketch based on application.

CUT EXTRUDED- used to remove material from a solid body along the sketch in which direction we need based on application.

BOSS EXTRUDED- to add material from a solid body along the sketch in which direction we need based on application.

MOVE FACE-It is available in mold tool tab used to move face of a solid body.

MOVE/COPY BODIES- It is available in mold tool used to move copy and rotates solid body or surface bodies.

COMBINE- it is available in mold tool tab used to add, subtract bodies.

DELECT/KEEP BODY- It is available in the mold tool tab to keep or delete a solid body or surface body.

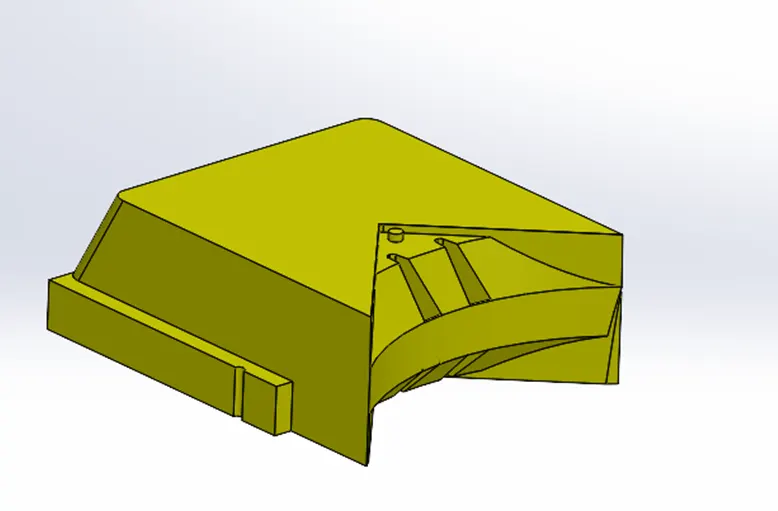

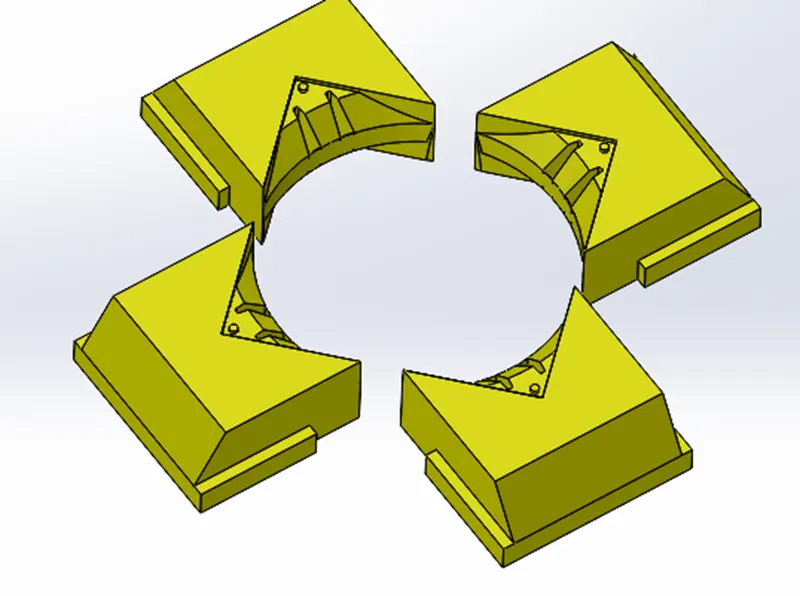

PROCEDURE FOR CREATING SLIDER-

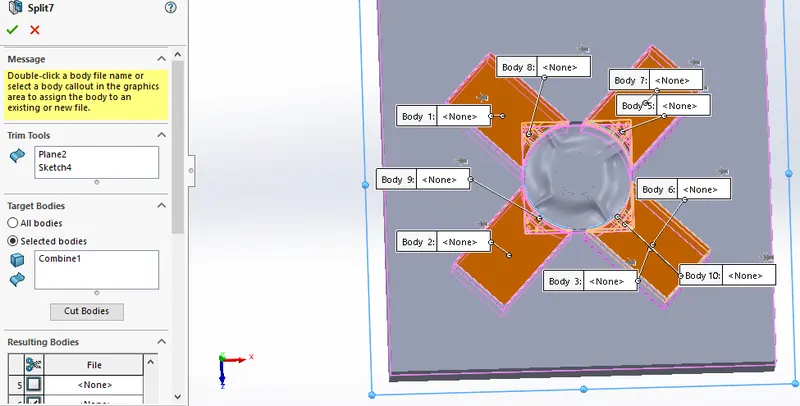

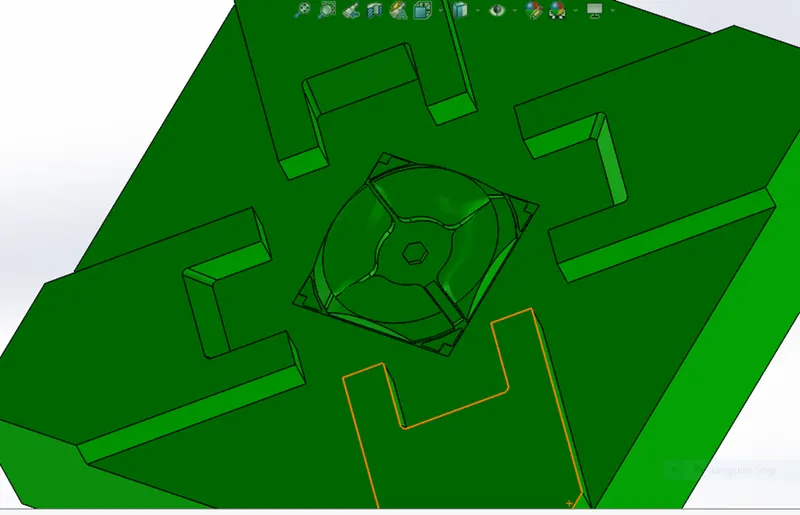

STEP 1- Edit the core block make side faces transparence, sketch on top faces split it from core mold block. Create reference plane below the mold part and split it using the sketch and plane.

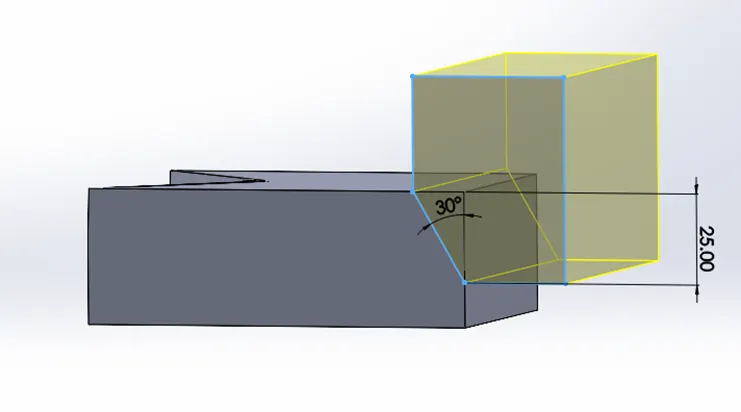

STEP 2-We cut the extra portion of the split body by creating sketch on top face a rectangle and using cut extruded option cut it.create wedge for the slider sketch on side face and using cut extruded option cut it, to make proper wedge shape.

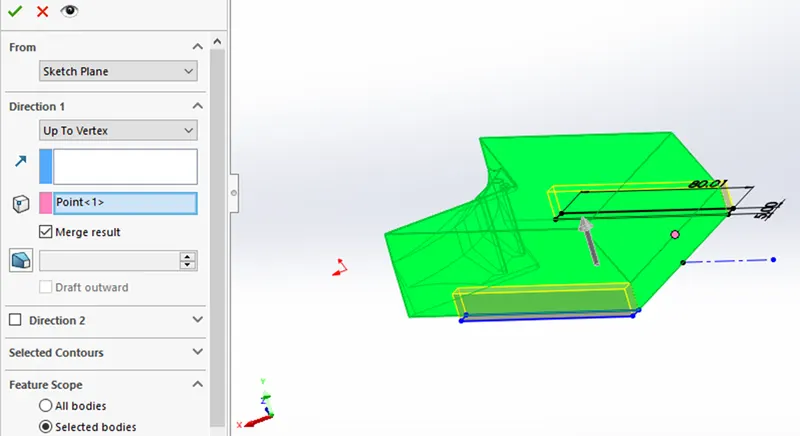

STEP3- create collar for make corner rectangle on both sides and give the width value 5mm and extruded it up to slider vertex.

After that save the slider part as Parasolid file.

STEP 4- create new part in assembly and imported Parasolid part, and edit the core block by importing the slider part and using combine operation separate them from main core body.

STEP5- using move face command and cut extruded command create the proper space for slider and washer.

EDIT CAVITY BLOCK

STEP 1- Edit the cavity block to make the profile of core block so add some material on core block, for this create sketch and extruded it. after that imported slider part and reduce extra overlapping part by combine command.

STEP 2- There was steel to steel contact in core and cavity so we match it proper by using move face command. Edit the core block and make using move face command make it proper by giving relief.

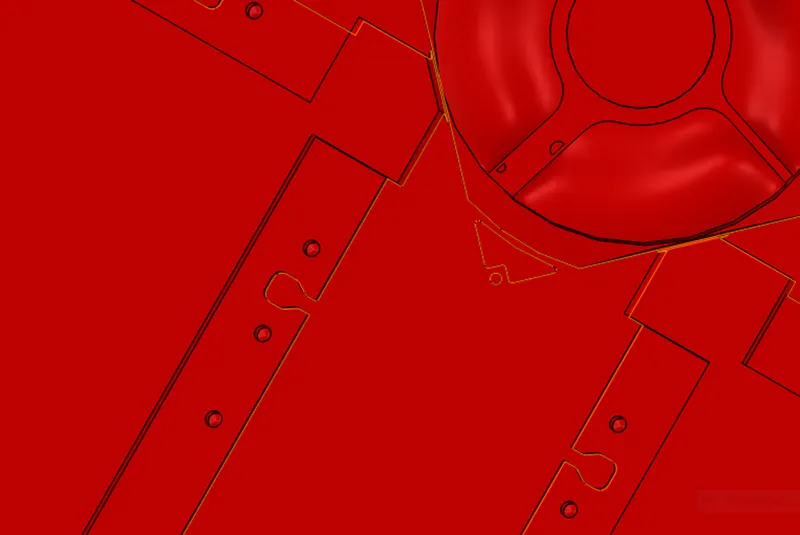

CREATING WASHER&LOCKING MECHANISM FOR SLIDER

WASHER- After that add separate part file in assembly named as washer, create a sketch for the washer and extruded option used to make washer. Due to add of washer there will be an intersection in core and cavity block we should remove the intersection material.

LOCKING MECHANISM- As the slider movement should redistrict, we should create a locking mechanism such that only some distance slider can move for this certain space should be allocated in cavity block that spaced is designed considering the distance for travel of slider.

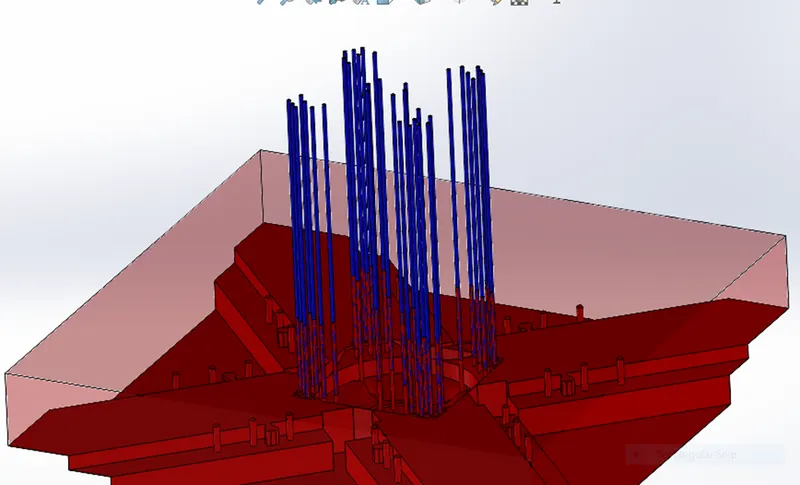

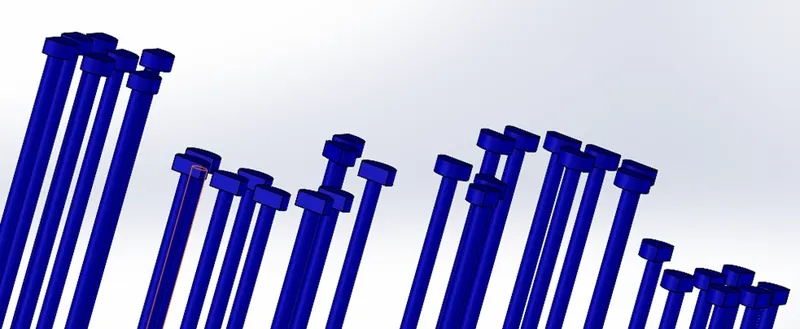

EJECTOR PINS &EJECTOR BACK PLATE CREATION:

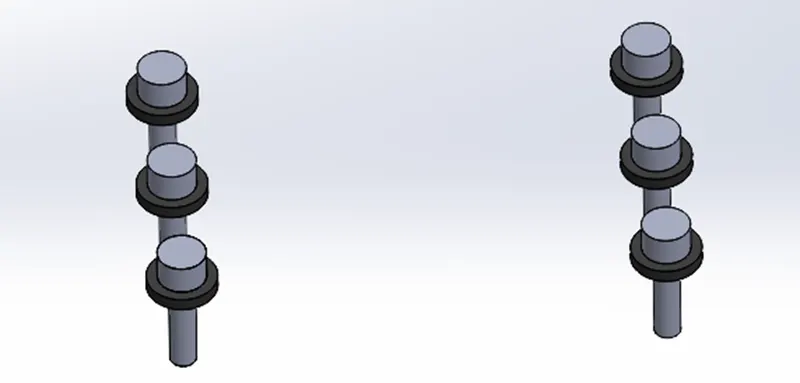

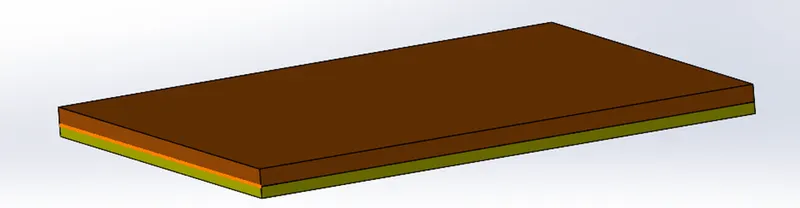

As the part needs to be ejected from the core block after the injection process, we should design ejector pins such that ejector pin will be pushing the part with help of ejector block plate.

The heads of the ejector pin are made based on the type of ejector pins as the ends of ejector pins which will be in D shape.

After the design of ejector pins relief for the ejector should be provided both in the core block and the ejector back plate.

Procedure of creating ejector and ejector back plate:

SKETCH:

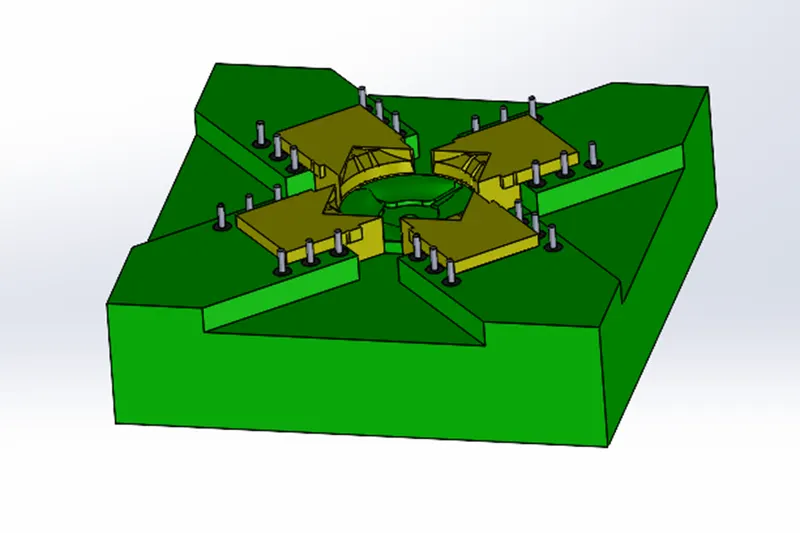

The sketch is created on one of the suitable faces of core bock circles of diameter of 3mm.

CORE:

It is used for extracting cores from existing tooling split, using this command ejectors pins will be created.

PROVIDING RELIEF:

To provide relief for the ejector pin a sketch with circle of diameter 3.95mm (standard for 6mm ejector pin) will be created on the same face used for creation of sketch of ejector pins.

EXTRUDED CUT:

The sketch created relief will be cut extruded from an offset distance of 10 mm from the face used for sketching along the length of ejector pins.

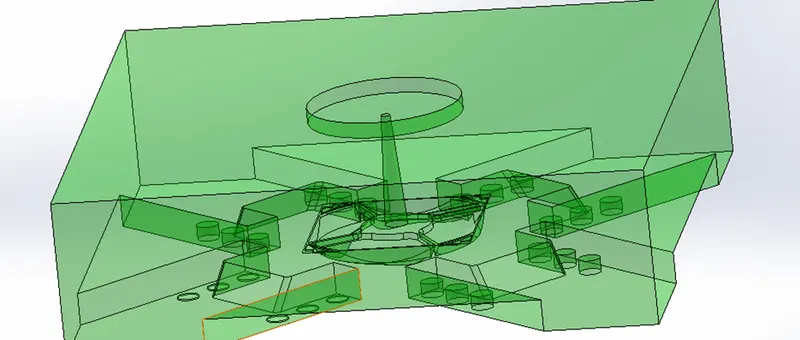

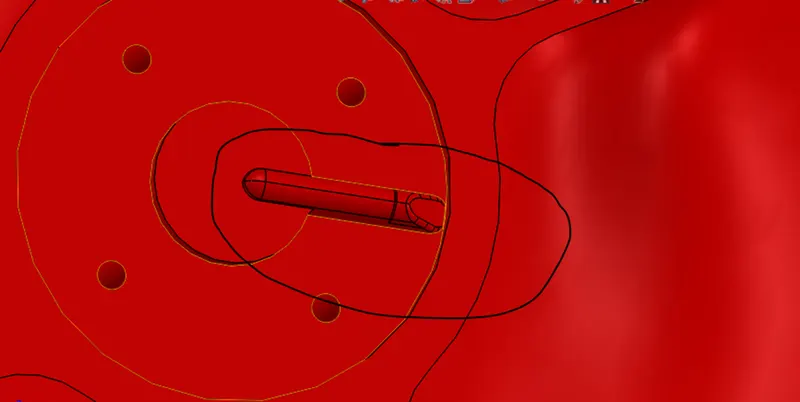

SPRUE, RUNNER&GATE CREATION:

Sprue is a channel through which metal plastic us poured into a mould through this the molten material will be passed through the gate through runner system which will connect the sprue and gate. Gate is a channel which will connect the runner and mold cavity.

AIR VENT CREATION

Air vents need to be designed for the mold for removal of trapped air in the blocks for this a gap of 0.02mm will be provided on the core block with a way for the air to be passed out the block.

COOLING CHANNNEL CREATION

Cooling channels are required to provide uniform cooing for the part to avoid defects during solidification for this we need to provide inlet and outlet parts for the coolant to pass through the core block.

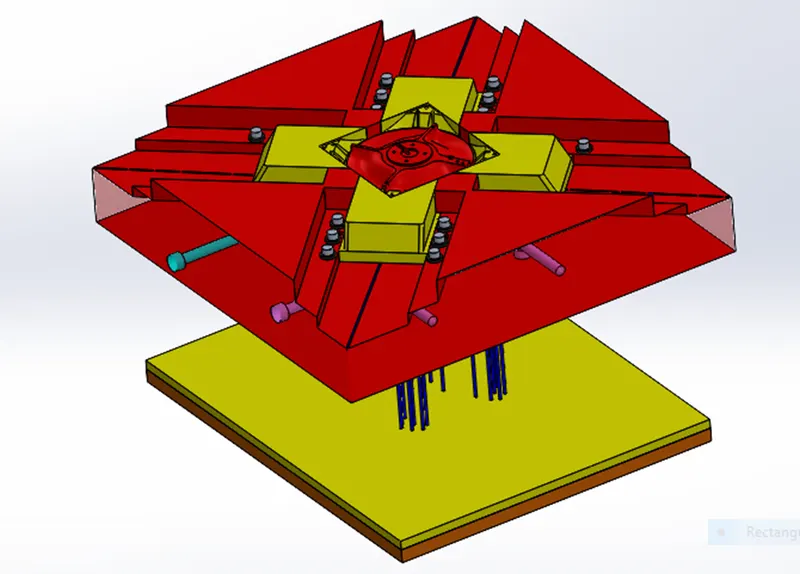

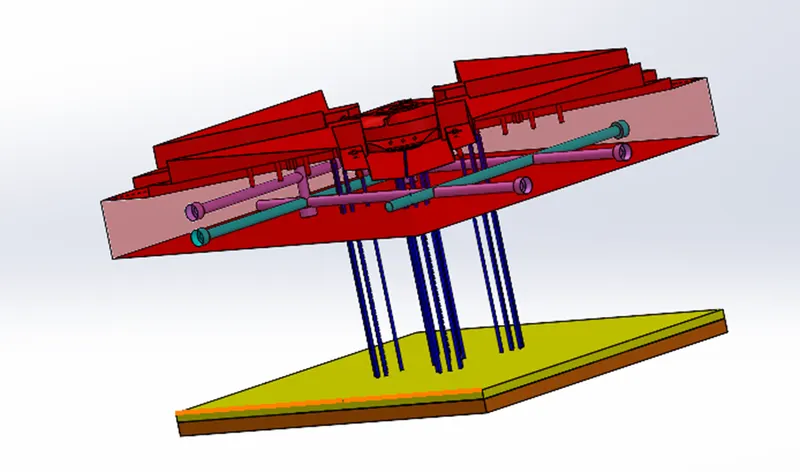

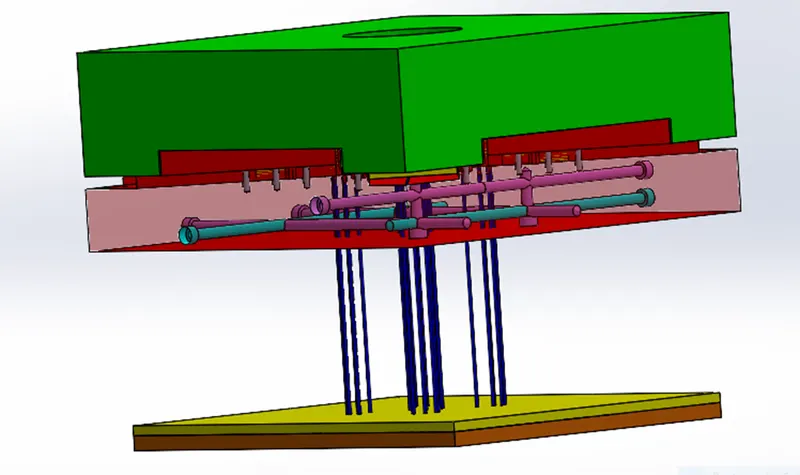

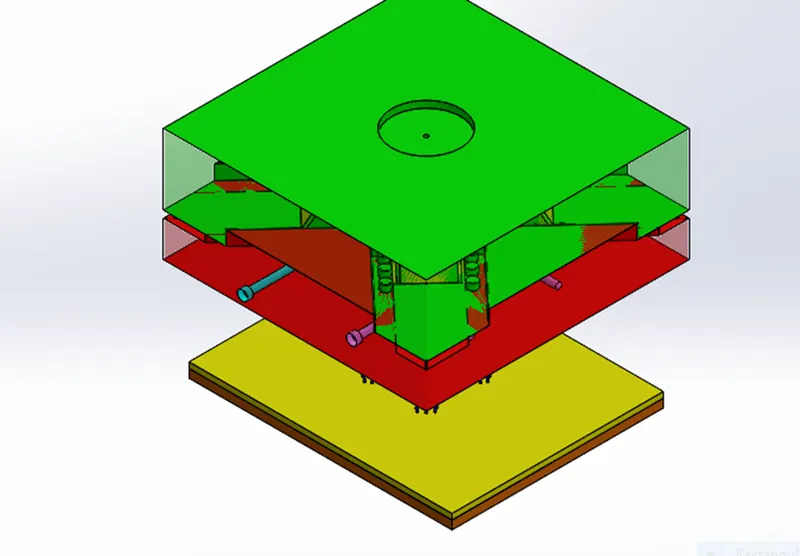

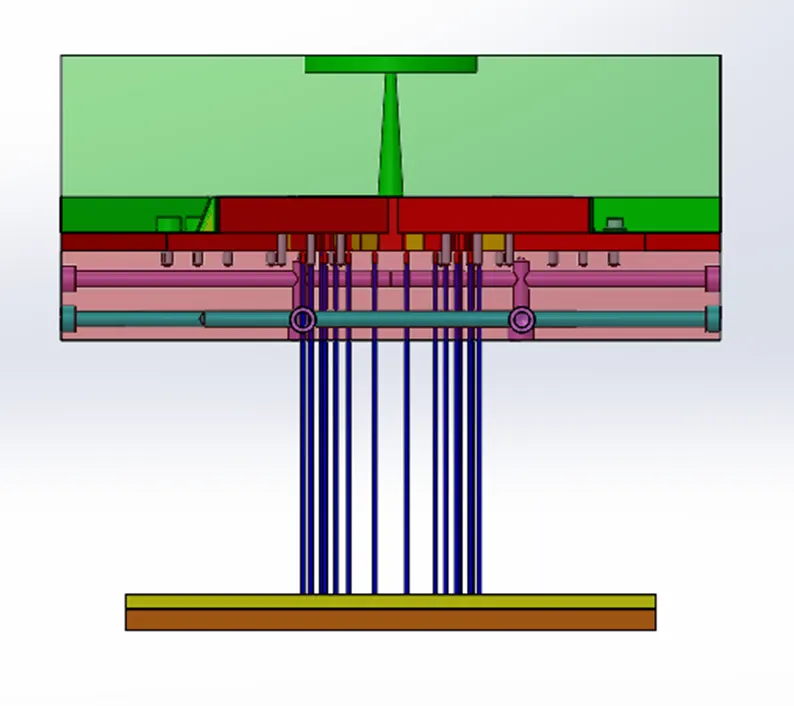

The final assembly of the model after creation of ejector pin, ejector plate, air vent, cooling channel, for the mold blocks will be.

CONCLUSION- For this week assignment we successfully create the core and cavity block for the CPU FAN BEZEL model. And create insert slider washer locking mechanism. And also creating ejector pin, ejector plate, ejector back plate, air vent and colling channel for the mold.
