Project 2

TAILGATE WIRING HARNESS ROUTING.

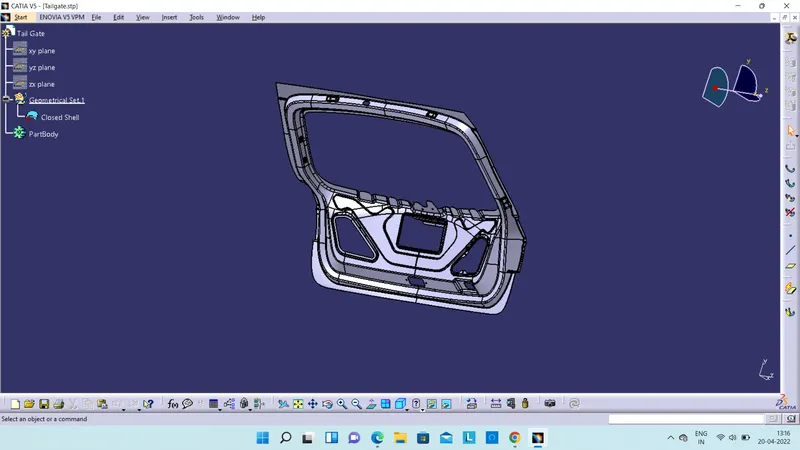

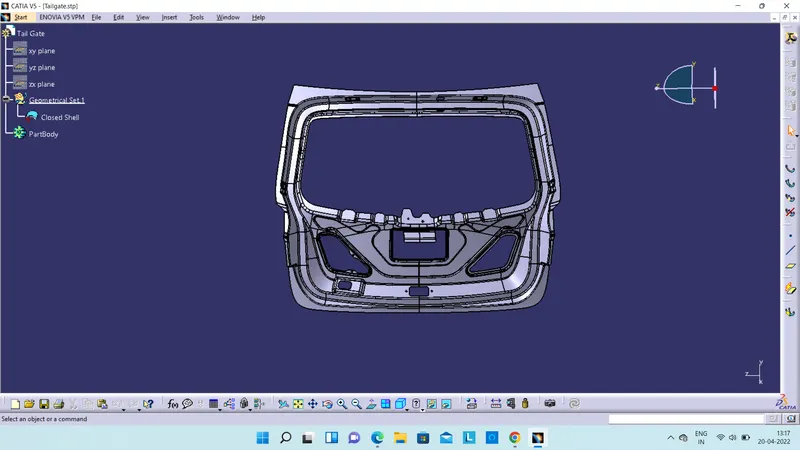

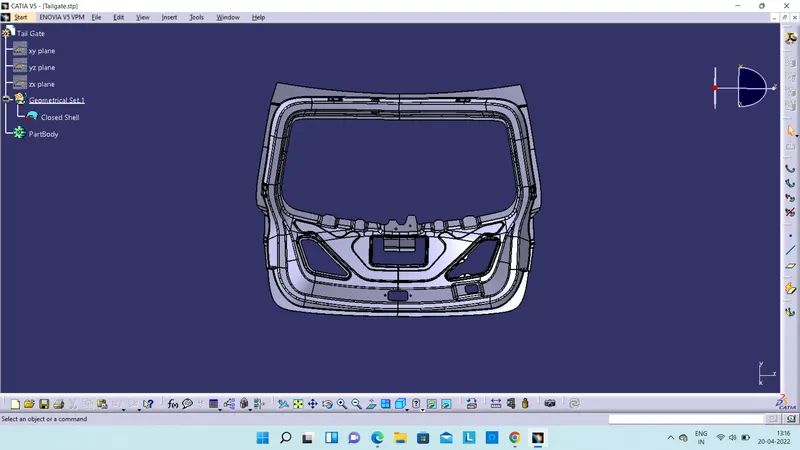

- WE HAVE GIVEN WITH A STP FILE OF TAILGATE , WHICH IS DOWNLOADED AND OPENED IN CATIA V5.

- FIRST SAVE IT AS A PART FILE IN A SPECIFIC FOLDER.

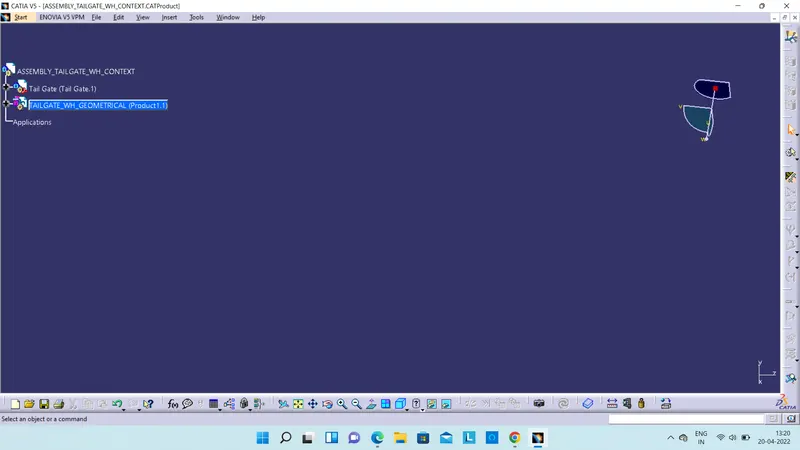

- AFTER THAT CONTEXT ASSEMBLY IS CREATED FOR THE WIRING HARNESS OF TAILGATE.

- ADDED A NEW COMPONENT AS PART FILE OF TAILGATE MODEL I SAVED EARLIER.

- THAN CREATED A NEW PRODUCT AS TAILGATE_WH_GEOMETRICAL_BUNDLE.

SELECTING & DEFINING THE CONNECTORS & OTHER SUPPORT PARTS.

- HERE IN THIS TAILGATE WH ROUTING WE ARE ONLY CONSIDERING FOR TAILIGHT & FOR THE NUMBER PLATE LIGHT.

- SO IN THE GIVEN BACKDOOR WE WILL BE HAVING 1 INTERCONNECTOR , WHICH WILL THE MAIN CONNECTOR FOR THE MAIN BRANCH.

- APART FROM THIS WE WILL HAVE 2 LIGHT CONNECTORS FOR TAILIGHT HOUSING.

- AND 2 MORE LIGHT CONNECTORS FOR THE NUMBER PLATE LIGHT.

- SO WE NEED TO HAVE TOTAL FIVE CONNECTORS IN PLACE ALSO WE WILL BE HAVING FIR TREE CLIPS.

- WHICH WILL BE PLACE ALONGSIDE TO ROUTE THE BUNDLE.

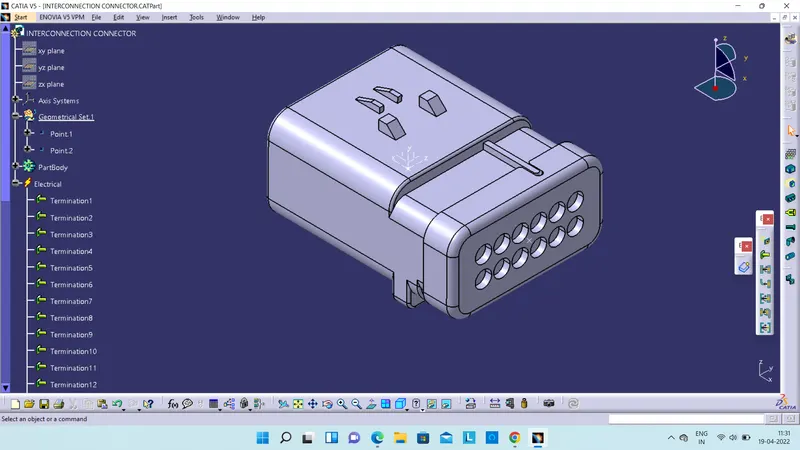

INTERCONNECTOR.

- SO I DEFINED THIS CONNECTOR AS ELECTRICAL COMPONENT.

- ITS A 12 POLE CONNECTOR , I HAVE ALSO DEFINE CONNECTOR CONNECTION POINT & BUNDLE ENTRY POINT.

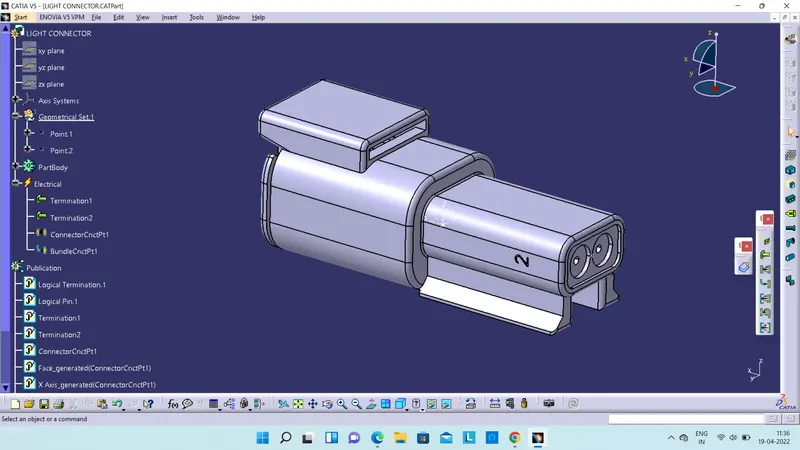

LIGHT CONNECTOR.

- ALSO DEFINE IT AS A ELECTRICAL COMPONENT.

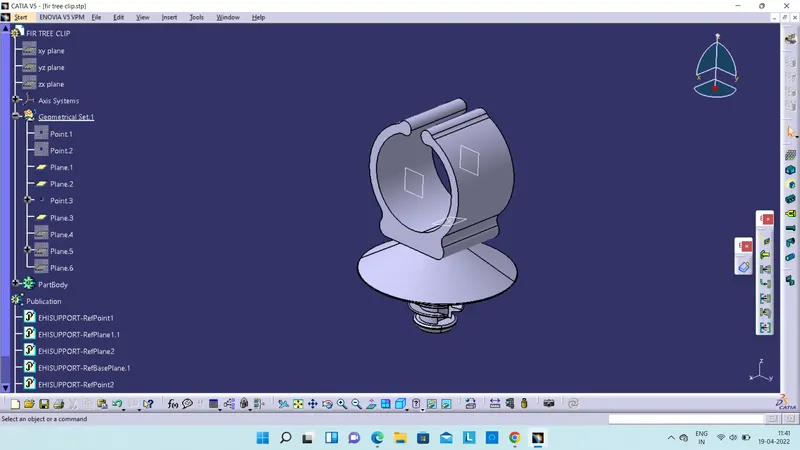

CLIPS FOR SUPPORT.

- I HAVE USED 5 MM FIR TREE CLIP.

- DEFINED AS SUPPORT BY PROVIDING POINTS & PLANES.

- NOW WE HAVE ALL THE CONNECTOR DEFINE ELECTRICALLY WITH CLIPS.

- ADDED THEM IN GEOMETRICAL BUNDLE PRODUCT FILE.

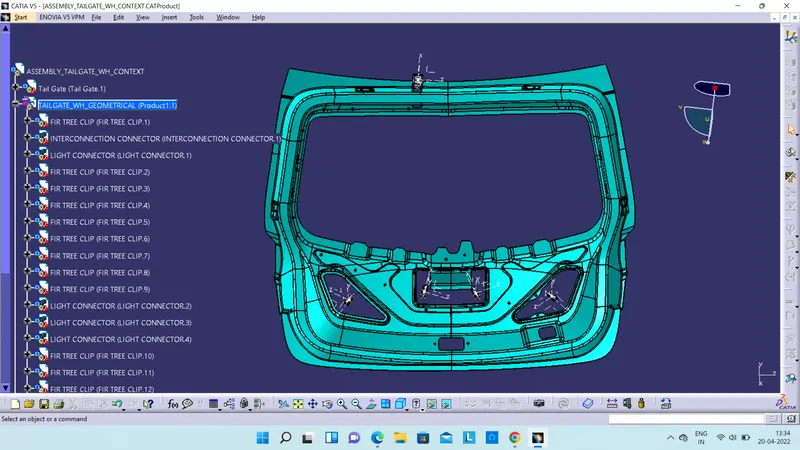

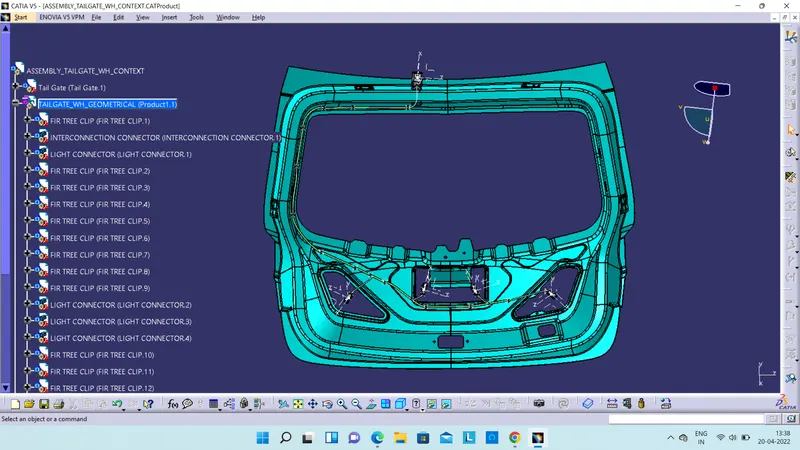

PLACING THE CONNECTOR & CLIPS AT REQUIRED POSITION.

- SO WE HAVE A CUTOUT AT THE TOP SIDE OF TAILGATE , I USED THAT TO PLACE THE INTERCONNECTION THERE.

- FOLLOWING FROM THERE PROVIDED THE CLIPS TO ROUTE.

- AND 1 LIGHT CONNECTOR AT RIGHT SIDE FOR THE RH TAILIGHT.

- ANOTHER AT THE LEFT SIDE FOR LH TAILIGHT & TWO THE CENTER FOR NUMBER PLATE LIGHTS.

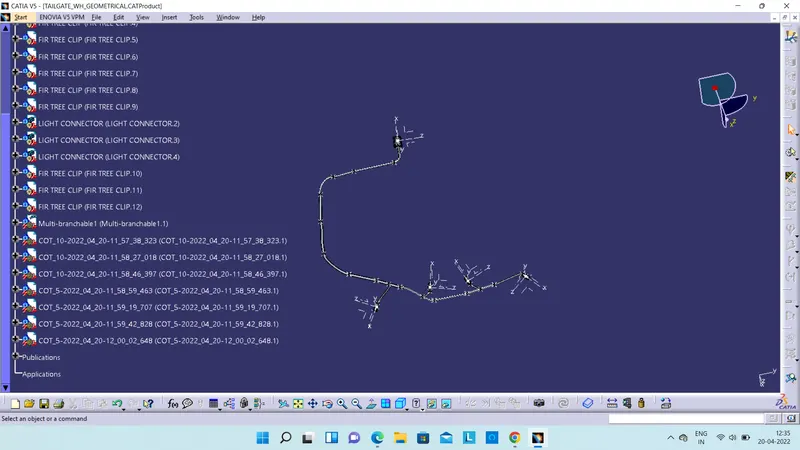

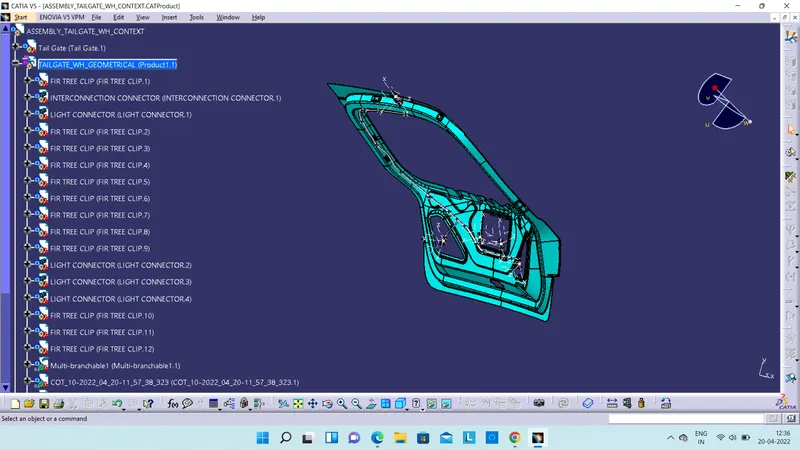

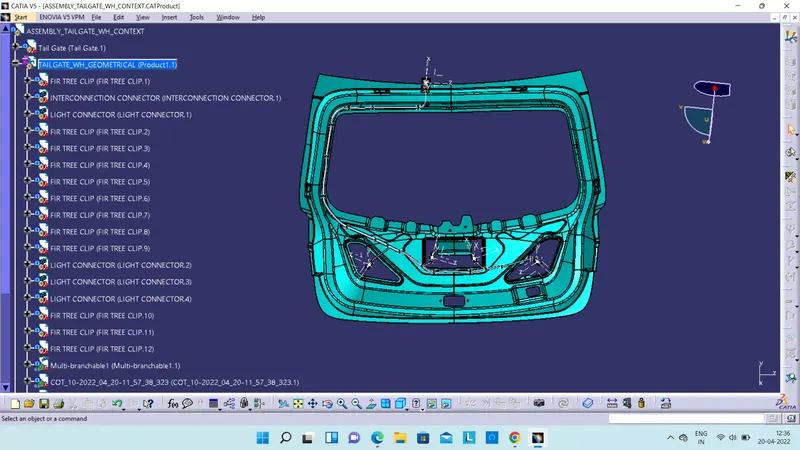

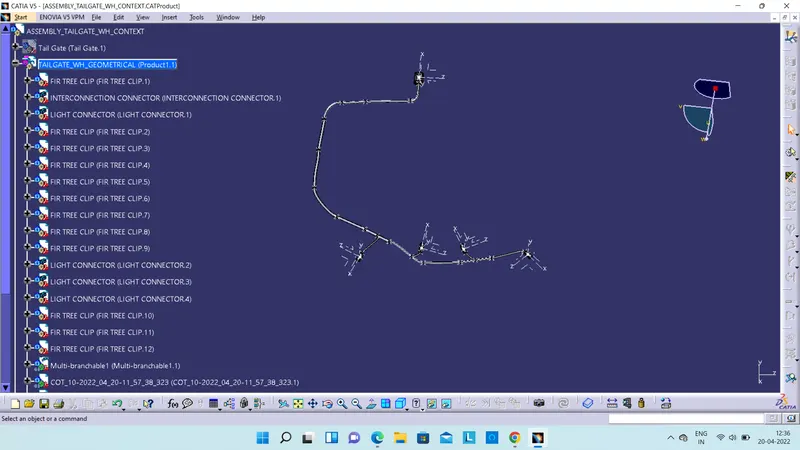

ROUTING THE WIRING HARNESS.

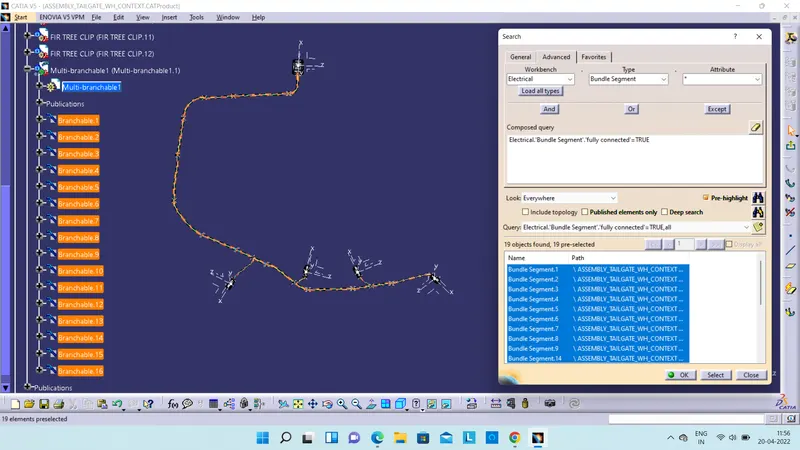

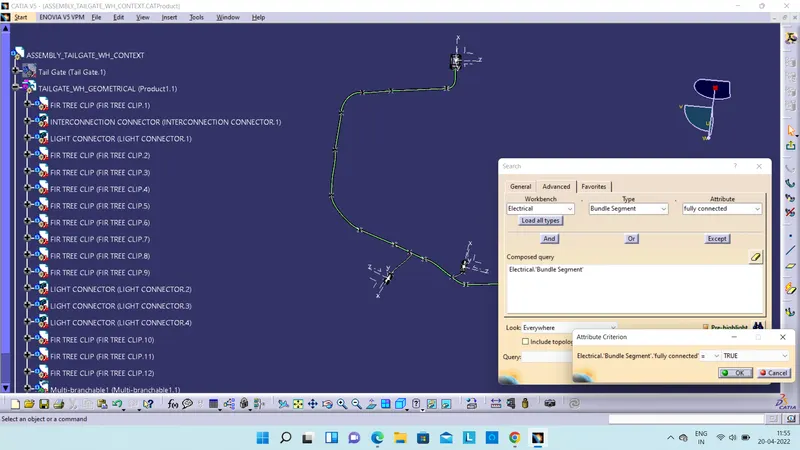

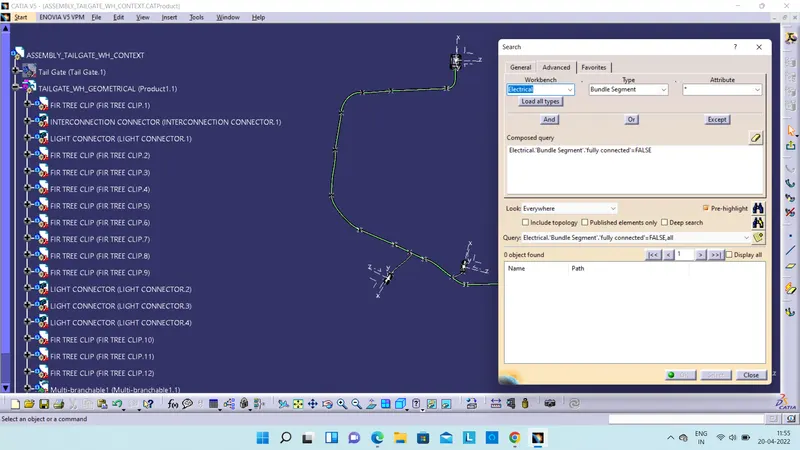

HARNESS CONNECTIVITY ANALYSIS.

PROTECTION COVERING TO PROTECT HARNESS FROM SHARP EDGE.

FLATTENING VIEW.

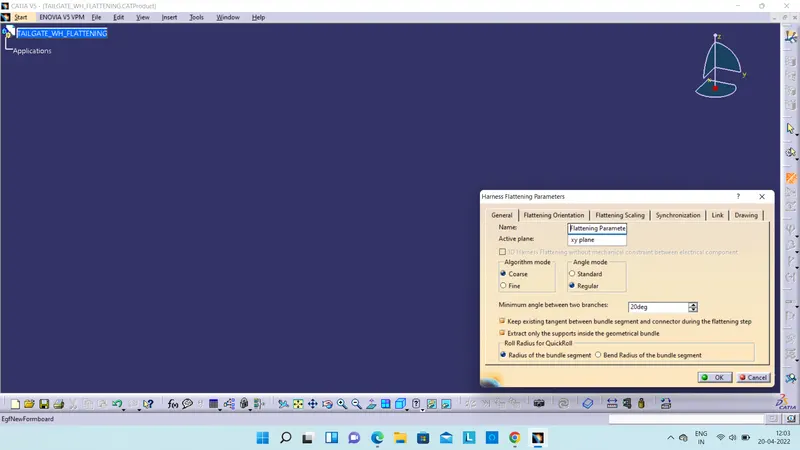

- CREATED A NEW PRODUCT FILE FOR FLATTENING THE HARNESS.

- AND ALSO DEFINED FLATTENING PARAMETERS.

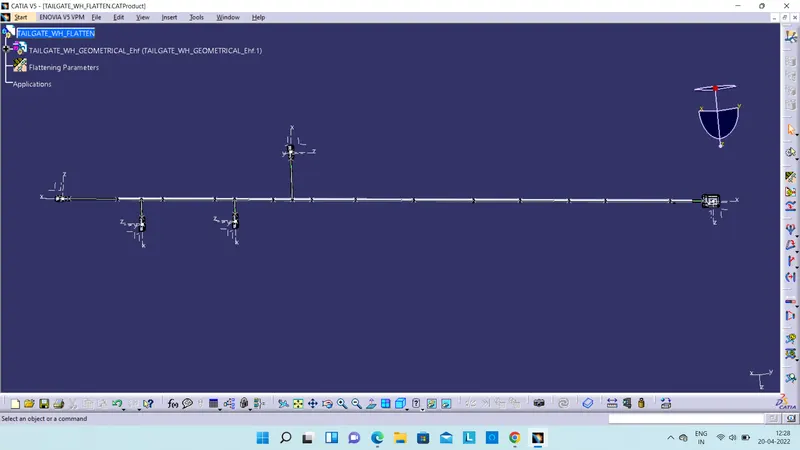

FLATTEN :

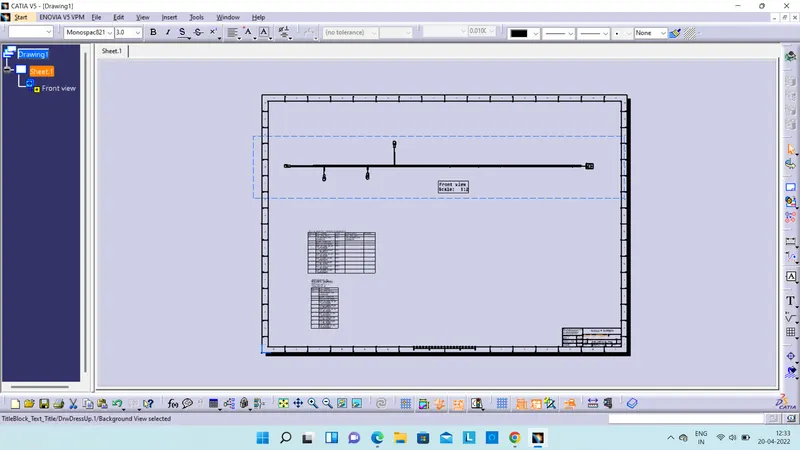

2-D DRAWING CREATION.

CONCLUSION : WIRING HARNESS ROUTING DONE FOR THE GIVEN TAILGATE.
