Project 2

AIM : Route the Wiring harness on Given car body and Prepare flatten view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.

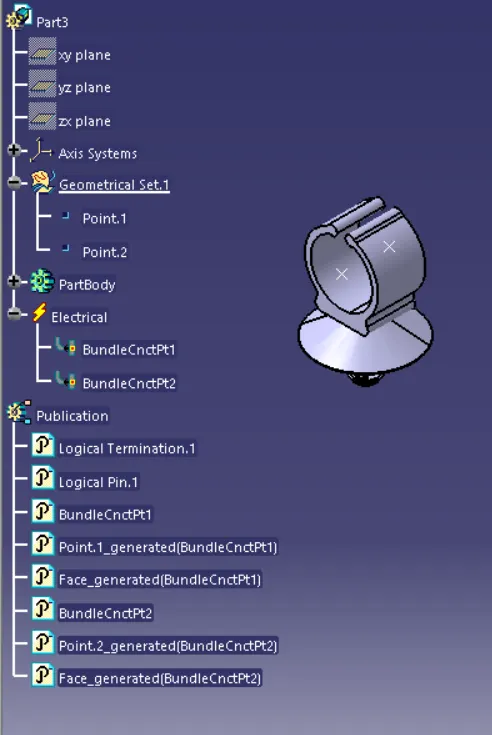

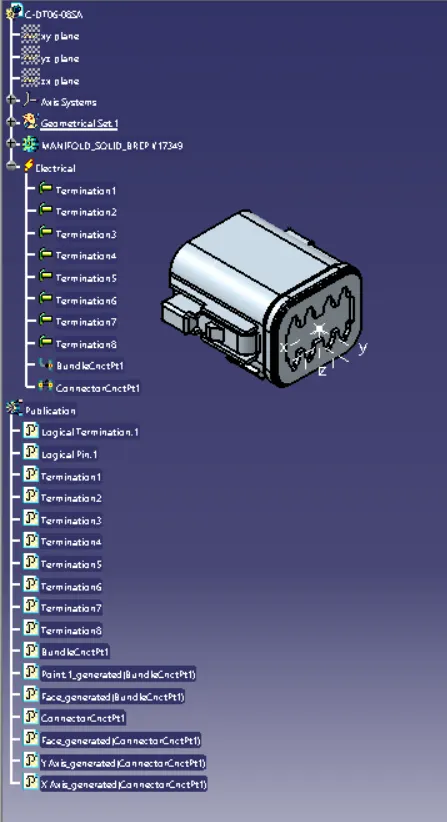

STEP-1 CONVERTING THE MECHANICAL COMPONENTS TO ELECTRICAL COMPONENTS

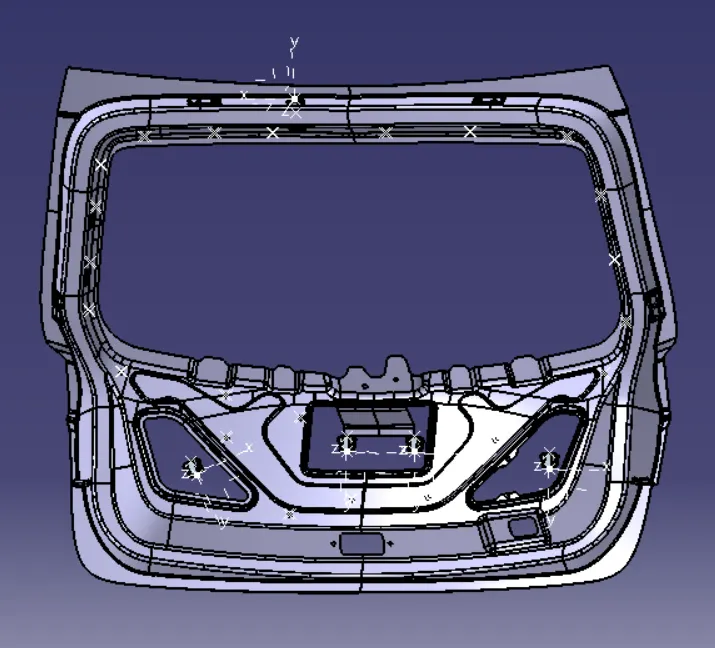

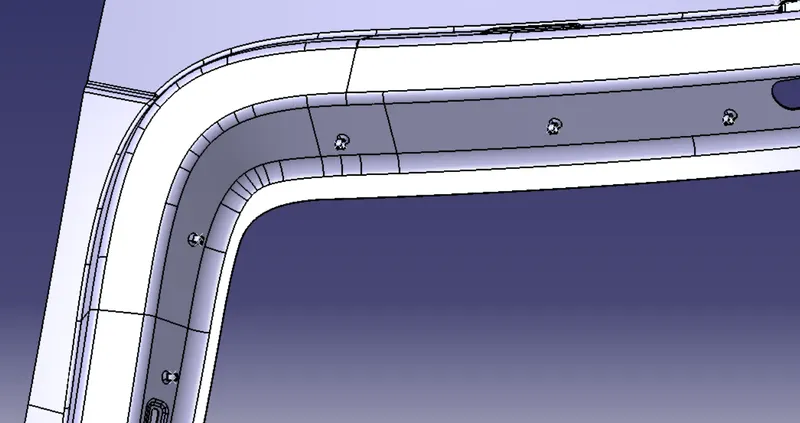

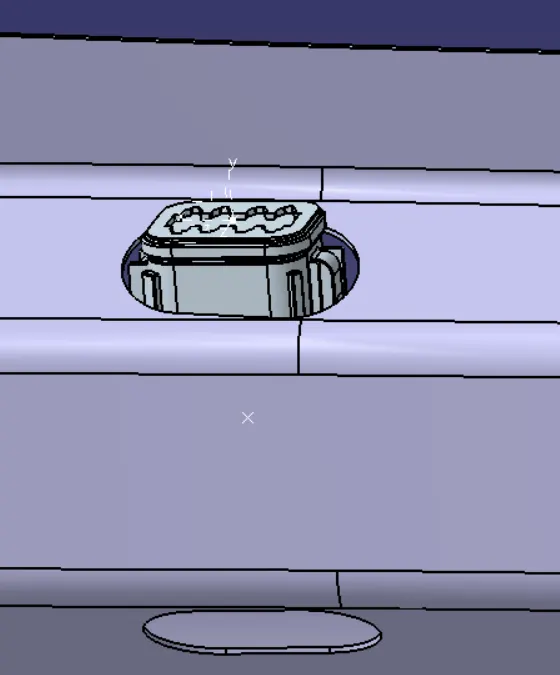

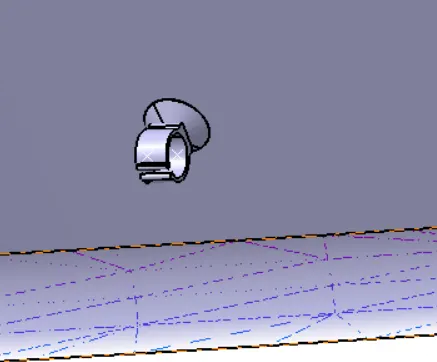

STEP-2 ADDING THE CONNECTOR AND FIR CLIP AT THE REQURIED LOACTIONS

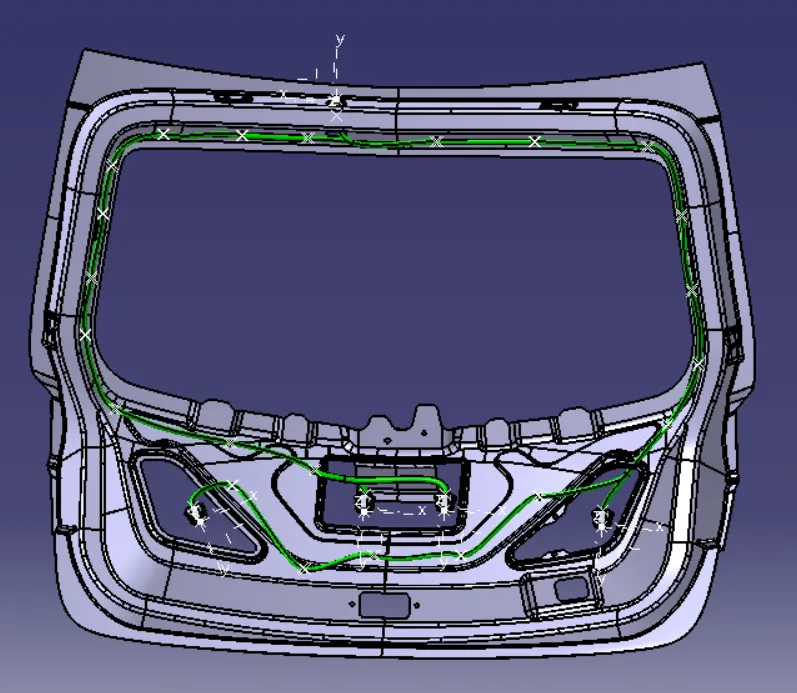

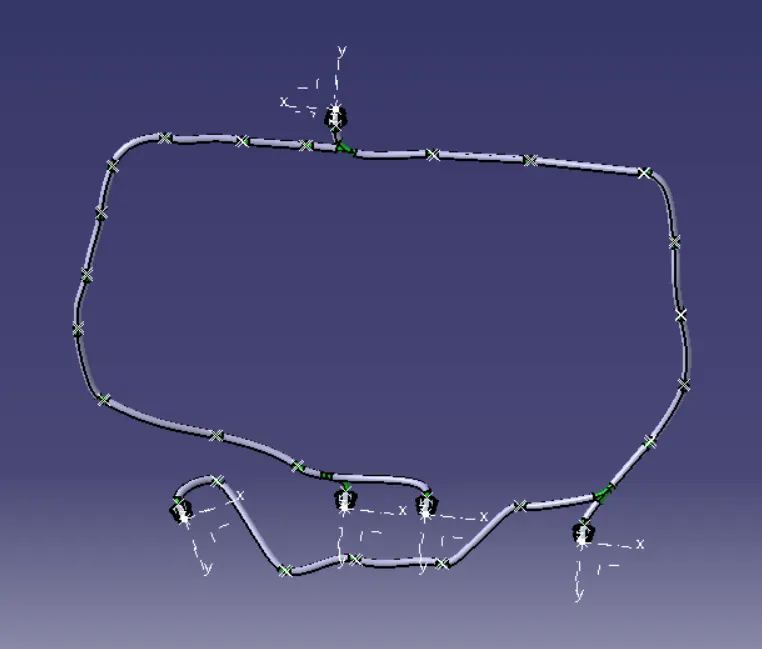

STEP-3 CONNECTING THE WIRE THROUGH ALL THE CLIPS AND CONNECTOR

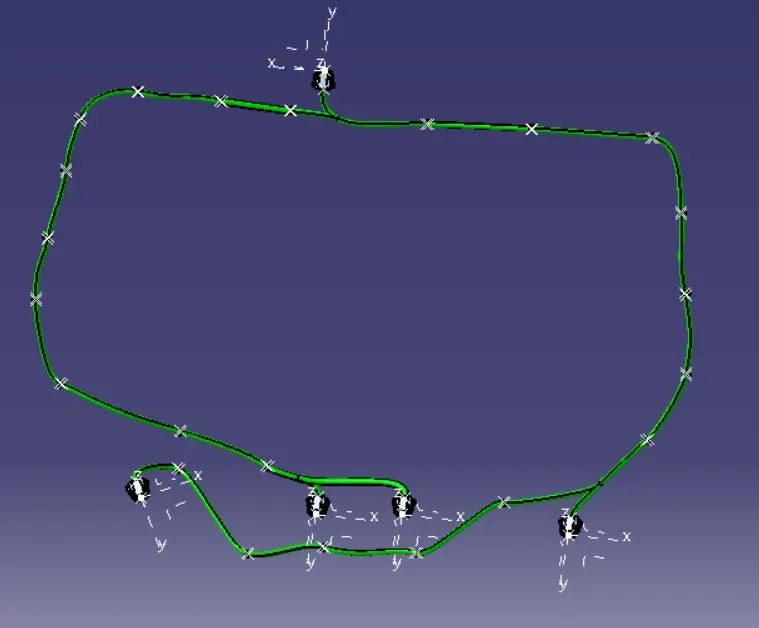

STEP-4 ADDING THE PROTECTION COVERING THROUGH ALL THE WIRES

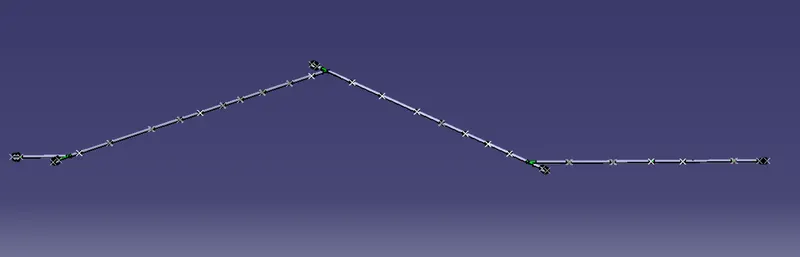

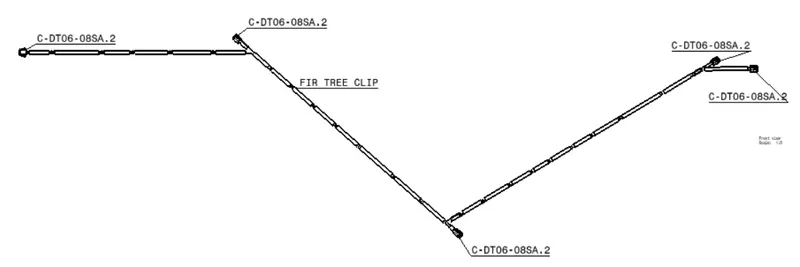

STEP-5 ADDING TO THE FLATTENTING COMMENTS

STEP-6 MODIFY 2D SKETCH ACCORDING TO THE REQURIMENT
