Challenge

Project 2

DESIGN DATA:-

For Spans and Cross-Sections:-

1 C/c of exp joint = 15 m
2 C/c of bearing = 14 m
3 Dist. Of bearing to exp joint = 0.5 m
4 Total Deck width = 12 m
5 Carriage width = 8.5 m
6 Footpath width (One Side) = 1.5 m
7 Width of Crashbarrier = 1 m
8 Width if median = 1 m

Details of the Superstructure:-

1 No of slab = 1 Nos
2 Cantilever on both sides = 0 m
3 Depth od superstructure = 2.1 m
4 Wearing coat thickness = 0.065 m
5 Bearing thickness = 0.15 m
6 Pedestal thickness = 0.25 m
7 Bearing + pedestal thckness = 0.40 m

Given Levels:-

1 Height of Substructure Assumption = 5 m
2 Finish road Level FRL = 100.000 m
3 Bearing Level BRL = 97.300 m
4 Abutment Cap Top level CTL = 97.235 m
5 Abutment Cap Bottom level CBL = 96.235 m
6 Ground Level GL = 93.500 m
7 High Flood Level HFL = 95.900 m
8 Pile Cap top Level = 88.500 m
9 Pile Cap Bottom level = 86.500 m
10 Pile bottom level = 66.500 m
11 Clear Cover for Pile foundation = 75 mm

Material Characteristics:-

For Abutment cap, Abutment & Pile
Grade of concrete M 35
Design strength of concrete 15.63 Mpa
Modulus of Elasticity of steel 210000
Modulus of Elasticity of concrete
Mean tensile strength of concrete 2.8
Grade of steel Fe 500
Design strength of steel 434.78 Mpa
Density of concrete (RCC) 2.5 t/m3
Density of weearing course 2.2 t/m3
Coefficient of Thermal Expansion 12000000
Shrinkage Strain For Concrete 20000

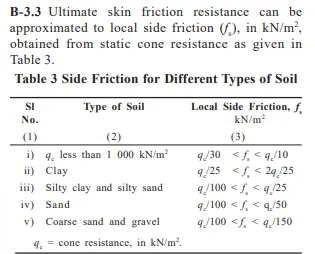

Soil Characteristics:-

1 Angle of shear resistance 30
2 Density of dry backfill 2 t/m3
3 Density of submerged backfill 1 t/m4
4 K (active) 0.33
5 Type of soil median soil
6 Coefficient of friction 0.5
7 Horizontal capacity 40 t

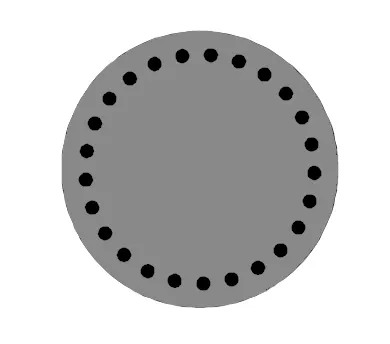

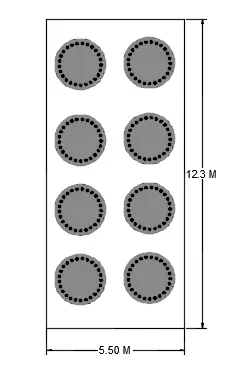

Location Dia (mm) Length Below
Pile Cap bottom
(M)
Allowable
Comp (t)
Allowable
(Uplit)
P22 , P23 12000 20 300 222
Dimension of the abutment
1 Length of abutment at top = 1.6 m
2 Length of abutment at bottom = 0.8 m
3 Width of abutment = 12 m
4 Width of medan wall = 3.5 m
5 Stem thickness = 1 m
6 Dritwall thickness = 0.3 m
7 Depth of abutmernt cap varying = 0.3 m
8 Depth of abutmernt cap uniform = 0.3 m
9 Return wall thickness = 0.5 m

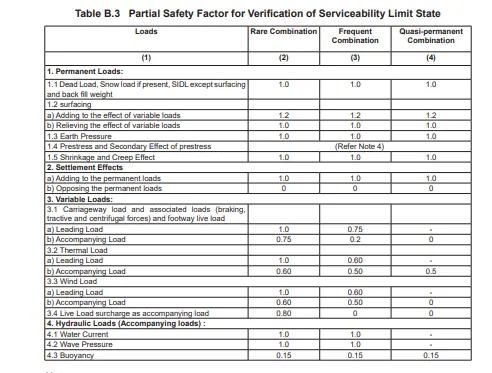

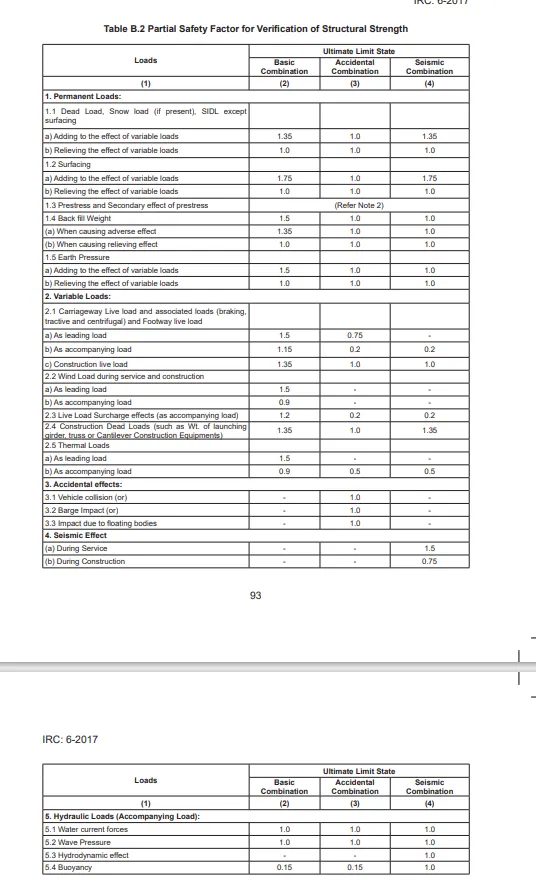

For Material
Material Basic Comb Seismic Comb
Concrete 1.5 1.5
Reinforcing steel 1.15 1.15

Dead Load Calculation:-

DEAD LOAD 450 t
Reaction 225 t
Total reaction on abutment 225 t
Distance between bearing & CL of abutment shaft 0 m
Longitudinal movement 0 t-m
Transverser ecentricity of Dl from C/l of abutment 0 m
Transverser Movement 0 t-m
SIDL (Excluding WC)
Crash barrier weight 41.25 t
Total reaction on abutment 20.625 t
SIDL ( Wearing course)
Load intensity due to wearing course = 0.22 t
DL of wearing course = 20 t
Total reaction on abutment = 10 t
SUMMARY FORCES
At Bearing Level
Load Item P Load (Min) ML MT HL HT
t t t-m t-m t-m t-m
Dead Load 225.00 225.00 0 0 0 0
SIDL ( Exclding wearing coat) 20.625 20.625 0 0 0 0
SIDL ( wearing coat) 10 10 0 0 0 0
At Abutment Bottom Level
Load Item P Load (Min) ML MT HL HT
t t t-m t-m t-m t-m
Dead Load 225.00 225.00 0 0 0 0
SIDL ( Exclding wearing coat) 20.625 20.625 0 0 0 0
SIDL ( wearing coat) 10 10 0 0 0 0
At Pile Bottom Level
Load Item P Load (Min) ML MT HL HT
t t t-m t-m t-m t-m
Dead Load 225.00 225.00 0 0 0 0
SIDL ( Exclding wearing coat) 20.625 20.625 0 0 0 0
SIDL ( wearing coat) 10 10 0 0 0 0
Live Load
Both Span Loaded

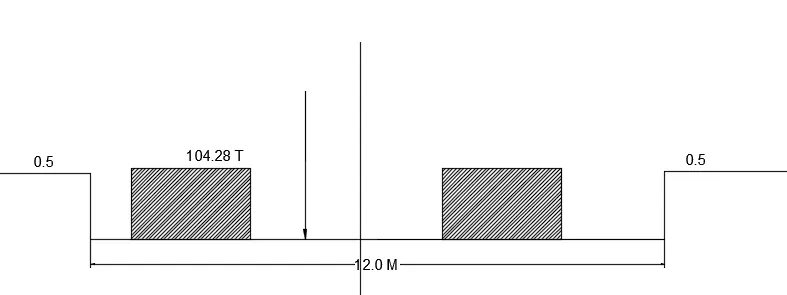

1 Lane 70R- Wheeled
1 Lane Class A
3 Lane Class A
1 Lane Class A + 1 lane 70R - Wheeled
Live Load

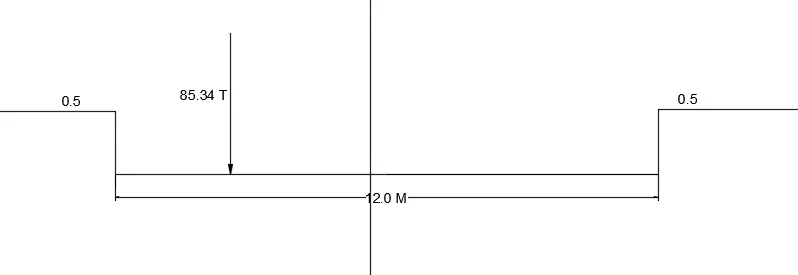

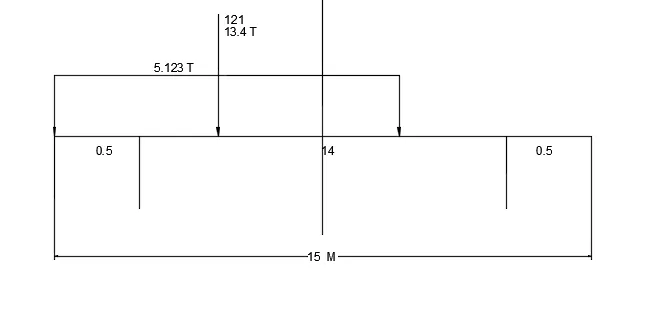

1 lane 70 R- Wheeled
Live Load reaction'
Total live load = 100 t
No of lanes = 2 nos
% reduction in live load = 0 %
impact factor - = 1.21
Total load with imact = 121

Live Load reaction
Ra 81.04 t
Rb 39.96 t
Vertical Reaction on the abutment 81.04
Breaking force 24.2
Change in reaction due to breaking force 4.2955
Maximum Vertical force on abutment 85.34
Minimum Vertical force on abutment 76.75
Total horizontal force at abutment 12.1

Transverse eccentricity = 2.905 m
Transverse movement = 247.91 t-m

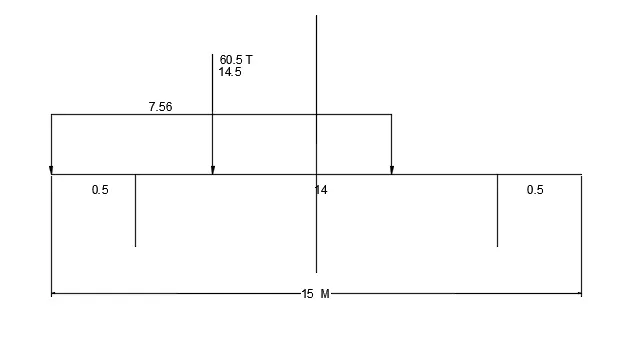

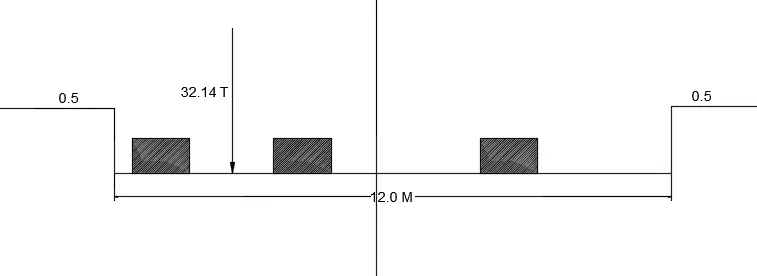

1 lane Class A
Live Load reaction'
Total live load = 50 t
No of lanes = 2 nos
% reduction in live load = 0 % reduction
impact factor - = 1.21 As per IRC 6
Total load with imact = 60.5

Live Load reaction
Ra 29.99
Rb 30.51
Vertical reaction on the abutment 29.99
Breaking force 12.1
Change in reaction due to breaking force 2.14775
Maximum Vertical force on abutment 32.14
Minimum Vertical force on abutment 27.84
Total horizontal force at abutment 6.05

Transverse eccentricity = 4.45 m
Transverse movement = 143.02 t-m

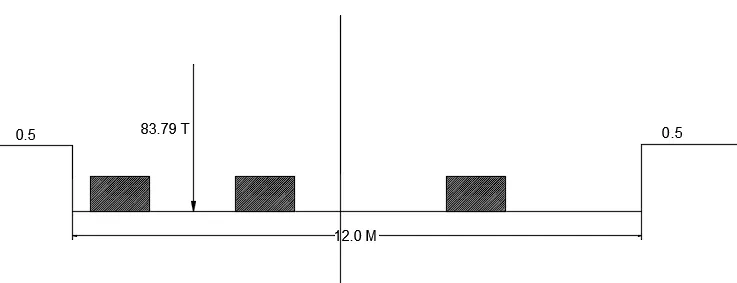

3 Lane Class A
Live Load reaction
Ra 80.97
Rb 82.38
vertical reaction on the abutment 80.97
Breaking force 13.6125
Change in reaction due to breaking force 2.819
Maximum Vertical force on abutment 83.79
Minimum Vertical force on abutment 78.16
Total horizontal force at abutment 6.80625

Transverse eccentricity = 1.45 m
Transverse movement = 121.50 t-m
1 Lane 70R - W + 1 lane Class A
Live Load reaction
Ra 99.93
Rb 63.42
Vertical reactions on the abutment 99.93
Breaking force 24.5025
Change in reaction due to breaking force 4.349
Maximum Vertical force on abutment 104.28
Minimum Vertical force on abutment 95.58
Total horizontal force at abutment 12.25125

Transverse eccentricity = 4.2 m
Transverse movement = 437.98 t-m

Load Summary on Superstructure:-

Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
1 Lane 70 R - W 81 40 0 247.9 12.1 0
1 Lane Class A 30 30.5 0 143 6.1 0
3 Lane Class A 81 82.4 0 121.5 6.8 0
1 L 70 R -W + 1 L Class A 99.93 63.43 0 437.98 12.3 0
Force at Pile Cap bottom level
Load Case Pmax Pmin ML MT HL HT
t t t-m t-m t-m t-m
LL 1 99.93 63.43 0.00 437.98 12.3 0.0
LL 2 99.93 63.43 0.00 437.98 12.3 0.0
AS PER IRC:6
For 70 R - Wheeled
Clear distance = 1.2 m
Width of Wheeled (transverse to traffic direction) = 0.84 m
Width of Wheeled (along traffic direction) = 0.86 m
Total width of vehical = 2.79 m
Width center to center of wheel = 1.95 m
For 70 R - Wheeled
Impact factor = 10 % 1.1
Effective Dispersion Width
Dispersion of loads through fills and wearing coat ( at 45degree angle)
b = tyre width along traffic flow = 0.86 m
wc = wearing coat = 0.07 m
d = effective depth of slab = 1 m
s = thickness of soil above box = 0 m
Hence, dispersion width = 2.99 m
Calculation of effective width
k = constant depending on b/lo = 2.335
lo = effective span = 15 m
x = Distance of center fo gravity from nearest support = 7.5 m
x = Distance of center fo gravity from nearest support = 0.43 m
b = tyre width across traffic flow = 0.84 m
wc = wearing coat = 0.065 m
bt = width of tyre + 2 x thickness of w.c = 0.84 m
Hence, beff for max movement case = 1.342 m
Hence, beff for max vertical load case = 2.99 m
For 70 R - Wheeled = 1000 KN
Pressure on top slab :
(i) Maximum movement case :
UDL due to live load = 78.86 KN/m2
dispersion length of live load in longitudinal direction = 2.99 m
transverse dispersion = 4.24 m
For Class - A
Clear distance = 0.15 m
Width of Wheeled (transverse to traffic direction) = 0.5 m
Width of Wheeled (along traffic direction) = 0.25 m
Total width of vehical = 1.8 m
Width center to center of wheel = 1.3 m
For Class - A
Impact factor = 10 % 1.1
Effective Dispersion Width
Dispersion of loads through fills and wearing coat ( at 45degree angle)
b = tyre width along traffic flow = 0.25 m
wc = wearing coat = 0 m
d = effective depth of slab = 1 m
s = thickness of soil above box = 0 m
Hence, dispersion width = 2.25 m
Calculation on effective width
k = constant depending on b/lo = 2.34
lo = effective span = 12 m
x = Distance of center fo gravity from nearest support = 6 m
x = Distance of center fo gravity from nearest support = 0.13 m
b = tyre width across traffic flow = 0.84 m
wc = wearing coat = 0 m
bt = width of tyre + 2 x thickness of w.c = 0.84 m
Hence, beff for max movement case = 14.7 m
Hence, beff for max vertical load case = 2.25 m
For Class A Wheeled = 55.4 KN
Pressure on top slab :
(i) Maximum movement case :
UDL due to live load = 2.93 KN/m2
dispersion length of live load in longitudinal direction = 2.25 m
transverse dispersion = 8.4 m
Load Item P Load (Min) ML MT HL HT
t t t-m t-m t-m t-m
LL1 - Maximun Reaction 608.40 596.45 0.00 122.03 11.30 0.00
LL2 - Maximun Moment 590.16 587.55 0.00 339.38 5.54 0.00

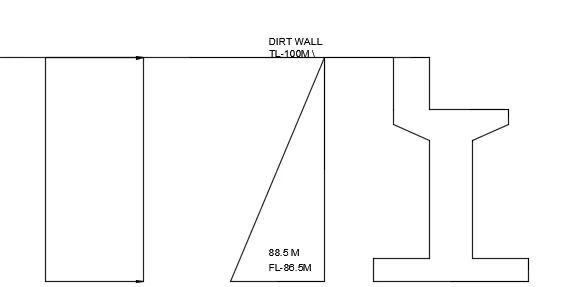

CALCULATION OF FORCES DUE TO EARTH PRESSURE

Horizontal force due to earth pressure on abutment acts in L-L direction
Width of abutment b = 12 m
Horizontal Earth Pressure Coefficient Kah = 0.279
Horizontal Earth Pressure Coefficient Kav = 0.102
Earth pressure
Normal Case -LWL
Foundation Bottom Level
H = Dirtwall top level - Founding level
= 10.8
Horizontal force in long. Dirn. = 0.5*kah*γ*H2*b
= 390.52
Lever arm from foundation bottom = 0.42*H
= 4.536
ML = 1771.399
Abutment portion
Vertical Force = 142.76
Lever arm from toe = 5.1
ML = 728.076
Summary of forces at Foundation bottom level
Normal Case
P HL ML due to HL ML due to P
t t t-m t-m
LWL 142.76 390.52 1771.399 728.076
Live Load Surcharge
Normal Case: Abutment portion
Foundation Bottom Level
H Dirtwall top level - Founding level
10.8
Horizontal force kah*γ*1.2*H*b
86.78016
Lever arm H/2
5.4
ML 468.6129
HL ML due to HL
t t-m
LWL 86.78016 468.6129
Forces on Abutment
Width of abutment b 12 m
Return Wall is on one side
Horizontal distance of CG of abutment shaft from vertical face 0.5 m
Dirt Wall Bracket
Weight 4.05 t
Horizontal Lever Arm from bearing c/l 0.953 m
Dirt Wall
Weight 28.59 t
Horizontal Lever Arm from bearing c/l 0.67 m
Abutment Cap
Weight 25.65 t
Horizontal Lever Arm from bearing c/l 0 m
Abutment Shaft
Weight 150 t
Horizontal Lever Arm from bearing c/l 0 m

Summary of Forces:-

Description Weight Lever arm ML
t m tm
Abutment shaft 150 0.95 142.95
Abutment cap 25.65 0.67 17.19
Drit wall bracket 28.59 0 0
Drit wall 4.05 0 0
Total 208.29 160.14
Calculation for Backfill Weight
Width of backfill in transverse direction 11 m
Portion A
Weight 993.82 t
Horizontal Lever Arm from toe in L-L dirn. 5.26 t-m
Portion B
Weight 52.6 t
Horizontal Lever Arm from toe in L-L dirn. 2.86 t-m
Portion C
Weight 1.1 t
Horizontal Lever Arm from toe in L-L dirn. 2.91 t-m
Portion D
Weight 38.64 t
Horizontal Lever Arm from toe in L-L dirn. 5.9 t-m
Summary of Force
Portion Leaver arm ML
m t-m
A 5.26 5227.493
B 2.86 150.436
C 2.91 3.201
D 5.9 227.976
Total 16.93 5609.106
Maximum Reaction case (P)
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 225 225 82.8 0 0 0
SIDL (Excluding W/C) 20.6 20.6 15.8 0 0 0
SIDL (w/c) 10 10 30.4 0 0 0
LL1 99.9 63.4 0 438 12.3 0
LL1 ( Intensity) 608.4 596.5 0 122 11.3 0
Sustructure Weight 208.3 208.3 160.1 0 0 0
Earth Pressure Load 142 142 1771.4 0 0 0
Backfill Weight 1086.2 1086.2 5609.1 0 0 0
Total for unfactored load 2400.4 2352 7669.7 560 23.6 0
Maximum Longitudinal Movement (ML)
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 225 225 82.8 0 0 0
SIDL (Excluding W/C) 20.6 20.6 15.8 0 0 0
SIDL (w/c) 10 10 30.4 0 0 0
LL2 99.9 63.4 0 438 12.3 0
LL2 ( Intensity) 608.4 596.5 0 122 11.3 0
Sustructure Weight 208.3 208.3 160.1 0 0 0
Earth Pressure Load 142 142 1771.4 0 0 0
Backfill Weight 1086.2 1086.2 5609.1 0 0 0
Total weight for unfactored load 2400.4 2352 7669.7 560 23.6 0
Maximum Transverse Case
Load Item Unfactored Forces
Pmax Pmin ML MT HL HT
t t t-m t-m t t
DL (superstructure) 225 225 82.8 0 0 0
SIDL (Excluding W/C) 20.6 20.6 15.8 0 0 0
SIDL (w/c) 10 10 30.4 0 0 0
LL2 99.9 63.4 0 438 12.3 0
LL2 ( Intensity) 590.2 587.6 0 339.4 5.5 0
Sustructure Weight 208.3 208.3 160.1 0 0 0
Earth Pressure Load 142 142 1771.4 0 0 0
Backfill Weight 1086.2 1086.2 5609.1 0 0 0
Total weight for unfactored load 2382.2 2343.1 7669.7 777.4 17.8 0

Load Case Summary For Normal case:-

Load Item Pmax Pmin ML MT HL HT
t t t-m t-m t t
N1 2400.4 2352 7669.7 560 23.6 0
N2 2400.4 2352 7669.7 560 23.6 0
N3 2382.2 2343.1 7540.6 777.4 17.8 0
Unfactored Pile Check
Total no of piles = 8 Nos
Diameter of pile = 1.2 m
Distance between the piles = 3.6 in both direction
Offset at the both ends = 150 mm
Pile No. Longitudinal Transverse n xi2 yi2
xi yi
1 1.8 5.4 1 3.24 29.16
2 1.8 1.8 1 3.24 3.24
3 1.8 -1.8 1 3.24 3.24
4 1.8 -5.4 1 3.24 29.16
5 -1.8 5.4 1 3.24 29.16
6 -1.8 1.8 1 3.24 3.24
7 -1.8 -1.8 1 3.24 3.24
8 -1.8 -5.4 1 3.24 29.16
Sum (n) ∑ (xi2) ∑ (yi2)
8 25.92 129.6

Lower Water Level Condition:-

Both Span Present=5.1M

Load Case Forces / Moments Load on each pile (Pmax) Horizontal force
Pmax Pmin ML MT 1 2 3 4 5 6 7 8 HL HT Hori Force
t t t-m t-m t t t t t t t t t t t
N1 2400.41 2351.96 7669.72 560.01 250.00 248.22 246.55 245.18 244.92 243.56 242.55 240.51 23.55 0.00
N2 2400.41 2351.96 7669.72 560.01 250.00 248.22 246.55 245.18 244.92 243.56 242.55 240.51 23.55 0.00
N3 2382.17 2343.06 7540.64 777.36 239.00 236.50 235.24 233.88 232.96 230.15 229.55 228.54 17.84 0.00
Base Pressure Load Combinations
Maximum Reaction Case P
Load Item Partial Factor of Safety Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 225 225 82.8 0 0 0 303.8 303.8 111.8 0 0 0
SIDL (Excluding W/C) 1.35 20.63 20.63 15.84 0 0 0 27.8 27.8 21.4 0 0 0
SIDL (w/c) 1.75 10 10 30.44 0 0 0 17.5 17.5 53.3 0 0 0
LL1 (Leading) 1.5 99.93 63.43 0 437.98 12.25 0 149.9 95.1 0 657 18.4 0
LL1 (Accompanying) 1.15 99.93 63.43 0 437.98 12.25 0 114.9 72.9 0 503.7 14.1 0
LL1 ( Intensity) (Leading) 1.5 608.4 596.45 0 122.03 11.3 0 912.6 894.7 0 183 17 0
LL1 ( Intensity)(Accompanying) 1.15 608.4 596.45 0 122.03 11.3 0 699.7 685.9 0 140.3 13 0
Earth Pressure Load (Leading) 1.5 142 142 1771.39 0 0 0 213 213 2657.1 0 0 0
Earth Pressure Load (Accompanying) 1 142 142 1771.39 0 0 0 142 142 1771.4 0 0 0
Sustructure Weight 1.35 208.29 208.29 160.14 0 0 0 281.2 281.2 216.2 0 0 0
Backfill weight 1.35 1086 1086 5609.1 0 16.9 0 1466.1 1466.1 7572.3 0 22.9 0
Total LL Leading 3371.9 3299.2 10632 840 58.2 0
LL Accompanying 3053 2997.2 9746.3 644 49.9 0
Maximum Transverse Movement Case (MT)
Load Item Partial Factor of Safety Unfactored Forces Factored Forces
Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 225 225 82.8 0 0 0 303.8 303.8 111.8 0 0 0
SIDL (Excluding W/C) 1.35 20.63 20.63 15.84 0 0 0 27.8 27.8 21.4 0 0 0
SIDL (w/c) 1.75 10 10 30.44 0 0 0 17.5 17.5 53.3 0 0 0
LL1 (Leading) 1.5 99.93 63.43 0 437.98 12.25 0 149.9 95.1 0 657 18.4 0
LL1 (Accompanying) 1.15 99.93 63.43 0 437.98 12.25 0 114.9 72.9 0 503.7 14.1 0
LL1 ( Intensity) (Leading) 1.5 590.16 587.55 0 339.38 5.54 0 885.2 881.3 0 509.1 8.3 0
LL1 ( Intensity)(Accompanying) 1.15 590.16 587.55 0 339.38 5.54 0 678.7 675.7 0 390.3 6.4 0
Earth Pressure Load (Leading) 1.5 142 142 1771.39 0 0 0 213 213 2657.1 0 0 0
Earth Pressure Load (Accompanying) 1 142 142 1771.39 0 0 0 142 142 1771.4 0 0 0
Sustructure Weight 1.35 208.29 208.29 160.14 0 0 0 281.2 281.2 216.2 0 0 0
Backfill weight 1.35 1086 1086 5609.1 0 16.9 0 1466.1 1466.1 7572.3 0 22.9 0
Total LL Leading 3344.5 3285.9 10632 1166 49.5 0
LL Accompanying 3032 2987 9746.3 894 43.3 0
Maximum Transverse Movement Case (MT)
Load Item Partial Unfactored Forces Factored Forces
Safety Pmax Pmin ML MT HL HT Pmax Pmin ML MT HL HT
Factor t t t-m t-m t t t t t-m t-m t t
DL (superstructure) 1.35 225 225 82.8 0 0 0 303.8 303.8 111.8 0 0 0
SIDL (Excluding W/C) 1.35 20.63 20.63 15.84 0 0 0 27.8 27.8 21.4 0 0 0
SIDL (w/c) 1.75 10 10 30.44 0 0 0 17.5 17.5 53.3 0 0 0
LL1 (Leading) 1.5 99.93 63.43 0 437.98 12.25 0 149.9 95.1 0 657 18.4 0
LL1 (Accompanying) 1.15 99.93 63.43 0 437.98 12.25 0 114.9 72.9 0 503.7 14.1 0
LL1 ( Intensity) (Leading) 1.5 590.16 587.55 0 339.38 5.54 0 885.2 881.3 0 509.1 8.3 0
LL1 ( Intensity)(Accompanying) 1.15 590.16 587.55 0 339.38 5.54 0 678.7 675.7 0 390.3 6.4 0
Earth Pressure Load (Leading) 1.5 142 142 1771.39 0 0 0 213 213 2657.1 0 0 0
Earth Pressure Load (Accompanying) 1 142 142 1771.39 0 0 0 142 142 1771.4 0 0 0
Sustructure Weight 1.35 208.29 208.29 160.14 0 0 0 281.2 281.2 216.2 0 0 0
Backfill weight 1.35 1086 1086 5609.1 0 16.9 0 1466.1 1466.1 7572.3 0 22.9 0
Total LL Leading 3344.5 3285.9 10632 1166 49.5 0
LL Accompanying 3032 2987 9746.3 894 43.3 0
LOAD CASES SUMMARY FOR BASIC COMNINATION (LWL CASE)
Load Case No. Live Load LL Pmax Pmin ML MT HL HT
Case Leading / Accomp
t t t-m t-m t t
(C-1)1 LL 1 Case LL Leading 3371.9 3299.2 10632 840 58.2 0
(C-1)2 LL Accompanying 3053 2997.2 9746.3 644 49.9 0
(C-1)3 LL 2 Case LL Leading 3371.9 3299.2 10632 840 58.2 0
(C-1)4 LL Accompanying 3053 2997.2 9746.3 644 49.9 0
(C-1)5 LL 3 Case LL Leading 3344.5 3285.9 10632 1166 49.5 0
(C-1)6 LL Accompanying 3032 2987 9746.3 894 43.3 0
Pile Check factor
Column Dmensions
Transverse dimension = 2.5 m
Longitudinal Dimension = 2.5 m
Total No of pile = 8 Nos
Dia of Pile = 1.2 m
Pile No. Longitudinal Transverse n xi2 yi2
xi yi
1 1.8 5.4 1 3.24 29.16
2 1.8 1.8 1 3.24 3.24
3 1.8 -1.8 1 3.24 3.24
4 1.8 -5.4 1 3.24 29.16
5 -1.8 5.4 1 3.24 29.16
6 -1.8 1.8 1 3.24 3.24
7 -1.8 -1.8 1 3.24 3.24
8 -1.8 -5.4 1 3.24 29.16
Sum (n) ∑ (xi2) ∑ (yi2)
8 25.92 129.6

Load Case Forces / Moments Load on each pile (Pmax) Horizontal force
Pmax Pmin ML MT 1 2 3 4 5 6 7 8 HL HT
t t t-m t-m t t t t t t t t t t
(C-1) 1 3371.9 3299.2 10632 840 302 300.5 298.7 296.3 295 294 291.2 290.9 19.7 24.5
(C-1) 2 3053 2997.2 9746.3 644 295.5 295.5 294.1 292.2 290.5 287.1 286.7 285 14.6 14.7
(C-1) 3 3371.9 3299.2 10632 840 302 300.5 298.7 296.3 295 294 291.2 290.9 19.7 24.5
(C-1) 4 3053 2997.2 9746.3 644 295.5 295.5 294.1 292.2 290.5 287.1 286.7 285 14.6 14.7
(C-1) 5 3344.5 3285.9 10632 1166 285.2 283.8 282.1 280.7 278.5 276.9 274.9 273 17.6 24.5
(C-1) 6 3032 2987 9746.3 894 275 272 270.2 268.4 265.1 263.9 260.5 258.4 13 14.7
HORIZONTAL CAPACITY OF PILE
Pile dia, D 1.2 m
Grade of concrete 35 M
Moment of inertia I 0.101736 m4
Modulus of deformation 3.20E+04 Mpa
EI 32000000
Free Length of pile "e"
Pilecap bottom lvl-Liquefication lvl 4 m
e or L1

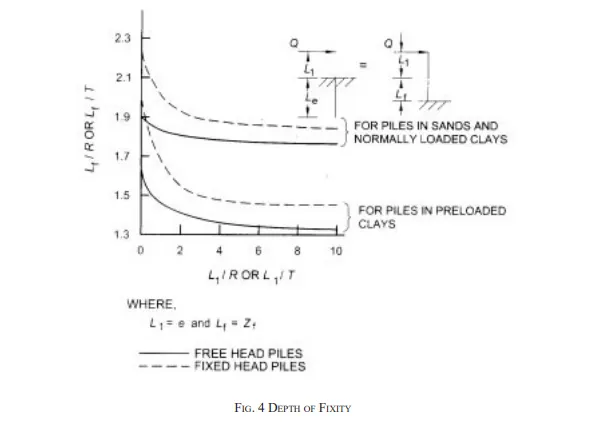

Calculation of length of fixiy (Lf)
N 60 Blows
ɳh 8571 kN/m3
T 3.28E+00 m
e/T 1.22
zf/T 1.88
zf 6.16 m
Max. deflection (Y) = 0.012
Horizontal pile capacity 448.1584 t
Q 44.81 t
Say 45 t

MAXIMUM MOMENT IN PILE
Fix End Moment in pile is given by MF = Q ( L1 + Lf)/2
Therefore,
M Maximum Moment in Pile
M m * Q ( L1 + Lf ) /2
0.6 * Q * (4 +6.16 )/2
3.048 *Q

Circular Pile Moment Capacity checks (ULS) case
Radius of circle 0.6 m
Cover 0.075 m
No of bar 24 Nos
Diameter of bars 0.025 m
Area of reinforcement 0.012 m2
Grade of Concrete 35 M
Ym 1.5
Grade of Steel 500 Fe
Ym 1.15
Area of pile 1.1304 m2
Area of Steel 0.012 m2
% Steel 1.0417 %
Puz 22791.49 kN
Level of pile cap Bottom ( founding Level )
Level of pile fixity considered for design 25.446 m
Depth of fixiy from bottom 20.272 m
Max Lateral force at piercap bottom 36.37 kN
Max moment in pile 106 kN-m
Check for critical loads case
L/C M Mu Status
kN-m kN-m
Pmax 103 3354 OK
Pmin 103 1745 OK
Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
