Project 2

Objective:

Statement of assignment:

Route the Wiring harness on the given car body and prepare a flattened view drawing in CATIA V5. Application of all Packaging rules, Industry best practices studied in this course shall be demonstrated in design. Apply Protection coverings as required.

Available connector 3D data can be used, or you can download the connectors from www.te.com

Prepare & Submit all necessary reports like clearance, Clipping/Clamping selection, Harness fixing requirements, Harness continuity, and Assumptions if any along with CATIA 3D data.

Procedure:

Give the Electrical properties to the connectors, and clip.

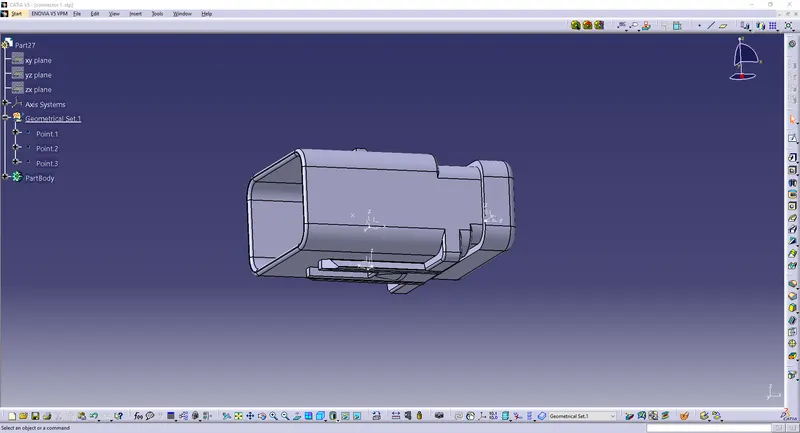

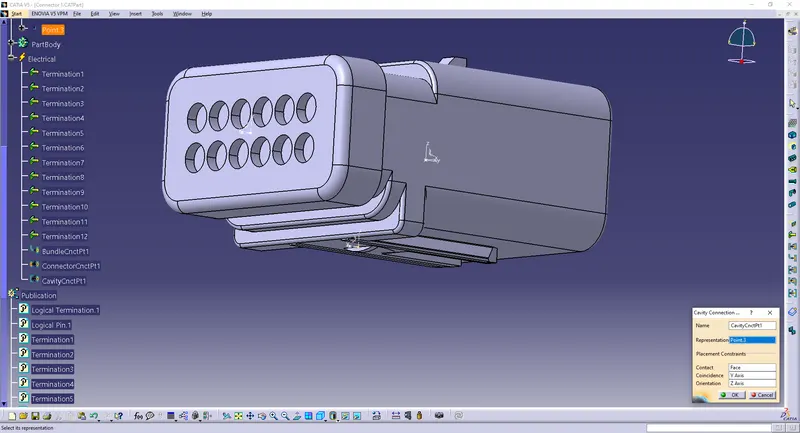

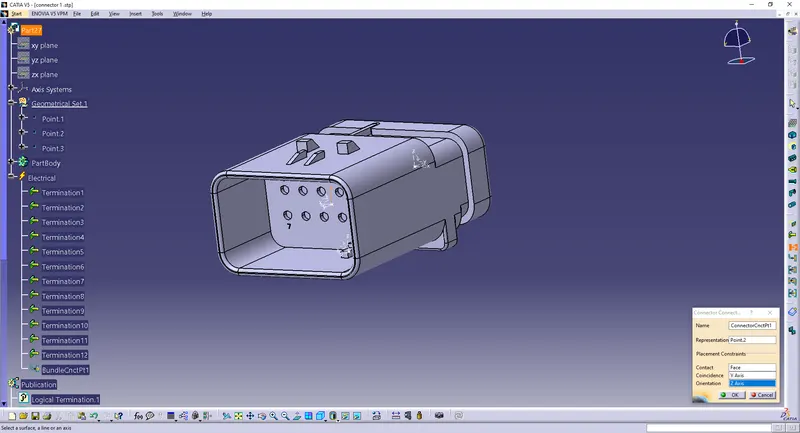

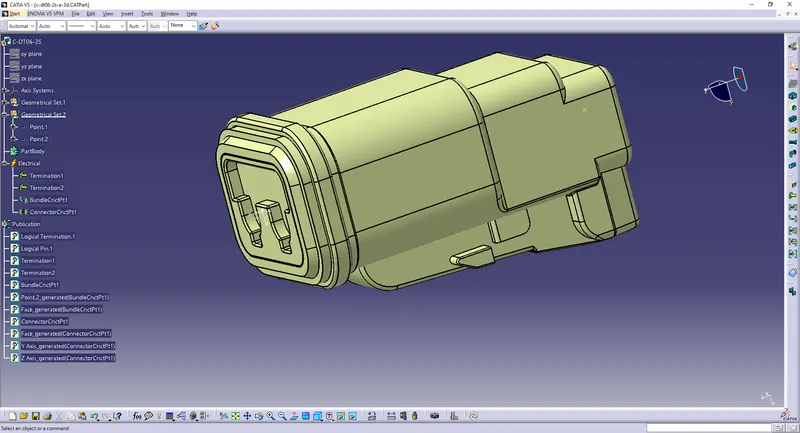

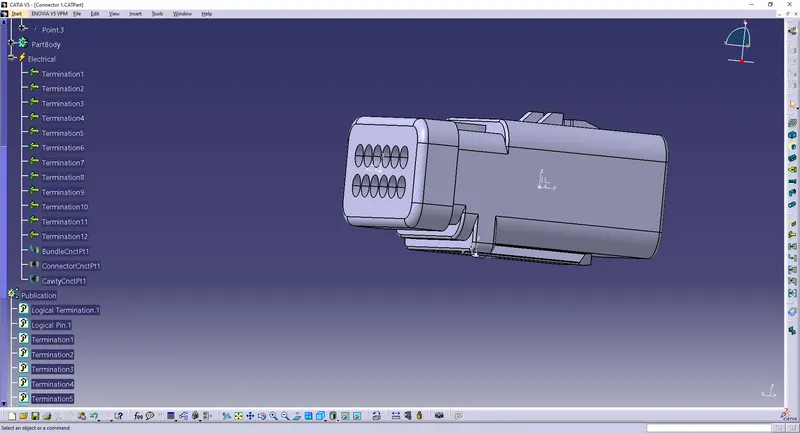

Connector 1:

Create a point on the mating surface and a point at the back as the bundle entry point. Create an axis on the point.

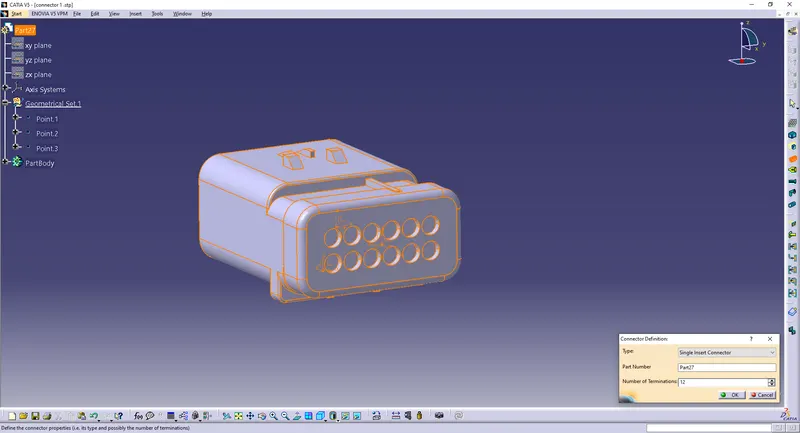

Define the part as a connector with 12 terminations.

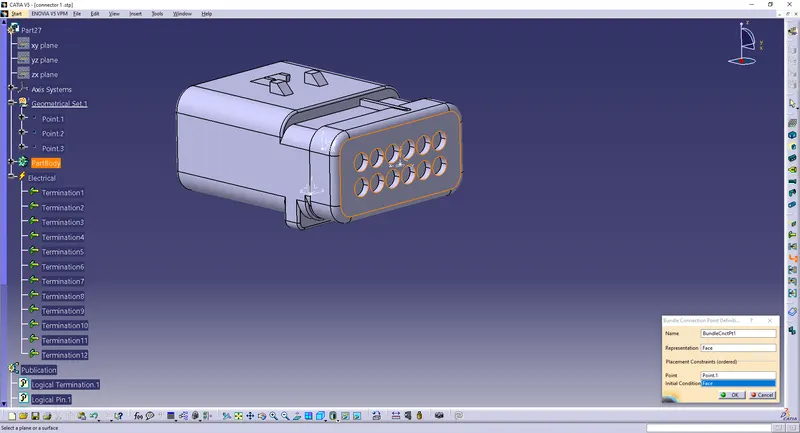

Define Bundle Connection Point.

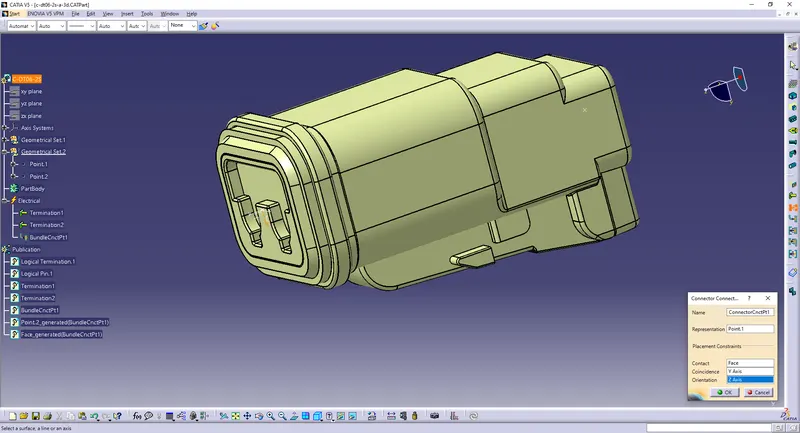

Define Connector Connection Point.

Define Cavity Connection Point(Not Necessary).

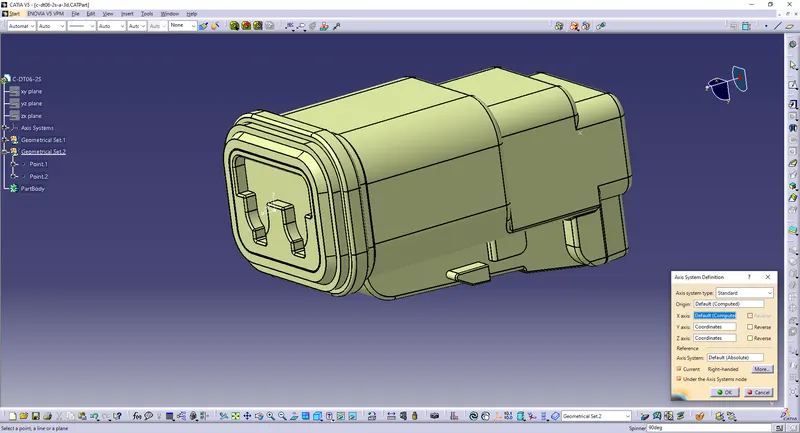

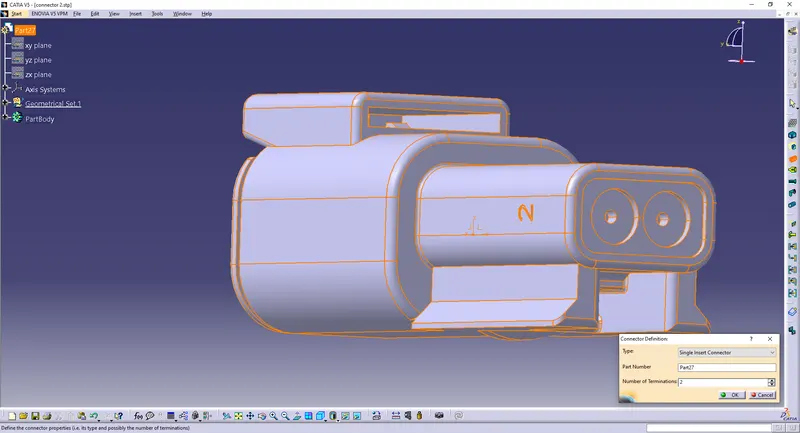

Connector 2:

Create a point on the mating surface and a point at the back as the bundle entry point. Create an axis on the point.

Define the part as a connector with 2 terminations.

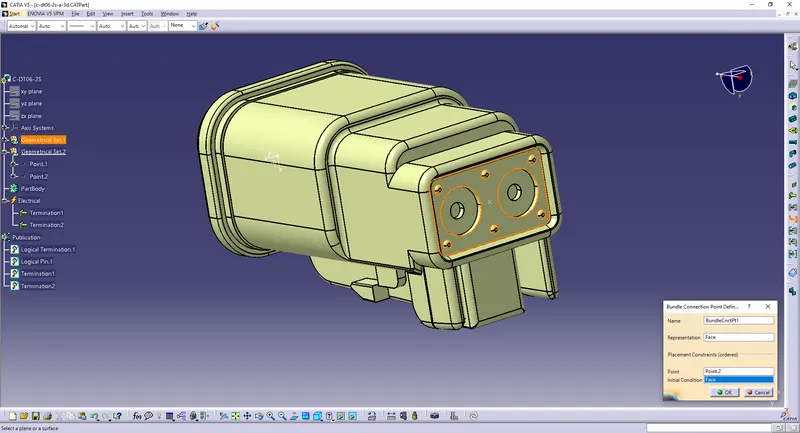

Define Bundle Connection Point.

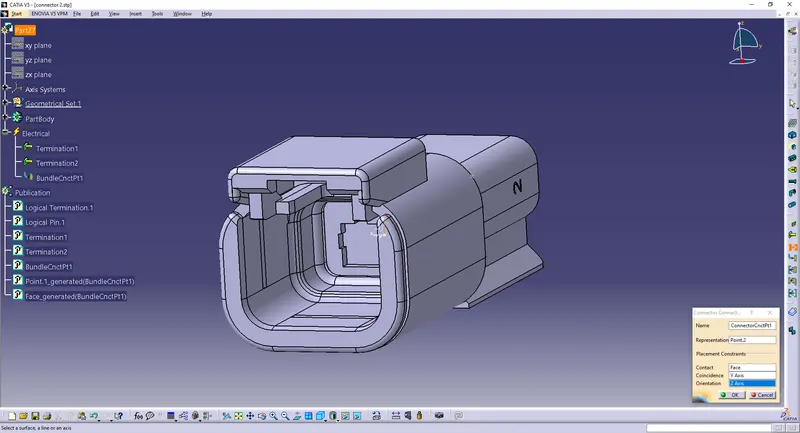

Define Connector Connection Point.

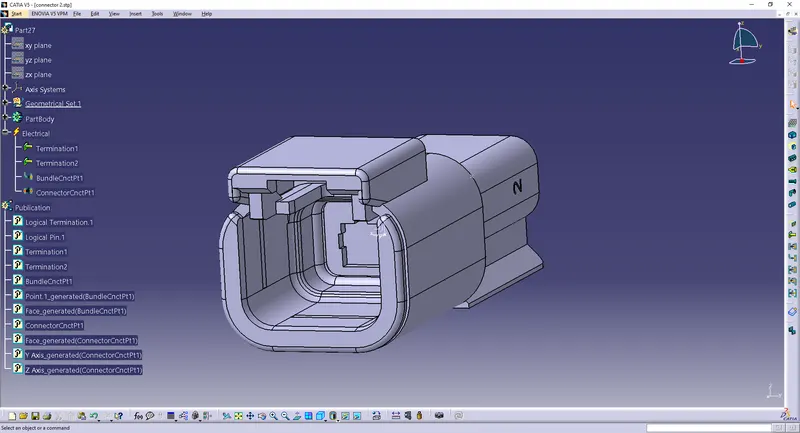

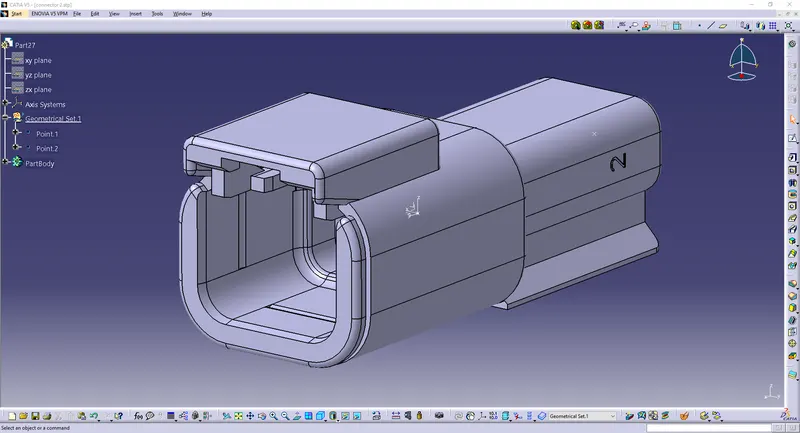

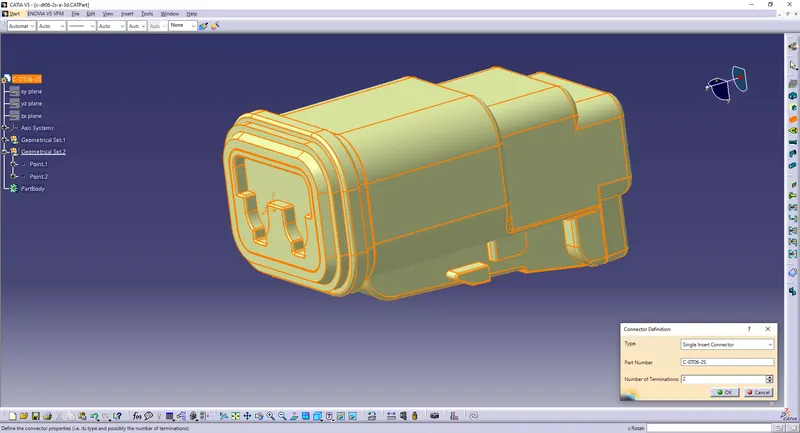

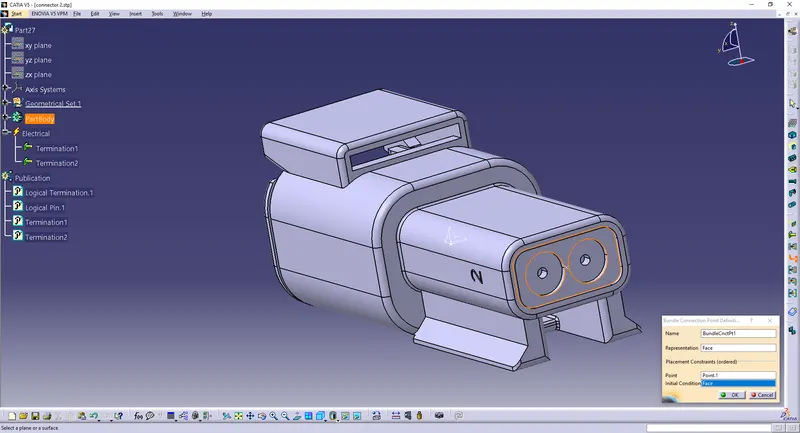

Connector 3:

Create a point on the mating surface and a point at the back as the bundle entry point. Create an axis on the point.

Define the part as a connector with 2 terminations.

Define Bundle Connection Point.

Define Connector Connection Point.

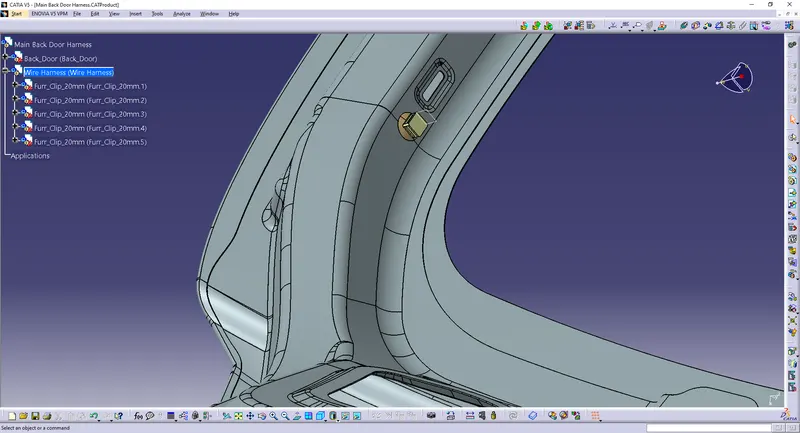

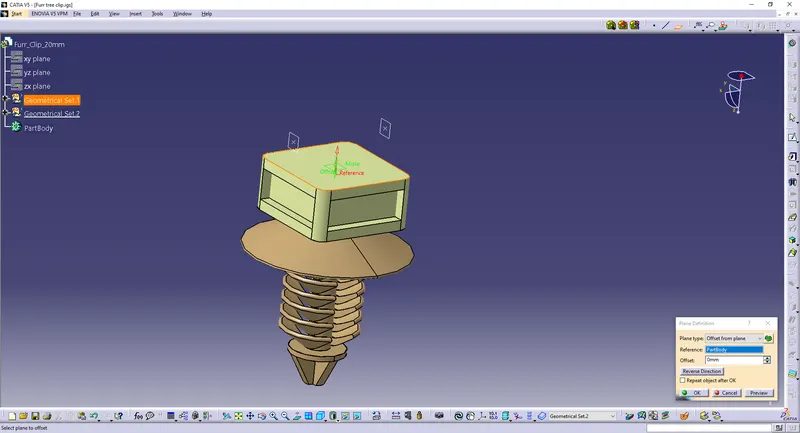

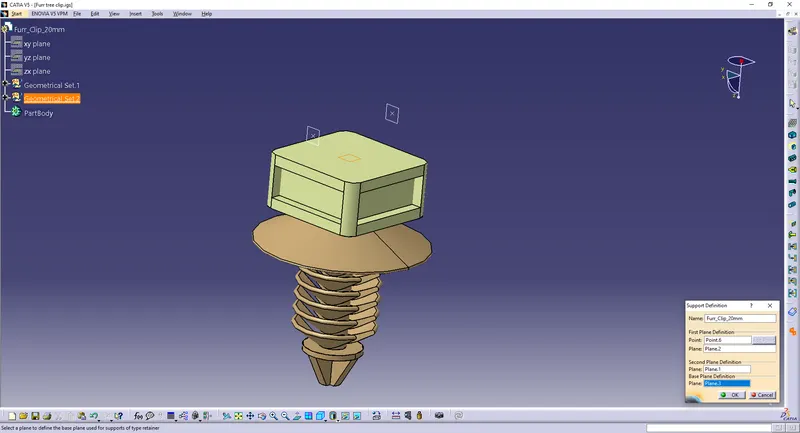

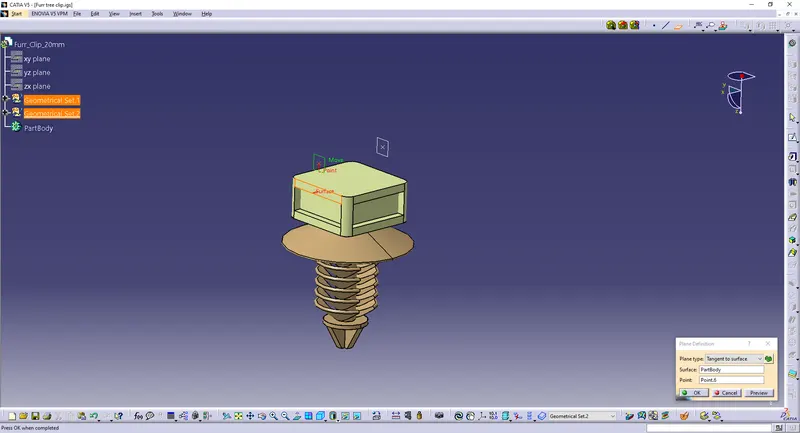

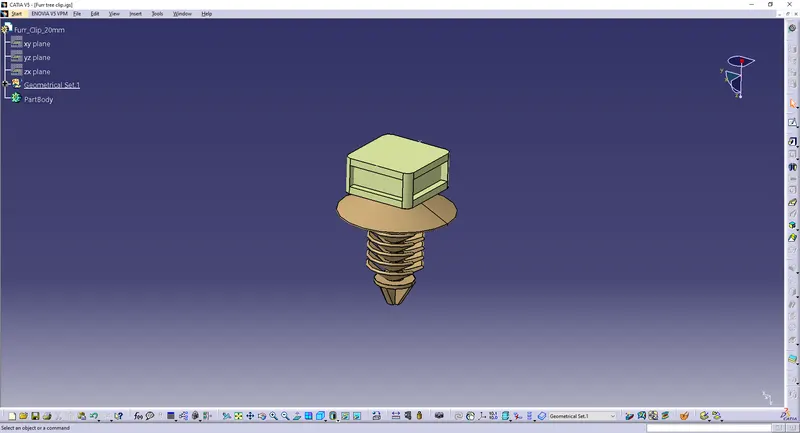

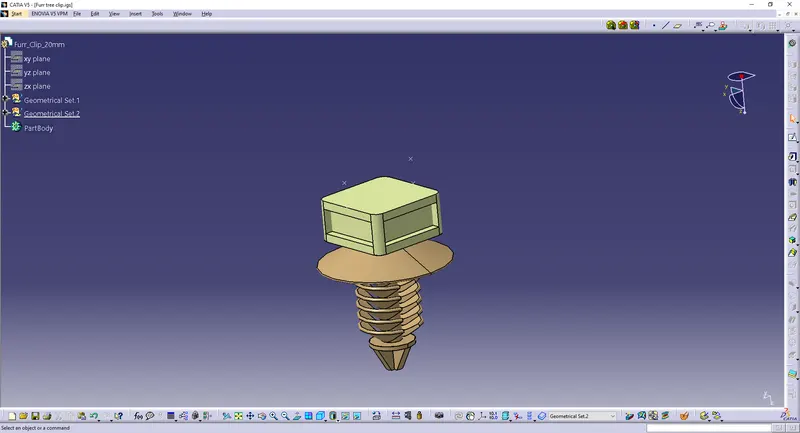

Furr Tree Clip:

Create 2 points on the top surface.

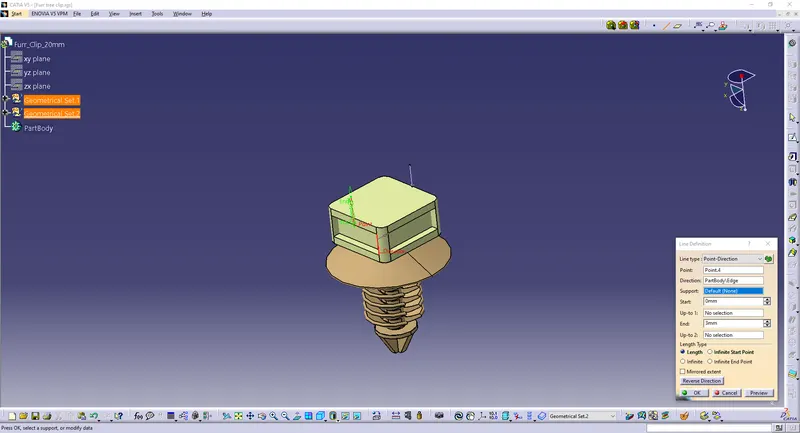

Make 2 lines through these points.

Make 2 points on the ends of these lines.

Create 3 planes.

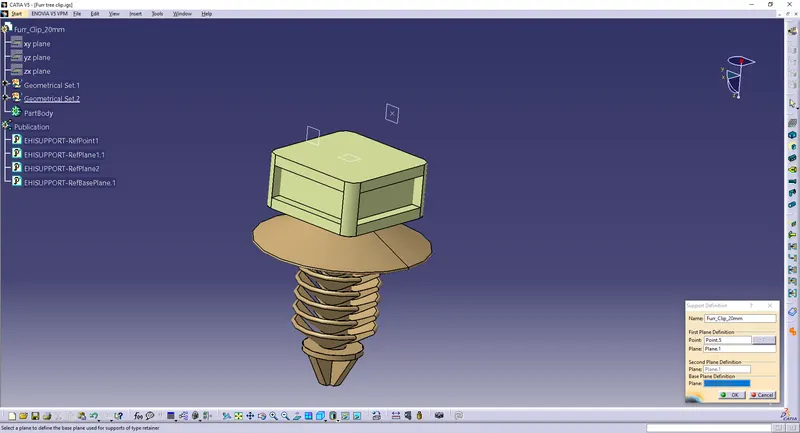

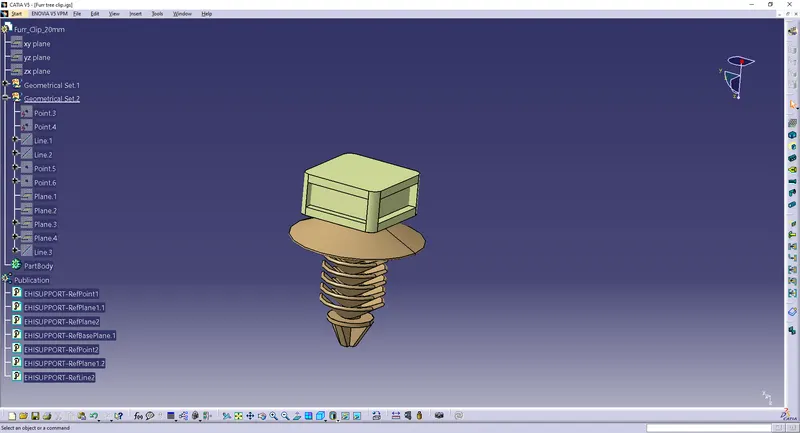

Select and define the clip as a support part.

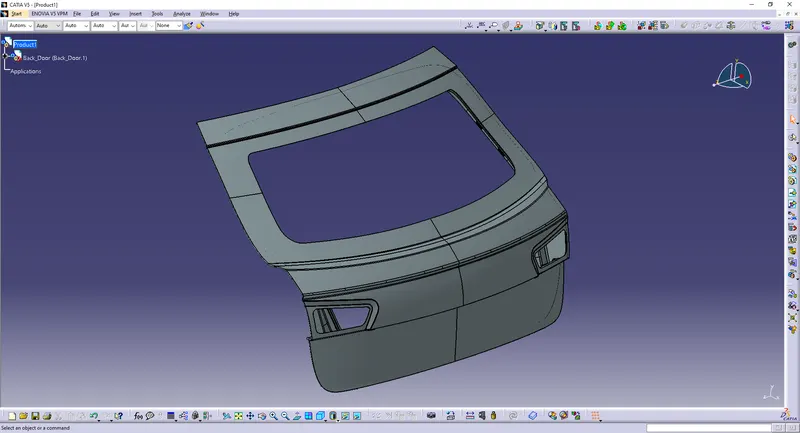

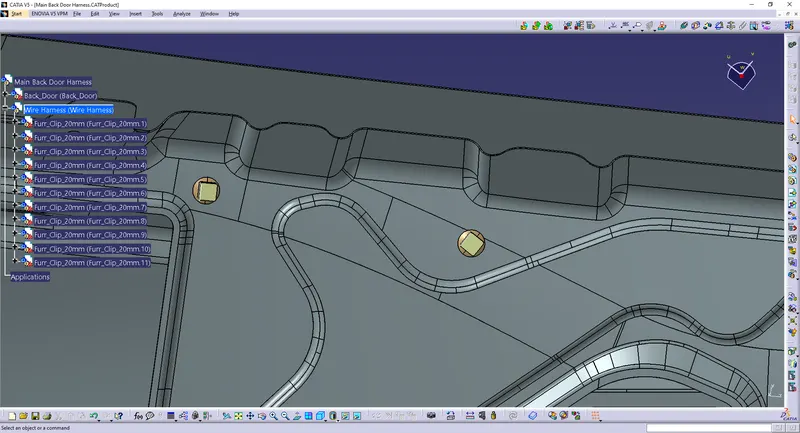

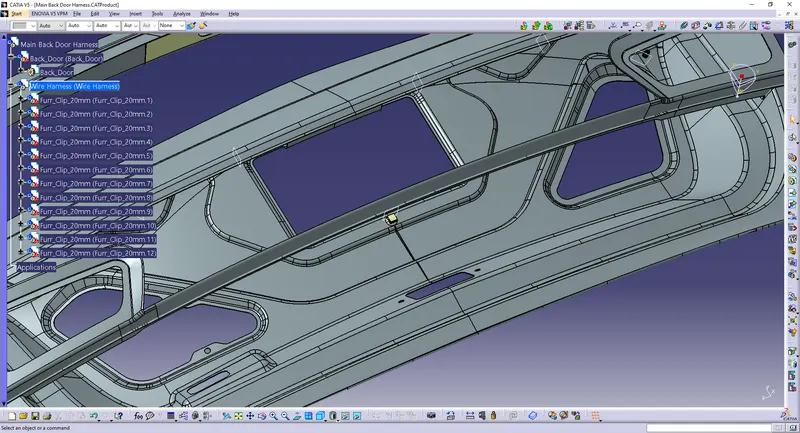

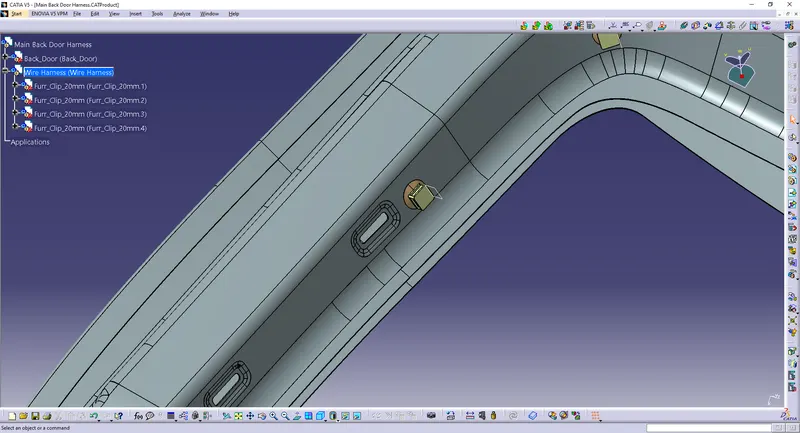

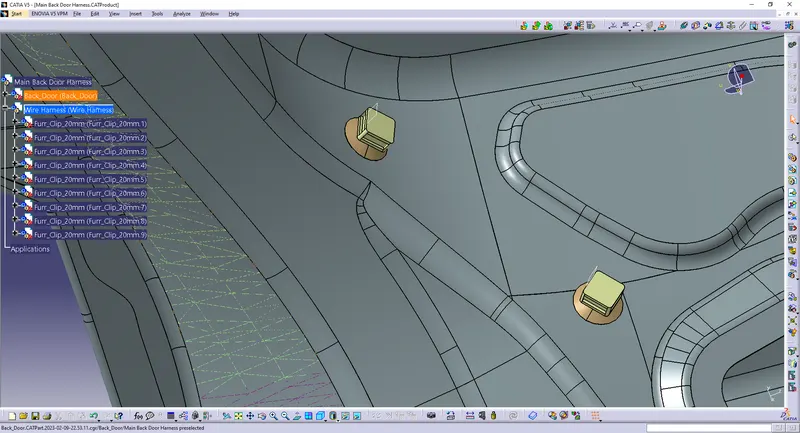

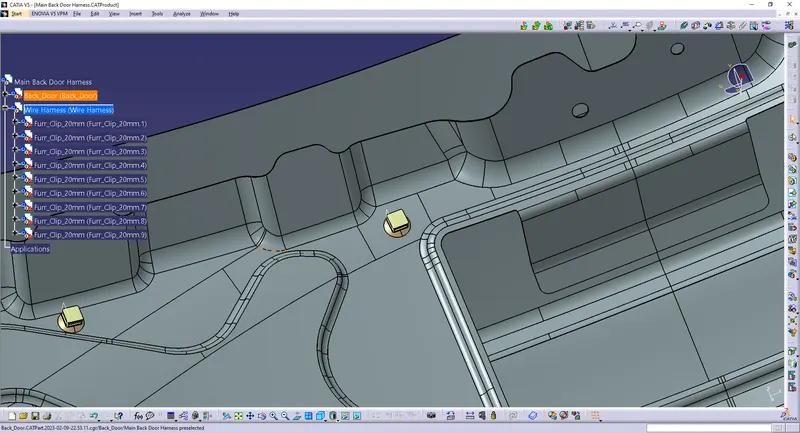

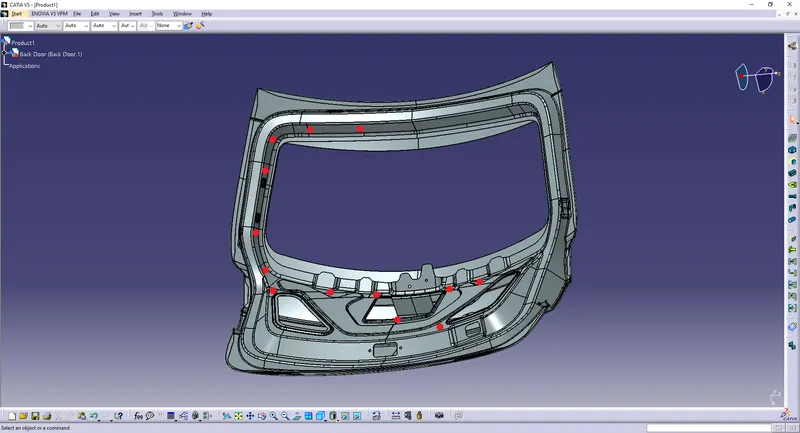

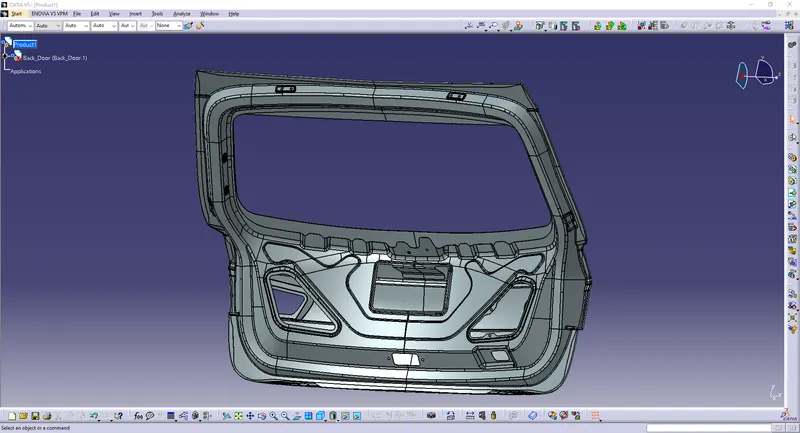

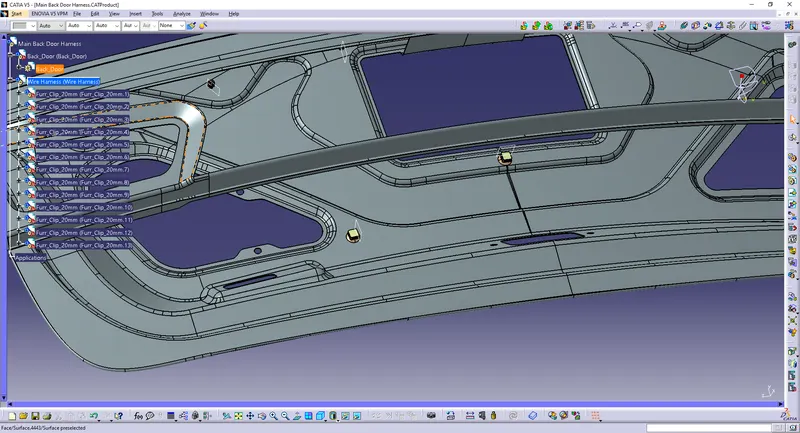

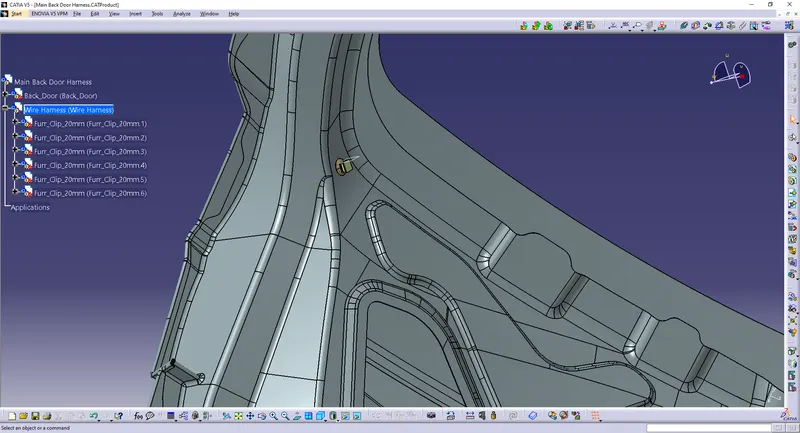

Deciding the routing path and clip position by observing the Back Door:

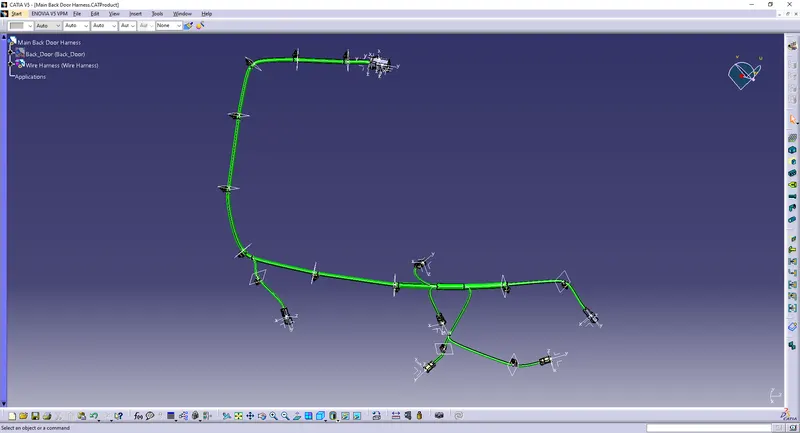

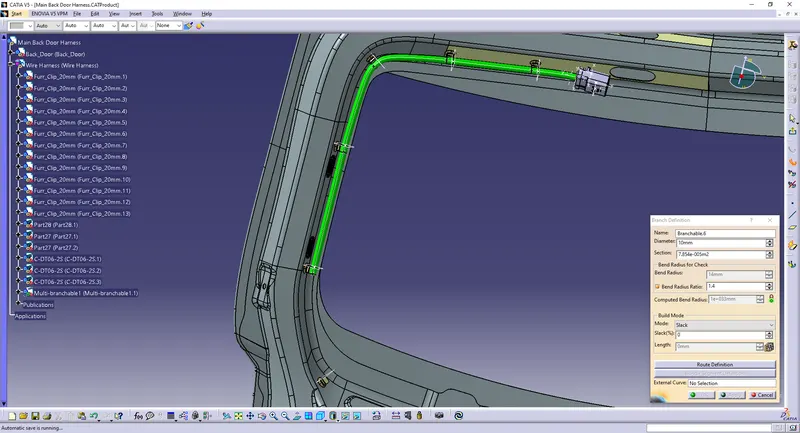

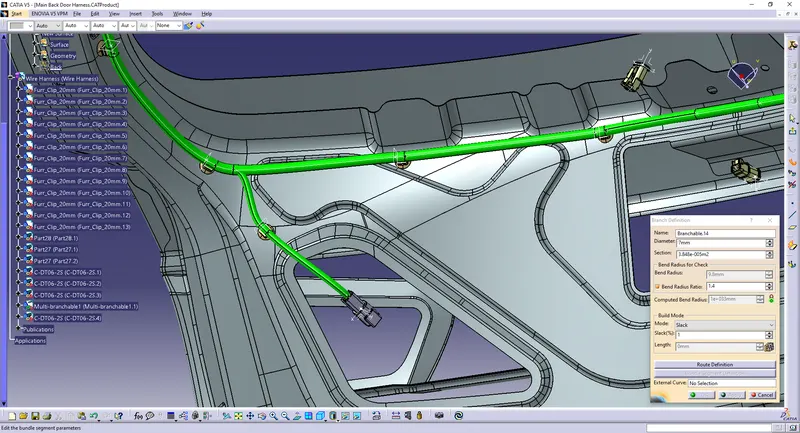

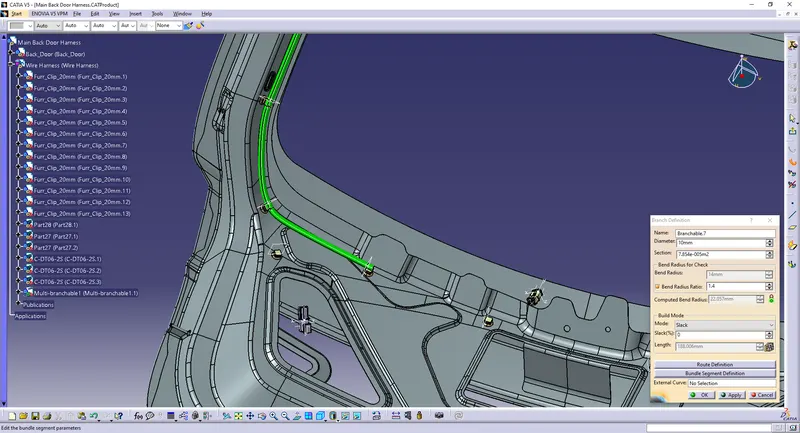

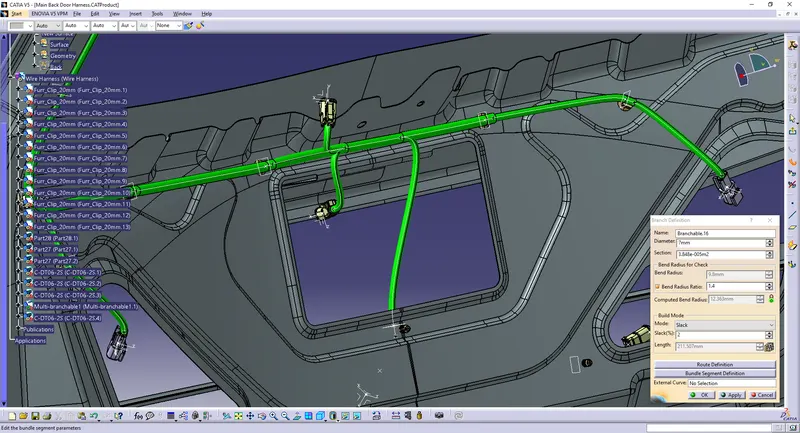

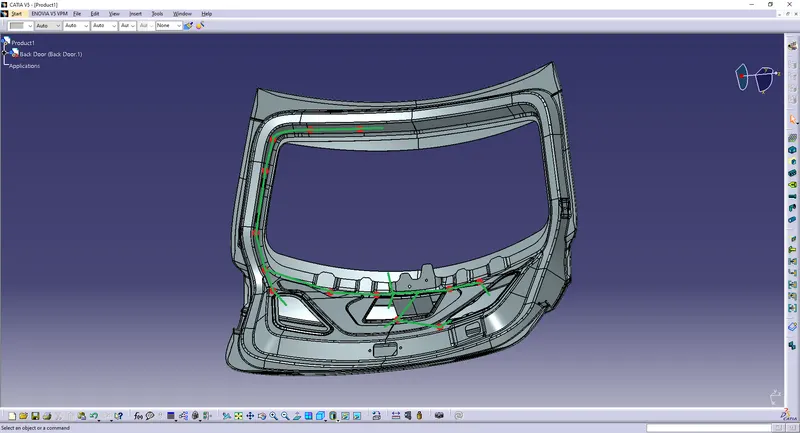

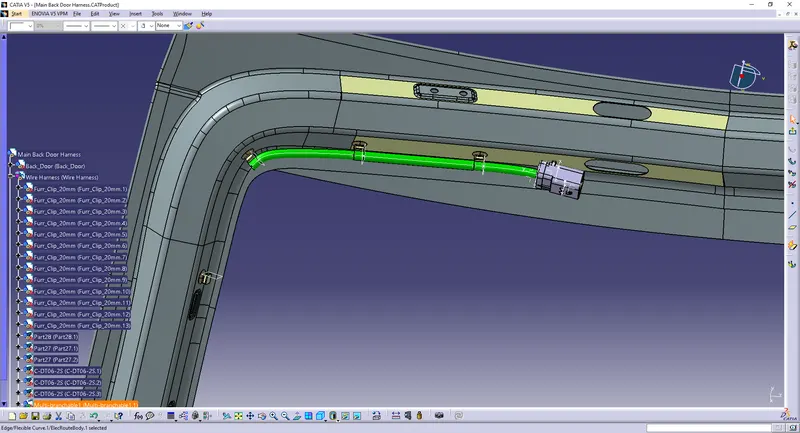

Start routing the bundle segments:

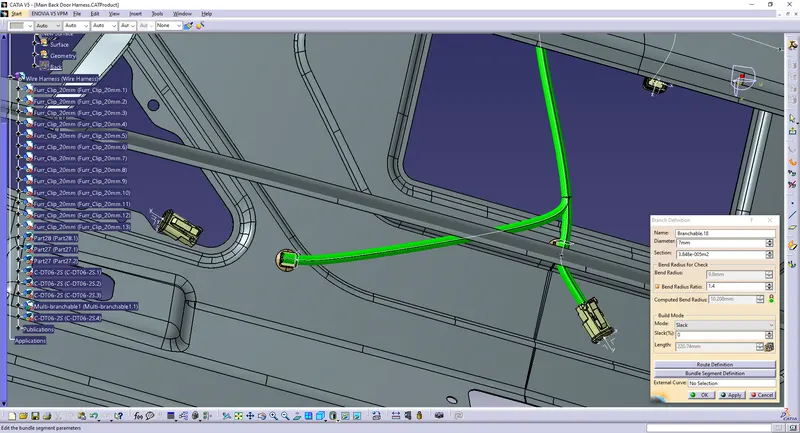

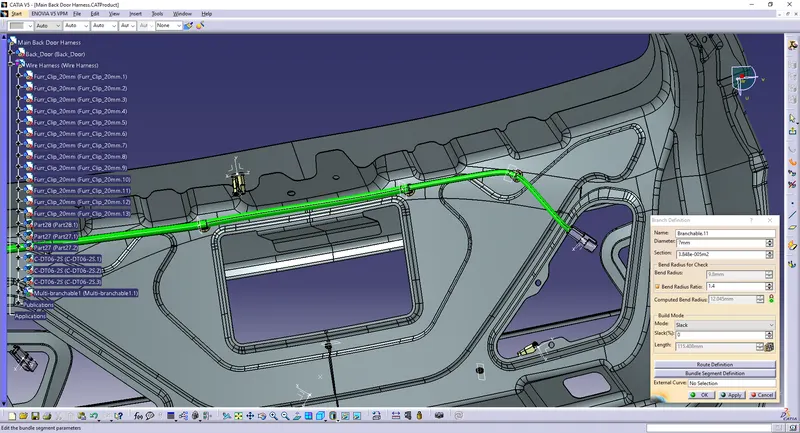

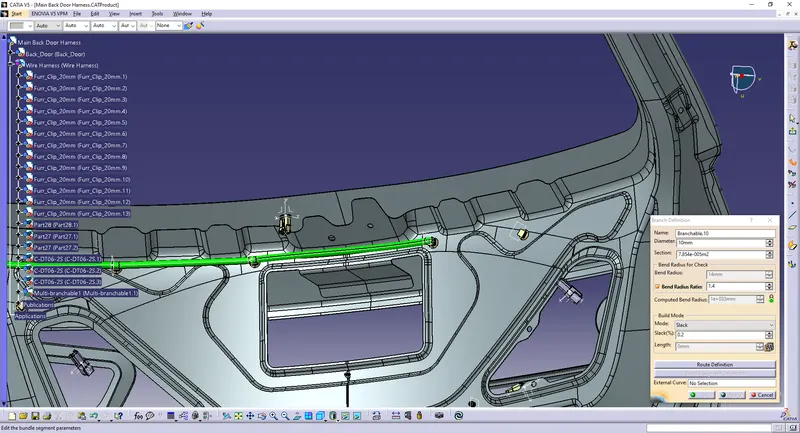

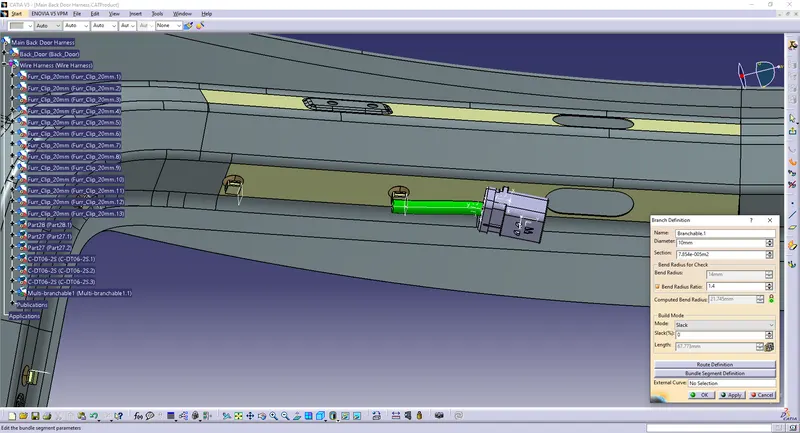

Create branch.

The bend ratio is 1.4.

Slack of 1 - 5% is provided at the necessary location.

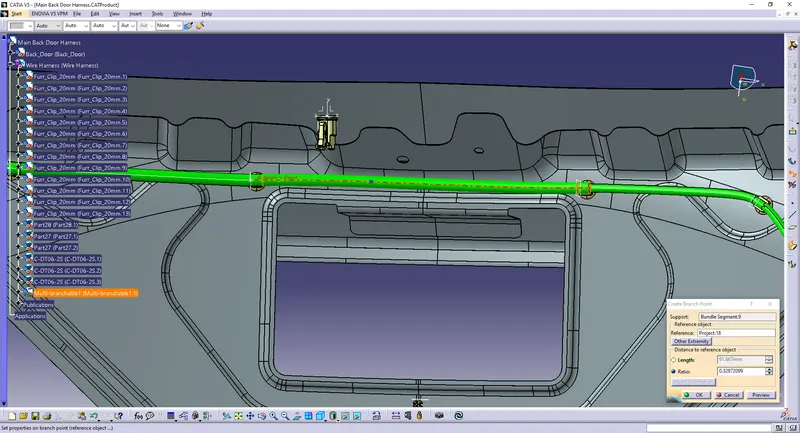

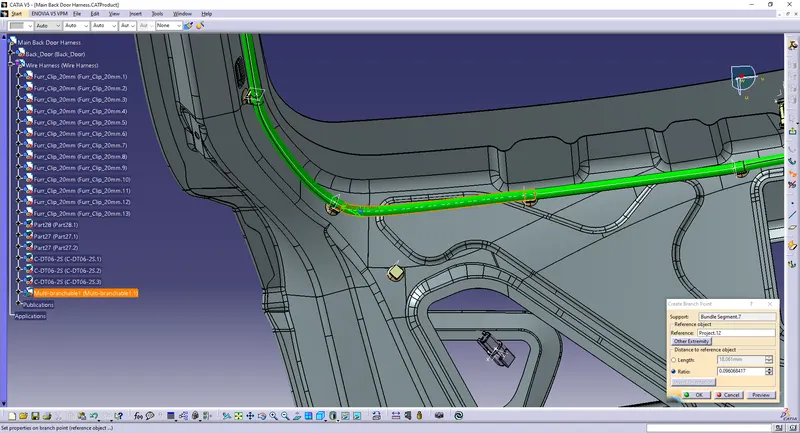

Create branch points where ever necessary.

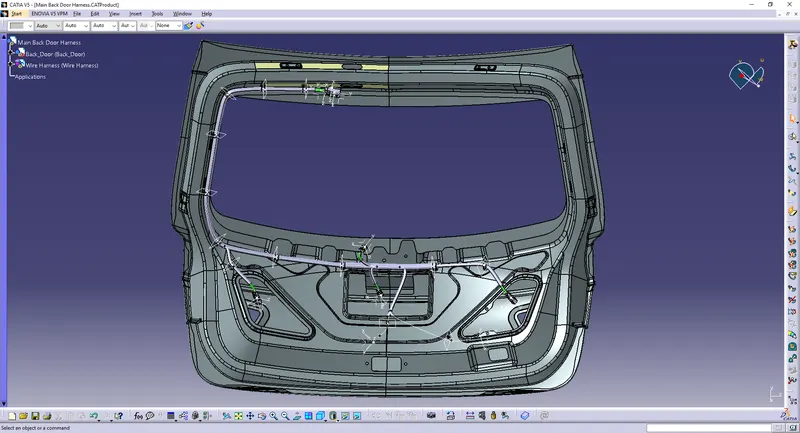

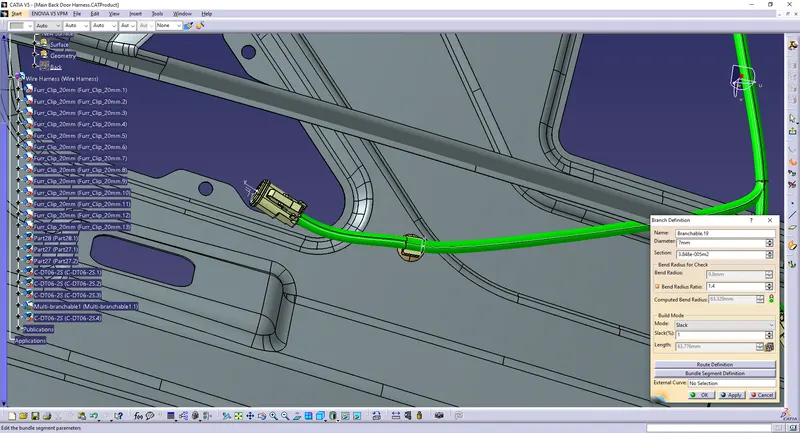

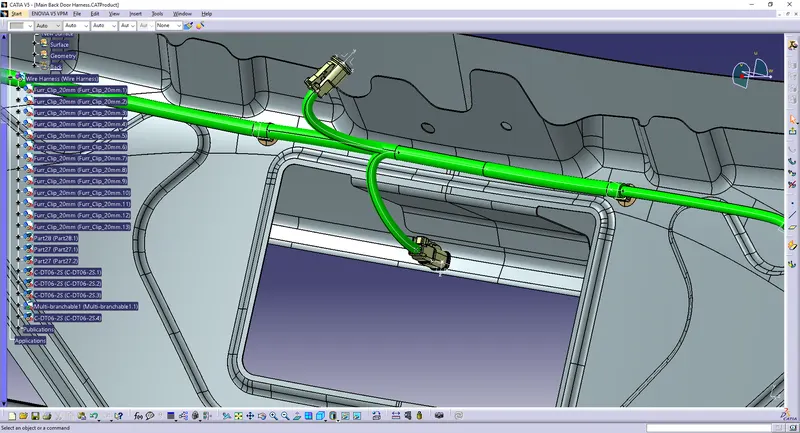

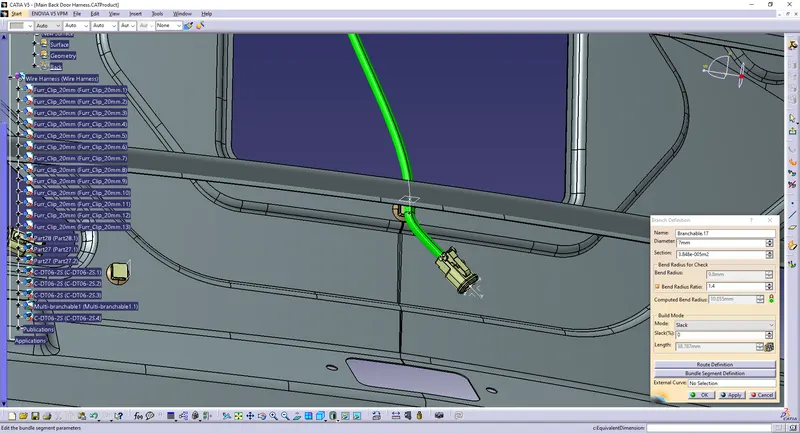

Continue the branch and connect to the remaining connectors.

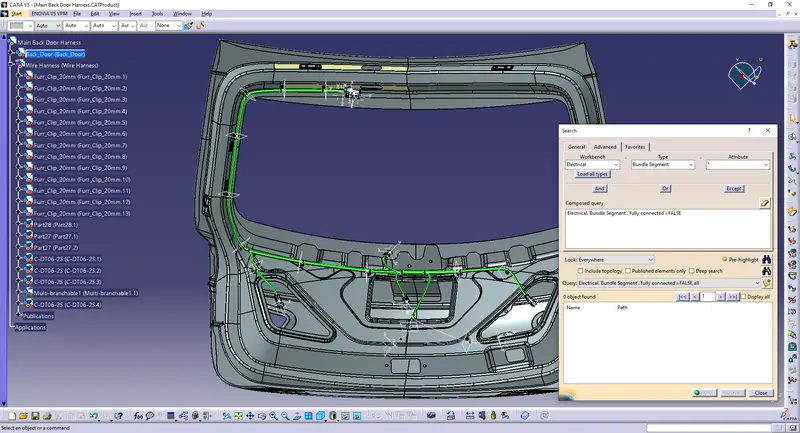

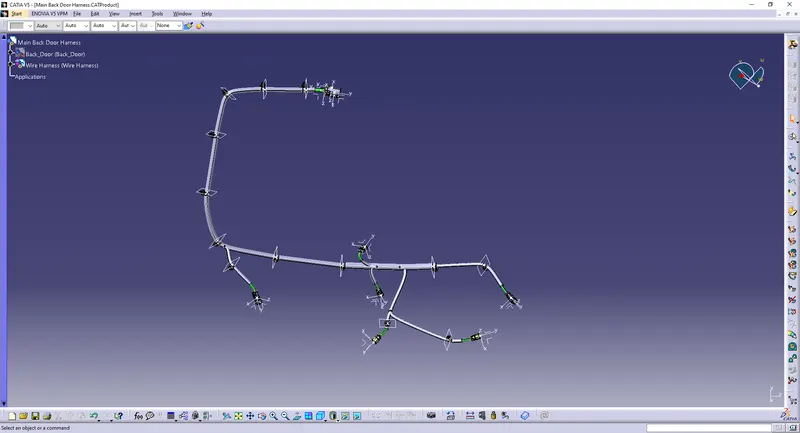

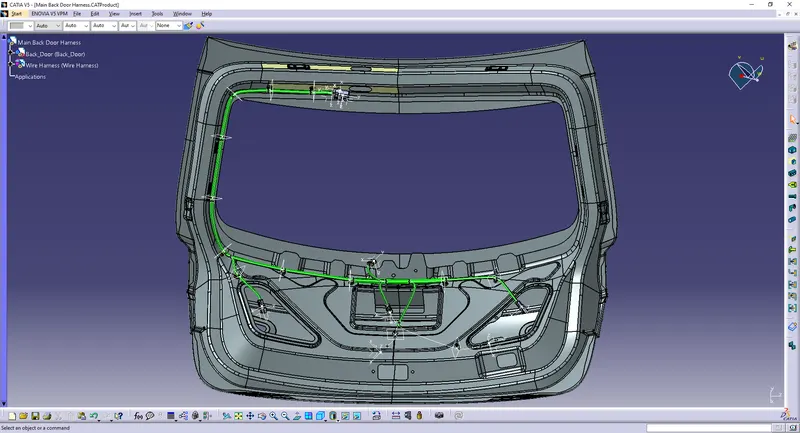

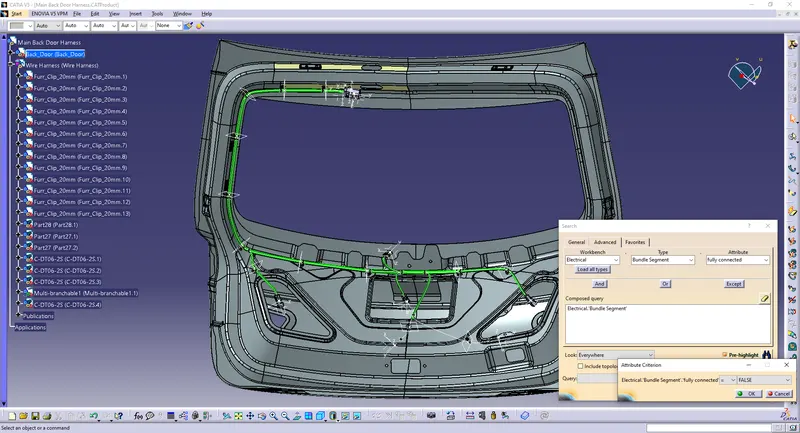

Checking the connections:

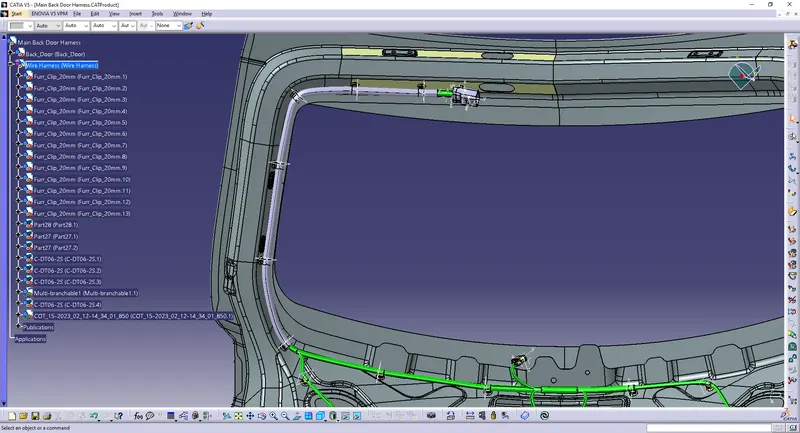

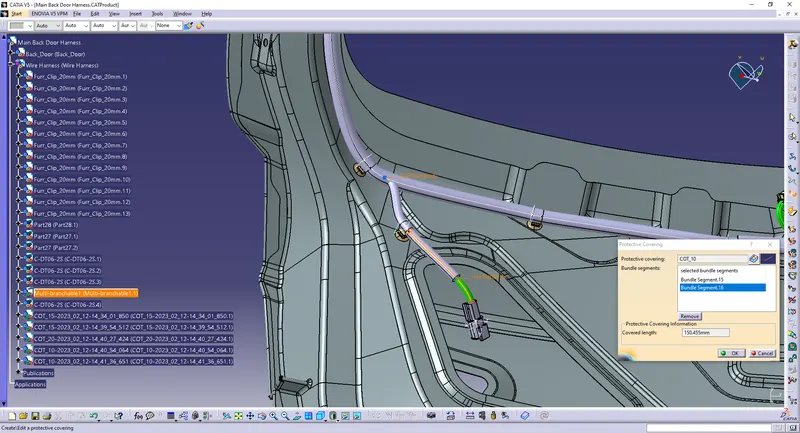

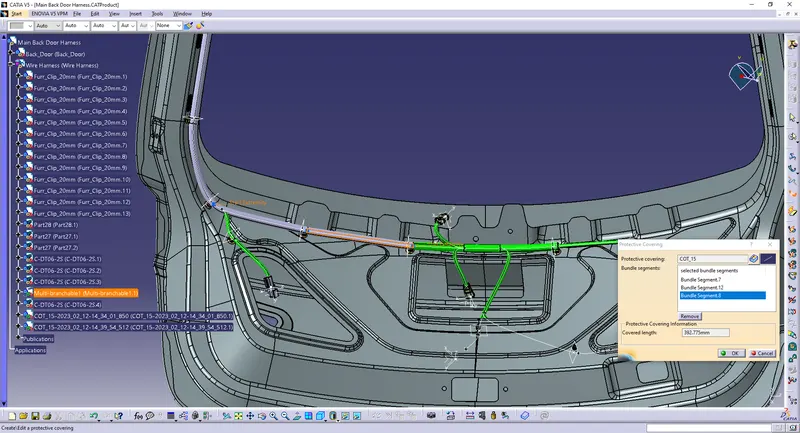

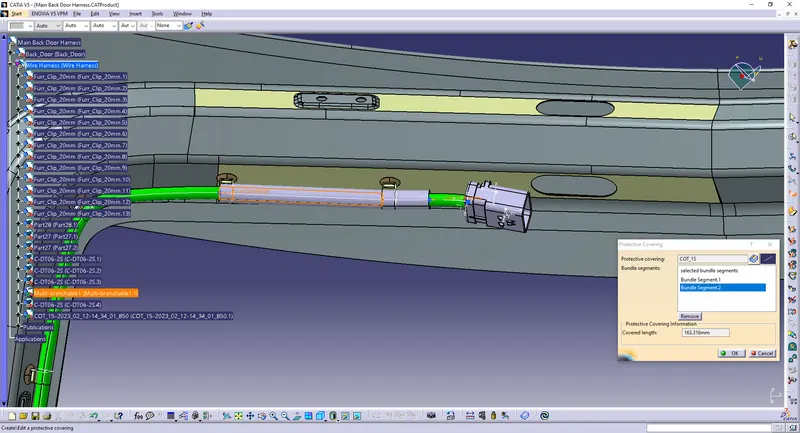

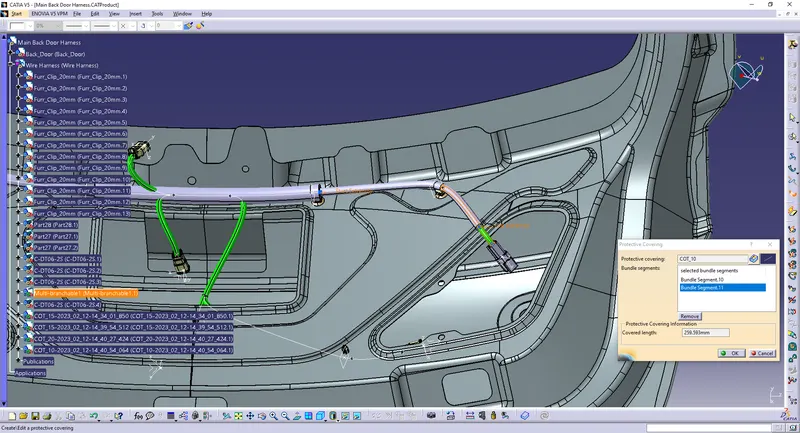

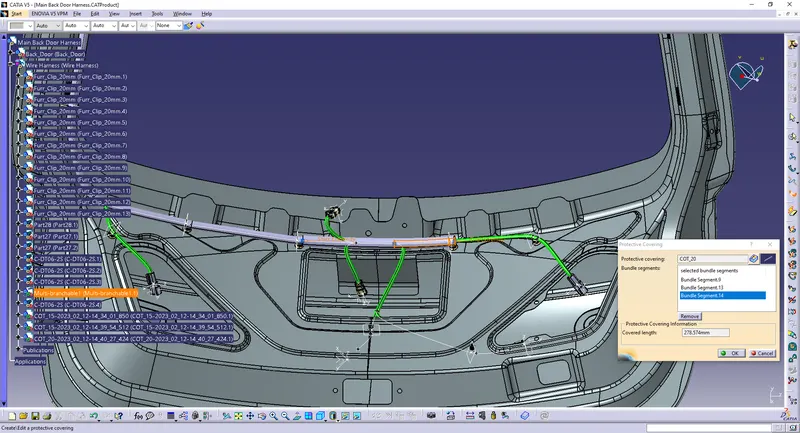

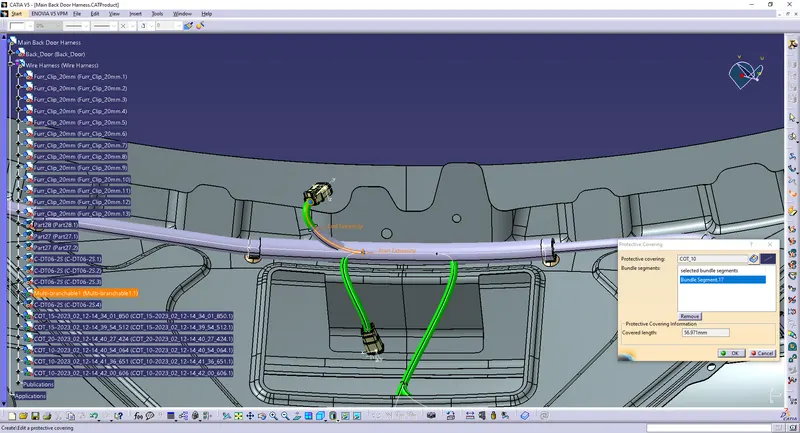

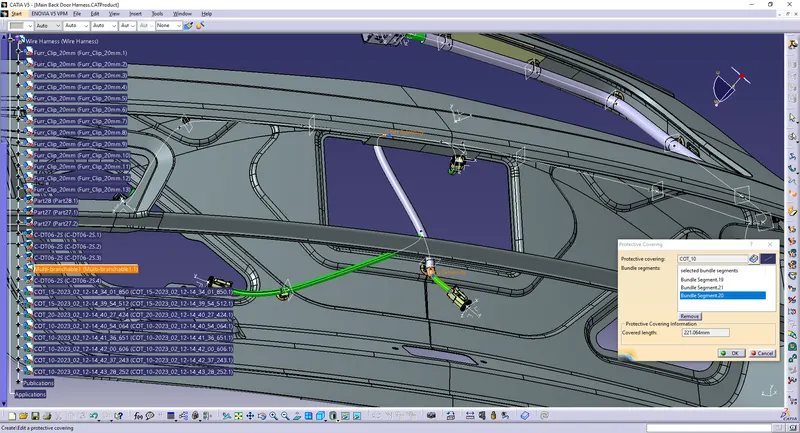

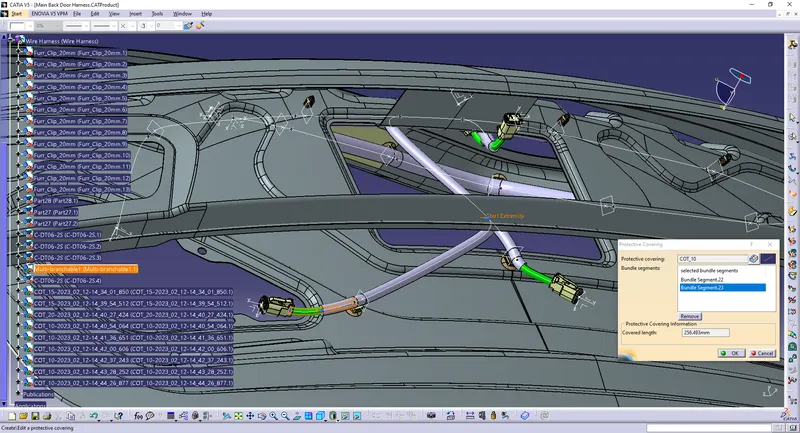

Apply protective covering to the bundle segments:

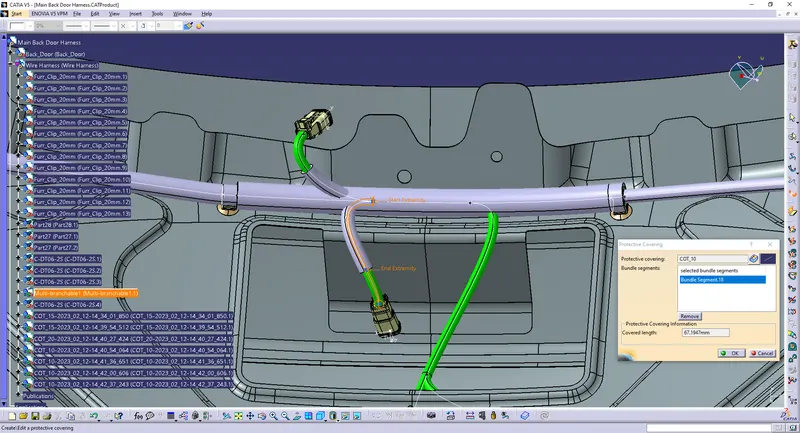

Keep the extremities 30 mm away from the connectors.

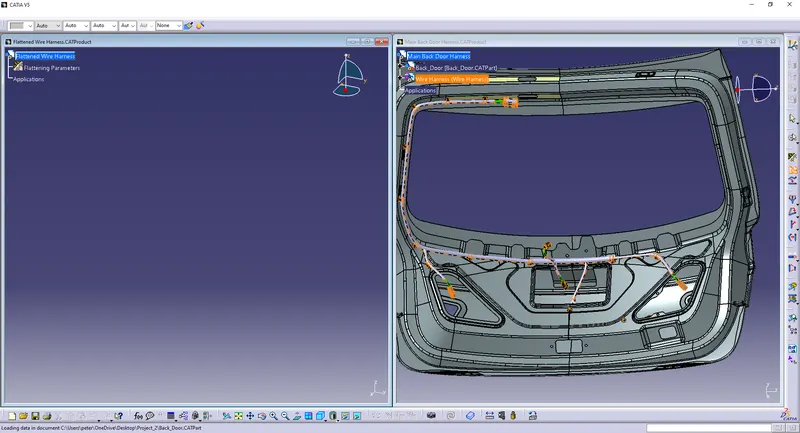

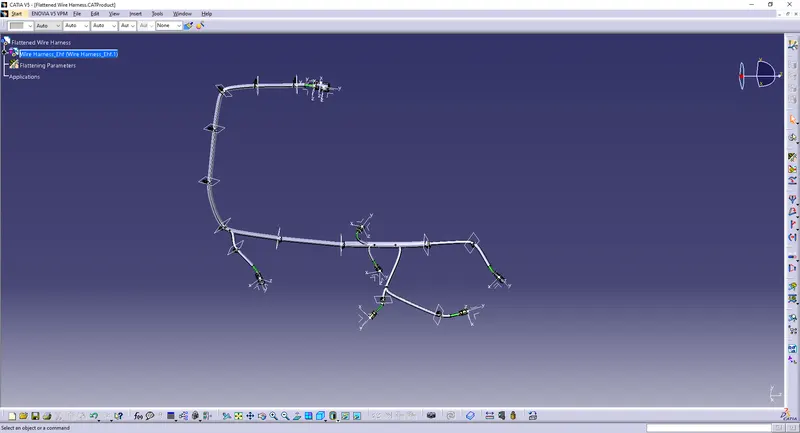

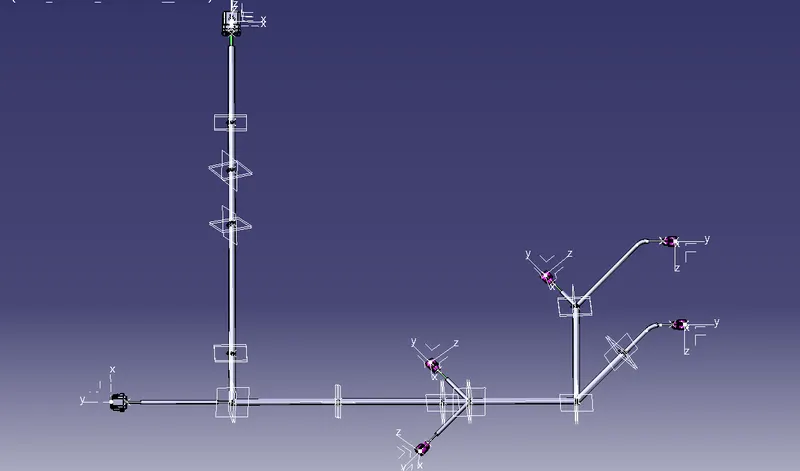

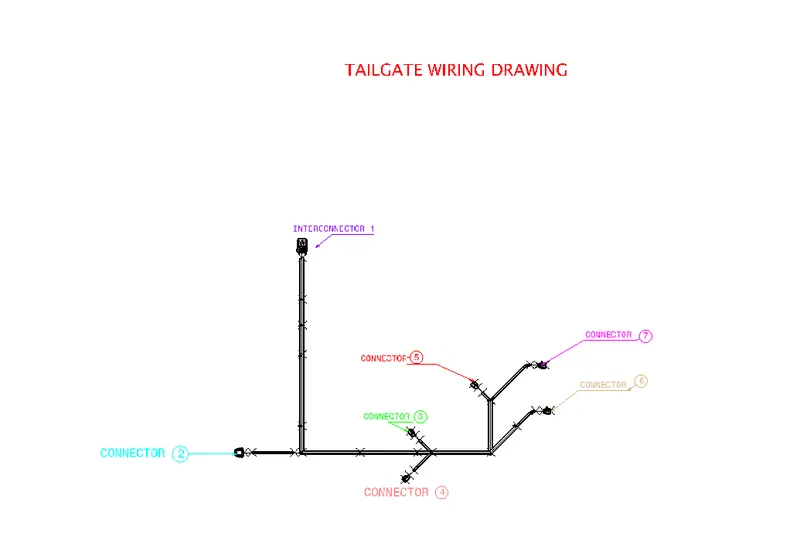

Flattening the Harness Assembly:

Create a new product and go into the "Electrical Harness Flattening" Workbench.

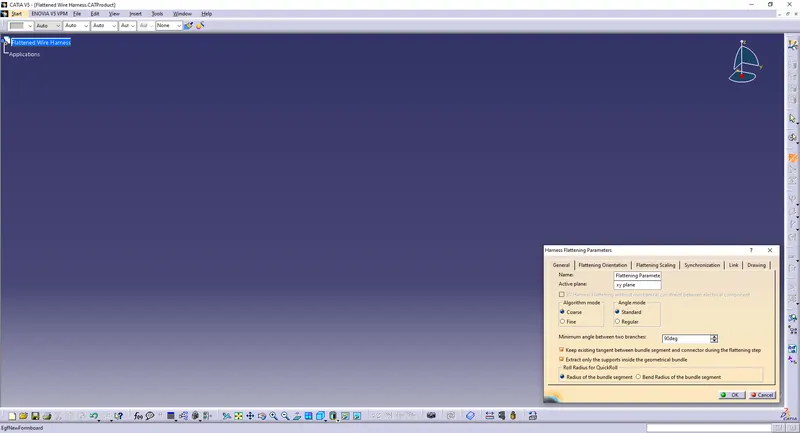

Click on the "Harness Flattening Parameters" option to adjust the parameters.

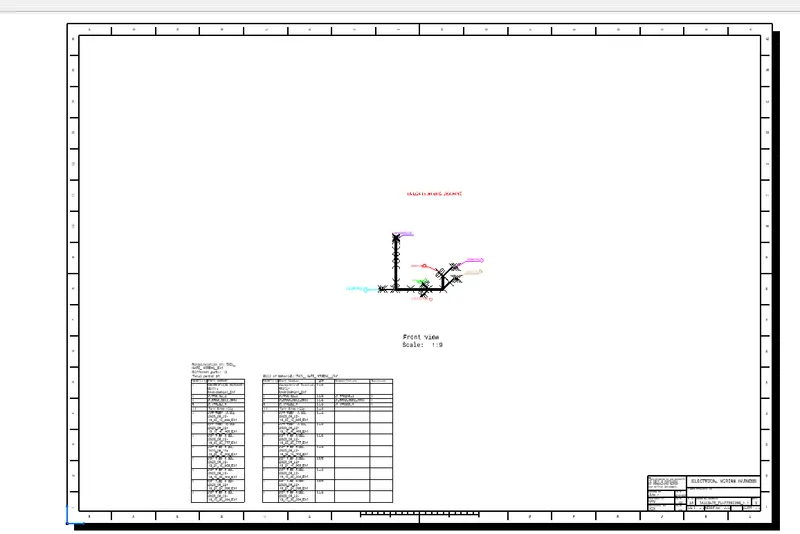

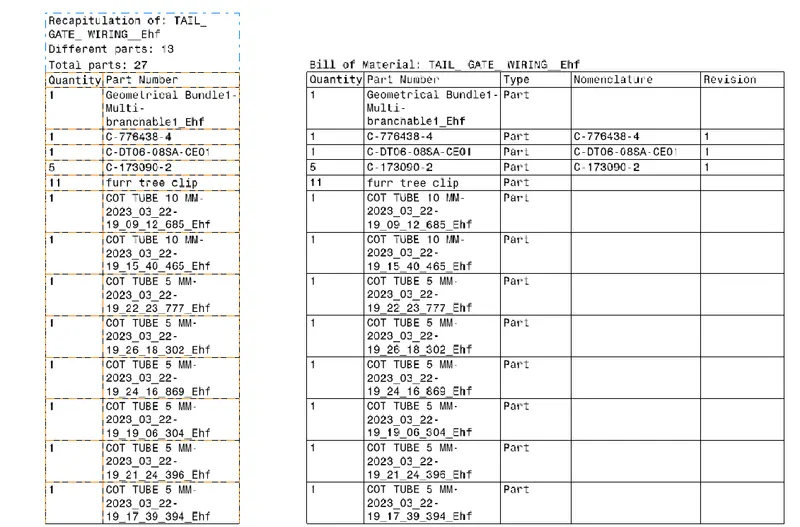

Create a 'Drawing' file and add the harness assembly to the drawing.
