Challenge 8 : Concept Modeling of Seats

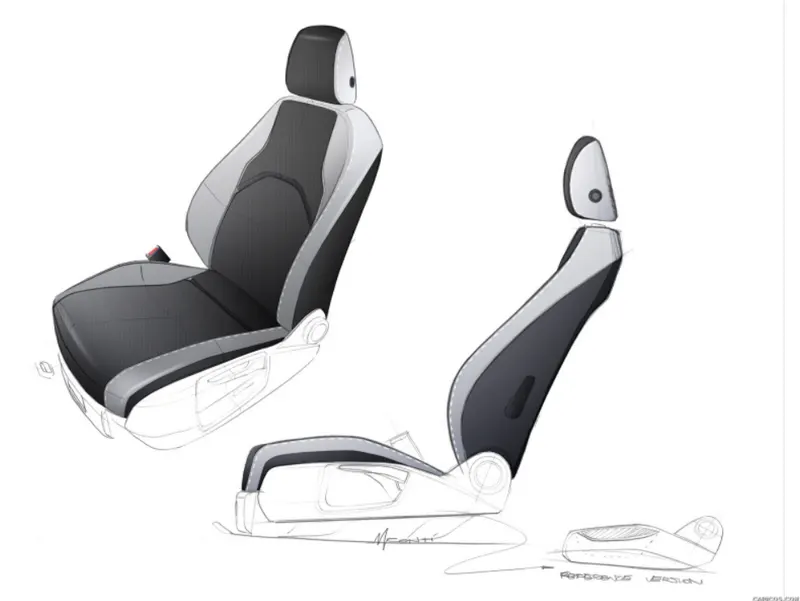

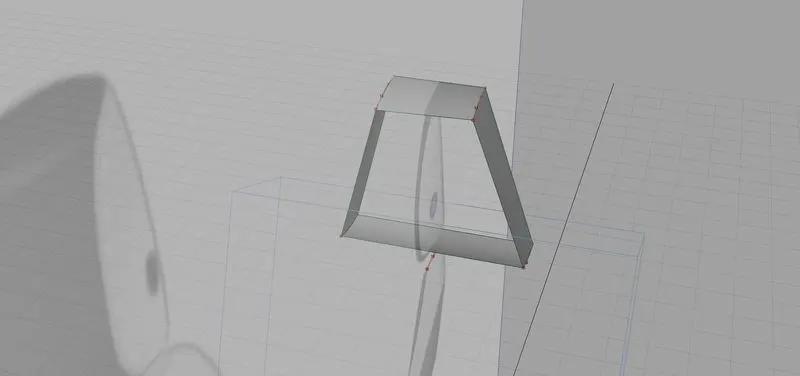

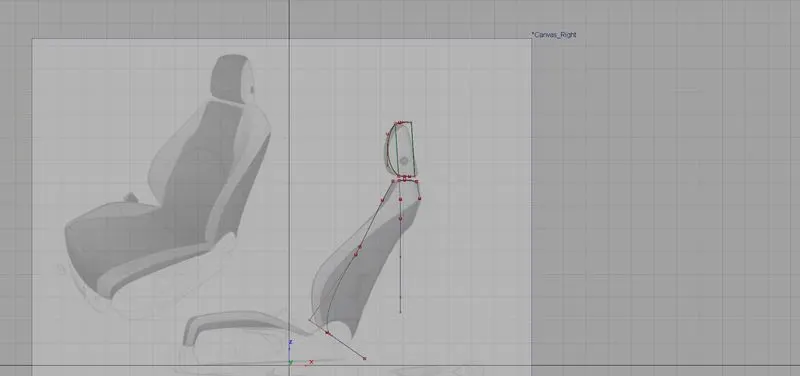

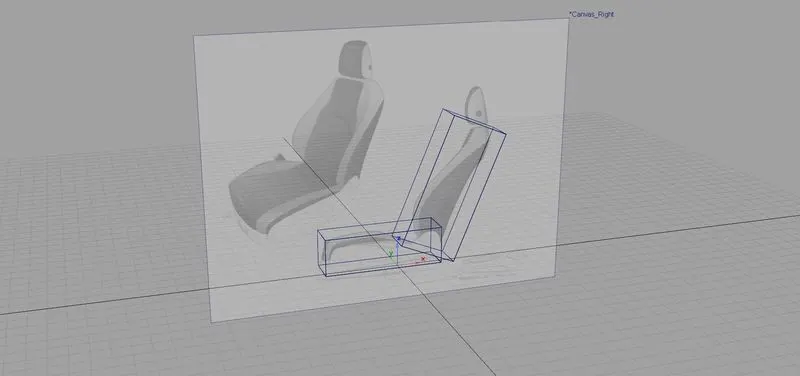

- CHALLENGE . 08 – CONCEPT MODELLING OF SEAT 2) OBJECTIVE:- IN THIS EXERCISE I LEARN HOW TO APPLY A SURFACES ON THE CURVES NETWORK OF AN AUTOMOBILE SEAT OBJECT/MODEL BY USING DIFFERENT SURFACING TOOLS AND ACHIEVE A 3D SHAPE OF THE GIVEN OBJECT.AS WELL I LEARN HOW TO MAKE IT IN CLASS-A BY APPLYING VARIOUS PROPERTIES OF SURFACING TOOLS. 3)INTRODUCTION:-IN THIS EXERCISE I KNEW THE SURFACING TOOLS IN A DEEP WAY AND HOW TO APPLY IT ON THE CURVES OF A SEAT FOR ACHIEVE THE 3D SHAPE OF THE AUTOMOBILE SEAT 4) DESIGN METHODOLOGY :- 1)IMPORT CANVAS IMAGE OF THE AUTOMOBILE SEAT OBJECT IN LEFT PLANE AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY.AND SET IT IN A PROPER WAY FOR THE BETTER VISUALISATION 2) THEN TAKE A PLANE BOX AND ALIGN IT TILL THE MIDDLE SIDE BORDER OF AN SEAT.3)THEN MAKE A CURVES OF THE OBJECT PUT IT AT TOP AND GIVING RAIL SURFACING.4)USING DETACH TOOL FOR THE MAKING IT HALF. 5)THEN I USE TRIM CONVERT TO THE CORNER SIDE SHAPE AND MAKE A NEW LAYER ASSIGN THE SURFACES AND CURVES.6)THEN TAKE A CURVE TO THE SIDE OF SEAT AND MAKE IT TRIM CONVERT. 7)THEN USE DETACH TOOL AND MAKE A 1 SPAN OBJECT BY TAKING THE CURVES HORIZONTALLY. 8) MAKE PLANE AND MOVE IT TO UPSIDE AND FRONT SIDE BY MAKING IT AND ADJUSTING THE CORNER CURVES.9)THEN WE TAKE CURVES NETWORK ON THE HEADREST SIDE.10)BY USING ALIGN TOOL I ALIGNING THE CURVES WITH THE HYPERTHERTICAL CURVES .11)THEN WE SET A CURVES OF SEAT IN A NEW LAYER AND MAKE IT SYMEETRY FOR THE BETTER VISUALISATIONOF HEADREST.12THEN WE PROJECT THE CURVES ON THE BACK SIDE OF SEAT AND TRIM IT BY GIVING SYMMETRY AGAIN. 13) THEN THE INSIDE PATCH OF SEAT IS ACHIEVED COMPLETELY BY INTERSECTING THE CURVES ON IT WITH THE SURFACING IT.14)AFTER THE SURFACING OF HEADREST I STARTED MIDDLE SIDE SURFACING OFSEAT.15)BY TAKING A CURVES AND SURFACING IT I CAN ACHIEVED THE MIDDLE SIDE SURFACING OF THES EAT. 16)THEN WE GO TO MAKING THE SURFACE OF BOOTOM SIDE OF SEAT WHICH IS FLAT SHAPED IN INSIDE. 17)MAKE A CURVE AND AT THE CENTRE OF THE OBJECT AND SURFACE IT BY MRAIL O ACHIEVED THE BOTTOM SURFACING OFSEAT. 18)THEN I GIVE A FREE FORM BLEND TO OTHER SIDE AND ACHIEVED THE SHAPE WITH G2 CURVATURE.19)NOW I START THE TOP LEFT SIDE SURFACING OF SEAT BY BUILDING A CURVE AND ASSIGN IT TO THE SURFACE .20)AFTER THAT IG GIVING A CROWN TO THE PLANE FOR THE NEXT SURFACING.21)THEN I STARTED THE CURVE NETWORK AT SEAT SIDE FOR THE SURFACING. BY USING BLEND CURVE AND ALIGN THE CURVES TO EACH OTHER.22)AFTER THAT I MAKE A STRAIGHT LINE CURVE ON THE TOP SIDE OF SEAT TO MATCH THE SEAT SURFACES TO THE SSEAT WHEEL.23) AND THEN WE TAKE A CURVE FROM BUTTON SIDE AND MANIPULATE IT FOR THE SURFACING.24)THEN PROJECT ALL THE CURVES NETWORK ON THE PLANE SURFACE AND TRIM IT AND I ACHIEVED THE SSEAT SIDE SURFACE.25)THEN I STARTED THE SURFACING BETWEEN THE STERRING WHEEL AND SEAT BY ALIGNING THE CURVES TO IMAGE 26)ACHIEVED THE SURFASCING BY USING PROJECT,TRIM,INTERSECT ,TRIM CONVERT AS WELL AS ALIGN AND EXTEND TOOL.27)AFTER THAT I STARTED THE SEAT TOP SIDE BY ADJUSTING THE CURVES IN A WAY AND GIVING IT M RAIL ,FREEFORM.BKEND TOOL FOR THE SEAT SIDE SURFACING. 5) DESCRIPTION:- THE TOOLS WHICH I USED FOR TO COMPLETE THE SURFACING THAT ARE AS FOLLOW :- FOR THE BASIC CURVE NETWORK I USE :- 1)CURVE TOOL 2)CIRCLE TOOL 3)KEYPTBOX TOOL FOR THE EDITING OF THE CURVES I USE:- 4)BLEND TOOL 5) ATTCH TOOL 6)EXTEND TOOL 7) ALIGN TOOL FOR THE SURFACING I USE :-8) SKIN RAIL 9)M-RAIL SURFACE TOOL 10)SQUARE TOOL FOR THE SURFACE EDITING I USE :- 12) SURFACE FILLET CONTROL 13) FREE FORM BLEND 14)MULTISURFACE DRAFT CONTROL 15) PROJECTAND TRIM TOOL
1)IMPORT CANVAS IMAGE OF THE SEAT WHEEL OBJECT IN LEFT PLANE AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY.AND SET IT IN A PROPER WAY FOR THE BETTER VISUALISATION 2) THEN TAKE A SMALL CURVE AND ALIGN IT TILL THE MIDDLE SIDE BORDER OF AN SEAT.3)THEN MAKE A CIRCLE AND PUT IT AT TOP AND GIVING RAIL SURFACING.4)USING DETACH TOOL FOR THE MAKING IT HALF. 5)THEN I USE TRIM CONVERT TO THE CORNER SIDE SHAPE AND MAKE A NEW LAYER ASSIGN THE SURFACES AND CURVES.6)THEN TAKE A CURVE TO THE SIDE OF SEAT AND MAKE IT TRIM CONVERT.

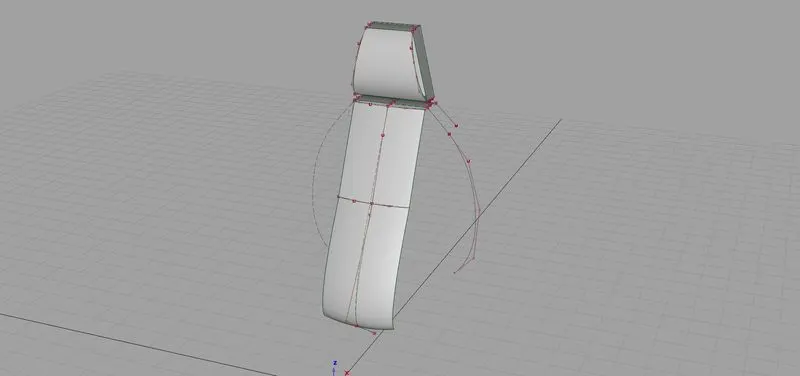

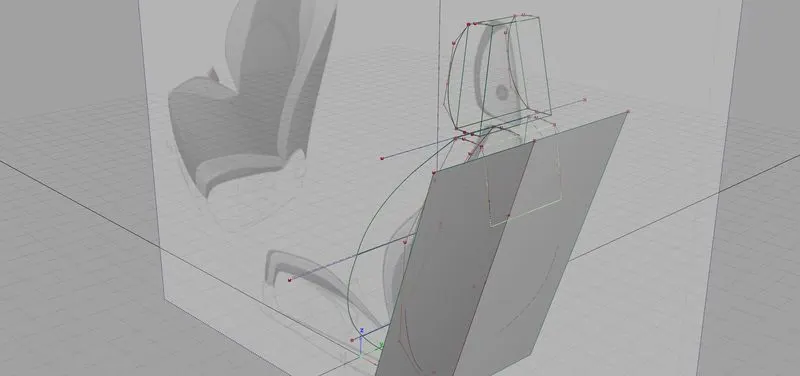

7)THEN USE DETACH TOOL AND MAKE A 1 SPAN OBJECT BY TAKING THE CURVES HORIZONTALLY. 8) MAKE PLANE AND MOVE IT TO UPSIDE AND FRONT SIDE BY MAKING IT AND ADJUSTING THE CORNER CURVES.9)THEN WE TAKE CURVES NETWORK ON THE SEAT SIDE.10)BY USING ALIGN TOOL I ALIGNING THE CURVES WITH THE HYPERTHERTICAL CURVES .

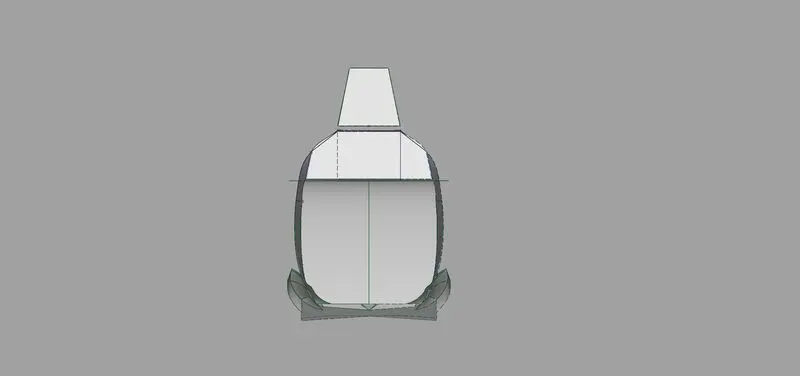

11)THEN WE SET A CURVES OF SEAT IN A NEW LAYER AND MAKE IT SYMEETRY FOR THE BETTER VISUALISATIONOF HORN PAD.12THEN WE PROJECT THE CURVES ON THE SEAT PATCH AND TRIM IT BY GIVING SYMMETRY AGAIN. 13) THEN THE INSIDE PATCH OF SEAT IS ACHIEVED COMPLETELY BY INTERSECTING THE CURVES ON IT WITH THE SURFACING IT.14)AFTER THE SURFACING OF SEAT I STARTED MIDDLE SIDE SURFACING OF SEAT. 15)BY TAKING A CIRCLE AND SURFACING IT I CAN ACHIEVED THE MIDDLE SIDE SURFACING OF THE SEAT.
16)THEN WE GO TO MAKING THE SURFACE OF BOOTOM SIDE OF SSEAT WHEEL WHICH IS ROUND AND FLAT SHAPED IN INSIDE. 17)MAKE A CURVE AND CIRCLE AT THE CENTRE OF THE OBJECT AND SURFACE IT BY MRAIL O ACHIEVED THE BOTTOM SURFACING OF SEAT. 18)THEN I GIVE A FREE FORM BLEND TO OTHER SIDE AND ACHIEVED THE SHAPE WITH G2 CURVATURE.19)NOW I START THE TOP LEFT SIDE SURFACING OF SEAT BY BUILDING A CURVE AND ASSIGN IT TO THE SURFACE .20)AFTER THAT IG GIVING A CROWN TO THE PLANE FOR THE NEXT SURFACING.21)THEN I STARTED THE CURVE NETWORK AT SEAT SIDE FOR THE SURFACING. BY USING BLEND CURVE AND ALIGN THE CURVES TO EACH OTHER.22)AFTER THAT I MAKE A STRAIGHT LINE CURVE ON THE TOP SIDE OF SEAT TO MATCH THE SEAT SURFACES TO THE SEAT .23) AND THEN WE TAKE A CURVE FROM BUTTON SIDE AND MANIPULATE IT FOR THE SURFACING.24)THEN PROJECT ALL THE CURVES NETWORK ON THE PLANE SURFACE AND TRIM IT AND I ACHIEVED THE SSEAT SIDE SURFACE.25)THEN I STARTED THE SURFACING BETWEEN THE SEAT AND CURVES BY ALIGNING THE CURVES TO IMAGE 26)ACHIEVED THE SURFASCING BY USING PROJECT,TRIM,INTERSECT ,TRIM CONVERT AS WELL AS ALIGN AND EXTEND TOOL.27)AFTER THAT I STARTED THE SEAT TOP SIDE BY ADJUSTING THE CURVES IN A WAY AND GIVING IT M RAIL ,FREEFORM.BKEND TOOL FOR THE SEAT SIDE SURFACING. 6)ALL SIDE VIEWS OF THE SEAT:-

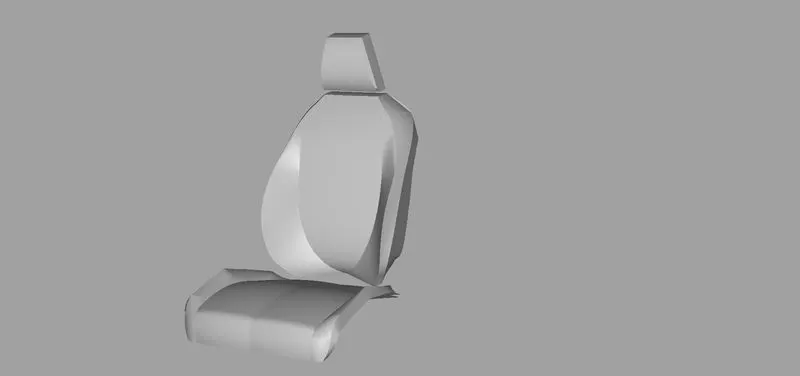

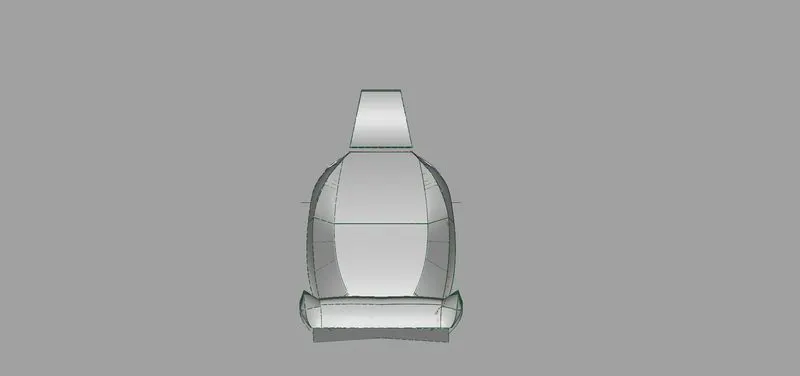

7)CONCLUSION:- THE CURVES WHERE THE SURFCING IS NOT PROPERLY WORKING I TRYING TO COMPLETE THE CURVE MANIPULATION FOR ACHIEVING THE SURFACE ON THE SPECIFIC OBJECT. BY USING THIS SURFACING TOOLS 1)BLEND TOOL 2) ATTCH TOOL 3)EXTEND TOOL 4) ALIGN TOOL BY USING ALL THE TOOLS THAT I MENTIONED ABOVE I COMPLETE THE MODELLING OF AN SEAT AND KNEW HOW TO ACHIEVED A CLASS A SURFACING OF AN SPECIFIC OBJECT OR MODEL. I REPRESENT THE MODEL OF A SEAT
