Challenge 6 : Concept Modeling of Side Fender

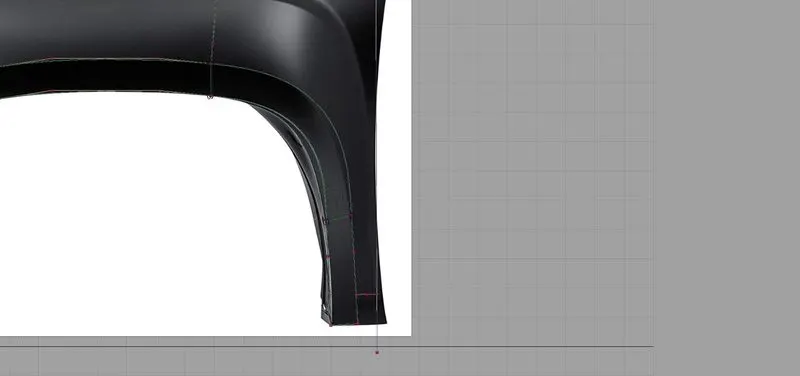

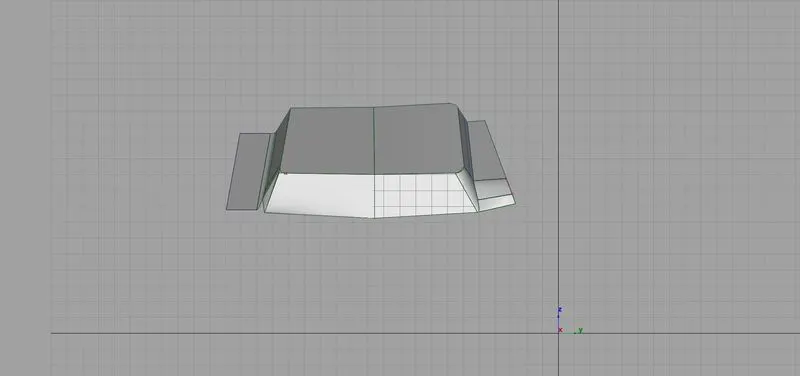

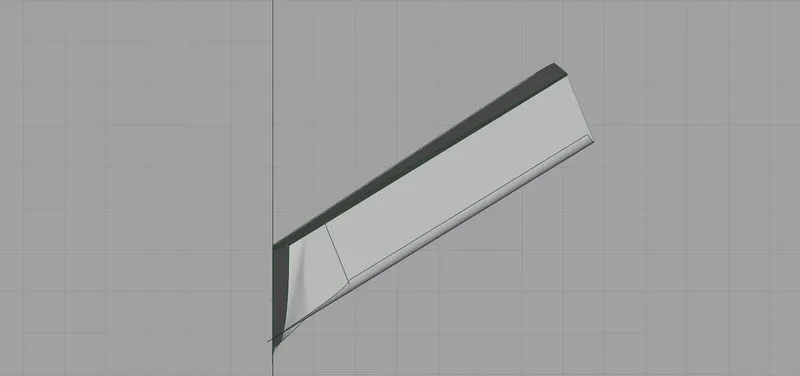

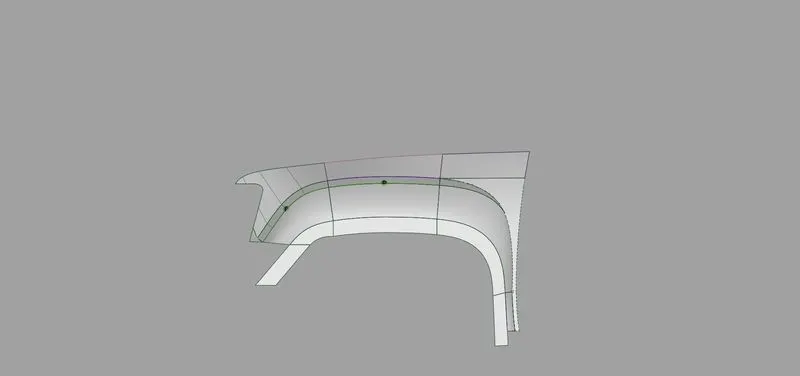

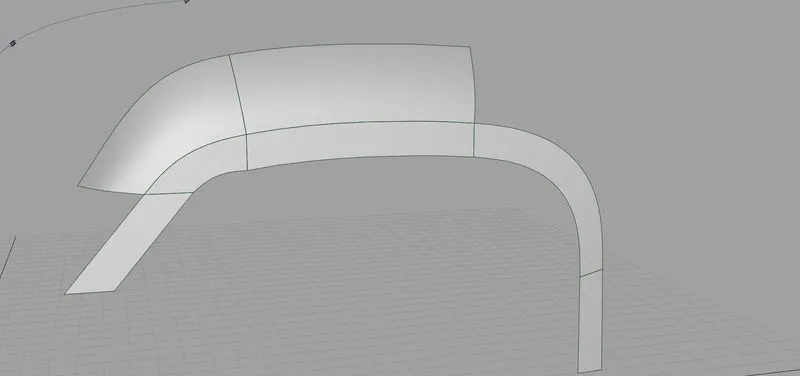

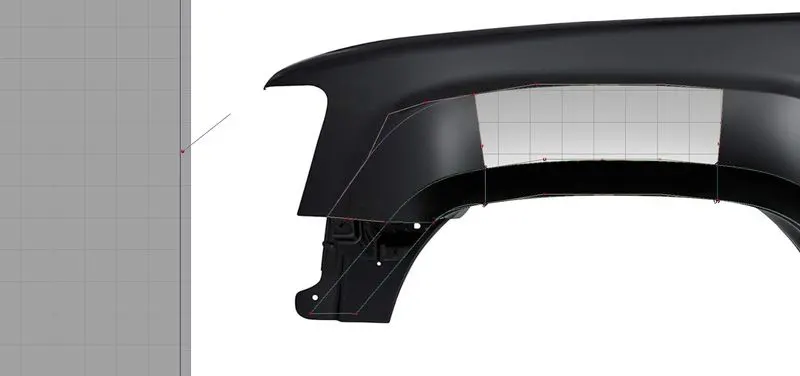

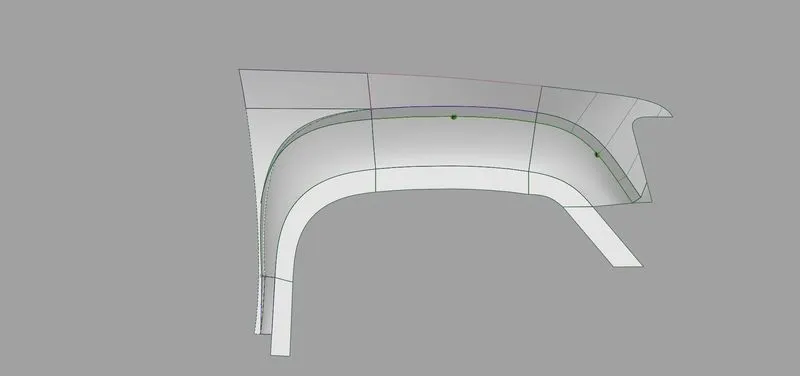

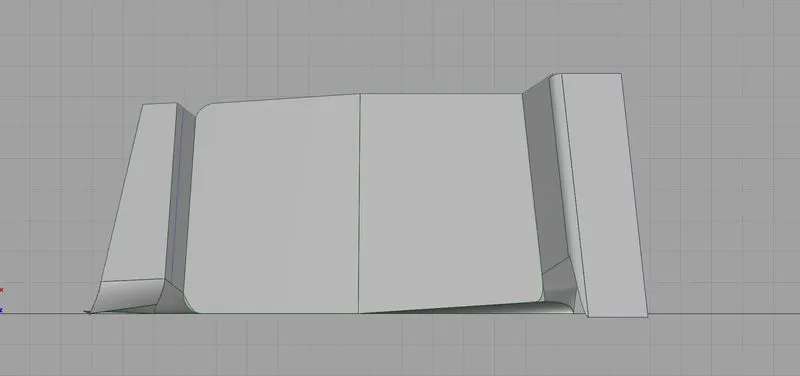

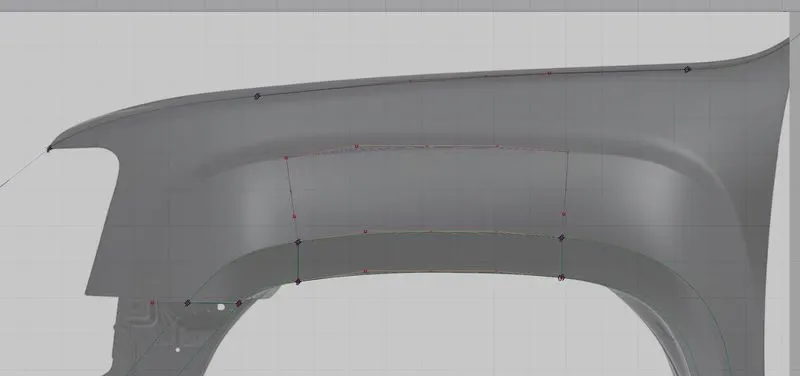

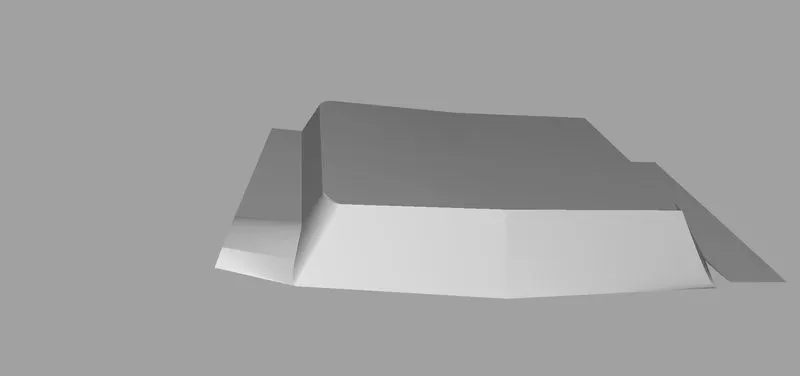

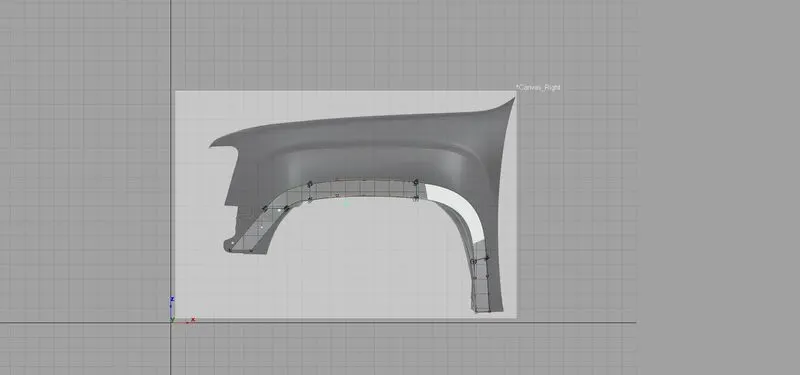

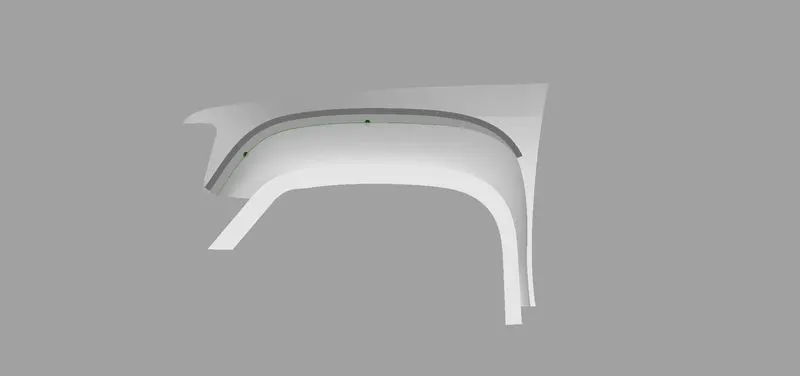

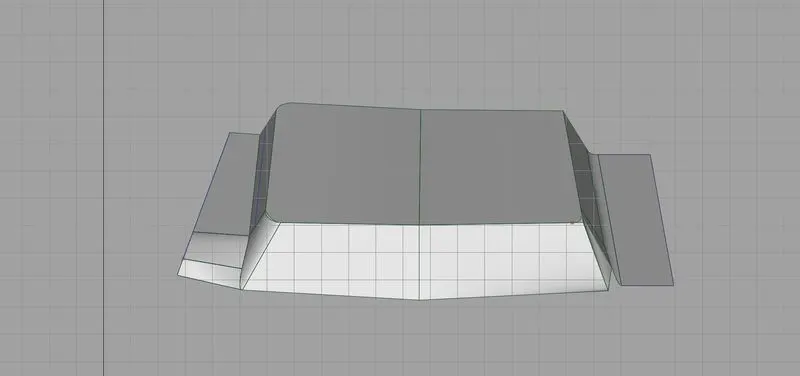

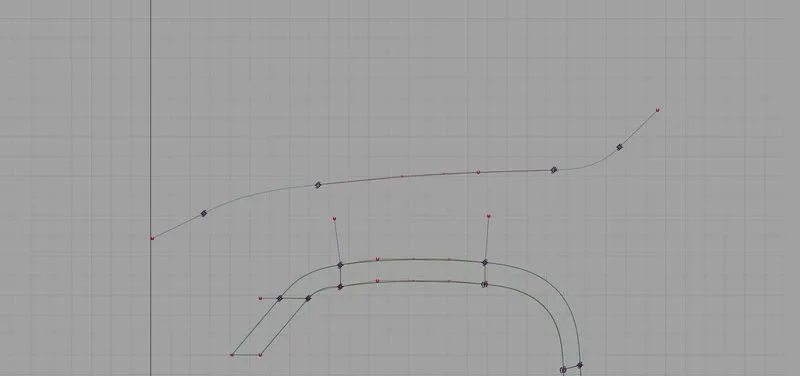

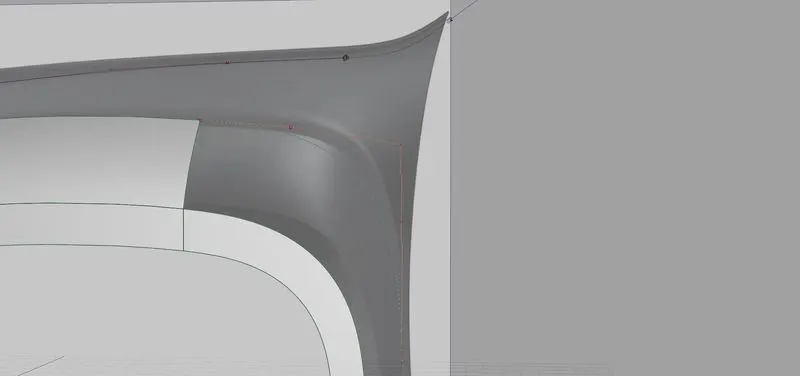

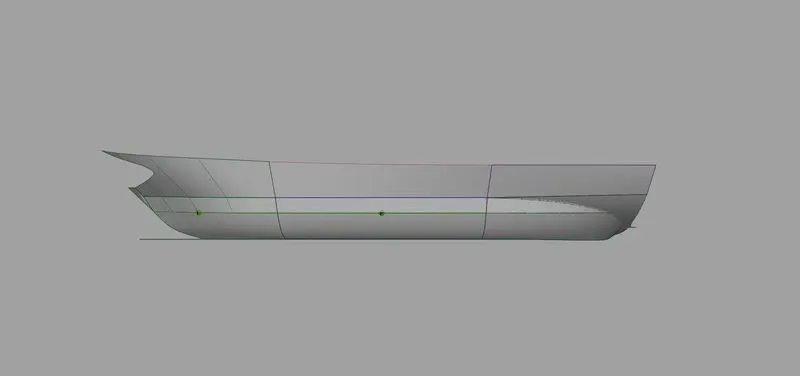

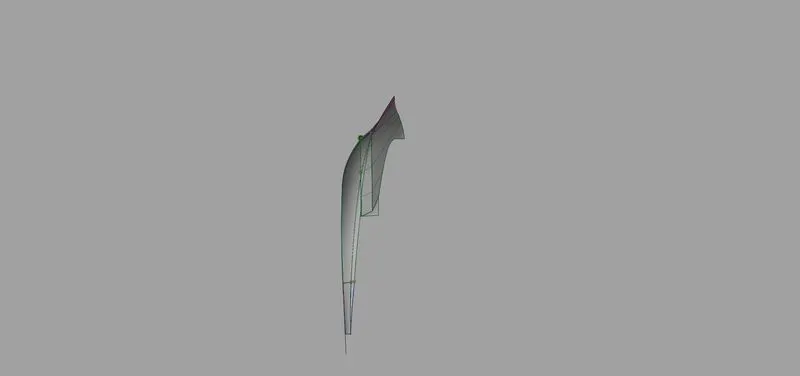

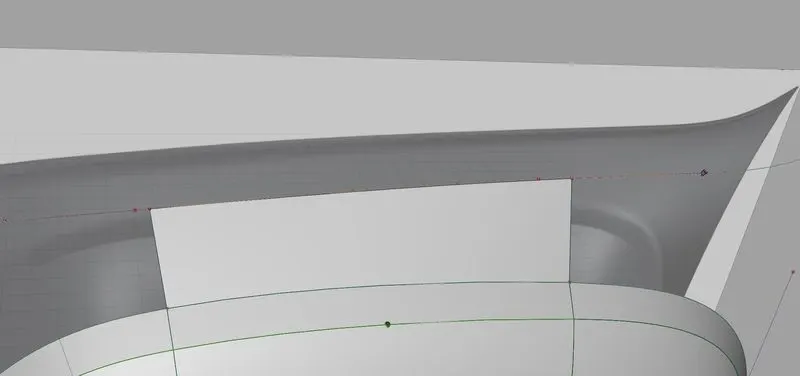

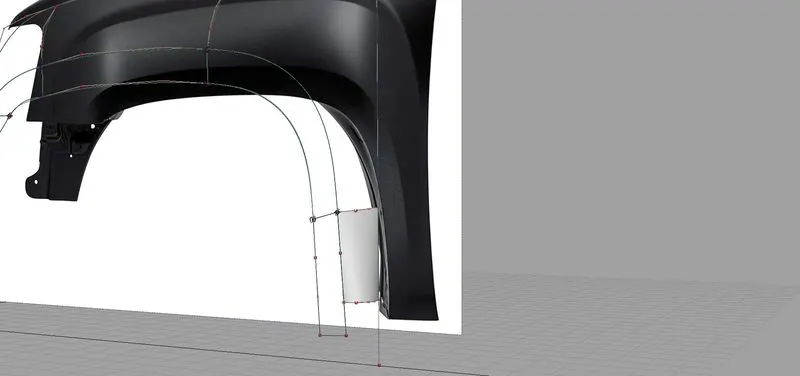

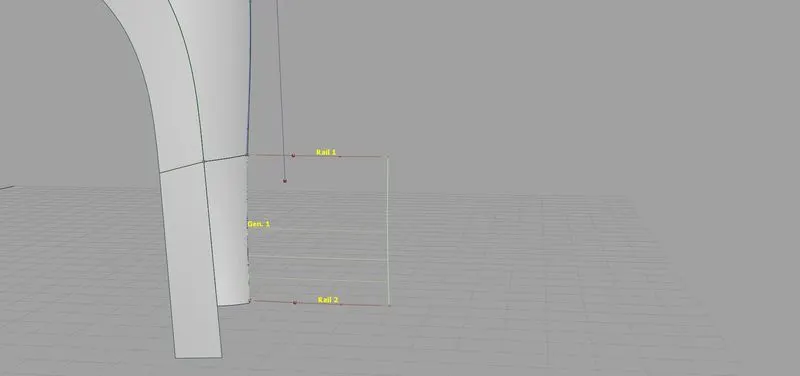

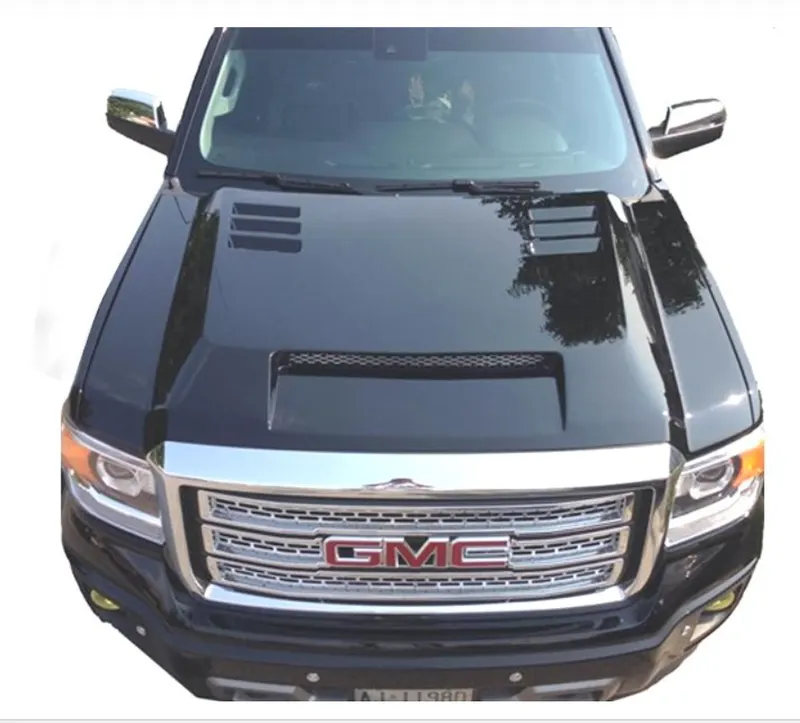

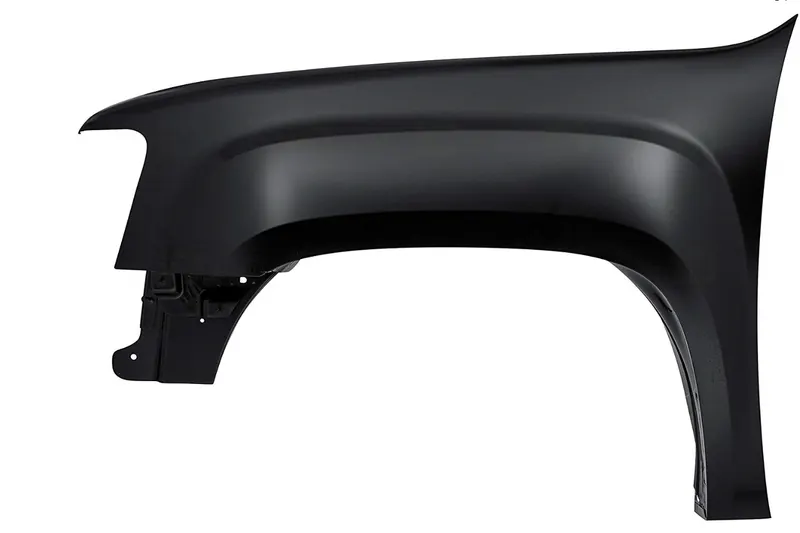

1)CHALLENGE 06 – CONCEPT MODELLING OF FENDER 2) OBJECTIVE:- IN THIS EXERCISE I LEARN HOW TO APPLY A SURFACES ON THE CURVES NETWORK OF AN FENDER AND HOOD OBJECT/MODEL BY USING DIFFERENT SURFACING TOOLS AND ACHIEVE A 3D SHAPE OF THE GIVEN OBJECT.AS WELL I LEARN HOW TO MAKE IT IN CLASS-A BY APPLYING VARIOUS PROPERTIES OF SURFACING TOOLS. 3)INTRODUCTION:-IN THIS EXERCISE I KNEW THE SURFACING TOOLS IN A DEEP WAY AND HOW TO APPLY IT ON THE CURVES OF A FENDER MODEL FOR ACHIEVE THE 3D SHAPE OF THE FENDER AND HOOD 4) DESIGN METHODOLOGY :- 1)IMPORT CANVAS IMAGE OF THE FENDER OBJECT IN LEFT PLANE.AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY . 2) THEN STARTING THE CURVE NETWORK FROM THE MIDDLE SIDE OF THE MODEL THEN TAKING THE TWO CURVES FROM THE BOTTOM SIDE AND ALIGN IT WITH THE IMAGE. 3)CHECK IT IN FRONT AND TILT IT AND MATCHING IT WITH THE IMAGE.4)ASSIGN IMAGE IN A NEW LAYER THEN USE BLEND TO JOINT THE CUREVS 5)THEN TO THE FRONT SIDE CREATE A HYPOTHERTICAL CURVES AND ROATATE IT IN PROPER DIRECTIONCOPYING IT AND ADJUST BOTH CURVES.6)THEN INCREASE THE CURVES OF THE LEFT SIDE BOTH CURVES LAST CV AND MOVE IT BACK WITH THE SECIND CURVE.7)THEN STARTING THE BUILDING THE SURFACE BY GIVING CURVES AT BELOW SIDE OF THE MODEL GIVING BLEND TO THE MODEL AND USE SQUARE AND RAIL SURFACING TO THE OTHER SIDE CORNER OF THE FENDER ALSO USE RAIL SURFACE FOR THE MIDDLE SIDE SURFACING.8) BY APPLYING ALIGN TOOL TIGHT THE FREE FORM BLEND MANUALLY TO BOTH THE SIDE .9)THEN TAKING A CURVES ON THE BOTH SIDES OF THE FENDER AND MOVE THE FENDER IMAGE TO THE BACK SIDE AND TAKE A HYPERTHERTICAL CURVE TO THE TOP OF THE OBJECT FOR THE BLENDING THEN I STARTING THE CURVE BUILDING FROM THE TOP OF THE FENDERBY MANIPULATING CURVES.10)GIVING BLENDING AND CONTROLL IT AND MOVE ALL THE CURVES TO THE TOP SIDE BACK FOR THE BETTER VISUALISATION.11)THEN CREATING A CURVE NETWORK FROM THE MIDDLE SIDE OF FENDER AND MOVE THE CURVES BACK SIDE BY INCREASING ITS DEGREE AND GIVING IT SOME CROWN 12)BY MAKING CURVE TO THE TOP SIDE OF THE OBJECT MAKE IT SQUARE SURFACE AND GIVE IT SURFACING 13) THEN CREATE A CURVE NETWORK TO THE CORNER SIDE OF THE FENDER MOVE IT BACK AND MATCHES IT WITH THE TOP FROR THE BLNDING TAKE ACURVES TO THE CORNER AND ALIGN ALL THE CURVES IN A NEW LAYER 14)BY USING SQUARE SURFACE I ACHIEVED THE SURFACE AND TOUCHED IT TO THE CORNER GIVE IT SOME CROWN TO THE SMALL CURVE THEN TAKE A CURVE TO THE RIGHT BACK SIDE OF THE FENDER FROM THE BLENDING POINT TO THE MAIN CURVE AND GIVE IT SQUARE SURFACING 15)FOR THE RIGHT SIDE PATCHWE MODIFY THE CURVE THEN TAKE THE CURVE FROM BOTTOM TO TOP RIGHT SIDE ALIGN IT.16)THEN GIVING THAT CORNER SIDE SQUARE SYRFACING AND COMPLETED THE VIEW 17)NOW I MOVE TO THE INCLINATION ANGLE BUILDING IT BY USING MS DRAFT TOOL AND CHANGING ITS ANGLE AND LENGTH I ACHIEVED A INCLINATION ANGLE SIDE.18)THEN I CREATED RIGHT SIDE CURVE BY USING RAIL SURFACING AND SURFACE IT THEN I CREATED A BOTTOM CURVE OF THE OBJECT AND ALIGN IT WITH OTHER SURFACES.19)AFTER THAT I STARTING TO BUILD THE TOP SIDE OF THE MODEL BY TAKING THE CURVES AND MANIPULATING WITH THE OBJECT.20)AFTER THAT I CREATE BLENDING PART BY TRIMMIMG IT BY APPLYING CURVE ON IT.21)AFTER THAT BY TRIMMING AND PROJECTING I ACHIEVED A BOTTOM RIGHT SIDE CORNERS OF THE FENDER THEN I CREATED A RAIL SURFACE ON SIDE AND SURFACE IT. 5) DESCRIPTION:- THE TOOLS WHICH I USED FOR TO COMPLETE THE SURFACING THAT ARE AS FOLLOW :- FOR THE BASIC CURVE NETWORK I USE :- 1)CURVE TOOL 2)KEYPTBOX TOOL FOR THE EDITING OF THE CURVES I USE:- 3)BLEND TOOL 4) ATTCH TOOL 5)EXTEND TOOL 6) ALIGN TOOL FOR THE SURFACING I USE :-7) SUQARE SURFACE TOOL 8)M-RAIL SURFACE TOOL FOR THE SURFACE EDITING I USE :-9) SURFACE FILLET CONTROL 10) FREE FORM BLEND 11)MULTISURFACE DRAFT CONTROL 12) PROJECTAND TRIM TOOL 1)IMPORT CANVAS IMAGE OF THE FENDER OBJECT IN LEFT PLANE.AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY . 2) THEN STARTING THE CURVE NETWORK FROM THE MIDDLE SIDE OF THE MODEL THEN TAKING THE TWO CURVES FROM THE BOTTOM SIDE AND ALIGN IT WITH THE IMAGE. 3)CHECK IT IN FRONT AND TILT IT AND MATCHING IT WITH THE IMAGE.4)ASSIGN IMAGE IN A NEW LAYER THEN USE BLEND TO JOINT THE CUREVS.5)THEN TO THE FRONT SIDE CREATE A HYPOTHERTICAL CURVES AND ROATATE IN PROPER DIRECTIONCOPYING IT AND ADJUST BOTH CURVES.6)THEN INCREASE THE CURVES OF THE LEFT SIDE BOTH CURVES LAST CV AND MOVE IT BACK WITH THE SECIND CURVE.7)THEN STARTING THE BUILDING THE SURFACE BY GIVING CURVES AT BELOW SIDE OF THE MODEL GIVING BLEND TO THE MODEL AND USE SQUARE AND RAIL SURFACING TO THE OTHER SIDE CORNER OF THE FENDER ALSO USE RAIL SURFACE FOR THE MIDDLE SIDE SURFACING.8) BY APPLYING ALIGN TOOL TIGHT THE FREE FORM BLEND MANUALLY TO BOTH THE SIDE .9)THEN TAKING A CURVES ON THE BOTH SIDES OF THE FENDER AND MOVE THE FENDER IMAGE TO THE BACK SIDE AND TAKE A HYPERTHERTICAL CURVE TO THE TOP OF THE OBJECT FOR THE BLENDING THEN I STARTING THE CURVE BUILDING FROM THE TOP OF THE FENDERBY MANIPULATING CURVES.10)GIVING BLENDING AND CONTROLL IT AND MOVE ALL THE CURVES TO THE TOP SIDE BACK FOR THE BETTER VISUALISATION.11)THEN CREATING A CURVE NETWORK FROM THE MIDDLE SIDE OF FENDER AND MOVE THE CURVES BACK SIDE BY INCREASING ITS DEGREE AND GIVING IT SOME CROWN 12)BY MAKING CURVE TO THE TOP SIDE OF THE OBJECT MAKE IT SQUARE SURFACE AND GIVE IT SURFACING 13) THEN CREATE A CURVE NETWORK TO THE CORNER SIDE OF THE FENDER MOVE IT BACK AND MATCHES IT WITH THE TOP FROR THE BLNDING TAKE ACURVES TO THE CORNER AND ALIGN ALL THE CURVES IN A NEW LAYER 14)BY USING SQUARE SURFACE I ACHIEVED THE SURFACE AND TOUCHED IT TO THE CORNER GIVE IT SOME CROWN TO THE SMALL CURVE THEN TAKE A CURVE TO THE RIGHT BACK SIDE OF THE FENDER FROM THE BLENDING POINT TO THE MAIN CURVE AND GIVE I IT SURFACING 15)FOR THE RIGHT SIDE PATCHWE MODIFY THE CURVE THEN TAKE THE CURVE FROM BOTTOM TO TOP RIGHT SIDE ALIGN IT.16)THEN GIVING THAT CORNER SIDE SQUARE SYRFACING AND COMPLETED THE VIEW 17)NOW I MOVE TO THE INCLINATION ANGLE BUILDING IT BY USING MS DRAFT TOOL AND CHANGING ITS ANGLE AND LENGTH I ACHIEVED A INCLINATION ANGLE SIDE.18)THEN I CREATED RIGHT SIDE CURVE BY USING RAIL SURFACING AND SURFACE IT THEN I CREATED A BOTTOM CURVE OF THE OBJECT AND ALIGN IT WITH OTHER SURFACES.19)AFTER THAT I STARTING TO BUILD THE TOP SIDE OF THE MODEL BY TAKING THE CURVES AND MANIPULATING WITH THE OBJECT.20)AFTER THAT I CREATE BLENDING PART BY TRIMMIMG IT BY APPLYING CURVE ON IT.21)AFTER THAT BY TRIMMING AND PROJECTING I ACHIEVED A BOTTOM RIGHT SIDE CORNERS OF THE FENDER THEN I CREATED A RAIL SURFACE ON SIDE AND SURFACE IT. 6)SCREENSHOTS OF THE FENDER AND THE HOOD:- 7)CONCLUSION:- THE CURVES WHERE THE SURFCING IS NOT PROPERLY WORKING I TRYING TO COMPLETE THE CURVE MANIPULATION FOR ACHIEVING THE SURFACE ON THE SPECIFIC OBJECT. BY USING THIS SURFACING TOOLS 1)BLEND TOOL 2) ATTACH TOOL 3)EXTEND TOOL 4) ALIGN TOOL. BY USING ALL THE TOOLS THAT I MENTIONED ABOVE I COMPLETE THE MODELLING OF AN FENDER AND KNEW HOW TO ACHIEVED A CLASS A SURFACING OF AN SPECIFIC OBJECT OR MODEL. AS SAME AS I MENTIOND THE STEPS FOR FENDER I USE SAME STEPS AND SURFACING TOOLSFOR THE DESIGNING OF HOOD I REPRESENT PERSPECTIVE VIEW OF THE MODEL OF A FENDER AND HOOD.
