Project-1: Powertrain for aircraft in runways

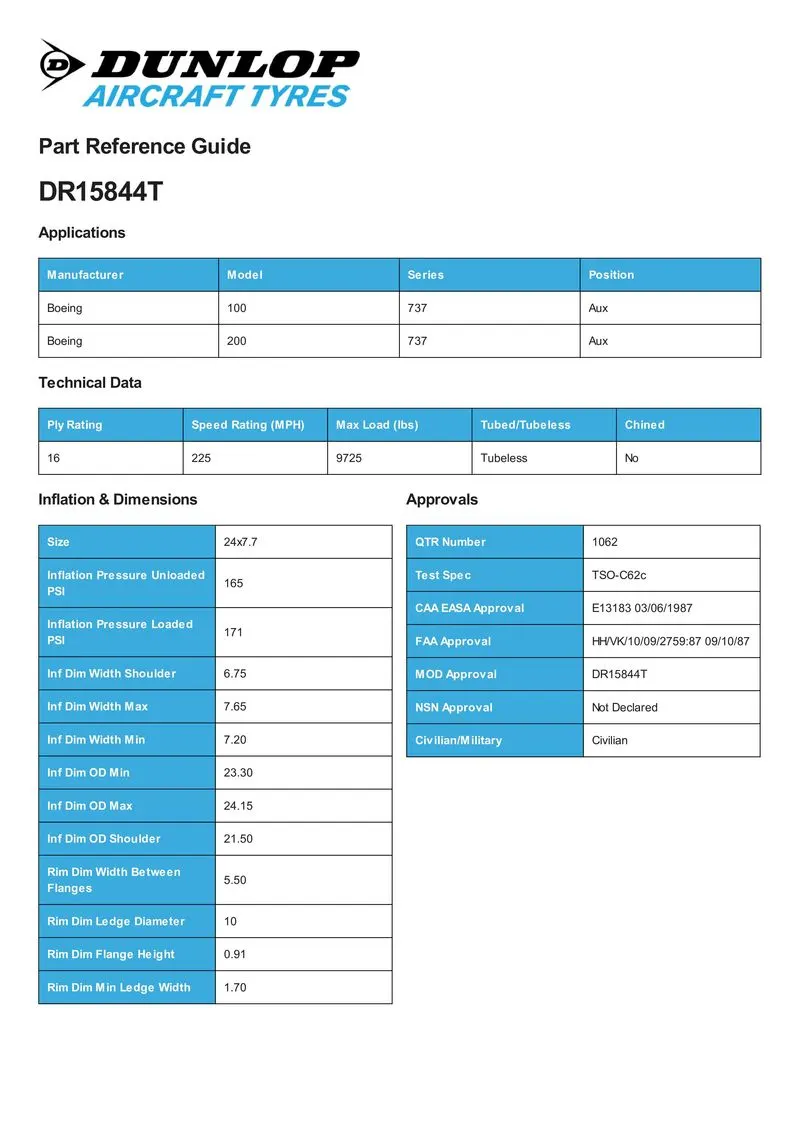

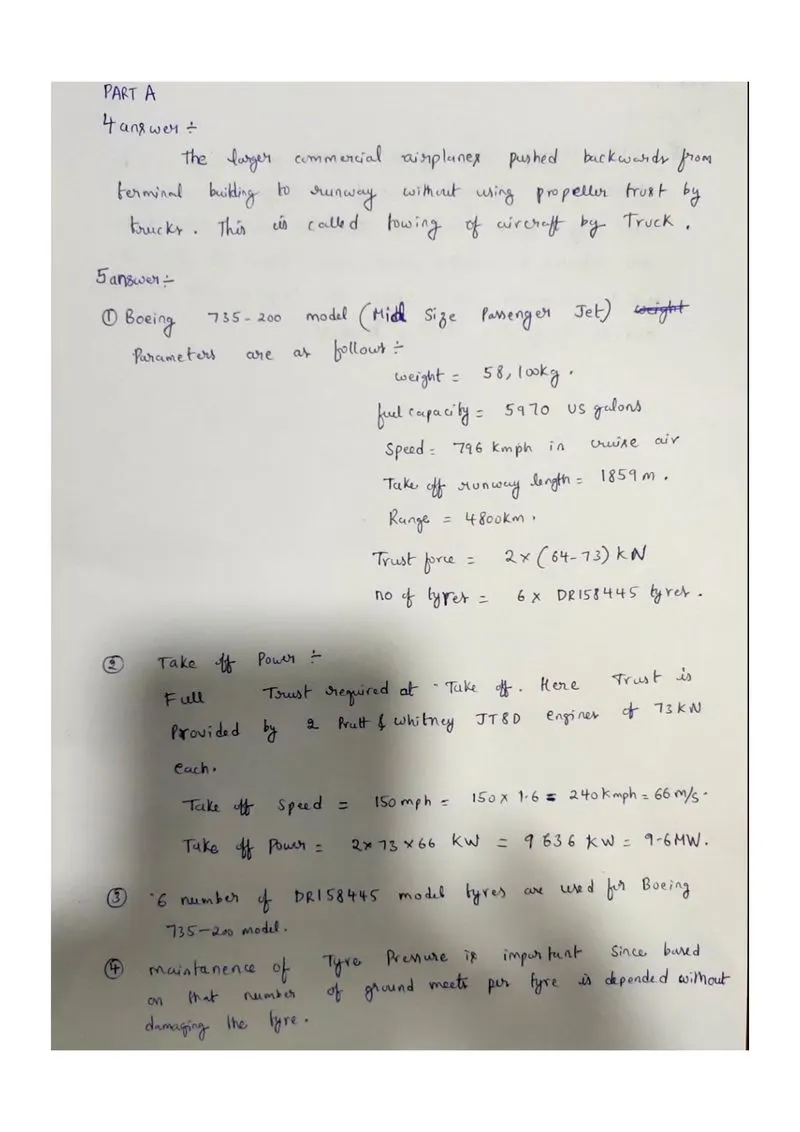

6 number of DR158445 TYRES are used in Boeing 737-200

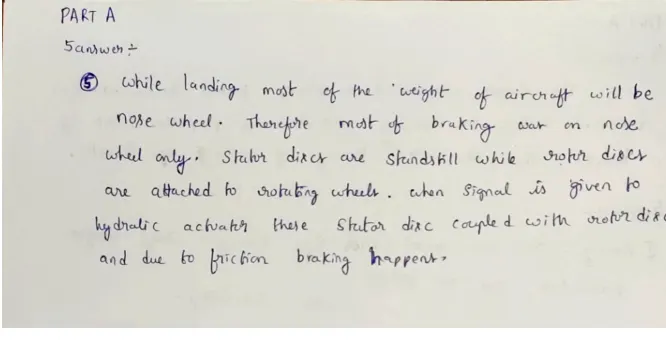

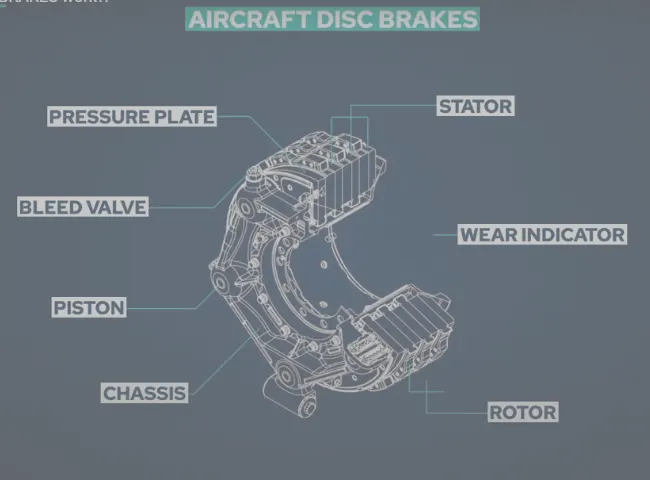

Technnique used for braking while landing

PART B

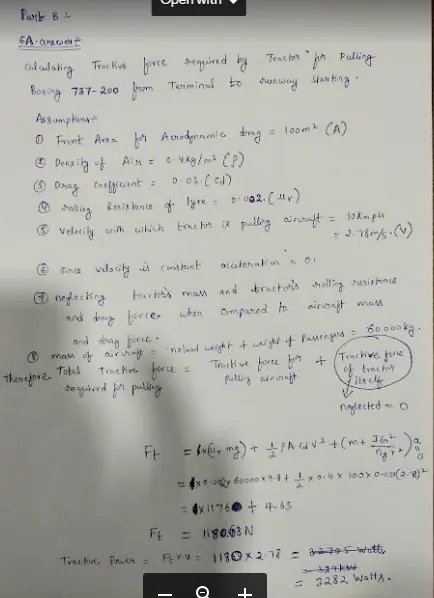

6A answer :

6B answer :

1.in simulink model for calculating tractive force linear acceleration and angular acceleration forces also considered.but since in simulation velocity of tractor is constant this acceleration force is zero.

2.put same parameters of boeing 737-200 in simulink model and run the simulation.tractive force and power values came same as done with hand calculation in 6A.

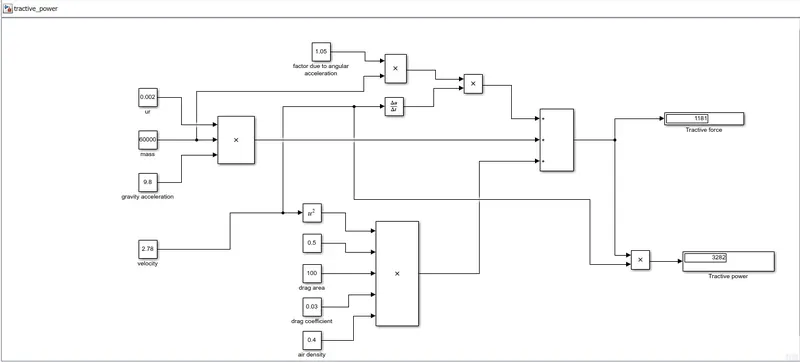

result after running tractive_power simulink file

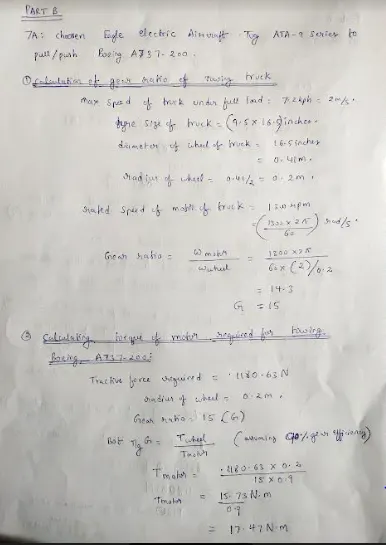

7A answer :

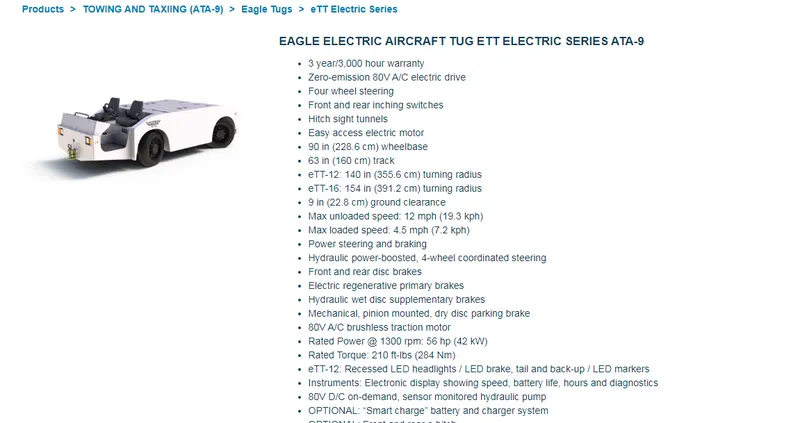

Towing Truck

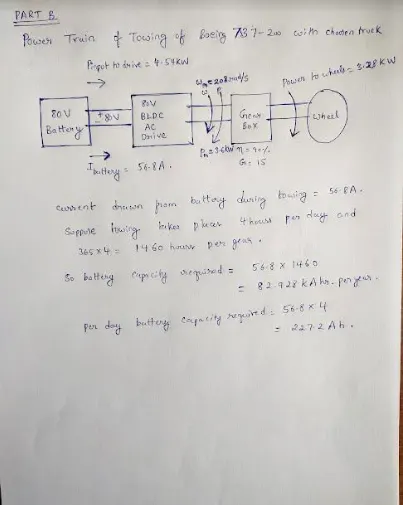

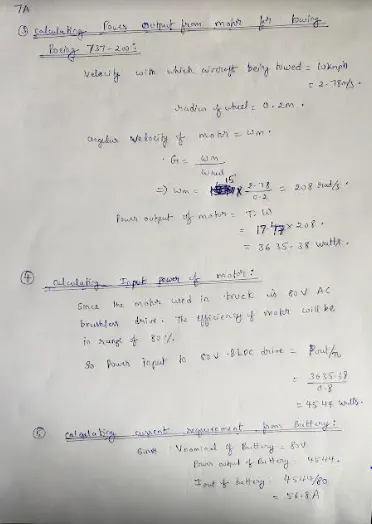

7B answer :

calculation of power train of towing of boeing 737-200 using tornair electric truck done in excel in powertrain excel sheet attached.
