Project 1 (Mini Project on Vehicle Direction Detection

1. created requirement word file for tagging requirement 1 and requirement 2 to simulink model.

2.build the vehicle direction detection simulink model named as vdd.mdl.

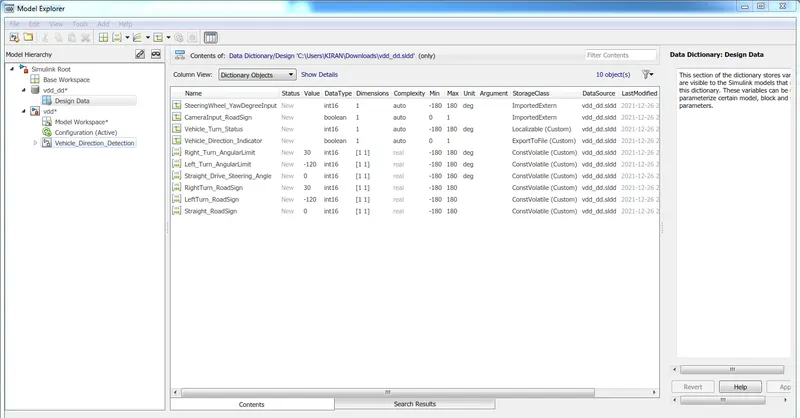

3.created sldd file named as vdd_dd.sldd and linked to vdd.mdl.

4.Did signal resolving of inputs and outputs and updated model by pressing ctrl+d

5.did coniguration parameters updation from solver settings to code coverage and code generation.

6.tried to do modelling standard(iso26262) , MAAB , JMAAB , MISRA model advisory checks and later code generation by pressing ctrl+b.

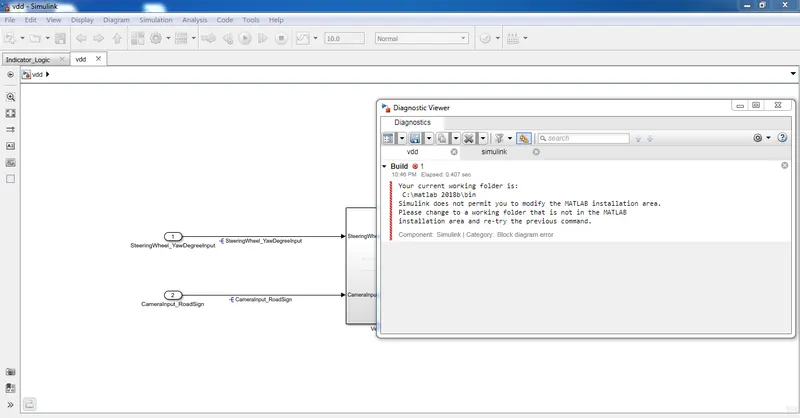

7.model advisory and code generation was unable to do in my computer because i have only one drive in my computer where my matlab installation and vdd.mdl file are in same location.
