Week-3 Challenge: ADVISOR Tool

1 answer :

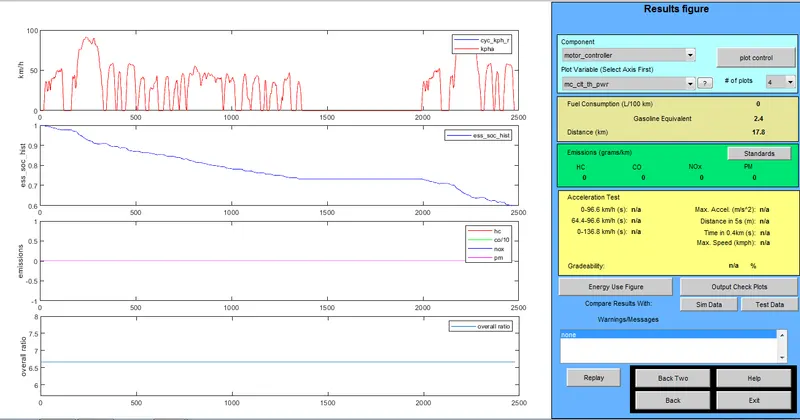

1.with 500 cargo , 25 lead acid batteries (PB25) and one FTP drive cycle the distance travelled by ev vehicle is 17.8 kms (shown in below figure using ADVISOR).

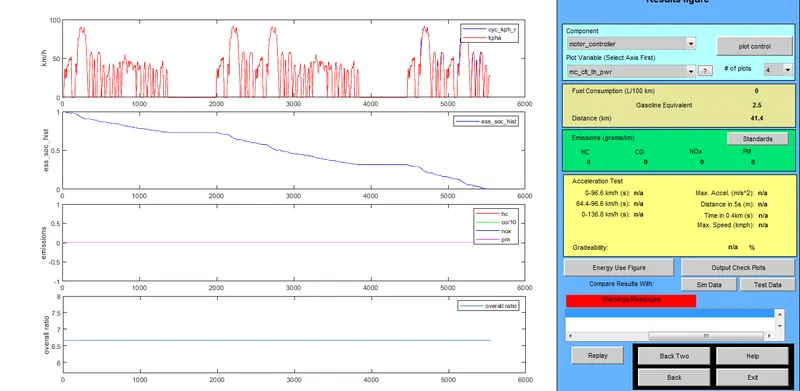

2.with 500 cargo , 25 lead acid batteries (PB25) and three FTP drive cycle the distance travelled by ev vehicle is 41.4 kms (shown in below figure using ADVISOR) since soc of battery becomes zero during third FTP cycle.so using PB 25 vehicle cannot not travel 45kms.

2 answer :

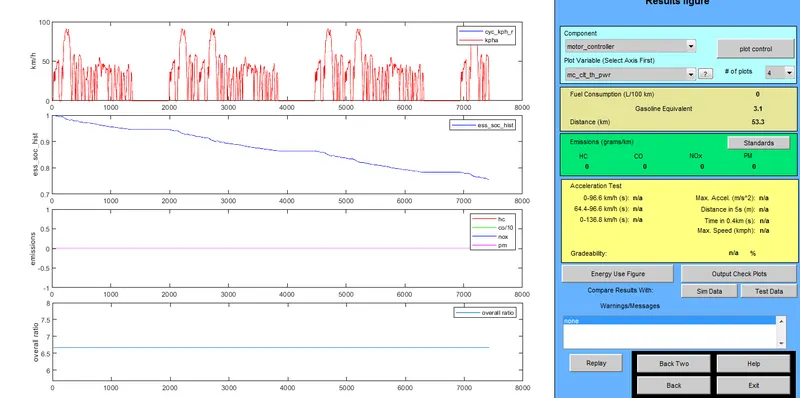

.with 500 cargo , 85 lead acid batteries (PB25) and three FTP drive cycle the distance travelled by ev vehicle is 53.3 kms (shown in below figure using ADVISOR).After increasing battery capacity vehicle is able to travel more than 45kms.

3 answer :

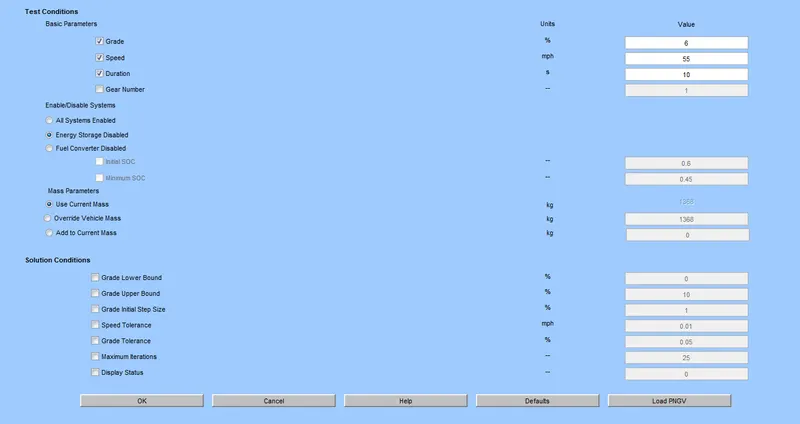

Did gradeability testfor PRIUS_jpn_defaults with grade options as shown below.

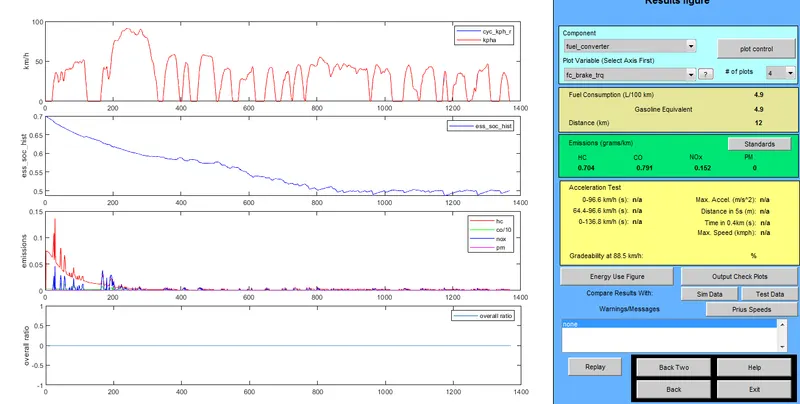

Results obtained are shown below
