Project-1: Modelling an electric Car with Li-ion battery

Objective -

To create a MATLAB model of electric car which uses lithium ion battery and suitable motor.

Model -

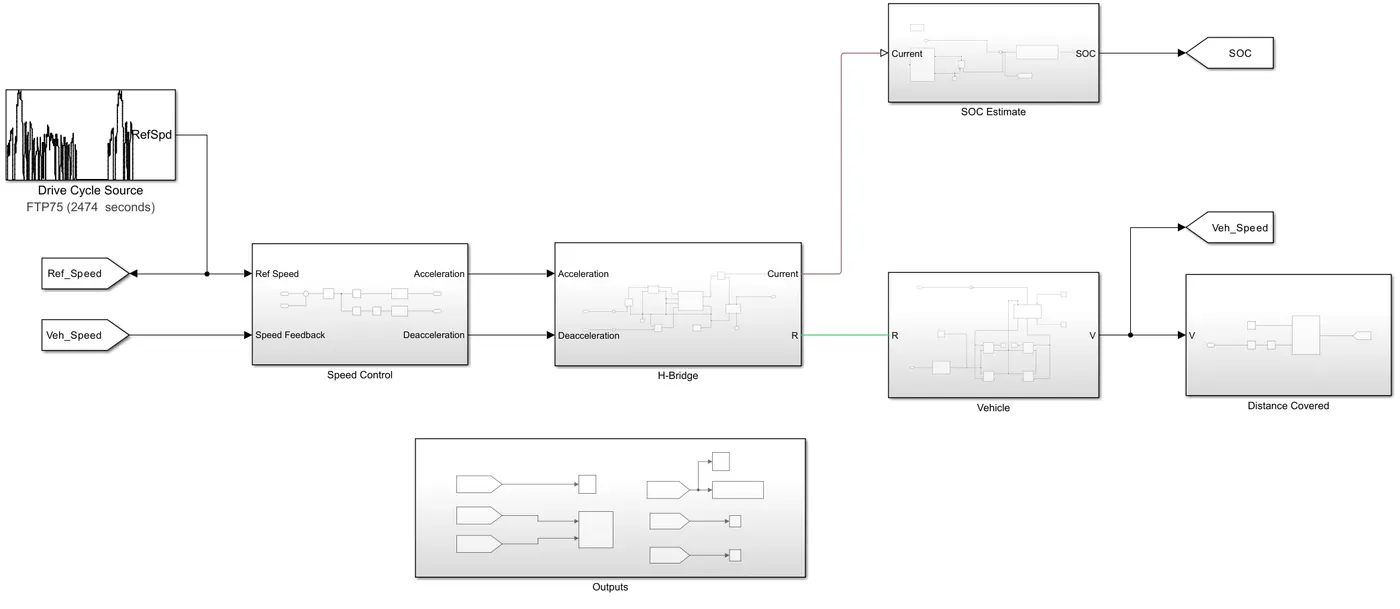

• Model



• Subsystem - Speed Control

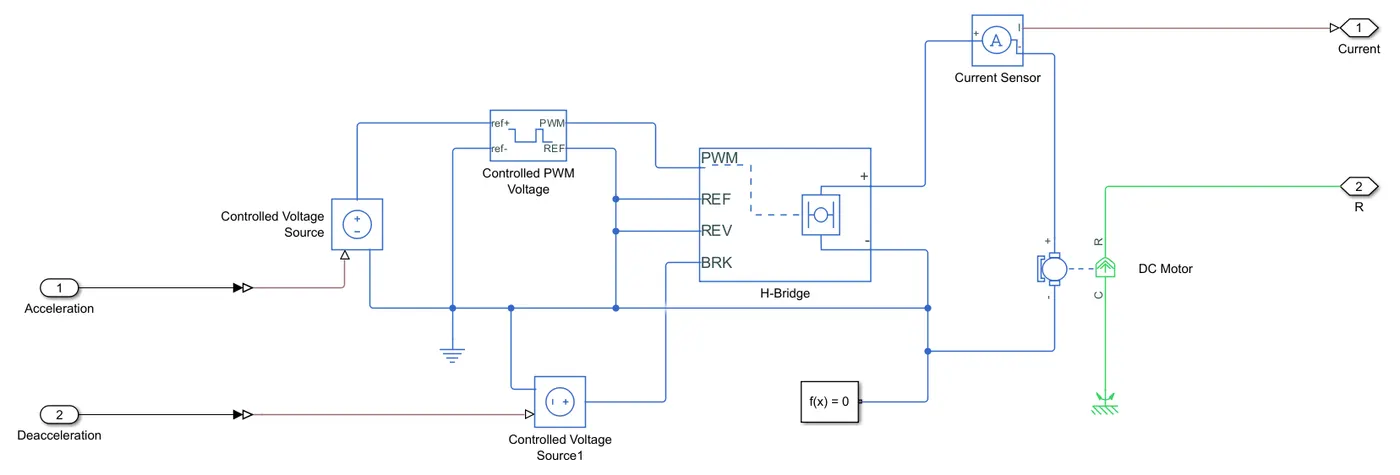

• Subsystem - H-Bridge

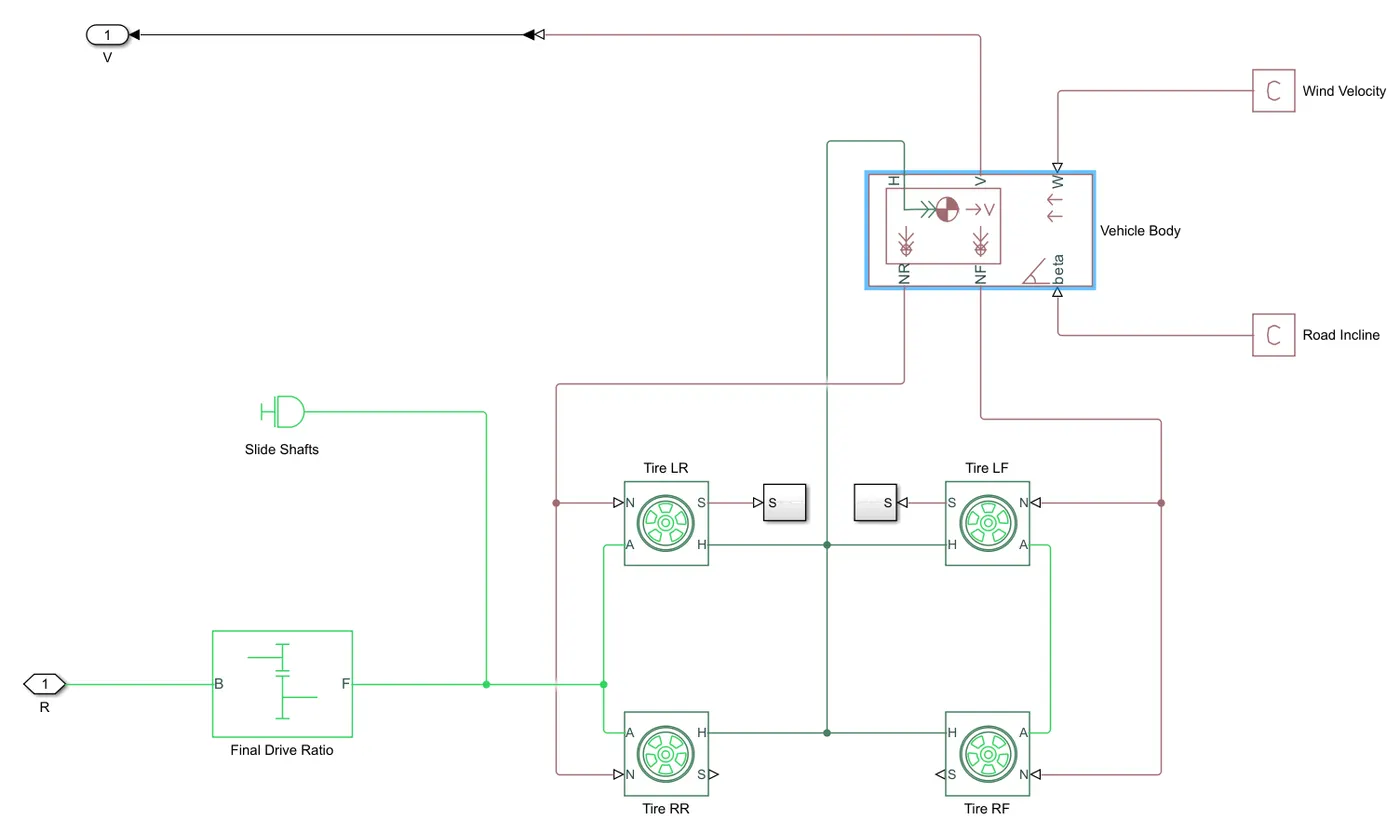

• Subsystem - Vehicle

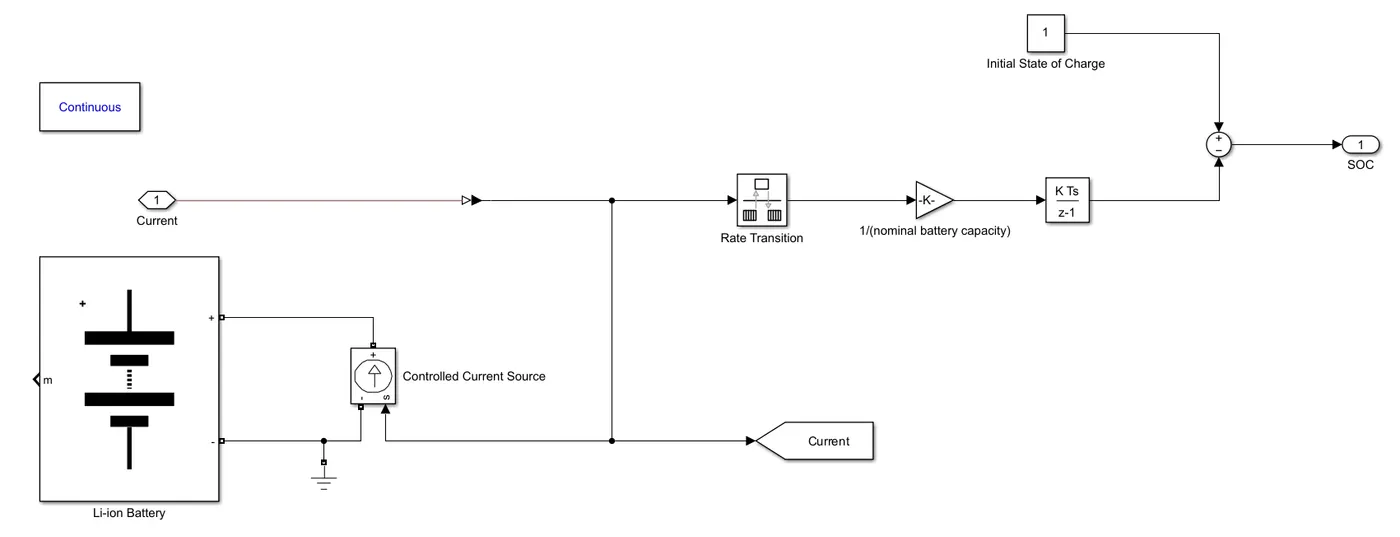

• Subsystem - SOC Estimate

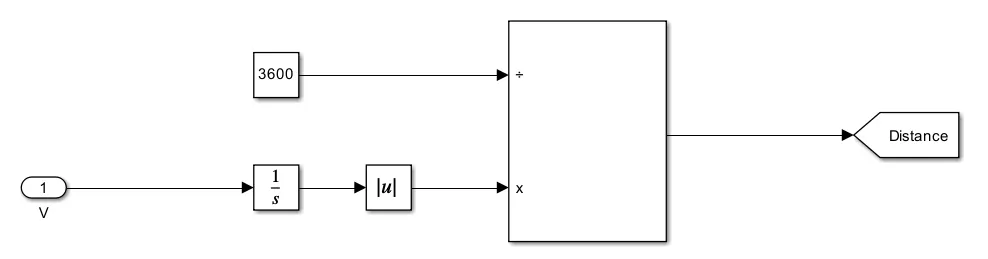

• Subsystem - Distance Covered

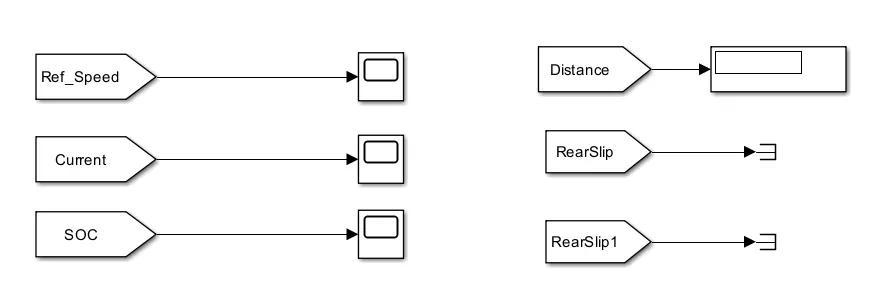

• Subsystem - Output




Model Parameters -

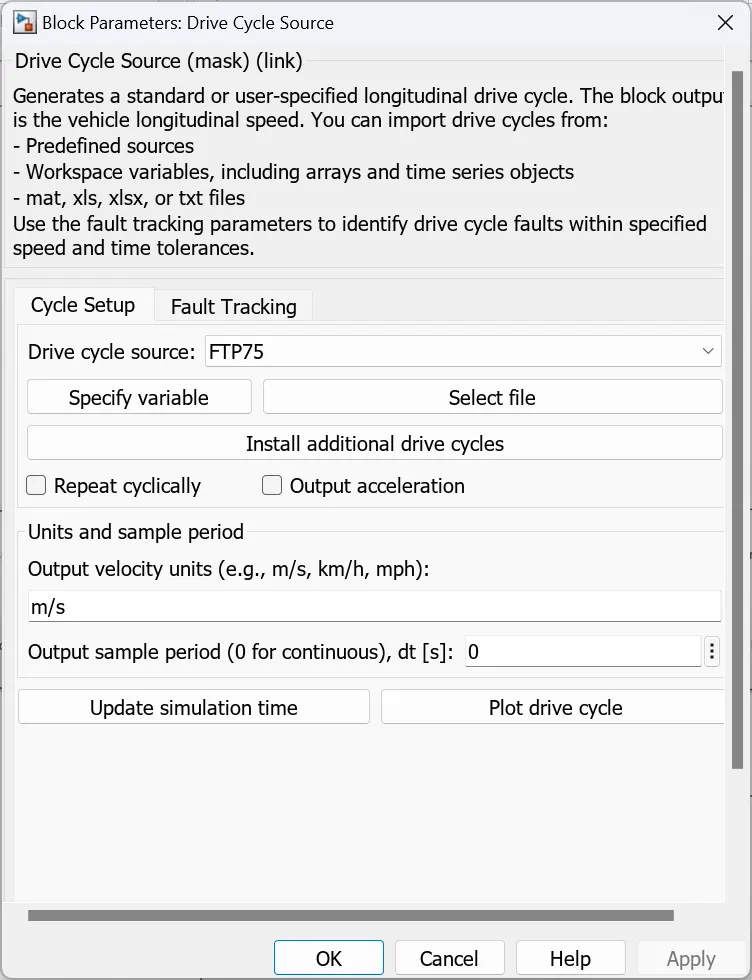

• Drive Cycle -

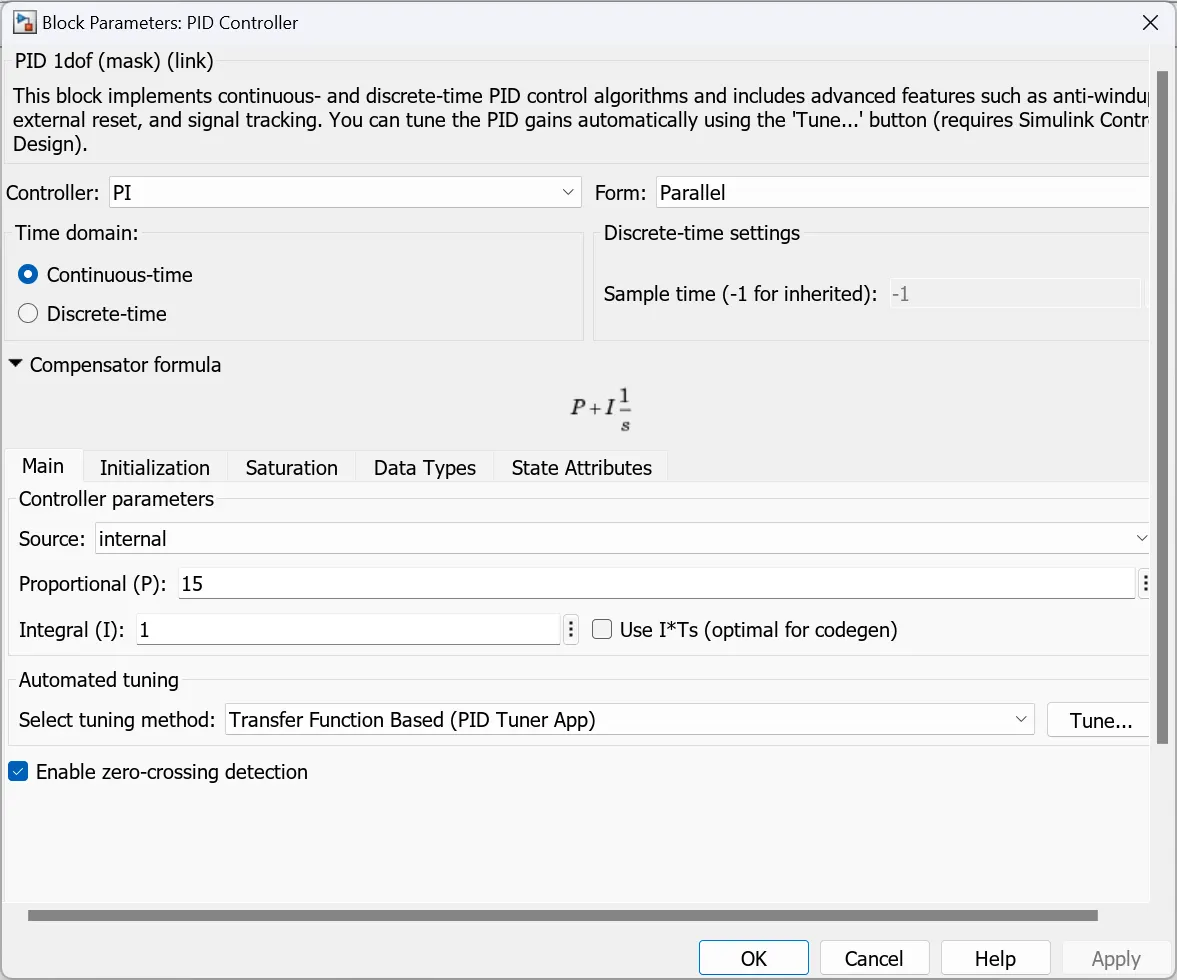

• PI Controller

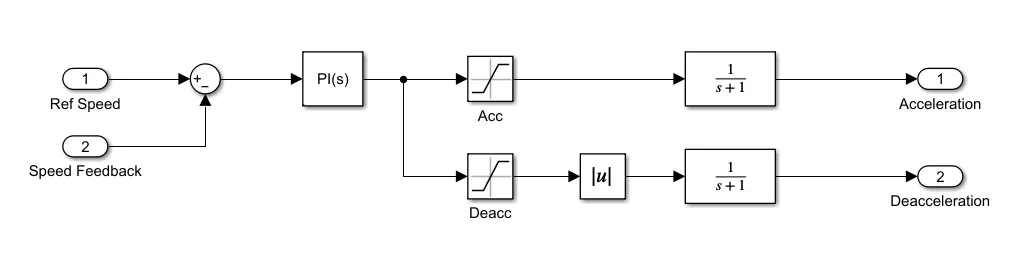

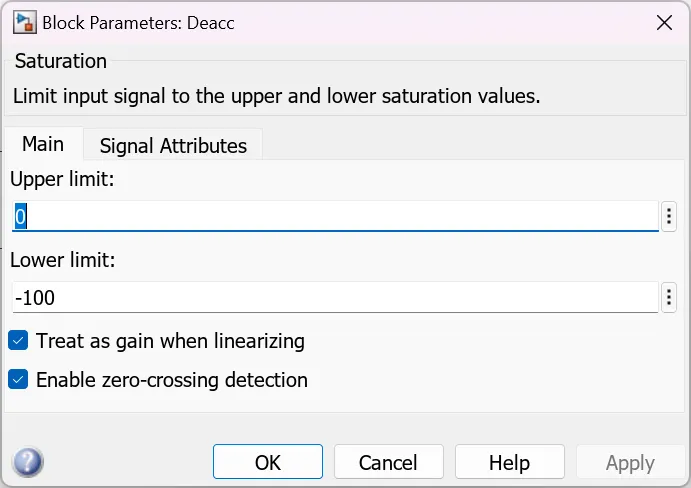

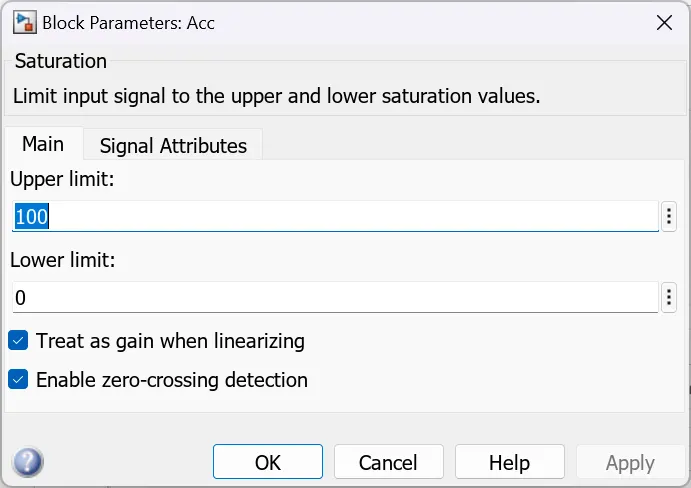

• Acceleration and Deceleration

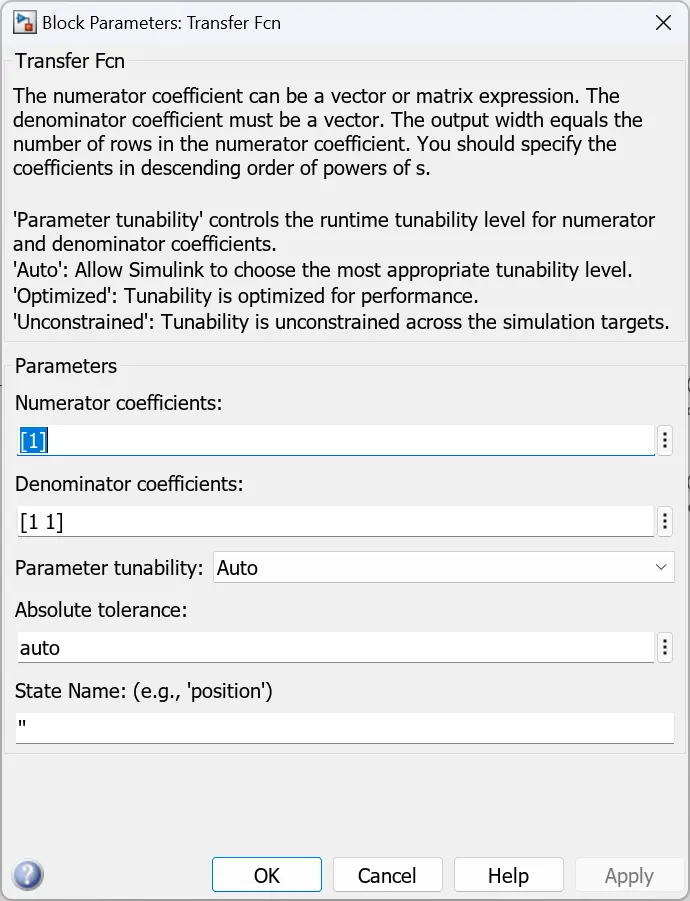

• Transfer Function

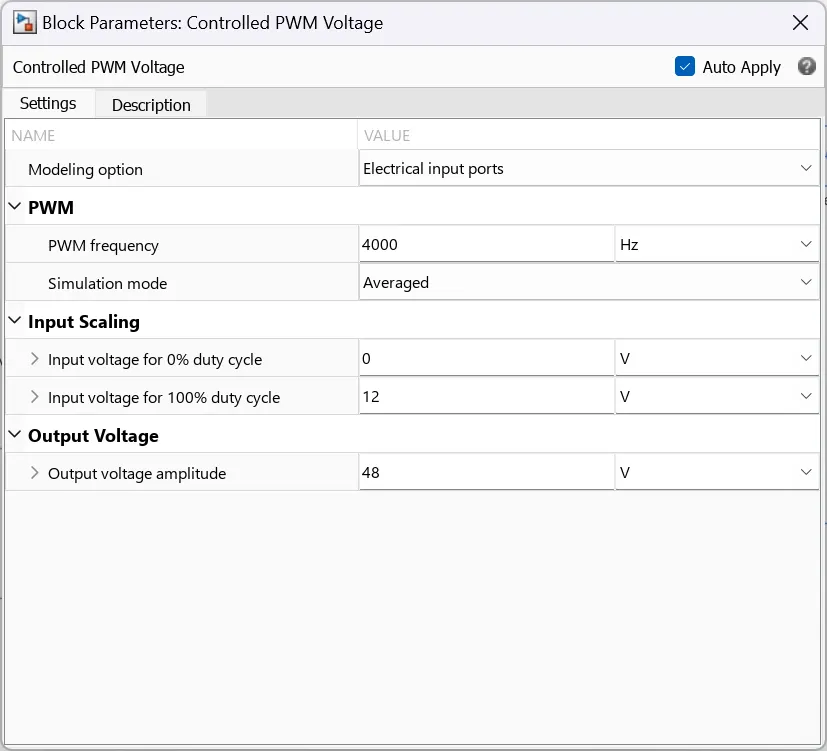

• Controlled PWM Voltage

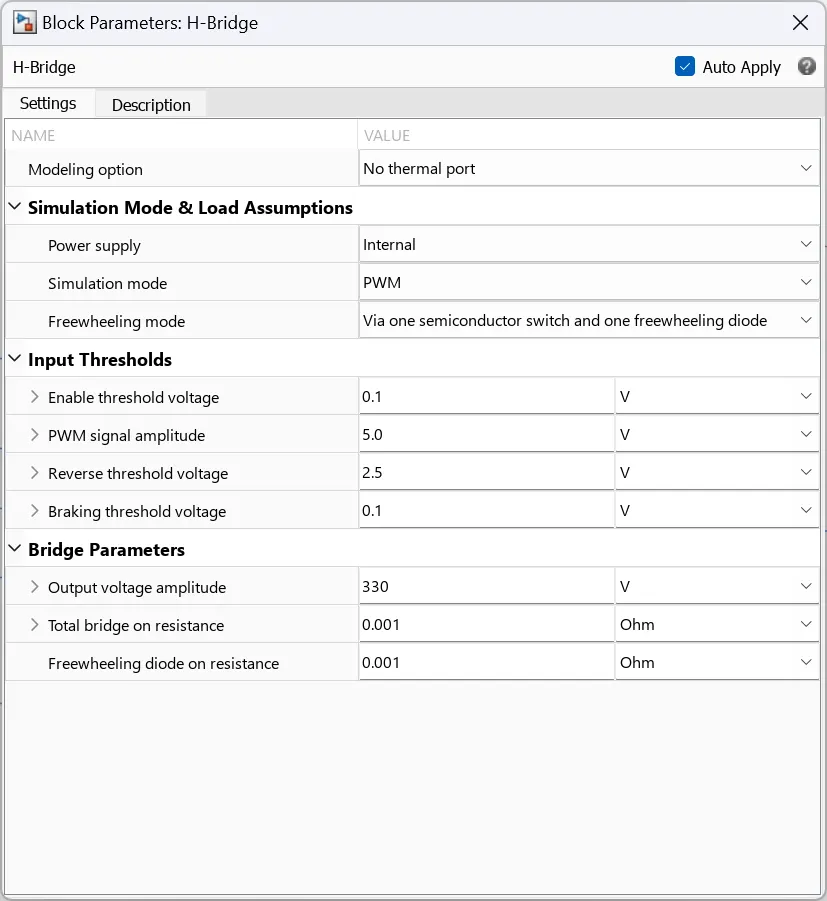

• H-Bridge

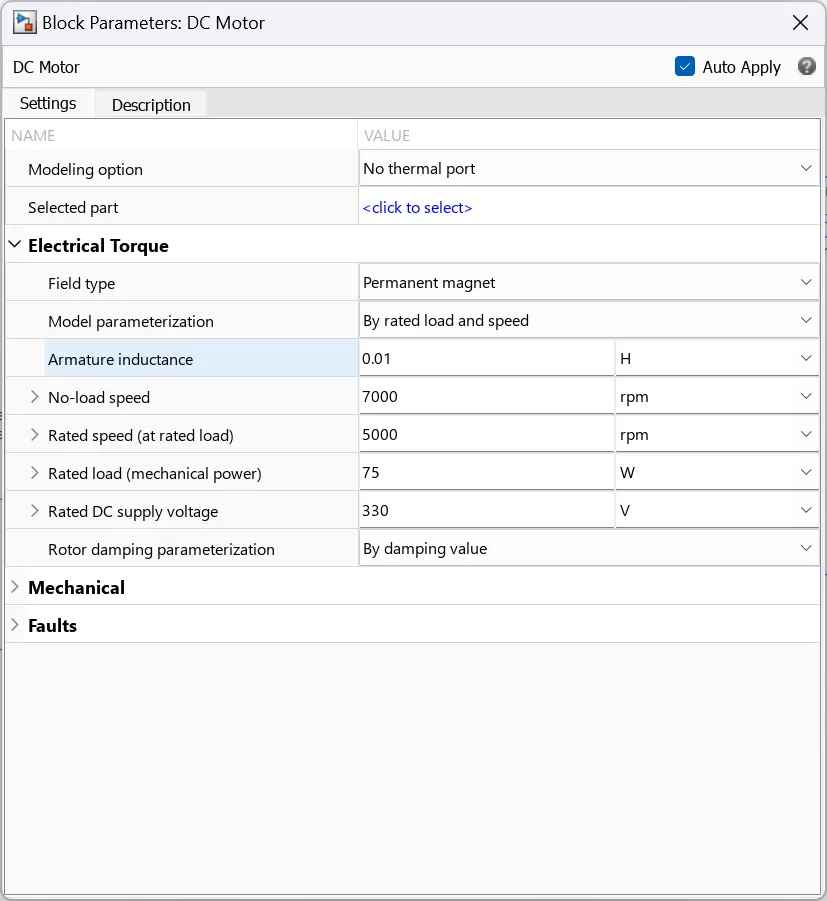

• DC-Motor

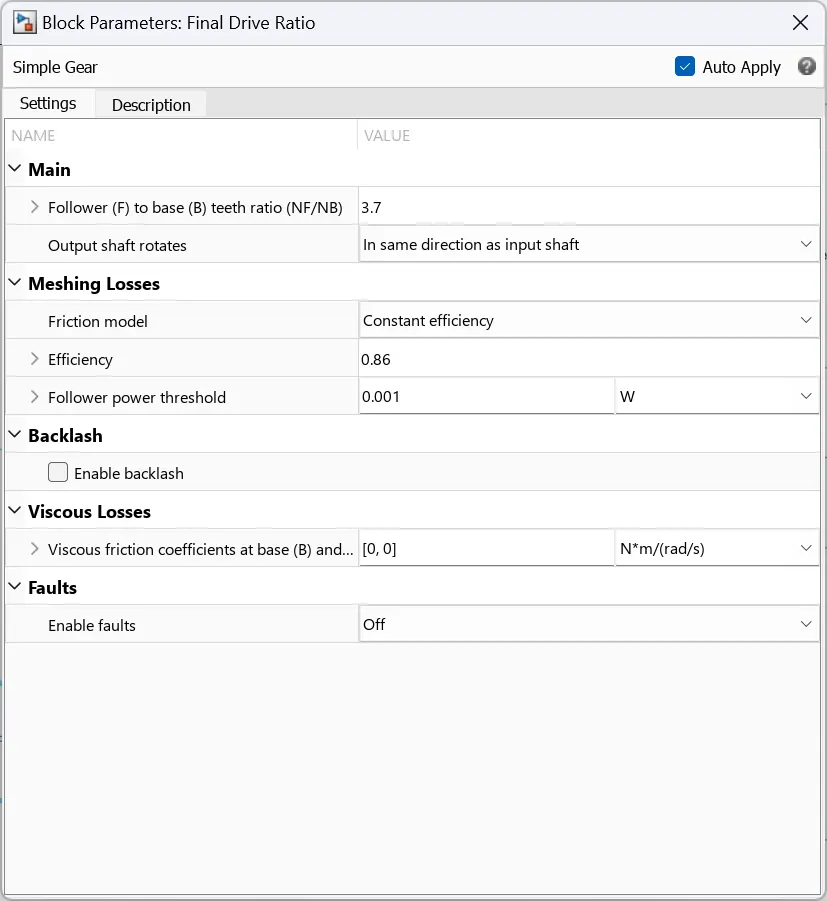

• Final Drive Ratio

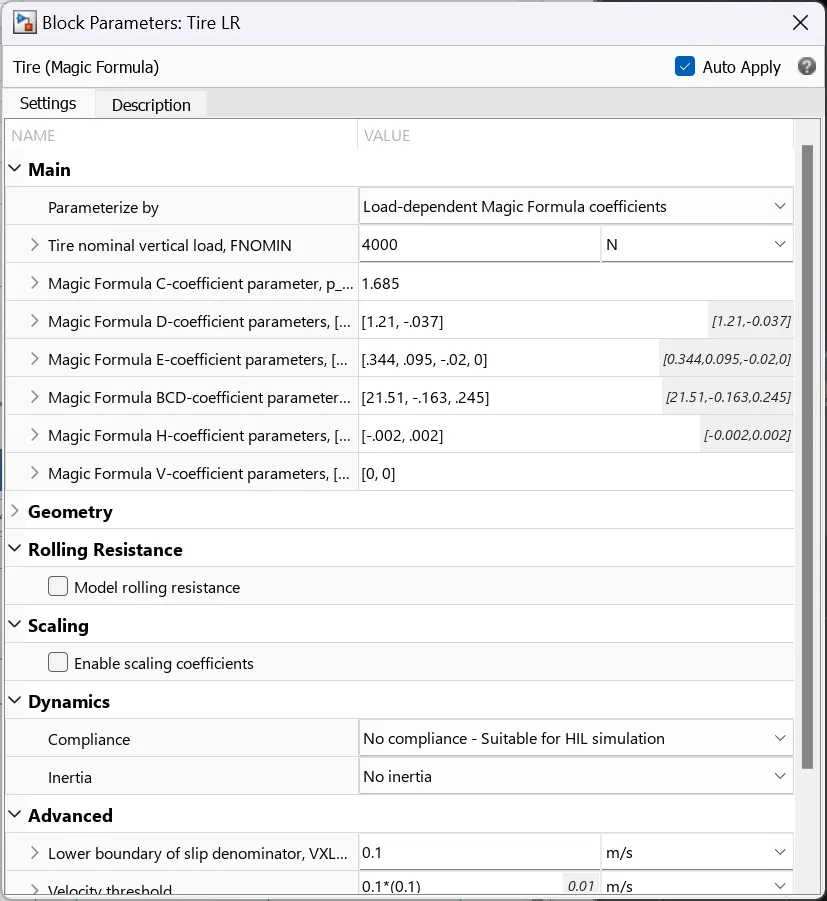

• Tire

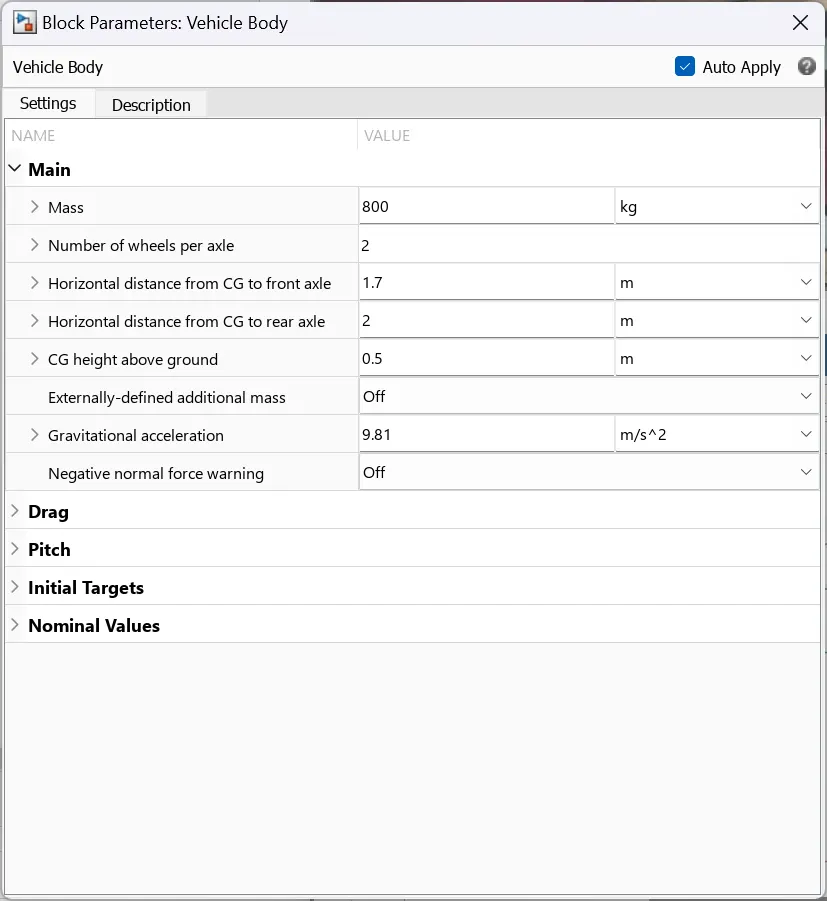

• Vehicle Body

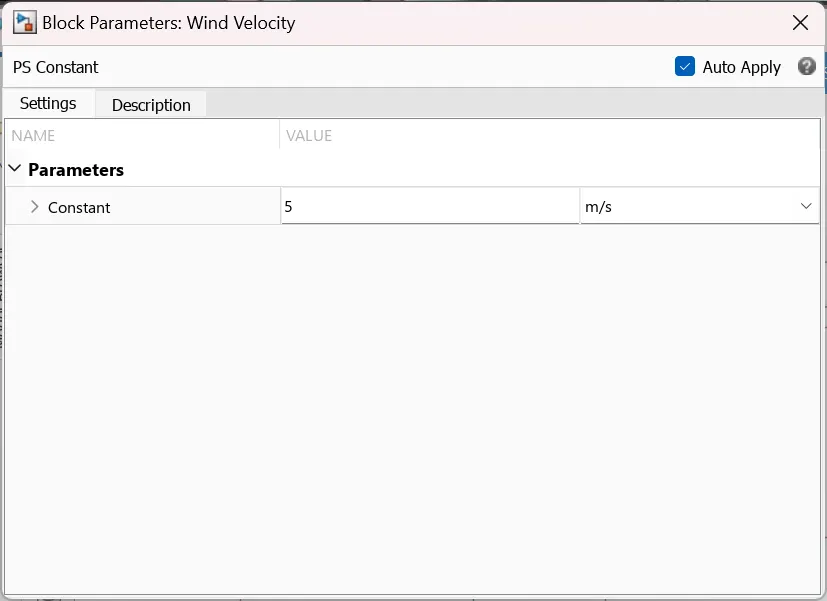

• Wind Velocity

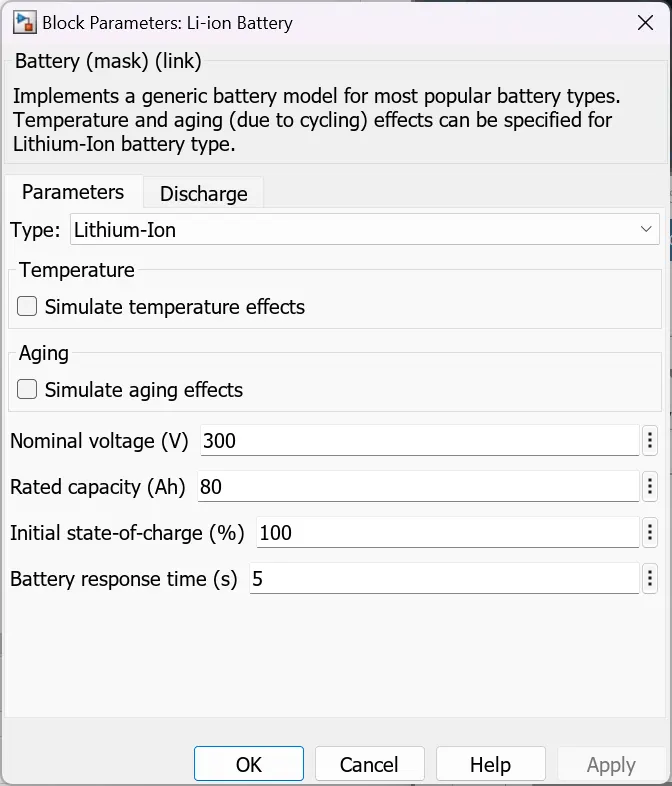

• Battery

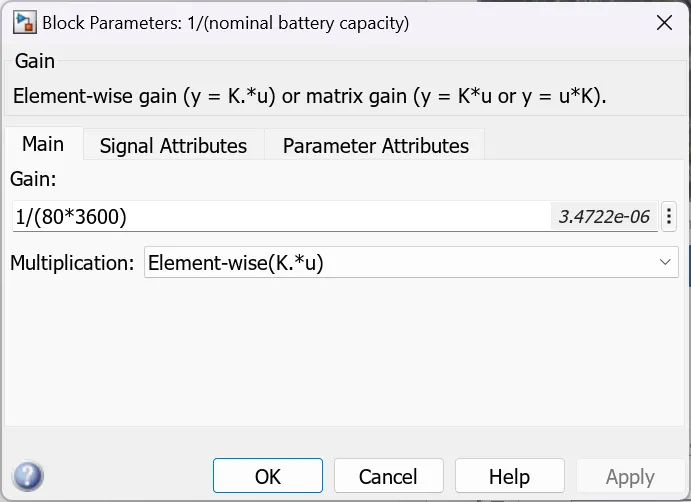

• Gain

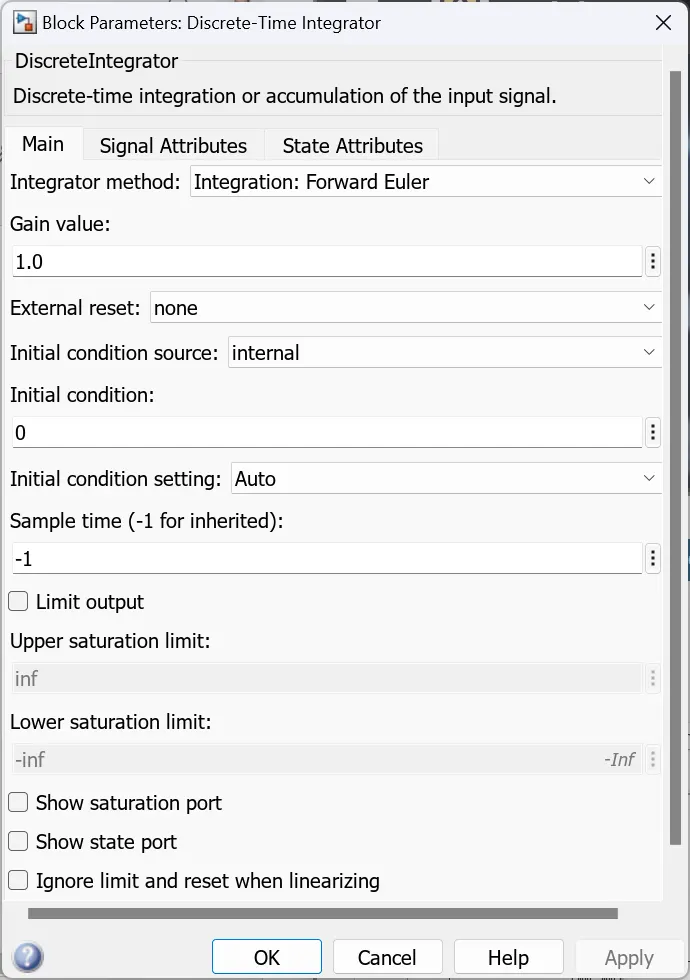

• Discrete Time Integrator


Results -

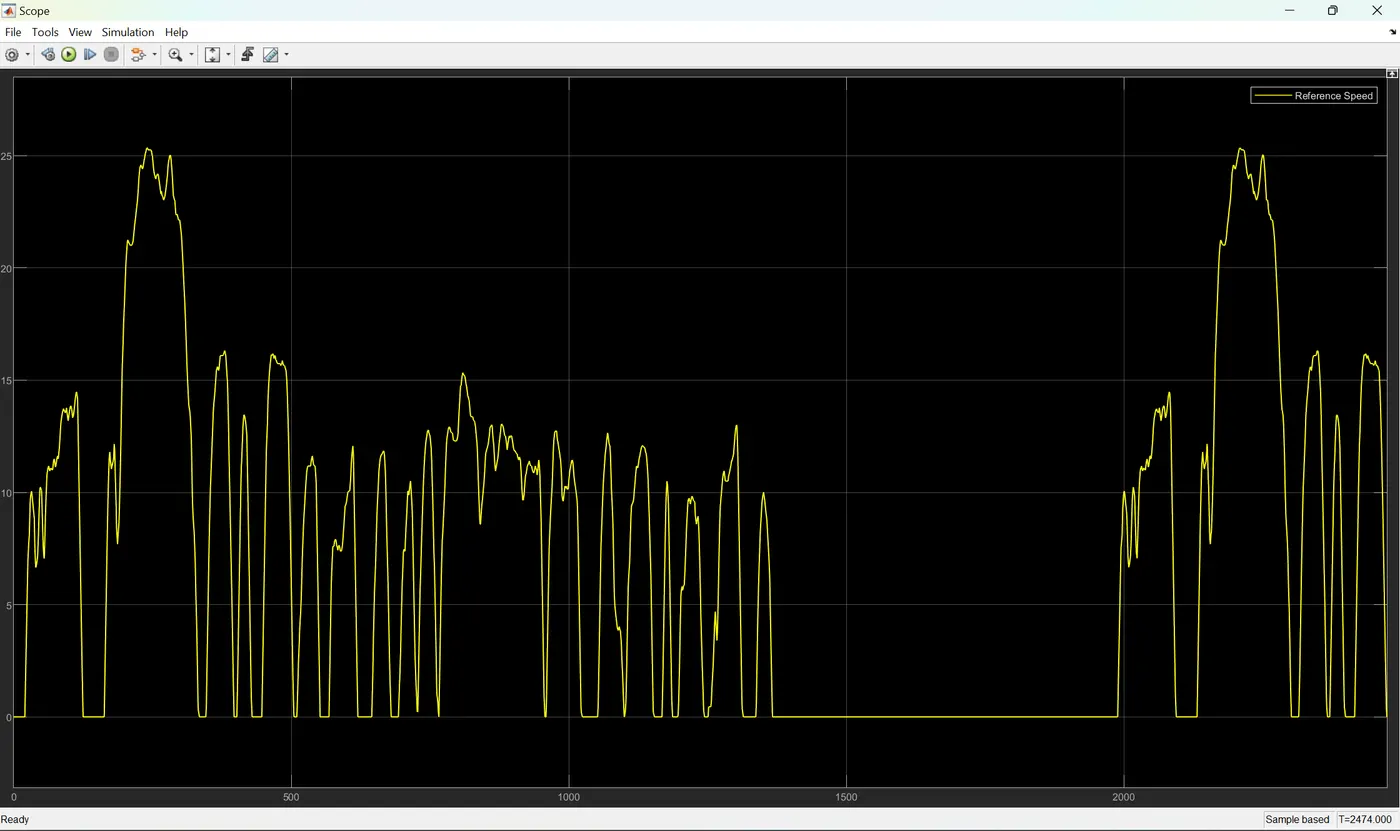

• Reference Speed -

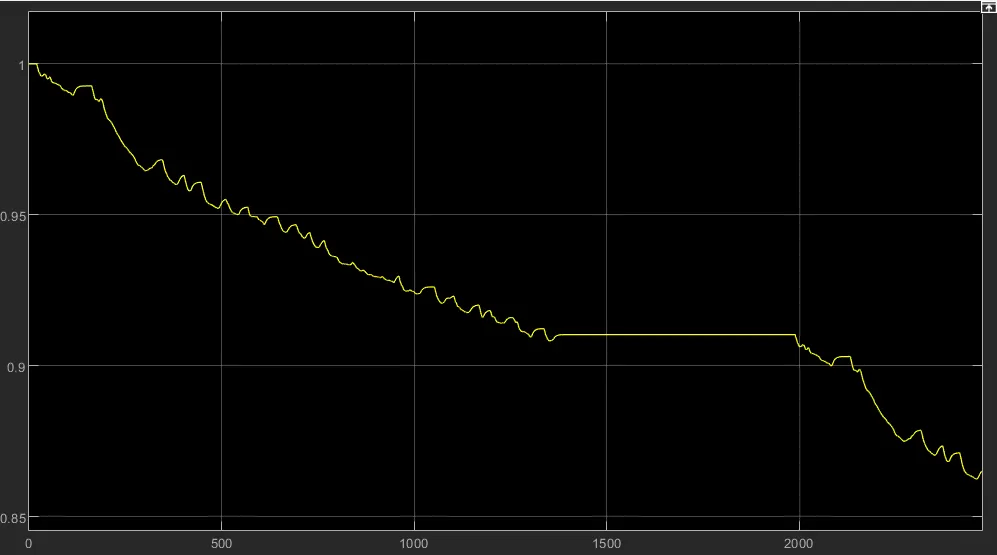

• SOC -

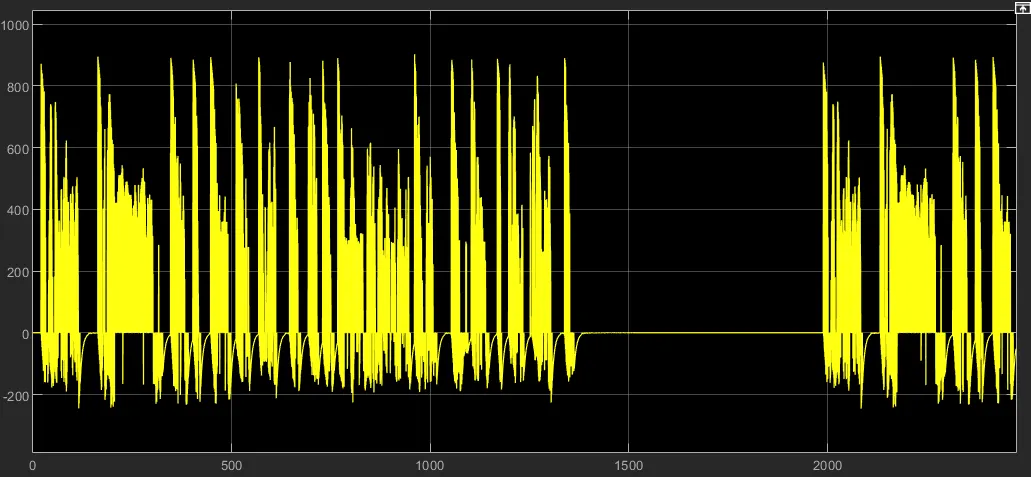

• Current -

• Distance Covered -


Conclusion -

• For one FTP75 Cycle, vehicle covered a distance of 5.136 km
• The SOC consumed is 13%.
