Project 1 (Mini Project on Vehicle Direction Detection

SSrideep Basak7 Dec 2021

MATLAB

Aim:

To Model the Simulink model according to the mentioned requirements.
To build the Data Dictionary of the model and do the requirement tagging.
To generate the code for the above model.

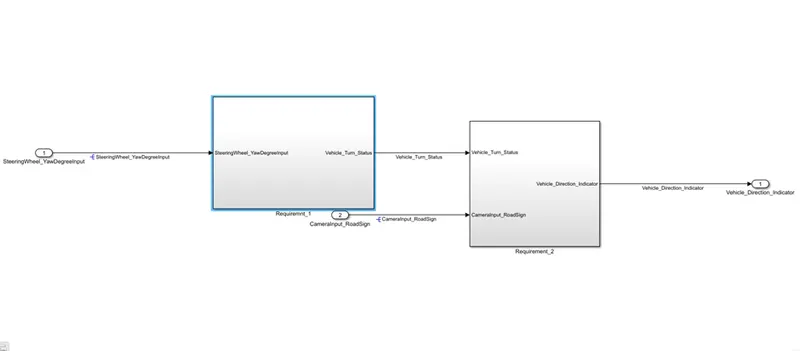

Simulink Model:

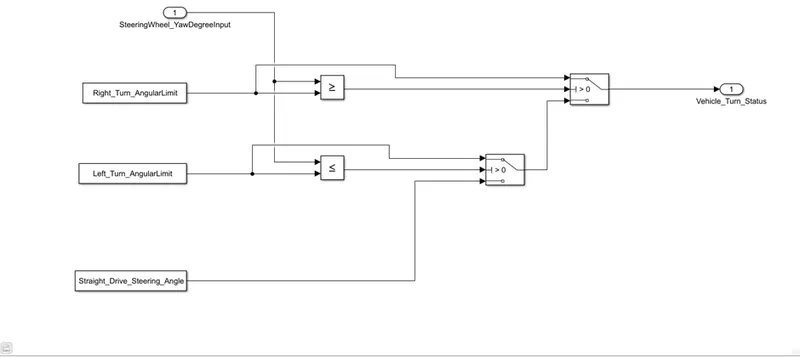

Requiremt-1 logic:

The straightWheel_YawDegreeInput is compared against 3 canstants, Right_Turn_AngleInput, Left_Turn_AngleInput and Straight_Drive_Steering_Angle.
Whichever is equal that input will be passed to the vehicle_Turn_Status
If input is equal to none of them, then the vehicle_Turn_Status value is given by a constant block other than -120, 0, 30 is given (in our case 180 is given).

Requirement-2 logic:

The vehicle_turn_Status is compared with the 3 logics Right_Turn_RoadSign, Left_Turn_RoadSign and Straight_RoadSign .
Any one of them can be 1 at a time.
The input from the CameraInput_RoadSign is a Boolean and is always 1.
We will AND the 3 logic from above with the CameraInput_RoadSign and OR the 3 output. Thus we will get Vehicle_Direction_Indicator.

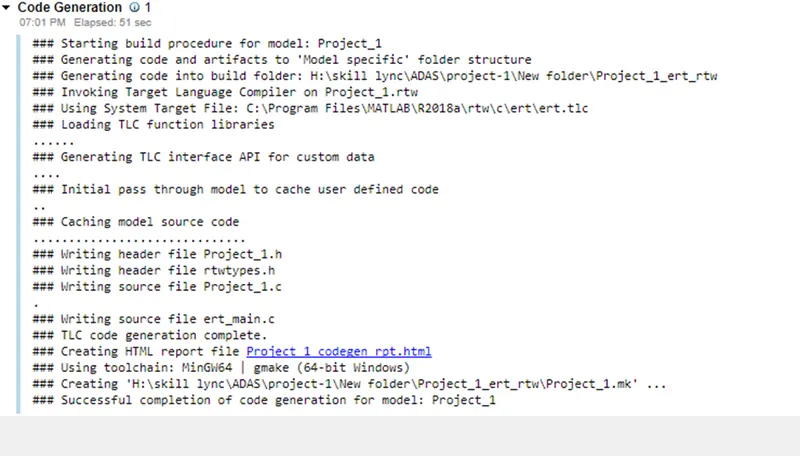

To generate the code for the above model.

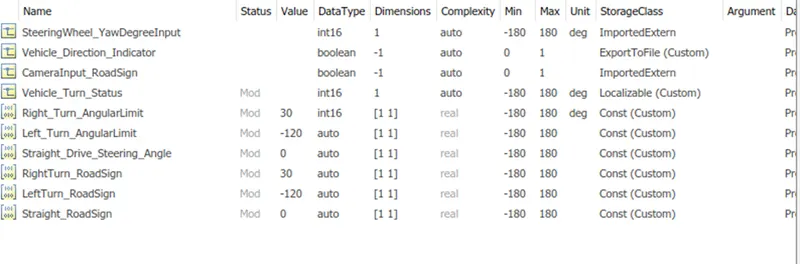

SLDD data:

The SLDD signals and constants are shown in the above fig.

Ert.main

/*
2	* File: ert_main.c
3	*
4	* Code generated for Simulink model 'Project_1'.
5	*
6	* Model version : 1.4
7	* Simulink Coder version : 8.14 (R2018a) 06-Feb-2018
8	* C/C++ source code generated on : Tue Dec 7 12:53:55 2021
9	*
10	* Target selection: ert.tlc
11	* Embedded hardware selection: Intel->x86-64 (Windows64)
12	* Code generation objectives:
13	* 1. Execution efficiency
14	* 2. RAM efficiency
15	* Validation result: Not run
16	*/
17
18	#include
19	#include / This ert_main.c example uses printf/fflush /
20	#include "Project_1.h" / Model's header file /
21	#include "rtwtypes.h"
22
23	/*
24	* Associating rt_OneStep with a real-time clock or interrupt service routine
25	* is what makes the generated code "real-time". The function rt_OneStep is
26	* always associated with the base rate of the model. Subrates are managed
27	* by the base rate from inside the generated code. Enabling/disabling
28	* interrupts and floating point context switches are target specific. This
29	* example code indicates where these should take place relative to executing
30	* the generated code step function. Overrun behavior should be tailored to
31	* your application needs. This example simply sets an error status in the
32	* real-time model and returns from rt_OneStep.
33	*/
34	void rt_OneStep(void);
35	void rt_OneStep(void)
36	{
37	static boolean_T OverrunFlag = false;
38
39	/ Disable interrupts here /
40
41	/ Check for overrun /
42	if (OverrunFlag) {
43	rtmSetErrorStatus(rtM, "Overrun");
44	return;
45	}
46
47	OverrunFlag = true;
48
49	/ Save FPU context here (if necessary) /
50	/ Re-enable timer or interrupt here /
51	/ Set model inputs here /
52
53	/ Step the model /
54	Project_1_step();
55
56	/ Get model outputs here /
57
58	/ Indicate task complete /
59	OverrunFlag = false;
60
61	/ Disable interrupts here /
62	/ Restore FPU context here (if necessary) /
63	/ Enable interrupts here /
64	}
65
66	/*
67	* The example "main" function illustrates what is required by your
68	* application code to initialize, execute, and terminate the generated code.
69	* Attaching rt_OneStep to a real-time clock is target specific. This example
70	* illustrates how you do this relative to initializing the model.
71	*/
72	int_T main(int_T argc, const char *argv[])
73	{
74	/ Unused arguments /
75	(void)(argc);
76	(void)(argv);
77
78	/ Initialize model /
79	Project_1_initialize();
80
81	/ Attach rt_OneStep to a timer or interrupt service routine with*
82	* period 0.2 seconds (the model's base sample time) here. The
83	* call syntax for rt_OneStep is
84	*
85	* rt_OneStep();
86	*/
87	printf("Warning: The simulation will run forever. "
88	"Generated ERT main won't simulate model step behavior. "
89	"To change this behavior select the 'MAT-file logging' option.\n");
90	fflush((NULL));
91	while (rtmGetErrorStatus(rtM) == (NULL)) {
92	/ Perform other application tasks here /
93	}
94
95	/ Disable rt_OneStep() here /
96	return 0;
97	}
98
99	/*
100	* File trailer for generated code.
101	*
102	* [EOF]
103	*/
104

Project_1.c

/*
2	* File: Project_1.c
3	*
4	* Code generated for Simulink model 'Project_1'.
5	*
6	* Model version : 1.4
7	* Simulink Coder version : 8.14 (R2018a) 06-Feb-2018
8	* C/C++ source code generated on : Tue Dec 7 12:53:55 2021
9	*
10	* Target selection: ert.tlc
11	* Embedded hardware selection: Intel->x86-64 (Windows64)
12	* Code generation objectives:
13	* 1. Execution efficiency
14	* 2. RAM efficiency
15	* Validation result: Not run
16	*/
17
18	#include "Project_1.h"
19
20	/ Exported data definition /
21
22	/ Const memory section /
23	/ Definition for custom storage class: Const /
24	const real_T LeftTurn_RoadSign = -120.0;
25	const real_T Left_Turn_AngularLimit = -120.0;
26	const real_T RightTurn_RoadSign = 30.0;
27	const int16_T Right_Turn_AngularLimit = 30;
28	const real_T Straight_Drive_Steering_Angle = 0.0;
29	const real_T Straight_RoadSign = 0.0;
30
31	/ External inputs (root inport signals with default storage) /
32	ExtU rtU;
33
34	/ External outputs (root outports fed by signals with default storage) /
35	ExtY rtY;
36
37	/ Real-time model /
38	RT_MODEL rtM_;
39	RT_MODEL *const rtM = &rtM_;
40
41	/ Model step function /
42	void Project_1_step(void)
43	{
44	real_T rtb_Switch2;
45
46	/ Switch: '/Switch2' incorporates:*
47	* Constant: '/Constant1'
48	* Constant: '/Constant2'
49	* Constant: '/Constant3'
50	* Inport: '/SteeringWheel_YawDegreeInput'
51	* RelationalOperator: '/Relational Operator'
52	* RelationalOperator: '/Relational Operator1'
53	* RelationalOperator: '/Relational Operator2'
54	* Switch: '/Switch'
55	* Switch: '/Switch1'
56	*/
57	if (rtU.SteeringWheel_YawDegreeInput == Right_Turn_AngularLimit) {
58	rtb_Switch2 = Right_Turn_AngularLimit;
59	} else if (rtU.SteeringWheel_YawDegreeInput == Left_Turn_AngularLimit) {
60	/ Switch: '/Switch1' incorporates:*
61	* Constant: '/Constant2'
62	*/
63	rtb_Switch2 = Left_Turn_AngularLimit;
64	} else if (rtU.SteeringWheel_YawDegreeInput == Straight_Drive_Steering_Angle)
65	{
66	/ Switch: '/Switch' incorporates:*
67	* Constant: '/Constant3'
68	* Switch: '/Switch1'
69	*/
70	rtb_Switch2 = Straight_Drive_Steering_Angle;
71	} else {
72	/ Switch: '/Switch1' incorporates:*
73	* Constant: '/Constant'
74	* Switch: '/Switch'
75	*/
76	rtb_Switch2 = 180.0;
77	}
78
79	/ End of Switch: '/Switch2' /
80
81	/ Outport: '/Vehicle_Direction_Indicator' incorporates:*
82	* Constant: '/Constant'
83	* Constant: '/Constant1'
84	* Constant: '/Constant2'
85	* Inport: '/CameraInput_RoadSign'
86	* Logic: '/AND'
87	* Logic: '/AND1'
88	* Logic: '/AND2'
89	* Logic: '/AND3'
90	* RelationalOperator: '/Relational Operator'
91	* RelationalOperator: '/Relational Operator1'
92	* RelationalOperator: '/Relational Operator2'
93	*/
94	rtY.Vehicle_Direction_Indicator = ((rtU.CameraInput_RoadSign && (rtb_Switch2 ==
95	RightTurn_RoadSign)) \|\| (rtU.CameraInput_RoadSign && (rtb_Switch2 ==
96	LeftTurn_RoadSign)) \|\| (rtU.CameraInput_RoadSign && (rtb_Switch2 ==
97	Straight_RoadSign)));
98	}
99
100	/ Model initialize function /
101	void Project_1_initialize(void)
102	{
103	/ (no initialization code required) /
104	}
105
106	/*
107	* File trailer for generated code.
108	*
109	* [EOF]
110	*/
111

Project_1.h

/*
2	* File: Project_1.h
3	*
4	* Code generated for Simulink model 'Project_1'.
5	*
6	* Model version : 1.4
7	* Simulink Coder version : 8.14 (R2018a) 06-Feb-2018
8	* C/C++ source code generated on : Tue Dec 7 12:53:55 2021
9	*
10	* Target selection: ert.tlc
11	* Embedded hardware selection: Intel->x86-64 (Windows64)
12	* Code generation objectives:
13	* 1. Execution efficiency
14	* 2. RAM efficiency
15	* Validation result: Not run
16	*/
17
18	#ifndef RTW_HEADER_Project_1_h_
19	#define RTW_HEADER_Project_1_h_
20	#ifndef Project_1_COMMON_INCLUDES_
21	# define Project_1_COMMON_INCLUDES_
22	#include "rtwtypes.h"
23	#include "rtw_continuous.h"
24	#include "rtw_solver.h"
25	#endif / Project_1_COMMON_INCLUDES_ /
26
27	/ Macros for accessing real-time model data structure /
28	#ifndef rtmGetErrorStatus
29	# define rtmGetErrorStatus(rtm) ((rtm)->errorStatus)
30	#endif
31
32	#ifndef rtmSetErrorStatus
33	# define rtmSetErrorStatus(rtm, val) ((rtm)->errorStatus = (val))
34	#endif
35
36	/ Forward declaration for rtModel /
37	typedef struct tag_RTM RT_MODEL;
38
39	/ External inputs (root inport signals with default storage) /
40	typedef struct {
41	real_T SteeringWheel_YawDegreeInput; / '/SteeringWheel_YawDegreeInput' /
42	boolean_T CameraInput_RoadSign; / '/CameraInput_RoadSign' /
43	} ExtU;
44
45	/ External outputs (root outports fed by signals with default storage) /
46	typedef struct {
47	boolean_T Vehicle_Direction_Indicator;/ '/Vehicle_Direction_Indicator' /
48	} ExtY;
49
50	/ Real-time Model Data Structure /
51	struct tag_RTM {
52	const char_T * volatile errorStatus;
53	};
54
55	/ External inputs (root inport signals with default storage) /
56	extern ExtU rtU;
57
58	/ External outputs (root outports fed by signals with default storage) /
59	extern ExtY rtY;
60
61	/ Model entry point functions /
62	extern void Project_1_initialize(void);
63	extern void Project_1_step(void);
64
65	/ Exported data declaration /
66
67	/ Const memory section /
68	/ Declaration for custom storage class: Const /
69	extern const real_T LeftTurn_RoadSign;
70	extern const real_T Left_Turn_AngularLimit;
71	extern const real_T RightTurn_RoadSign;
72	extern const int16_T Right_Turn_AngularLimit;
73	extern const real_T Straight_Drive_Steering_Angle;
74	extern const real_T Straight_RoadSign;
75
76	/ Real-time Model object /
77	extern RT_MODEL *const rtM;
78
79	/-*
80	* The generated code includes comments that allow you to trace directly
81	* back to the appropriate location in the model. The basic format
82	* is /block_name, where system is the system number (uniquely
83	* assigned by Simulink) and block_name is the name of the block.
84	*
85	* Use the MATLAB hilite_system command to trace the generated code back
86	* to the model. For example,
87	*
88	* hilite_system('') - opens system 3
89	* hilite_system('/Kp') - opens and selects block Kp which resides in S3
90	*
91	* Here is the system hierarchy for this model
92	*
93	* '' : 'Project_1'
94	* '' : 'Project_1/Requirement_2'
95	* '' : 'Project_1/Requiremnt_1'
96	*/
97	#endif / RTW_HEADER_Project_1_h_ /
98
99	/*
100	* File trailer for generated code.
101	*
102	* [EOF]
103	*/
104
