Project 1 Mechanical design of battery pack

                                    Project 1 (Mini Project on Vehicle Direction Detection)   Aim: Development of MATLAB Simulink model as per requirement. Tag the requirements to the simulink model; tagging requirement 1 &…

                 Week 7 State of charge estimation 1). Simulate the 3 test cases from harness dashboard and write a detailed report on the results The above model shows the Closed loop harness model. It holds three test cases and has been executed in the below report. The model…

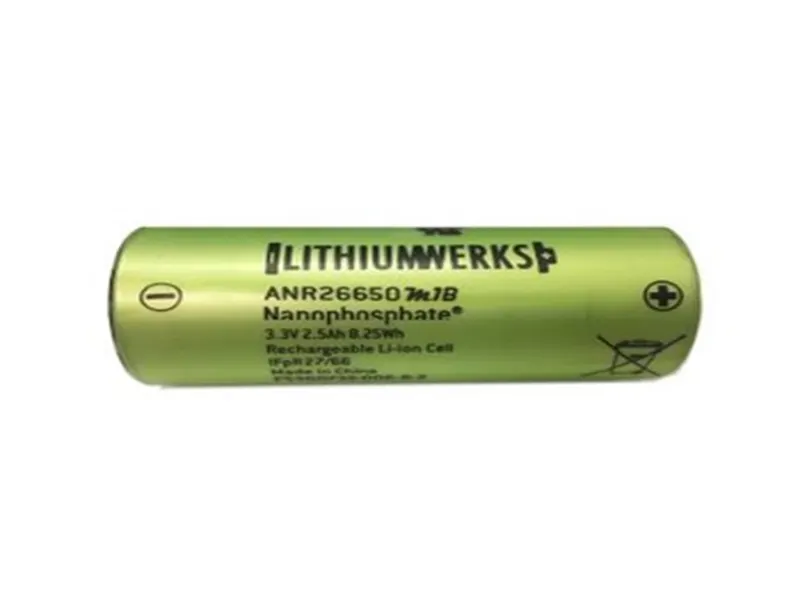

                                         Project 1 Mechanical design of battery pack  Battery pack capacity: 18 kWh Cell: ANR26650M1-B  Prepare a detailed battery pack drawing along with its enclosure. …

1)Lithium-ion battery  A lithium-ion (Li-ion) battery is an advanced battery technology that uses lithium ions as a key component of its electrochemistry. During a discharge cycle, lithium atoms in the anode are ionized and separated from their electrons. The lithium ions move from the anode and pass through the electrolyte…

1)Aim:     To describe the difference between mapped and dynamic model of engine, motor and generator. Description: Mapped Model: Mapped model is a model used where the model is designed not in practical cases, but modeled by entering the interested values in the lookup table for obtaining the Simulink result.…

1) Braking: The term braking comes from the term brake. We know that brake is an equipment to reduce the speed of any moving or rotating equipment, like vehicles, locomotives. The process of applying brakes can be termed as braking. we can classify the term braking in two parts Mechanical Braking Electrical Braking Kinetic…

1.Aim: To design a matlab model ‘Speed control of a DC motor using BJT H-bridge’. Matlab Model:   Model Explanation: The Bipolar Junction Transistor (BJT) when used for power switching applications, operates as an IGBT. When it is conducting (BJT operating in the saturated region), a forward voltage Vf…

 1) Types of Power converters used in Hybrid and Electric Vehicles. EV charger (AC to DC) Motor Drive (DC to AC Inverter) Chopper (DC to DC) Cycloconverter (AC to AC) 2) Given:   Motor and Controller Parameters:                      Rated Armature voltage= 72 V                     Rated armature current= 400 A        …

1) Aim: For EV_defaults_in file, with the cargo mass of 500KG, with all the default condition and using Cycle_FTP as a drive cycle   Observation:   The FTP drive cycle model, For 1 drive cycle, the distance covered is 17.8KM   For 2 drive cycle, the distance covered is 35.5KM   For 3 drive cycle, the…

                                        Analysis of  BAJA All Terrain Vehicle   Aim: To simulate the model of All Terrain Vehicle and to analyse the properties and parameters of the model.   Overview: An all-terrain…

                                        State Flow Design of Washing Machine   Aim: To design the control logic of Washing Machine using the state flow method with the below conditions. If the power supply is available,…

                Simulink model of Doorbell using solenoid   AIM:        Make a Simulink model of Doorbell using solenoid with a switch should be closed for 2 sec and then released.   BLOCKS USED IN MODEL: Scope Battery Pulse generator Switch Solenoid…
