Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory) using Linked List

Overview -

In this project,

• we created user defined data type
• interfaces for mathematical Set Theory are implemented using C programming language
• we use two Linked List to perform Set operation.
• List data is taken from the user and in the output set operations are performed
• Union and Intersection operation is perform in this program

Goals -

• Implemeting inteface for Set operations using C programming language.
• Creating user defined data type
• Taking user defined input and store in Linked List
• Providing Union and Intersection of two lists as output.

Key Highlights -

• Creating two list of data using Linked Lists.
• Node insertion after sorting the list.
• Performing Union of two lists.
• Getting Intersection of two lists.

Deliverables -

• User defined data type creation for Linked List
• Elements comparison of two lists
• Intersection of data of user defined list
• Union of data of user defined list

Expected Outcome -

• Getting Union and Intersection of data of two lists.
• Comparison of list elements.
• For example,
  if List 1 = [1 2 3 4 5] and
  List 2 = [4 5 6 7 8], then union and intersection is
  union of List 1 and List 2 is [1 2 3 4 5 6 7 8] and
  intersection of List 1 and List 2 is [4 5]

Code -

/*
 * Project_1.c
 *
 *  Created on: 28-Oct-2022
 *      Author: Vishal Goyal
 */

// We have to include standard input output library for C language
#include
// for malloc function
#include

// Creating Node
struct Node
{
	int value;
	struct Node *next;	// pointer pointing towards next node
};

// Initializing different list that will be used in this program
struct Node *list1, *list2, *list_union, *list_intersection;

// Function to display list
void display_list(struct Node *p)
{
	// Checking whether list is empty
	if (p == NULL)
	{
		printf("\nList is empty!!!");
	}
	// Printing the list
	else
	{
		while(p != NULL)
		{
			printf("%d ", p->value);
			p = p->next;
		}
	}
}

// New Node Creation
struct Node *newNode(int value)
{
	struct Node *newNode = (struct Node*)malloc(sizeof(struct Node));
	newNode->value = value;
	newNode->next = NULL;
	return newNode;
}

// Node insertion in sorted linked list
void insert_node(struct Node **head,struct Node *newNode)
{
	// inserting node when List is empty
	if(*head == NULL || (*head)->value >= newNode->value)
	{
		newNode->next = *head;
		*head = newNode;
	}

	// Inserting node in between existing node
	else
	{
		struct Node *current = *head;
		while(current->next != NULL && current->next->value < newNode->value)
		{
			current = current->next;
		}
		newNode->next = current->next;
		current->next = newNode;
	}
}

// Function to Compare two nodes
int compare(struct Node *list, int data)
{
	while(list != NULL)
	{
		// Comparing values
		if(list->value == data)
		{
			return 1;
		}

		// If not matched, point to next node address
		list = list->next;
	}

	return 0;
}

struct Node *get_union(struct Node *L1, struct Node *L2)
{
	// Initializing union list as NULL
	list_union = NULL;

	struct Node *temp = L1;

	// Copying list 1 data to union list
	while(temp != NULL)
	{
		insert_node(&list_union, newNode(temp->value));
		temp = temp->next;
	}

	// Copying unique data elements of list 2 in union list
	while(L2 != NULL)
	{
		// Comparing list 1 and list 2 data elements
		if(!compare(L1, L2->value))
		{
			// Copying unique elements to union list
			insert_node(&list_union, newNode(L2->value));
		}
		// If matched, point to next node address
		L2 = L2->next;
	}

	// Returning union list
	return list_union;
}

struct Node *get_intersection(struct Node *L1, struct Node *L2)
{
	// Initializing intersection list as NULL
	list_intersection = NULL;

	// Comparing list 1 and list 2 data elements for same elements
	while(L1 != NULL)
	{
		// Comparing list 1 and list 2 data elements
		if(compare(L2,L1->value))
		{
			// Copying matched elements to union list
			insert_node(&list_intersection,newNode(L1->value));
		}
		// If not matched, point to next node address
		L1 = L1->next;
	}

	// returning Intersection list
	return list_intersection;
}

// Stating of main function
// Logic is written inside this main function
int main()
{
	/*
	 * In problem statement it is mentioned that
	 * we have to create user defined data type to
	 * implement user interface for working with
	 * Mathematical Set Theory using Linked List
	 */

	// Logic Implemented
	/*
	 * Step 1 - Initialize the lists as NULL
	 * Step 2 - Take user input for number of nodes of both list
	 * 			and create new nodes and assign user defined values to them
	 * Step 3 - Display the lists
	 * Step 4 - Perform union and display the union list
	 * Step 5 - Perform intersection and display the list
	 */


	// Initializing list 1 and list 2 as NULL
	list1 = NULL;
	list2 = NULL;

	// Declaring variables
	int list1_nodes, list2_nodes;
	int i, data;

	// Take list 1 nodes input from user
	printf("\nEnter number of nodes in list 1: ");
	fflush(stdout);
	scanf("%d",&list1_nodes);

	// Taking list 1 elements from user
	printf("\nEnter %d elements of list 1: ",list1_nodes);
	for(i = 0; i < list1_nodes; i++)
	{
		fflush(stdout);
		scanf("%d",&data);
		insert_node(&list1,newNode(data));
	}

	// Take list 2 nodes input from user
	printf("\nEnter number of nodes in list 2: ");
	fflush(stdout);
	scanf("%d",&list2_nodes);

	// Taking list 2 elements from user
	printf("\nEnter %d elements of list 2: ",list2_nodes);
	for(i = 0; i < list2_nodes; i++)
	{
		fflush(stdout);
		scanf("%d",&data);
		insert_node(&list2,newNode(data));
	}

	// Display list 1
	printf("\nList 1 is ");
	display_list(list1);

	// Display list 2
	printf("\nList 2 is ");
	display_list(list2);

	// Performing Union of two list
	get_union(list1,list2);

	// Displaying Union of both list
	printf("\nUnion of both list is ");
	display_list(list_union);

	// Performing Intersection of two list
	get_intersection(list1,list2);

	// Displaying Intersection of both list
	printf("\nIntersection of both list is ");
	display_list(list_intersection);

	// After executing this main function, this function will return value 0
	return 0;
}

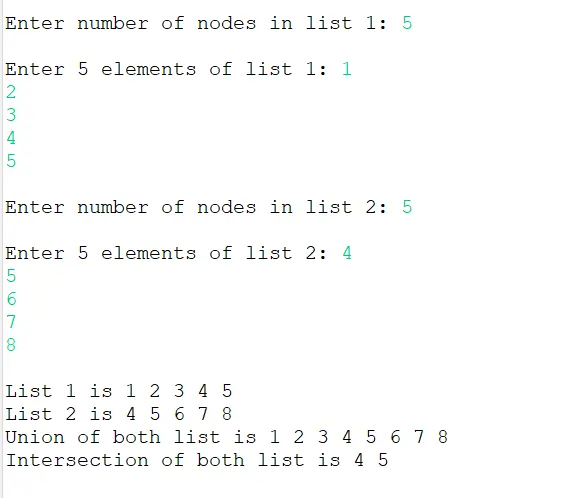

Output 1 -

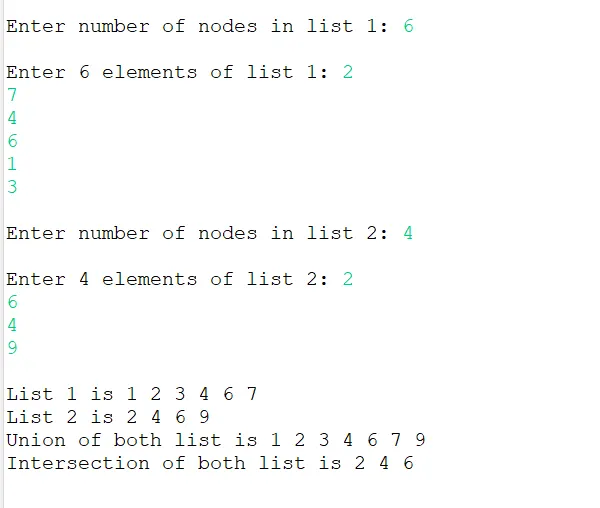

Output 2 -
