Project 1 - Creation of user defined data type to implement the user interfaces for working with ‘Set’ (Mathematical Set theory)
Project 1:
Creation of user defined data type to implement the user interfaces for working with 'set'. (Mathematical Set Theory)
Introduction:
Head pointer: It points at the starting address of list.
Tail pointer: It is a temporary pointer mainly used for traversing in the list.
Newnode Pointer: It points to the new created node.
Implementation of functions:
In this project, set data-type is implemented using linked list.
- insert_node() will insert an element to the list.
- display_list() will display all the elements pree=sent in the list.
- get_union() will return a list after performing union.
- get_intersection() will return alist after performing intersection operation between two lists.
- compare() will compare two linked lists.
Steps to follow:
- Create two list using insert()_node()function
- Display the created lists using display_list() function
- Perfrom union operation
- Perfrom intersection operation
- Display the results.
Program:
Here for STM32CubeIDE to perform operation, we split the program to three parts
- main.c : For main function declaration and calling the function
- list.h : For header declaration
- list.c : For function definition
main.c:
#include "list.h" //Calling the header file
int main() //main function starts
{
int first_list_nodes=0, second_list_nodes = 0, first_list_items = 0, second_list_items = 0; //Initializing the variables to zero
int i;
printf("Enter the number of nodes in the first list:"); //To print the number of elements
fflush(stdout); //For clearing the cache data
scanf("%d",&first_list_nodes); //For scanning the number of elements
printf("Enter %d the elements:",first_list_nodes); //To tell the user to enter the elements
for(i=0;i<first_list_nodes;i++) //For loop to take entered values from the console.
{
fflush(stdout);
scanf("%d",&first_list_items);
head1=insert_node(head1,first_list_items);
}
display_list(head1);
printf("\n Enter the number of nodes in the second list:"); //To print enter the elements in the second list.
fflush(stdout); //clearing cache files
scanf("%d",&second_list_nodes); //To scan the number of elements
printf("Enter %d the elements",second_list_nodes); //To tell user to enter the elements
for(i=0;i<second_list_nodes;i++) //For loop to scan the values from the console
{
fflush(stdout);
scanf("%d",&second_list_items);
head2=insert_node(head2,second_list_items);
}
display_list(head2); //Function called to display the linked list
res_union = get_union(head1,head2); //function get_union called here and values copied to res_union
printf("Here is the result of union:"); //To tell the user the result is been printed next
display_list(res_union); //calling the display function to print the values in res_union
res_intersection=get_intersection(head1,head2); //intersection function is called here and value stored to res_intersection
printf("Here is the result of intersection:"); //To tell the user the result of intersection is been printed next.
display_list(res_intersection); //To display the result of intersection.
return 0; //To return the value
}
list.c:
#include "list.h" //Header list.h is called here
void display_list(Node *head_ref) //function definition
{
if(head_ref == 0) //To check the head pointer is showing 0.
{
printf("List is empty"); //If yes, it prints list is empty
}
else
{
tail = head_ref; //Else the head pointer value is moved to tail.
while(tail!=0) //Condition for tail not equal to zero.
{
printf("%d",tail->data); //If while is true it prints the value in tail.data
tail=tail->next; //The pointer is moved to next position
}
tail=newnode; //after coming out of the while loop, tail is assigned with the value newnode.
}
}
Node *insert_node(Node *head_ref,int n) //Function definition.
{
printf("\nInserting Elemenets at the beginning...\n"); //To tell user inserting elements at the beginning.
newnode = (Node*) malloc(sizeof(Node)); //malloc used to dynamically allocate a single large block of memory with specified size.
printf("Address of created newcode:%d\n",newnode); //It prints the address of newcode.
newnode->data=n; //Here the value in the n is copied to newnode.data.
printf("Inserted value is:%d\n",newnode->data); //The inserted value is printed
newnode->next=head_ref; //newnode.next is assigned with head_ref
head_ref=newnode; //newnode address is saved to head_ref
return head_ref; //Returning the value of head_ref.
}
Node *get_union(Node *head_pointer1,Node *head_pointer2) //Function definition to find union
{
while(head_pointer1 !=0) //If the head pointer of 1 is not equal to zero then the while loop is executed.
{
head_union = insert_node(head_union, head_pointer1->data); //here insert_node function is called and value is assigned to head union.
head_pointer1 = head_pointer1->next; //The head pointer1.next is assigned to head pointer1
}
while(head_pointer2!=0) //While loop is executed only when head_pointer2 is not equal to zero.
{
if(!compare(head_union, head_pointer2->data)) //head_union and head_pointer2.data are compared and cheacked it it is equal.If it is not equal the if will get executed.
head_union=insert_node(head_union, head_pointer2->data); //insert_node is caaled here and head_union is assigned with its value.
head_pointer2=head_pointer2->next; //Adress of headpointer2.next is copied to head_pointer2.
}
return head_union; //head_unioin value is returned.
}
int compare(Node *head,int data) //function definitio for comparing.
{
while(head!=NULL) //If the head is not equal to null the while statement get executed.
{
if(head->data==data) //To check both are equal or not
return 1; //If they are equal it returns a value 1
head = head->next; //if it is not equal, head.next is saved to head.
}
return 0; //To return value
}
Node *get_intersection(Node *head_pointer1, Node *head_pointer2) //Function definition to find intersection
{
while(head_pointer1!=0) //while loop to check head_pointer is not equal to zero.
{
if(compare(head_pointer2, head_pointer1->data)) //If they are equal
head_intersection = insert_node(head_intersection, head_pointer1->data); //insert_node is called here.
head_pointer1=head_pointer1->next; //head_pointer1.next is saved to head_pointer1
}
return head_intersection; //To return the value of intersection
}
list.h:
#ifndef LIST_H_
#define LIST_H_
#include //Pre-processor for standarnd I/O operations
#include //Pre-processor for library functions
#include //Pre-processor for boolean calculations
typedef struct node //Structure is declared of typedef to create new name for existing data-type.
{
int data; //variable data of integer type declared
struct node *next; //Variable next with pointer declared.
}Node; //Name of the structure.
static Node *head1, *head2, *head, *head_union, *head_intersection, *newnode,*tail,*res_union,*res_intersection; //Declaration of pointers of struct node type.
Node *insert_node(Node *head_ref, int n); //Function declaration for insertion with Node and integer data type.
void display_list(Node *head_ref); //function declaration for displaying the elements of void type.
Node *get_union(Node *head_pointer1, Node *head_pointer2); //Fucntion declaration to get union calculation with pointer in the arguments.
Node *get_intersection(Node *head_pointer1, Node *head_pointer2); //Function declaration to get intersection of lists.
int compare(Node *head, int data); //Function delcaration to comparewith arguments.

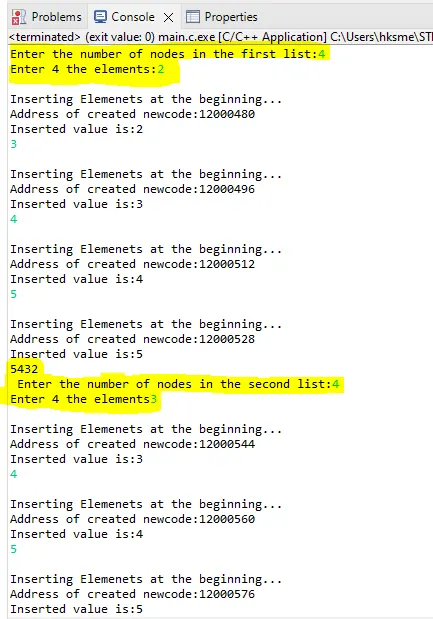

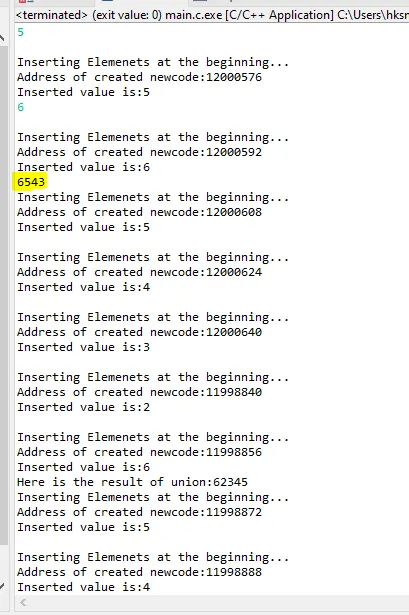

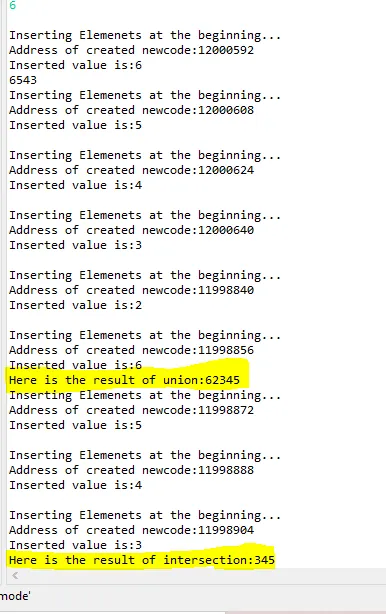

#endif /* LIST_H_ */Output:
