Project 1_Comparative study of different storey buildings for Seismic forces

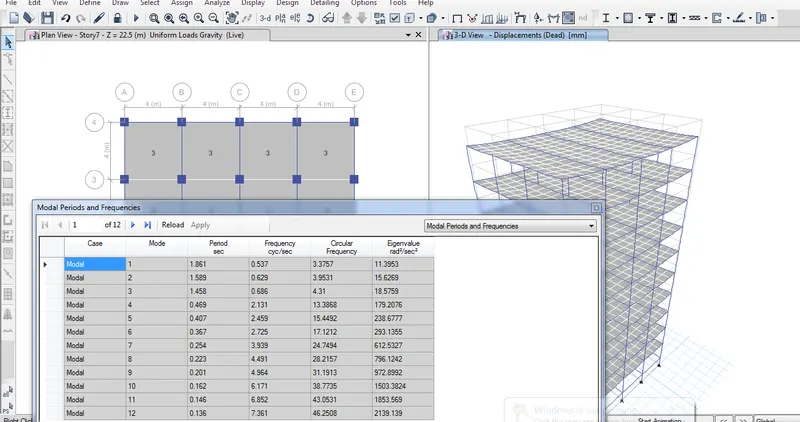

AIM : To Determine the dynamic characteritics of a building

INTRODUCTION : Building oscillation caused due to the vibration in the ground or Earth

PROCEDURE :

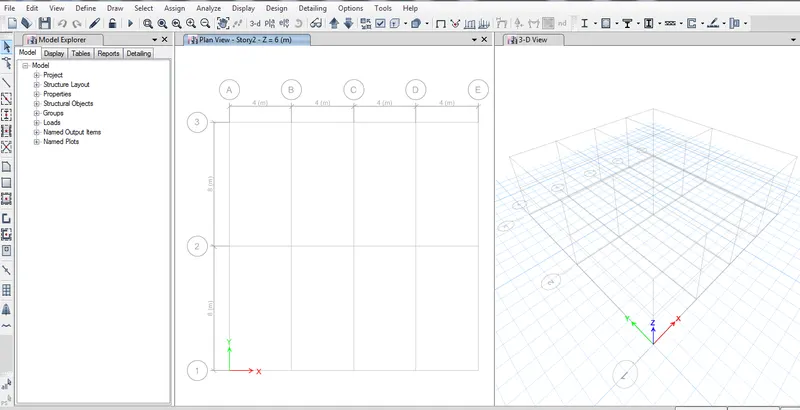

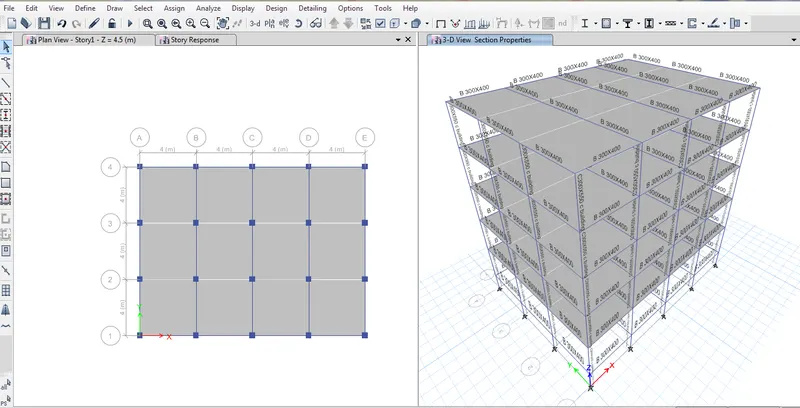

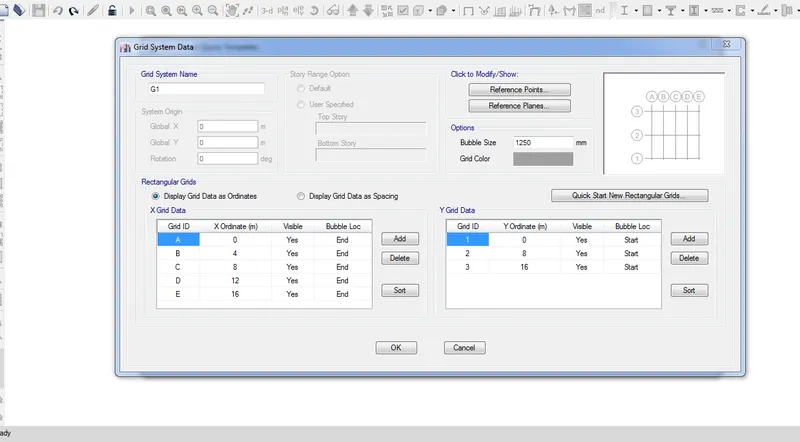

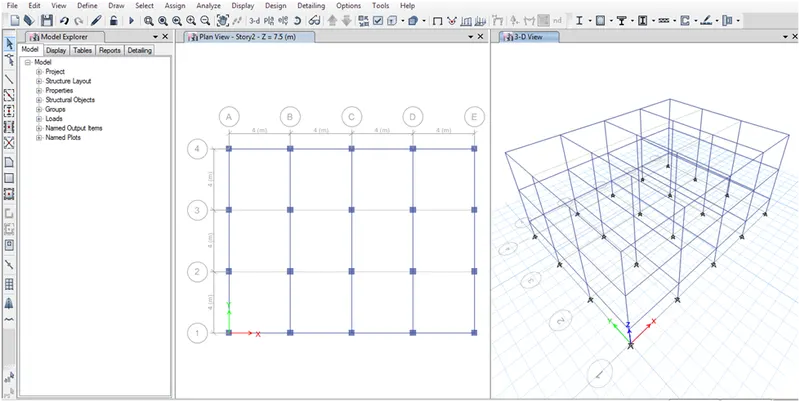

• For Building type A click on the grid system and set grid spacing in X direction as 4 and in Y direction also 4

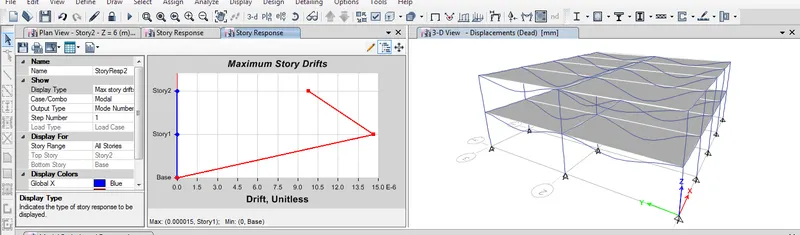

• edit the story of the building as 2 story with the plinth beam height is 1.5 m
• Story height is 3 m

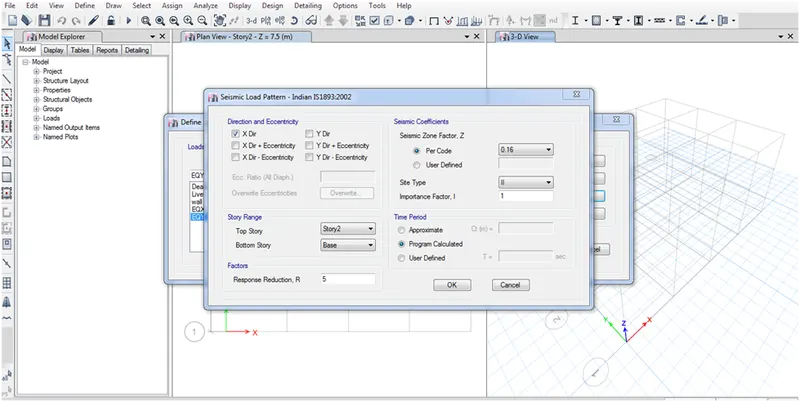

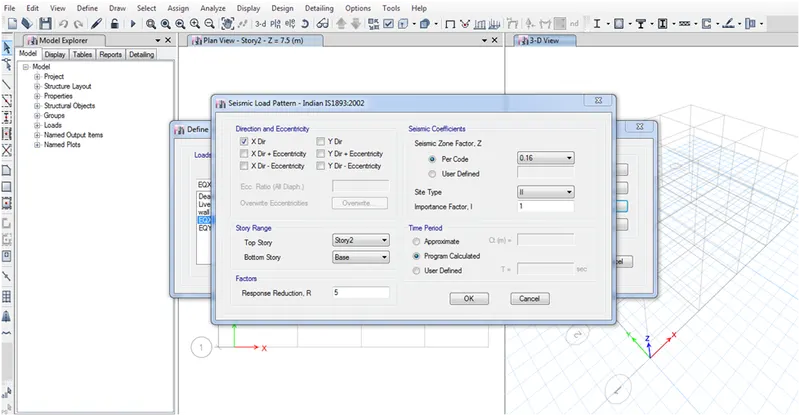

Sesimic zone factor Z per code 0.16

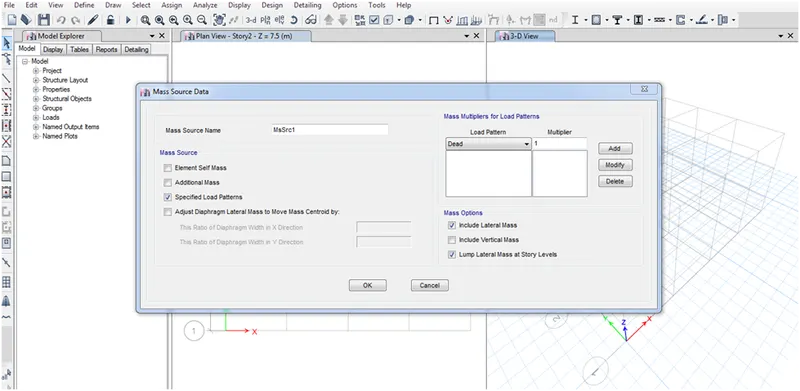

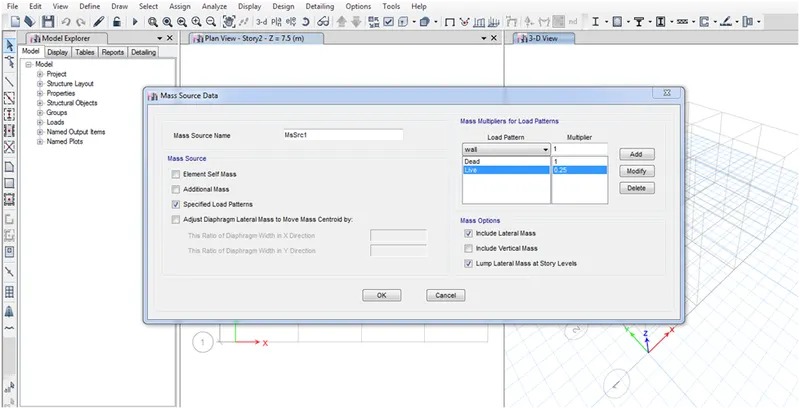

Define Go to mass source

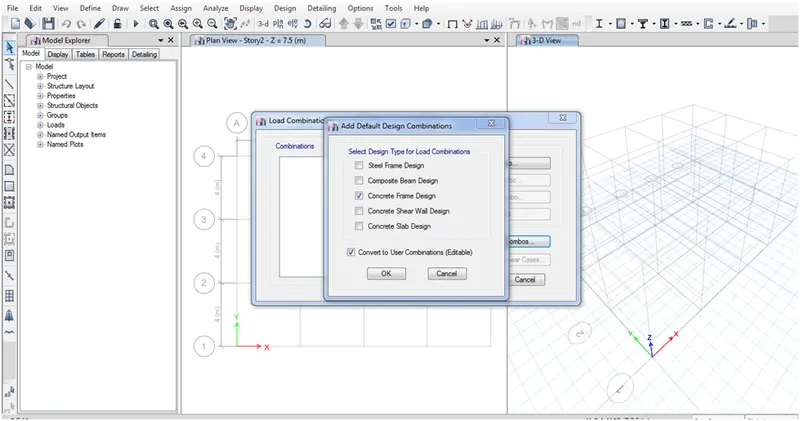

Go to Define , load combinations

Click on all story

Click on Beam

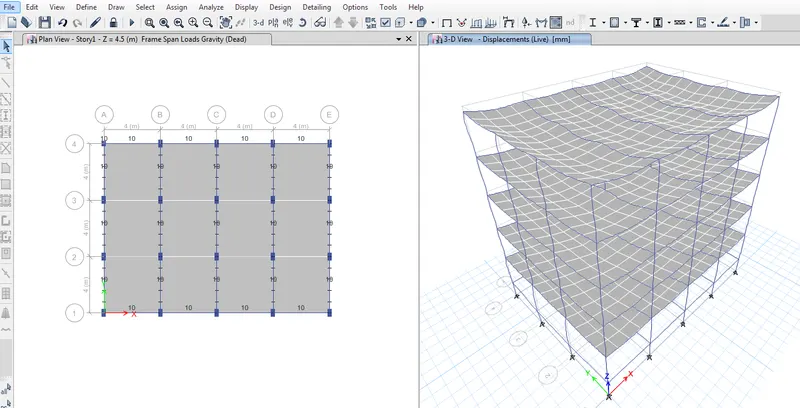

• For Building type B

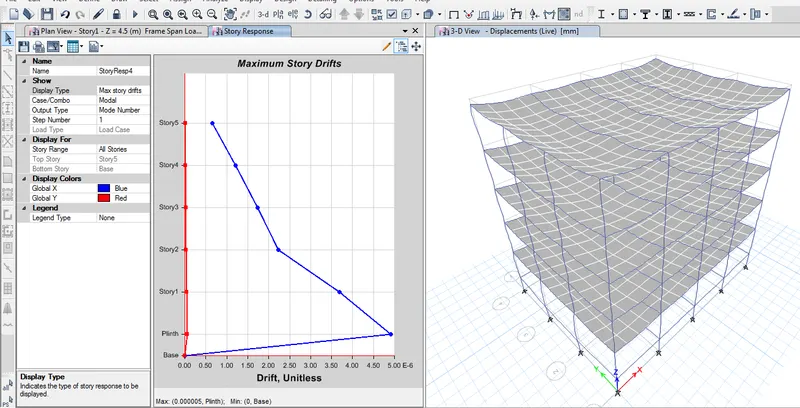

• Click on Edit option go to edit story option edit the story of the building as 5 story

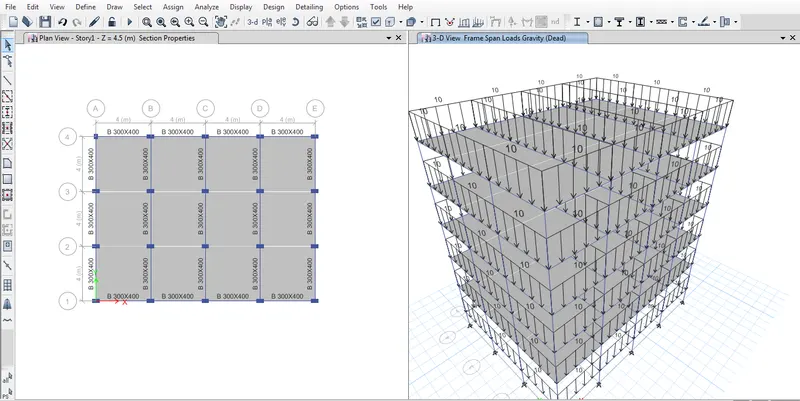

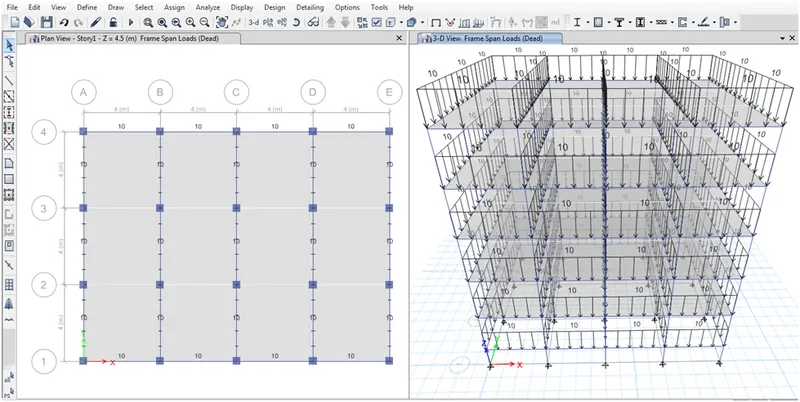

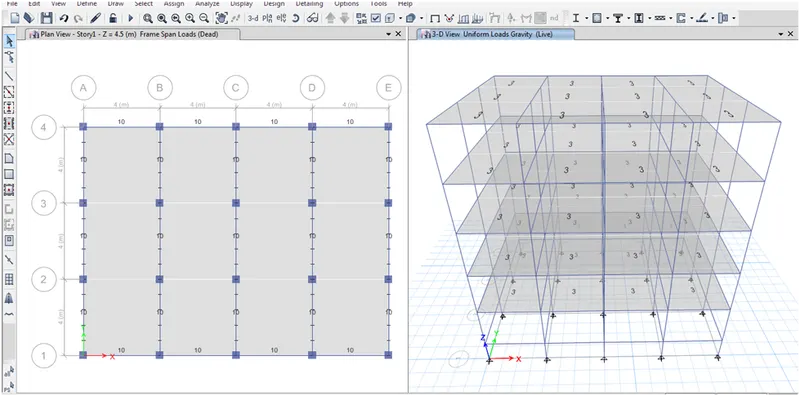

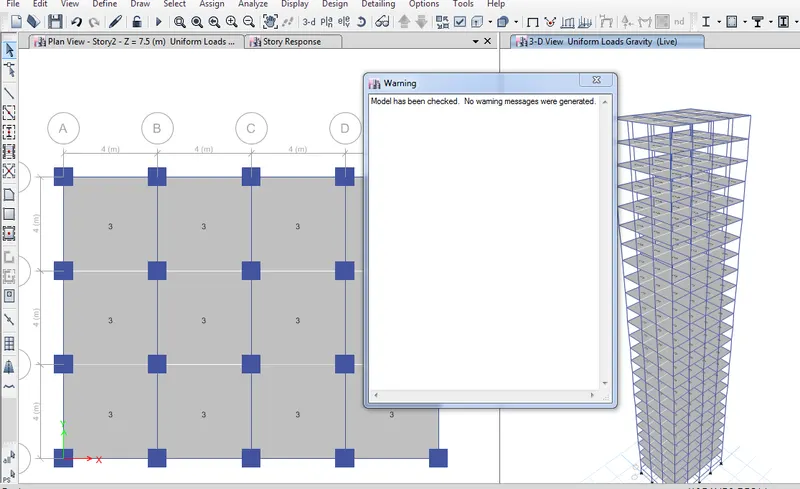

• Floor load and beam load is assigned

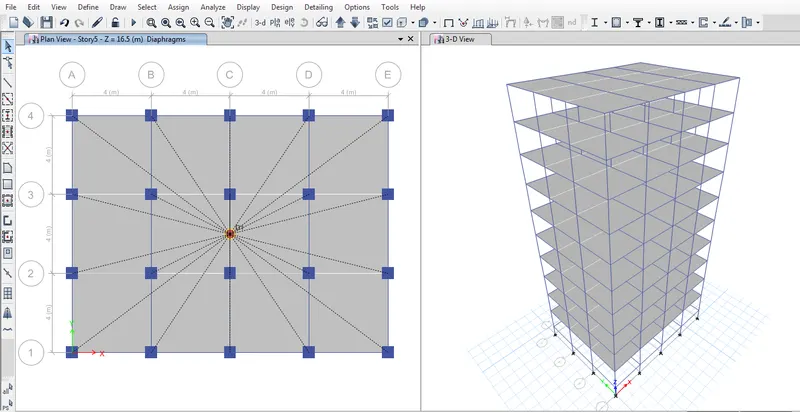

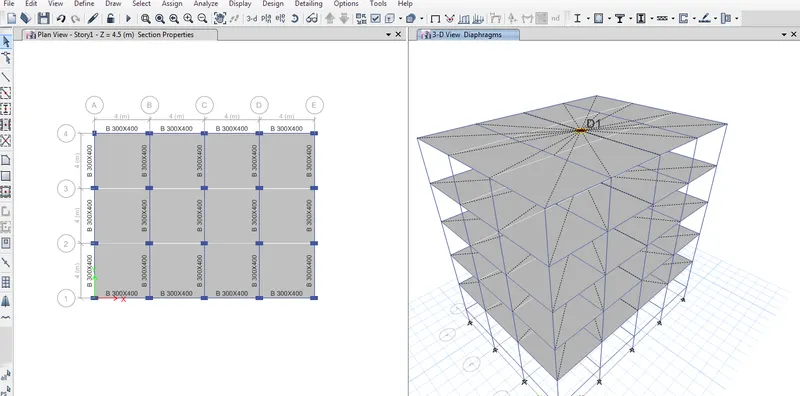

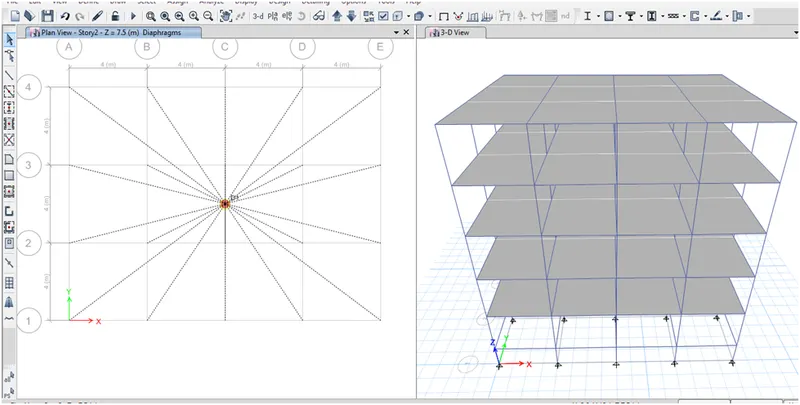

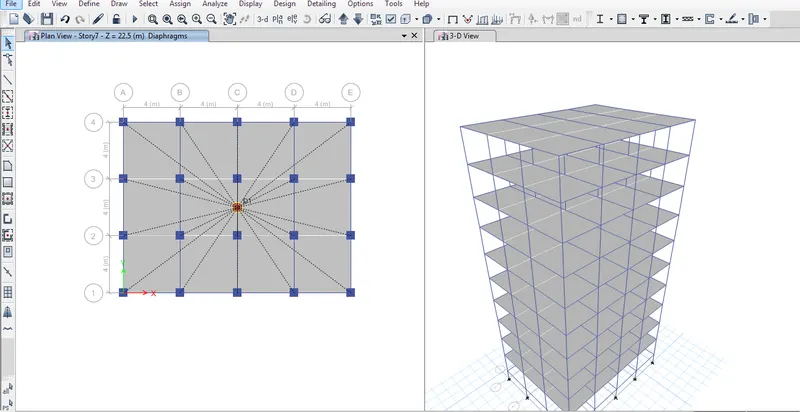

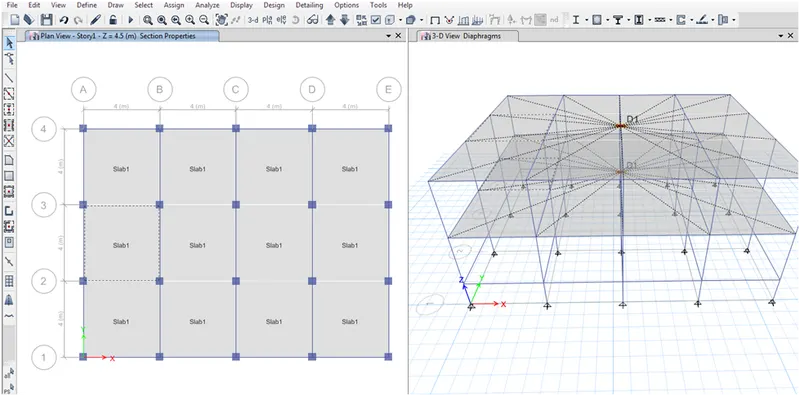

• Diaphragram of the buiding slab

• For Building type C

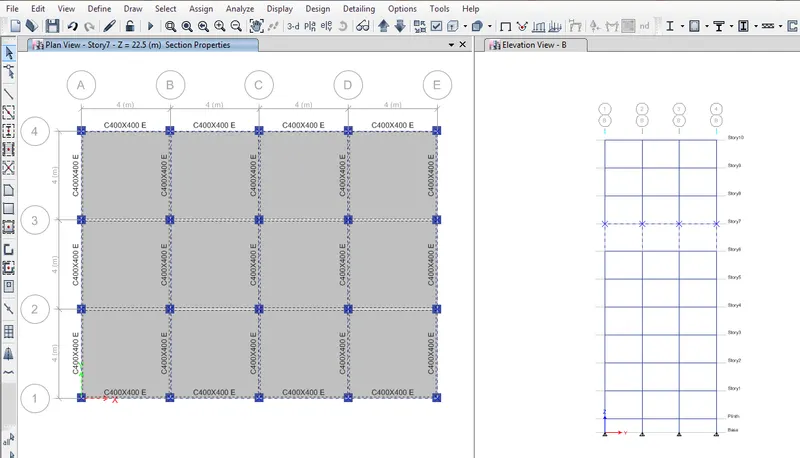

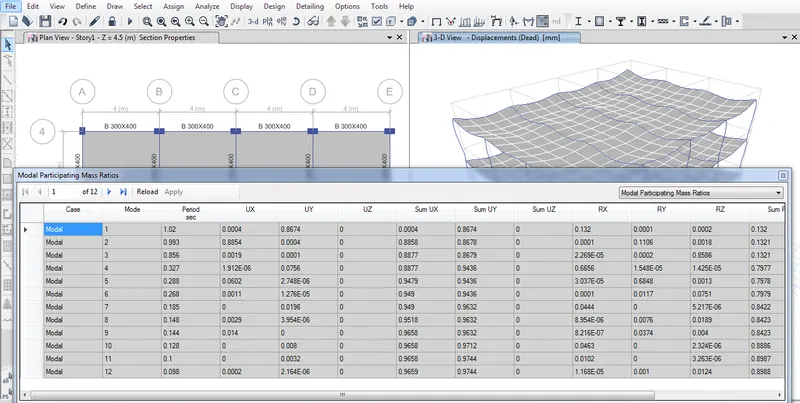

• go Select click on select properties select the column 400X400

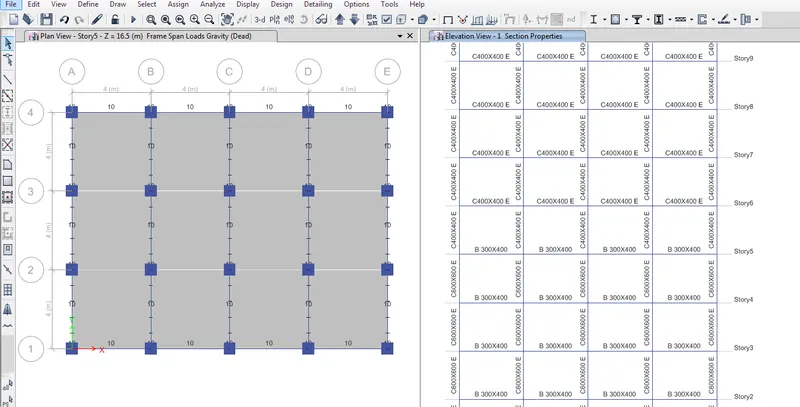

• Go to assign select properties and assign the building column as 550X300

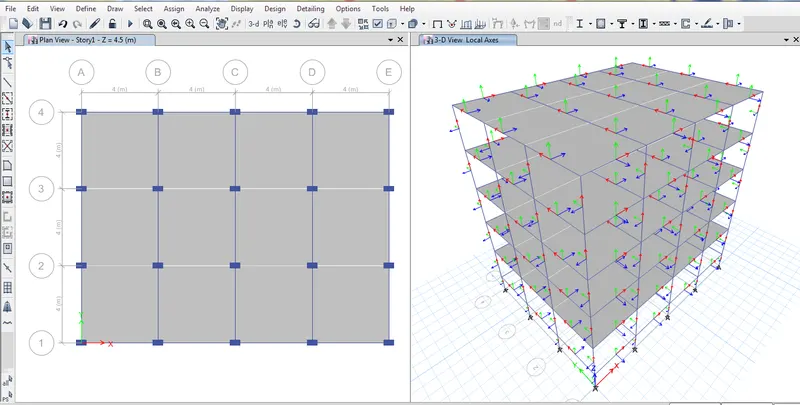

Go select elect properties and selec the column 300X550 and go to assign frame go to local axes rotate angle 90 degree

• For building type D

• For Building type E

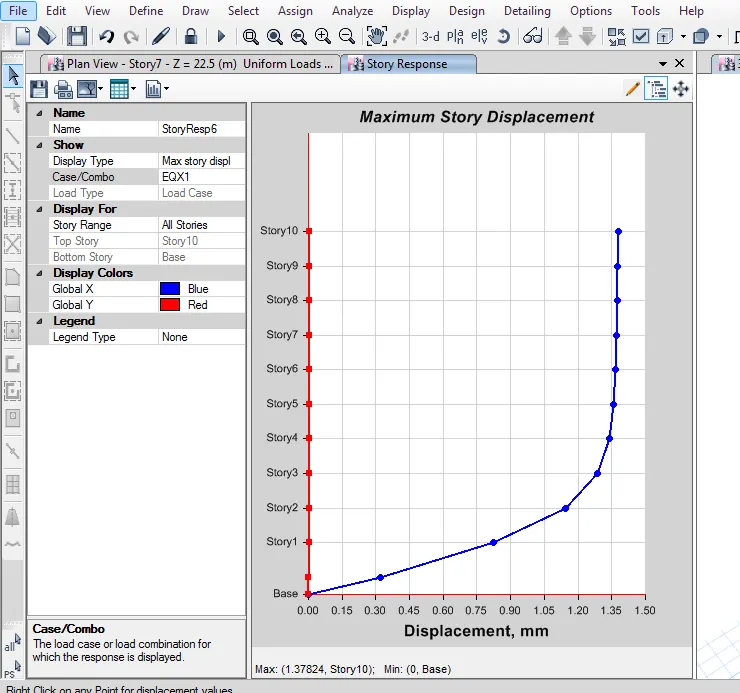

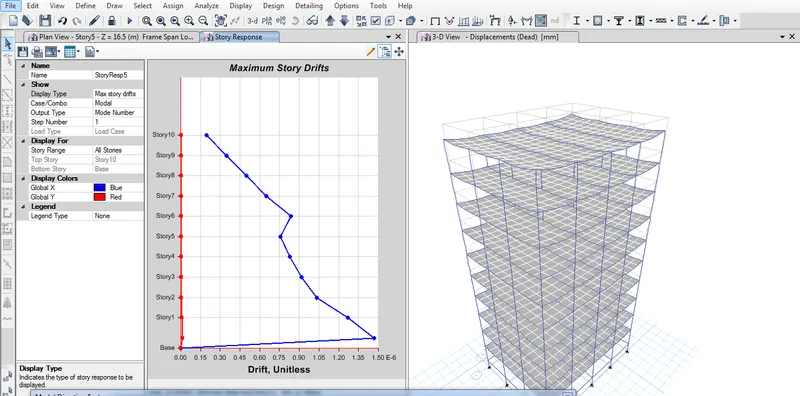

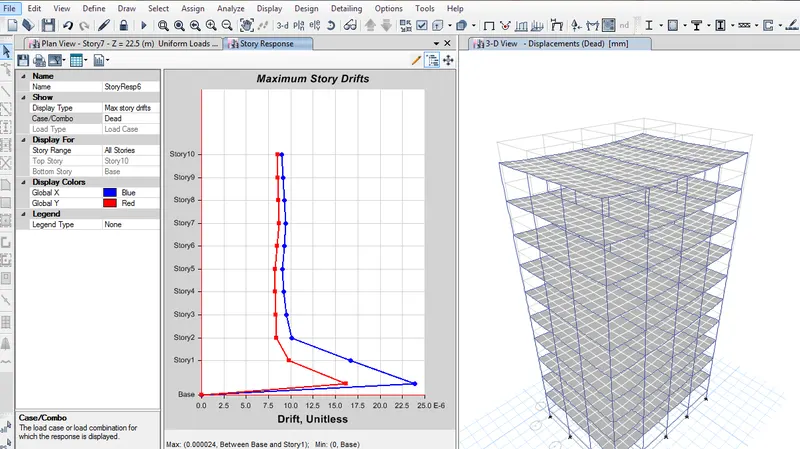

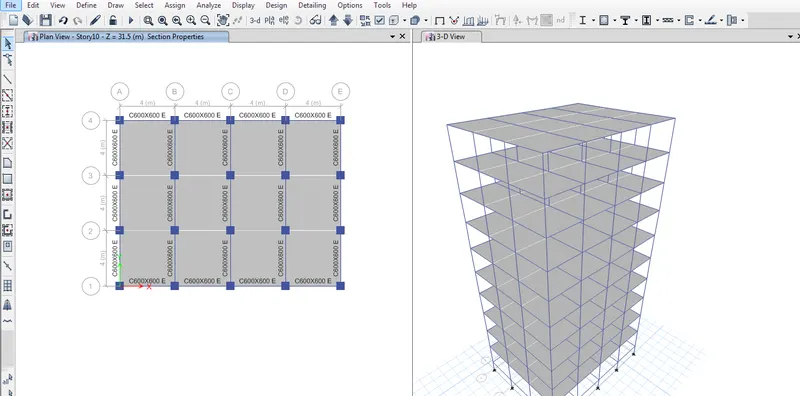

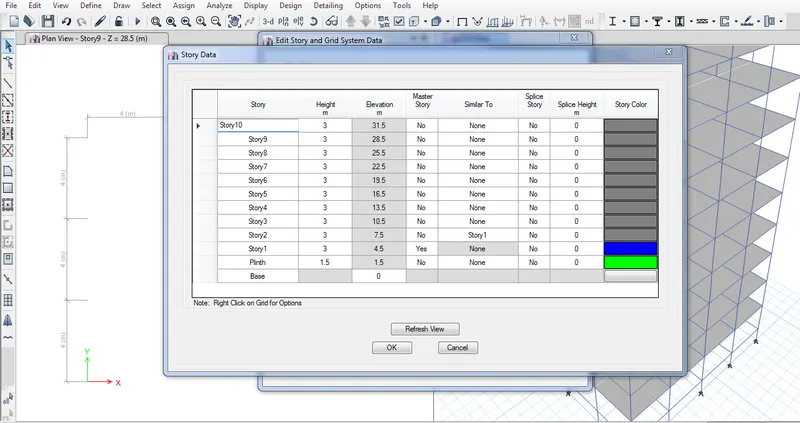

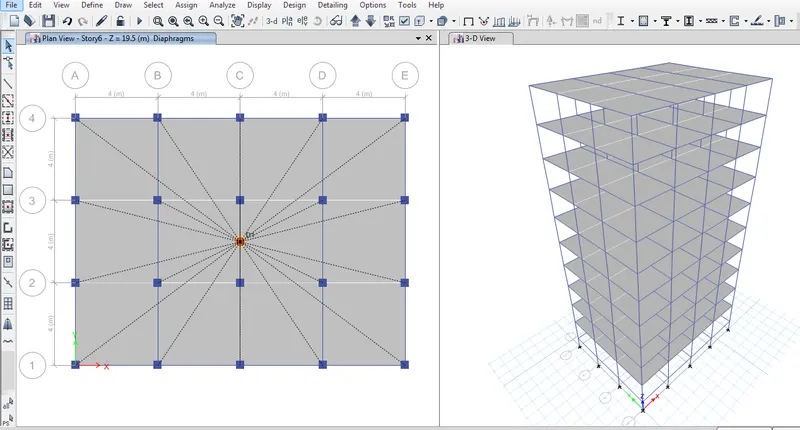

• Go to edit drop down and edit story of building to 10 story

• For Building type E Column with same dimnions throught out its height of building .

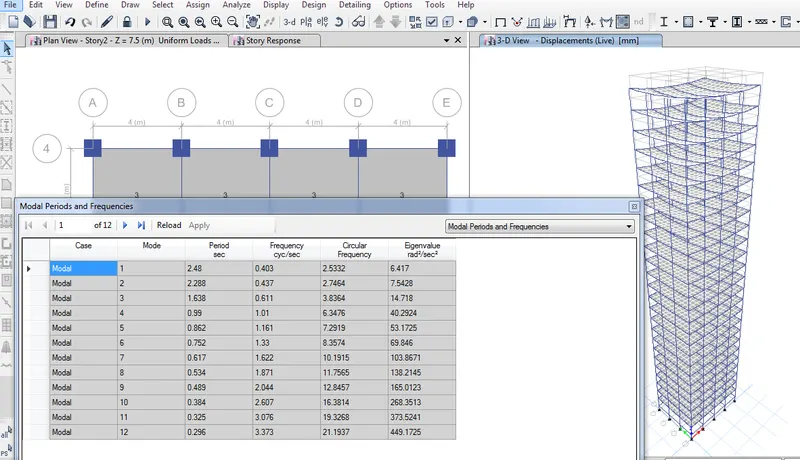

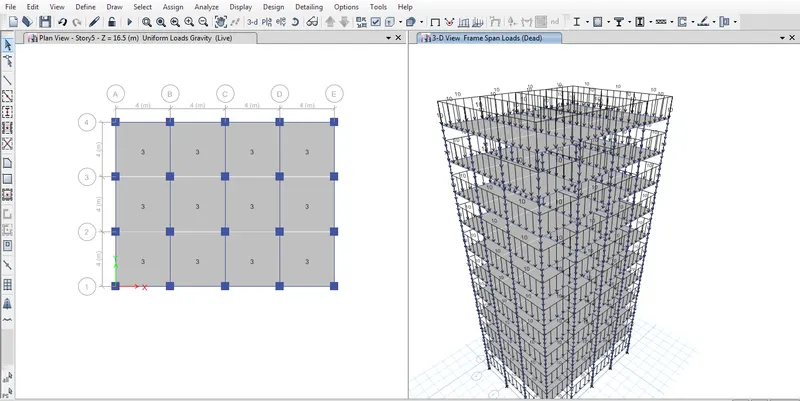

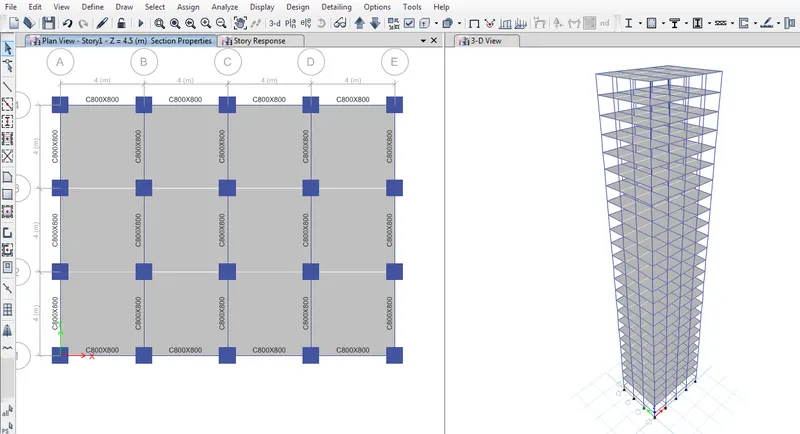

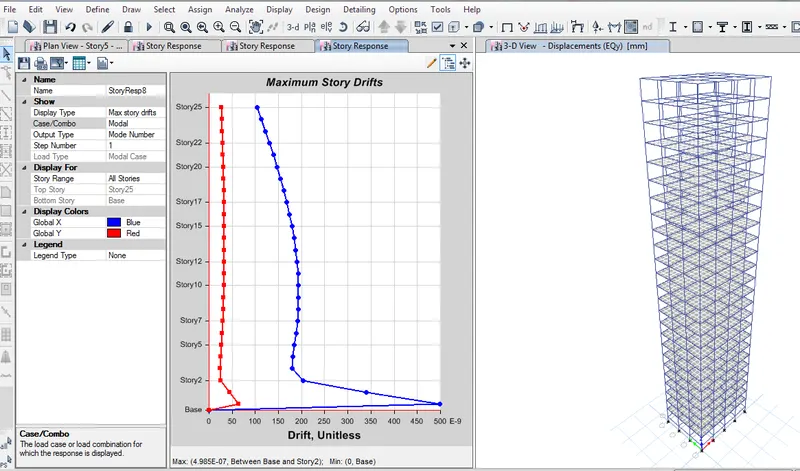

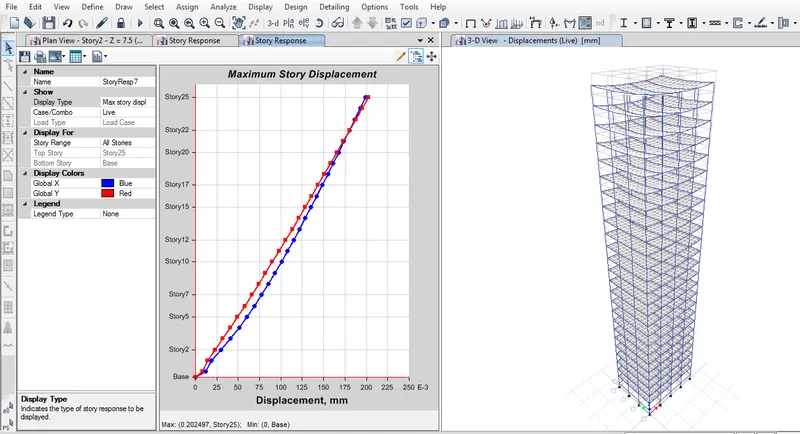

• For Building Type F , G , H with 25 story of building height
