Project 1 : CFD Meshing for Tesla Cyber Truck

Objective:

To perform CFD meshing for the given Tesla cyber truck model by checking and solving all geometrical errors, Assigning appropriate PIDs and Performing meshing with the suitable Target length and element Quality criteria.

Procedure:

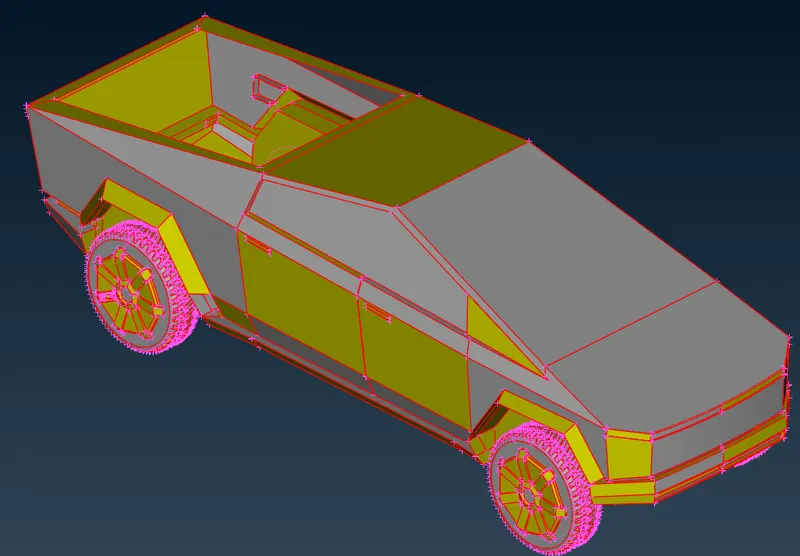

The given model is imported

We use topo tool to make single cons into double cons

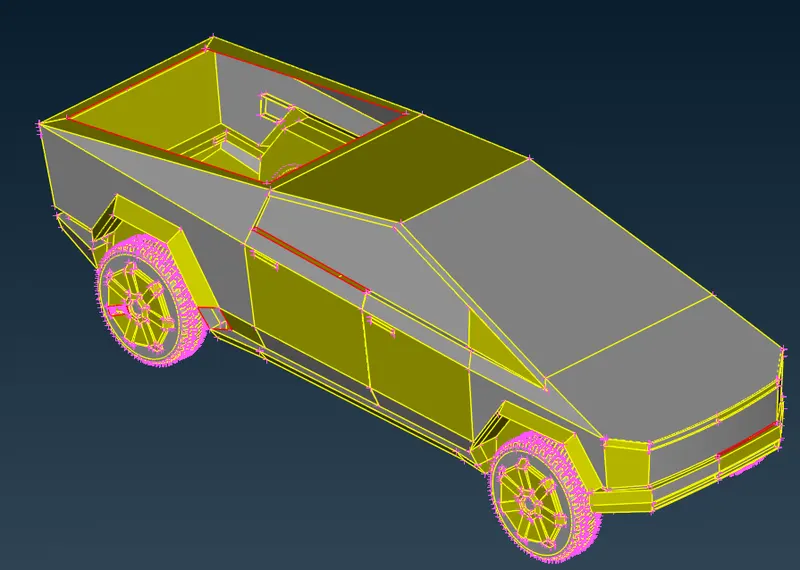

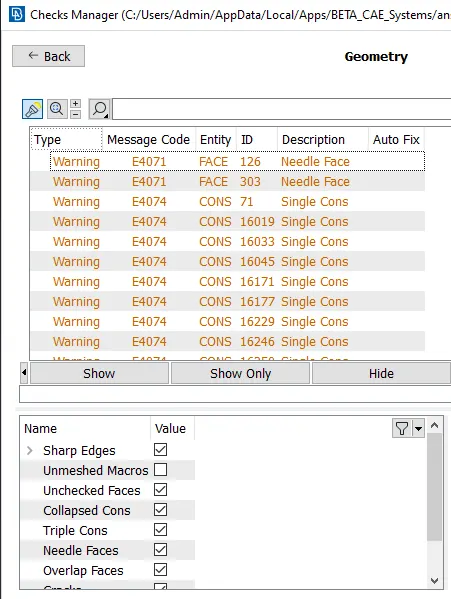

Checking for geometry errors

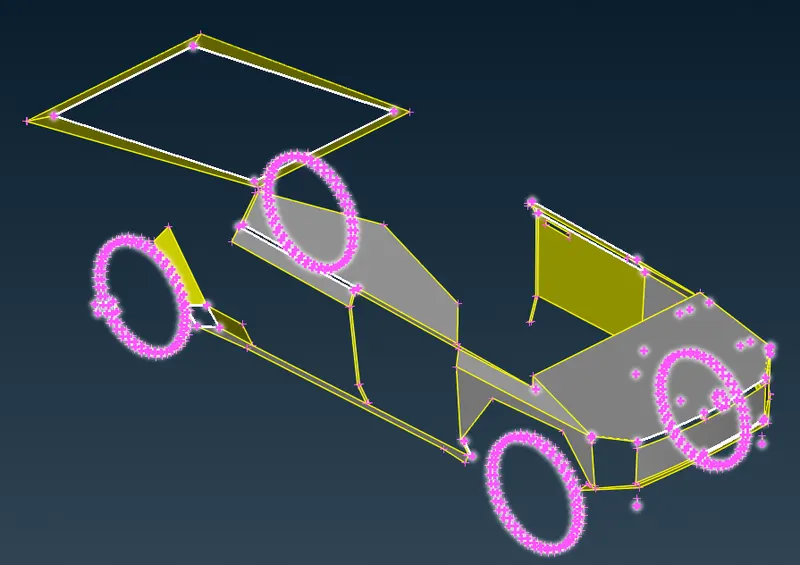

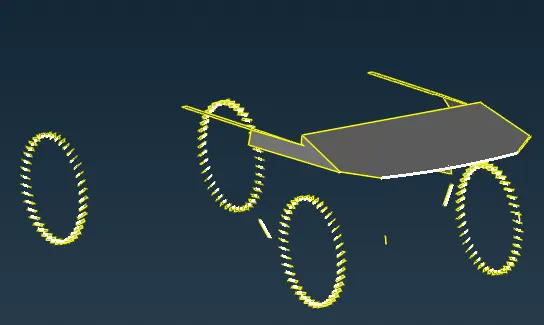

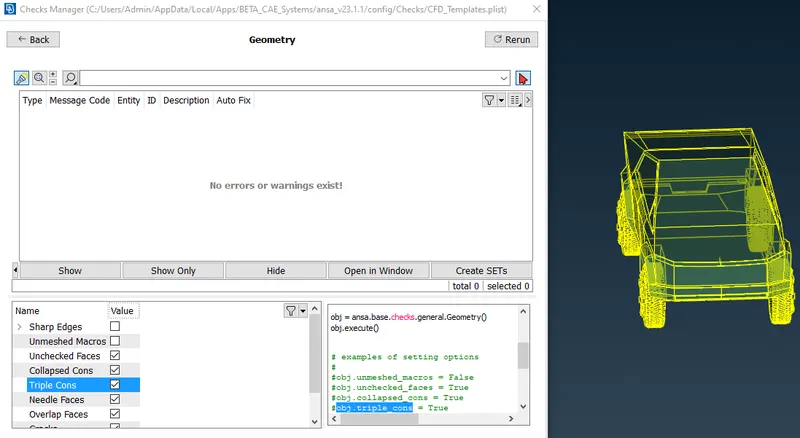

All single cons are fixed by creating new surfaces wherever necessary

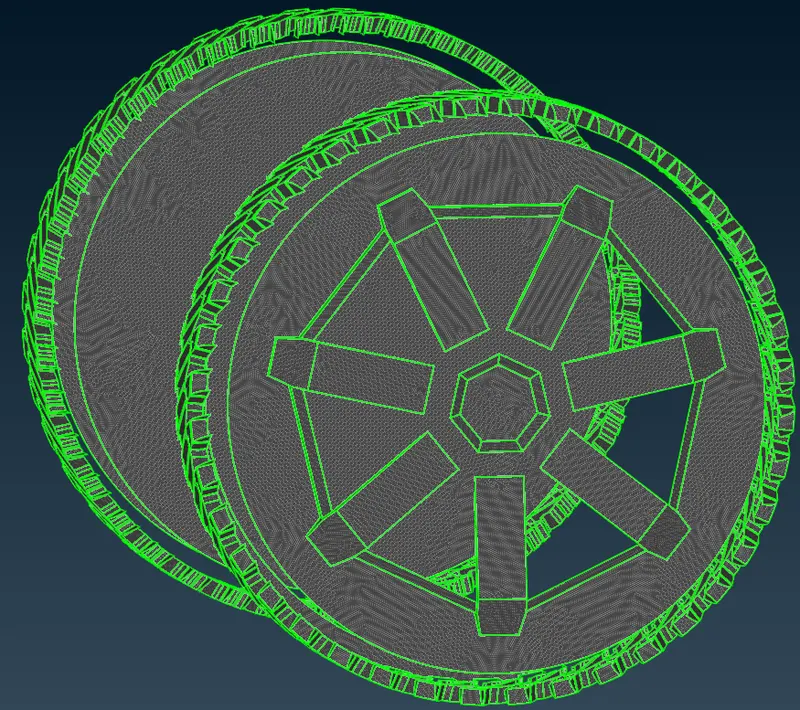

Fixing the wheel by deleting the inside part and closing the holes and finishing topo cleanup

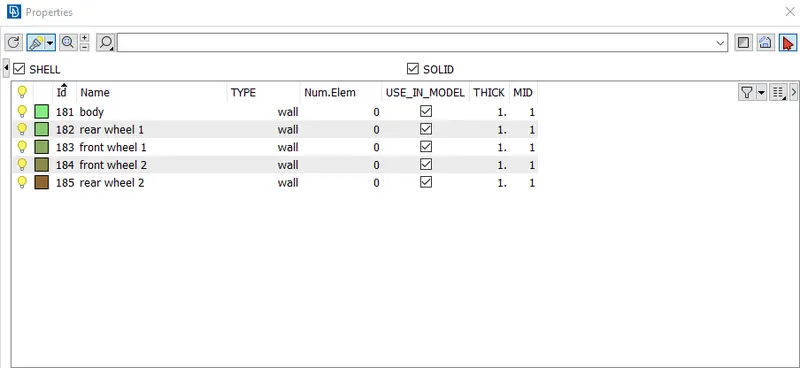

Assigning pid's

Setting target length for each part

Part	Target length
Body	4 mm
Wheels	3 mm

Deleting any surfaces smaller than our target lengths

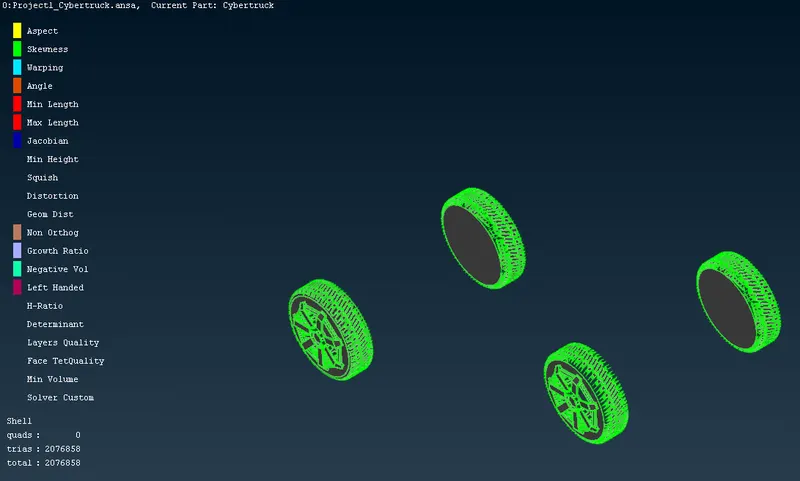

Now meshing for wheel is perfomed

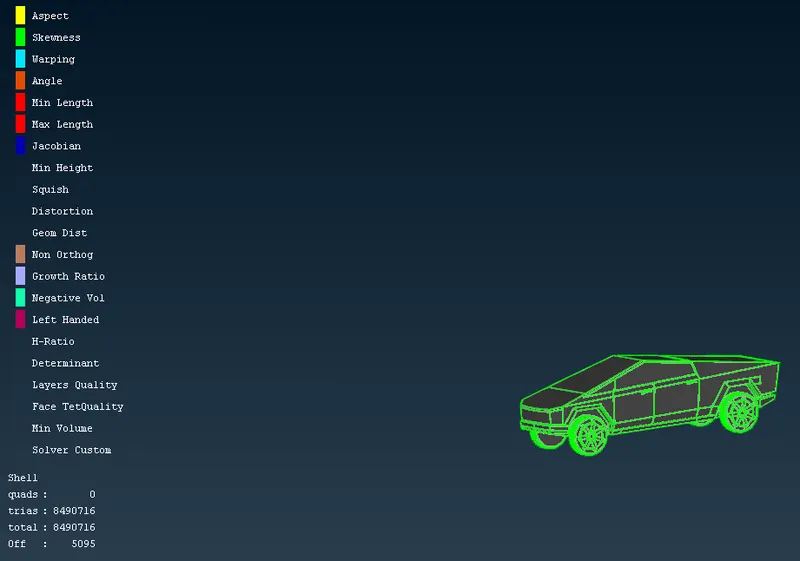

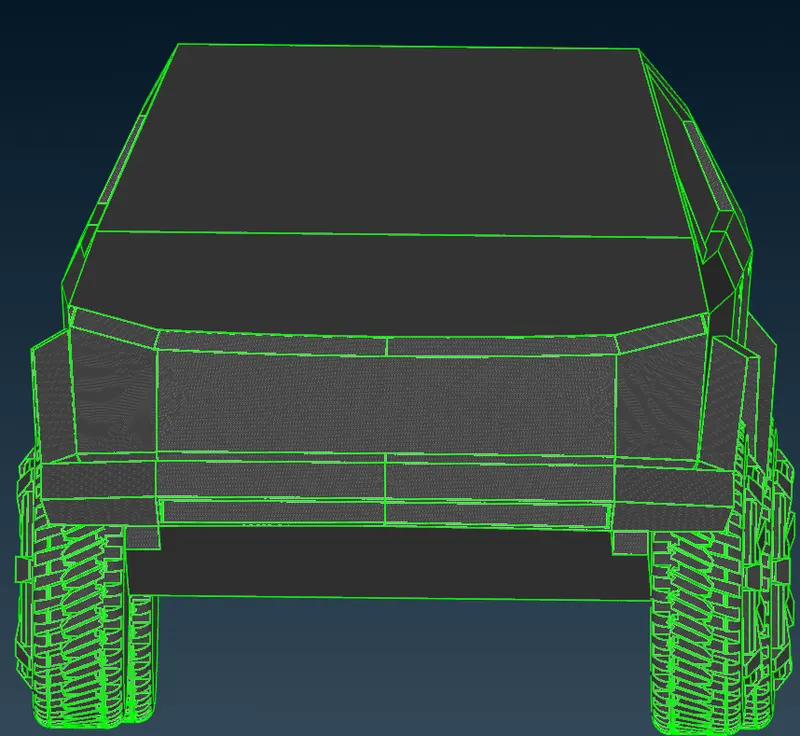

Meshing for body is done

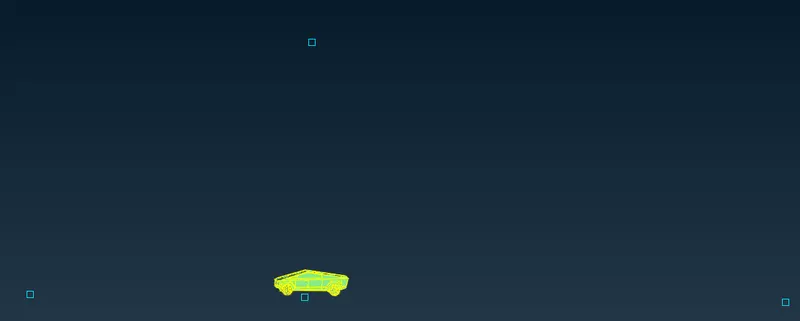

Now we create wind tunnel for the car by creating points and surfaces

The dimension of the wind tunnel can be calculated as:

Side = 1 * length of car

Bottom = close to wheels

Front - 4 * length of car

Back - 6 * length of car

Top - 3 * length of car

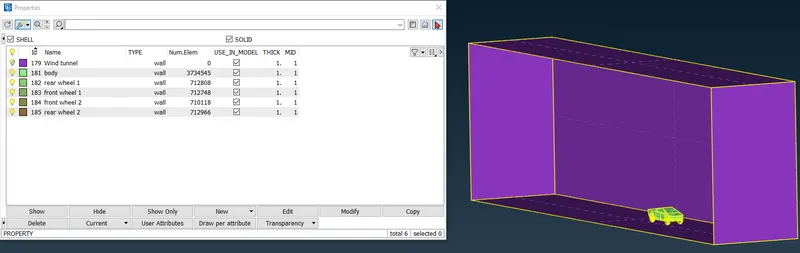

Wind tunnel is created and added into separate pid

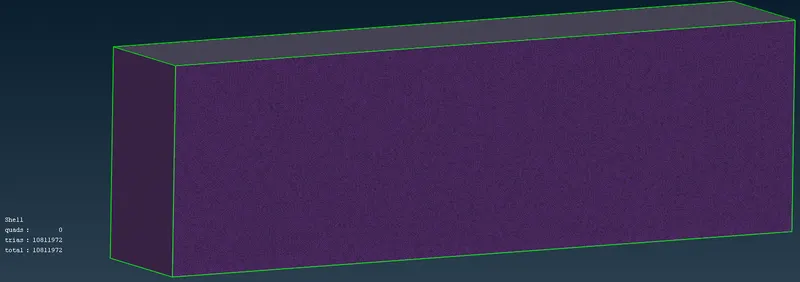

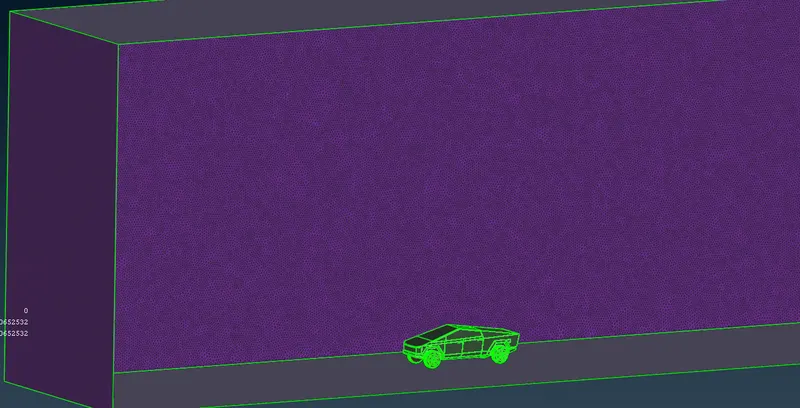

Now surface meshing for wind tunnel is done with a varying size elements

Learning outcomes:

• Full vehicle topo cleanup
• Reconstruct of mesh
• Ways to reduce off elements
• Creating wind tunnel
• Meshing with varying size

Results:
