Project 1 : CFD Meshing for Tesla Cyber Truck

AIM:

To generate CFD meshing For Tesla Cybertruck and Surface mesh for wind tunnel with ANSA software for given mesh constrain.

Procedure:

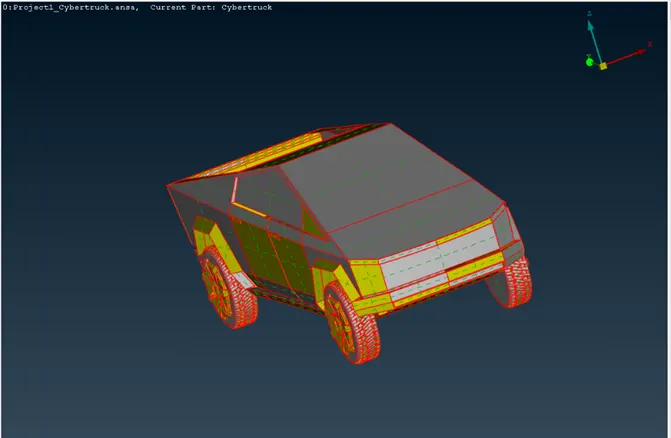

Step 1: Generate Ansa file which is given along with challenge.

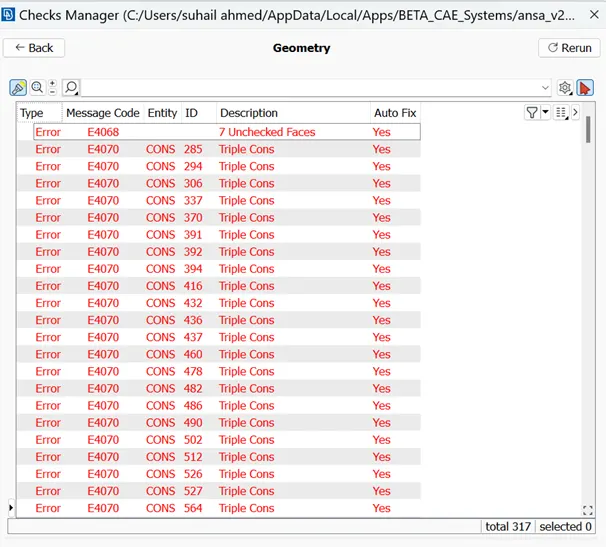

Step 2: Go to checks for detecting geometrical error.

Step 3: Clean the geometrical error with the help of topology tools.

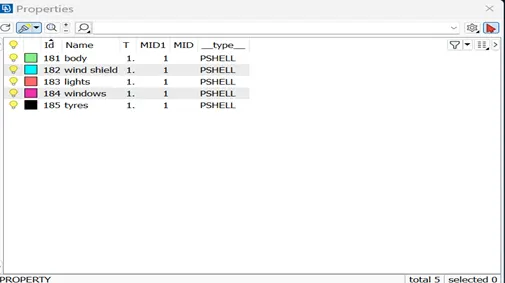

Step 4: Assign PID for all the components separately.

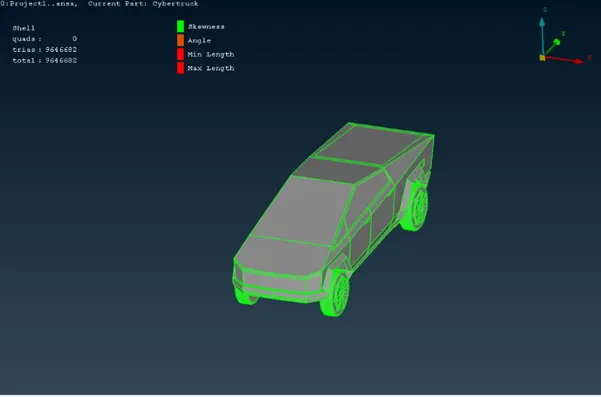

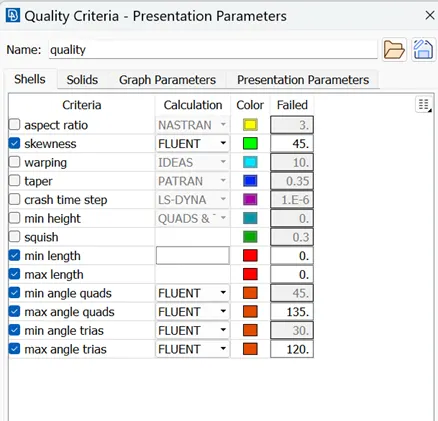

Step 5: Assign the quality criteria for each PID’s.

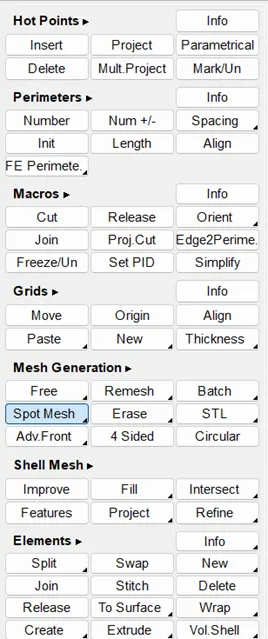

Step 6: Go to surface mesh.

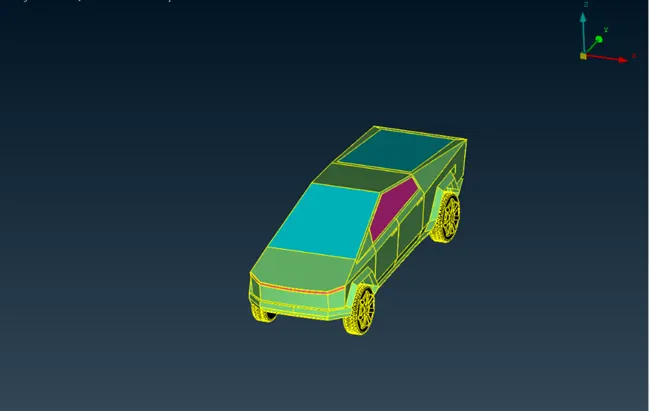

Step 7: Then go to mesh parameters change the target length accordingly to separate constrain given to PID’s and surface mesh every PID’s accordingly.

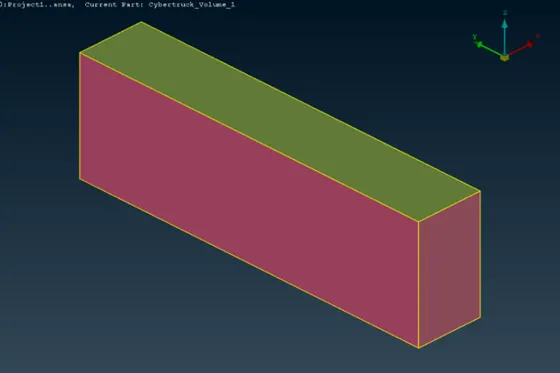

Step 8: After surface meshing of the tesla cybertruck model. Create a Wind Tunnel for CFD Analysis.

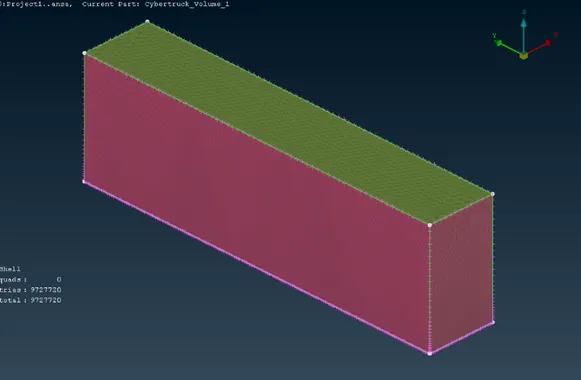

Step 9: For Wind Tunnel surface meshing has been carried out.

Learning outcomes:

• Advanced topology cleanup.
• Solution quality failure of the element in the quality criteria
• How to create a Wind tunnel using ANSA

Result:

Thus, the CFD meshing For Tesla Cybertruck and Surface mesh for wind tunnel are generated successfully.

Conclusion:

I have studied the different types of tools used in the geometric error clean up and Quality criteria setup during the project

completions of CFD meshing for Tesla Cybertruck.

https://drive.google.com/file/d/1wtjzcQaeGtoEZUhgFFsk9WXrWnyhl2Ar/view?usp=share_link
