Project 1 : CFD Meshing for Tesla Cyber Truck

AIM: CFD Meshing for Tesla Cyber Truck

Theory:

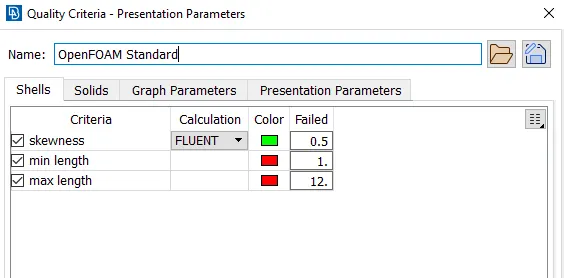

This is incial job.

Then topo the whole geometry.

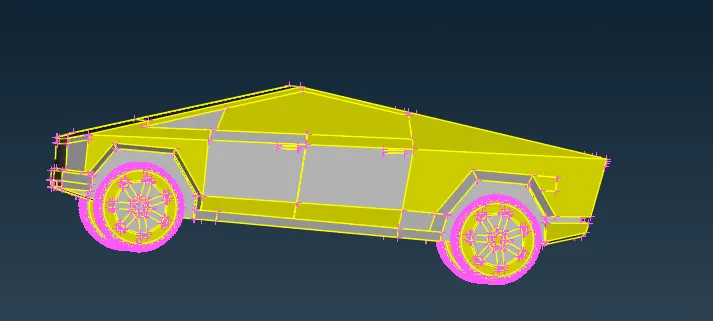

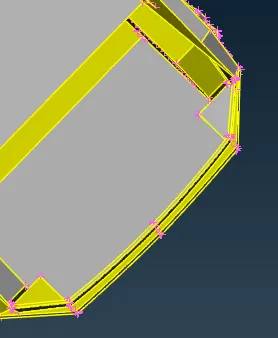

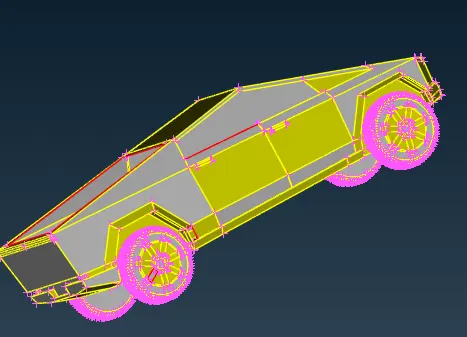

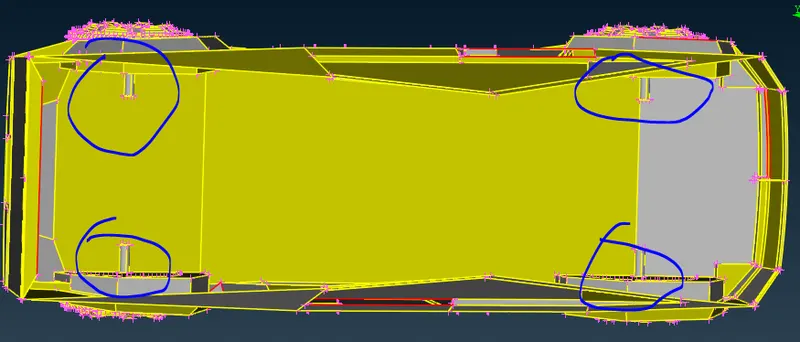

Here these face are missing.

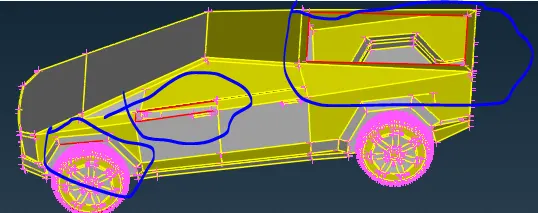

creat all missing faces.

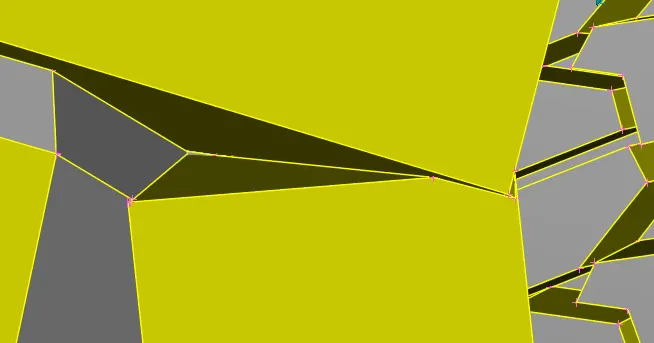

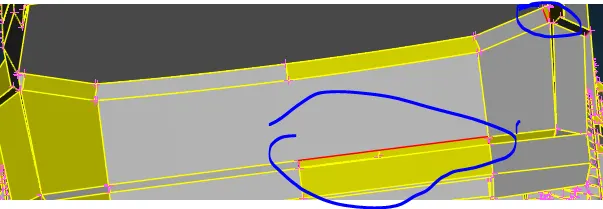

Delete all the extra extra face.

delete all the extra face,and creat missing face.

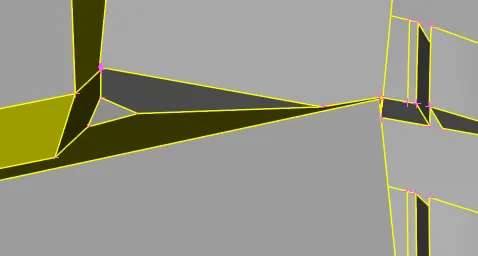

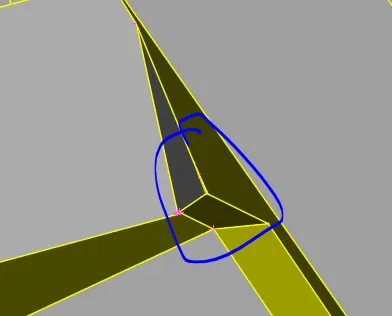

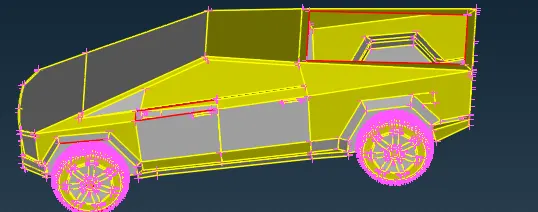

Two intersection was present ,so cut the intersecton part and creat new face.

Creat the new face.

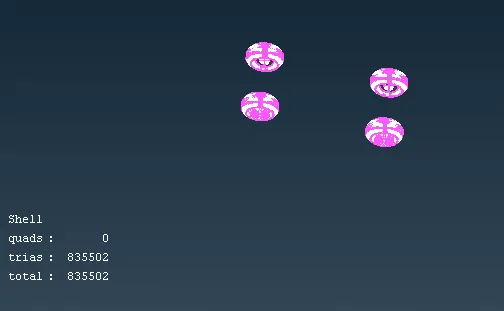

Mesh the tyers in mash length 5mm

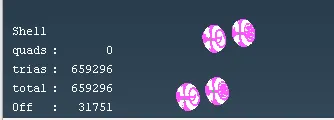

clear all off element

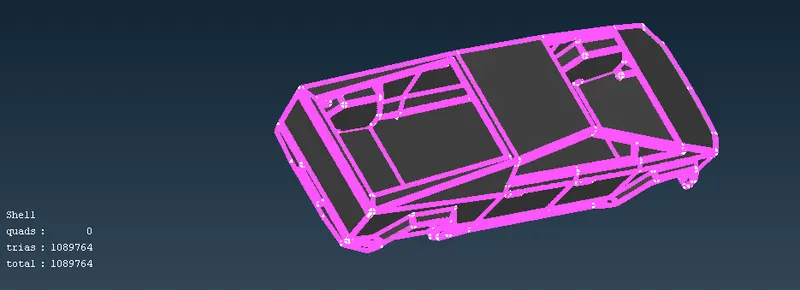

Mash the car in 7mm mash length.

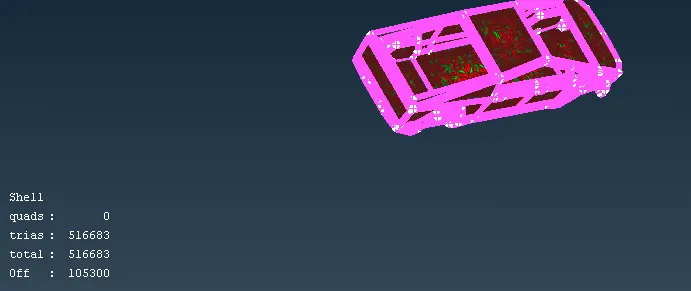

Clear all the off element.

mash the door and carrier cover with mash length 11mm.

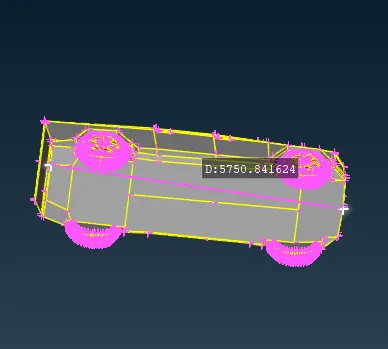

length of truck is 5750

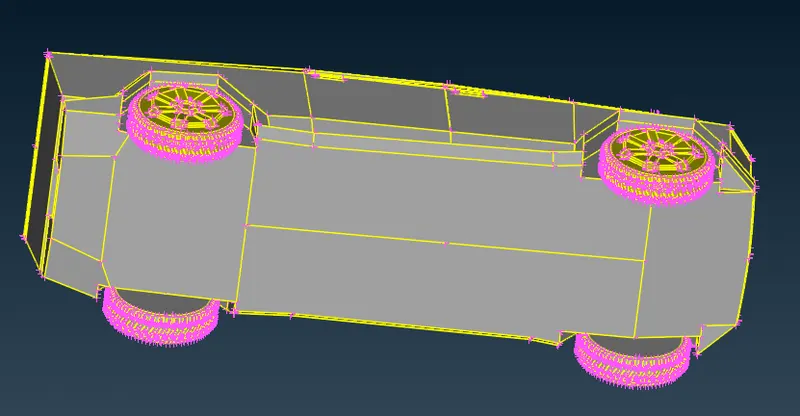

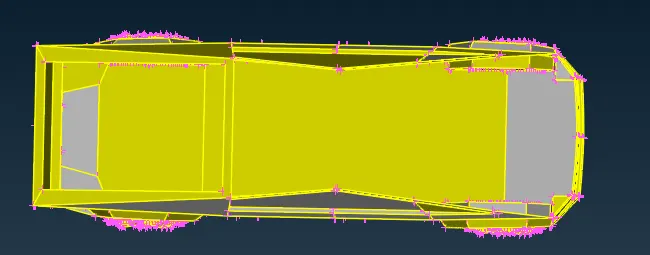

To creat the buttom points bellow the truck cut the buttom face of the truck and creat ahot point.

creat all the point bellow the 1000mm.

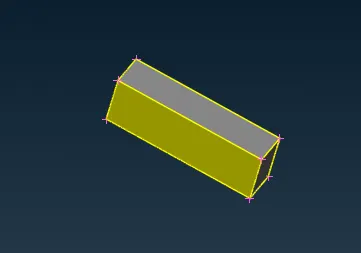

creat buttom face.

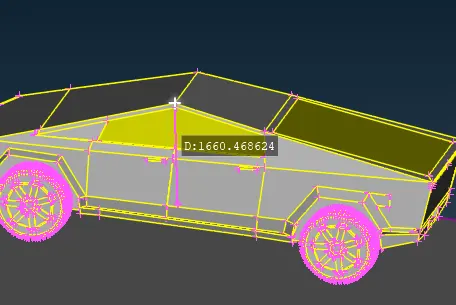

then masure the hight of truck

hight is 1660

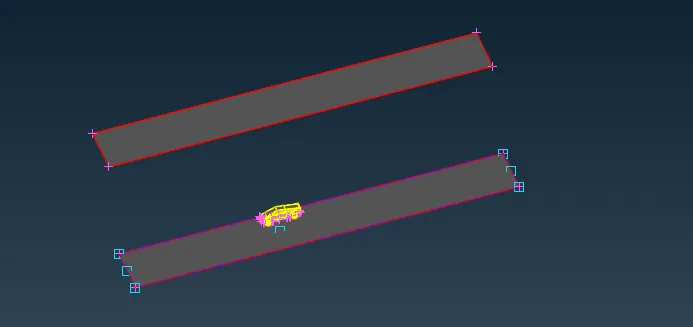

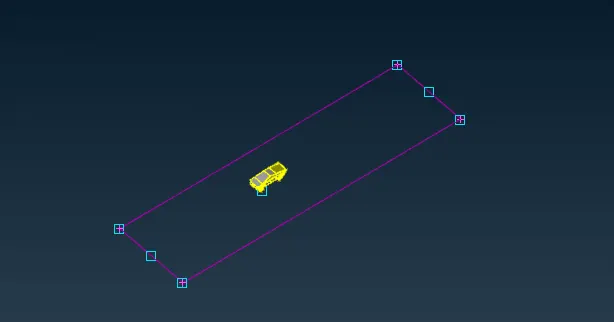

then offset the face buttom face to 19910 to creat the top face.

creat all the other faces.

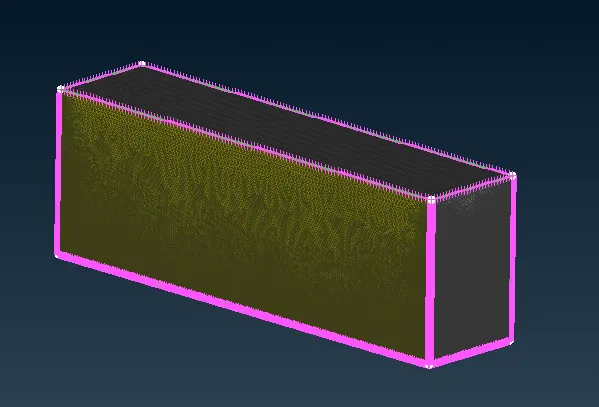

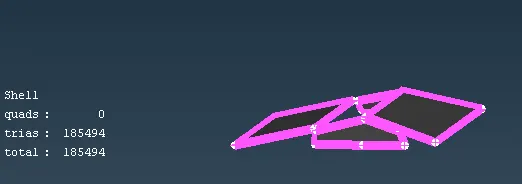

Then mash the buttom face is at 100mm.

top face is at 500mm and side face at gradual mash of 100 and 500 mm.
