Project 1- Building a Master TCL/TK Macro
Objective:
The ideas is to leave the students with a consolidated utility for all the macros developed during the course of this lecture.
- Build a master tcl/tk macro
- It should contain buttons that will call all utilities created as assignments during this course
- Segregate the buttons as per their utility. Color code the buttons as you see fit.
- Display labels that indicate an idea of your segregation
- The design must look ergonomic and clutter free
- Test all the buttons thoroughly on am empty file too.
- Make sure that there are no null cases
Problem Statement:
Creating the tcl code for all of the lectures illustrated in this course.
Code:
set a .window
catch {destroy $a}
toplevel $a -class toplevel

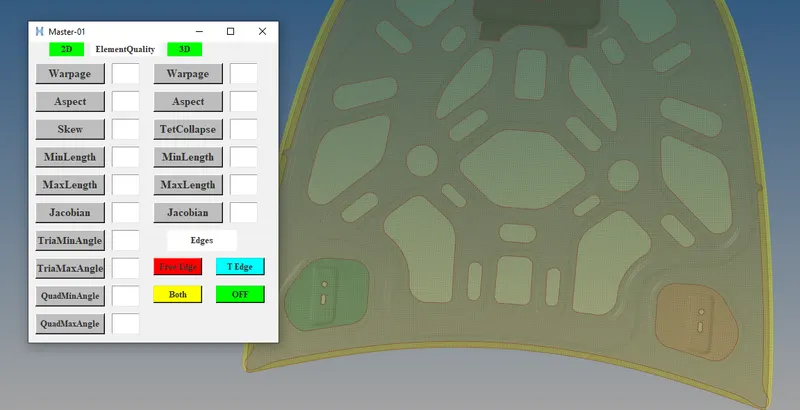

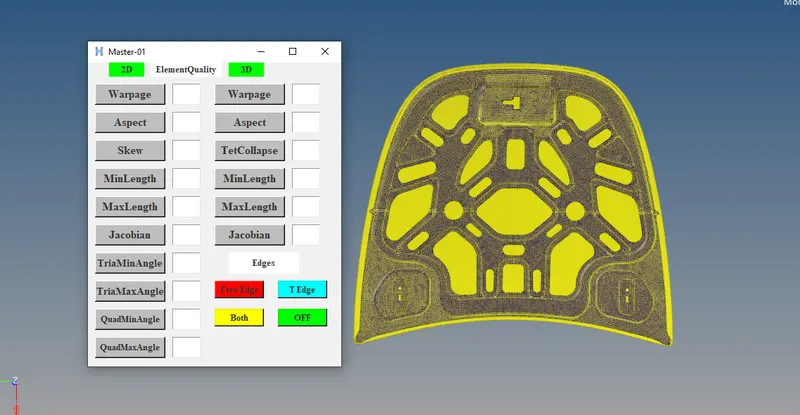

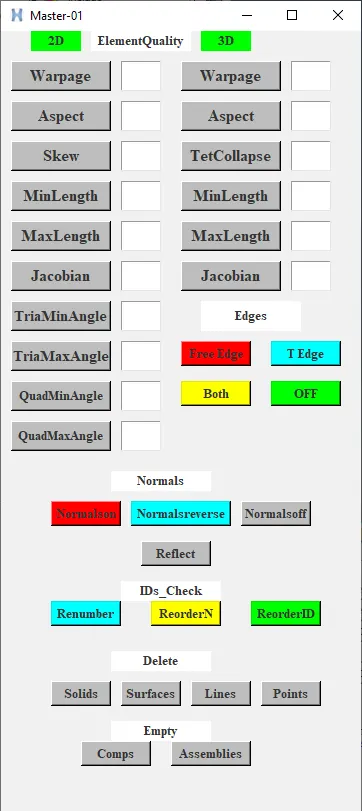

wm title $a "Master-01"
wm geometry $a 360x780+100+200
label $a.21 -text "2D" -bg green -font {times 10 bold}; place $a.21 -x 30 -y 00 -width 50 -height 20
button $a.01 -text "Warpage" -command "Warpage" -bg grey -font {times 12 bold}; place $a.01 -x 10 -y 30 -width 100 -height 30
entry $a.02 -textvariable ::warpage ; place $a.02 -x 120 -y 30 -width 40 -height 30
button $a.03 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.03 -x 10 -y 70 -width 100 -height 30
entry $a.04 -textvariable ::aspect ; place $a.04 -x 120 -y 70 -width 40 -height 30
button $a.05 -text "Skew" -command "Skew" -bg grey -font {times 12 bold}; place $a.05 -x 10 -y 110 -width 100 -height 30
entry $a.06 -textvariable ::skew ; place $a.06 -x 120 -y 110 -width 40 -height 30
button $a.07 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.07 -x 10 -y 150 -width 100 -height 30
entry $a.08 -textvariable ::minlength ; place $a.08 -x 120 -y 150 -width 40 -height 30
button $a.09 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.09 -x 10 -y 190 -width 100 -height 30
entry $a.10 -textvariable ::maxlength ; place $a.10 -x 120 -y 190 -width 40 -height 30
button $a.11 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.11 -x 10 -y 230 -width 100 -height 30
entry $a.12 -textvariable ::jacobian ; place $a.12 -x 120 -y 230 -width 40 -height 30
button $a.13 -text "TriaMinAngle" -command "TriaMinAngle" -bg grey -font {times 11 bold}; place $a.13 -x 10 -y 270 -width 100 -height 30
entry $a.14 -textvariable ::triaminangle ; place $a.14 -x 120 -y 270 -width 40 -height 30
button $a.15 -text "TriaMaxAngle" -command "TriaMaxAngle" -bg grey -font {times 11 bold}; place $a.15 -x 10 -y 310 -width 100 -height 30
entry $a.16 -textvariable ::triamaxangle ; place $a.16 -x 120 -y 310 -width 40 -height 30
button $a.17 -text "QuadMinAngle" -command "QuadMinAngle" -bg grey -font {times 10 bold}; place $a.17 -x 10 -y 350 -width 100 -height 30
entry $a.18 -textvariable ::quadminangle ; place $a.18 -x 120 -y 350 -width 40 -height 30
button $a.19 -text "QuadMaxAngle" -command "QuadMaxAngle" -bg grey -font {times 10 bold}; place $a.19 -x 10 -y 390 -width 100 -height 30
entry $a.20 -textvariable ::quadmaxangle ; place $a.20 -x 120 -y 390 -width 40 -height 30
label $a.22 -text "3D" -bg green -font {times 10 bold}; place $a.22 -x 200 -y 00 -width 50 -height 20
button $a.23 -text "Warpage" -command "Warpage3D" -bg grey -font {times 12 bold}; place $a.23 -x 180 -y 30 -width 100 -height 30
entry $a.24 -textvariable ::warpage3d ; place $a.24 -x 290 -y 30 -width 40 -height 30
button $a.27 -text "Aspect" -command "Aspect" -bg grey -font {times 12 bold}; place $a.27 -x 180 -y 70 -width 100 -height 30
entry $a.28 -textvariable ::aspect3d ; place $a.28 -x 290 -y 70 -width 40 -height 30
button $a.29 -text "TetCollapse" -command "TetCollapse" -bg grey -font {times 12 bold}; place $a.29 -x 180 -y 110 -width 100 -height 30
entry $a.30 -textvariable ::tetcollapse ; place $a.30 -x 290 -y 110 -width 40 -height 30
button $a.31 -text "MinLength" -command "MinLength" -bg grey -font {times 12 bold}; place $a.31 -x 180 -y 150 -width 100 -height 30
entry $a.32 -textvariable ::minlength3d ; place $a.32 -x 290 -y 150 -width 40 -height 30
button $a.33 -text "MaxLength" -command "MaxLength" -bg grey -font {times 12 bold}; place $a.33 -x 180 -y 190 -width 100 -height 30
entry $a.34 -textvariable ::maxlength3d ; place $a.34 -x 290 -y 190 -width 40 -height 30
button $a.25 -text "Jacobian" -command "Jacobian" -bg grey -font {times 12 bold}; place $a.25 -x 180 -y 230 -width 100 -height 30
entry $a.26 -textvariable ::jacobian3d ; place $a.26 -x 290 -y 230 -width 40 -height 30
label $a.36 -text "Edges" -bg white -font {times 10 bold}; place $a.36 -x 200 -y 270 -width 100 -height 30
button $a.37 -text "Free Edge" -command {FreeEdges} -bg Red -font {times 10 bold}; place $a.37 -x 180 -y 310 -width 70 -height 25
button $a.38 -text "T Edge" -command {TEdges} -bg cyan -font {times 10 bold}; place $a.38 -x 270 -y 310 -width 70 -height 25
button $a.39 -text "Both" -command {Both} -bg yellow -font {times 10 bold}; place $a.39 -x 180 -y 350 -width 70 -height 25
button $a.40 -text "OFF" -command {OFF} -bg green -font {times 10 bold}; place $a.40 -x 270 -y 350 -width 70 -height 25
label $a.41 -text "ElementQuality" -bg white -font {times 10 bold}; place $a.41 -x 90 -y 00 -width 100 -height 20

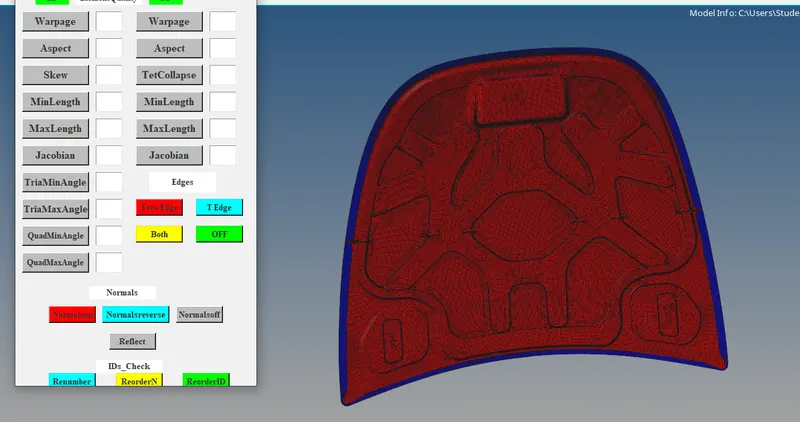

label $a.42 -text "Normals" -bg white -font {times 10 bold}; place $a.42 -x 110 -y 440 -width 100 -height 20
button $a.43 -text "Normalson" -command {Normalson} -bg red -font {times 10 bold}; place $a.43 -x 50 -y 470 -width 70 -height 25
button $a.44 -text "Normalsreverse" -command {Normalsreverse} -bg cyan -font {times 10 bold}; place $a.44 -x 130 -y 470 -width 100 -height 25
button $a.45 -text "Normalsoff" -command {Normalsoff} -bg grey -font {times 10 bold}; place $a.45 -x 240 -y 470 -width 70 -height 25
button $a.46 -text "Reflect" -command {Reflect} -bg grey -font {times 10 bold}; place $a.46 -x 140 -y 510 -width 70 -height 25
label $a.47 -text "IDs_Check" -bg white -font {times 10 bold}; place $a.47 -x 120 -y 550 -width 100 -height 20
button $a.48 -text "Renumber" -command {renumber} -bg cyan -font {times 10 bold}; place $a.48 -x 50 -y 570 -width 70 -height 25
button $a.49 -text "ReorderN" -command {reorderbyname} -bg yellow -font {times 10 bold}; place $a.49 -x 150 -y 570 -width 70 -height 25
button $a.50 -text "ReorderID" -command {reorderbyid} -bg green -font {times 10 bold}; place $a.50 -x 250 -y 570 -width 70 -height 25
label $a.52 -text "Delete" -bg white -font {times 10 bold}; place $a.52 -x 110 -y 620 -width 100 -height 20
button $a.51 -text "Solids" -command "delete solids" -bg grey -font {times 10 bold}; place $a.51 -x 50 -y 650 -width 60 -height 25
button $a.53 -text "Surfaces" -command "delete surfaces" -bg grey -font {times 10 bold}; place $a.53 -x 120 -y 650 -width 60 -height 25
button $a.54 -text "Lines" -command "delete Lines" -bg grey -font {times 10 bold}; place $a.54 -x 190 -y 650 -width 60 -height 25
button $a.55 -text "Points" -command "delete points" -bg grey -font {times 10 bold}; place $a.55 -x 260 -y 650 -width 60 -height 25
label $a.56 -text "Empty" -bg white -font {times 10 bold}; place $a.56 -x 110 -y 690 -width 100 -height 20
button $a.57 -text "Comps" -command "empty comps" -bg grey -font {times 10 bold}; place $a.57 -x 80 -y 710 -width 70 -height 25
button $a.58 -text "Assemblies" -command "empty assemblies" -bg grey -font {times 10 bold}; place $a.58 -x 170 -y 710 -width 80 -height 25
proc Warpage {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage 2 2 0 "2D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Warpage3D {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestwarpage elements 1 $::warpage3d 2 4 0 "3D Warpage"
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect 2 2 0 " 2D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Aspect {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestaspect elements 1 $::aspect3d 2 4 0 " 3D Aspect Ratio "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Skew {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtestskew elements 1 $::skew 2 2 0 " 2D Skew "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TetCollapse {} {
*clearmarkall 1
*clearmarkall 2
*createmark elements 1 "displayed"
*elementtesttetracollapse elements 1 $::tetcollapse 2 0 " 3D Tetra Collapse "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength 2 1 2 0 " 2D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength 2 0 2 0 " 2D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MinLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::minlength3d 2 1 4 0 " 3D Length < "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc MaxLength {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestlength elements 1 $::maxlength3d 2 0 4 0 " 3D Length > "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian 2 2 0 " 2D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc Jacobian {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestjacobian elements 1 $::jacobian3d 2 4 0 " 3D Jacobian "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TriaMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triaminangle 1 2 1 2 0 " 2D Tria Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc TriaMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::triamaxangle 1 2 0 2 0 " 2D Tria Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc QuadMinAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadminangle 0 2 1 2 0 " 2D Quad Min Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc QuadMaxAngle {} {
*clearmarkall 1
*clearmarkall 2
*nodecleartempmark
*createmark elements 1 "displayed"
*elementtestinterangle elements 1 $::quadmaxangle 0 2 0 2 0 " 2D Quad Max Angle "
*maskentitymark elements 2 0
*maskreverse elements
*createmark nodes 1 "displayed"
*nodemarkaddtempmark 1
*unmaskall2
}
proc FreeEdges {} {
*setdisplayattributes 4 1
*createmark elements 1 "displayed"
if {[hm_entityinfo exist comps FreeEdges ]==0 } {
*findedges1 elements 1 0 0 0 30
*setvalue comps name={^edges} name={FreeEdges}
*createmark components 1 "FreeEdges"
*setvalue components mark=1 color=3
*createmark elems 1 "displayed"
*equivalence elems 1 0.01 0 0 0
*equivalence elems 1 0.01 3 0 0
*createmark nodes 1 "retrieve"
*nodemarkaddtempmark 1
} else {
tk_messageBox -message "Already Exists" -icon info -type ok
}
}
proc TEdges {} {
*setdisplayattributes 4 1
*createmark elements 1 "displayed"
if {[hm_entityinfo exist comps TEdges ]==0 } {
*findedges1 elements 1 0 0 0 30
*setvalue comps name={^edges} name={TEdges}
*createmark components 1 "TEdges"
*setvalue components mark=1 color=30
} else {
tk_messageBox -message "Already Exists" -icon info -type ok
}
}
proc Both {} {
FreeEdges;
TEdges;
}
proc OFF {} {
*createmark components 1 "FreeEdges" "TEdges"
*deletemark components 1
*setdisplayattributes 2 0
*clearmark nodes 1
*nodecleartempmark 1
}
proc Normalson {} {
*clearmarkall 1
*setnormalsdisplaytype 1
*createmark elements 1 "displayed"
*normalsdisplay elements 1
}
proc Normalsoff {} {
*normalsoff
}
proc Normalsreverse {} {
*createmark elements 1 "displayed"
*normalsreverse elements 1
}
proc abaqus {a t1} {
set n [concat $a$t1]
if {[hm_entityinfo exist comps $n]==0} {
*createentity comps name=$n
*createmark comps 1 $n
set compid [hm_getmark comps 1]} else {puts "Entity already exists"}
if {[hm_entityinfo exist props $n]==0} {
*createentity props cardimage=SHELLSECTION includeid=0 name=$n
*createmark properties 2 $n
set propid [hm_getmark props 2]
set clr [hm_getvalue comps name=$n dataname=color]
*setvalue props id=$propid STATUS=1 111=$t1 color=$clr
*setvalue comps id=$compid propertyid ={props $propid}}
}
proc Reflect {a} {
*clearmarkall 1 ; *clearmarkall 2
set name [hm_getstring Component_Name "Enter the reflect component name ends with _"]
*createmarkpanel comps 1 "Select the reflect component"
set o_geom [hm_getmark comps 1]
*createmarkpanel comps 1 "Select the target geometry Component"
set t_geom [hm_getmark comps 1]
*createmarkpanel comps 1 "Select the reflect FE components"
set o_fea [hm_getmark comps 1]
set profile [hm_info templatetype]
foreach i $o_fea {
set t [hm_getthickness comps $i]
set old_n [hm_entityinfo name comps $i]
set u [string index $t 0]
set v [string index $t 2]
set p p
set Ts $u$p$v
set n [concat $name$Ts]
$profile $name $Ts
*createmark elems 1 $old_n
*copymark elems 1 $n
*displaycollectorwithfilter comps "off" "$old_n" 1 0
}
*createmark comps 2 "displayed"
*autocolorwithmark comps 2
*clearmarkall 1 ; *clearmarkall 2
*createmark surfaces 1 "by collector" $o_geom
set o_cog [hm_getcentroid surfaces 1]
*createnode [lindex $o_cog 0] [lindex $o_cog 1] [lindex $o_cog 2] 0
*createmark nodes 2 -1
set o_node [hm_getmark nodes 2]
*createmark surfaces 1 "by collector" $t_geom
set t_cog [hm_getcentroid surfaces 1]
*createnode [lindex $t_cog 0] [lindex $t_cog 1] [lindex $t_cog 2] 0
*createmark nodes 2 -1
set t_node [hm_getmark nodes 2]
set intercepts [hm_getdistance nodes $o_node $t_node 0]
*clearmarkall 1
*createnodesbetweennodes $o_node $t_node 1
*createmark nodes 1 -1
set m_node [hm_getmark nodes 1]
set m_nodeinfo [hm_nodevalue $m_node]
*clearmarkall 1
*createmark elems 1 "displayed"
*createplane 1 [lindex $intercepts 1] [lindex $intercepts 2] [lindex $intercepts 3] [lindex $m_nodeinfo 0 0] [lindex $m_nodeinfo 0 1] [lindex $m_nodeinfo 0 2]
*reflectmarkwithoption elems 1 1 0
*clearmarkall 1; *clearmarkall 2
*createmark comps 1 "displayed"
*equivalence comps 1 0.01 1 0 0
}
proc renumber {a} {
*clearmarkall 1
*createmark $a 1 "all"
if {[hm_marklength $a 1] !=0} {*renumber $a 1 100 1 0 0 }
}
proc reorderbyname {a} {
*clearmarkall 1
*createmark $a 1 "all"
if {[hm_marklength $a 1] !=0} {*collectormarkmove $a 1 1 1}
}
proc reorderbyid {a} {
*clearmarkall 1
*createmark $a 1 "all"
if {[hm_marklength $a 1] !=0} {*collectormarkmove $a 1 1 2}
}
proc delete {a} {
*createmark $a 1 "displayed"
if {[hm_marklength $a 1] !=0} {*deletemark $a 1}
}
proc empty {a} {
*EntityPreviewEmpty $a 1
if {[hm_marklength $a 1] !=0} {*deletemark $a 1}
}
On entering the above tcl code into the hypermesh software a window will be displayed as shown in below fig.
From the above buttons in the window by clicking on their respective button it want to perform the required operation.Some of the operations are
shown in the below figures.
Quality Criteria
Free edges
Normals
Conclusion:
Thus,i have created the tcl code for all of the lectures illustrated in this course such as for quality criteria, free edges,T edges,Normals,Reverse
normals,deletion and empty operations.
