Project 1

• Power_Demand is the input (Repeating Sequence Stair)
• Battery_Power,FC_Power and FC_Operating_State are the outputs(display)

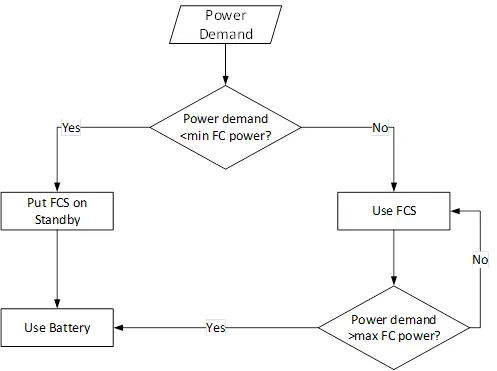

As per the flowchart the model is designed

The function Blocks used are as follows :

• Inport
• Outport
• Repeating Sequence Stair
• Subsytem
• Switch
• Compare to constant
• Constant
• Add
• Goto & From
• Display

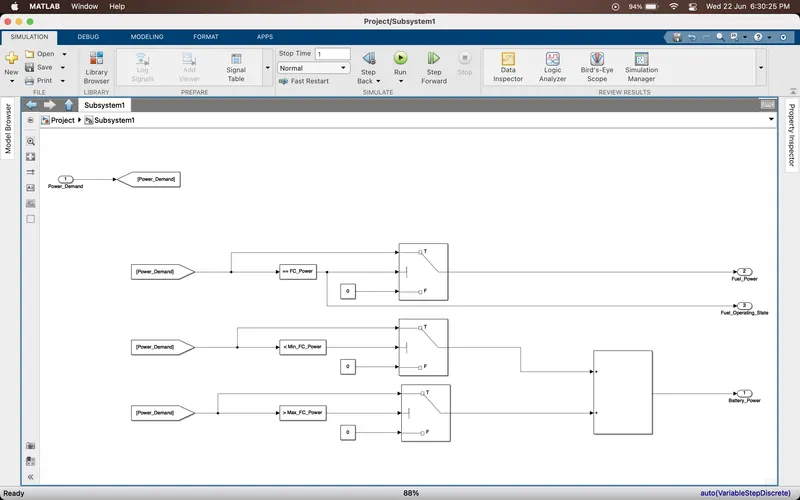

Creating a subsytem

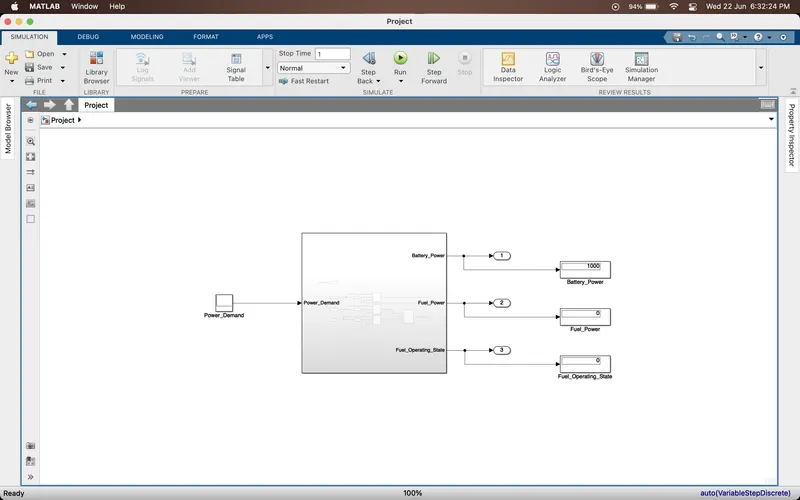

Case_1 :

When Power_Demand ~< Min_FC_Power the output is delivered as FC_Power and FC_Operating_State is 1 which indicates its running and when Power_Demand ~> Max_FC_Power the output is delivered as Fuel_Power

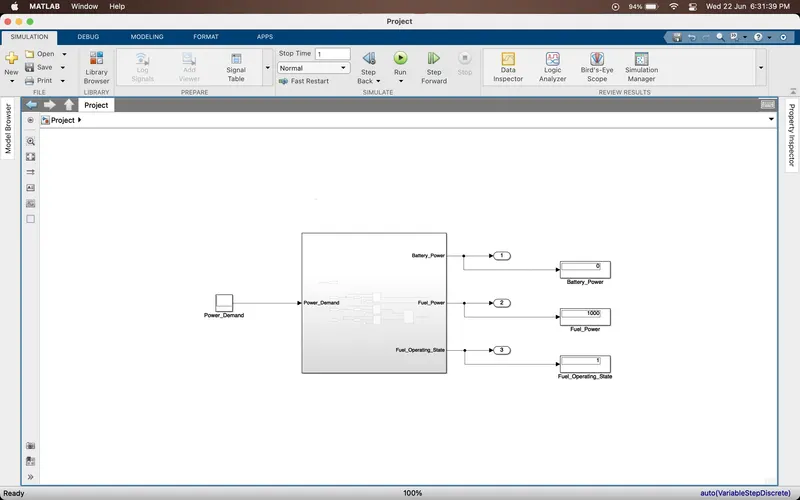

Case_2 :

When Power_Demand < Min_FC_Power the output is delivered as Battery_Power and FC_Operating_State is 0 which indicates it is in standby mode and when Power_Demand > Max_FC_Power the output is delivered as Battery_Power

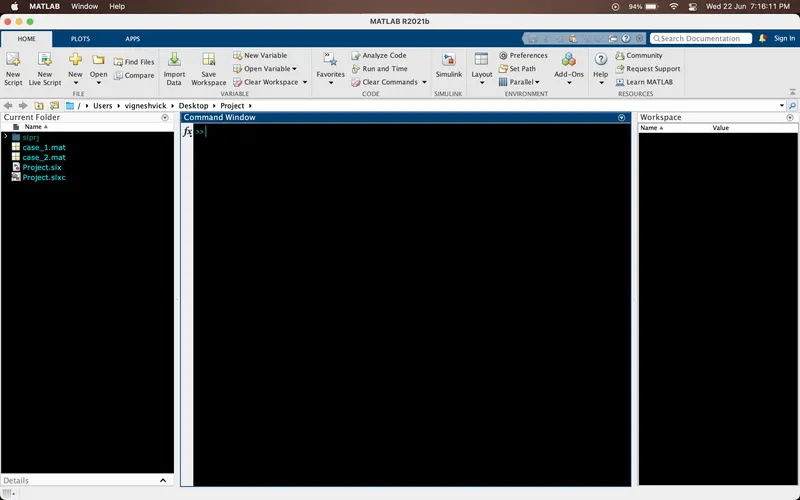

Both the cases are loaded as .mat file

Note : All are files are attached as zip file
