Project 1

• A MATLAB code "Project_InitFile.m" was created to load the variable to the workspace. This project considers a typical midsize car with a 1.9L engine and a 4-speed automatic transmission. Data is taken from the ADVISOR database developed by NREL, USA. The transmission shift map and controller is taken from Matlab/Simulink example database.

• The model developed can simulate the vehicle on different drive cycles like UDDS, HWFET, FTP, NEDC, etc.

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%% Skill-Lync -> Hybrid Drives Development
% Project 1 - Conventional Vehicle Model
% By - Ullekh Gambhira

% Description:

%% Initialization File
% Initialization file for loading the variables for the Conventional vehicle simulation model

%% Vehicle Parameters
M = 1500;       % Vehicle weight [kg]
Cr = 0.015;     % Rolling resistance coefficient
Rw = 0.35;      % Rolling radius [m]
Cd = 0.33;      % Drag coefficient
Af = 2;         % Frontal area [m2]
rhoa = 1.225;   % Air density [kg/m3]
Vwind = 0;      % Wind velocity [kmph]
g = 9.81;       % Gravitational acceleration [m/s2]
theta = 0;      % Slope [deg]
myu_road_tire = 1; % Coefficient of friction between tire - road interface

%% Powertrain Parameters
FDR = 3.73;                         % Final Drive Ratio / Diff Ratio
DiffEff = 0.99;                     % Differential efficiency (assumed independent of operating conditions)

NumGear = 4;                        % Number of gears in transmission
TransGear = [1:NumGear];            % Transmission Gears
TransRatio = [3.06, 1.62, 1, 0.7];  % Corresponding Transmission ratios
TransEff = 0.90;                    % Transmission efficiency (assumed independent of operating conditions)

TC_SR = [0, .5, .6, .7, .8, .87, .92, .94, .96, .97, 1];   % Torque Converter Speed Ratio (Matlab default) -> TurbSpd/PumpSpd
TC_TR = [2.232, 1.5462, 1.4058, 1.2746, 1.1528, 1.0732, 1.0192, 1, 1, 1, 1];   % Torque Converter Torque Ratio (Matlab default) -> TurbTrq/PumpTrq
TC_Cf = 1e-4 * [.72558, .66322, .63463, .59042, .51331, .4144, .29287, .22444, .12186, .04386, 0]; % Torque Converter Capacity Factor (Matlab default) -> PumpTrq/PumpSpd^2 [Nm/rpm^2]

load Vehicle_Data/Engine_data_1_9L_Saturn_95kW
load Vehicle_Data/Trans_Shift_map

%% Driver Parameters
Kp = 10;                    % P gain for driver PI model
Ki = 1;                     % I gain for driver PI model
Drive_Cycle_Select = 1;     % Drive cycle selection

% Drive cycle values in m/s

if Drive_Cycle_Select == 1
    load DriveCycles/UDDS;

elseif Drive_Cycle_Select == 2
    load DriveCycles/HWFET;

elseif Drive_Cycle_Select == 3
    load DriveCycles/FTP;

elseif Drive_Cycle_Select == 4
    load DriveCycles/US06;

elseif Drive_Cycle_Select == 5
    load DriveCycles/NEDC;

elseif Drive_Cycle_Select == 6
    load DriveCycles/WLTP;

end

time_end = cyc_time(end);
vel_end = cyc_vel(end);

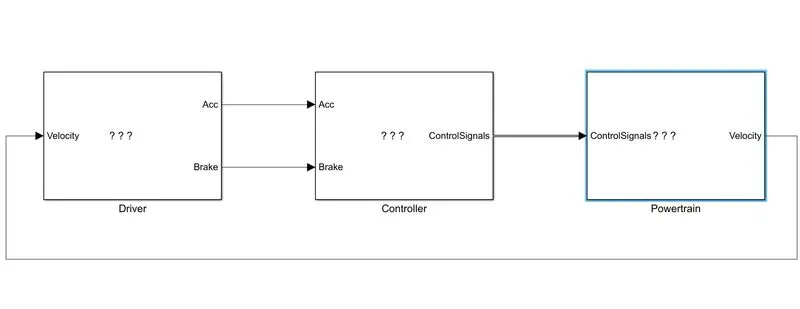

SIMULINK MODEL:

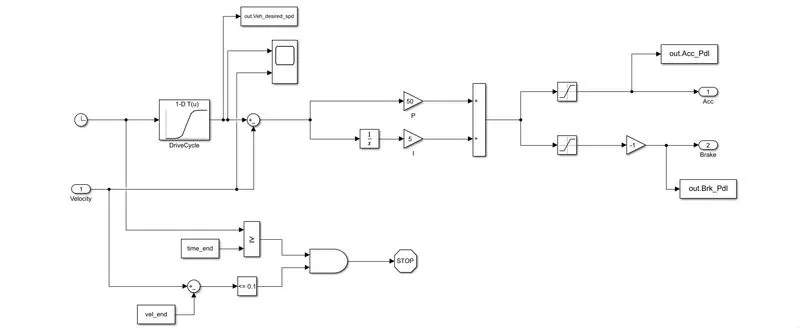

DRIVER:

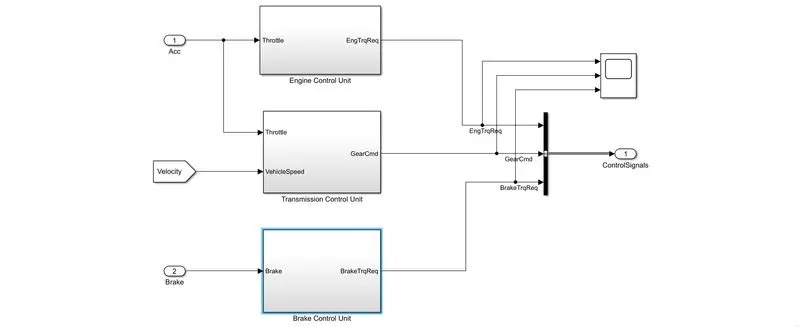

CONTROLLER:

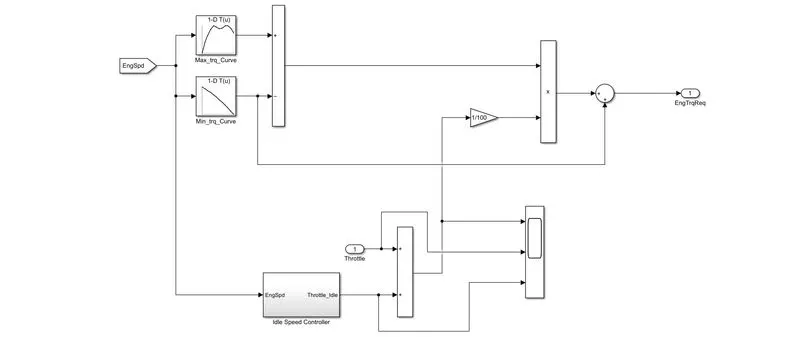

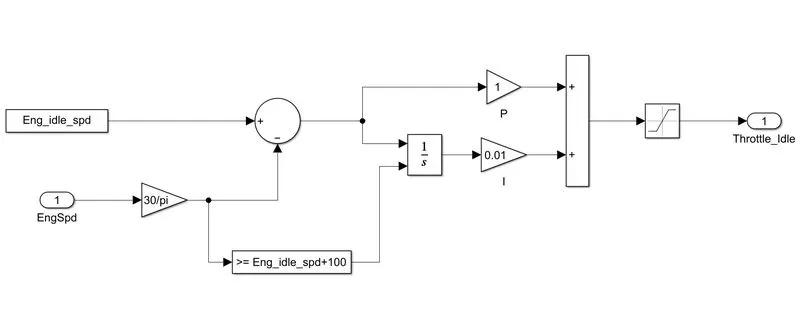

• ENGINE CONTROL UNIT:

• IDEAL SPEED CONTROLLER:

• TRANSMISSION CONTROL UNIT:

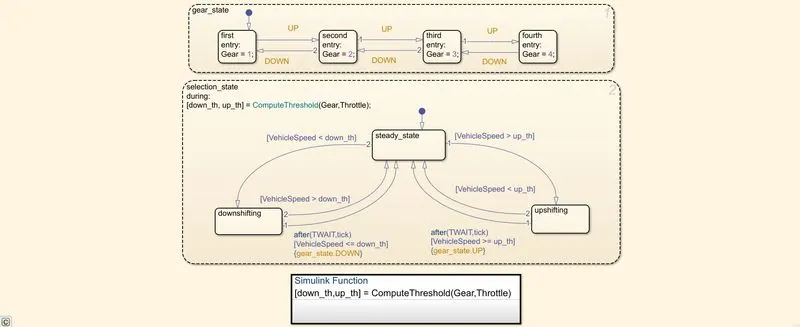

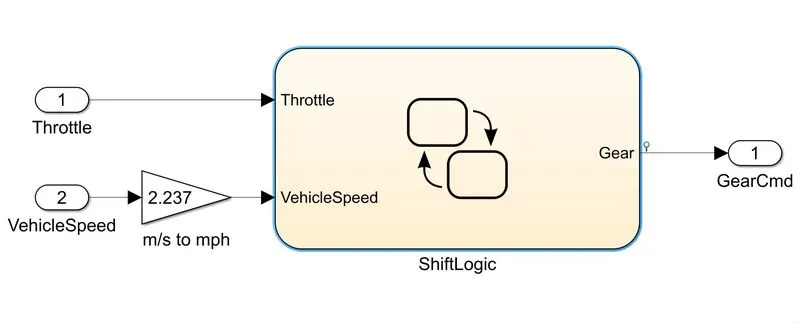

• SHIFT LOGIC:

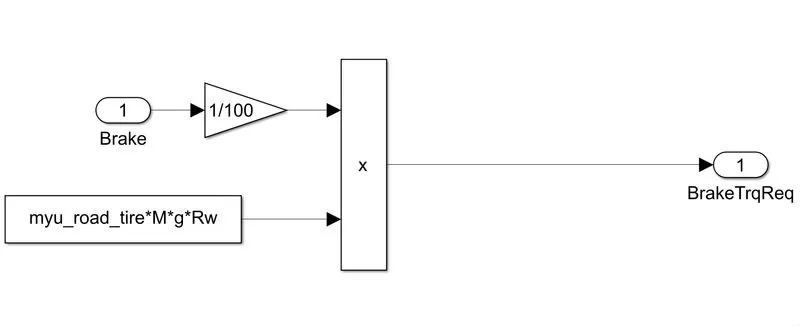

• BRAKE CONTROL UNIT:

POWERTRAIN:

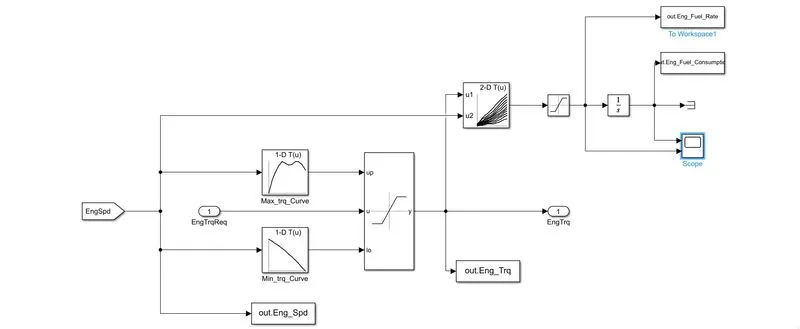

• ENGINE:

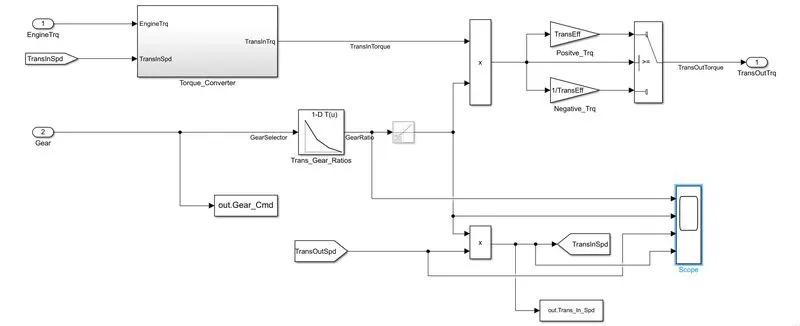

• TRANSMISSION:

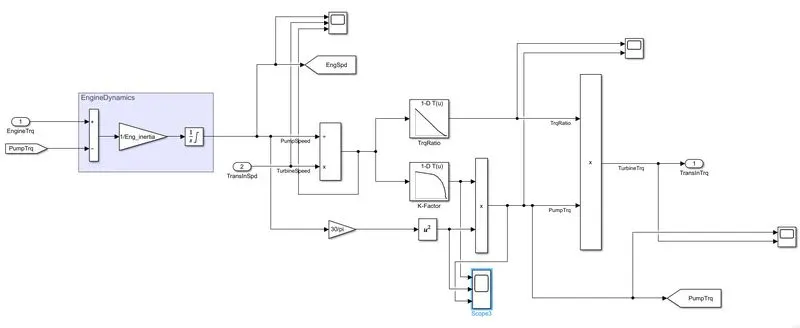

• TORQUE_CONVETER:

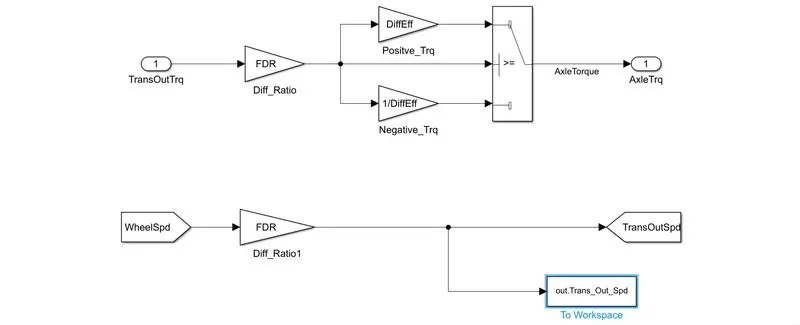

• DIFFERENTIAL:

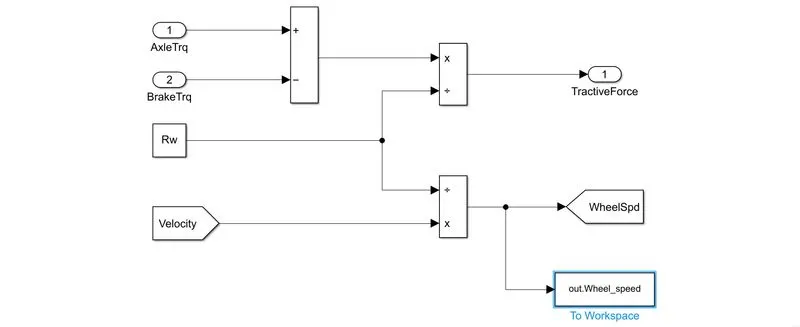

• WHEELS:

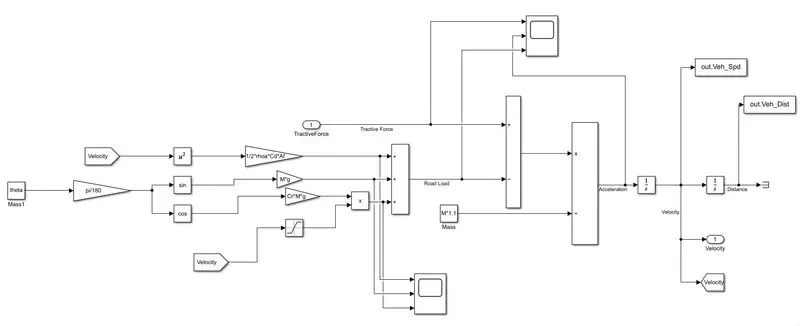

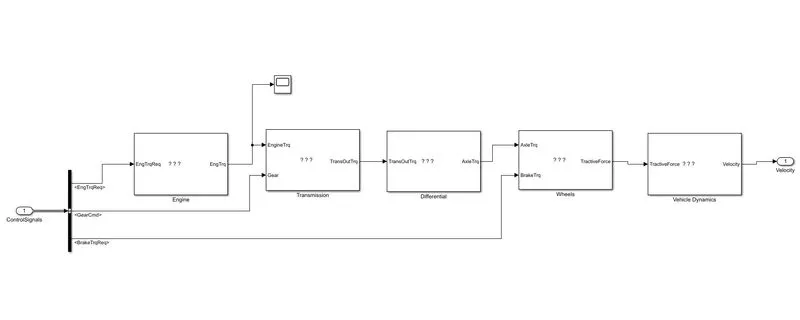

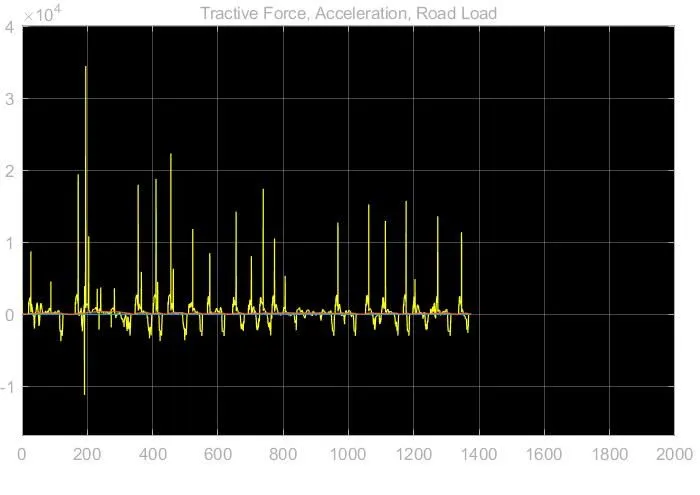

• VEHICLE DYNAMICS:

FINAL CODE:

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%% Skill-Lync -> Hybrid Drives Development
% Project 1 - Conventional Vehicle Model
% By - Ullekh Gambhira

% Description:
% The following file is to used with the Initialization file and Simulink
% results for post-processing of the data.
% The file is incomplete, has some examples of how the data is imported
% into a readable format, data analysis and plotting examples.
% Based on the project task, use commands in a similar format as given
% below, to analyse the data and generate required plots.
% You can change variable names if desired

%% Post-Processing File
%  File for post-processing the Conventional vehicle simulation model data

%% Renaming variables
Time = out.tout;
Acc_Pdl = out.Acc_Pdl;          % Accelerator pedal [%]
Brk_Pdl = out.Brk_Pdl;          % Brake pedal [%]
Gear_Cmd = out.Gear_Cmd;        % Transmission gear
Trans_In_Spd = out.Trans_In_Spd*30/pi;  % Transmission input speed [rpm]
Trans_Out_Spd = out.Trans_Out_Spd*30/pi;% Transmission output speed [rpm]
Eng_Trq = out.Eng_Trq;          % Engine brake torque [Nm]
Eng_Spd = out.Eng_Spd*30/pi;    % Engine speed [rpm]
Eng_Fuel_Consump = out.Eng_Fuel_Consumption;    % Engine fuel consumption [g]
Veh_Dist = out.Veh_Dist/1000;   % Distance traveled by vehicle [km]
Veh_Spd = out.Veh_Spd*18/5;     % Vehicle speed [kmph]
Wheel_speed = out.Wheel_speed;  % Wheel speed [kmph]
Eng_Fuel_rate = out.Eng_Fuel_Rate; % Engine Fuel Rate [%]
Veh_Desired_Spd = out.Veh_desired_spd; % Desired Vehicle Speed


%% Data Analysis
Eng_Pwr = Eng_Spd.*pi/30.*Eng_Trq/1000;   % Engine brake power [kW]
rho_petrol = 0.7197;                    % Density of petrol [kg/L]
kmpl = Veh_Dist(end)/(Eng_Fuel_Consump(end)/1000/rho_petrol);    % Fuel economy [kmpl]


%% Plotting Fuel Consumption vs Fuel Rate

figure(1)
hold on
grid on
plot(Time, Eng_Fuel_Consump, 'linewidth', 1, 'Color', 'k');
plot(Time, Eng_Fuel_rate, 'linewidth', 1, 'Color', 'r');

xlabel('fuel consumption')
ylabel('Fuel Rate')
xlim([0, Time(end)]);
legend('fuel consumption','Fuel Rate');

%% Plotting vehicle characteristics time trace Engine, Transmission Input, Transmission Output and Wheel Speed

figure(2)
hold on
grid on
plot(Time, Eng_Spd, 'linewidth',1, 'Color', 'g');
plot(Time, Trans_In_Spd, 'linewidth',1, 'Color', 'k');
plot(Time, Trans_Out_Spd, 'linewidth',1, 'Color', 'r');
plot(Time, Wheel_speed, 'linewidth',1, 'Color', 'b');

xlabel('Time [s]')
ylabel('Speed [rpm]')
xlim([0, Time(end)]);
ylim([0, 6000]);
legend('Transmission Input','Transmission Output','Wheel Speed','Engine Speed');

%% Plotting vehicle characteristics time trace accelerator
figure(3)
subplot(2,2,1)
plot(Time, Eng_Trq, 'linewidth', 1, 'Color', 'g');
xlabel('Time [s]')
ylabel('Torque [Nm]')
legend('Torque');

subplot(2,2,2)
plot(Time, Eng_Pwr, 'linewidth', 1, 'Color', 'k');
xlabel('Time [s]')
ylabel('Power [KW]')
legend('Engine Power');

subplot(2,2,3)
plot(Time, Eng_Fuel_rate, 'linewidth', 1, 'Color', 'r');
xlabel('Time [s]')
ylabel('Fuel Rate [%]')
legend('Fuel Rate')

subplot(2,2,4)
plot(Time, Eng_Fuel_Consump, 'linewidth', 1, 'Color', 'b');
xlabel('Time [s]')
ylabel('Fuel Consumption [Kmpl]')
legend('Fuel Consumption')

%% Plotting vehicle characteristics time trace accelerator

figure(4)
subplot(3,1,1)
hold on
grid on
plot(Time, Acc_Pdl, 'linewidth', 1, 'Color', 'k');
plot(Time, Brk_Pdl, 'linewidth', 1, 'Color', 'r');
ylabel('Pedal [%]')
xlim([0, Time(end)]);
legend('Accel','Brake');

subplot(3,1,2)
hold on
grid on
plot(Time, Veh_Desired_Spd, 'linewidth', 1, 'Color', 'k');
plot(Time, Veh_Spd, 'linewidth', 1, 'Color', 'r');
ylabel('Speed [rpm]')
xlim([0, Time(end)]);
legend('Vehicle Desired Speed','Vehicle Actual Speed');

subplot(3,1,3)
hold on
grid on
plot(Time, Gear_Cmd, 'linewidth', 1, 'Color', 'k');
xlim([0, Time(end)]);
xlabel('Time [s]');
ylabel('Gear');

%% Plotting engine operating points on engine fuel map

figure('Name','Engine Operating Points');
hold on
grid on
title('Engine Operating Points','fontsize',12);
p1=plot(Eng_map_spd*30/pi,Eng_max_trq,'linewidth',2,'color','r');
p2=line([Eng_map_spd(end)*30/pi Eng_map_spd(end)*30/pi],[0 Eng_max_trq(end)]);
set(p2,'linewidth',1,'linestyle','--','color','k');
p3=line([Eng_map_spd(1)*30/pi Eng_map_spd(1)*30/pi],[0 Eng_max_trq(1)]);
set(p3,'linewidth',1,'linestyle','--','color','k');
[c,h] = contour(Eng_map_spd'*30/pi,Eng_map_trq,Eng_fuel_map');
clabel(c,h);
xlabel('Engine Speed [rpm]');
ylabel('Engine Torque [Nm]');
title('Engine Fuel Consumption Map [g/s]');
%p4 = plot(Eng_Spd,Eng_Trq,'.','color','k');
legend([p1 p3],{'Max Curve','Operating Points'});
axis([Eng_map_spd(1)*30/pi Eng_map_spd(end)*30/pi 0 Eng_map_trq(end)]);

PLOTS AND GRAPHS:

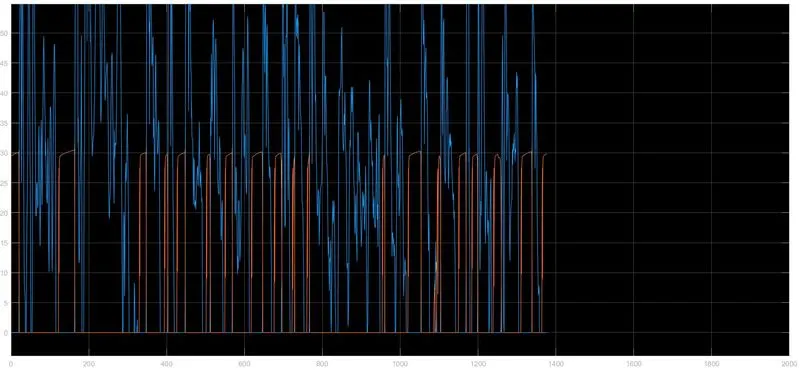

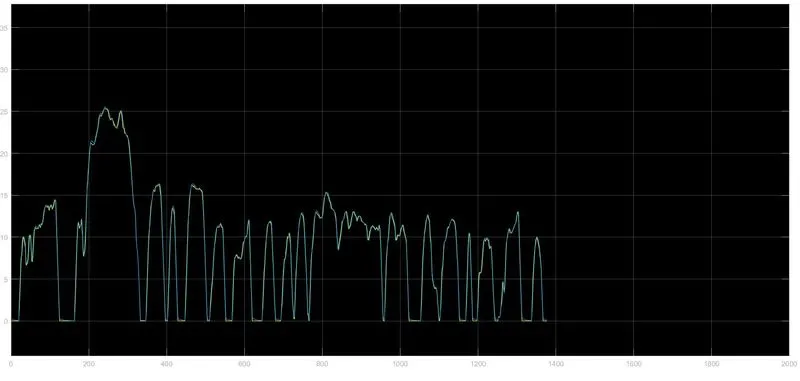

UDDS CYCLE:

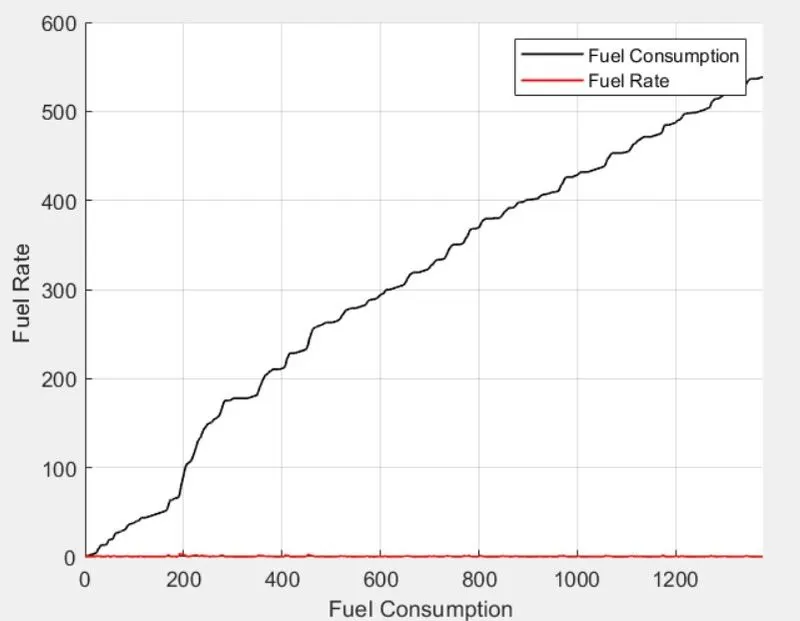

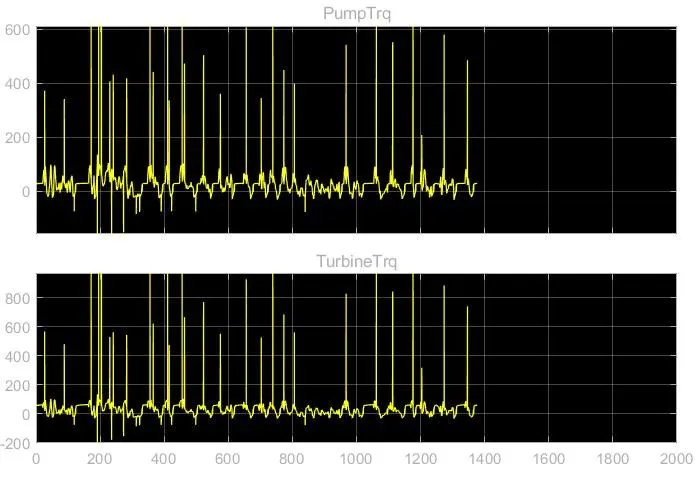

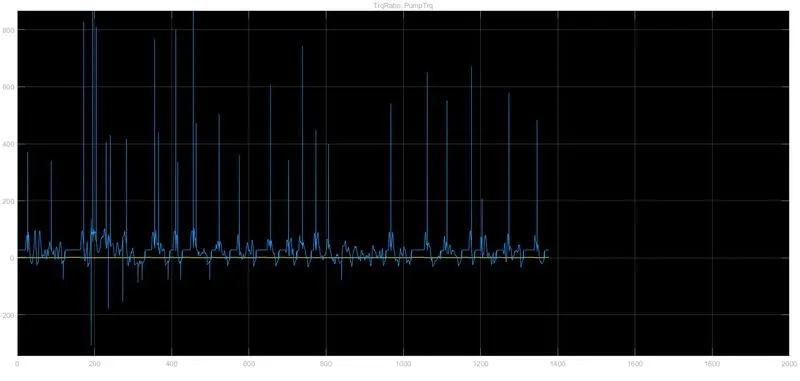

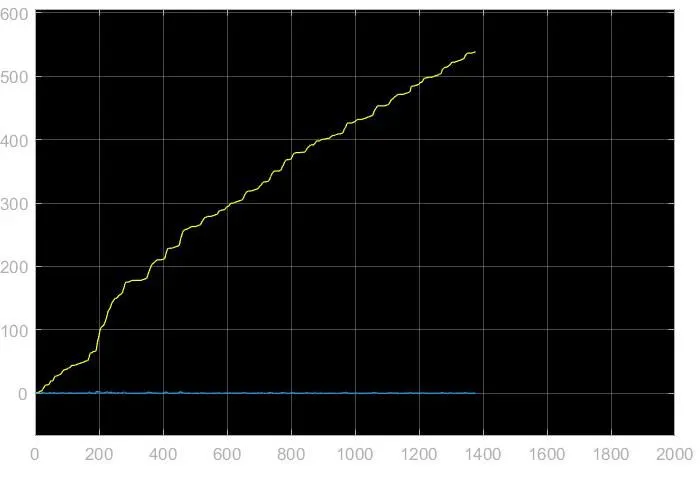

• FUEL CONSUMPTION VS FUEL RATE:

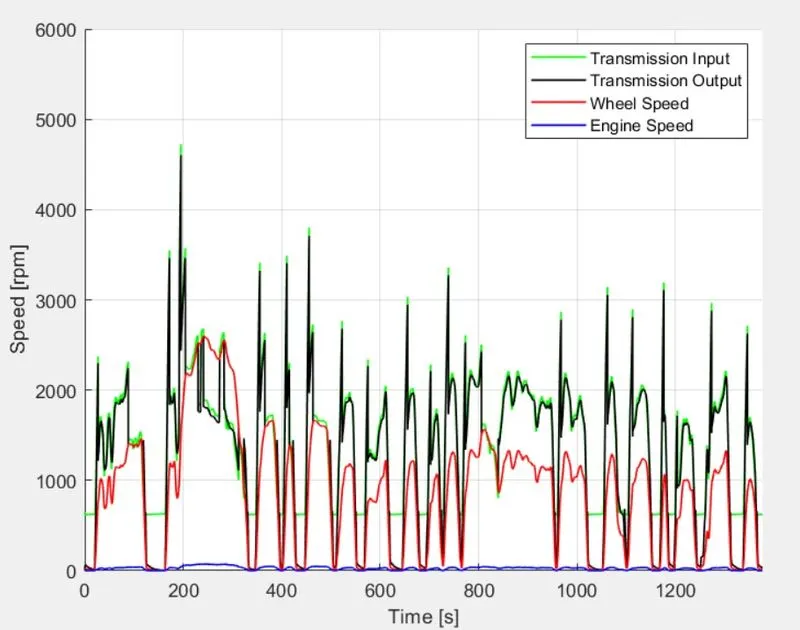

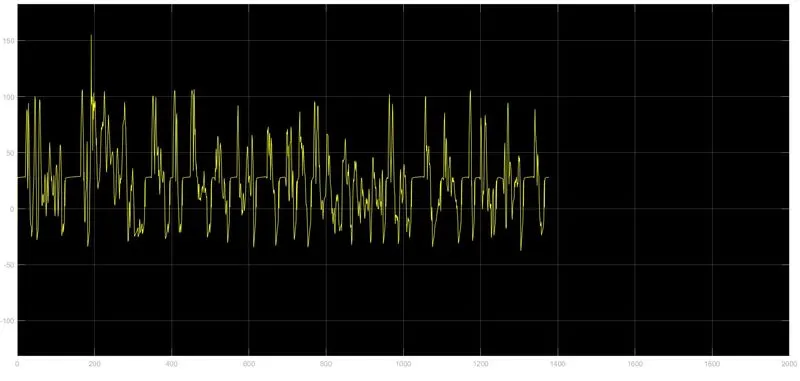

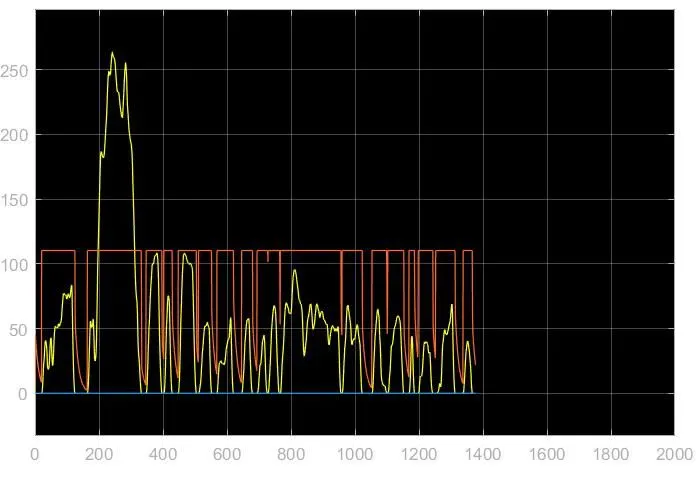

• VEHICLE CHARACTERISTICS TIME TRACE ENGINE, TRANSMISSION INPUT, TRANSMISSION OUTPUT AND WHEEL SPEED:

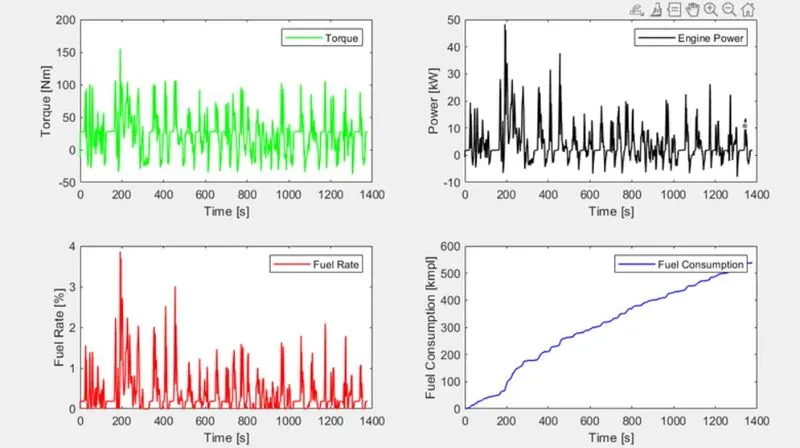

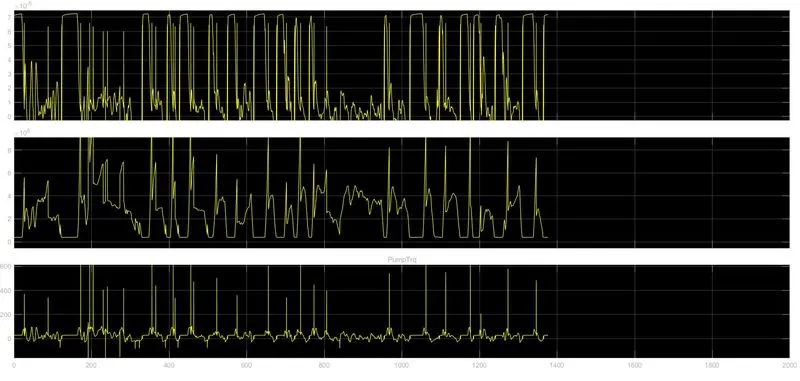

• VEHICLE CHARACTERISTICS TIME TRACE ENGINE TORQUE, ENGINE POWER, FUEL RATE AND FUEL CONSUMPTION:

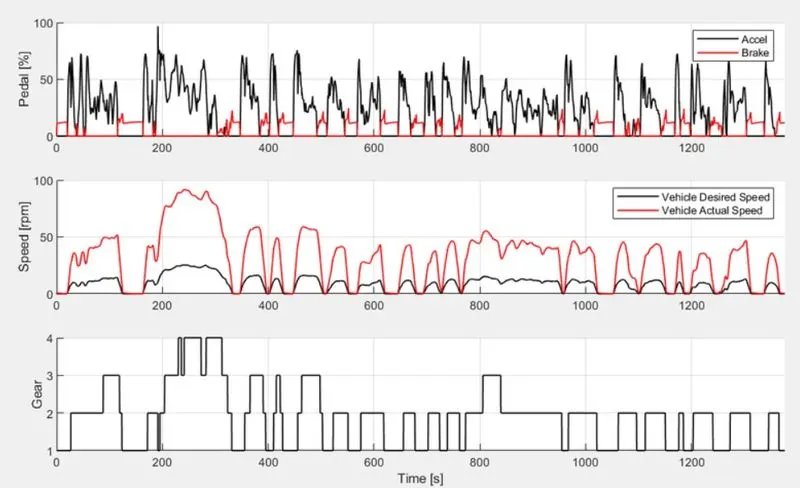

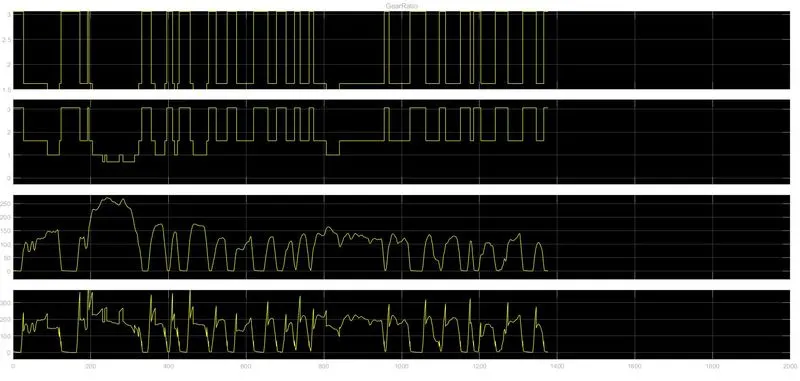

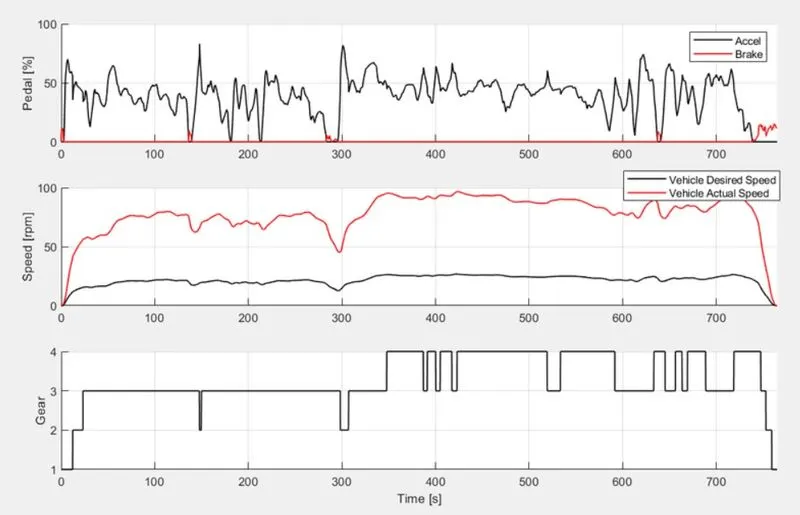

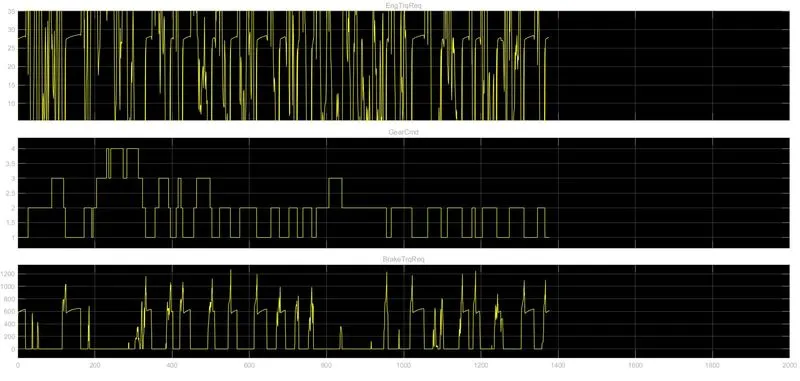

• VEHICLE CHARACTERISTICS TIME TRACE ACCELERATOR AND BRAKE PEDAL, GEAR COMMAND, VEHICLE DESIRED AND ACTUAL SPEED:

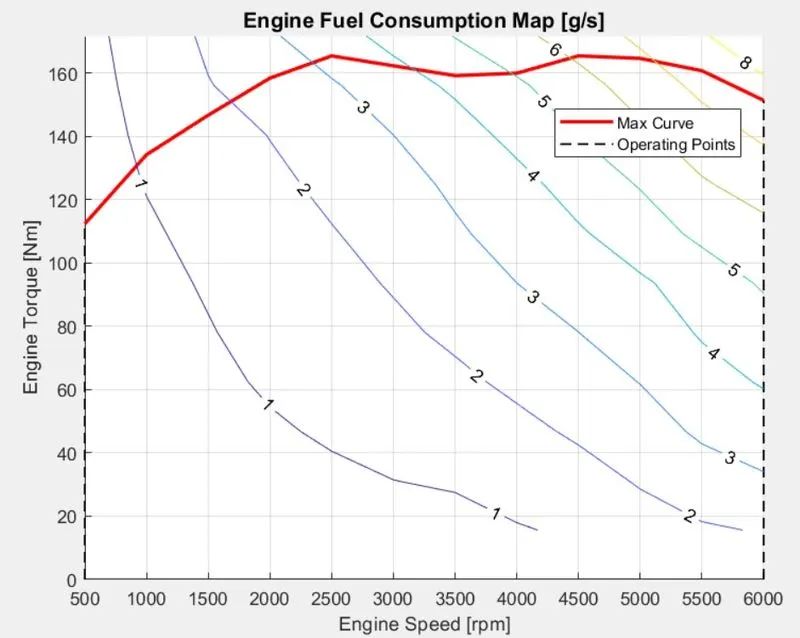

• ENGINE OPERATING POINTS ON ENGINE FUEL MAP:

HWFET CYCLE:

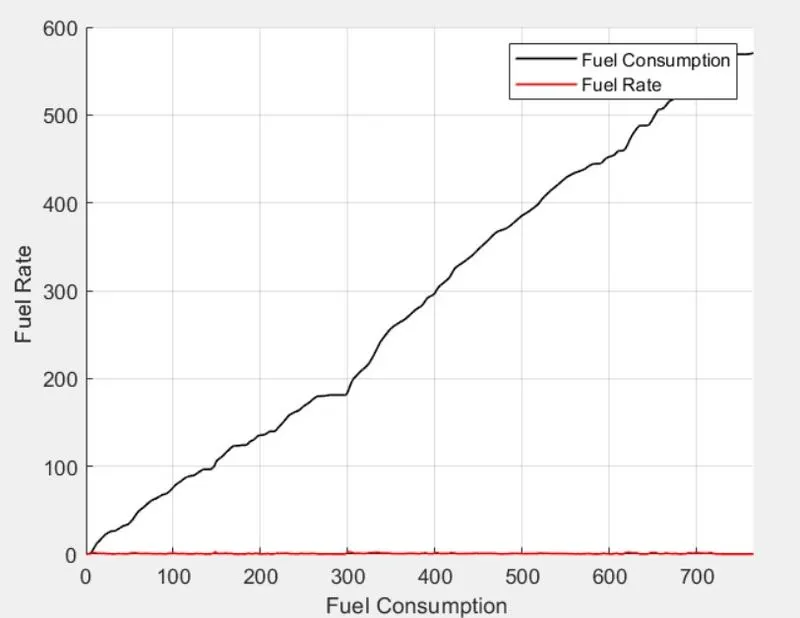

• FUEL CONSUMPTION VS FUEL RATE:

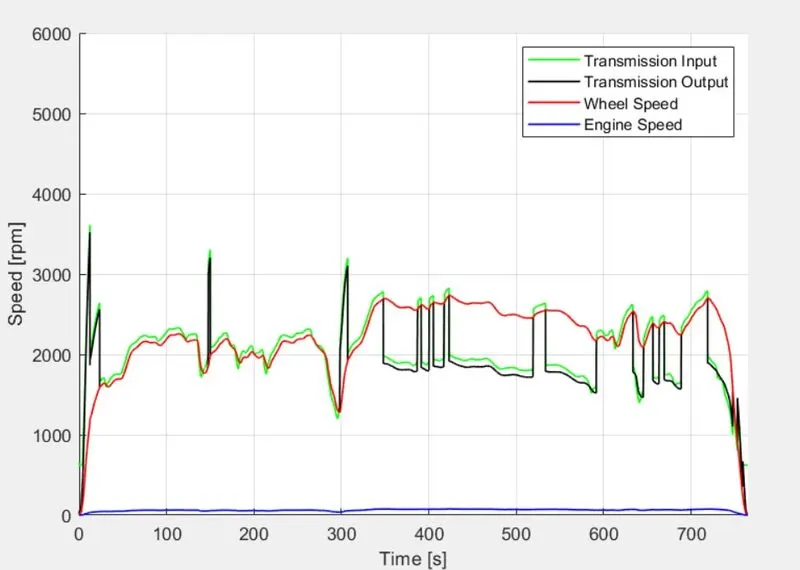

• VEHICLE CHARACTERISTICS TIME TRACE ENGINE, TRANSMISSION INPUT, TRANSMISSION OUTPUT AND WHEEL SPEED:

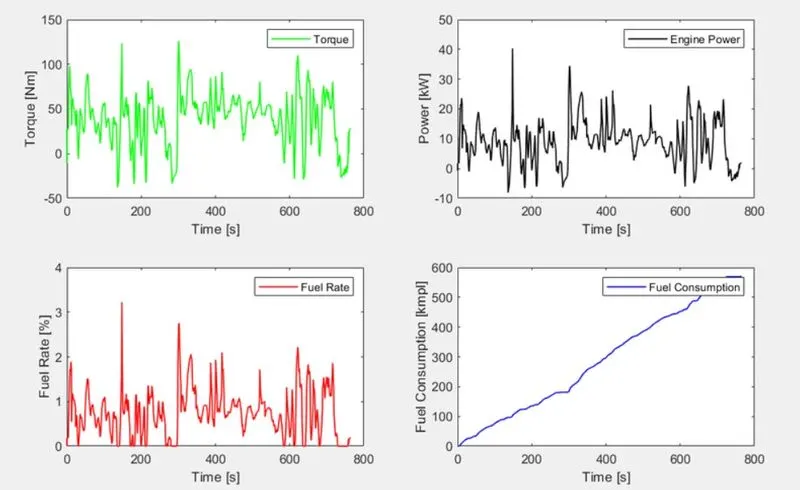

• VEHICLE CHARACTERISTICS TIME TRACE ENGINE TORQUE, ENGINE POWER, FUEL RATE AND FUEL CONSUMPTION:

• VEHICLE CHARACTERISTICS TIME TRACE ACCELERATOR AND BRAKE PEDAL, GEAR COMMAND, VEHICLE DESIRED AND ACTUAL SPEED:

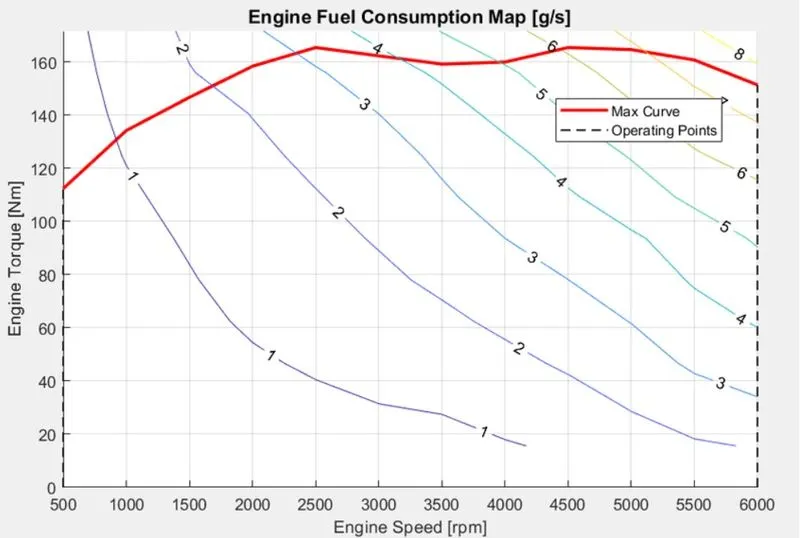

• ENGINE OPERATING POINTS ON ENGINE FUEL MAP:
