Project 1
In this Project work I have done the Routing of the Wiring Harness in the given Engine and then the Flattening for the Wiring Harness Bundle is done.
At First the CAD Parts are download and the required Parts are changed into Electrical Parts. Some of the Parts are left as a CAD Part.

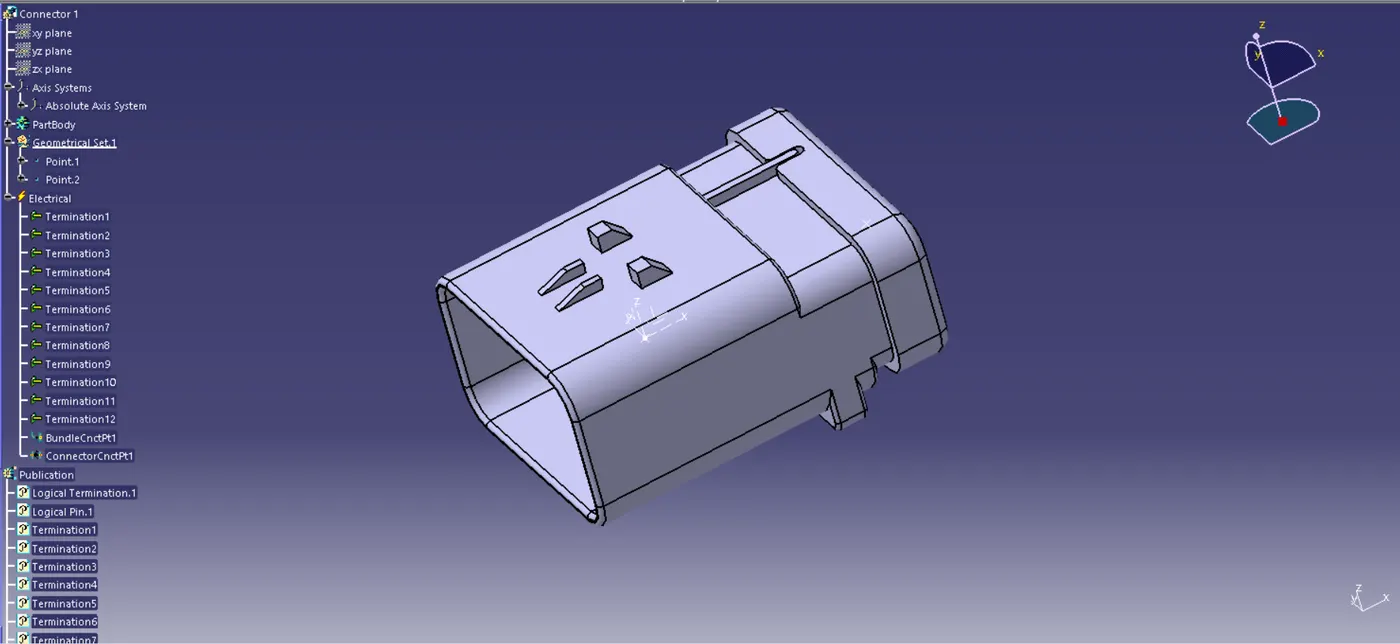

Fig 1. Connector 1

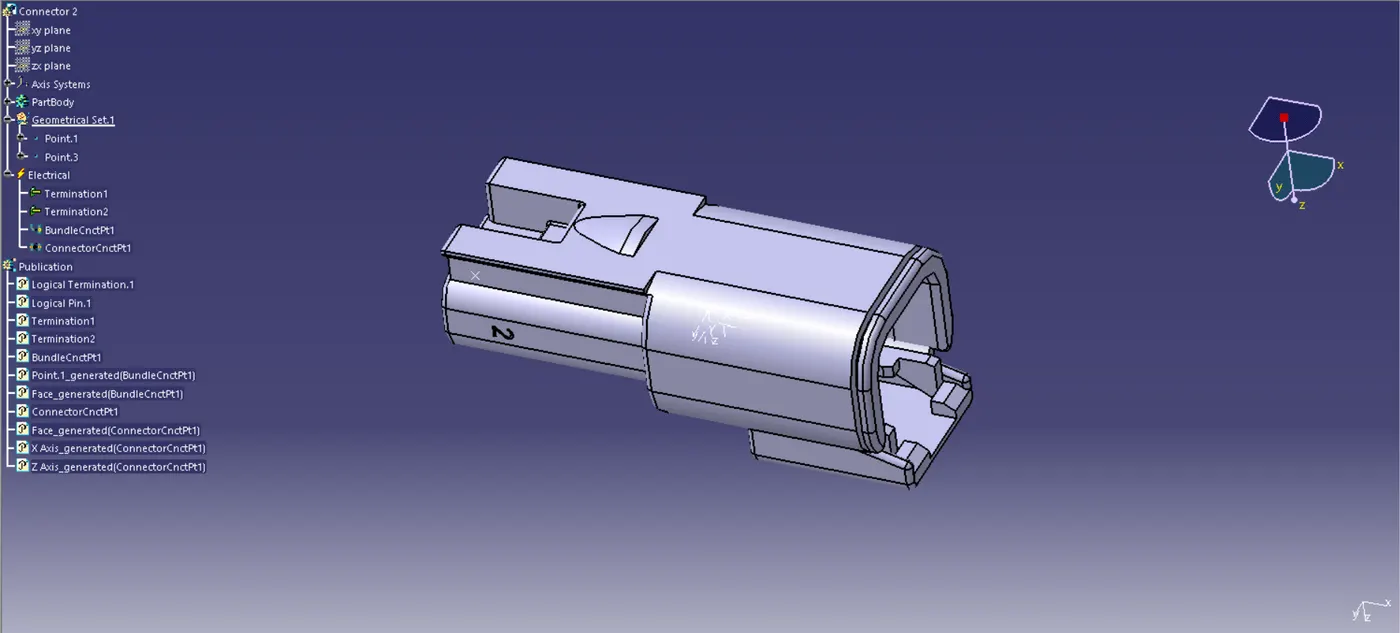

Fig 2. Connector 2

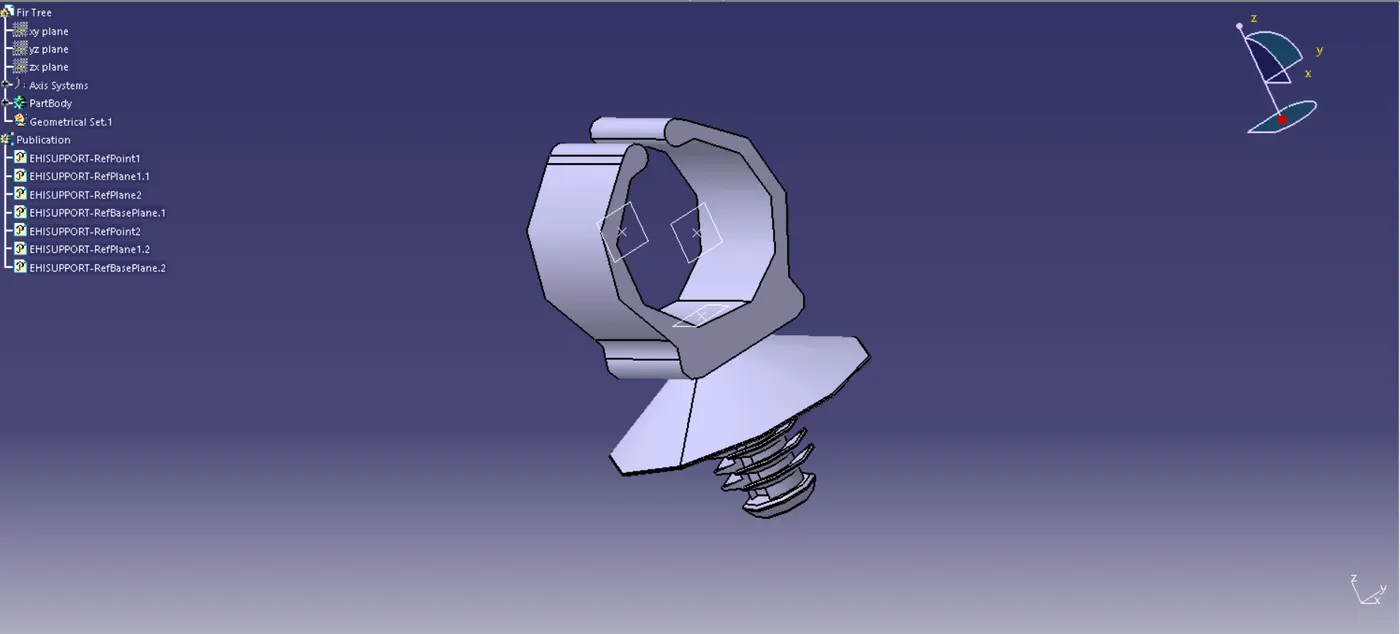

Fig 3. Fir tree

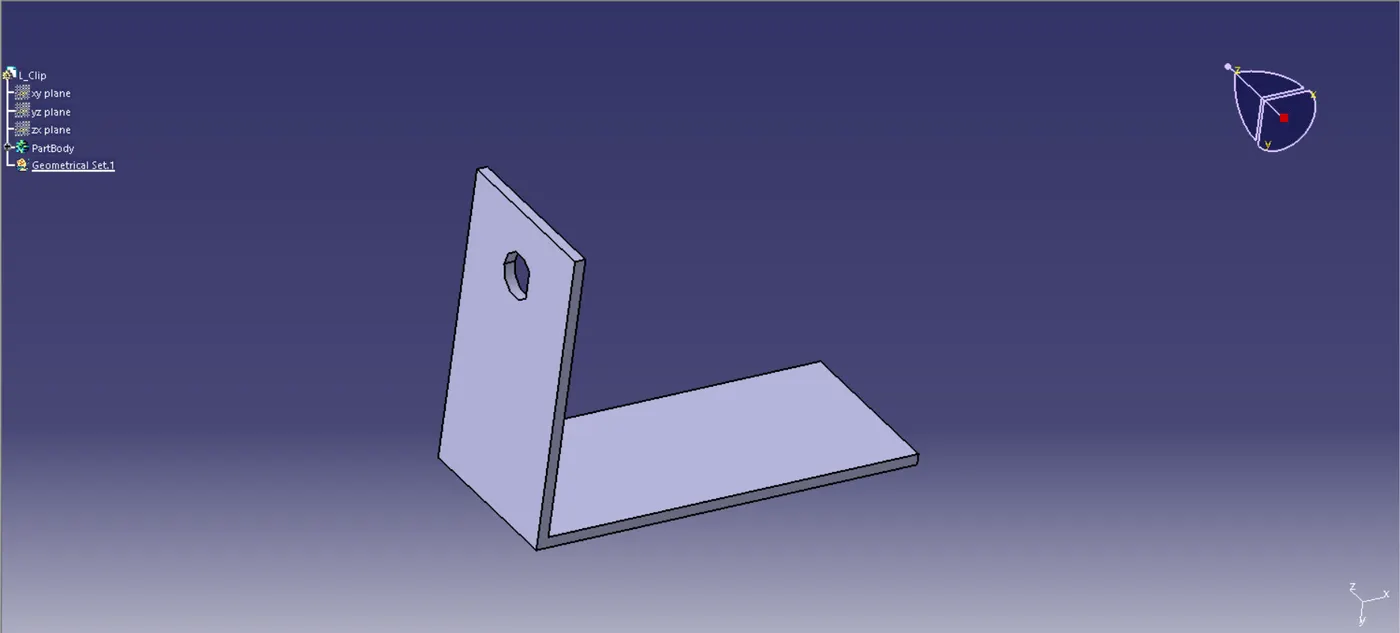

Fig 4. L Clip

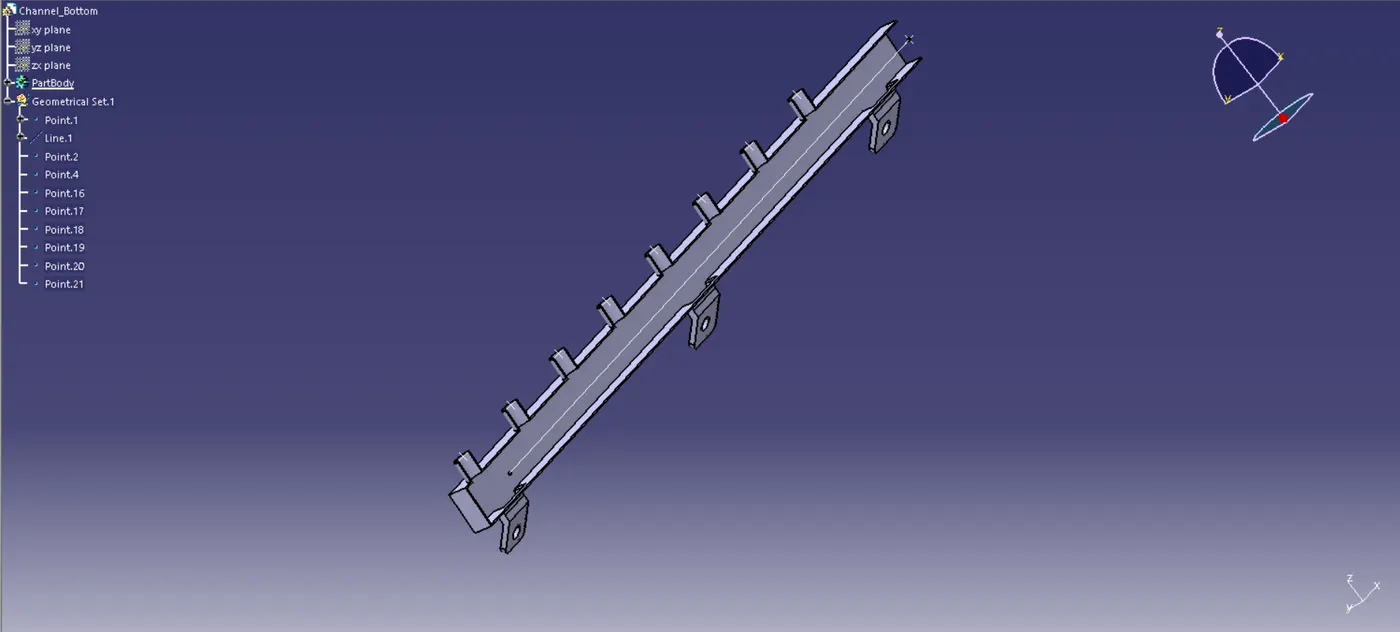

Fig 5. Bottom Channel

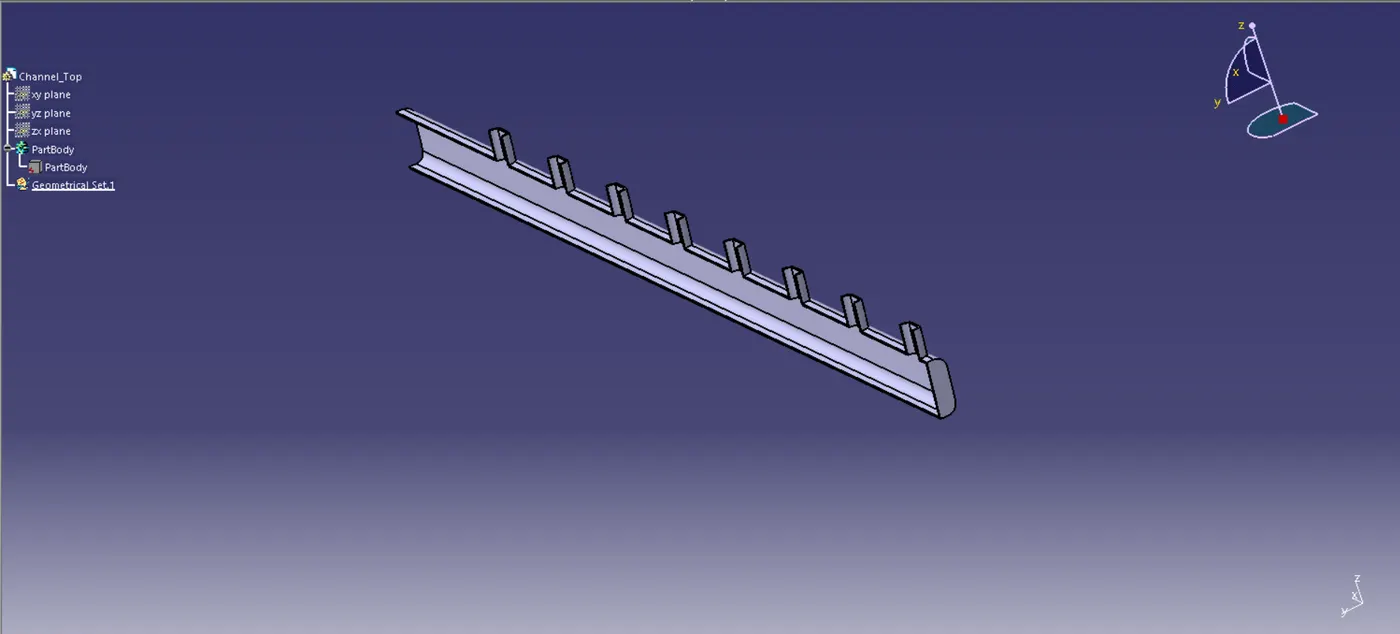

Fig 6. Top Channel
Now the Engine Part is opened in an Assembly and the Engine Part and Electrically defined parts are placed on their positions. Now the the Assembly Workbench is changed into Electrical Harness Assembly. Now the Geometrical Bundle option is selected and click on the title Engine Wiring Harness geometrical Bundle to do the Bundle work. Now the Multi-Branchable option is selected to create the Bundle for the placed parts.

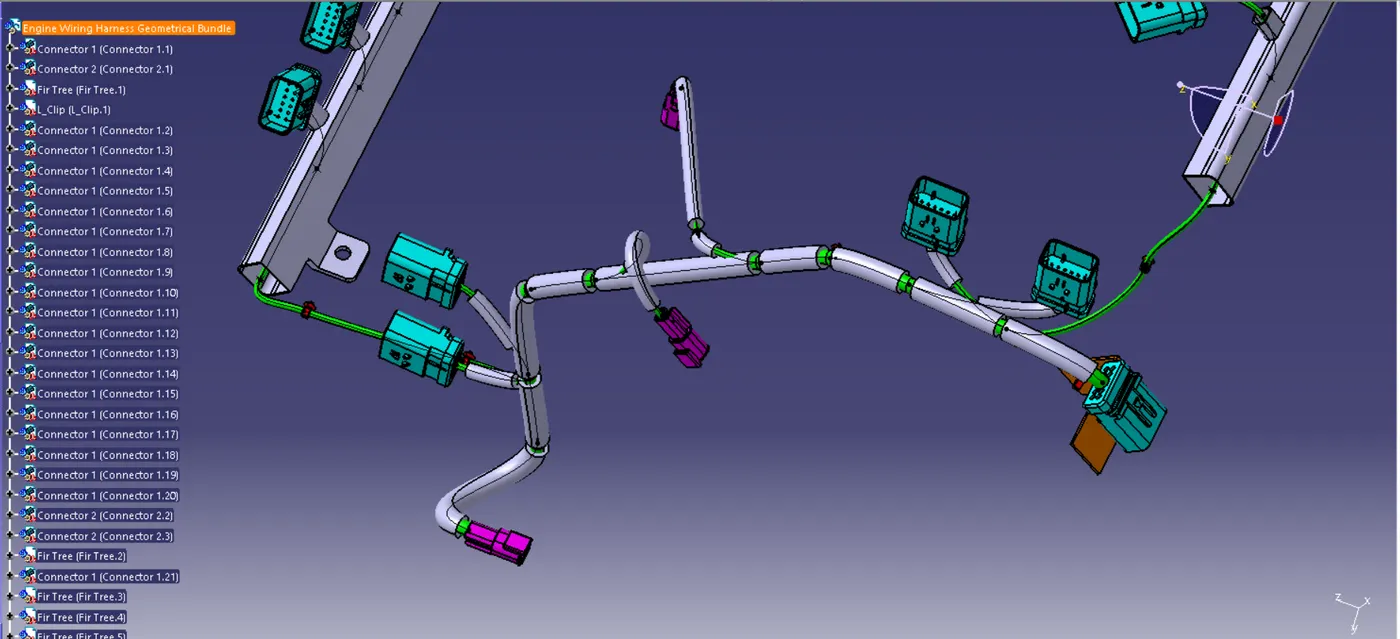

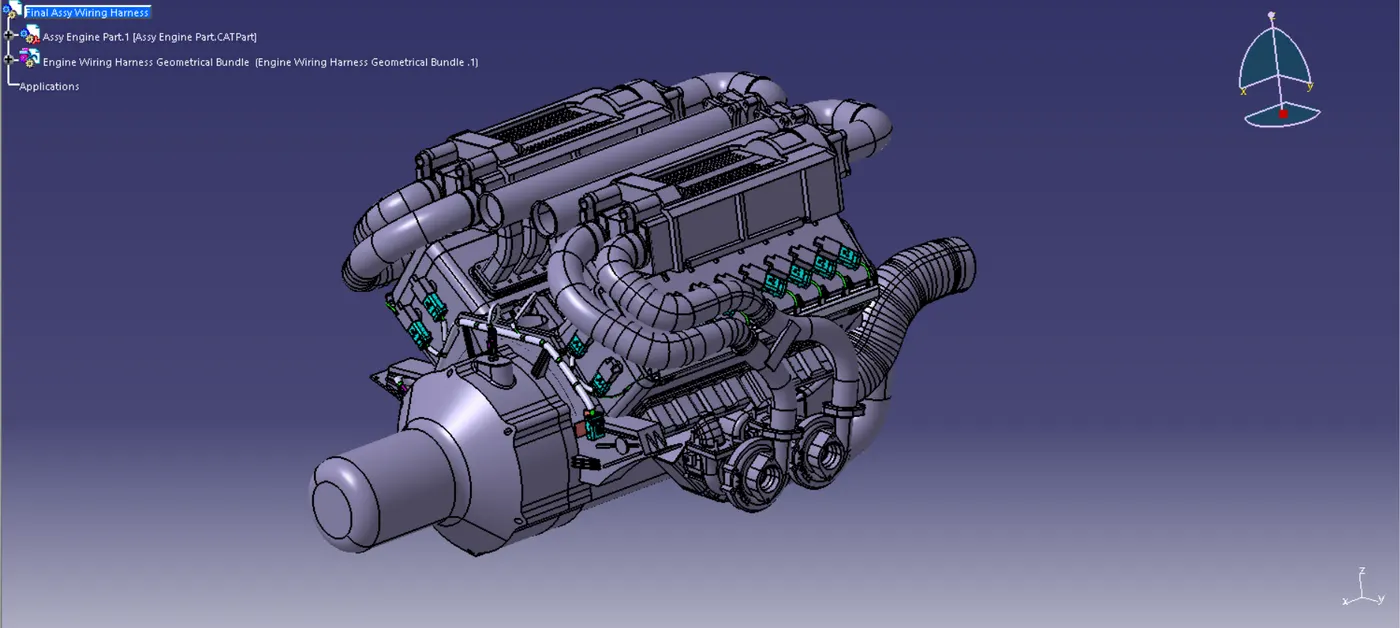

Fig 7. Bundle are created around the Engine

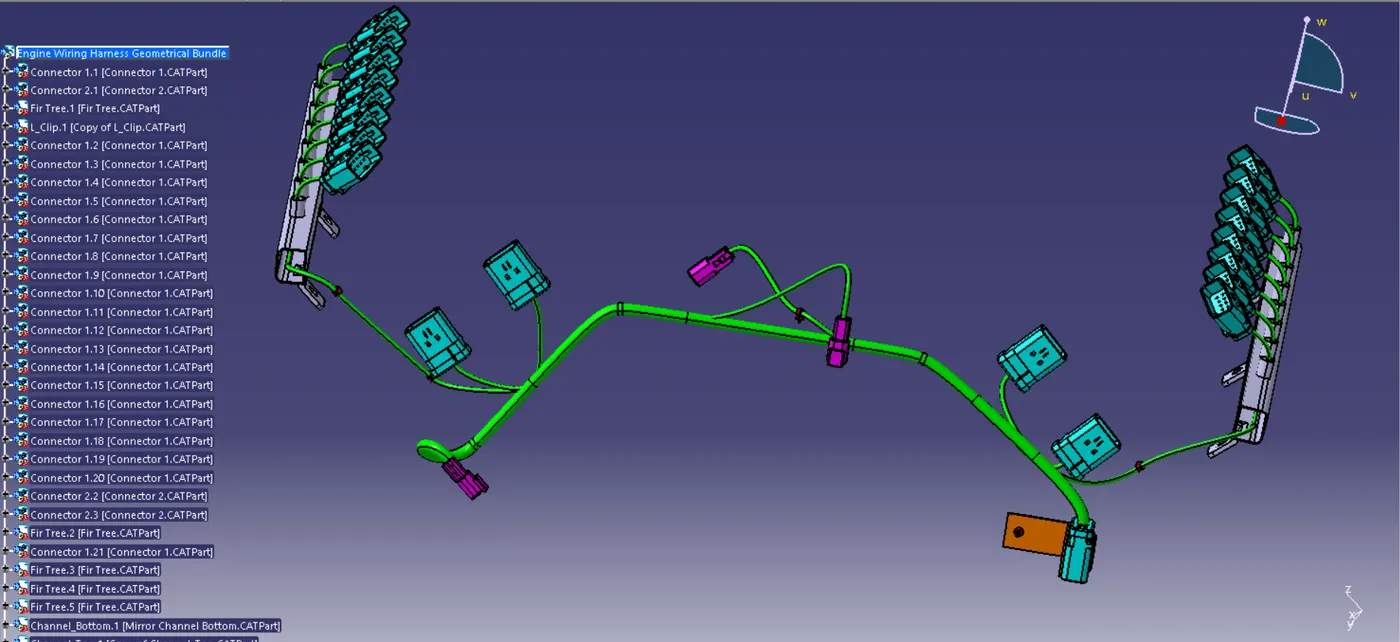

Fig 8.Engine Wiring Harness Geometrical Bundle
Now the Search option is used to find the weather all the Bundles are connected or not.

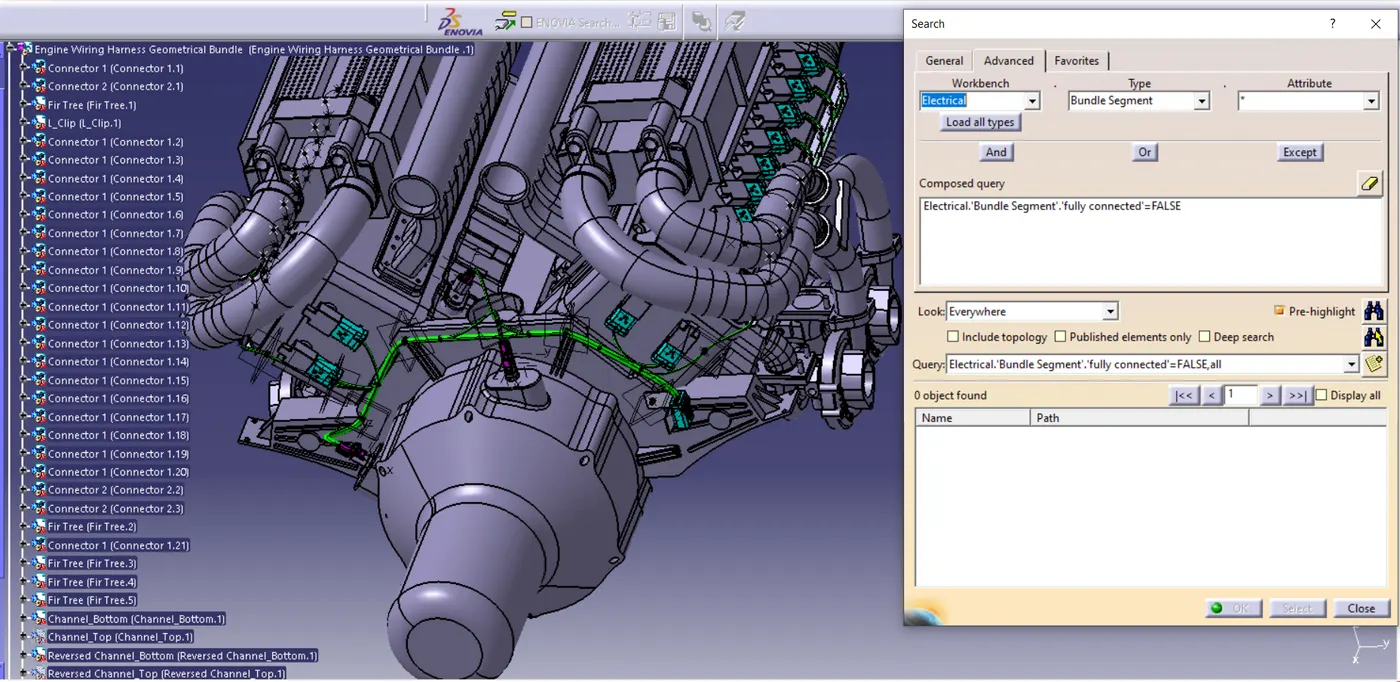

Fig 9. Checking for Proper Connection of Bundles

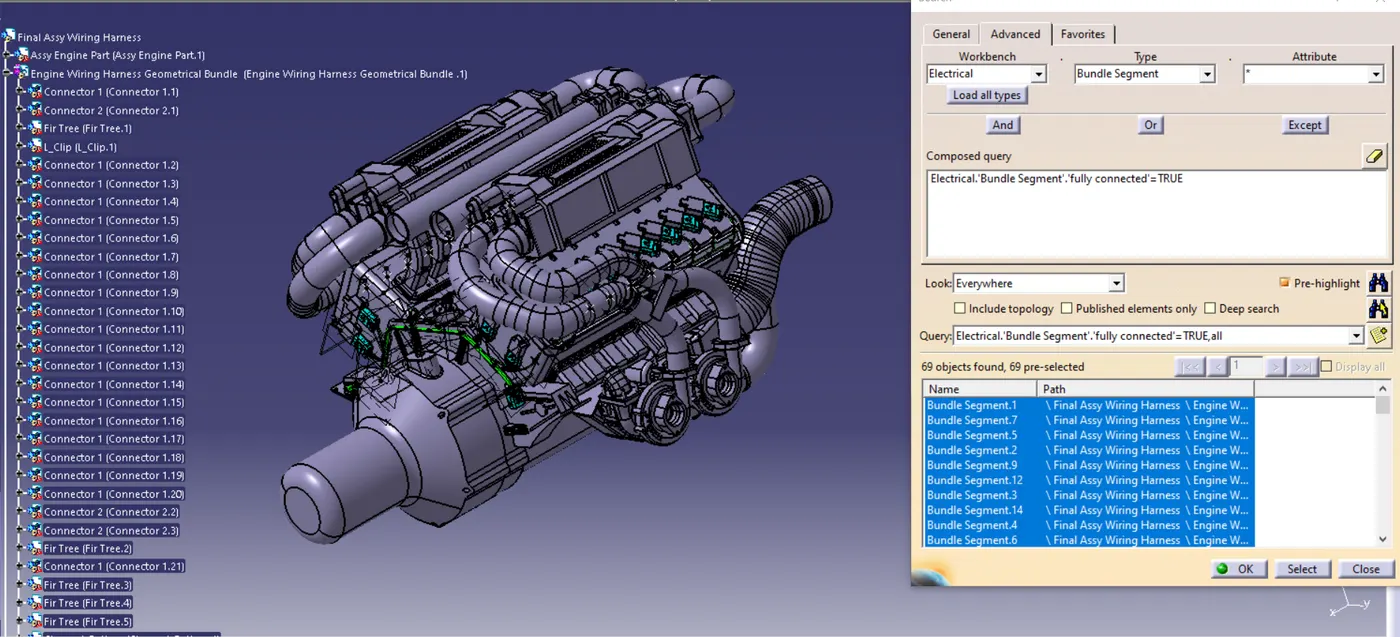

Fig 10. All Connections are Clear
Then the protection covering is created and covered around the Bundles.

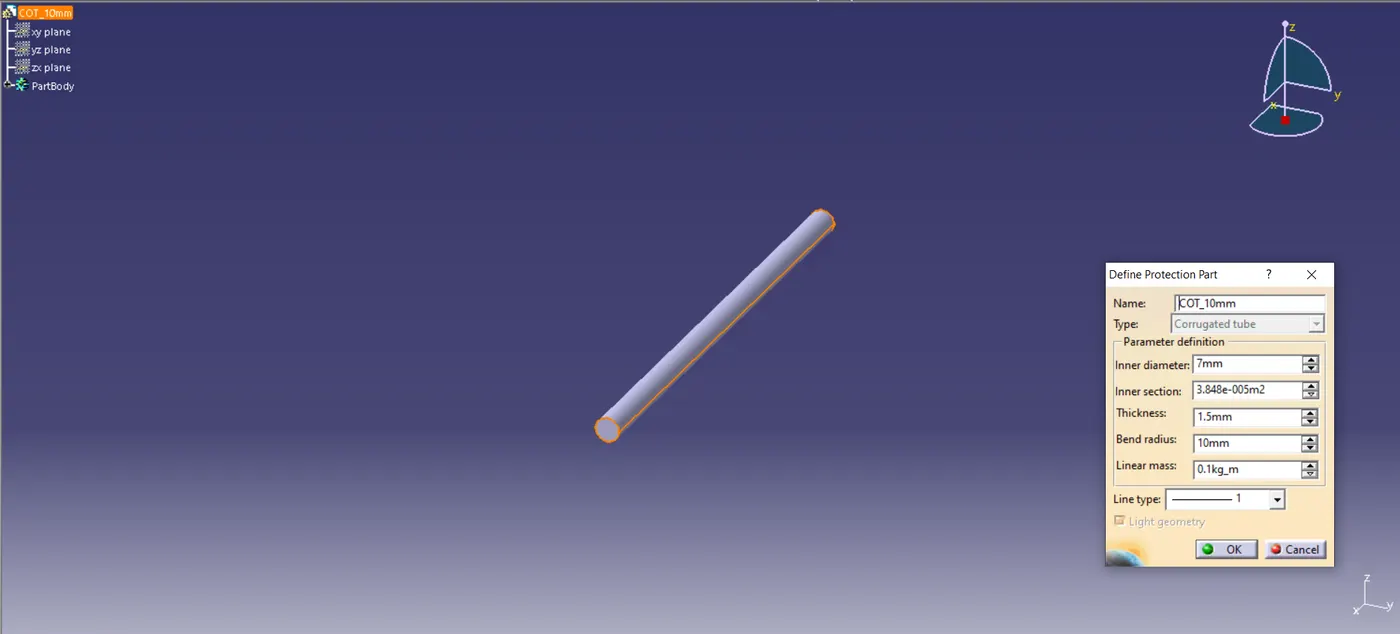

fig 11. Protection Cover 10mm

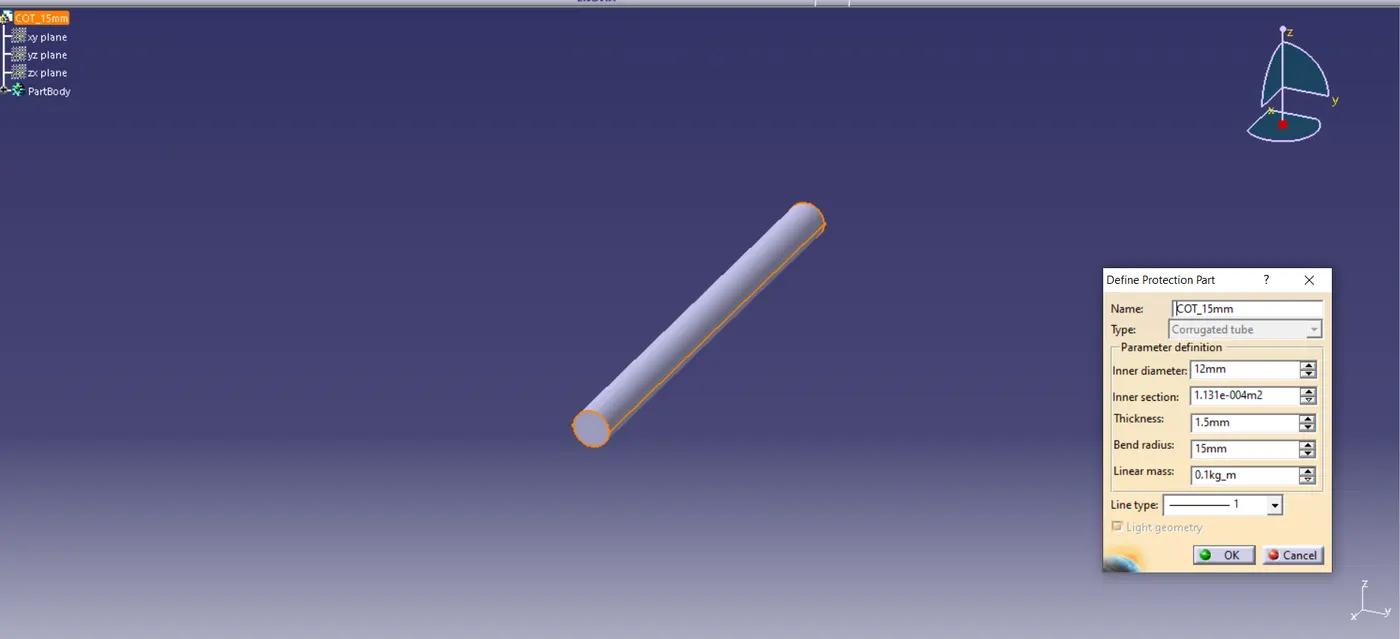

Fig 12. Protection Cover 15mm
FIG 13. Protective Covers are Added for the Bundle Segments
Now the Wiring Harness Geometrical Bundle is opened in a New Window and the workbench is changed into Electrical Harness Flattening. Then the Harness Flattening Parameters are given first then the Flatten option is selected to Flatten the Bundle. Now after the Flattening is done the some of the Bundles are moved or rotated to have a proper Flattening. After that the Drawing workbench is opened and the front view of the Flatten Bundles is imported to the Drawing Sheet. Then it was saved.

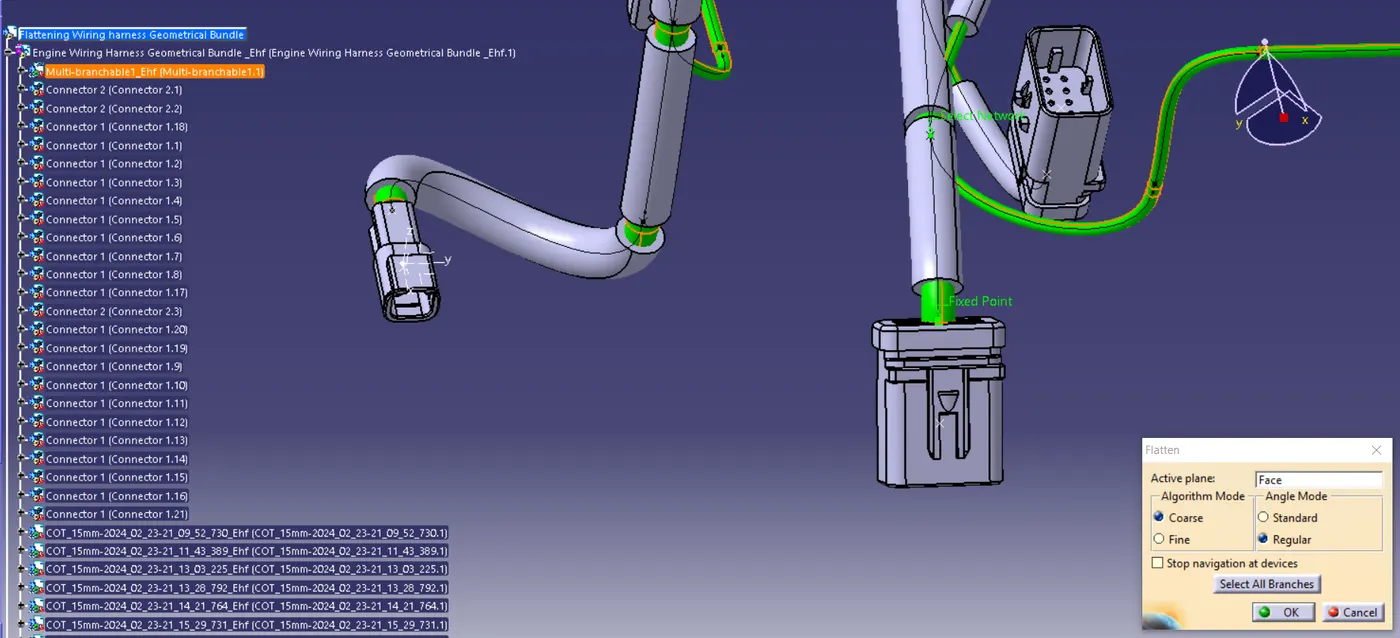

Fig 14. Flattening the Harness Geometrical Bundle

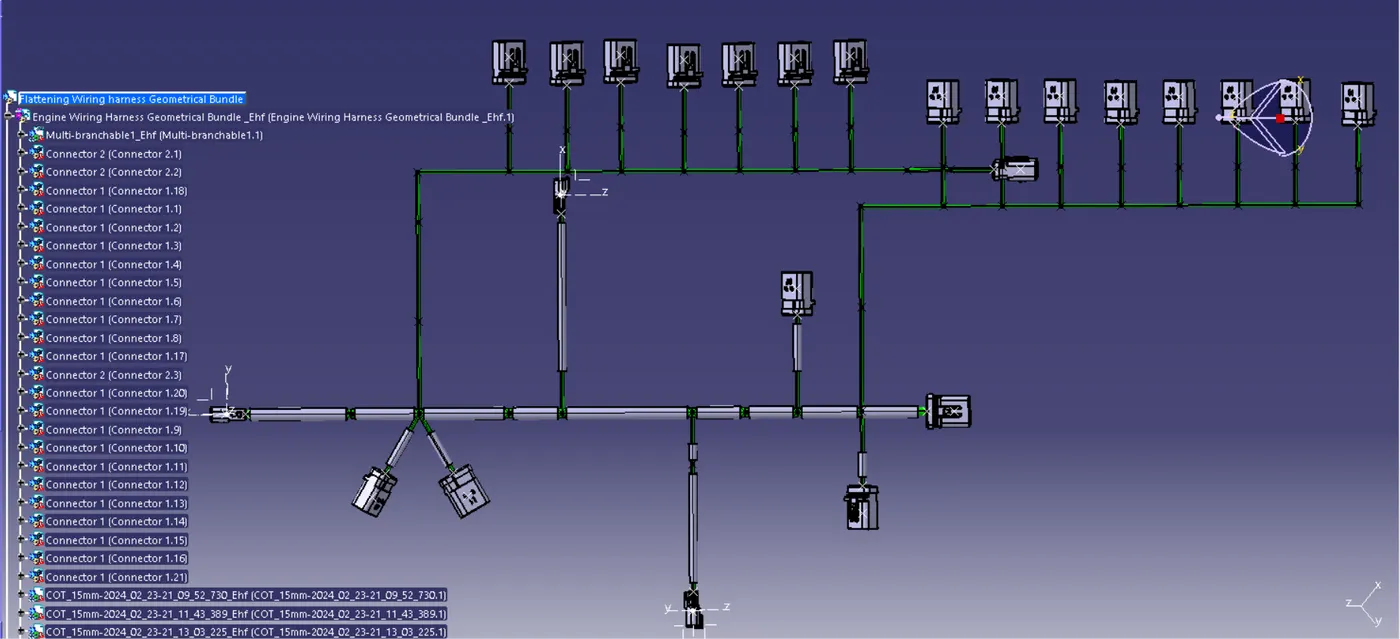

Fig 15. Flattened the Harness Geometrical Bundle

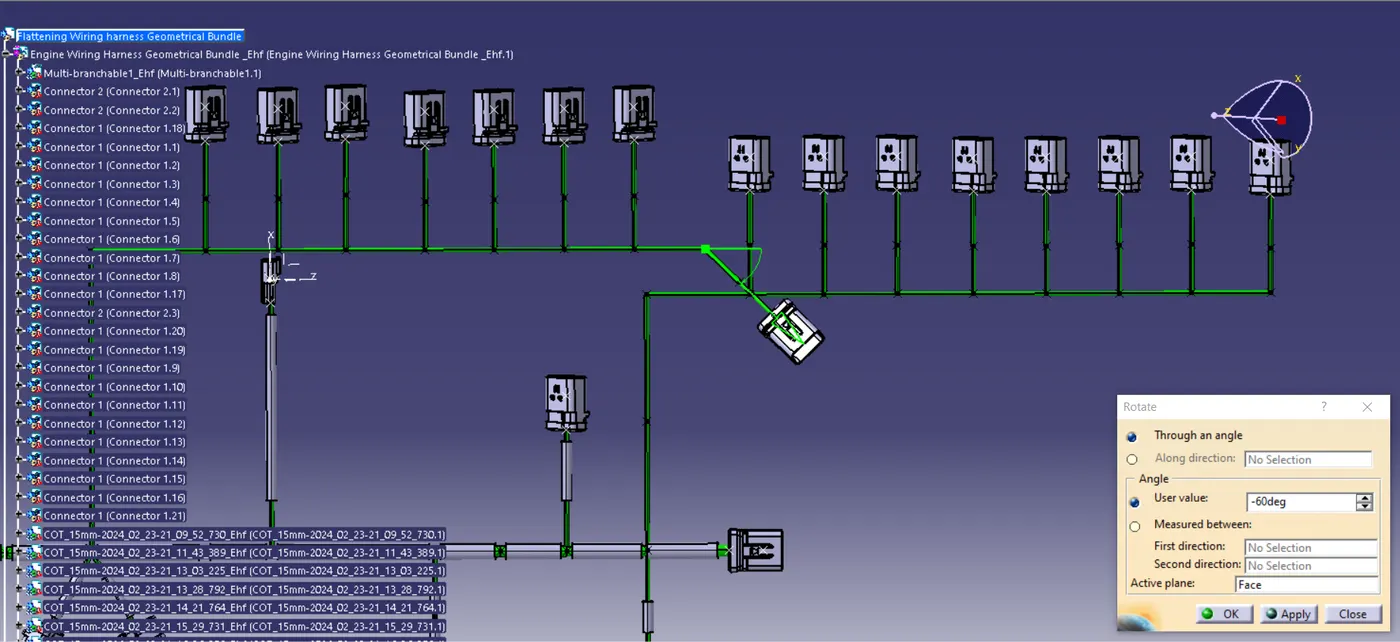

Fig 16. Rotating the Required Parts

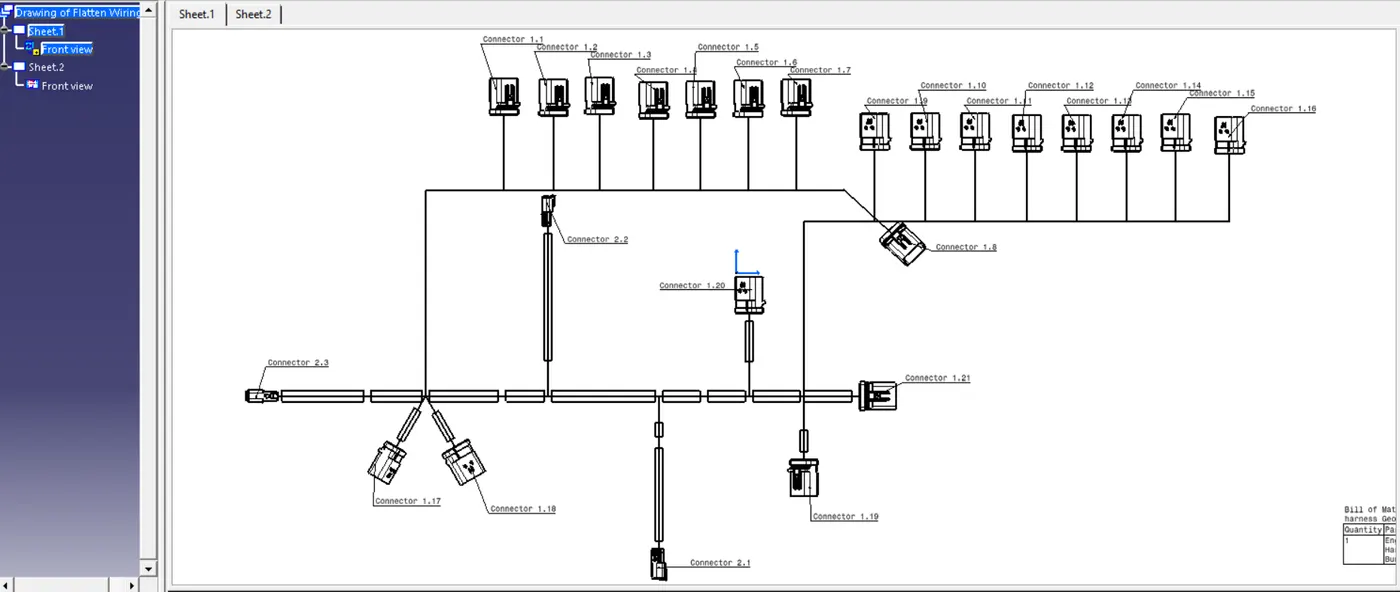

Fig 17. Flattening Wiring Harness Drawing
Note: I cannot able to upload my Engine Part because of large size more than 20MB
