Preparing Schedule & Cost Estimation for a building using REVIT

A1 shortcut keys in revit

Using 3D model create a section box - BX

To create similar doors and windows in a floor plan layout - CS

To reduce the thickness of lines visible in plan views - TL

To apply override settings to a floor in the model section view - VG

To increase the range of visibility in a plan view- VR

To select the previously selected items - ctrl+<

To add annotations to the model views - DI

To bring the model elements in line - AL

To rotate the model elements - R

To move an object to another location - MV

To copy a model element - CO

To mirror an element about an axis -MM

To create an array of model elements - AR

A2 aim - Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

procedure - open the model in architectural tab

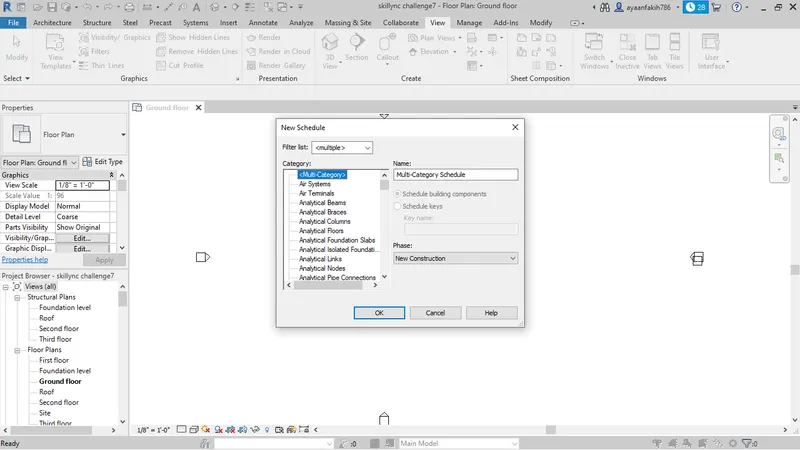

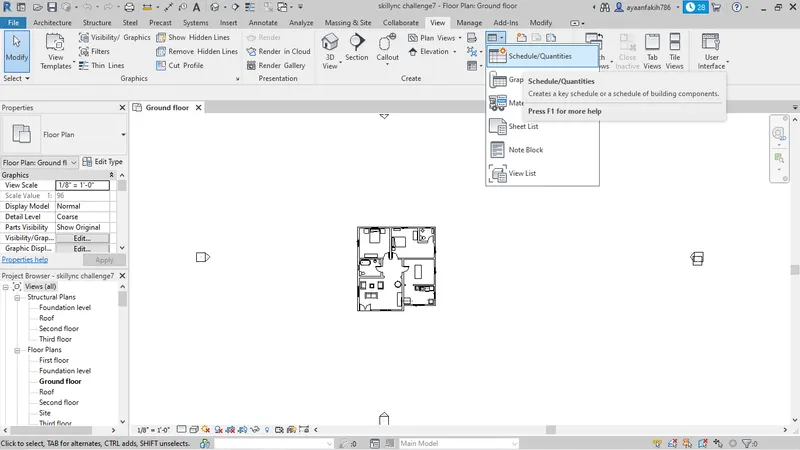

in the view tab select schedule > schedule/quantites

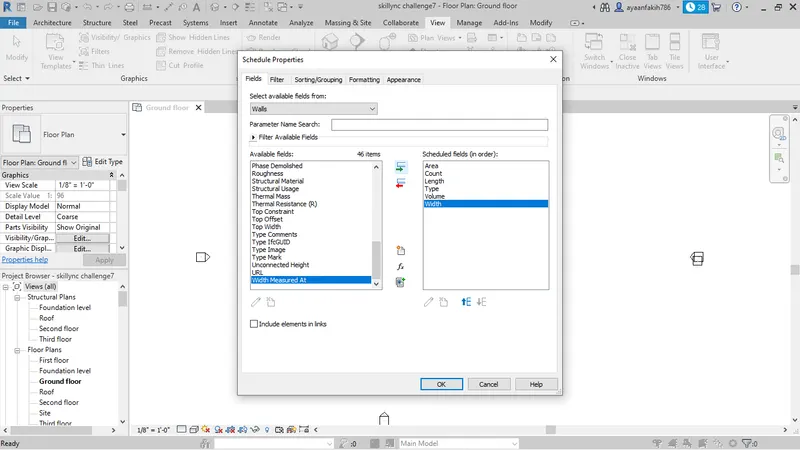

Select what all needs to be displayed in the wall schedule

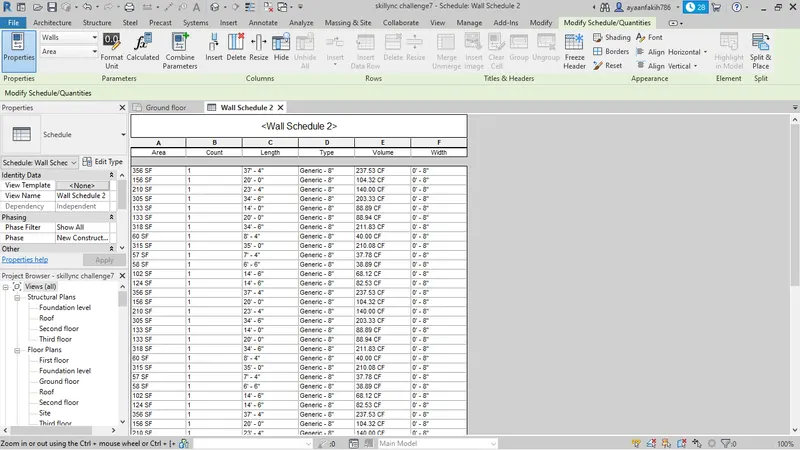

schedule is prepared

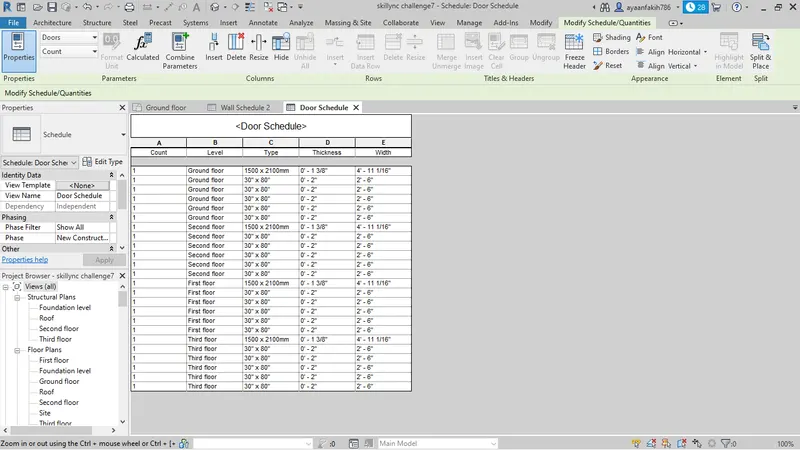

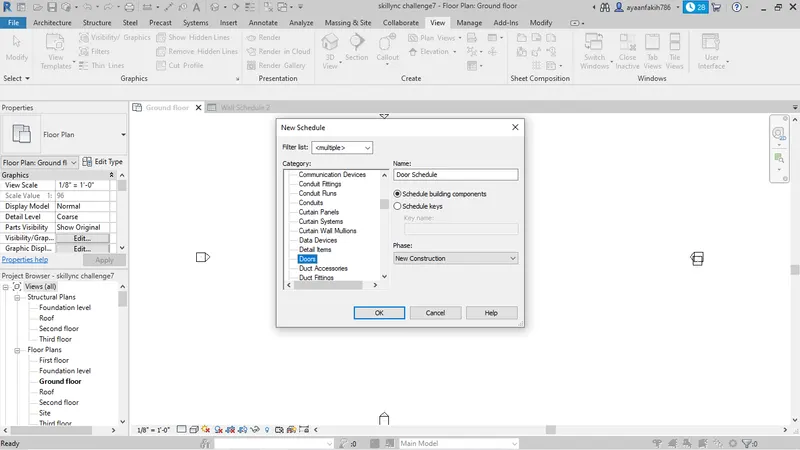

for doors, select doors in the schedule tab

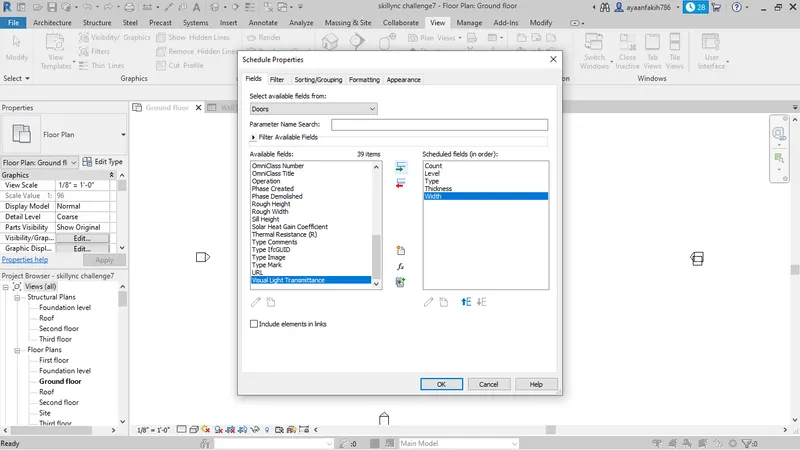

select what all needs to be added in the schedule

schedule has been created

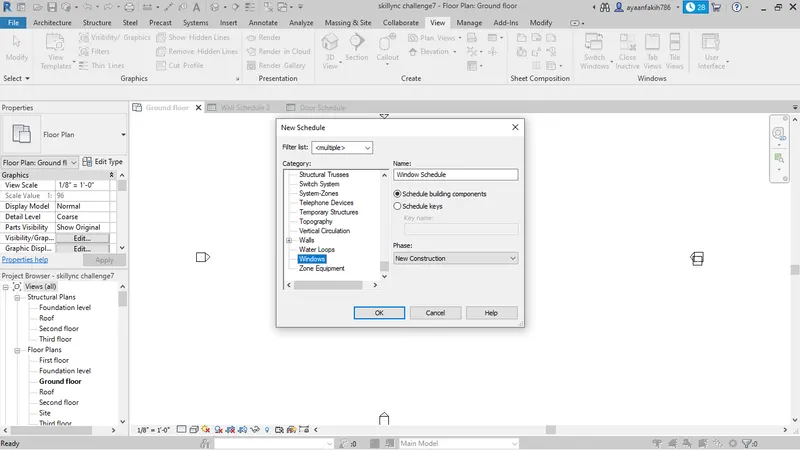

for windows, select windows in the schedule tab

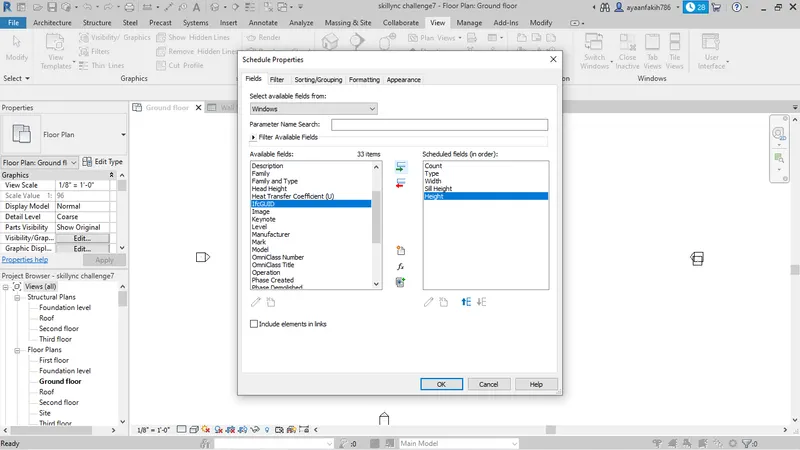

select what all needs to be added to the schedule

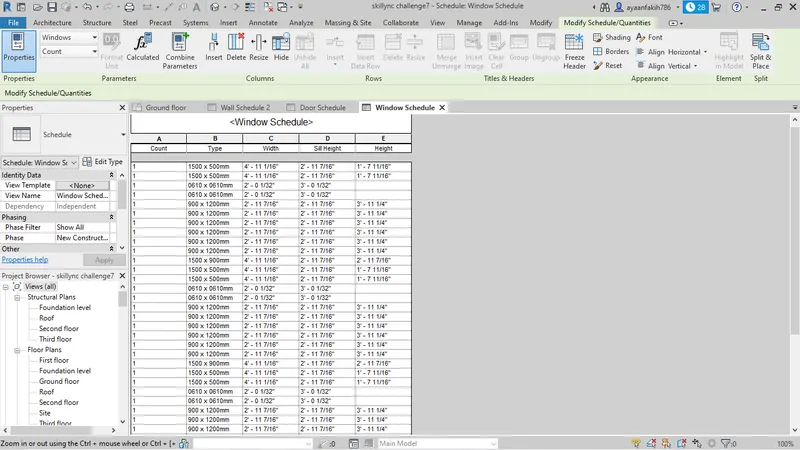

schedule has been created

for materials

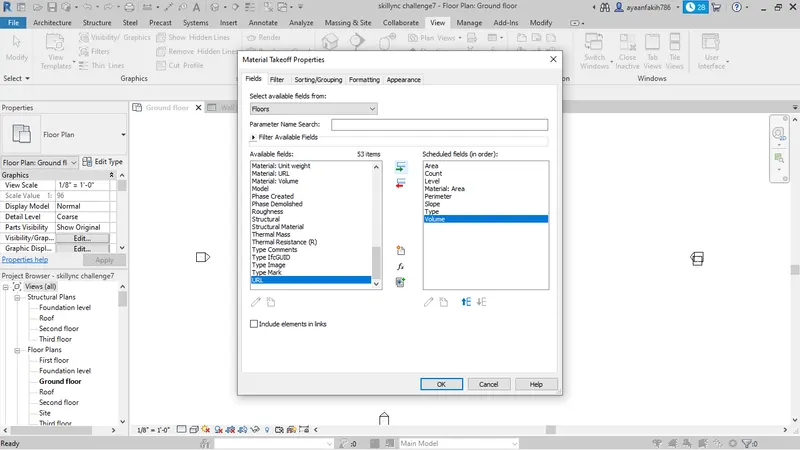

select schedule > material takeoff

select the categries

schedule fields in order to create schedule

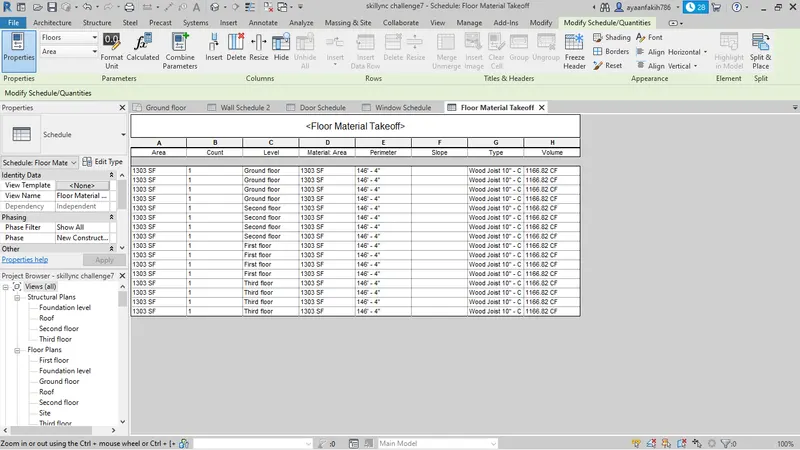

material schedule has been created

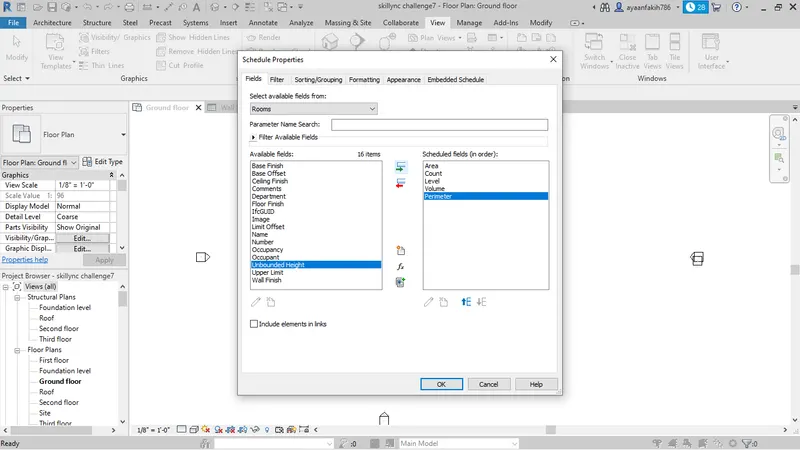

a3 aim - Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

select schedule/quantites

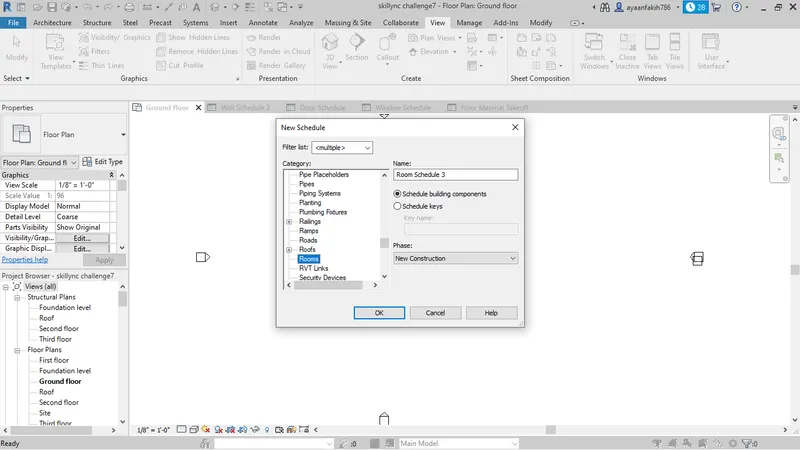

select category as rooms

select what all needs to be added to the schedule

press ok schedule has been created

A4 aim - Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

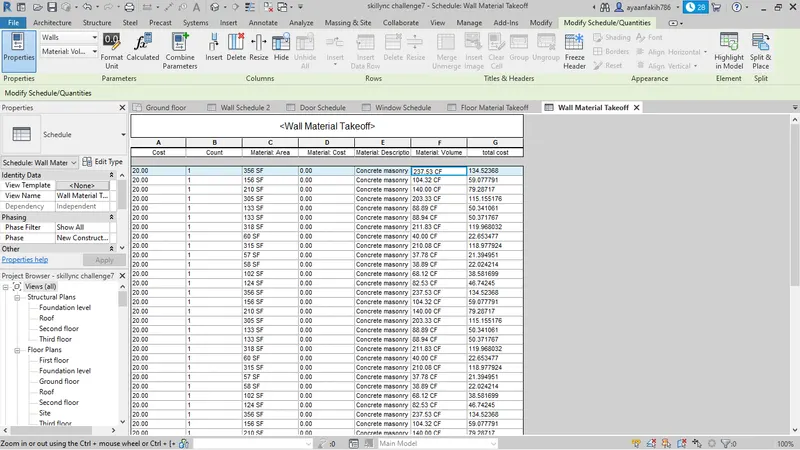

select walls, select what all has to be included in the schedule, insert the formula as (Material:Volume/1m^3)*Cost

select the example cost as 20 rupees

schedule has been created
