Preparing Schedule & Cost Estimation for a building using REVIT
Preparing Schedule & Cost Estimation for a building using REVIT
WEEK-9 CHALLENGE
N.KEERTHANA
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
Aim: To use the shortcut keys in Revit to complete tasks given above in the question
Process:

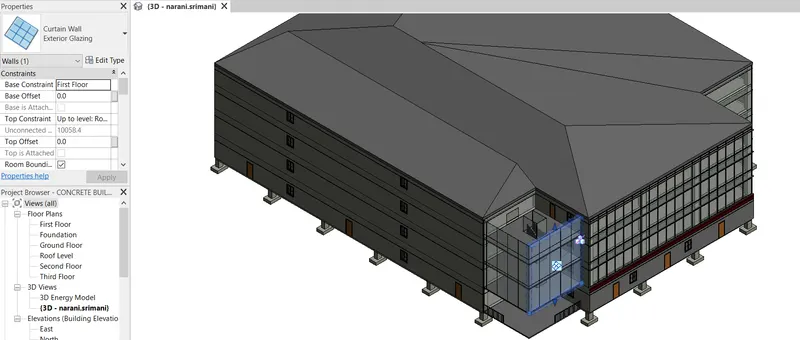

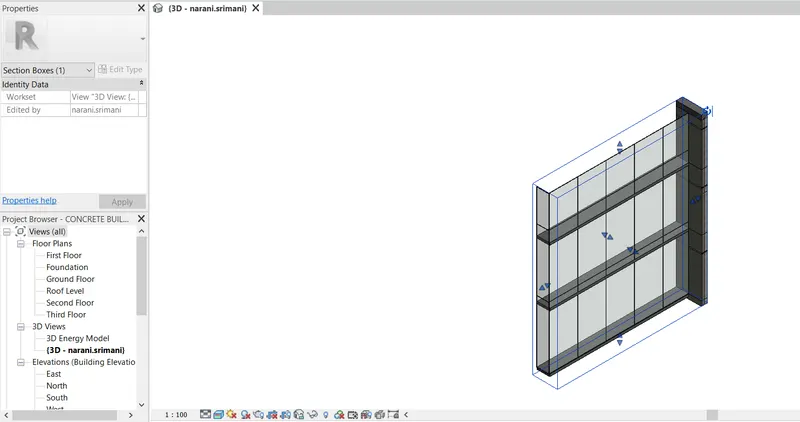

a. Using 3D model create a section box - BX

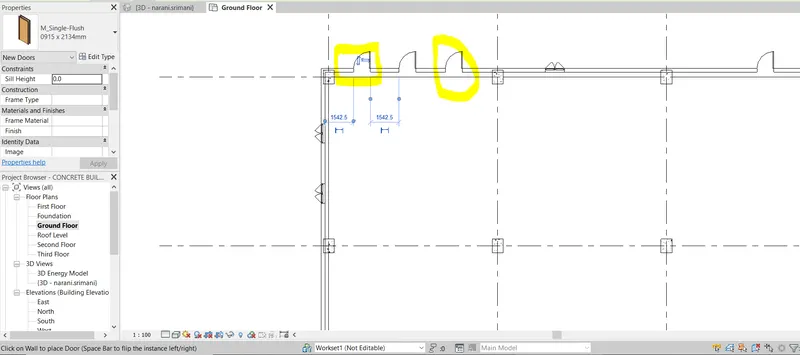

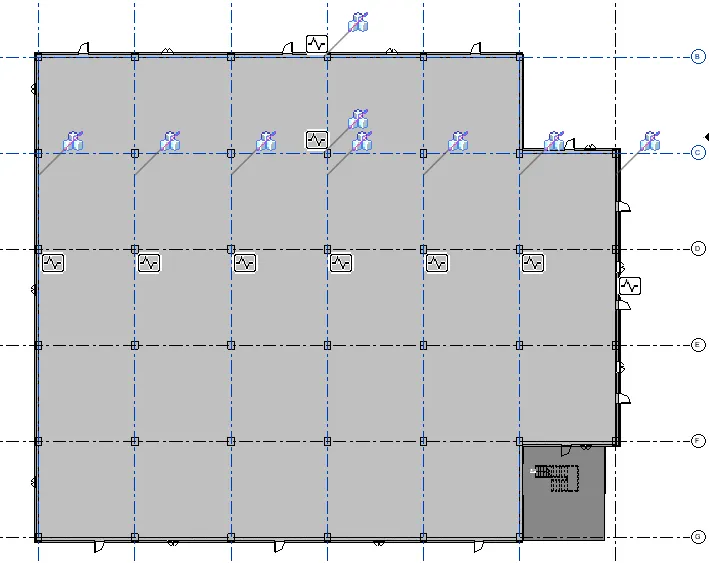

b. To create similar doors and windows in a floor plan layout - CS

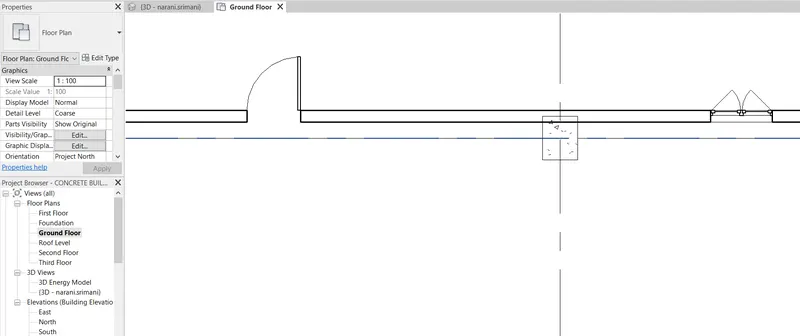

c. To reduce the thickness of lines visible in plan views - TL

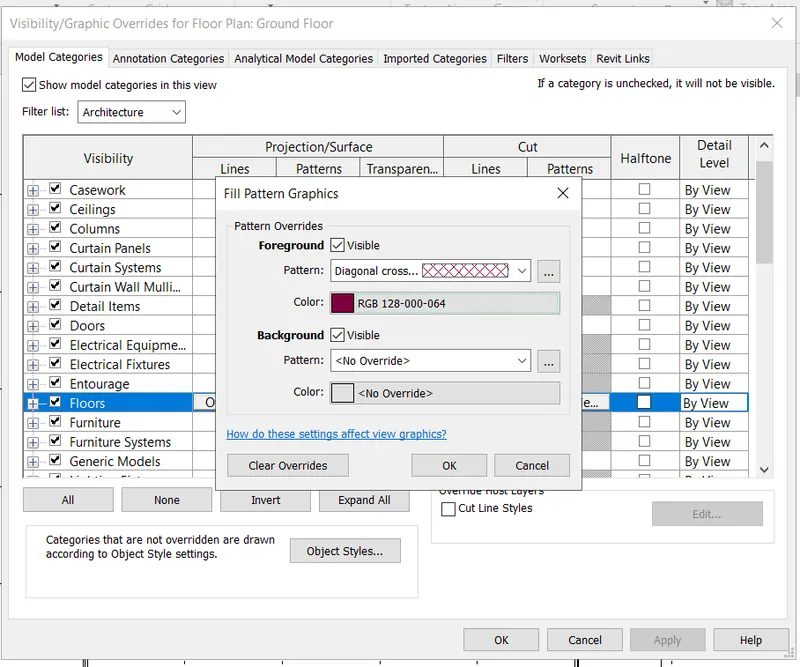

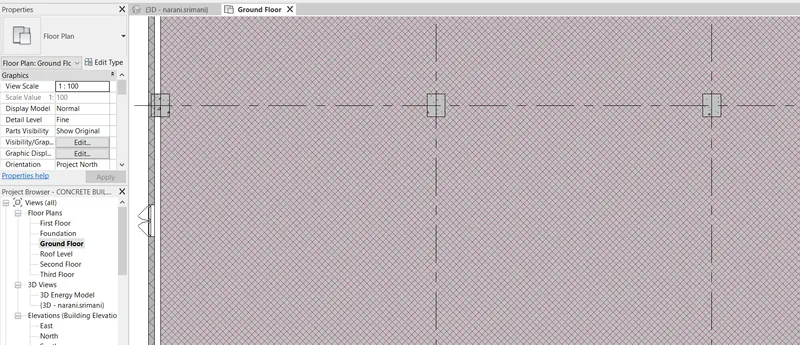

d. To apply override settings to a floor in the model section view - VG

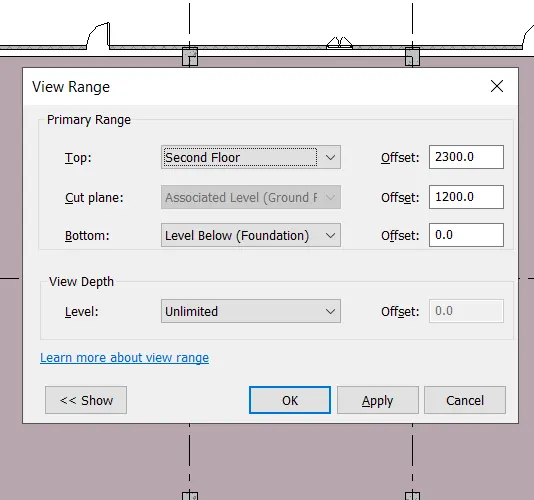

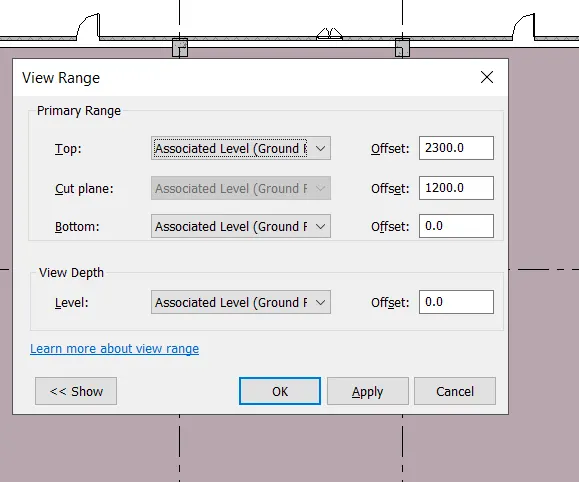

e. To increase the range of visibility in a plan view - VR
f. To select the previously selected items - ctrl + <-

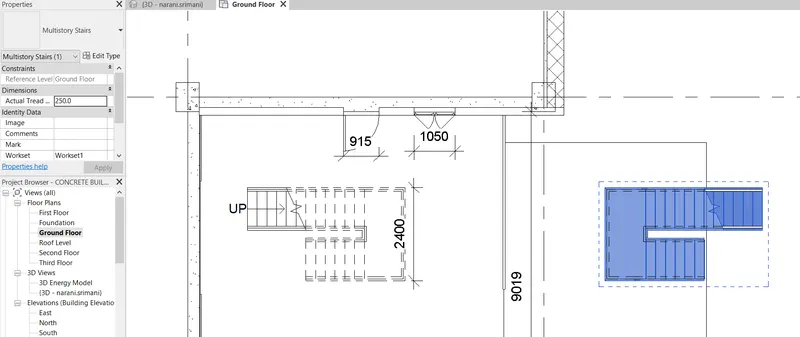

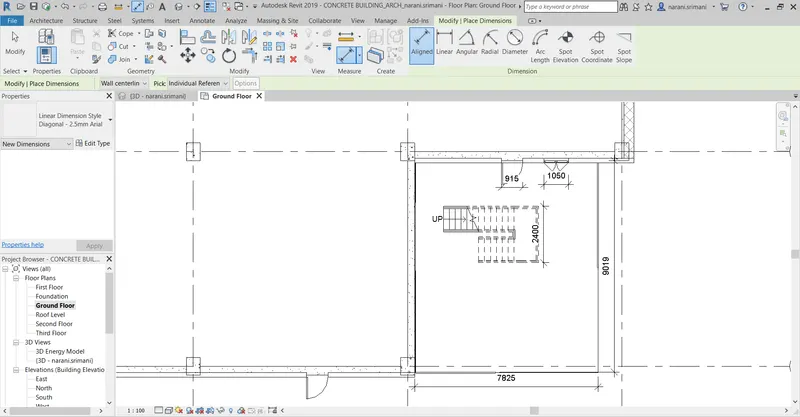

g. To add annotations to the model views - DI

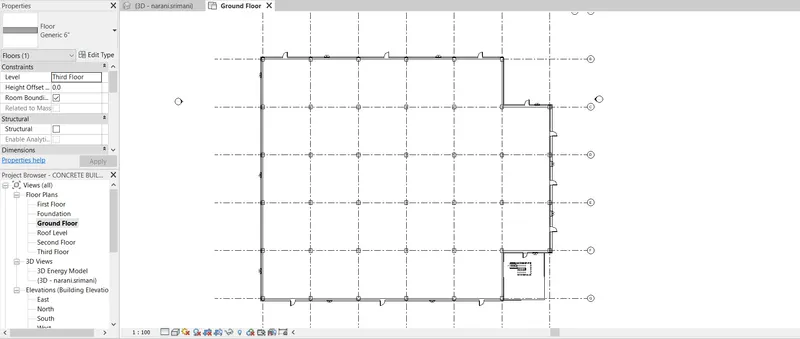

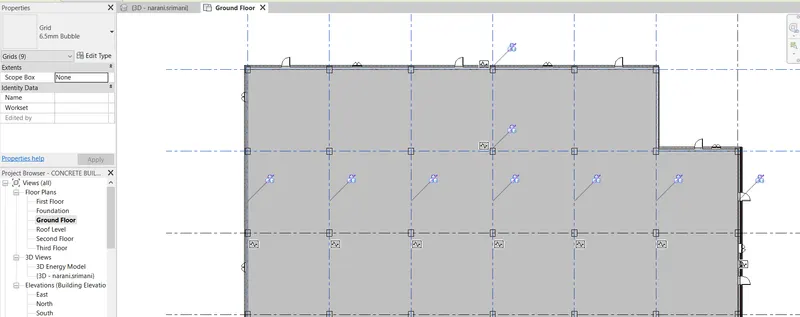

h. To bring the model elements in line - AL
i. To rotate the model elements - RO
j. To move an object to another location - MV
k. To copy a model element - CO

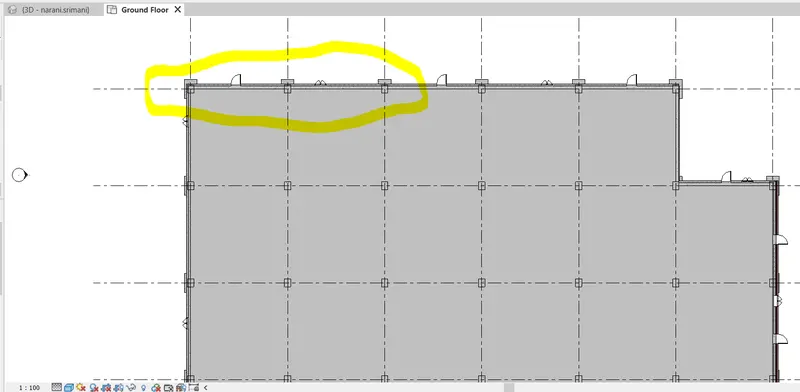

l. To mirror an element about an axis - MM

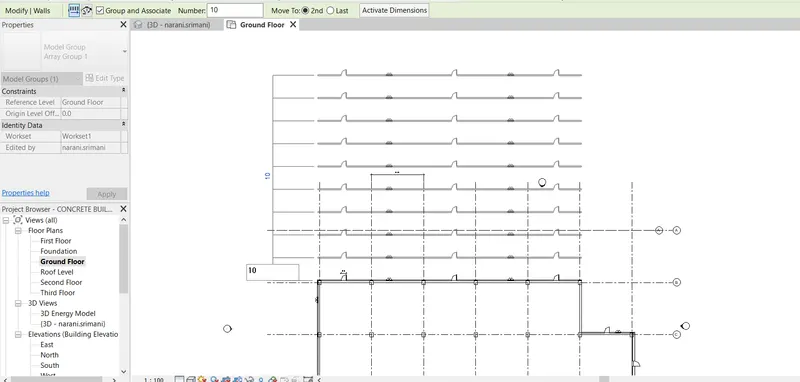

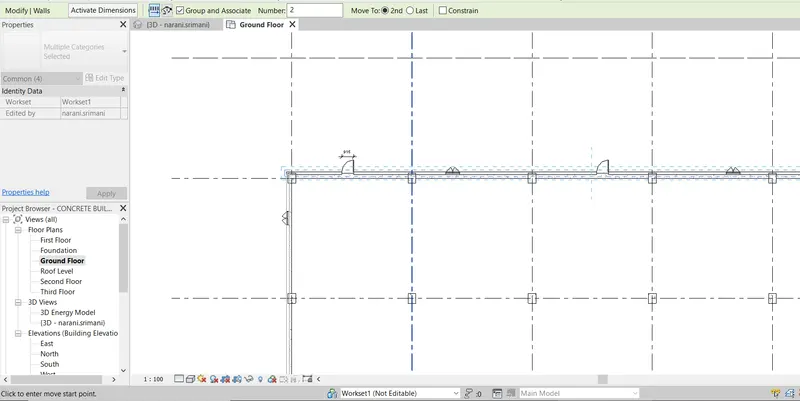

m. To create an array of model elements - AR

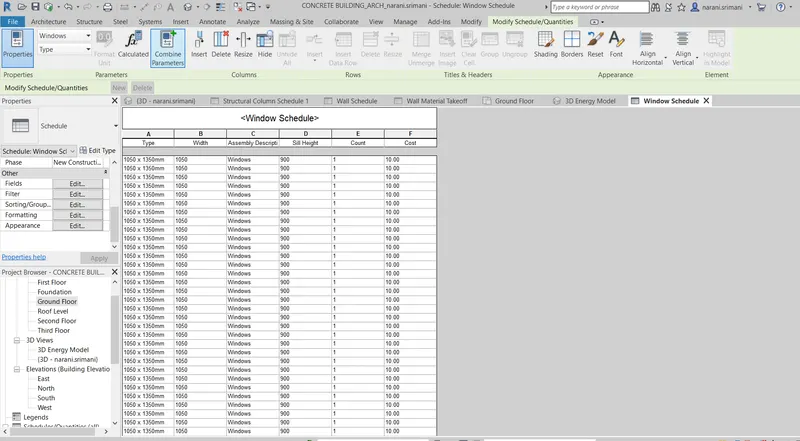

2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following

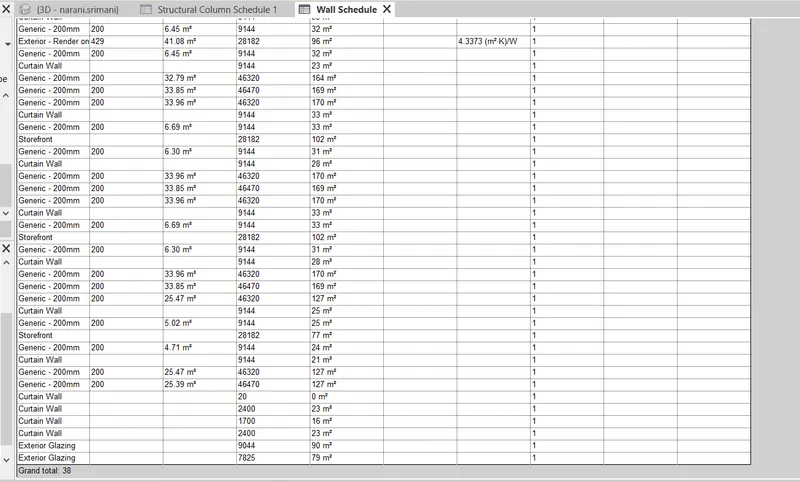

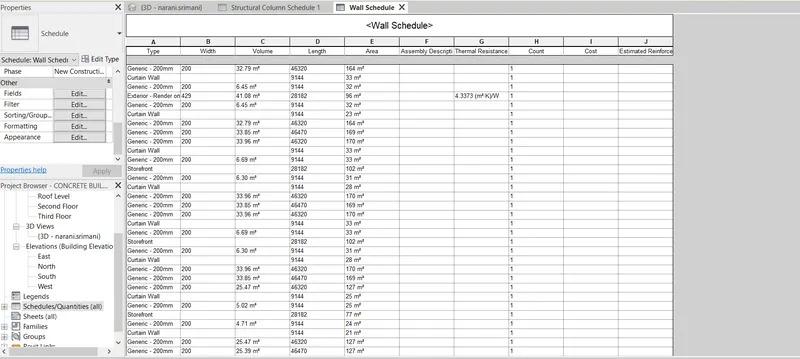

a. Walls

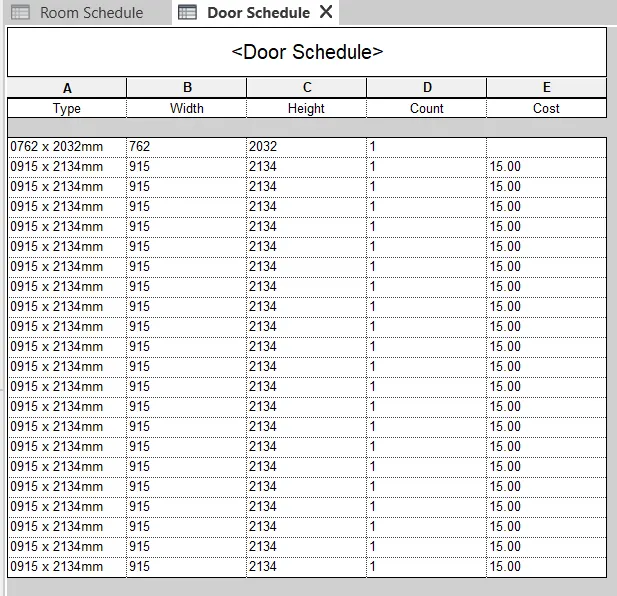

b. Doors
c. Window

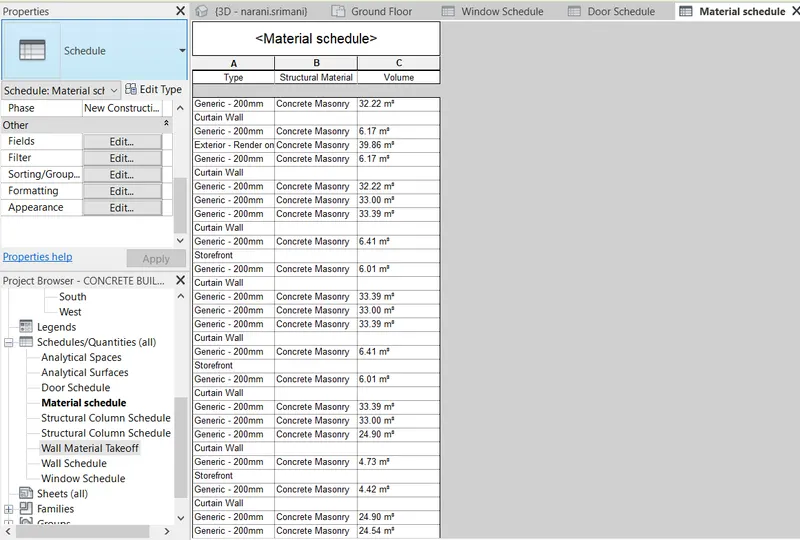

d. Material – Concrete/Wood

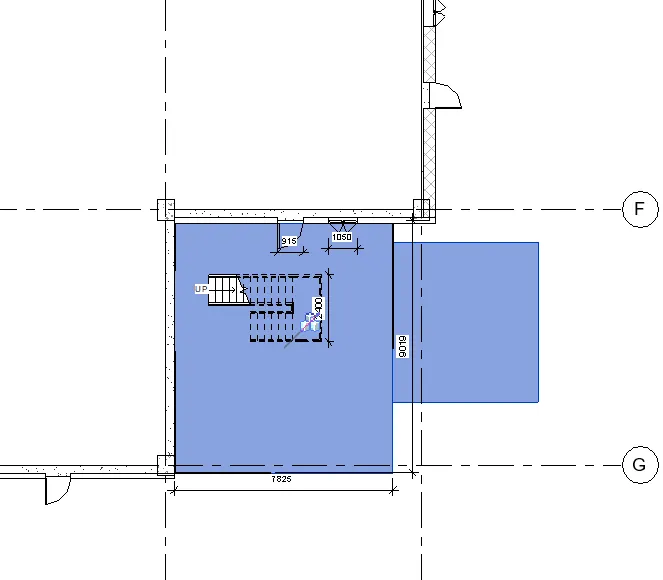

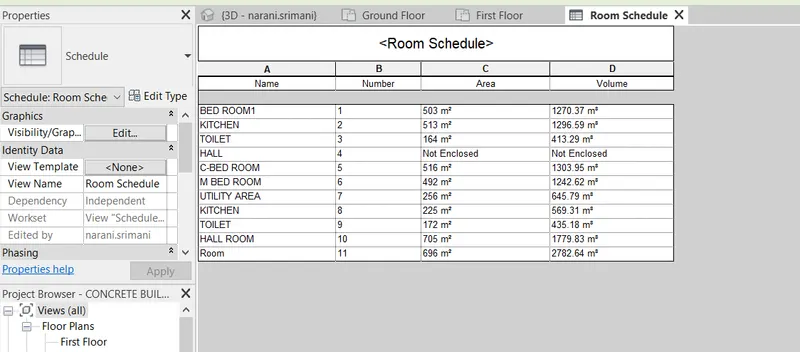

3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

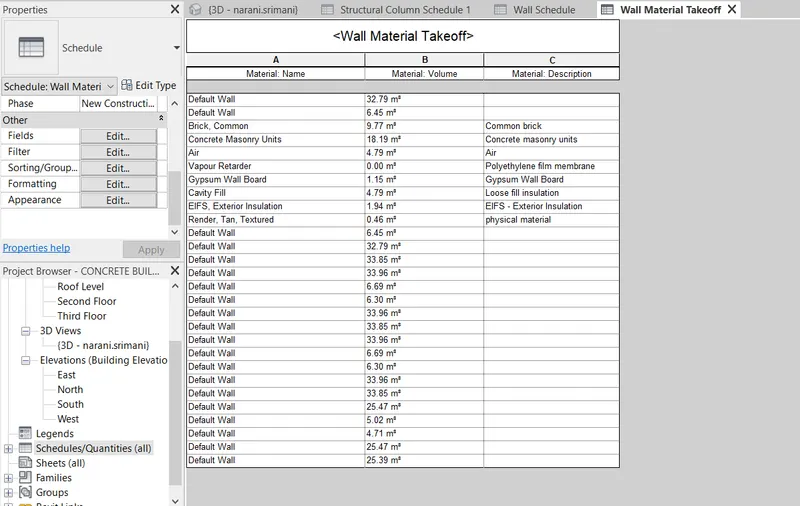

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials

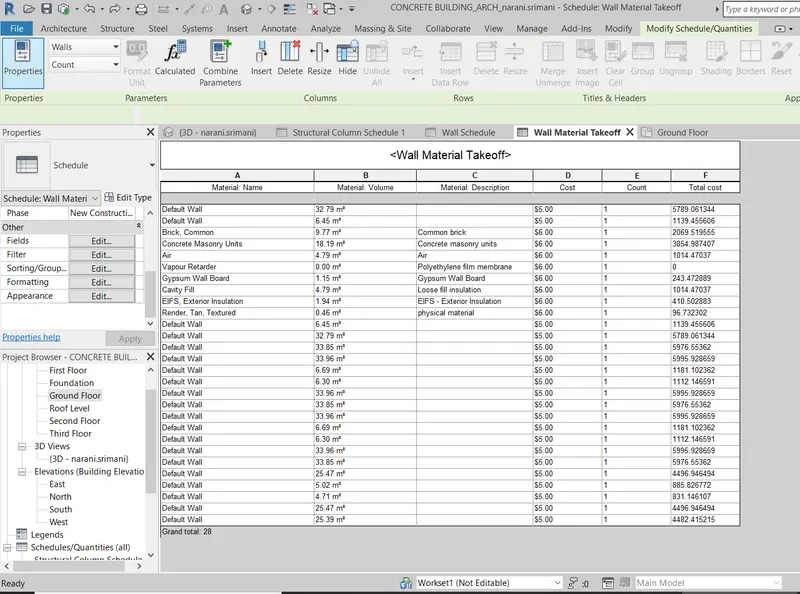

b. Individual Material Take off
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario

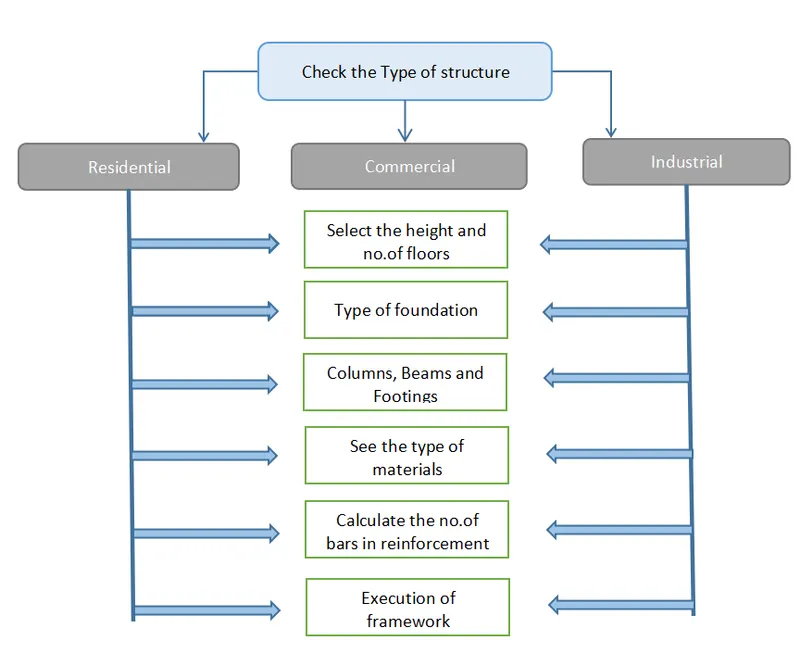

a. How to decide framings for a structure using Dynamo ?

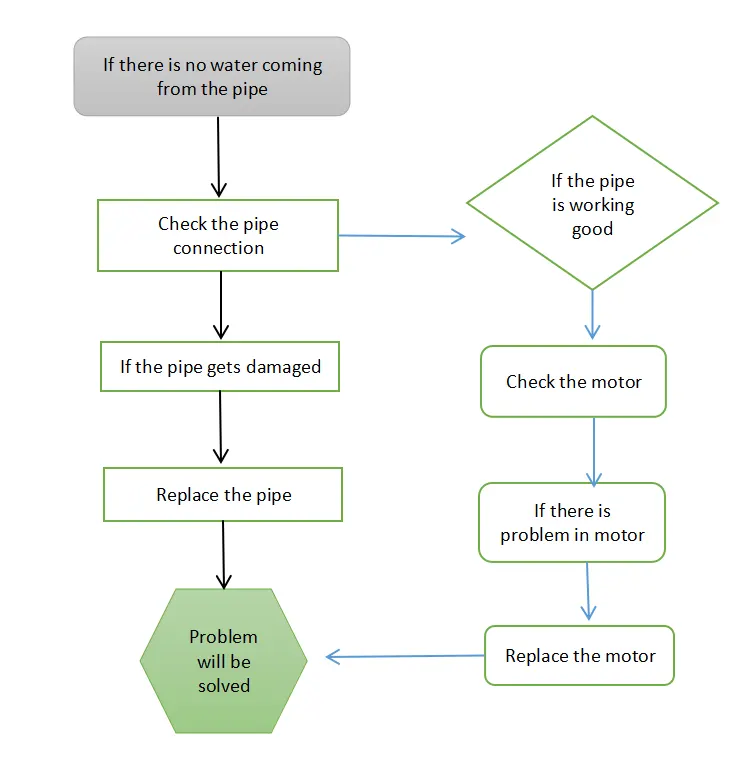

b. If there is no water coming from the pipes

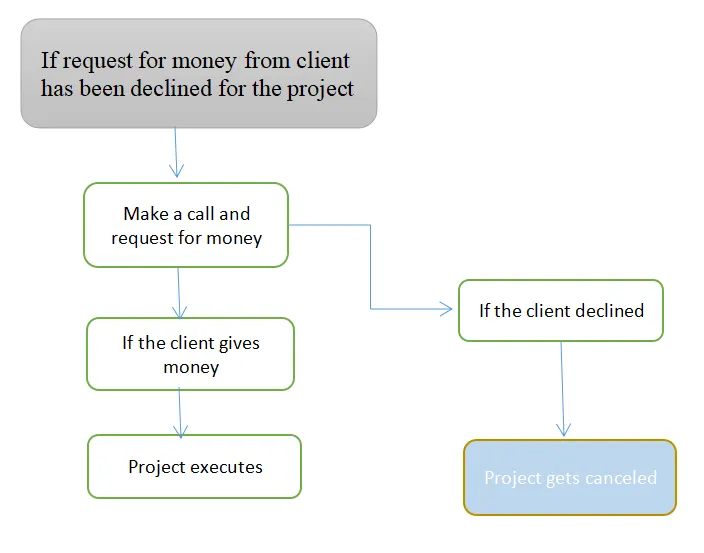

c. If request for money from client has been declined for the project
6) List the parameters associated with each model element
a. Wall
Type of wall
Length
Width
Height
Material
Cost
Thickness
b. Floor
Type of floor
Area
Length
Width
Thickness
Volume
Cost
c. Door
Type of door
Height of sill
Lintel height
Length
Width
Materials
Thickness
d. Window
Length
Width
Height of sill
Height of lintel
Thickness of window
Material
Type of window
e. Table
Material
Purpose
Height
Length
Width
f. Building
Type of building
Number of floors
Material used
Foundation type
Area
Height
Width
Loads on building
Location of building
