Preparing Schedule & Cost Estimation for a building using REVIT
1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
AIM :Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
short cut key used:section box:-BX
b. To create similar doors and windows in a floor plan layout
short cut key used:create similar:CS
c. To reduce the thickness of lines visible in plan views
short cut key used:Thin lines:-TL
d. To apply override settings to a floor in the model section view
short cut key used:Visibility Graphics and override settings:-VG
e. To increase the range of visibility in a plan view
short cut key used:View Range:-VR
f. To select the previously selected items
short cut key usED:Reselect:ctrl+<
g. To add annotations to the model views
short cut key used:dimension:-DI
h. To bring the model elements in line
short cut key used:Align:-AL
i. To rotate the model elements
short cut key used:Rotate:-R
j. To move an object to another location
short cut key used:Move:-mv
k. To copy a model element
short cut key used:copy:-CO
l. To mirror an element about an axis
short cut key used:Mirror:-MM
m. To create an array of model elements
short cut key used:Array:-AR
2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
Procedure:

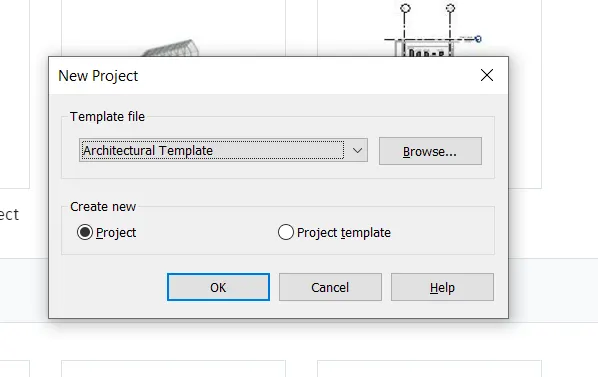

Open the previously created architectural model first

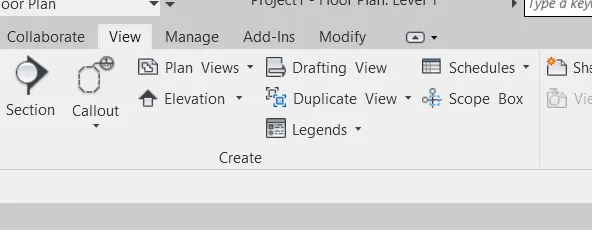

then go to view tab>schedules>schedule/quantities
a) wall schedule1:

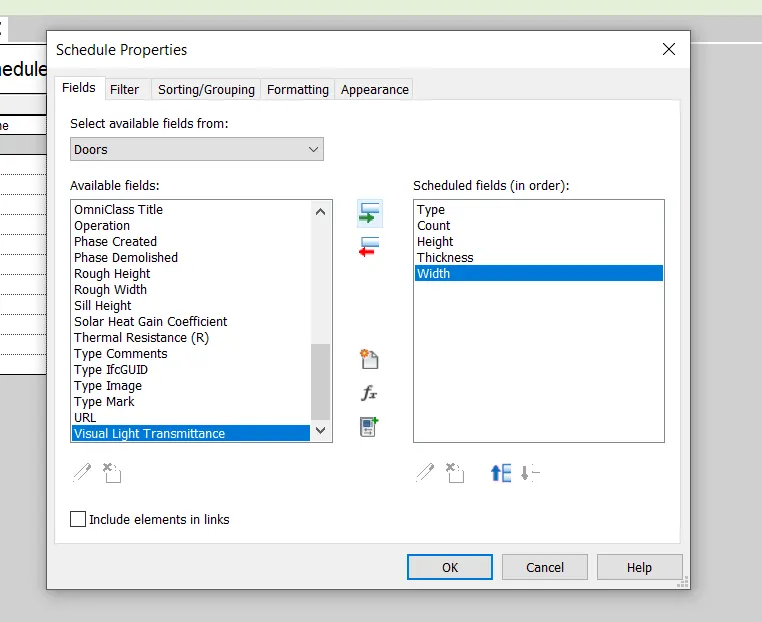

1)Now the wall selects the schedule parameters and clicks OK.

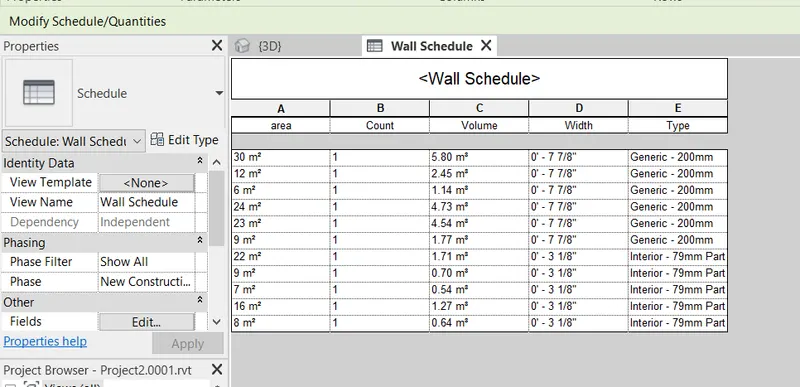

2) the wall schedule is prepared as given
b) Door schedule
view>schedule>schedule/qantities
select door

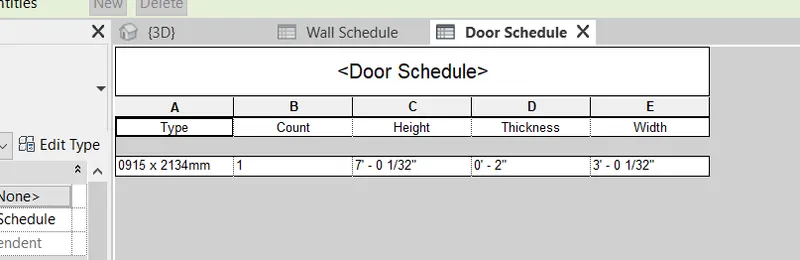

the door schedule is prepared as given
c) window schedule
view > schedule > schedule/quantities
now,select the category as window

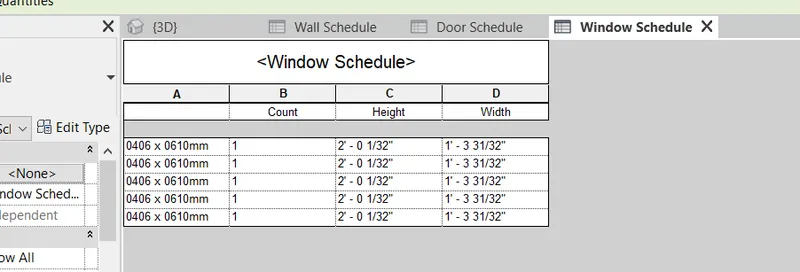

the window schedule is prepared as given
d) material concrete /wood

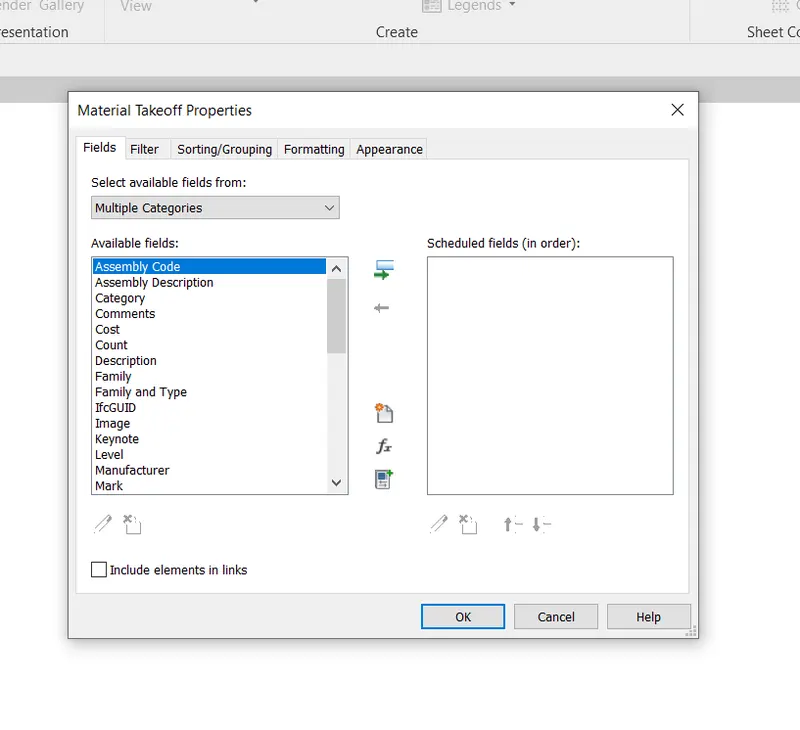

view>schedule>material takeoff

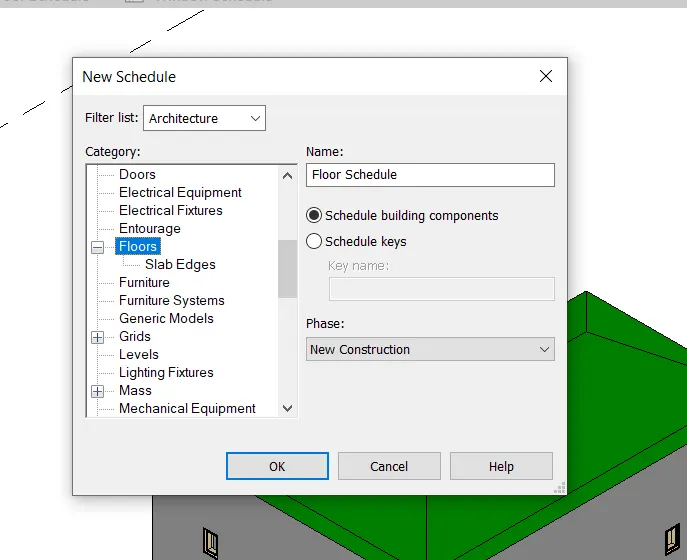

now select the category as floors
the material concrete schedule is prepared as given
3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
procedure
Go to view >schedule>schedule/quantities
now select the category as room
4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
procedure

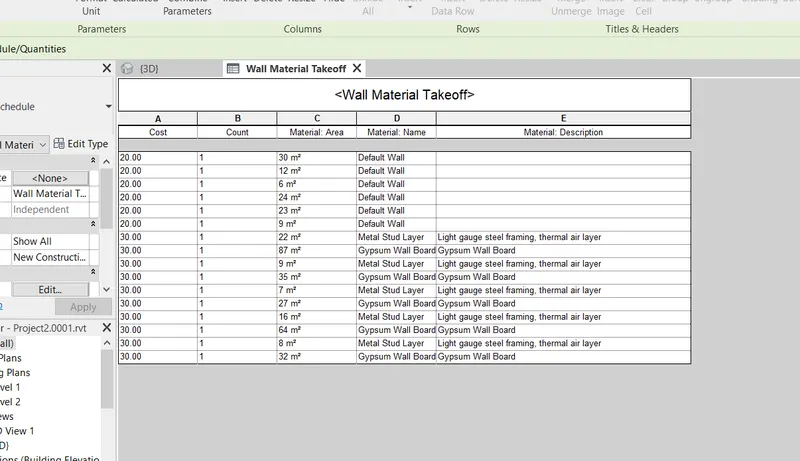

1 walls

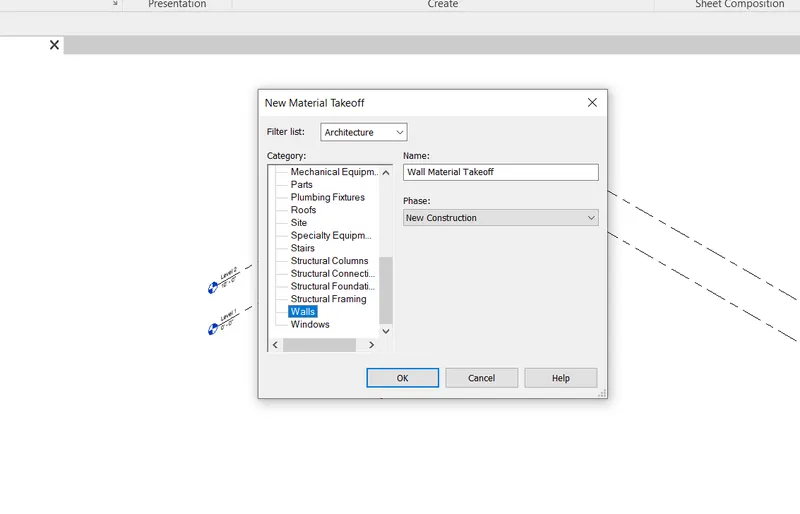

go to view> schedules >material take off
select category as wall

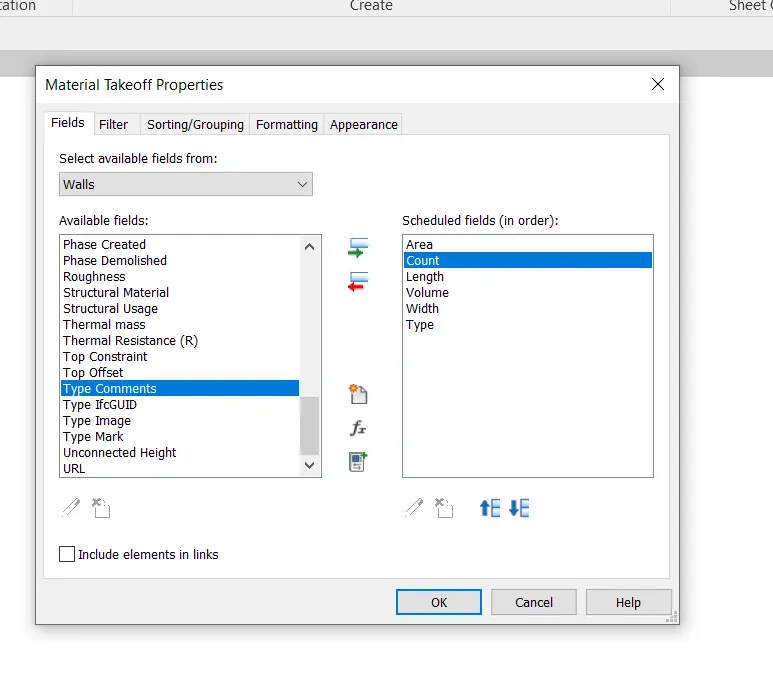

select the paramaters for wall
Prepare for material takeoff scedules for doors, windows, floors, and furnishings in the same way.

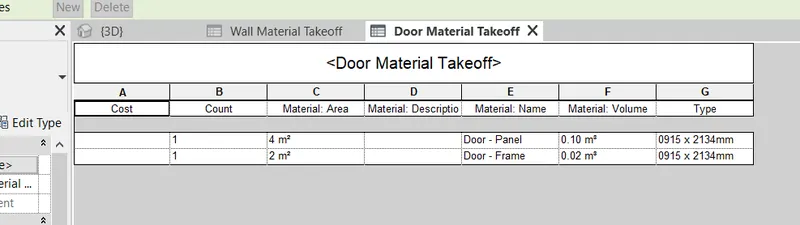

door material takeoff
windows material take off

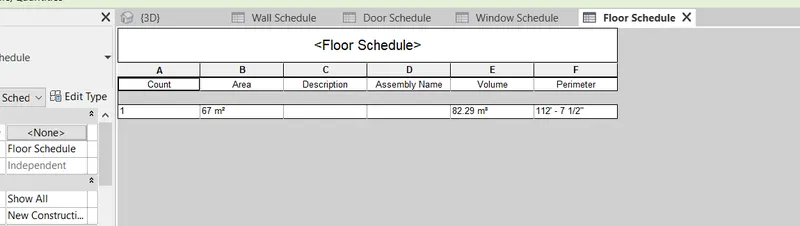

floor material take off

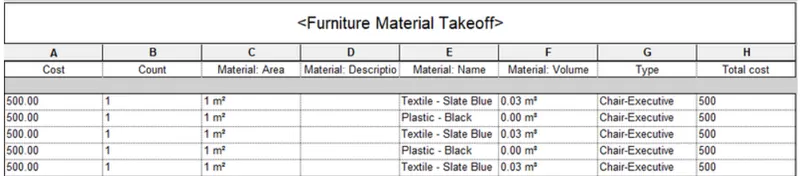

furniture material takeoff
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario

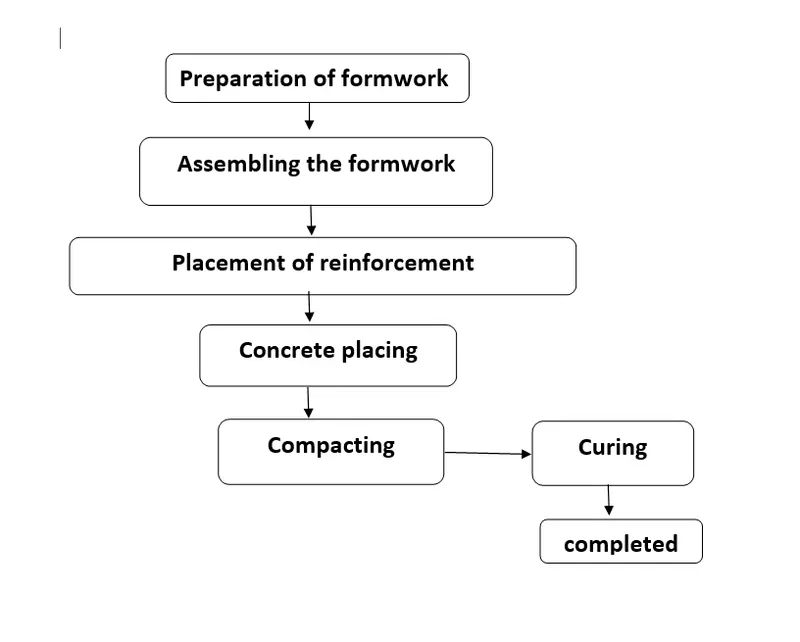

a. How to decide framings for a structure using Dynamo ?

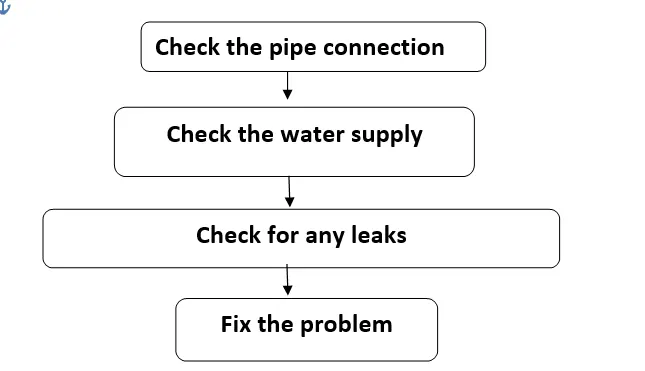

b. If there is no water coming from the pipes

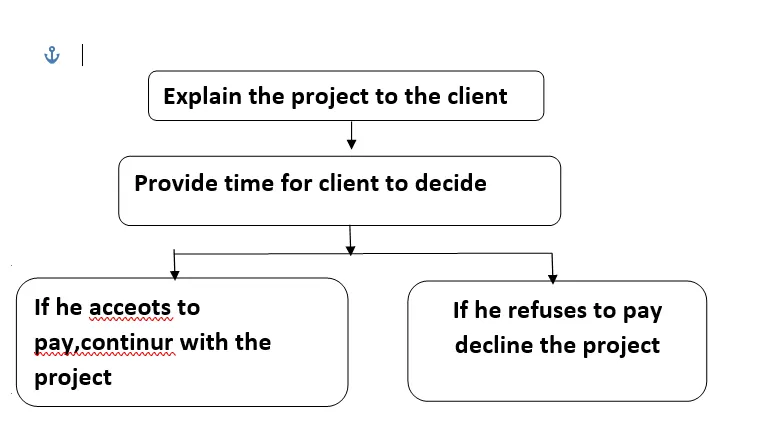

c. If request for money from client has been declined for the project
a)
m:-
b)
c)
6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
a) walls:
wall type
wall description
wall length
wall thickness
wall height
wall height
wall materials
wall location
material cost
b) floor:
floor type
floor description
floor length
floor material
floor thickness
material cost
c) door
door type
door description
door height
door material
material cost
d) window
window type
window description
window width
window height
window material
material cost
e)Table
Table type
Table width
table length
Table weight
Table material
Table cost
f) building
building type
building floor area
building perimeter
building location
building height
material
loads on a building
