Preparing Schedule & Cost Estimation for a building using REVIT

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

ANS:-

a. Using 3D model create a section box- BX
b. To create similar doors and windows in a floor plan layout-CS
c. To reduce the thickness of lines visible in plan views_TL
d. To apply override settings to a floor in the model section view-VG
e. To increase the range of visibility in a plan view-VR
f. To select the previously selected items-CTRL=<
g. To add annotations to the model views-DI
h. To bring the model elements in line-AI
i. To rotate the model elements-RO
j. To move an object to another location -MV
k. To copy a model element-CO
l. To mirror an element about an axis-MM
m. To create an array of model elements-AR

2. AIM:- Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

PROCEDURE:-

STEP-1:-

• INITIALLY open the architectural model created previously
• go to view tab
• than schedules and schedule quantities

STEP-2:-

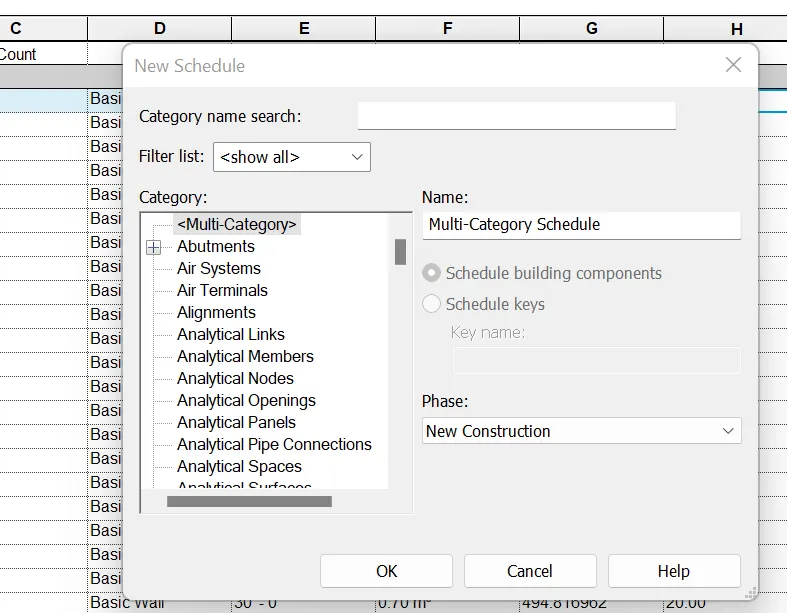

• Choose the wall category whose schedule is to be formed

STEp-3:-

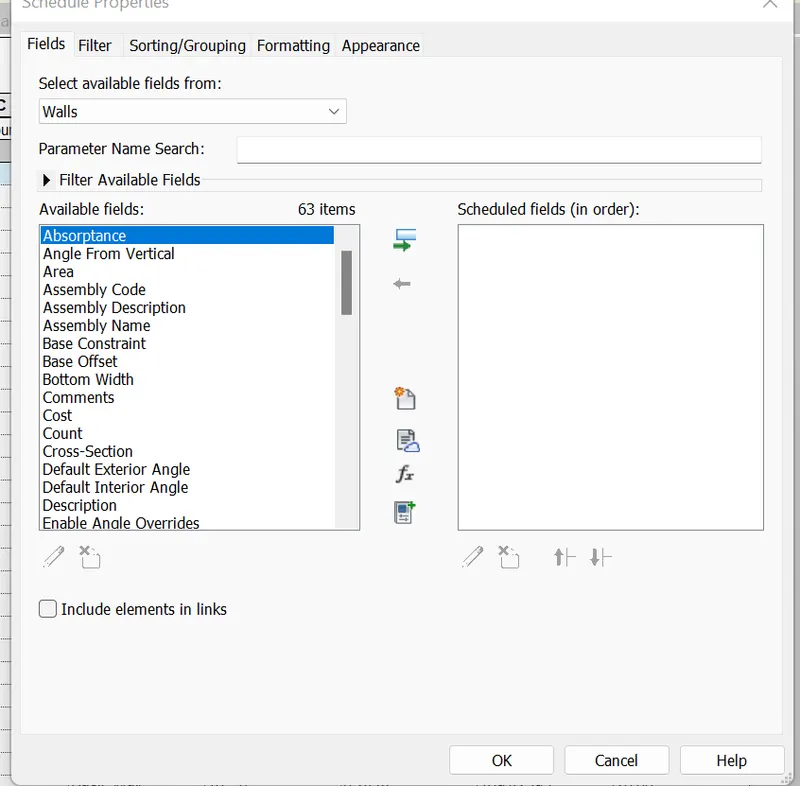

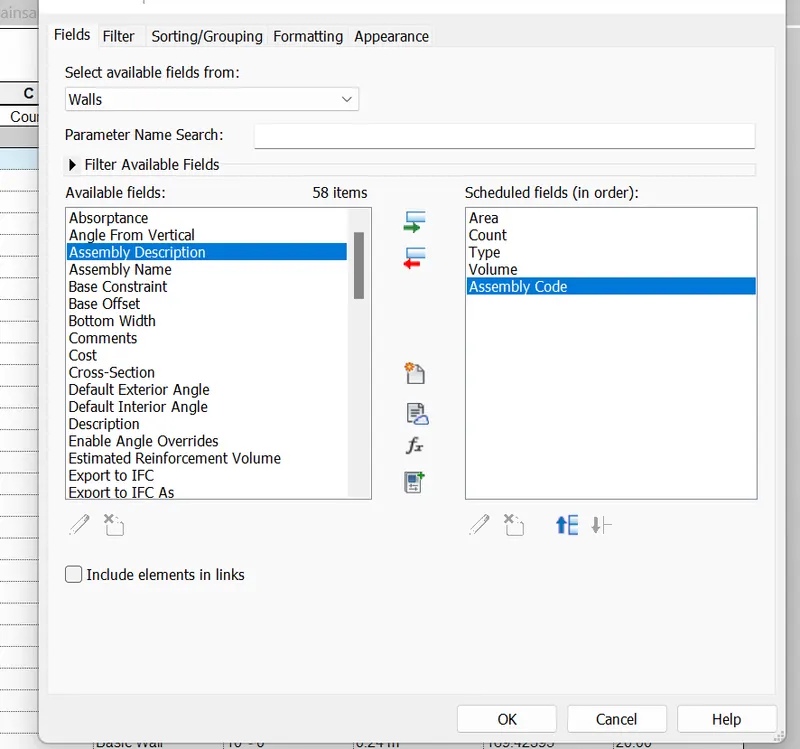

• Select the parameters to be considered for the walls

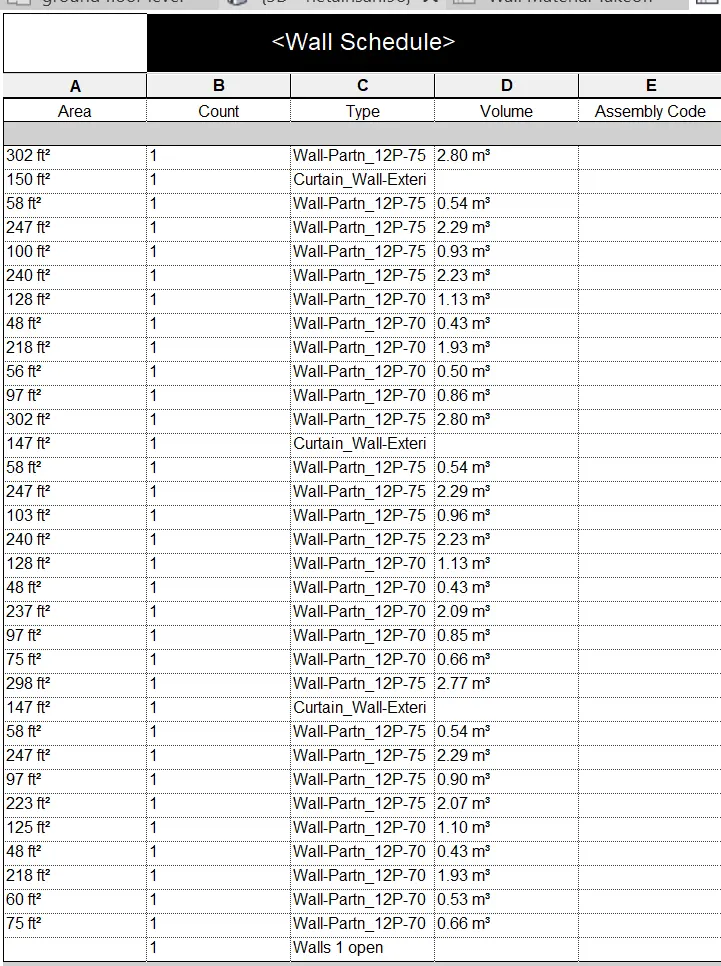

step-4:-WALLS schedule is prepared as shown below

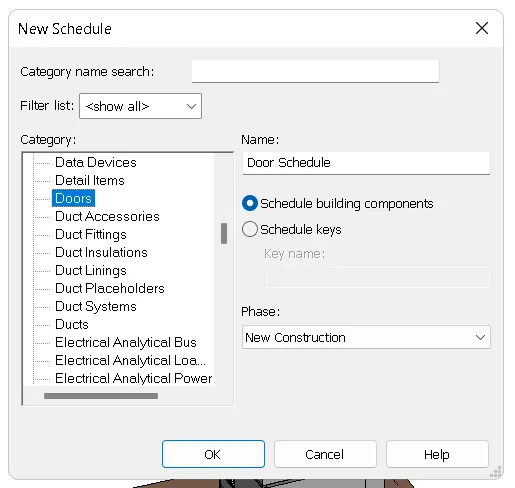

STEP-5 :- PREPAring the Door schedule

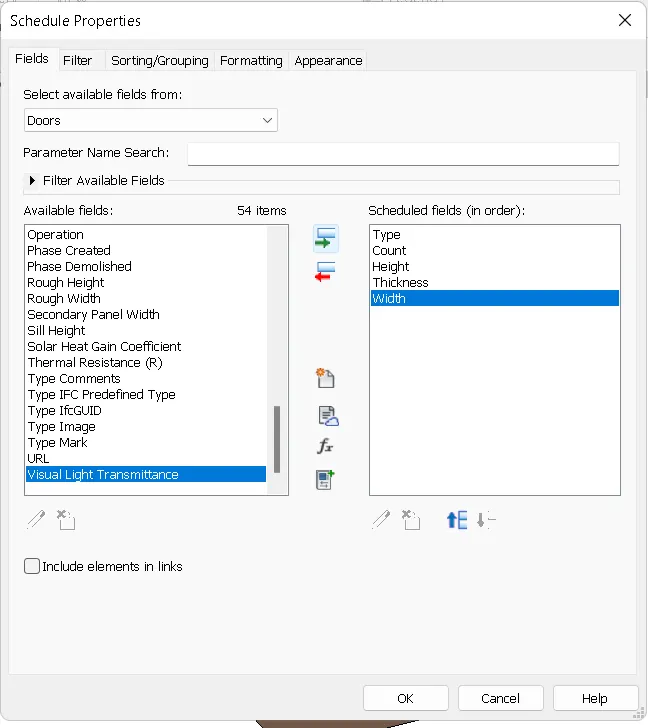

STEP-7:-

• Now, select the parameters to be considered for doors.

STEP-8

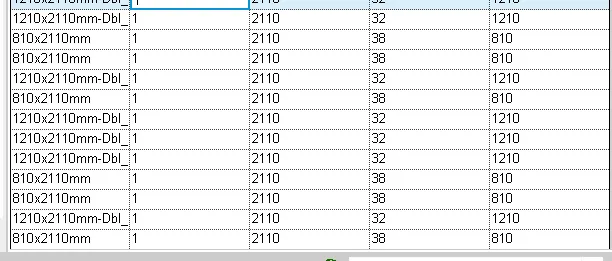

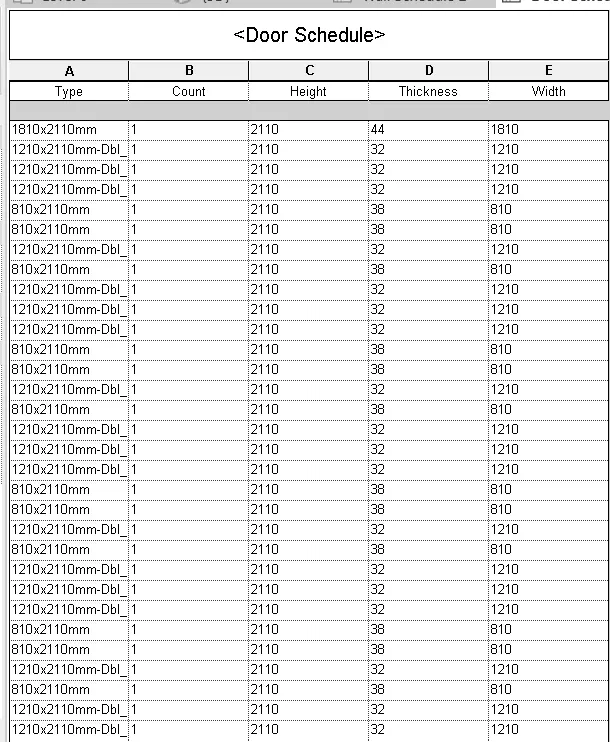

• Door schedule is given as:

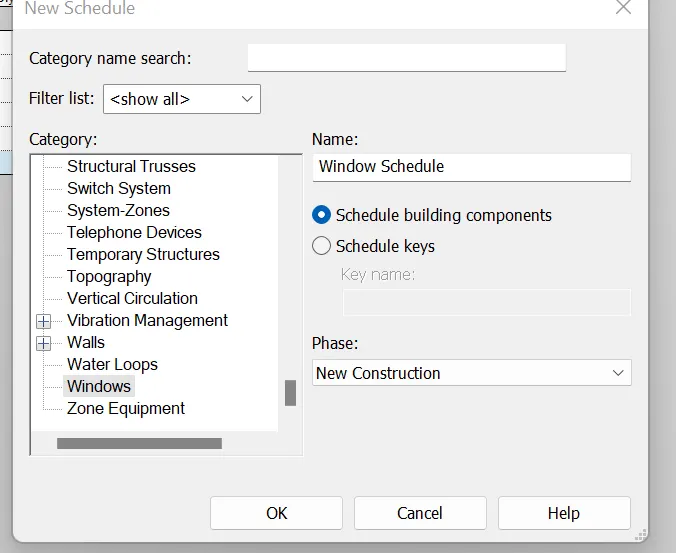

STEP-9 :- PREPARING the window schedule

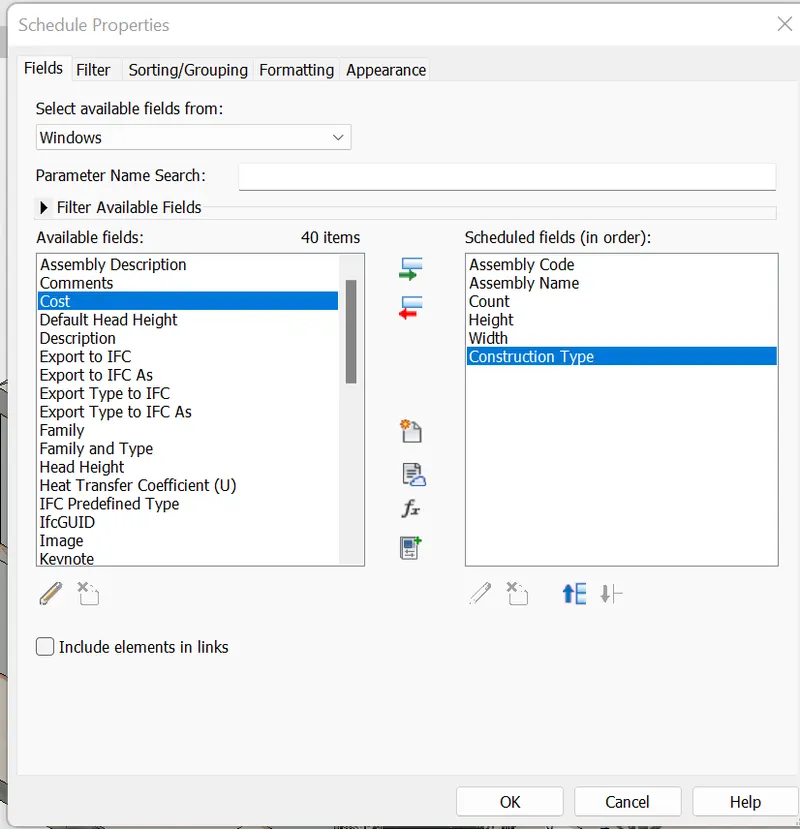

STEP-10 :- select the parameters for the windows

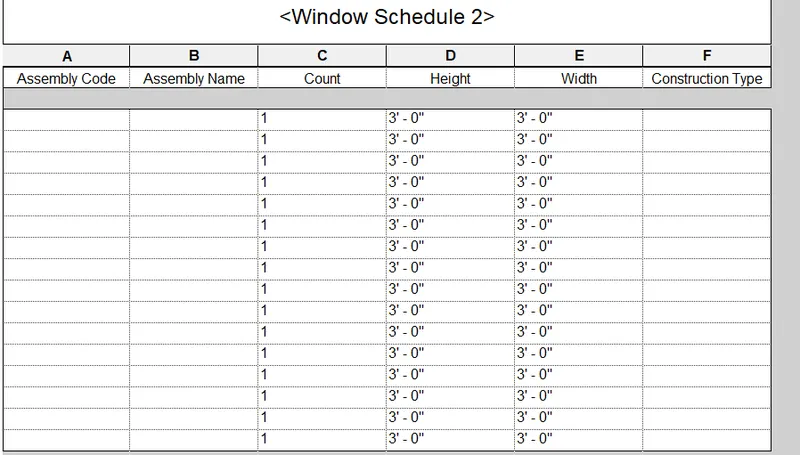

STEP_11 :- window schedule is prepared as shown below

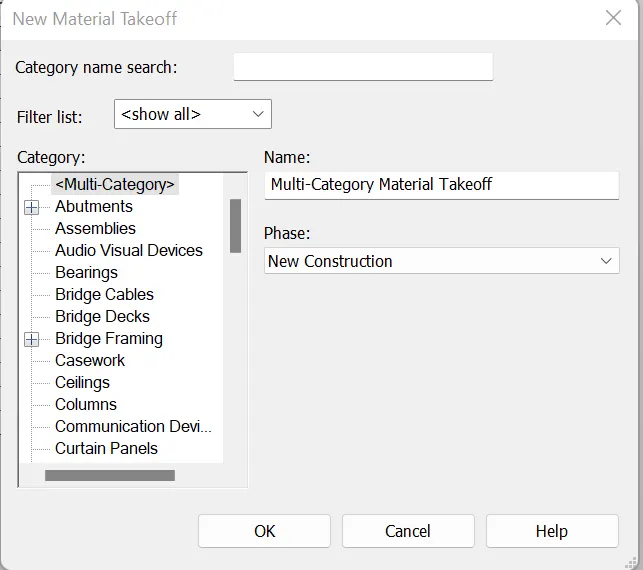

STEP-12:- PREPARING schedule for any material - concrete /wood

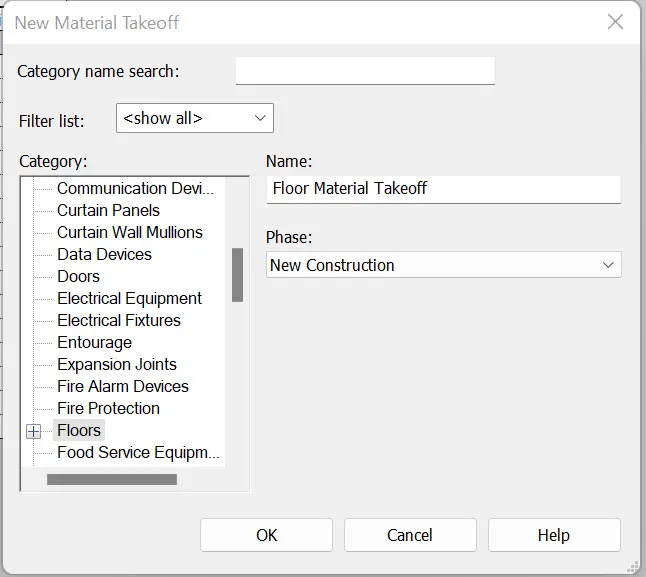

STEP-13 :- preparing floor material takeoff

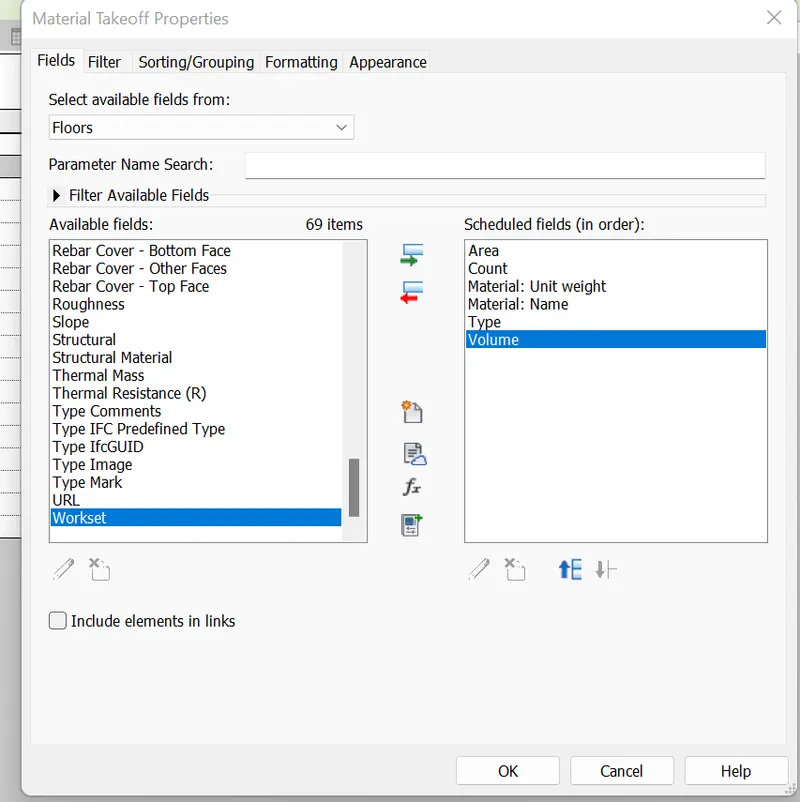

STEp-14 :- select the parameters required for floor

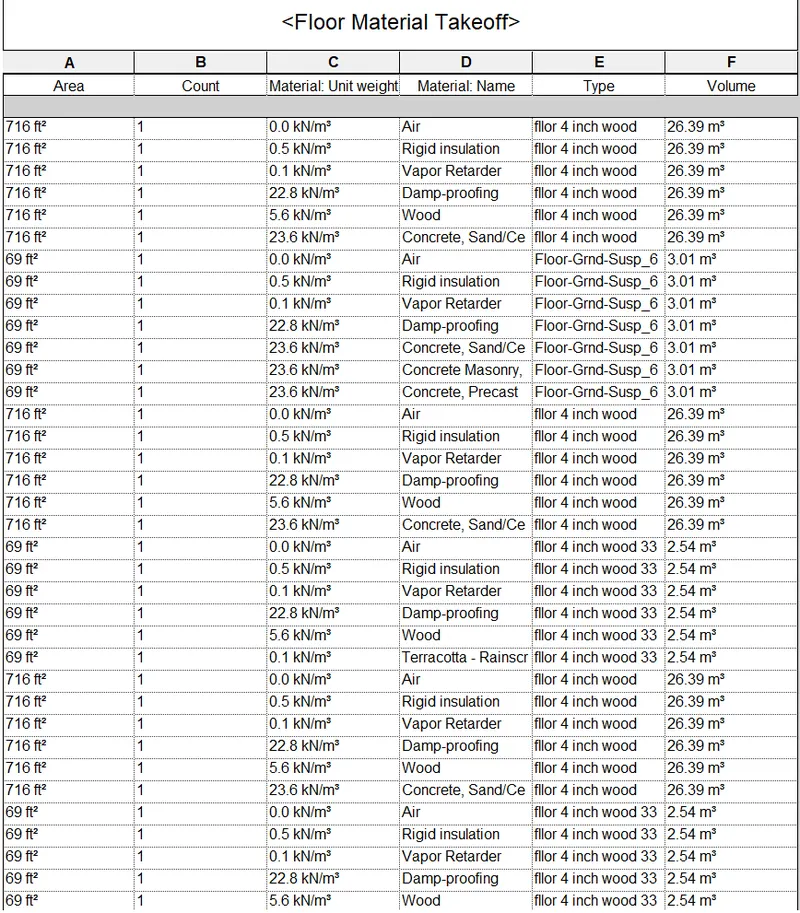

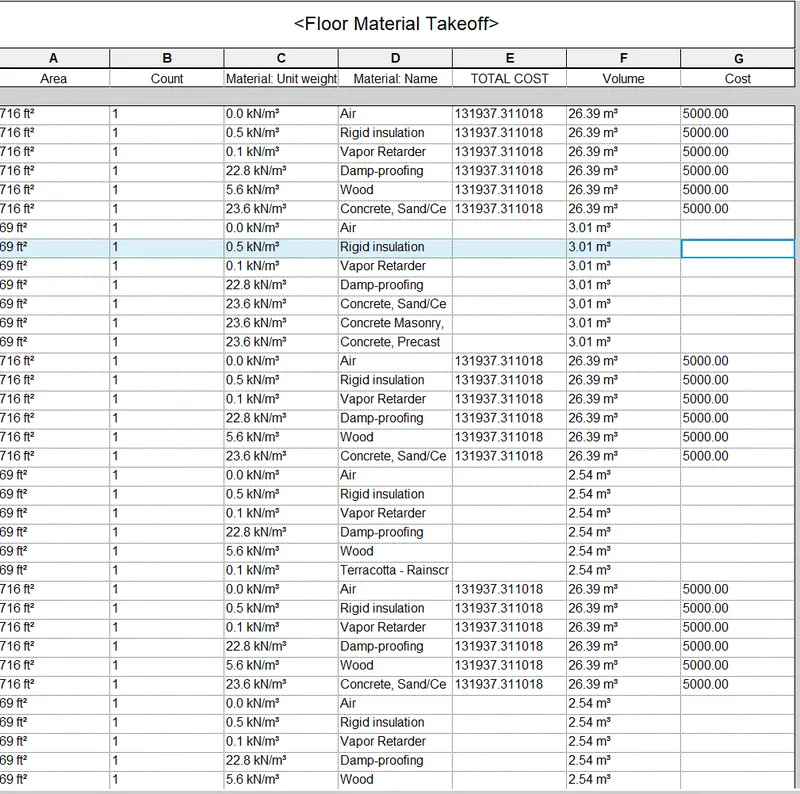

STEP-15 :- FLoor material takeoff isschedule is prepared

3) AIM:-Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

PROCEDURE:-

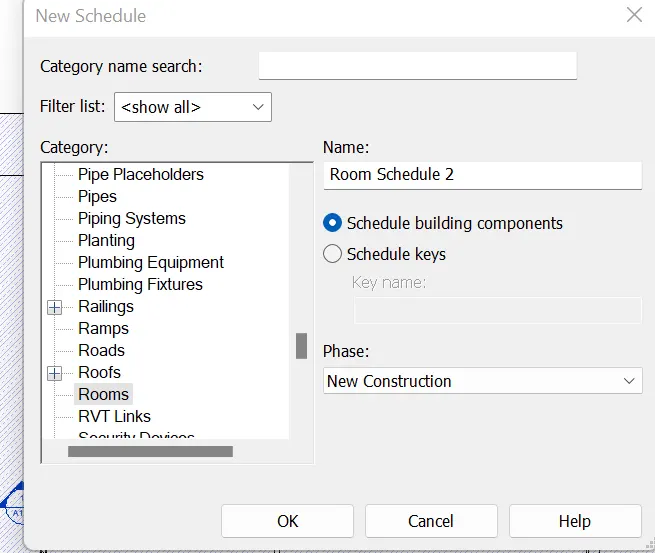

STEP-1:-

• GO to view tab
• THAN open schedule and schedule quantities

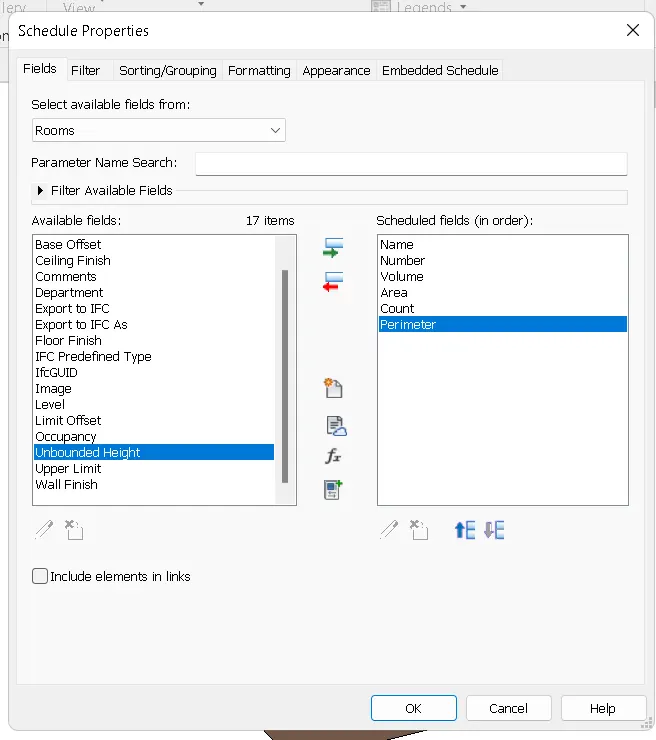

STEP-2 :-SELECT the parameters required for the room schedule

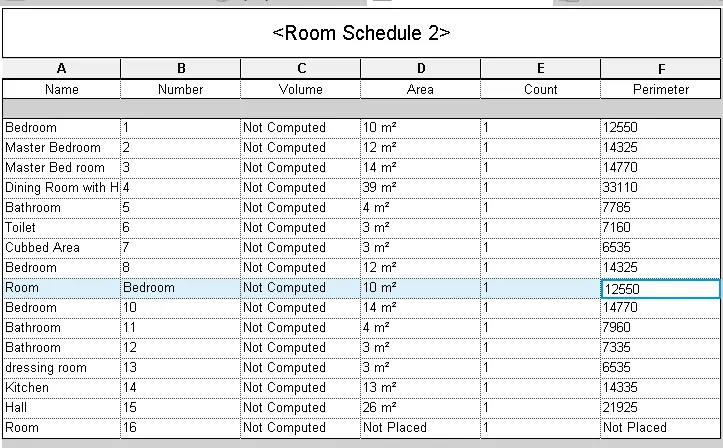

STEP-3 :- room schedule is prepared as shown below

4) AIM:- Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

PROCEDURE:-

STEP-1:-

• INITIALLY open the architectural model created previously
• go to view tab
• than schedules and schedule quantities

STEP-2:-

• Choose the wall category whose schedule is to be formed

STEp-3:-

• Select the parameters to be considered for the walls
•

STEp-4 :- cost parameter is to be added

• TOTal cost is also to be added

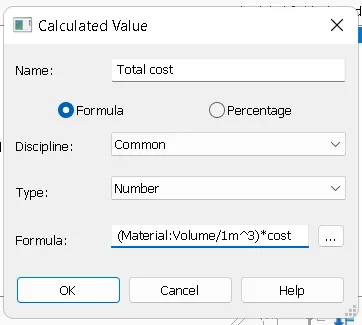

• calculate the quantities by given belwo formula

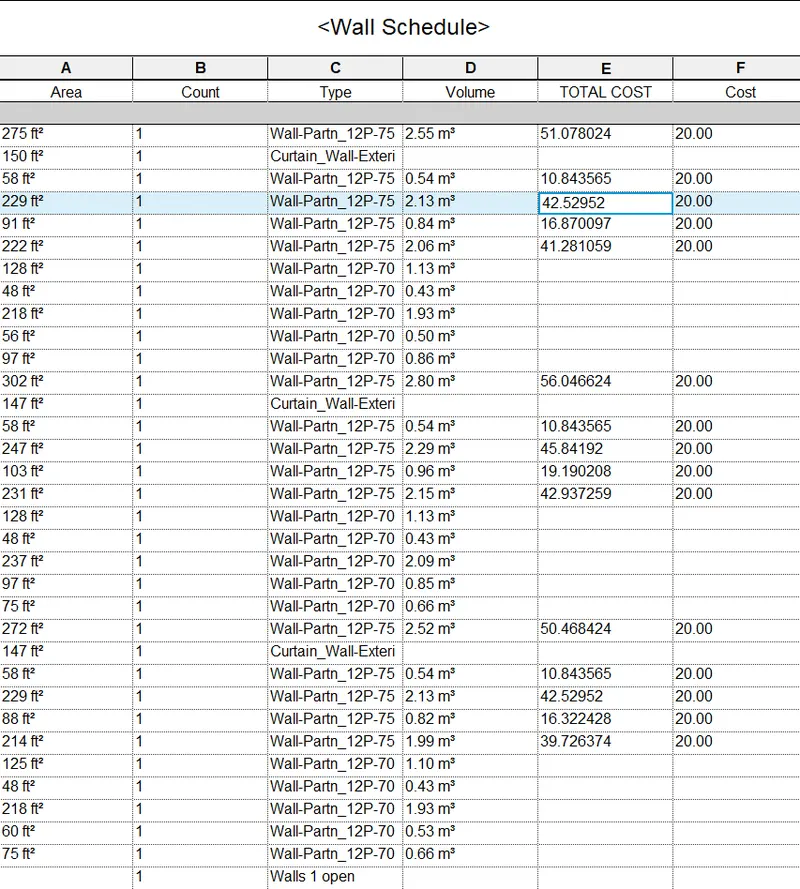

step-5:- wall schedule with total cost is prepared

STEP-6 :-

EP-9 :- PREPARING the window schedule

STEP-7 :- select the parameters for the windows

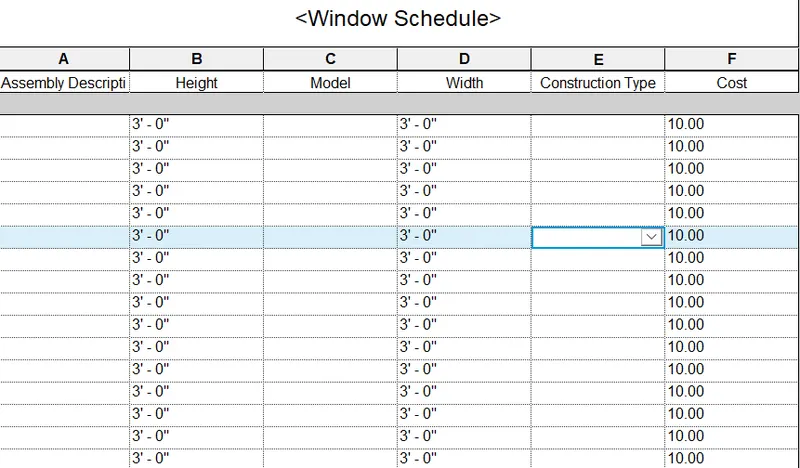

STEP_8 :- window schedule is prepared as shown below

STEP-9:- PREPAring the Door schedule

STEP-10:-

• Now, select the parameters to be considered for doors.

STEP-11:-

• Door schedule is given as:

STEP-12:- PREPARING schedule for any material - concrete /wood

STEP-13 :- preparing floor material takeoff

STEp-14 :- select the parameters required for floor

STEp-15:_ adding cost parameter along with total cost

calculate by formaula given belwo

STEp-16 :-

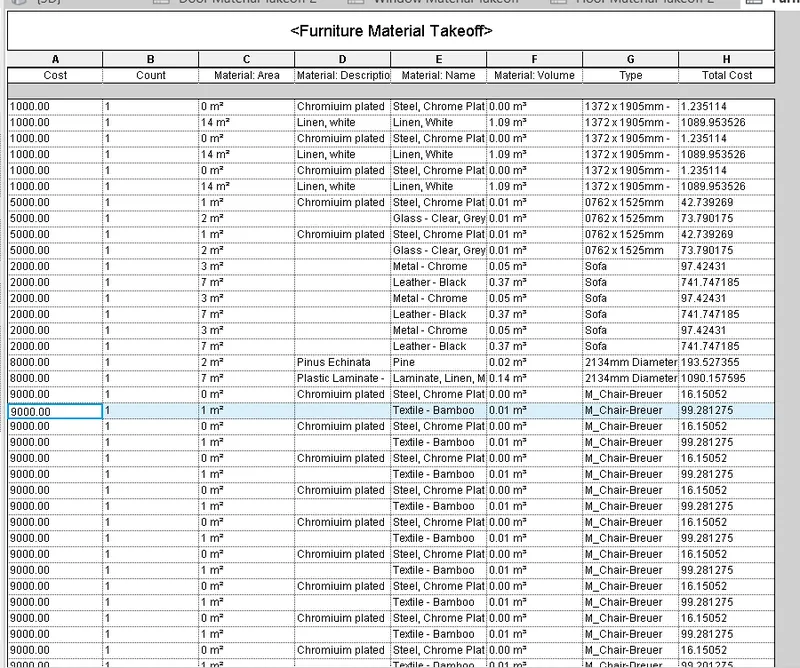

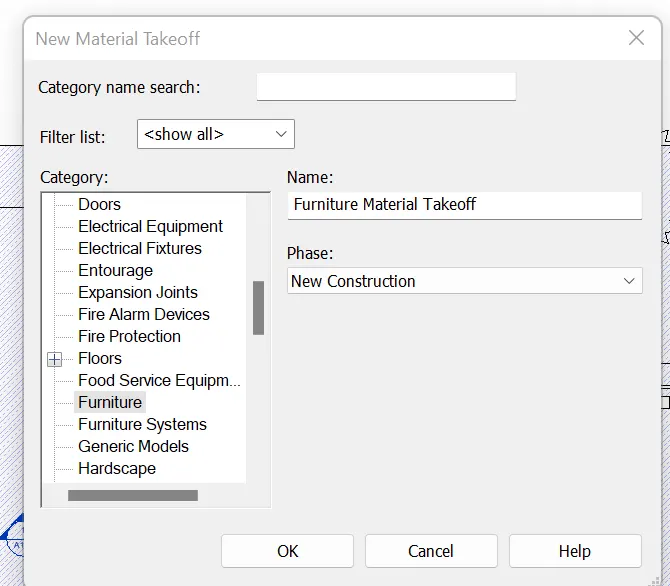

• PREPARING SCHEDULE FOR furniture material takeoff

STEP -17 :- select all the parameters and prepare the schedule

5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?

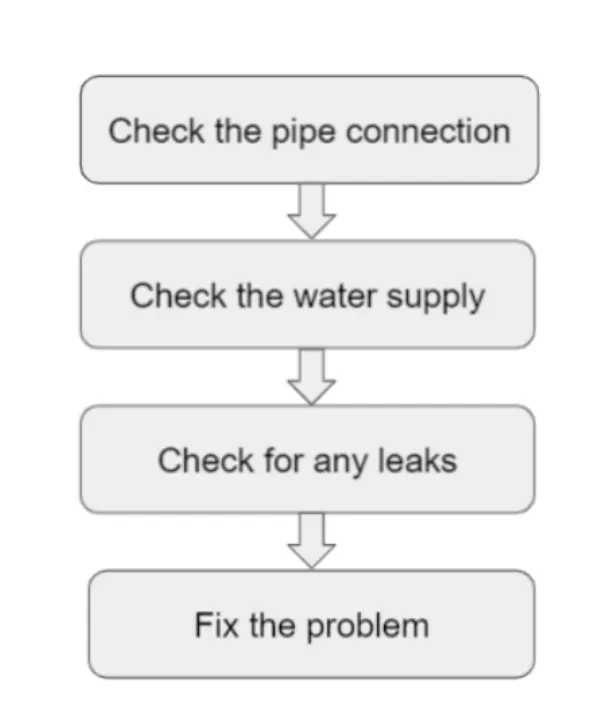

b. If there is no water coming from the pipes

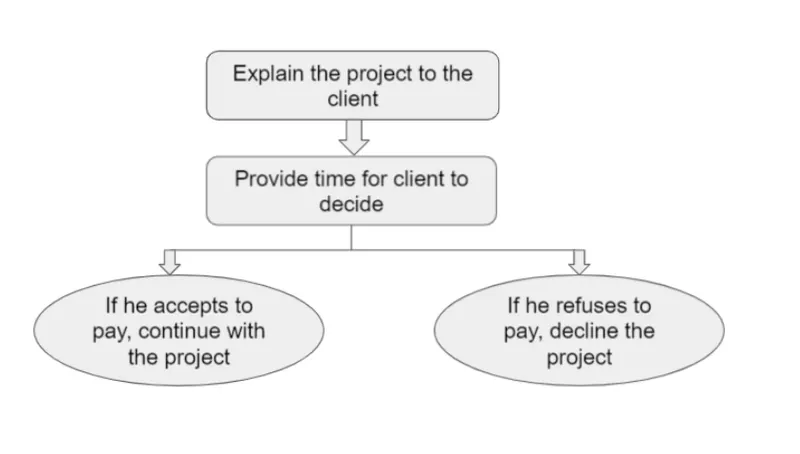

c. If request for money from client has been declined for the project

-

b.

c)

6. Parameters associated with each model elements are as follows:

a) Walls:

• Wall type
• Wall description
• Wall length
• Wall thickness
• Wall height
• Wall materials
• Wall location
• Material cost

b) Floor:

• Floor type
• Floor description
• Floor area
• Floor thickness
• Floor material
• Material cost

c) Door:

• Door type
• Door description
• Door height
• Door width
• Door material
• Material cost

d) Window:

• Window type
• Window description
• Window width
• Window height
• Window material
• Material cost

e) Table:

• Table type
• Table length
• Table width
• Table weight
• Table material
• Table cost

f) Building:

• Building type
• Building floor area
• Building perimeter
• Building location
• Building height
• Material
• Possible loads on a building
