Preparing Schedule & Cost Estimation for a building using REVIT

AIM: Preparing Schedule & Cost Estimation for a building using REVIT

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Ans:

a) Using a 3D model create a section box:

Short cut key : BX

b) To create similar doors and windows in a floor plan layout

Short cut key : Create Similar - CS

c) To reduce the thickness of lines visible in plan views

Short cut key : Thin Lines - TL

d) To apply override settings to a floor in the model section view

Short cut key : Visibility Graphics and override settings - VG

e) To increase the range of visibility in a plan view

Short cut key : View Range - VR

f) To select the previously selected items

Short cut key : Reselect - Ctrl + <---

g) To add annotations to the model views

Short cut key : Dimension - DI

h) To bring the model elements in line

Short cut key : Align - AL

i) To rotate the model elements

Short cut key : Rotate - R

j) To move an object to another location

Short cut key : Move - MV

k) To copy a model element

Short cut key : Copy - CO

l) To mirror an element about an axis

Short cut key : Mirror - MM

m) To create an array of model elements

Short cut key : Array - AR

2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Procedure:

• Open the revit architectural model created in the week 7

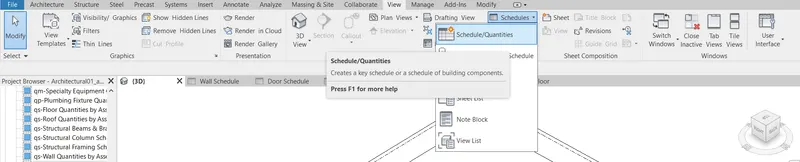

• Then goto the schedule option in the view tab

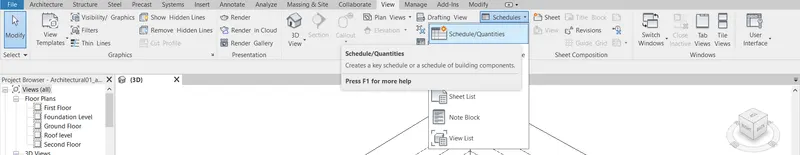

• select schedules/quantities

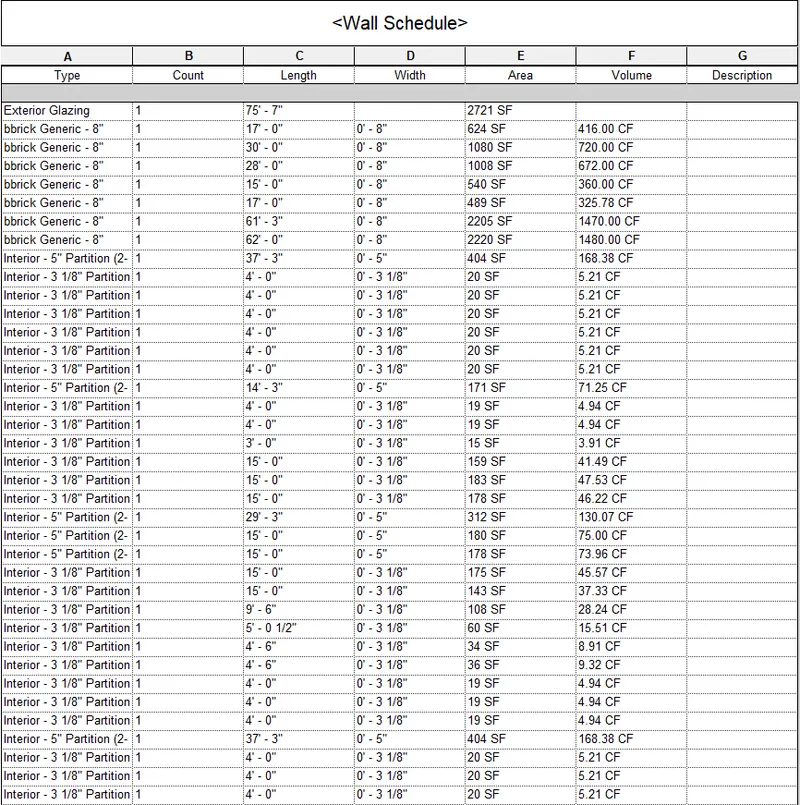

Wall Schedule:

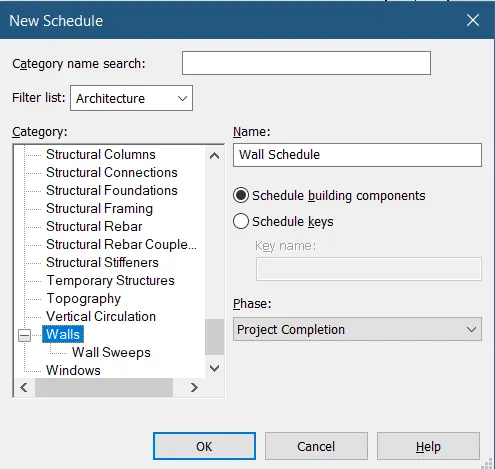

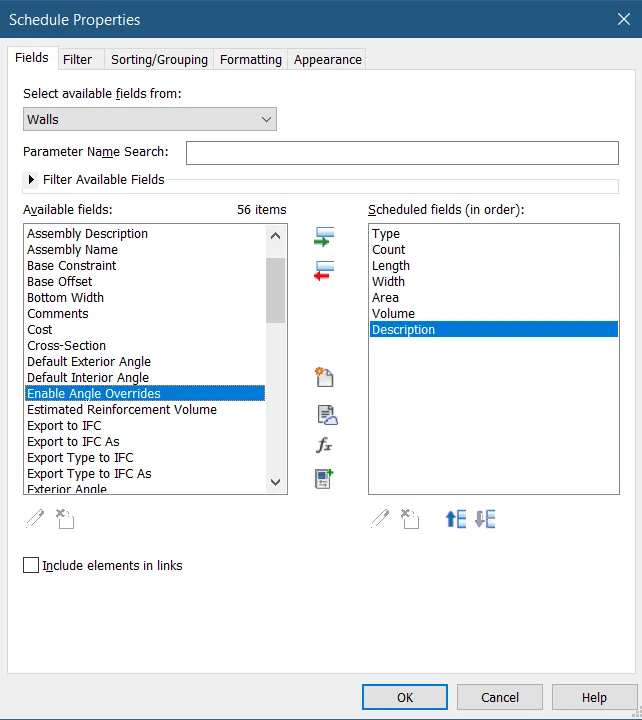

• Now Select the wall category

• select all the fields required for the walls schedule and press ok
• The wall schedule is prepared as given below

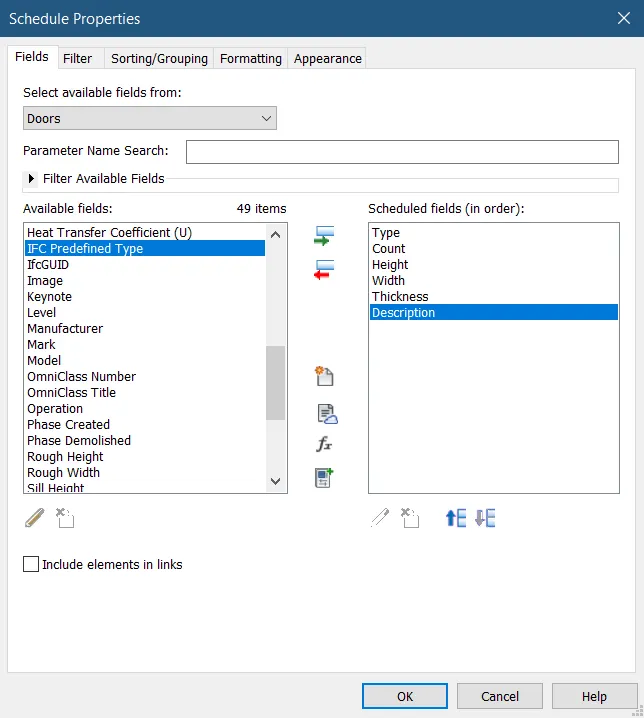

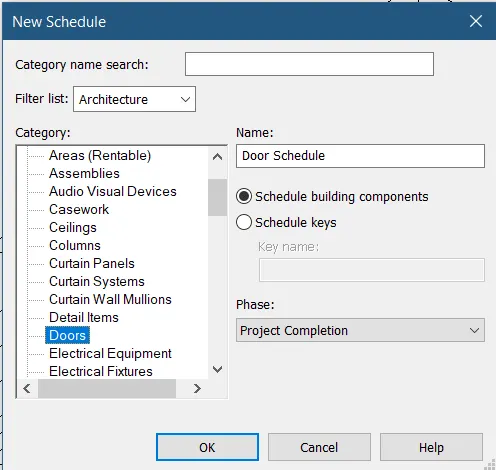

Doors Schedule:

• Now select the door category
• select all the fields required for the Doors schedule and press ok

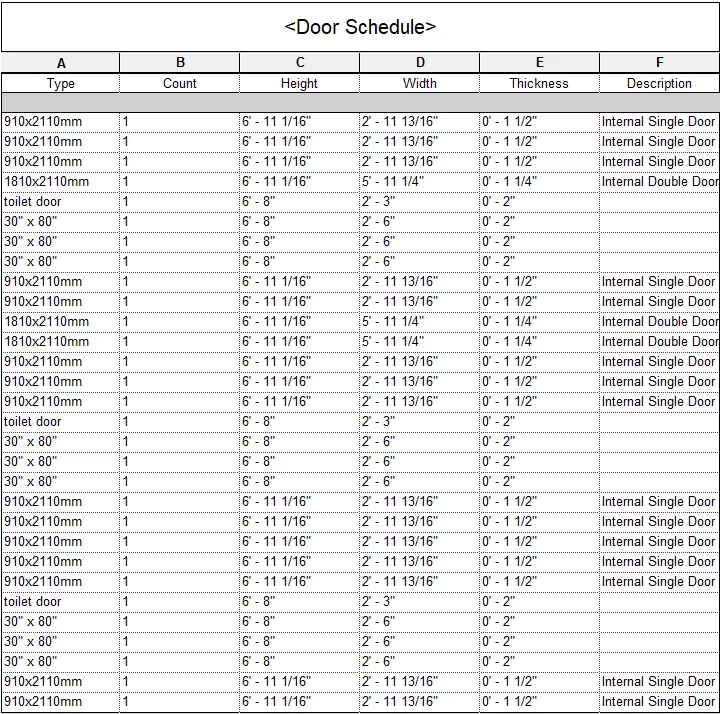

• The Doors schedule is prepared as given below

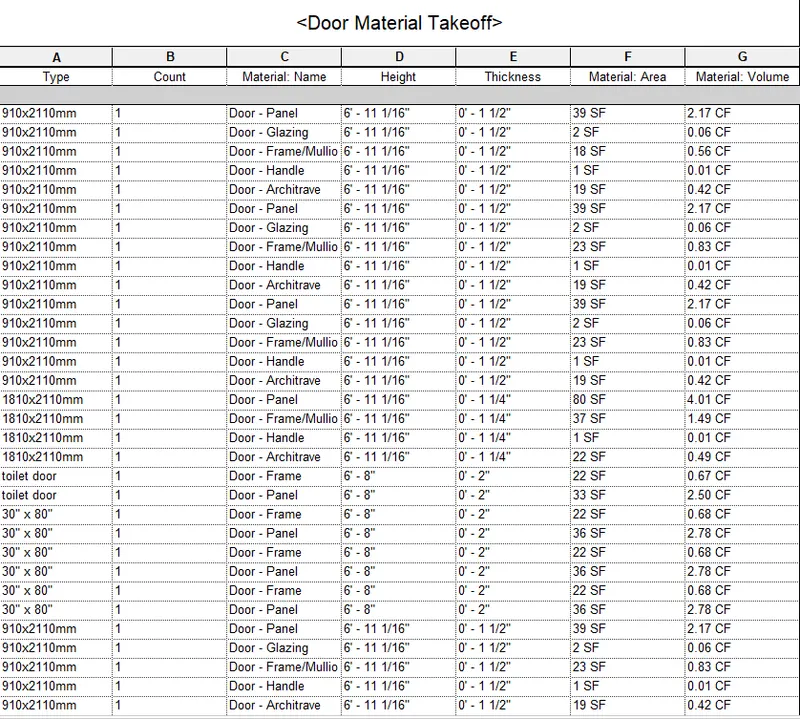

Material Wood/Concrete

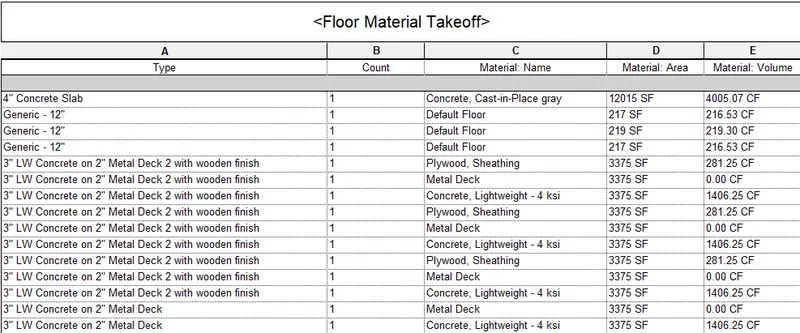

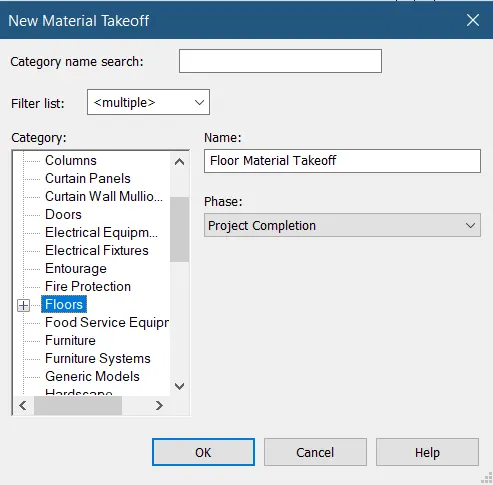

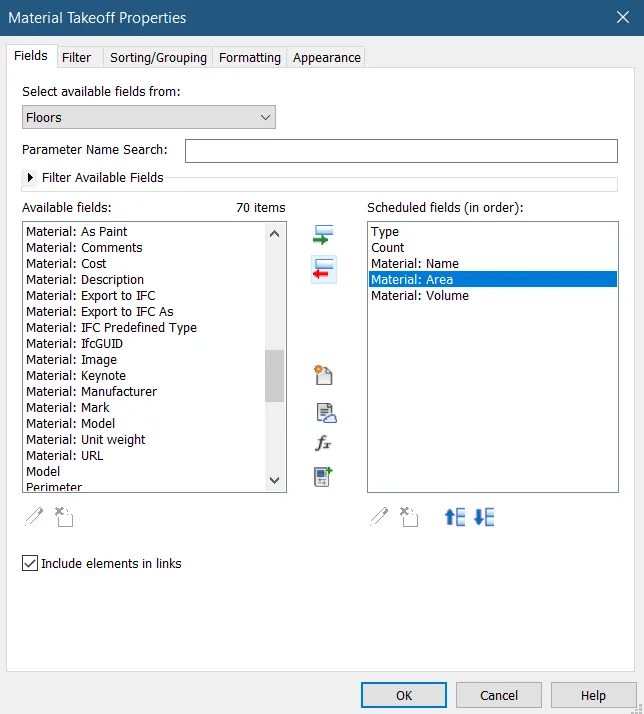

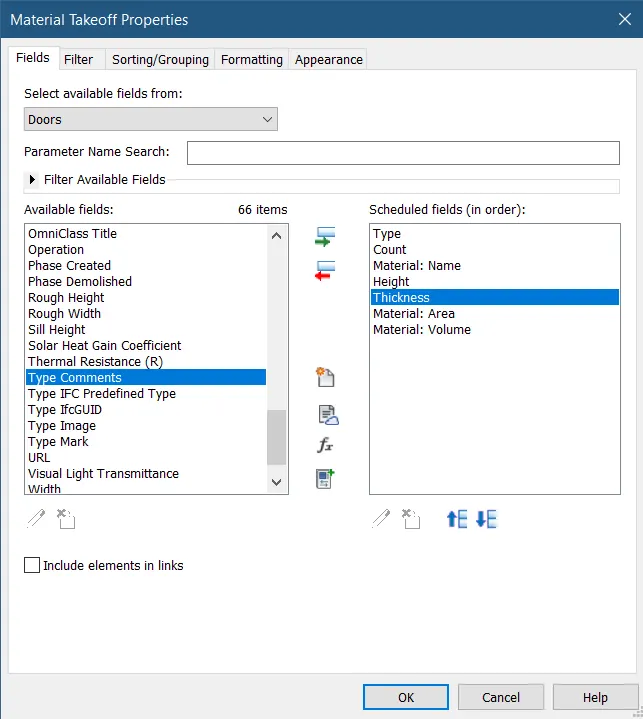

• Now select the material takeoff in the schedule option
• Select the floor option
• Select the appropriate fields required

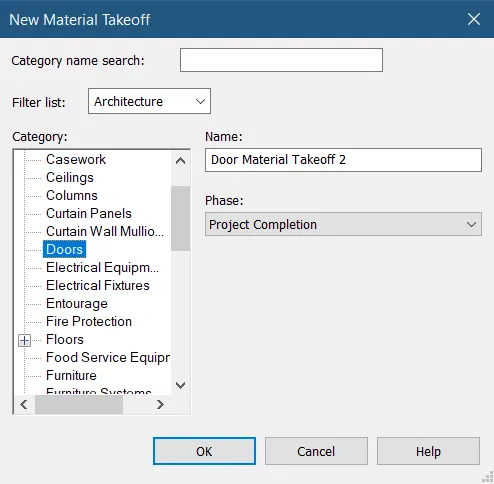

• Now do the same for door material

Result:

All the schedules have been created and shown above

3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Procedure:

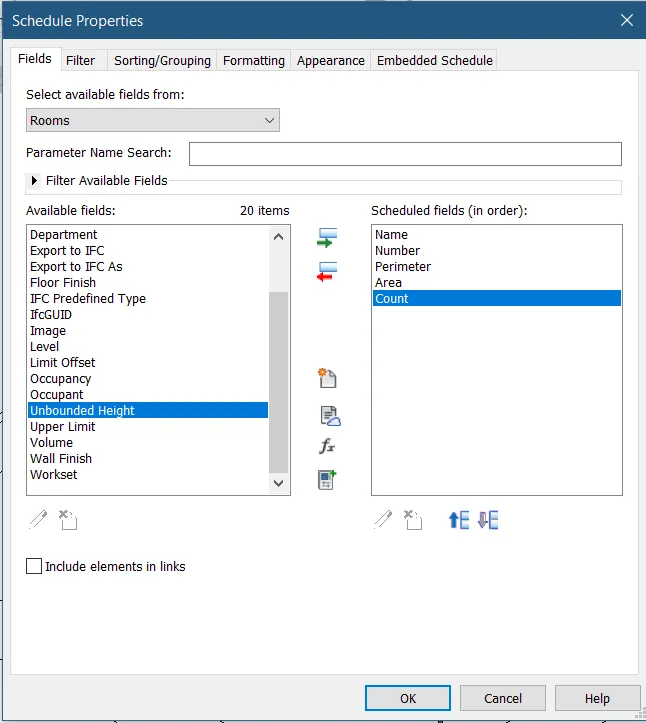

• Goto schedule option in view tab and select schedule/quantities option

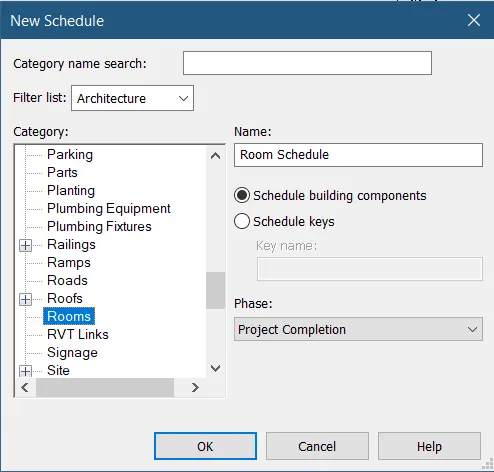

• Now select the room category
• Select all the required fields and click ok

Result:

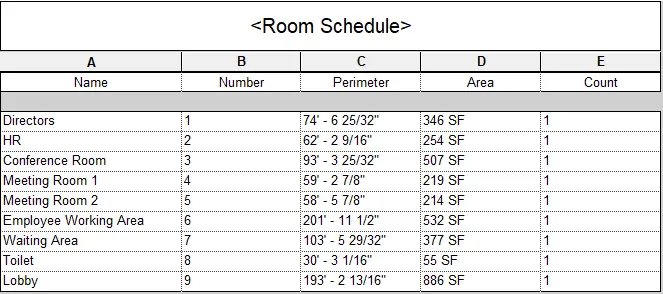

The room schedule has been created as shown below

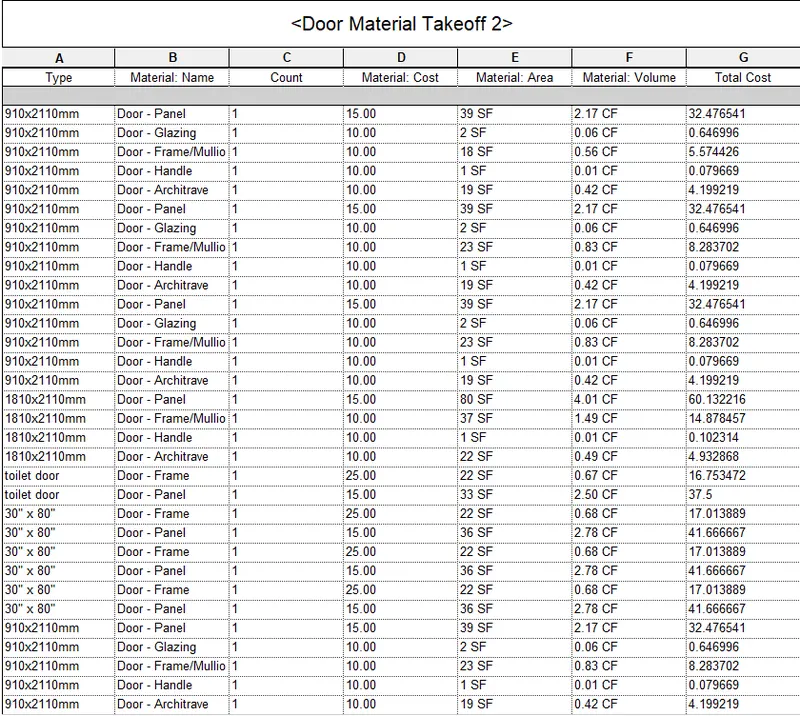

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Procedure:

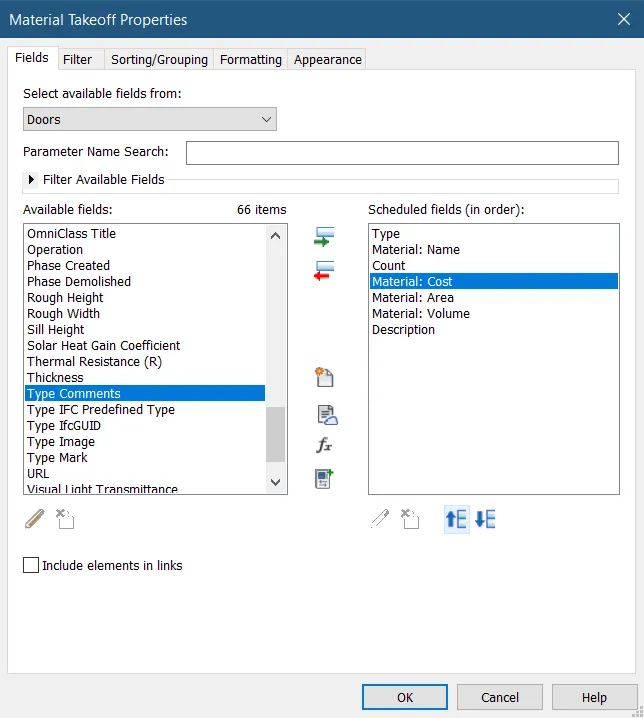

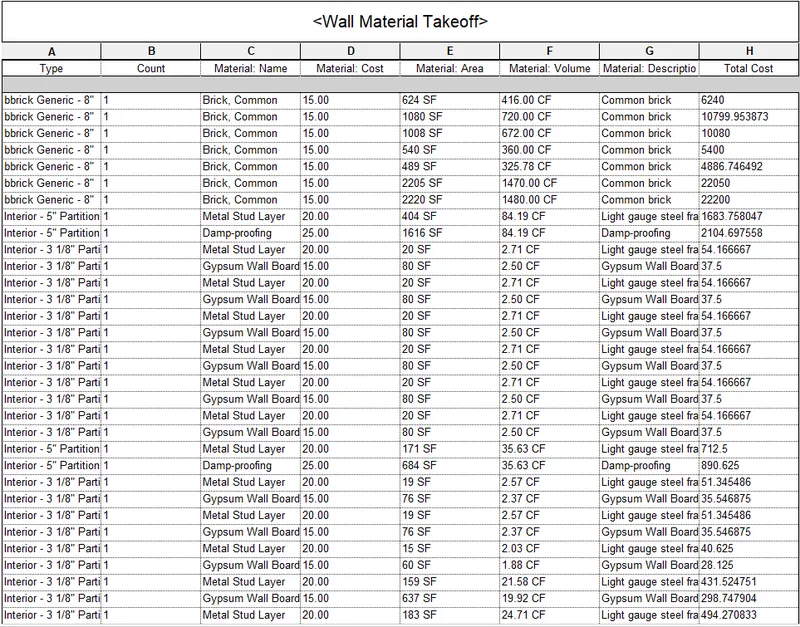

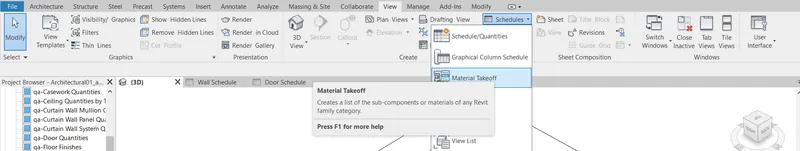

• Go to view tab > schedules > material take off.

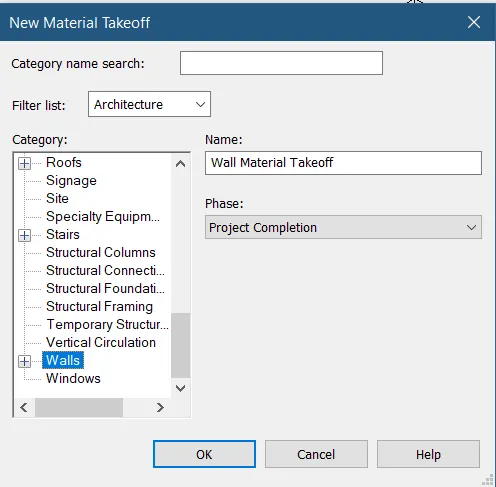

• Select the category as wall.

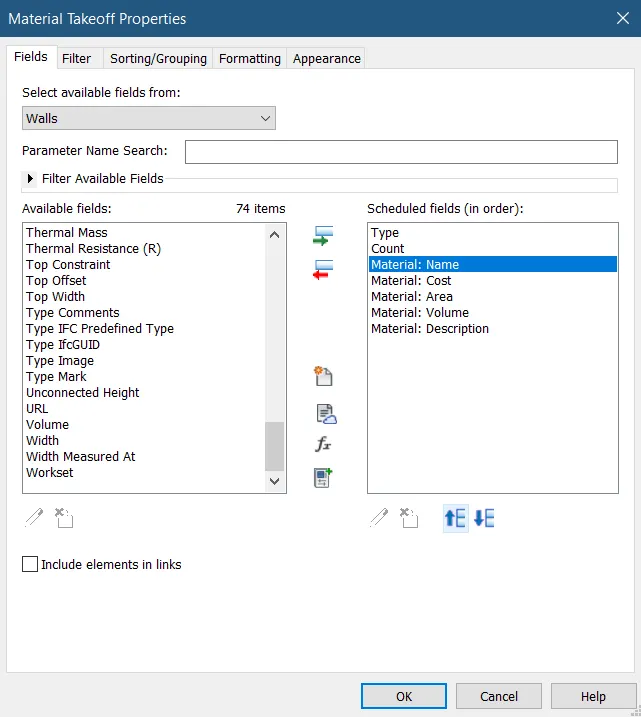

• Now, select the Fields for walls

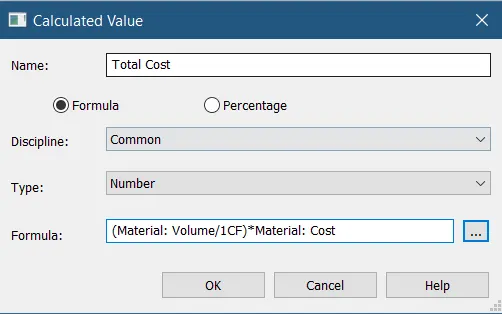

• Now Insert a new parameter name total cost
• We add calculate quantity

• We do the same procedure for doors also

Result:

The total cost parameter has been added to material takeoff

5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario

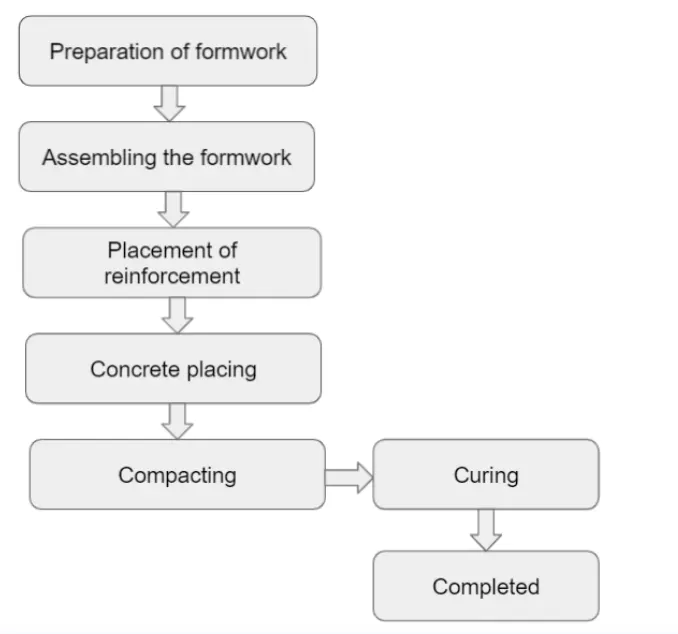

a. How to decide framings for a structure using Dynamo ?

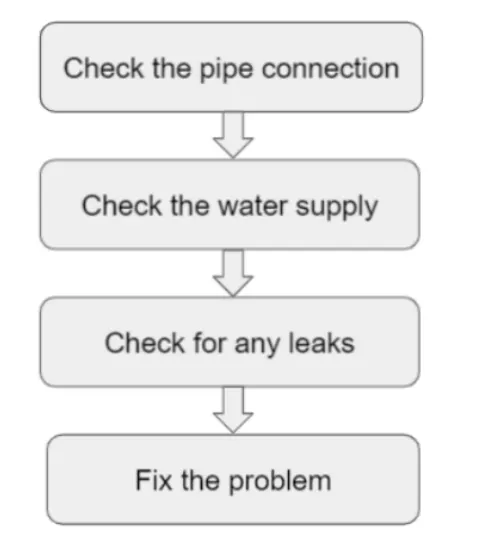

b. If there is no water coming from the pipes

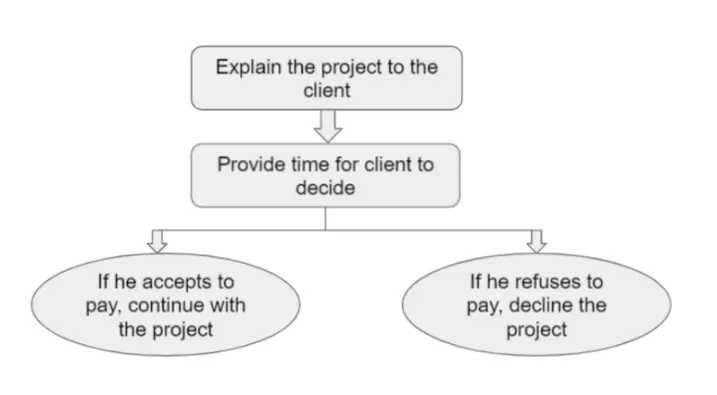

c. If request for money from client has been declined for the project

Ans:

a)

b)

c)

6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Ans:

a) Walls Parameters:

• Wall type
• Wall description
• Wall materials
• Wall location
• Wall length
• Wall thickness
• Wall height
• Material cost

b) Floor Parameters:

• Floor type
• Floor description
• Floor area
• Floor thickness
• Floor material
• Material cost

c) Door Parameters:

• Door type
• Door description
• Door height
• Door width
• Door material
• Material cost

d) Window Parameters:

• Window type
• Window description
• Window width
• Window height
• Window material
• Material cost

e) Table Parameters:

• Table type
• Table length
• Table width
• Table weight
• Table material
• Table cost

f) Building Parameters:

• Building type
• Building floor area
• Building perimeter
• Building location
• Building height
• Material
• Possible loads on a building
