Preparing Schedule & Cost Estimation for a building using REVIT

Q1. Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout

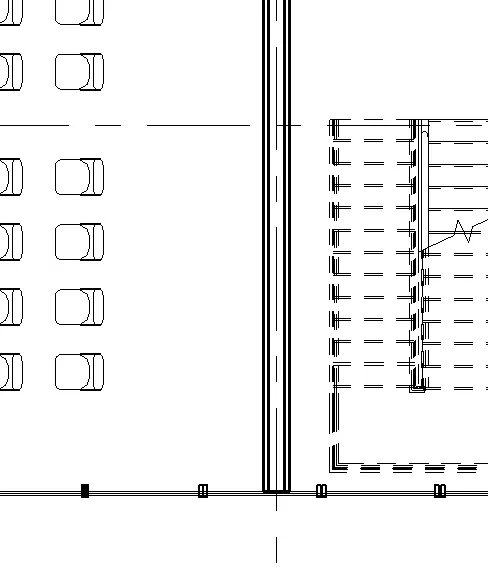

c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line

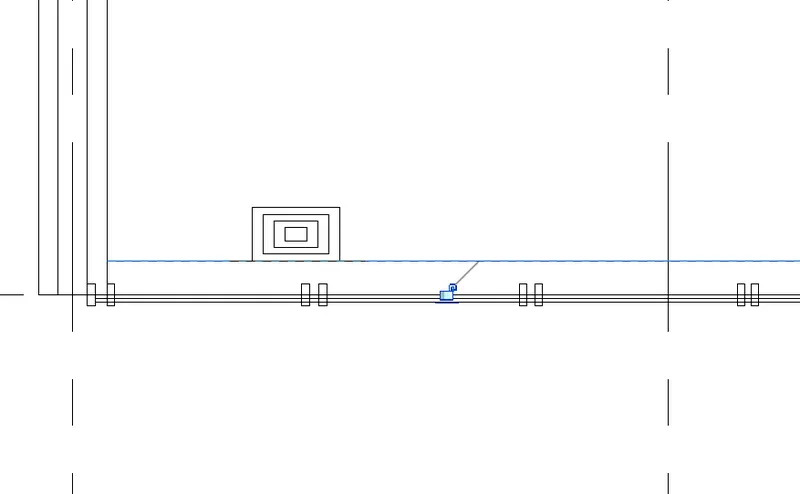

i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Ans:

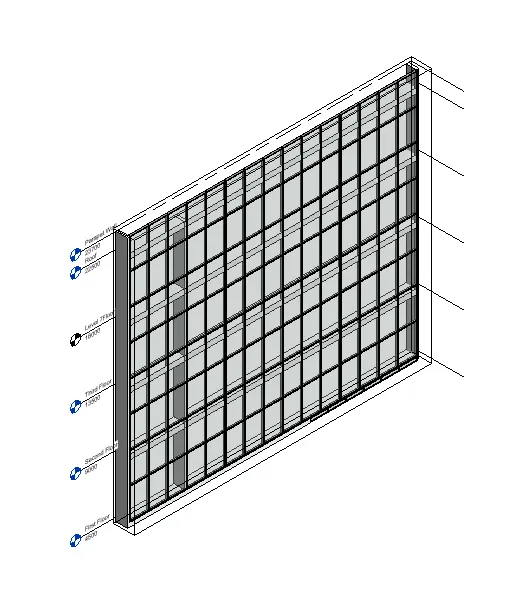

a. Using 3D model create a section box

Shorctcut key used: BX

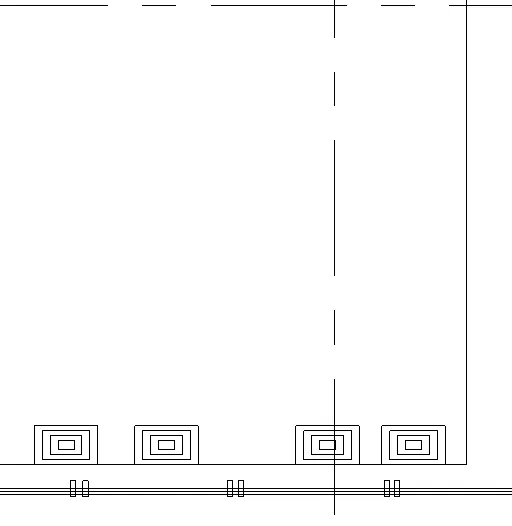

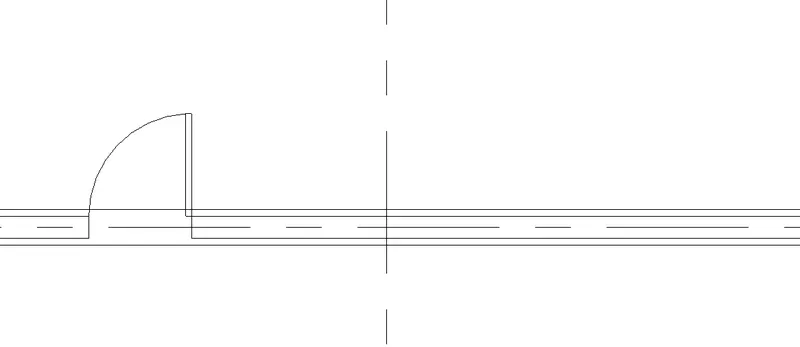

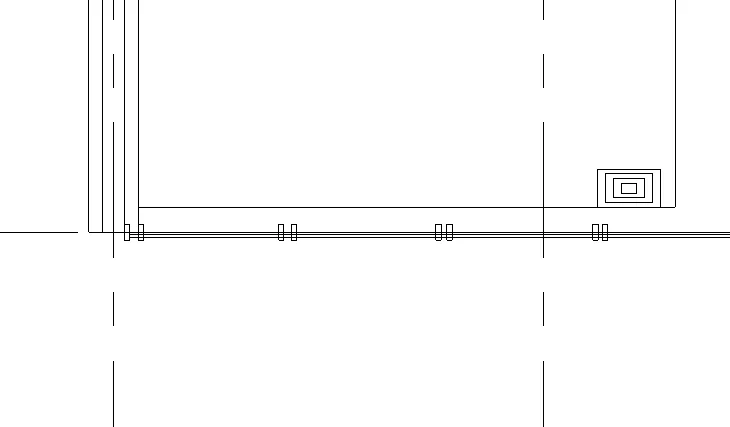

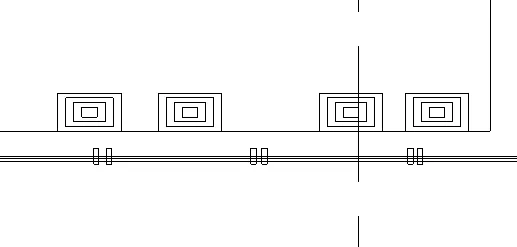

b. To create similar doors and windows in a floor plan layout

Shorctcut key used: CS

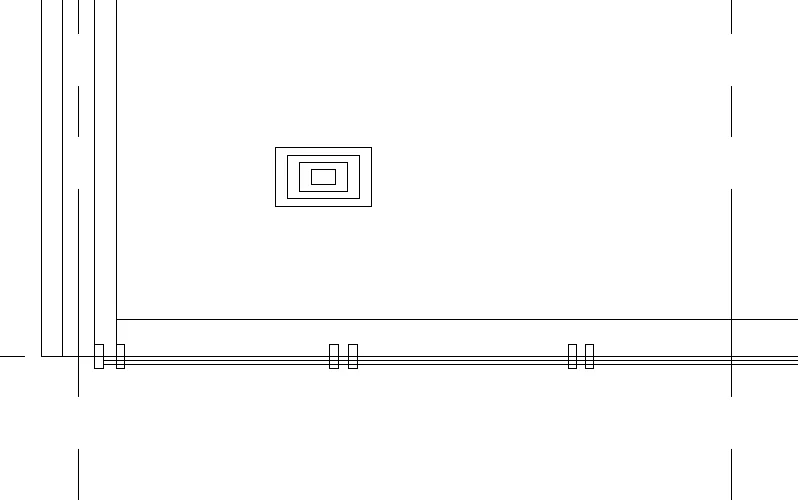

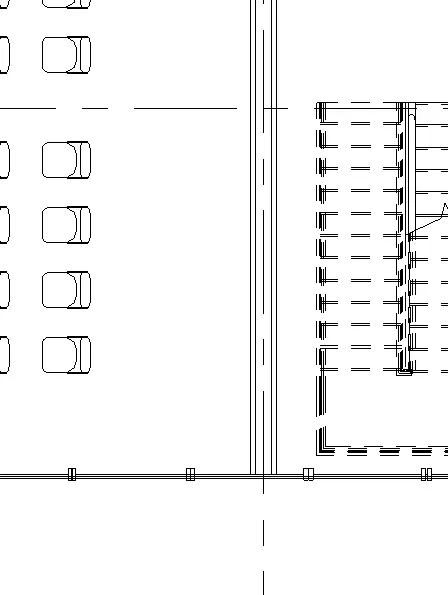

c. To reduce the thickness of lines visible in plan views

Shorctcut key used: TL

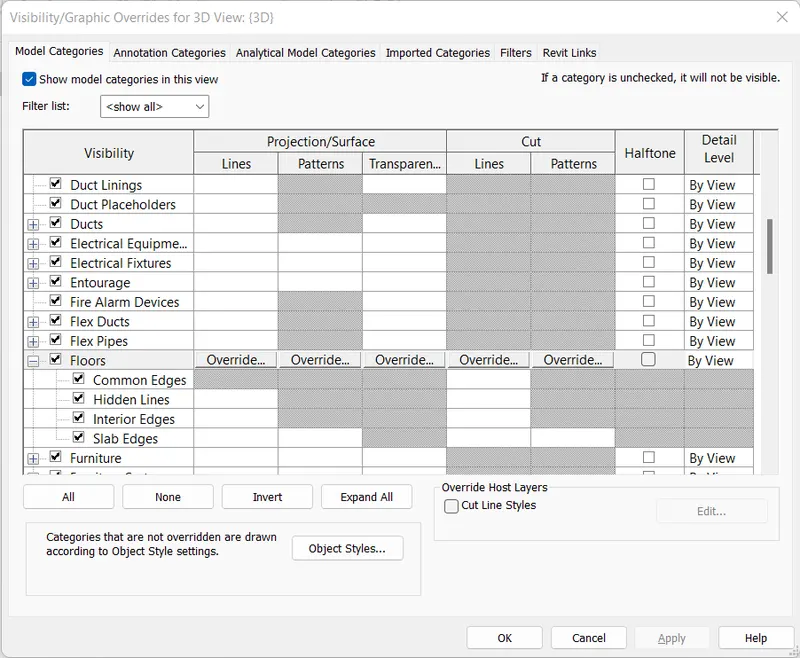

d. To apply override settings to a floor in the model section view

Shorctcut key used: VG

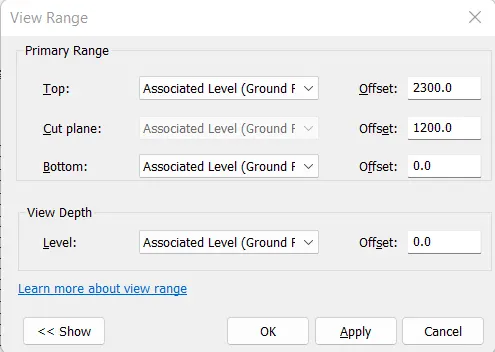

e. To increase the range of visibility in a plan view

Shorctcut key used: VR

f. To select the previously selected items

Shorctcut key used: Ctrl+<

g. To add annotations to the model views

Shorctcut key used: DI

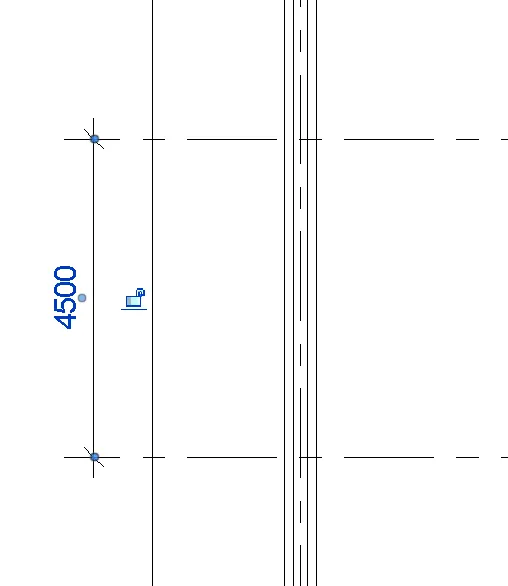

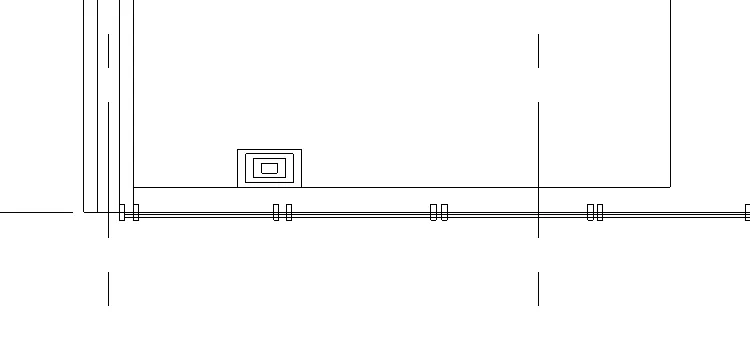

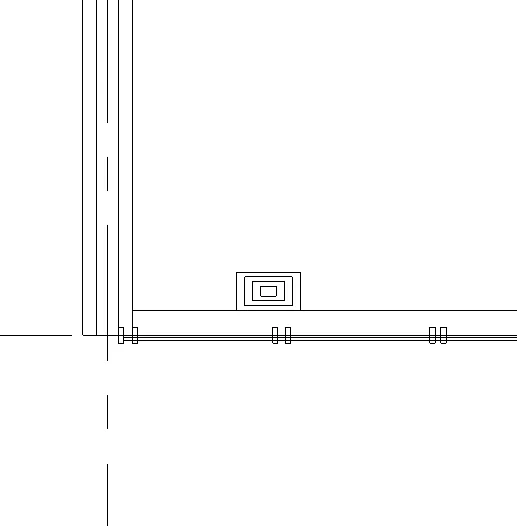

h. To bring the model elements in line

Shorctcut key used: AL

i. To rotate the model elements

Shorctcut key used: RO

j. To move an object to another location

Shorctcut key used: MV

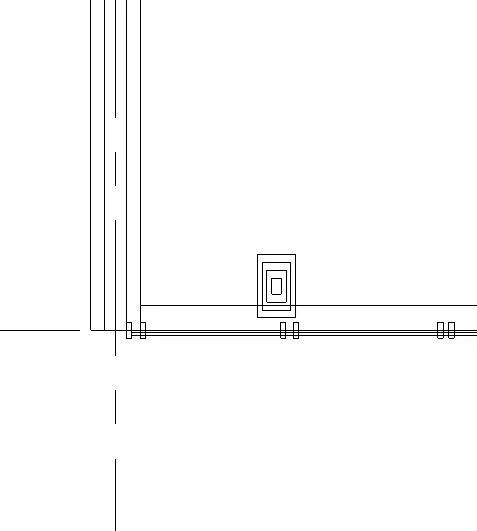

k. To copy a model element

Shorctcut key used: CO

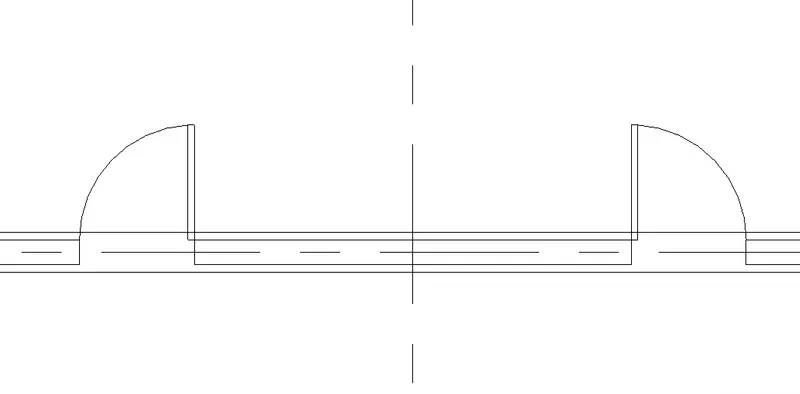

l. To mirror an element about an axis

Shorctcut key used: MM

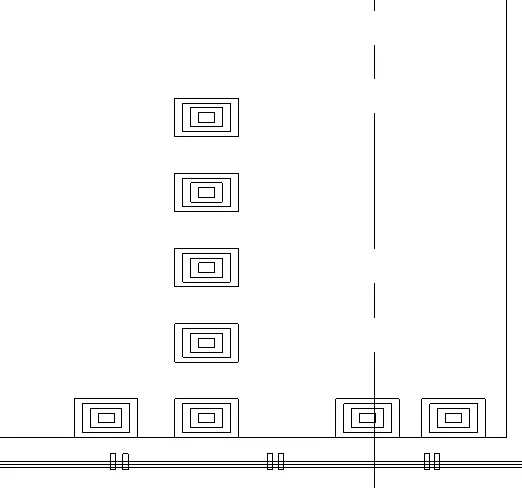

m. To create an array of model elements

Shorctcut key used: AR

Q2. Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Ans:

AIM

To prepare schedule for the walls, doors, windows and materials (concrete/wood)

INTRODUCTION

A schedule is a tabular display of information, extracted from the properties of the elements in a project. A schedule can list every instance of the type of element you are scheduling, or it can collapse multiple instances onto a single row, based on the schedule's grouping criteria.

PROCEDURE

a) Walls

• Open Revit software
• Open existing project file

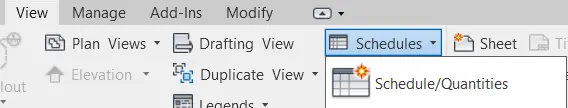

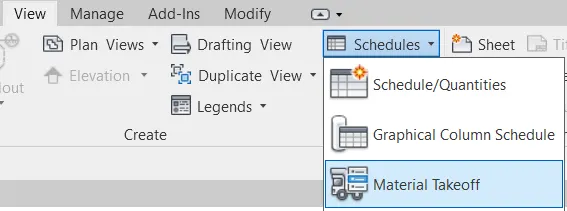

• Click 'Schedule/Quantities' in the 'Schedules' under the 'View' tab

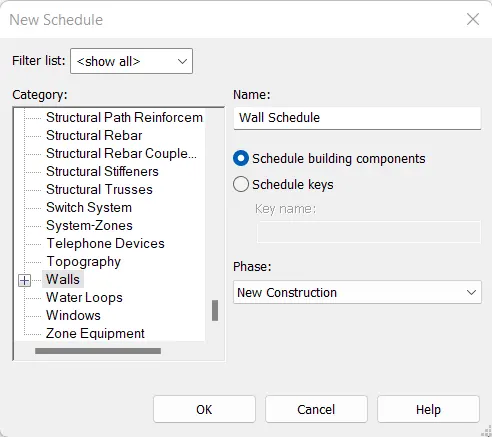

• Select 'Walls' from category and click 'OK'

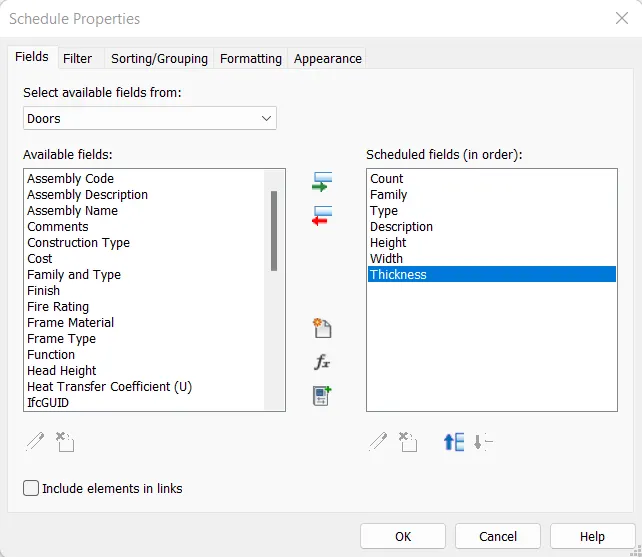

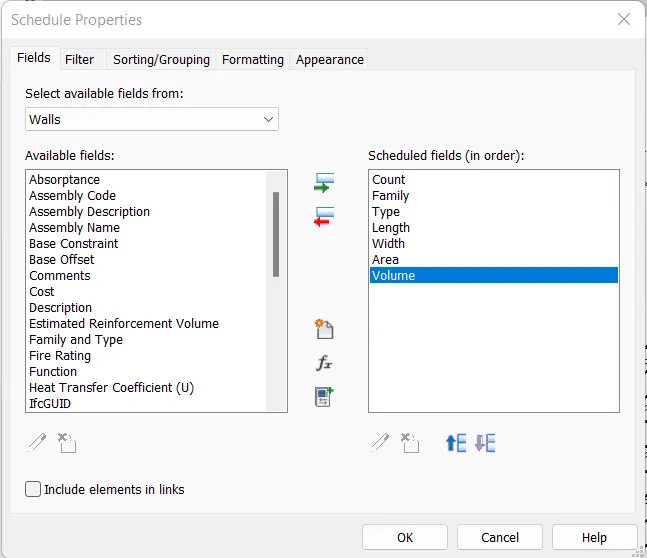

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

b) Doors

• Click 'Schedule/Quantities' in the 'Schedules' under the 'View' tab

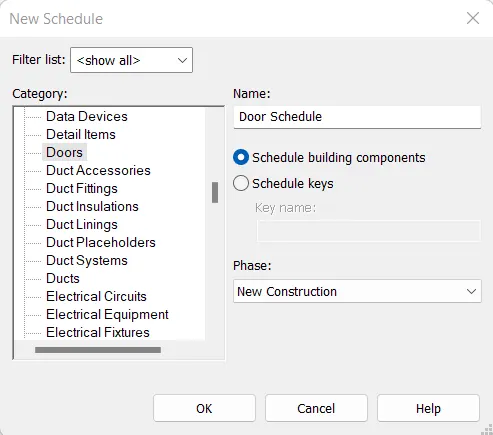

• Select 'Doors' from category and click 'OK'

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

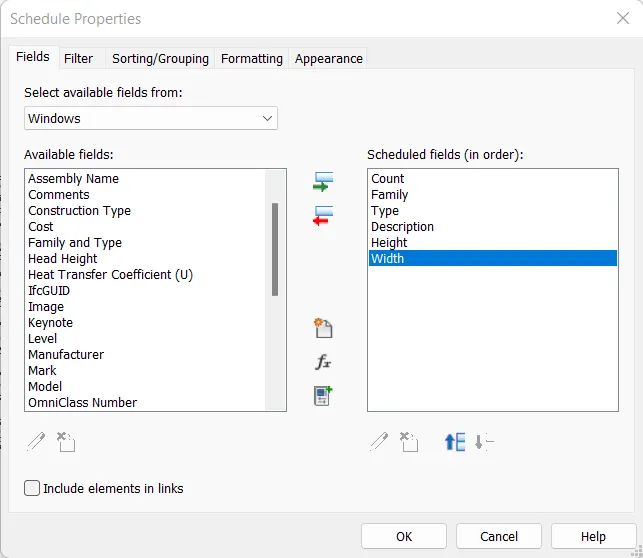

c) Windows

• Click 'Schedule/Quantities' in the 'Schedules' under the 'View' tab

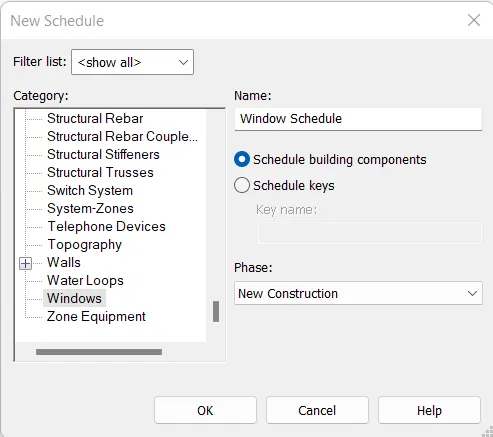

• Select 'Windows' from category and click 'OK'

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

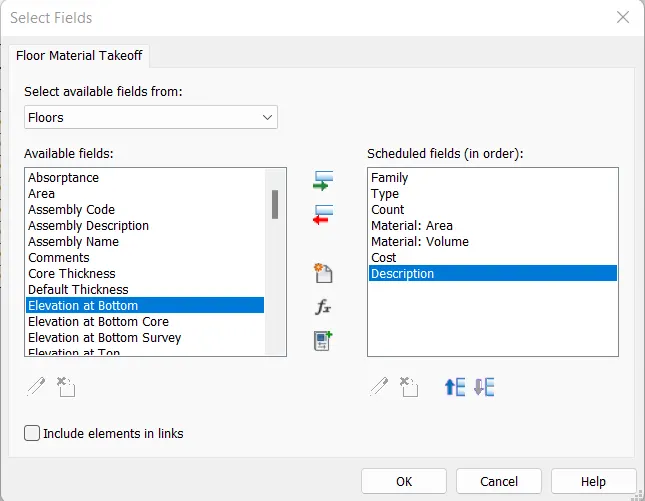

d) Material – Concrete/Wood

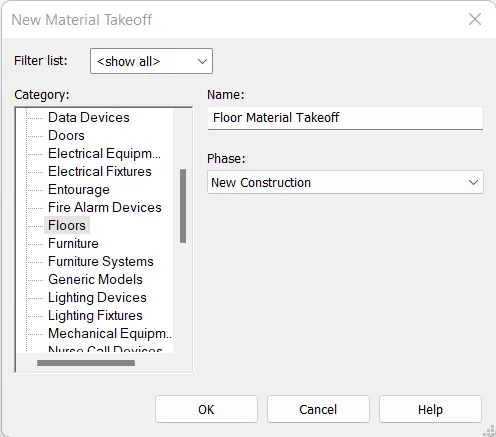

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

• Select 'Floors' from category and click 'OK'

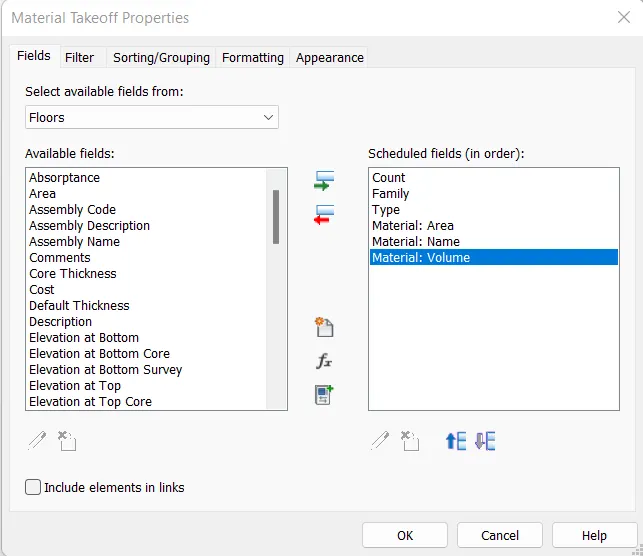

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

• Using above procedures, material schedule can be done

RESULTS

Schedule for the walls, doors, windows and material is prepared

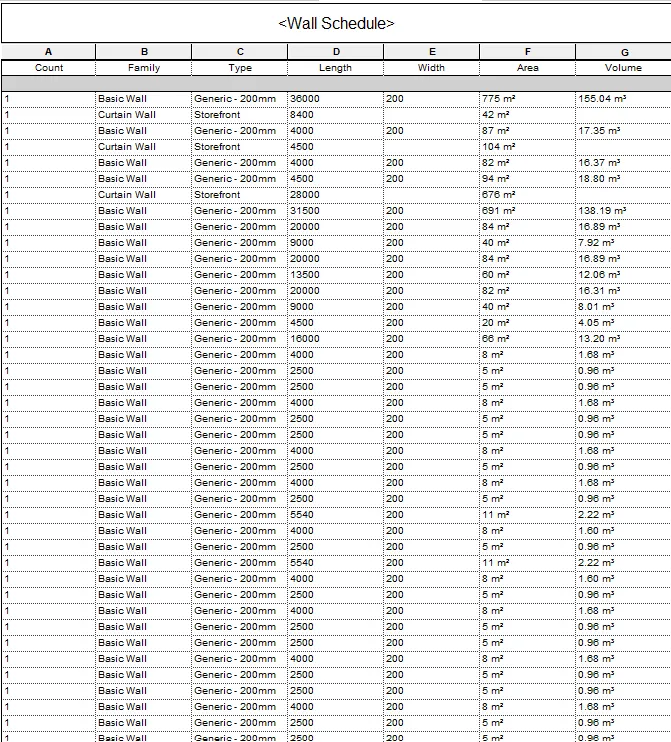

a. Walls

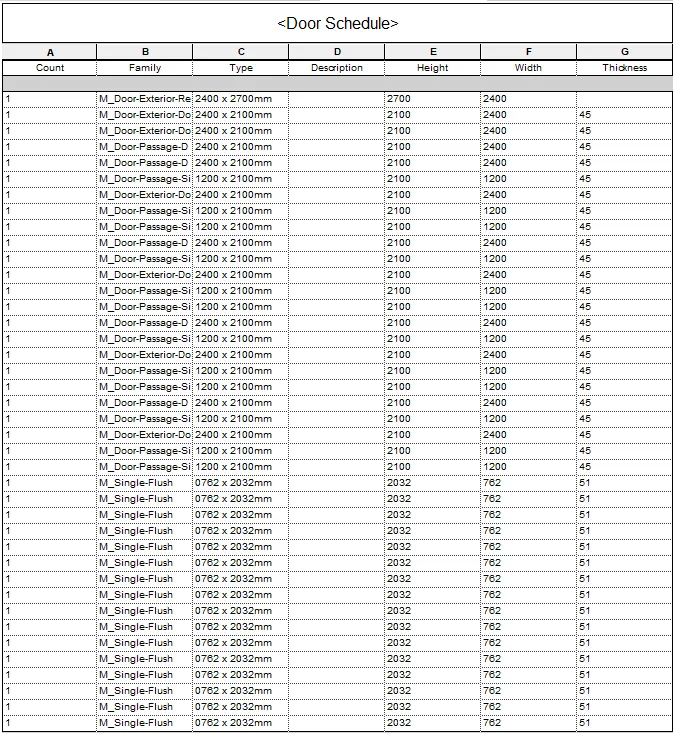

b. Doors

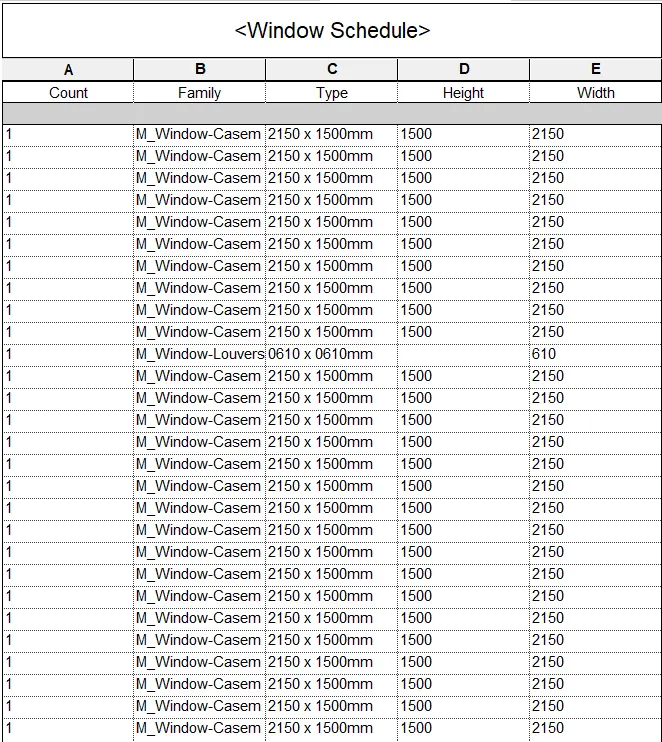

c. Windows

d. Material – Concrete/Wood

Q3. Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Ans:

AIM

To prepare a schedule report for area and volume of each room

INTRODUCTION

A schedule is a tabular display of information, extracted from the properties of the elements in a project. A schedule can list every instance of the type of element you are scheduling, or it can collapse multiple instances onto a single row, based on the schedule's grouping criteria.

PROCEDURE

• Open Revit software
• Open existing project file
• Rooms are already seperated in week 7 assignment

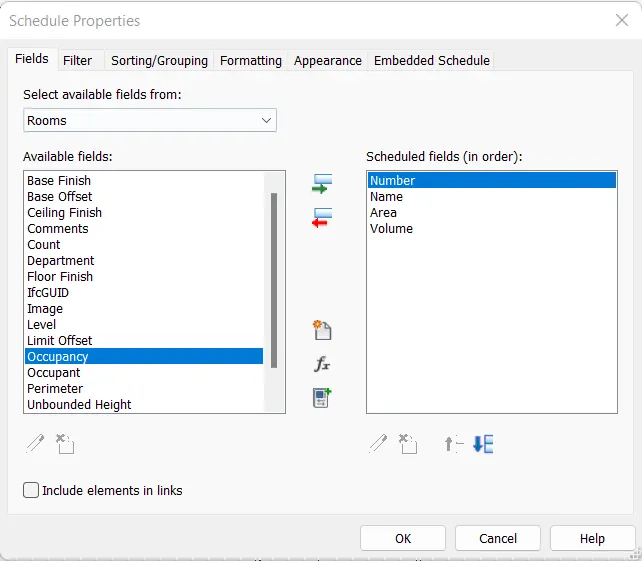

• Click 'Schedule/Quantities' in the 'Schedules' under the 'View' tab

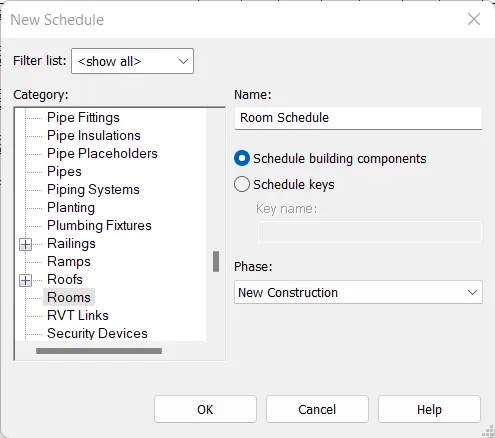

• Select 'Rooms' from category and click 'OK'

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

RESULTS

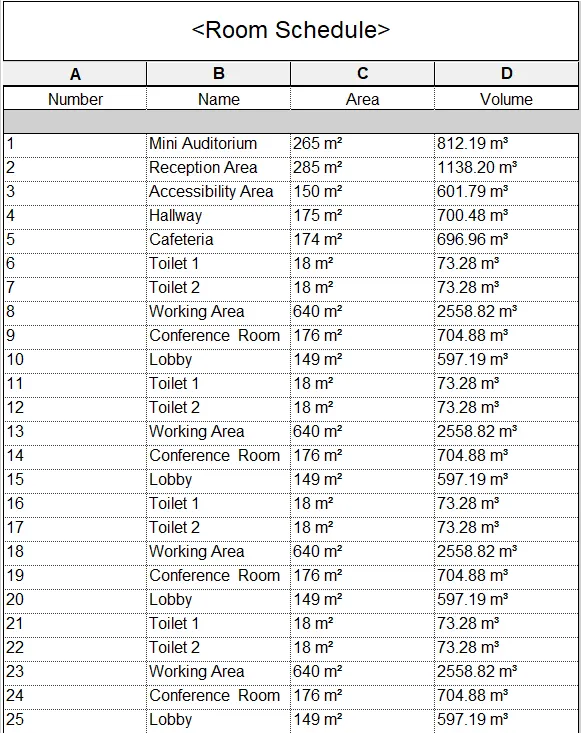

Schedule report for area and volume of each room is prepared

Q4. Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Ans:

AIM

To prepare total cost of materials used in the project

INTRODUCTION

Using revit softwares cost estimates can also be developed. By providing the unit cost of materials, total cost can be derived.

PROCEDURE

• Open Revit software
• Open existing project file

a. Total Cost of Materials

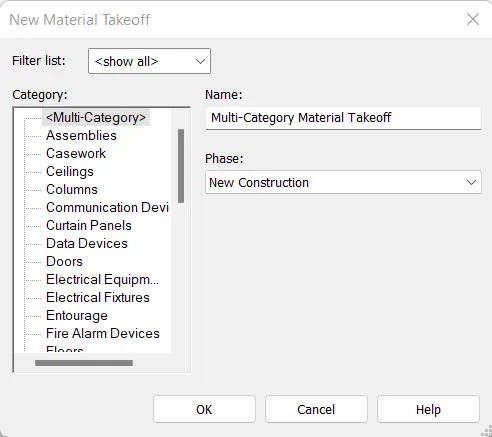

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

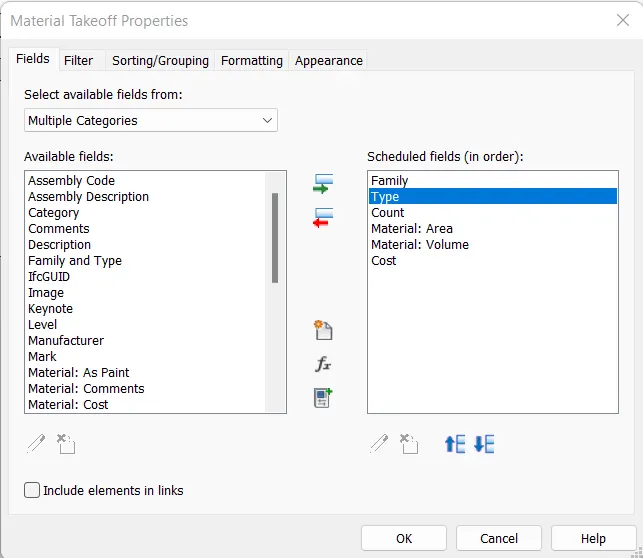

• Select 'Multi-Category' from category and click 'OK'

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

b. Individual Material Take off

a) Wall

• Click on the wall

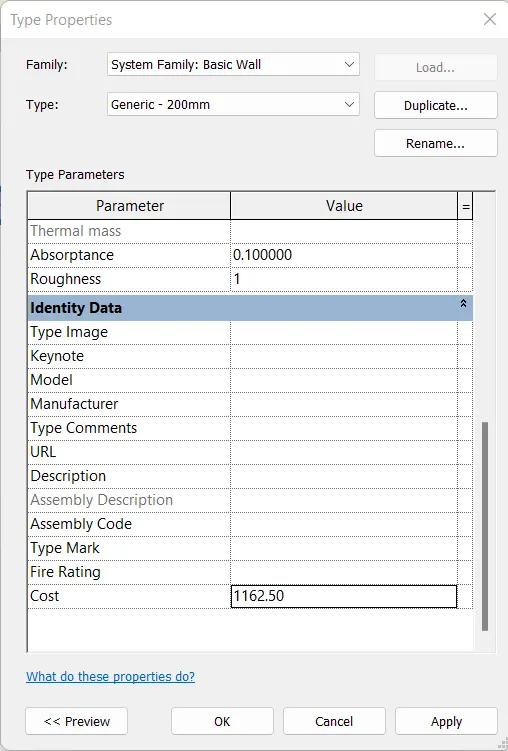

  • Cick edit type and change the cost as per the unit cost rate for materials available in the internet

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

• Select 'Walls' from category and click 'OK'

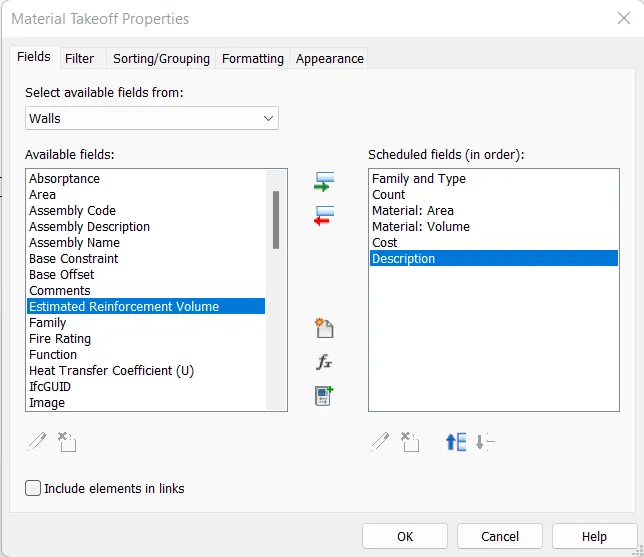

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

• Click the 'Description' column and 'Calculated' under the 'Modify' tab

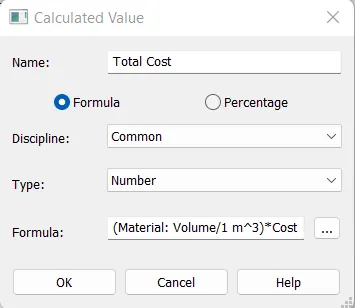

• Set 'Calculated Value'
  • Name: Total Cost
  • Formula: (Material: Volume/1 m^3)*Cost
  • Click 'OK'

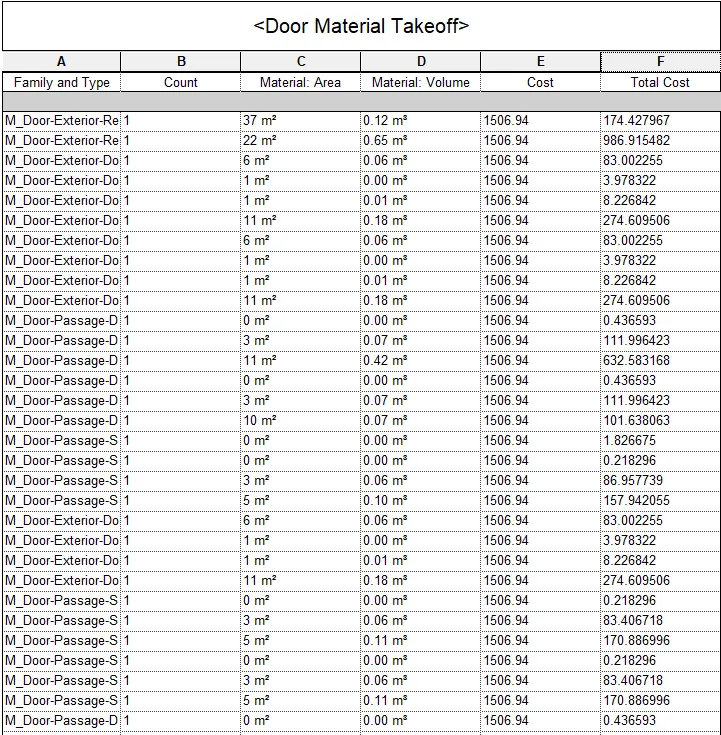

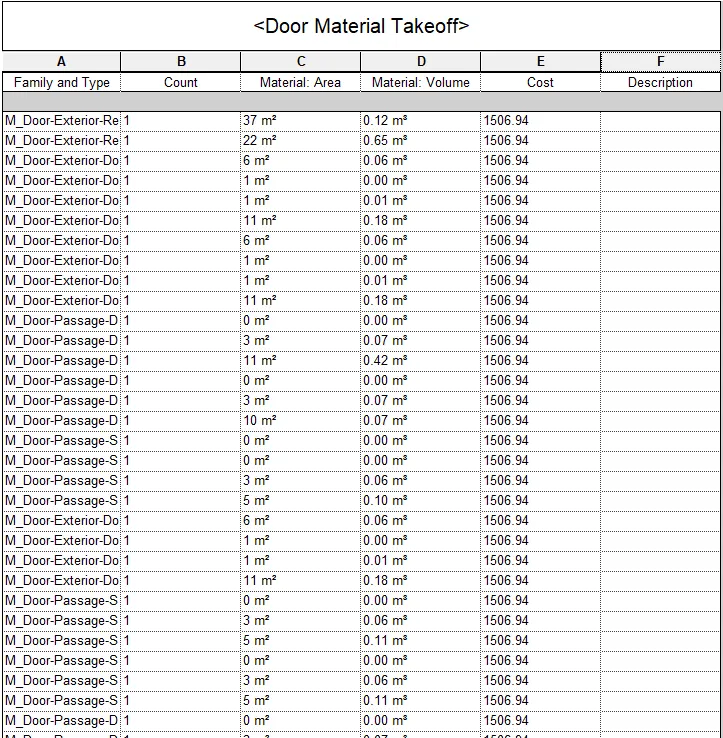

b) Door

• Click on all the doors
  • Cick edit type and change the cost as per the unit cost rate for materials available in the internet

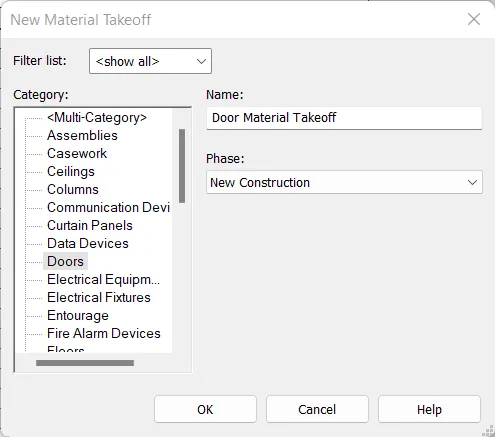

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

• Select 'Doors' from category and click 'OK'

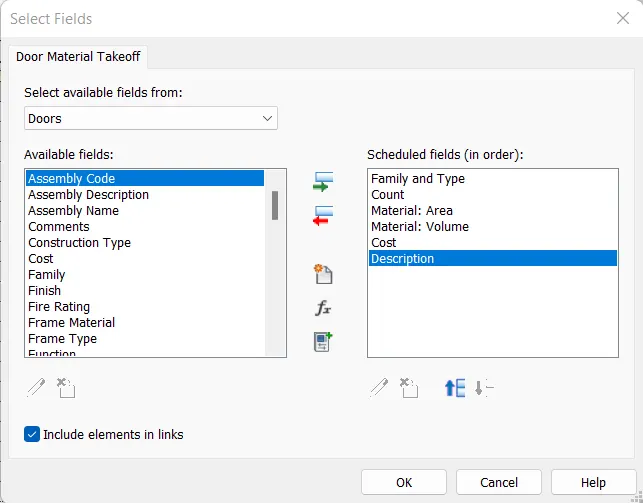

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

• Click the 'Description' column and 'Calculated' under the 'Modify' tab

• Set 'Calculated Value'
  • Name: Total Cost
  • Formula: (Material: Volume/1 m^3)*Cost
  • Click 'OK'

C) Door

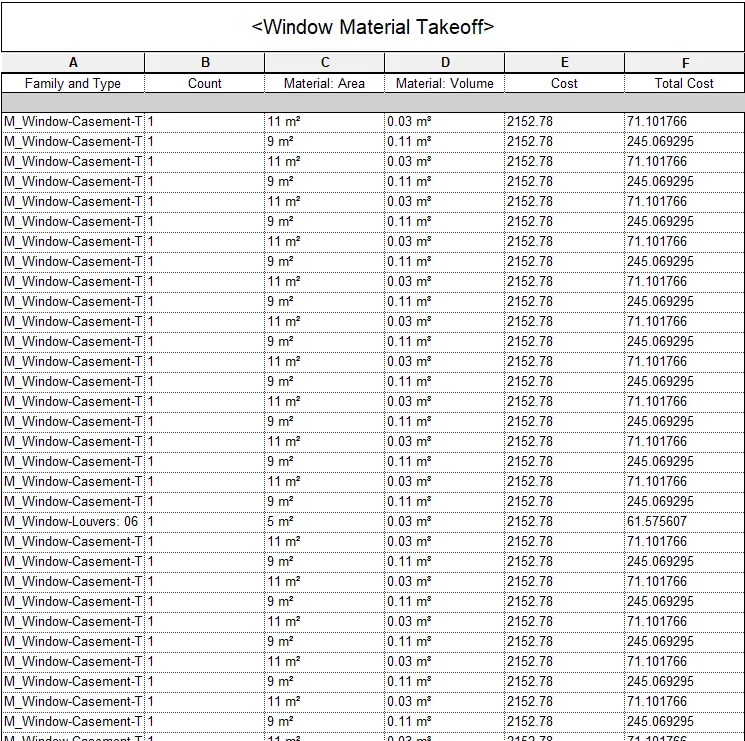

• Click on all the windows
  • Cick edit type and change the cost as per the unit cost rate for materials available in the internet

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

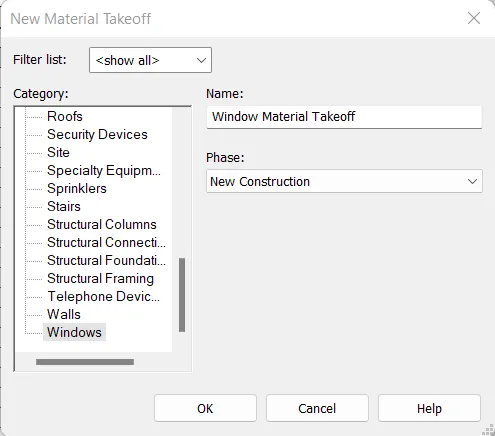

• Select 'Windows' from category and click 'OK'

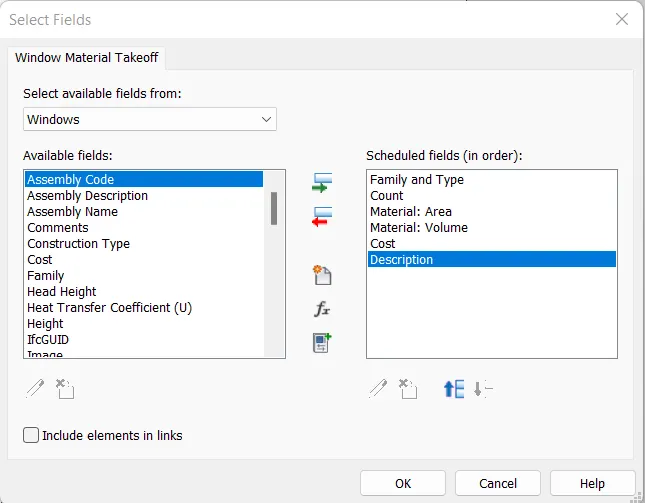

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

• Click the 'Description' column and 'Calculated' under the 'Modify' tab

• Set 'Calculated Value'
  • Name: Total Cost
  • Formula: (Material: Volume/1 m^3)*Cost
  • Click 'OK'

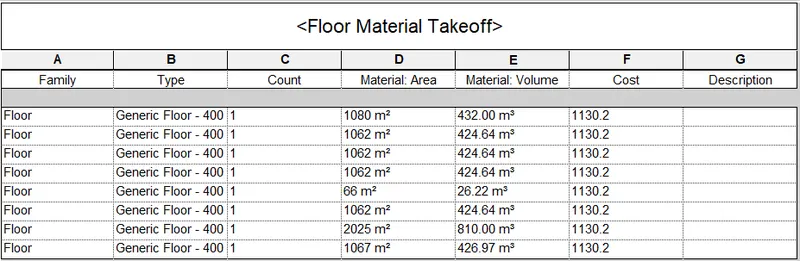

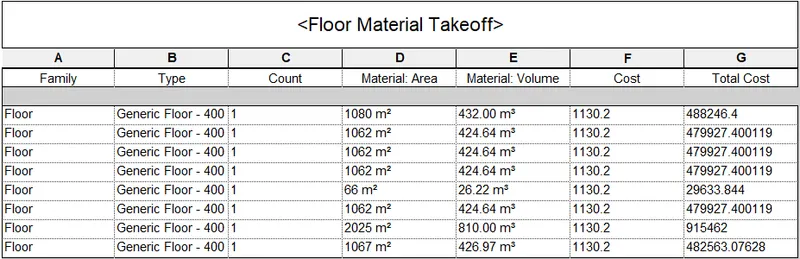

d) Material-Floor

• Click on all the floors
  • Cick edit type and change the cost as per the unit cost rate for materials available in the internet

• Click 'Material Takeoff' in the 'Schedules' under the 'View' tab

• Select 'Windows' from category and click 'OK'

• Transfer the necessary fields in the 'Scheduled fields' and click 'OK'

• Click the 'Description' column and 'Calculated' under the 'Modify' tab

• Set 'Calculated Value'
  • Name: Total Cost
  • Formula: (Material: Volume/1 m^3)*Cost
  • Click 'OK'

RESULTS

The total cost of materials used in the project is prepared

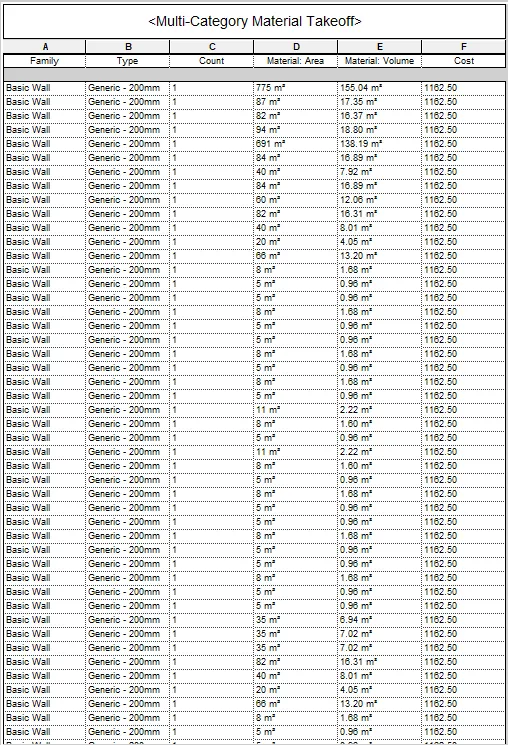

a. Total Cost of Materials

b. Individual Material Take off

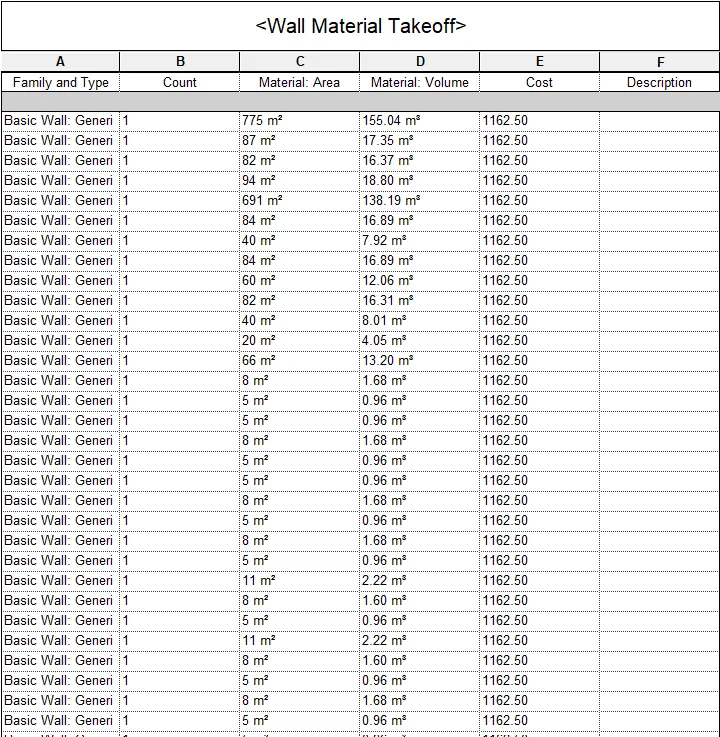

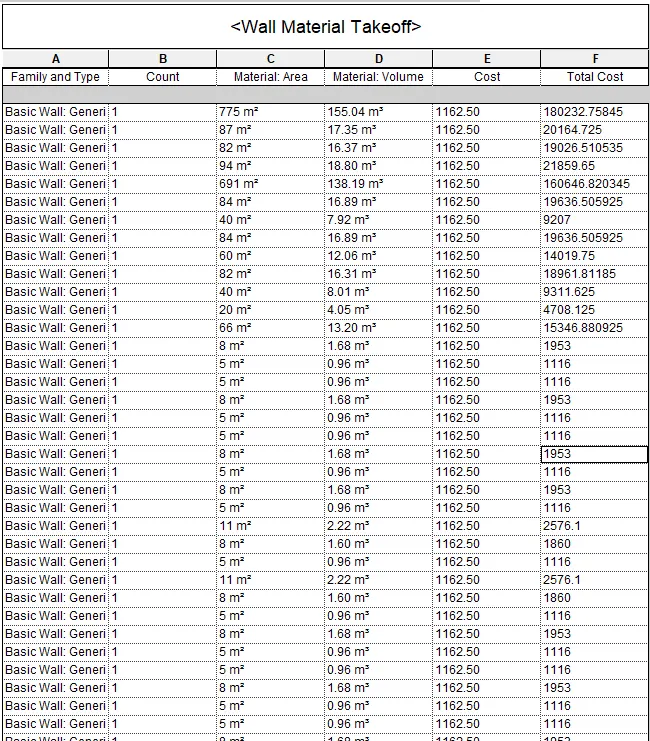

a) Walls

b) Doors

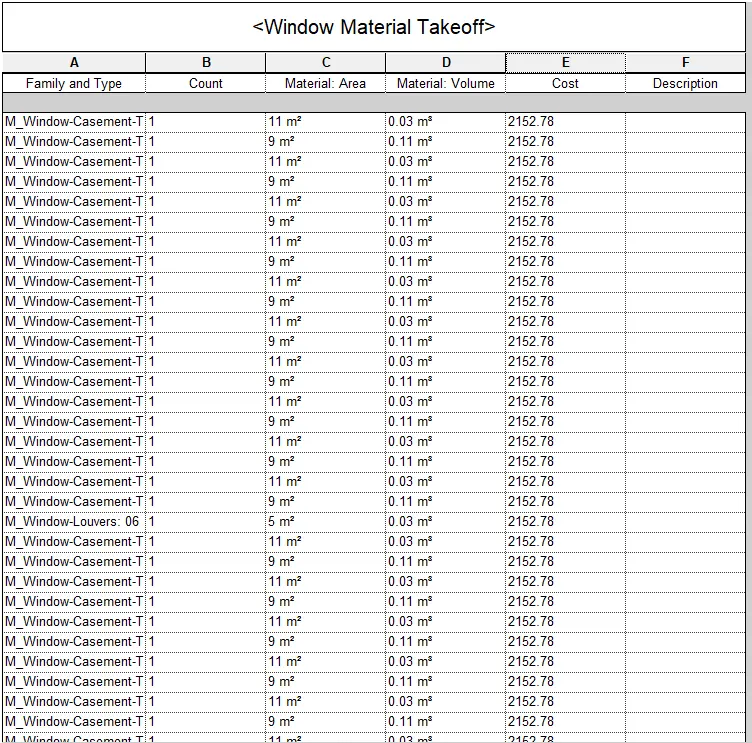

c) Windows

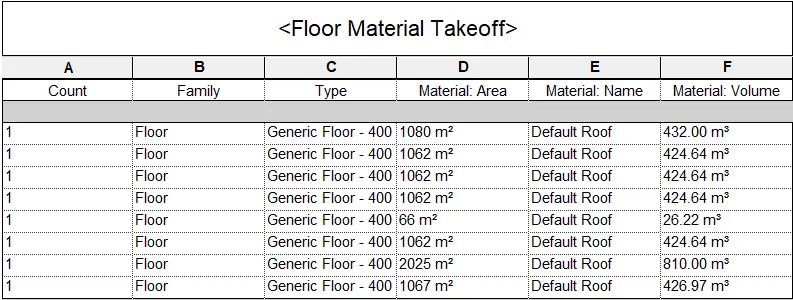

d) Material-Floor

Q5. Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

Ans:

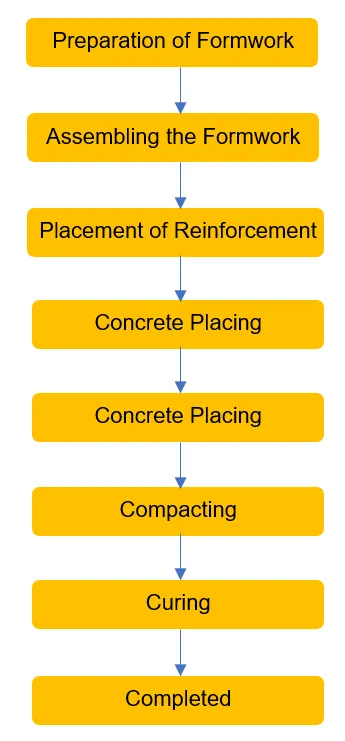

a. How to decide framings for a structure using Dynamo ?

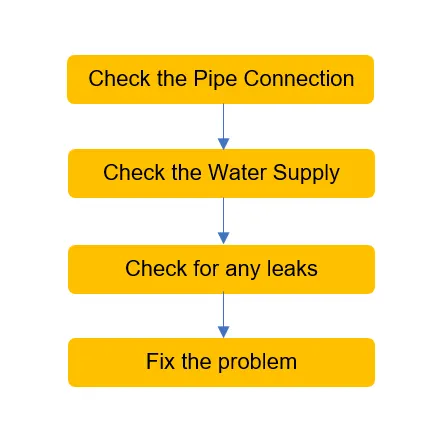

b. If there is no water coming from the pipes

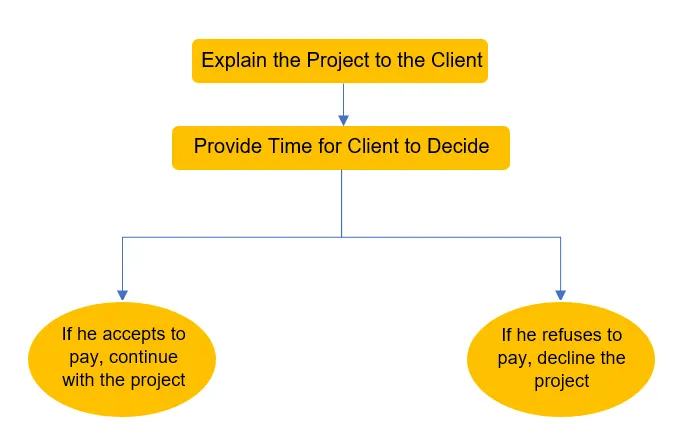

c. If request for money from client has been declined for the project

Q6. List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Ans:

a. Wall

• Wall type
• Wall description
• Wall length
• Wall thickness
• Wall height
• Wall materials
• Wall location
• Material cost

b. Floor

• Floor type
• Floor description
• Floor area
• Floor thickness
• Floor material
• Material cost

c. Door

• Door type
• Door description
• Door height
• Door width
• Door material
• Material cost

d. Window

• Window type
• Window description
• Window width
• Window height
• Window material
• Material cost

e. Table

• Table type
• Table length
• Table width
• Table weight
• Table material
• Table cost

f. Building

• Building type
• Building floor area
• Building perimeter
• Building location
• Building height
• Material
• Possible loads on a building
