Preparing Schedule & Cost Estimation for a building using REVIT
Q1. Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements
ANS :
a.Using a 3D model create a section box :
Section Box : BX
b.To create similar doors and windows in a floor plan layout :
Create Similar : CS
c.To reduce the thickness of lines visible in plan views :
Thin Lines : TL
d.To apply override settings to a floor in the model section view :
Visibility graphics and override settings : VG
e.To increase the range of visibility in a plan view :
View Range : VR
f.To select the previously selected items :
Reselect : Ctrl+<
g.To add annotations to the model views :
Dimension : DI
h.To bring the model elements in line :
Align : AL
i.To rotate the model elements :
Rotate : RO
j.To move an object to another location :
Move : MV
k.To copy a model element :
Copy : CO
l.To mirror an element about an axis :
Mirror : MM
m.To create an array of model elements :
Array : AR
Q2. Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood
ANS :
AIM : To prepare the Schedule for the following
- Walls
- Doors
- Windows
- Materials – Concrete/Wood
PROCEDURE :
Step 1 : Open the Revit project created in week 7

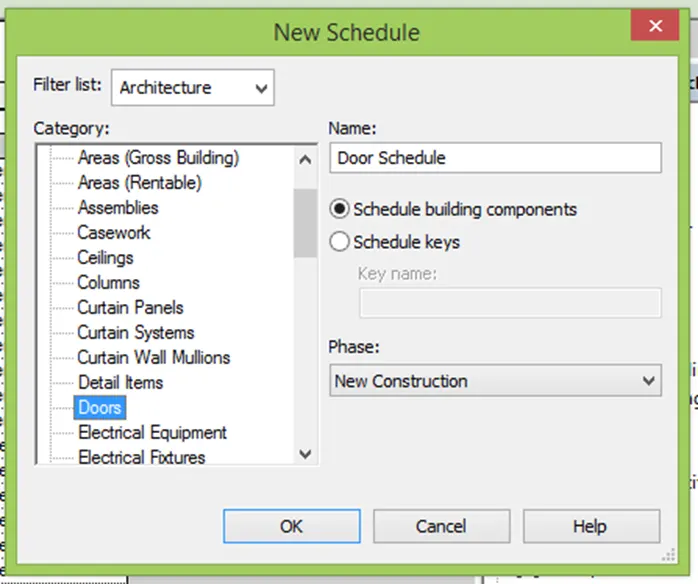

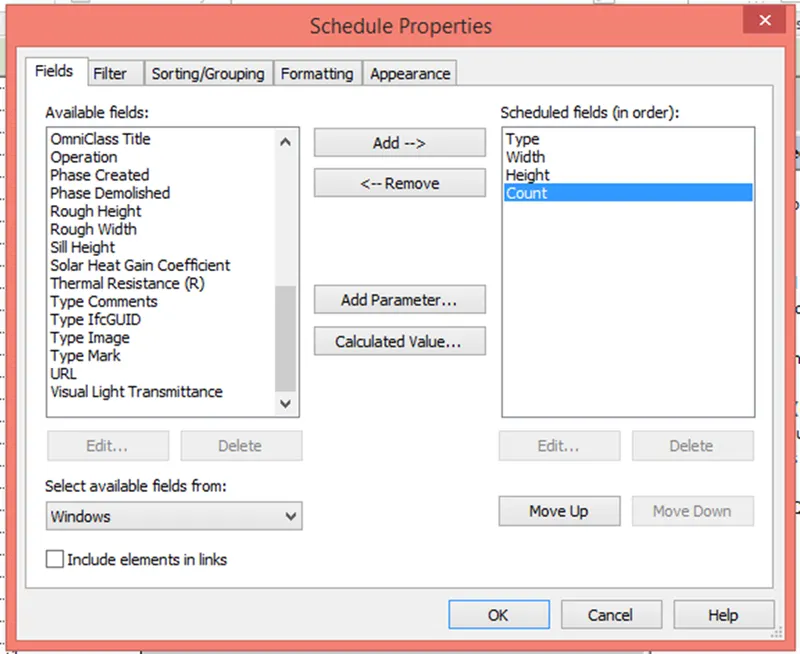

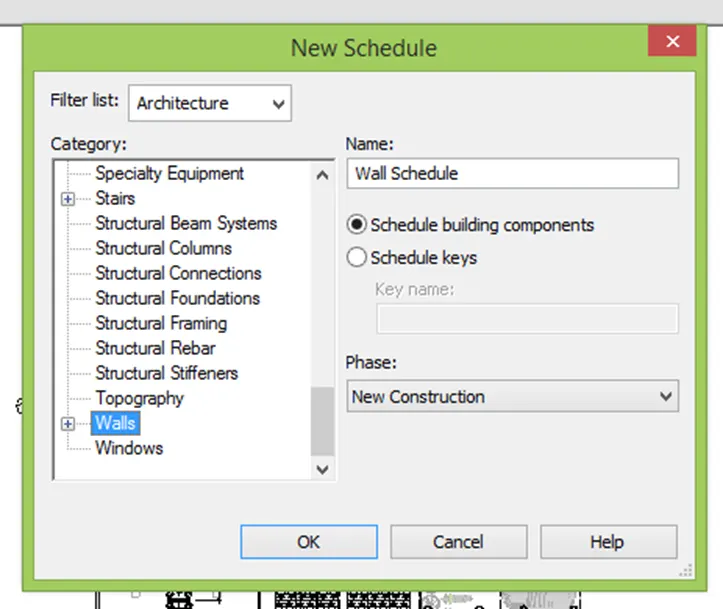

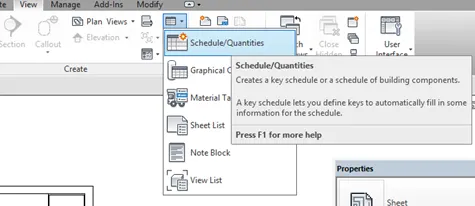

Step 2 : Go to view menu tab and select schedule/Quantities

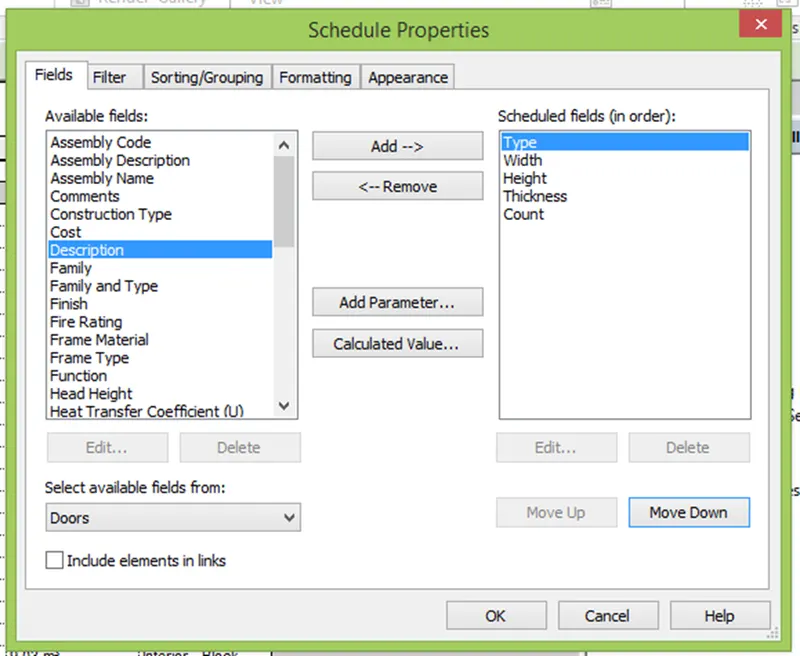

Step 3 : Select the required field which needs to be scheduled and press Ok

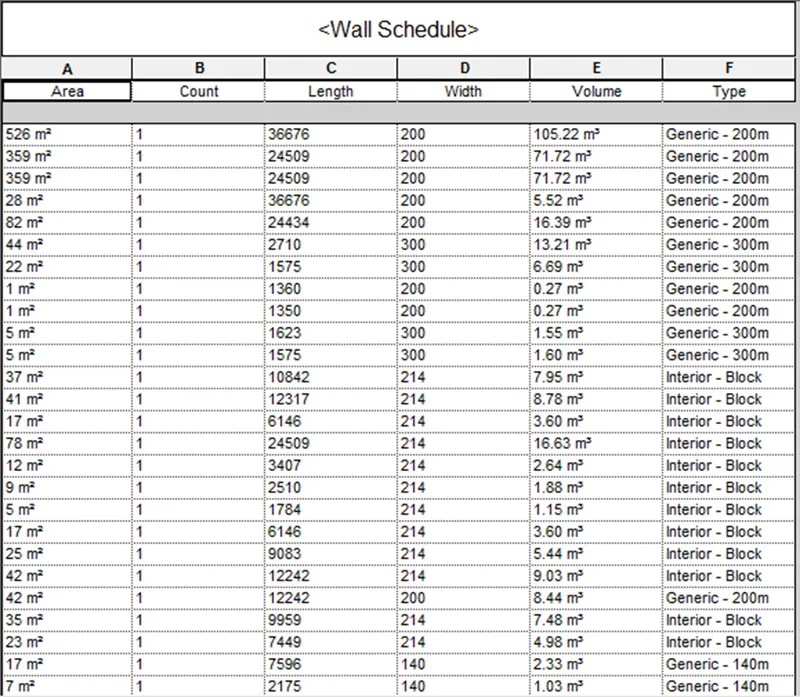

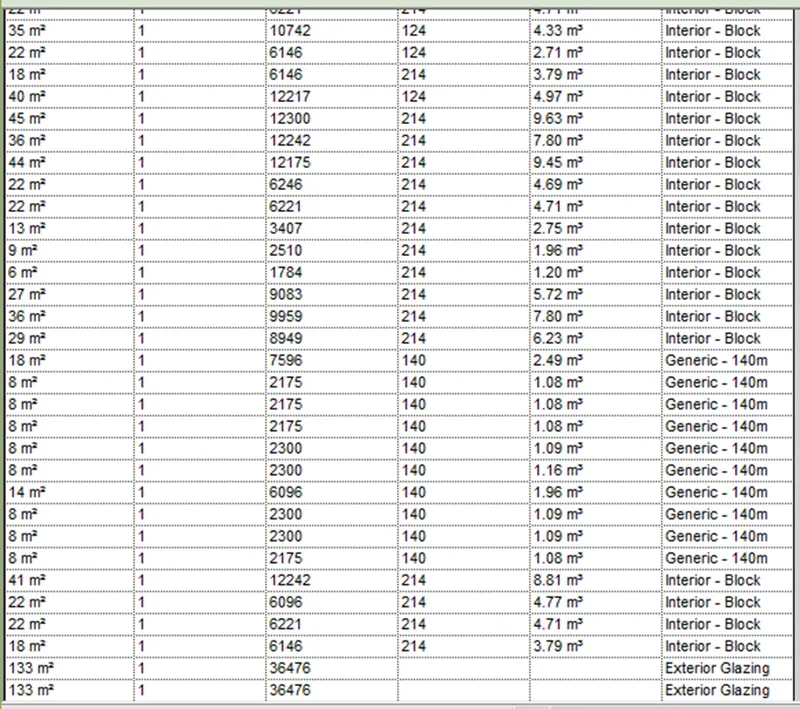

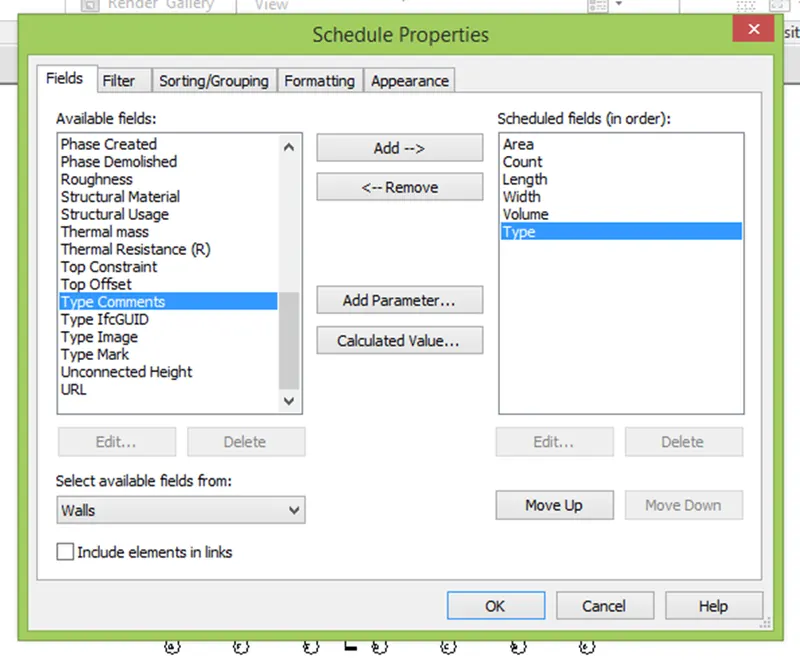

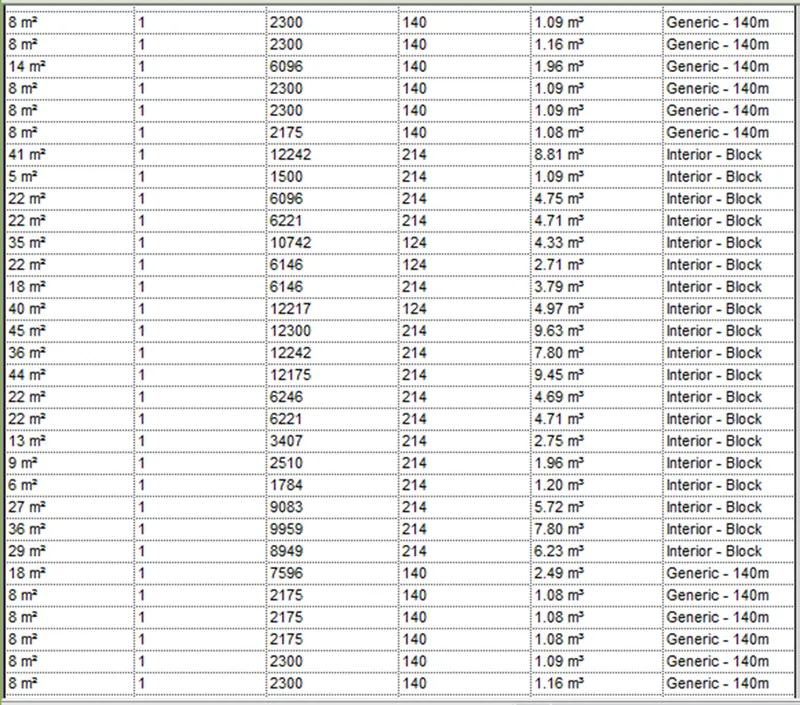

a.Wall schedule

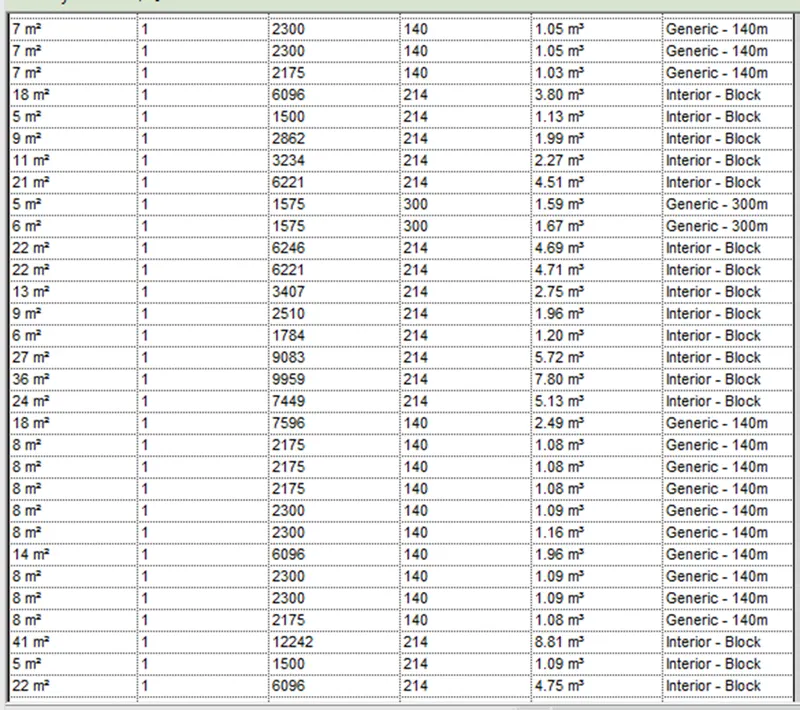

Step 4 : For wall schedule select the parameters for scheduling and press ok
Step 5 : The Wall scheduling is done
Step 6 : Do the above process for Door, Window and material

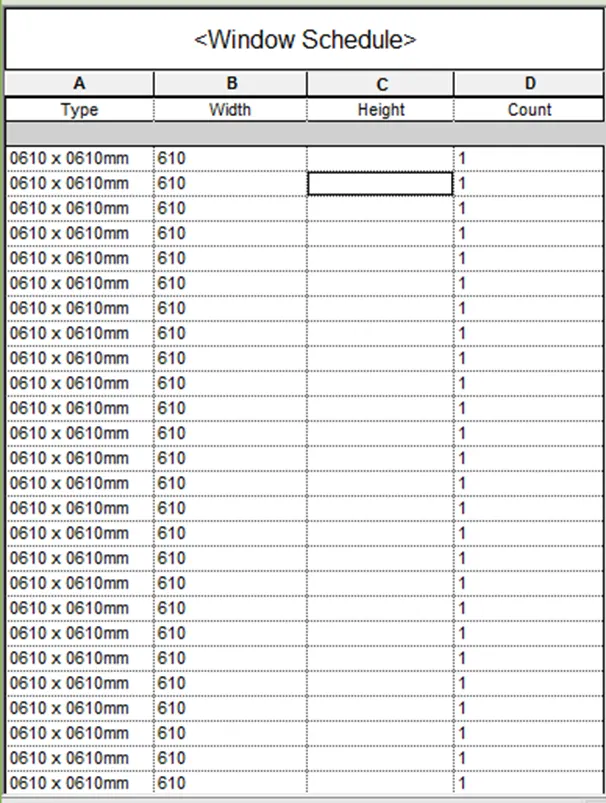

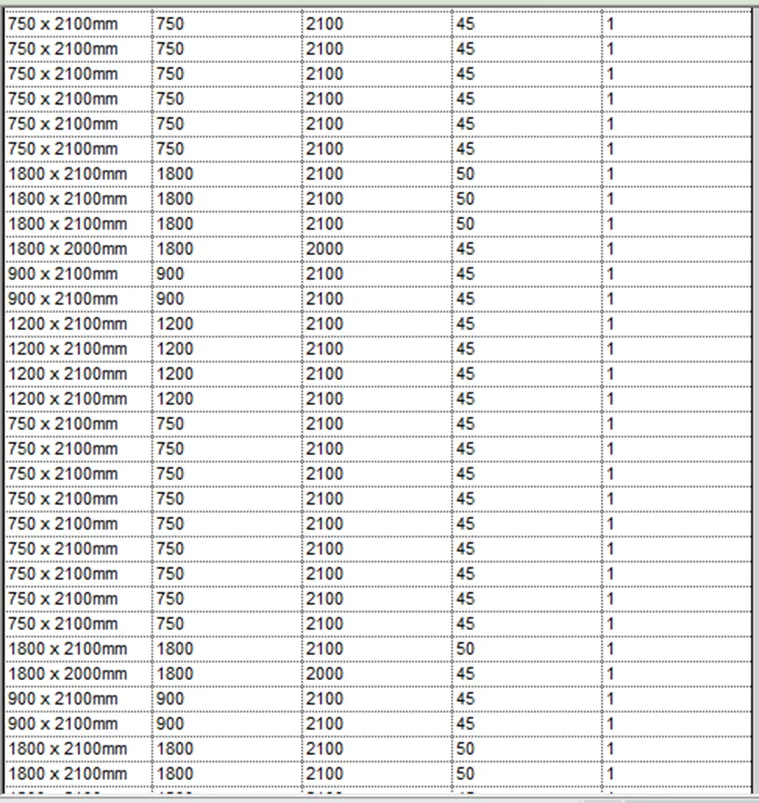

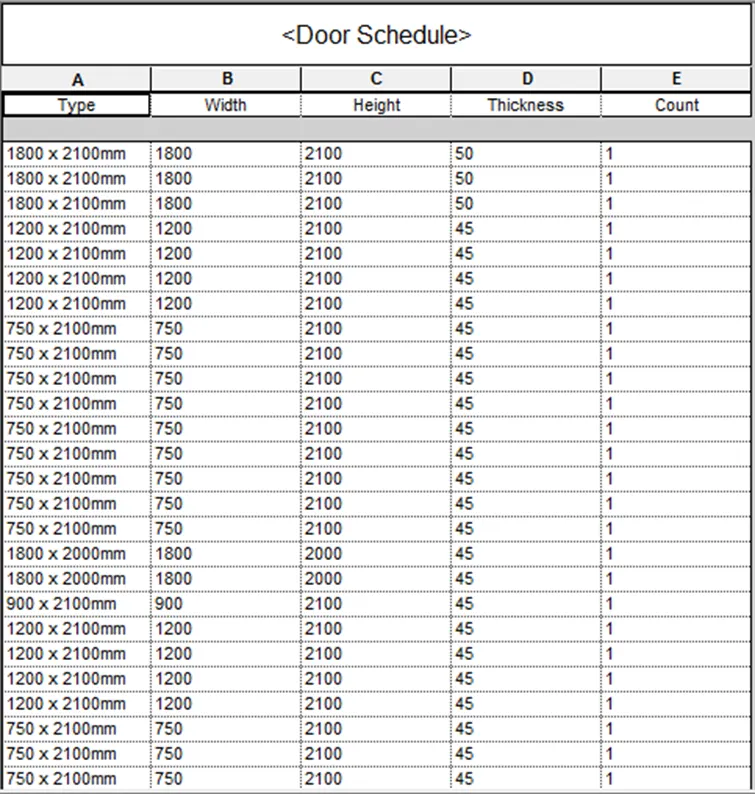

b.Door Schedule

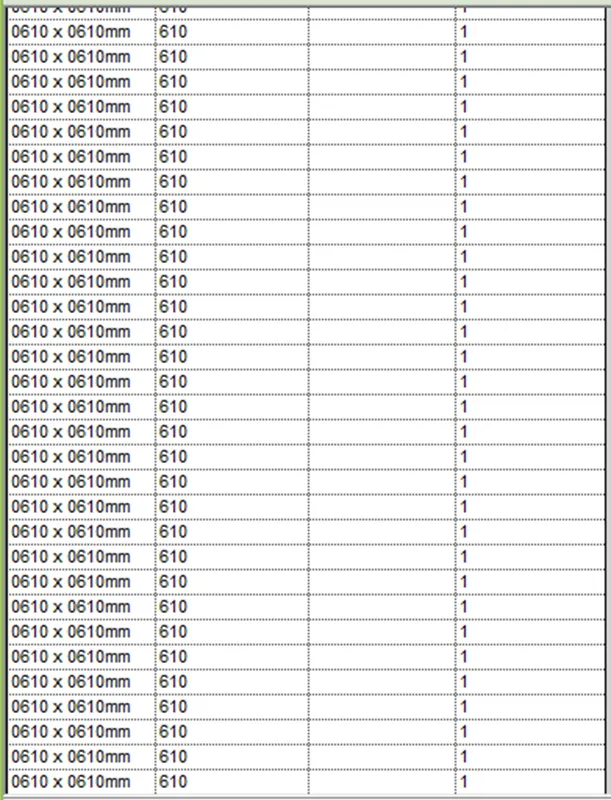

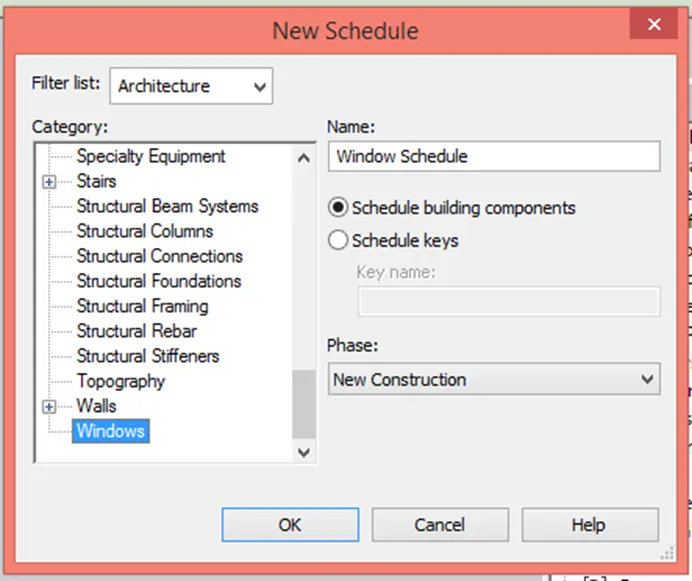

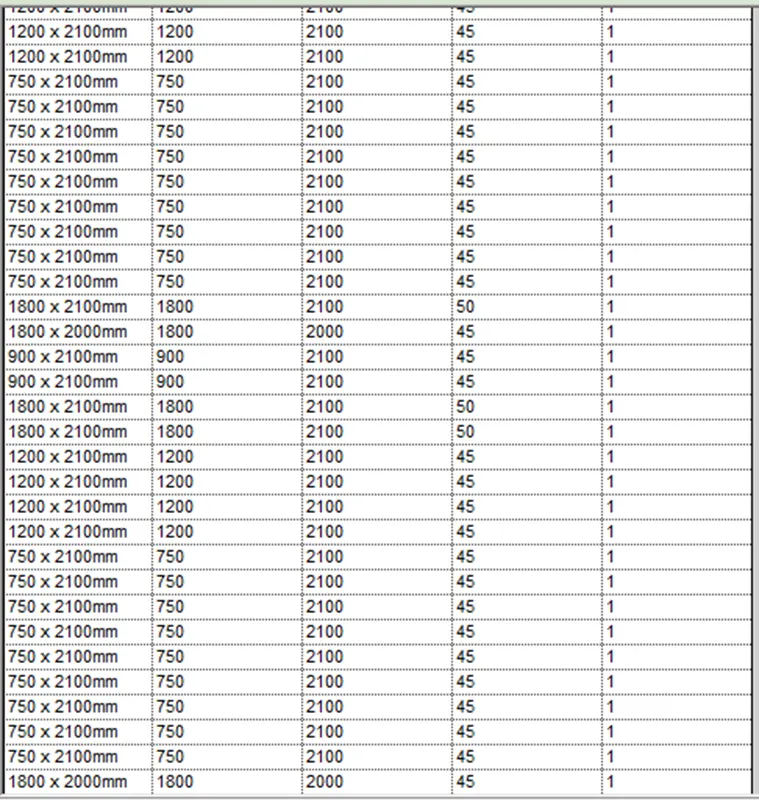

c.Window Schedule

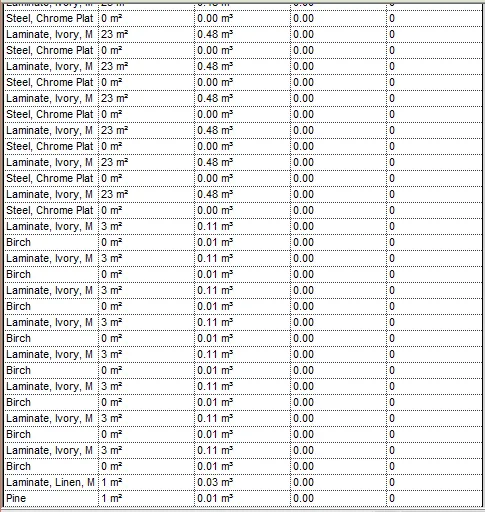

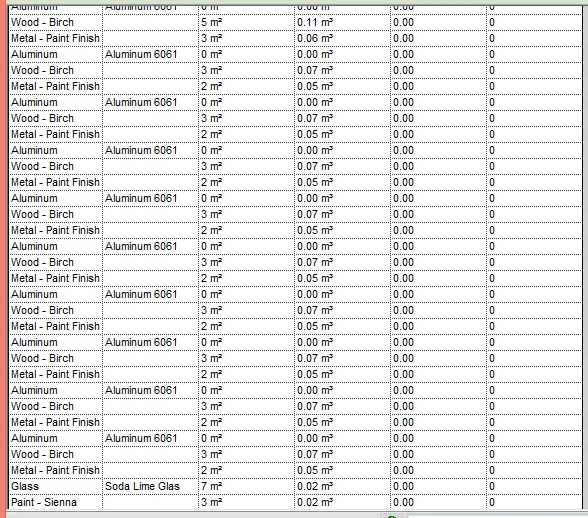

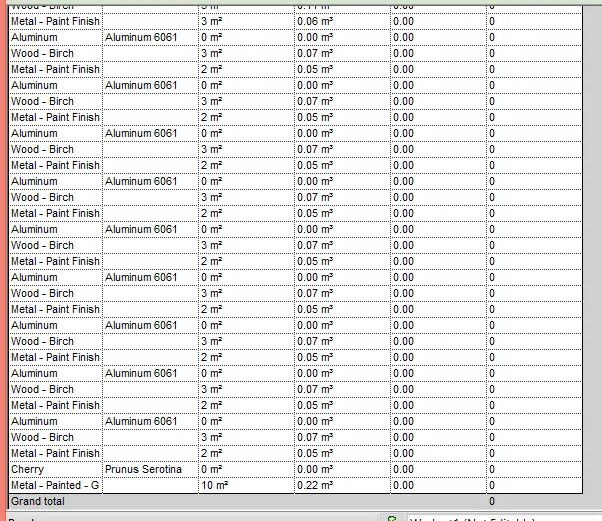

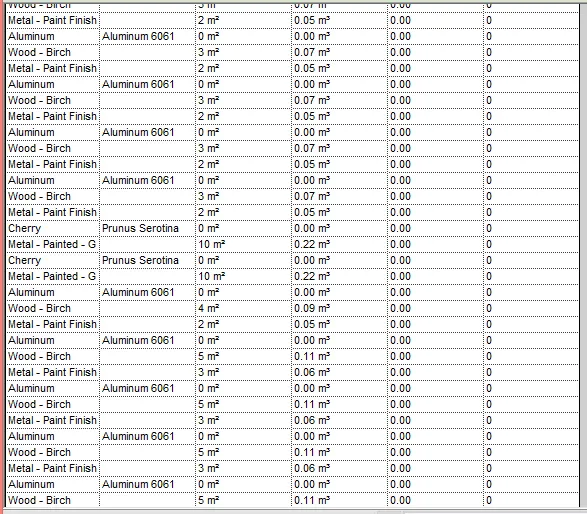

d.Material – Concrete/Wood
RESULT : Wall Schedule, Door Schedule, Window Schedule and Material Schedule is prepared
Q3. Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.
ANS :
AIM : To prepare the schedule report for area and volume of each room
PROCEDURE :
Step 1 : Go to view menu tab and select schedule/Quantities

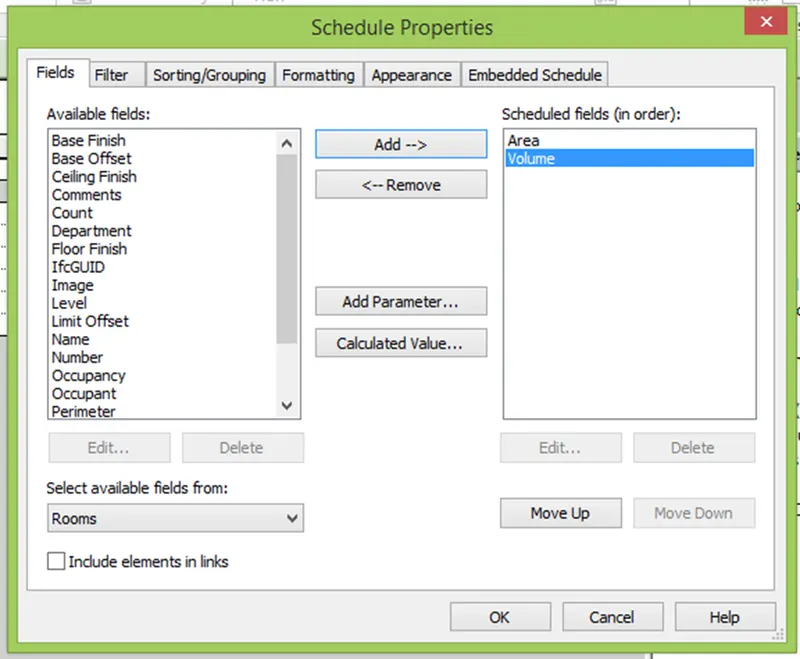

Step 2 : Select the required field which needs to be scheduled and press Ok

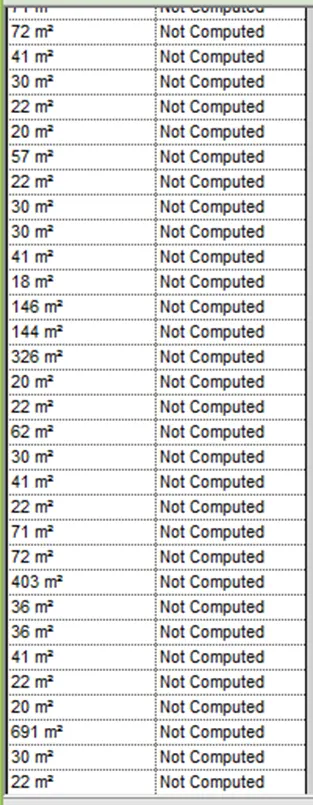

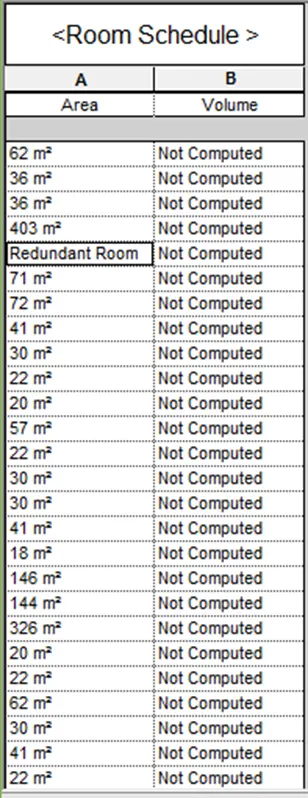

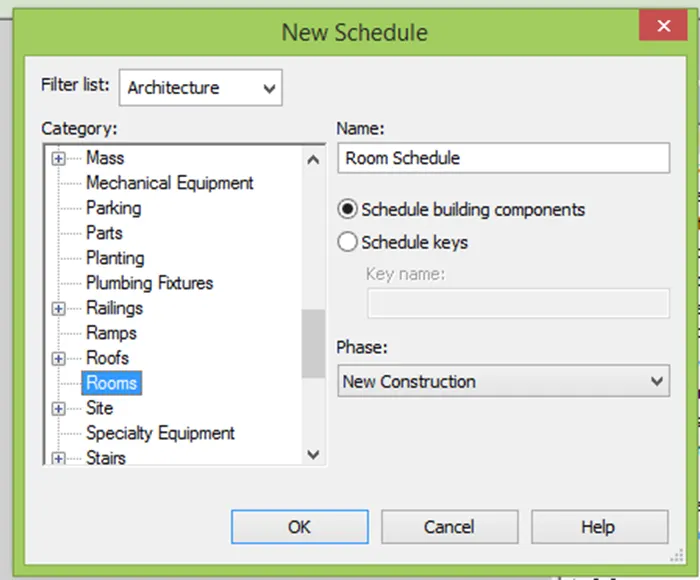

Step 3 : For Room schedule select the parameters for scheduling and press ok
Step 4 : The Room scheduling is done
RESULT : Room area and volume Schedule is prepared
Q4. Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off
ANS :
AIM : To prepare the schedule of total cost of materials
PROCEDURE :

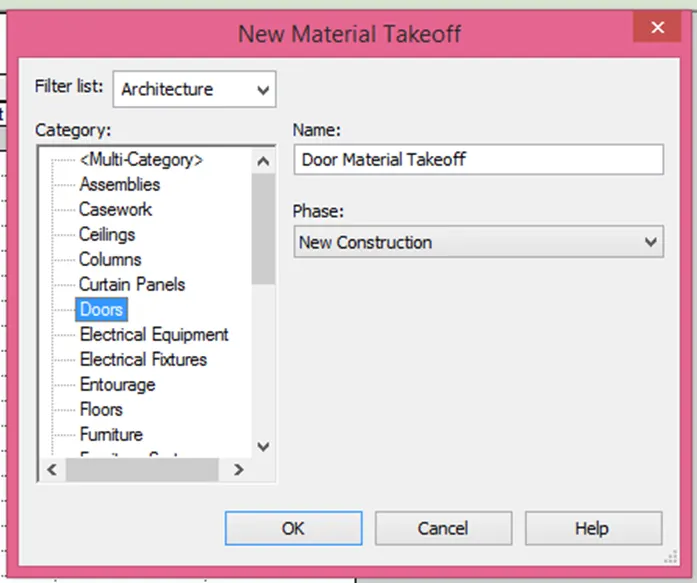

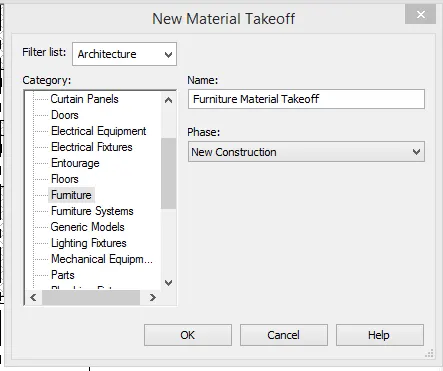

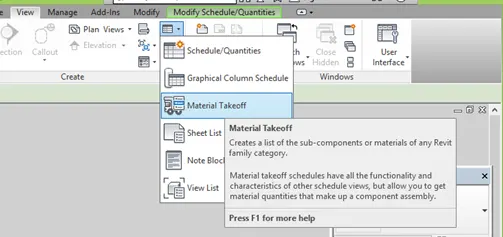

Step 1 : Go to view menu tab and select material takeoff

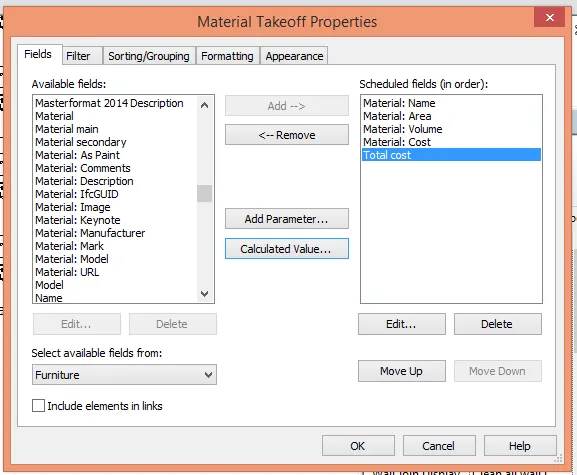

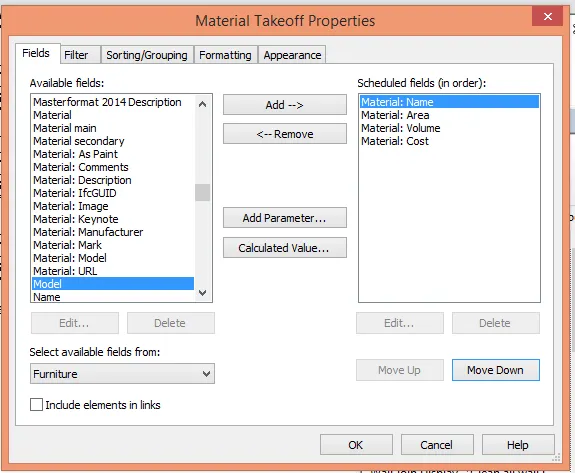

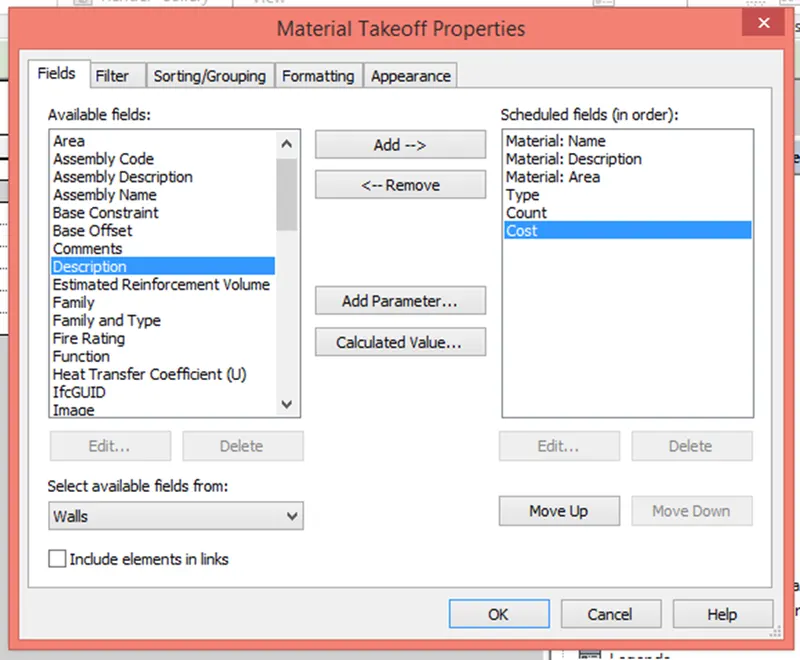

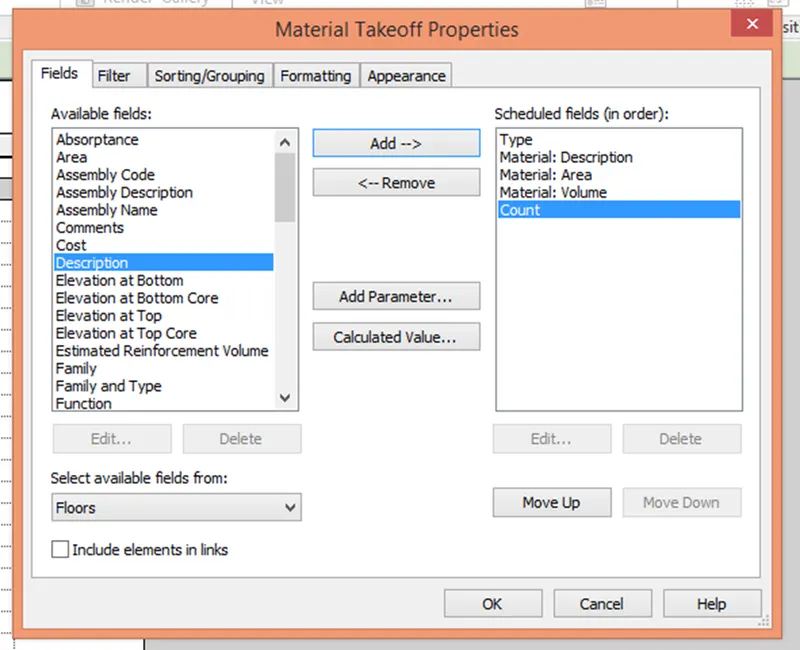

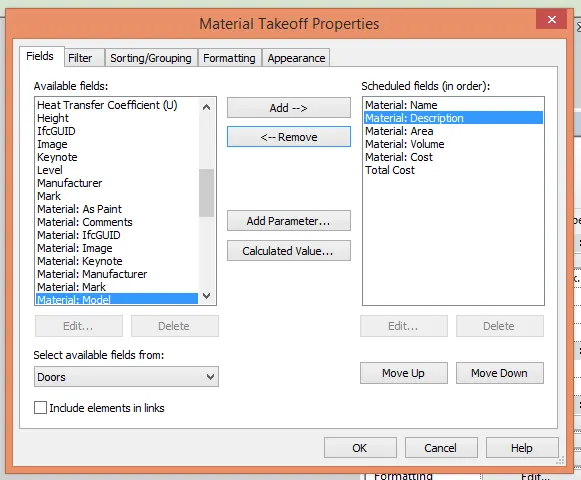

Step 2 : Select the required field which needs to be scheduled and press Ok

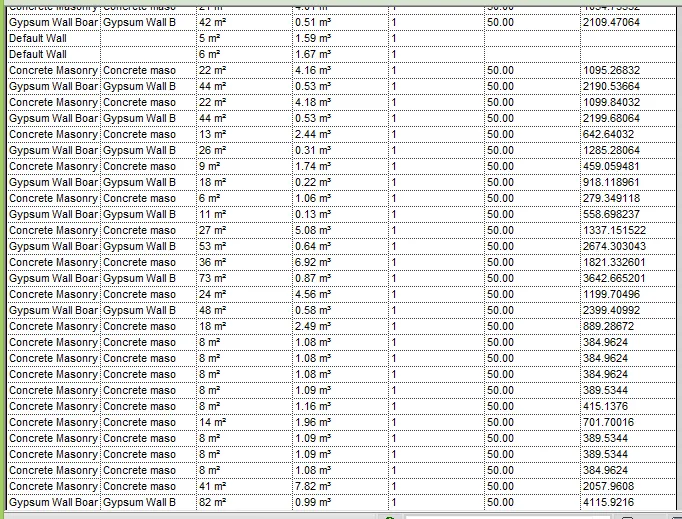

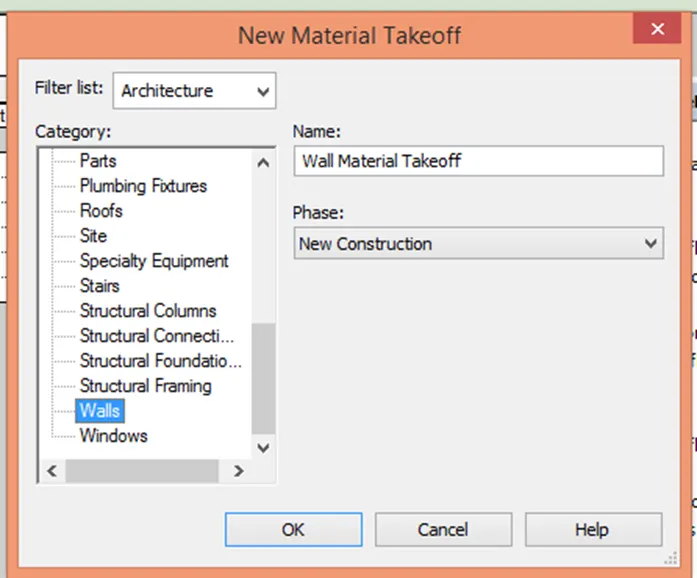

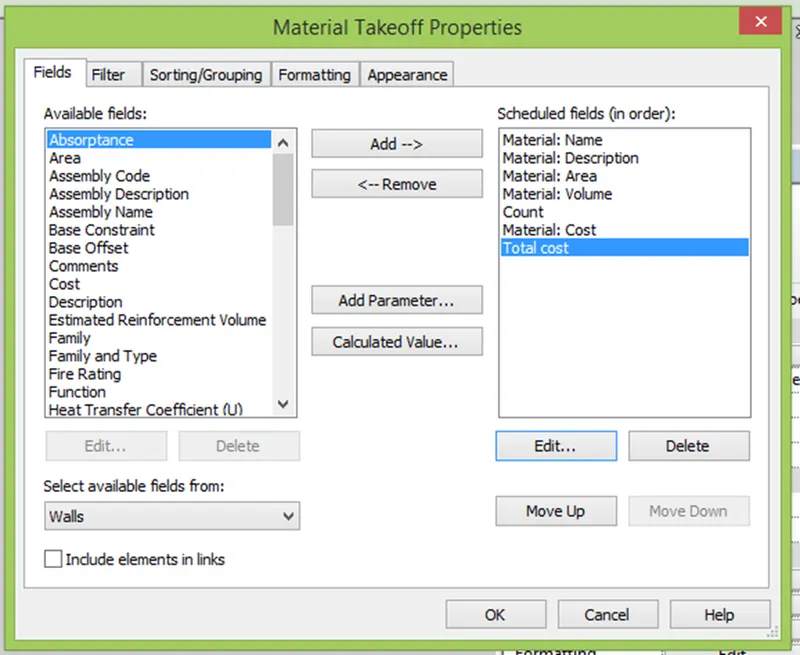

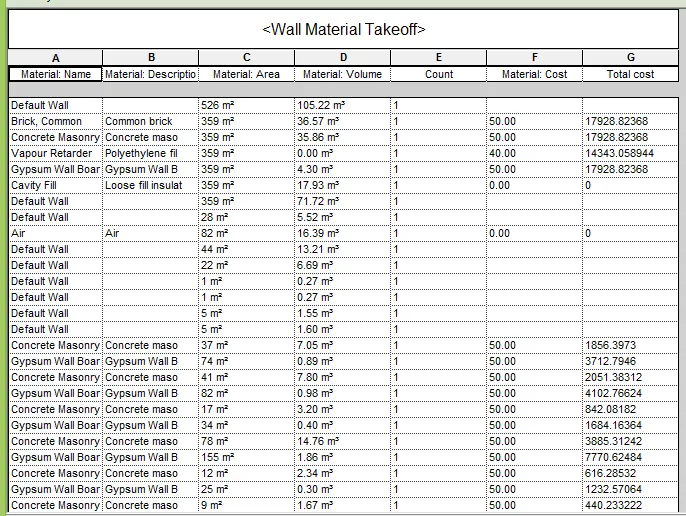

Step 3 : For Wall material takeoff schedule select the parameters for scheduling and press ok

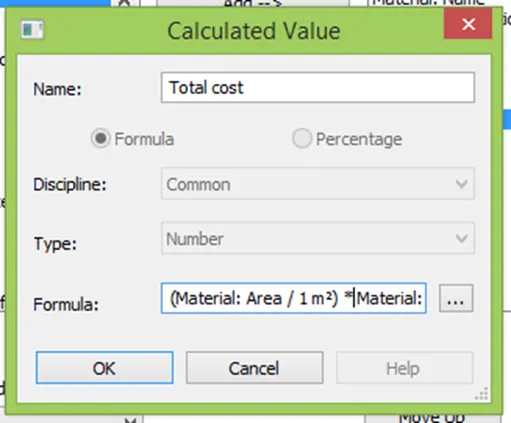

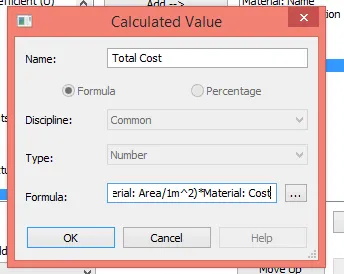

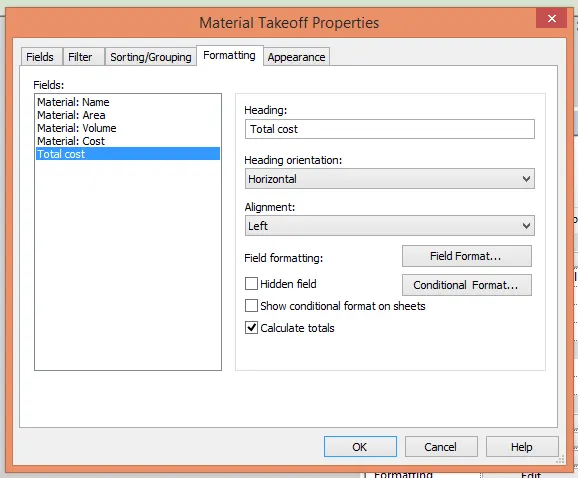

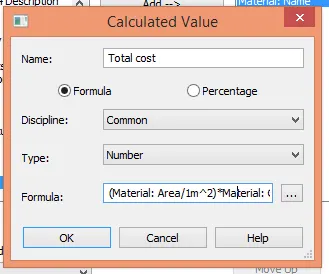

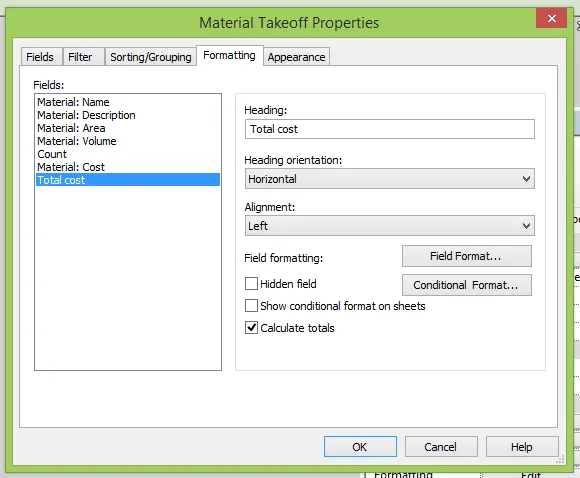

Go to Calculated value create Total cost

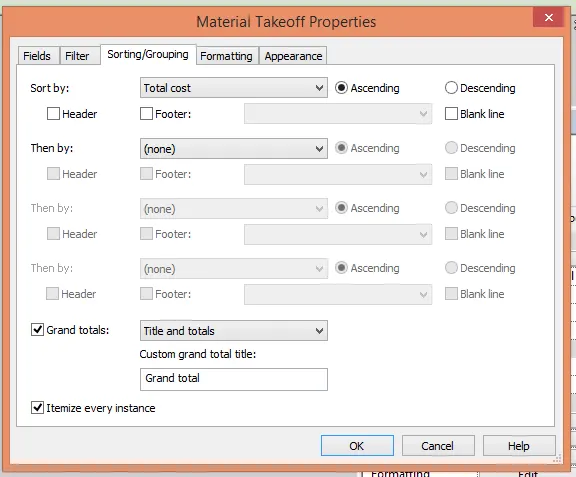

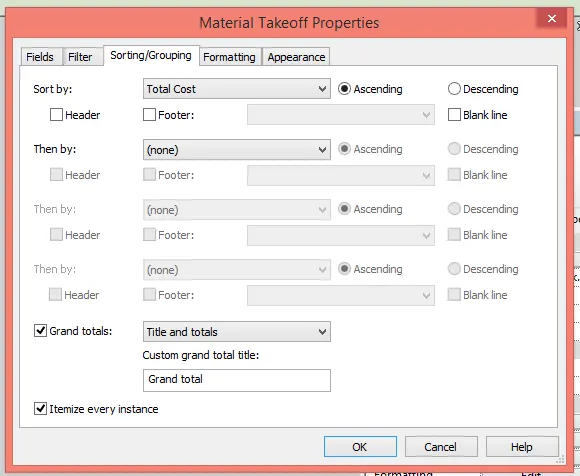

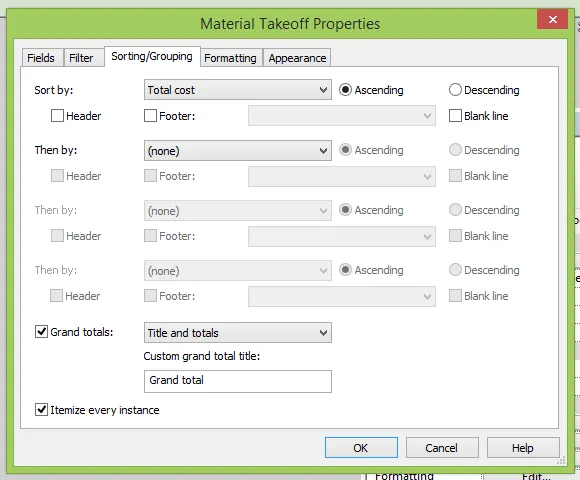

Step 4 : Go to Grouping and Sorting and do the necessary settings

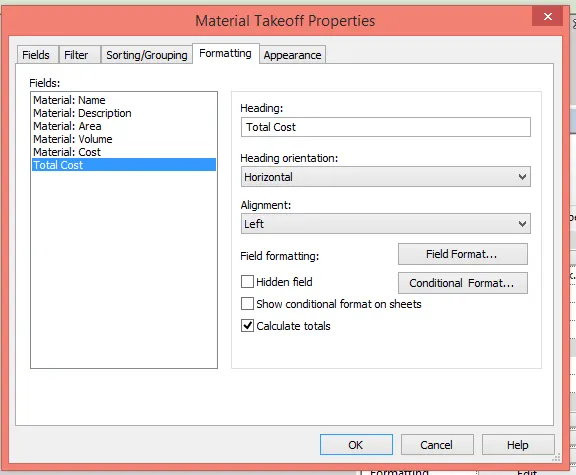

Also in formating do the necessary setting

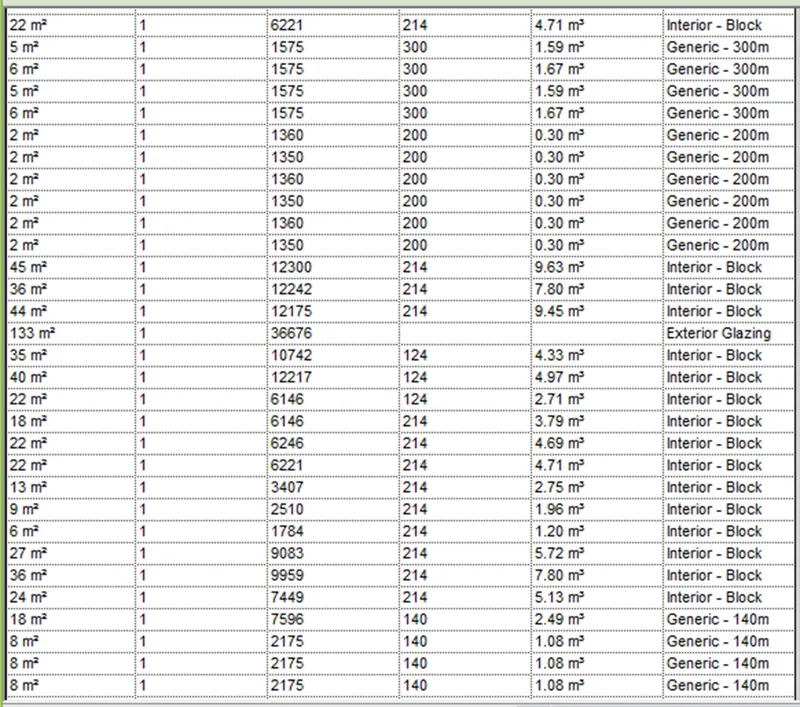

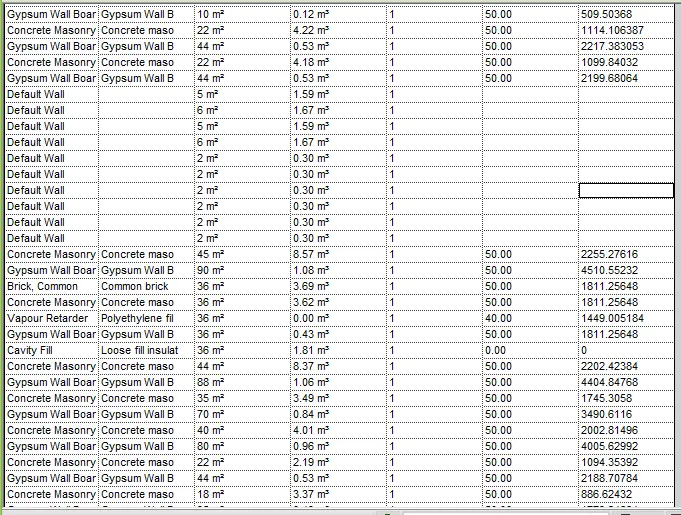

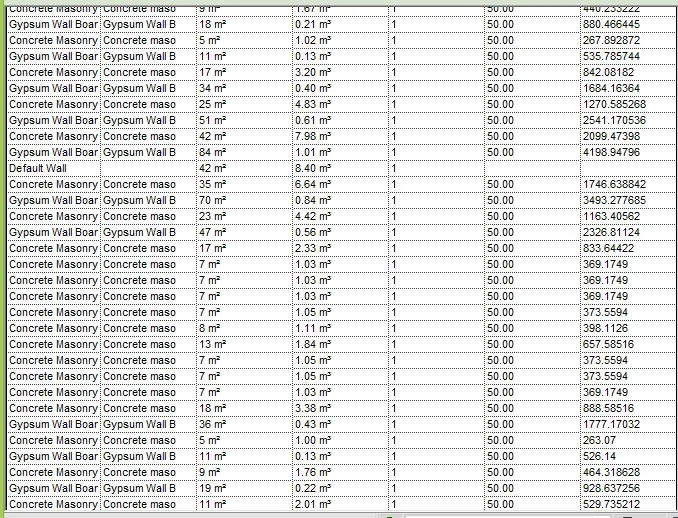

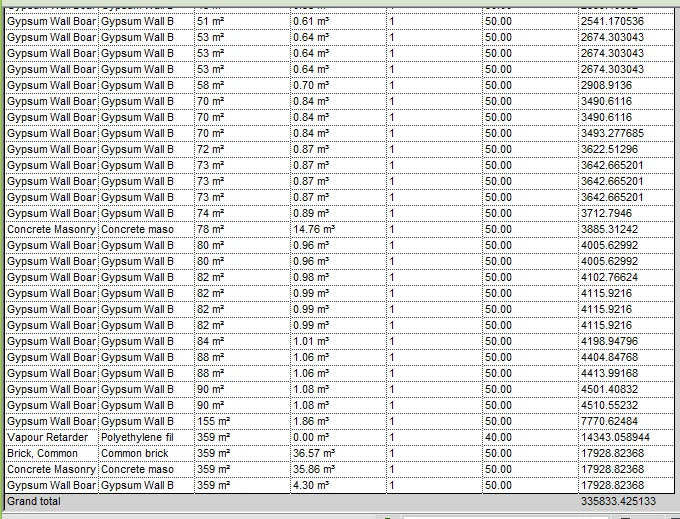

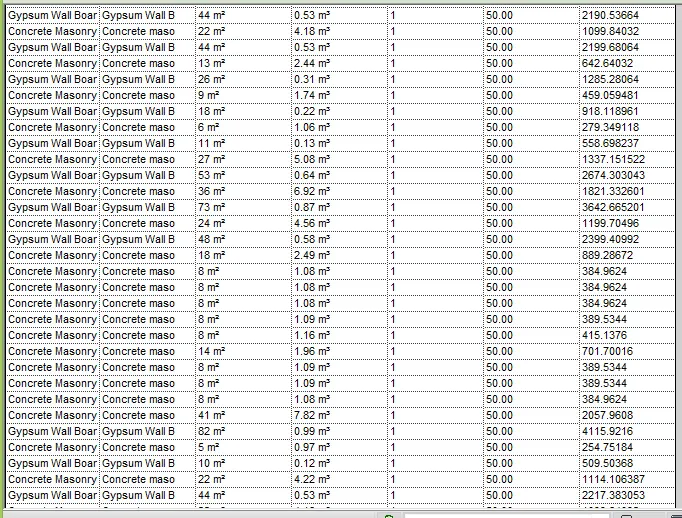

Step 5 : The Wall material takeoff scheduling is done

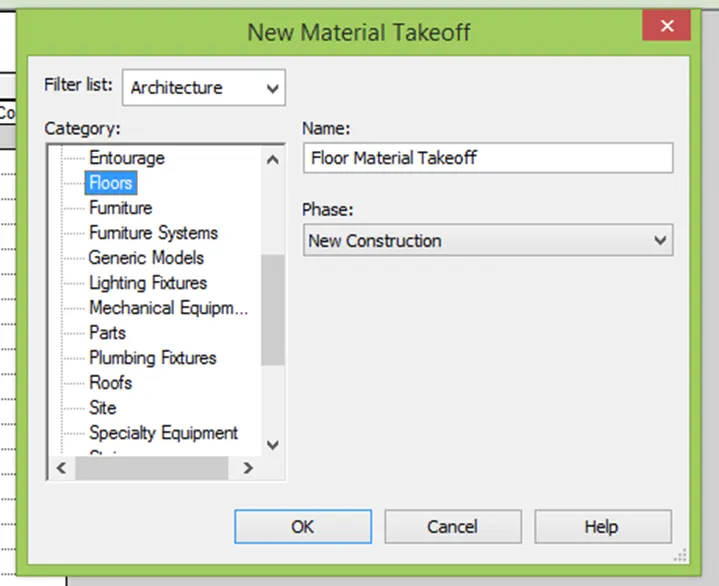

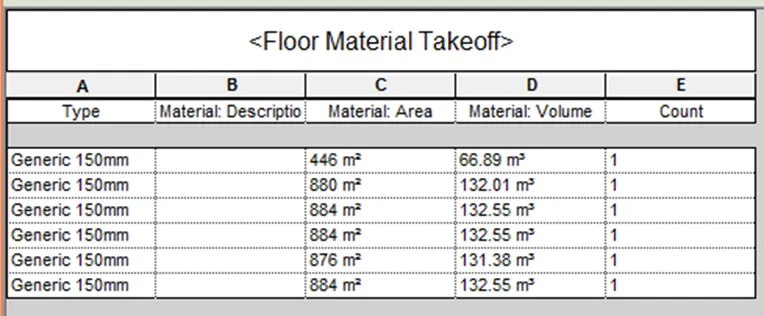

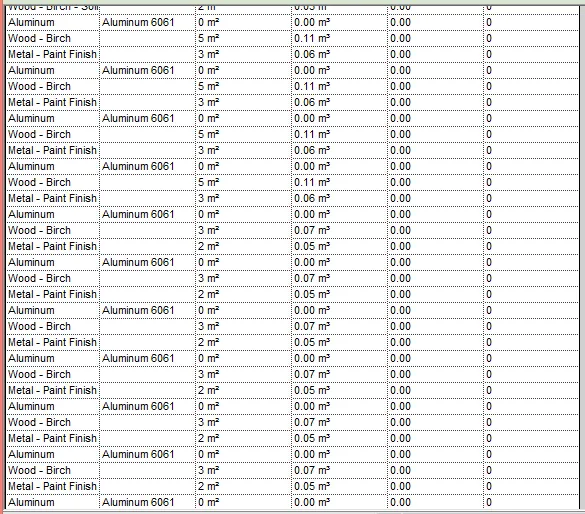

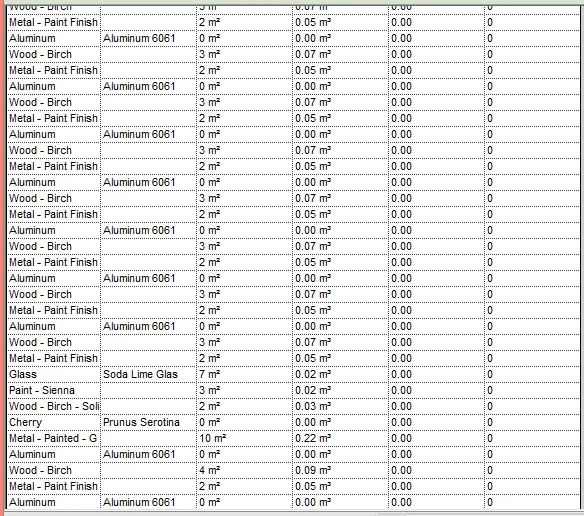

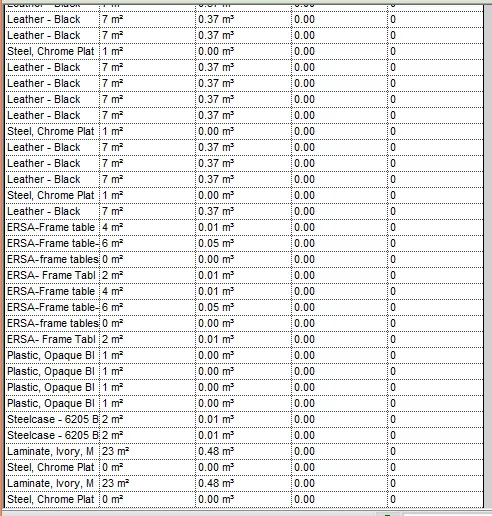

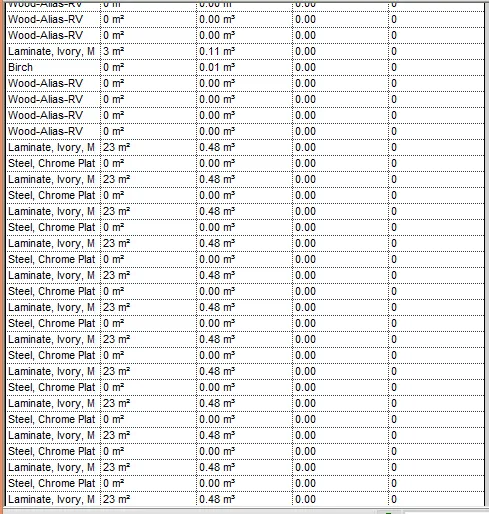

Step 6 : Like the above procedure schedule for furnitures, doors

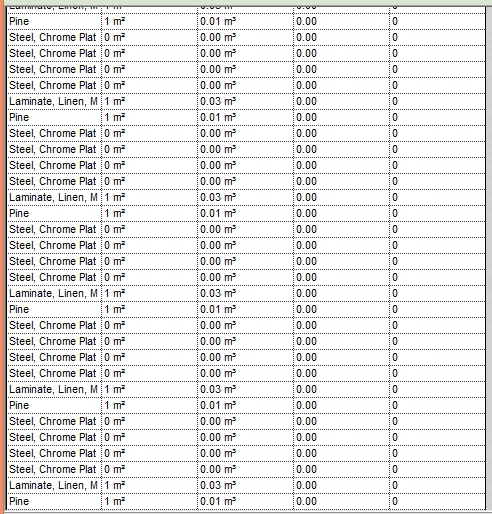

a.Furniture

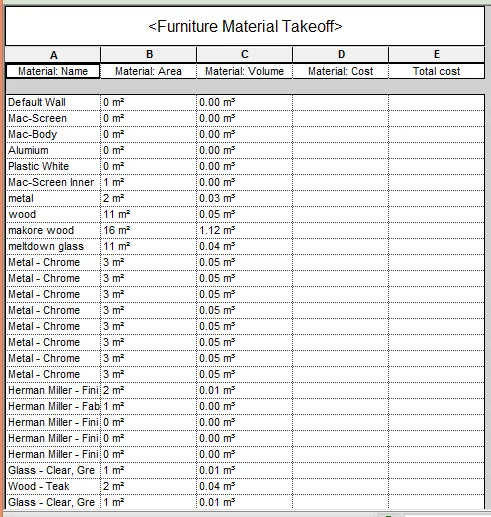

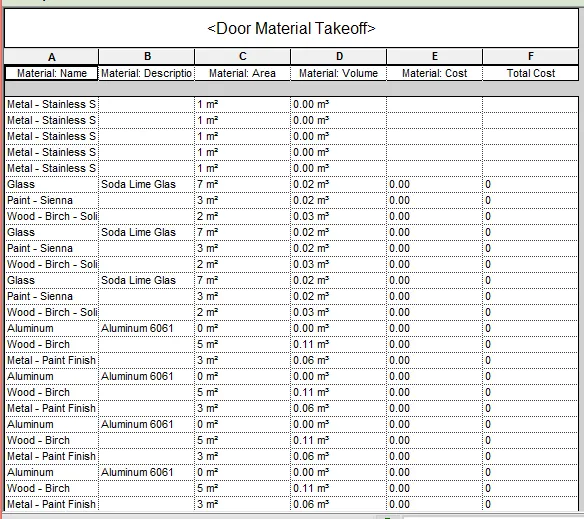

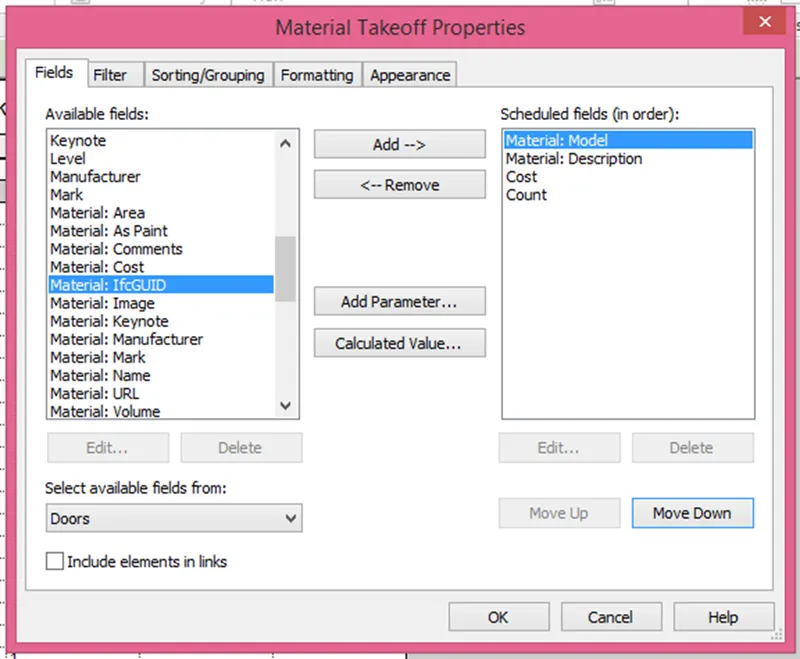

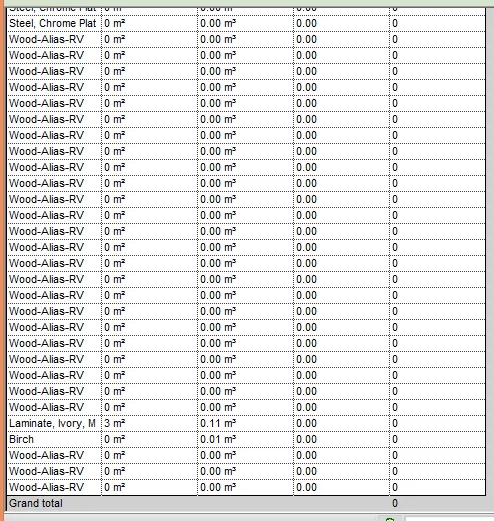

b.Door Material takeoff schedule
RESULT : Total cost and individual Material takeoff schedule jhas been prepared
5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project
ANS :

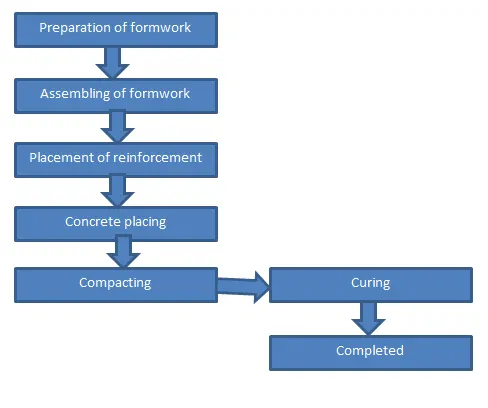

a. How to decide framings for a structure using Dynamo
b. If there is no water coming from the pipes

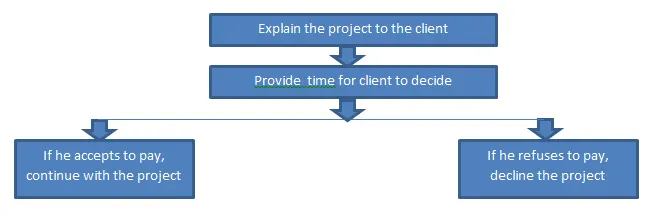

c. If request for money from client has been declined for the project
6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building
ANS :
a.Wall
Wall type, Wall description, Wall area, Wall length, Wall height, Wall thickness, Wall material, Wall location, Material cost
b.Floor
Floor type, Floor description, Floor area, Floor thickness, Floor material, material cost
c.Door
Door type, Door description, Door width, Door height, Door thickness, Door material, Material cost
d.Window
Window type, Window description, Window width, Window height, Window thickness, Window material, Material cost
e.Table
Table type, Table length, Table width, Table height, Table material, Table cost
f.Building
Building type, Building floor area, Building wall area, Building perimeter, Building height, Loads applied on building, Material used, Building cost
