Preparing Schedule & Cost Estimation for a building using REVIT

Q 1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using a 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements inline
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Answer:-

1. BX
2. CS
3. TL
4. VG
5. VR
6. Ctrl + <
7. DI
8. AL
9. RO
10. MV
11. CO
12. MM
13. AR

Q 2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Aim:- To prepare a schedule for Walls,Door,Windows, and Materials( concrete/wood)

Procedure:-

1. open project_2

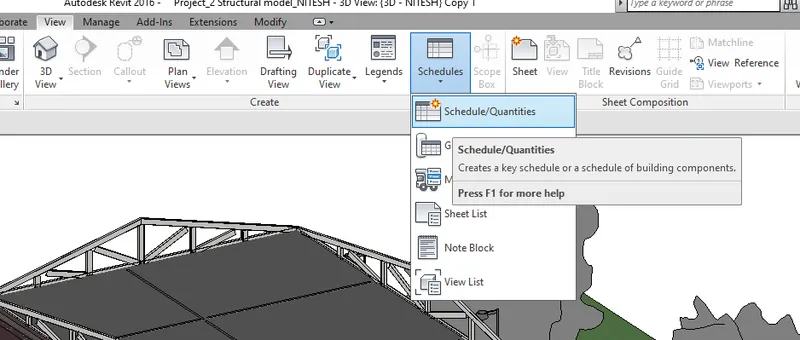

2. go to view>schedule>schedule/Quantities

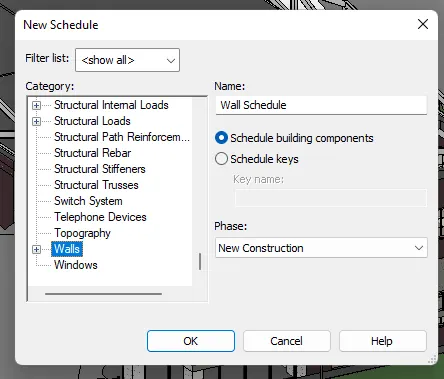

3. select component for schedule

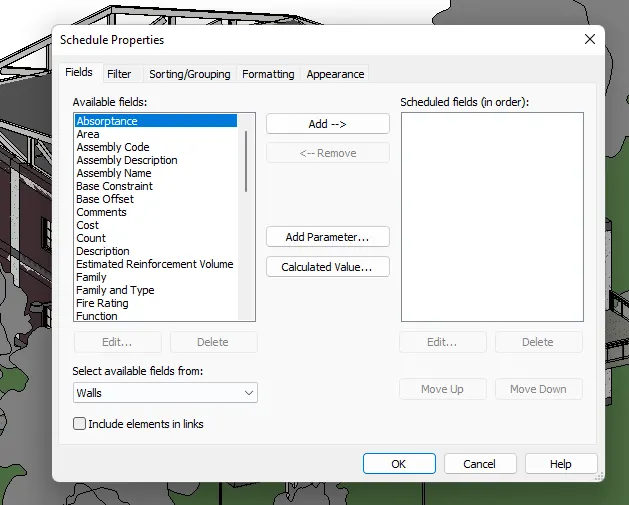

4. Now, we can see the Schedule Properties tab and we can choose desire fields.

Result:-

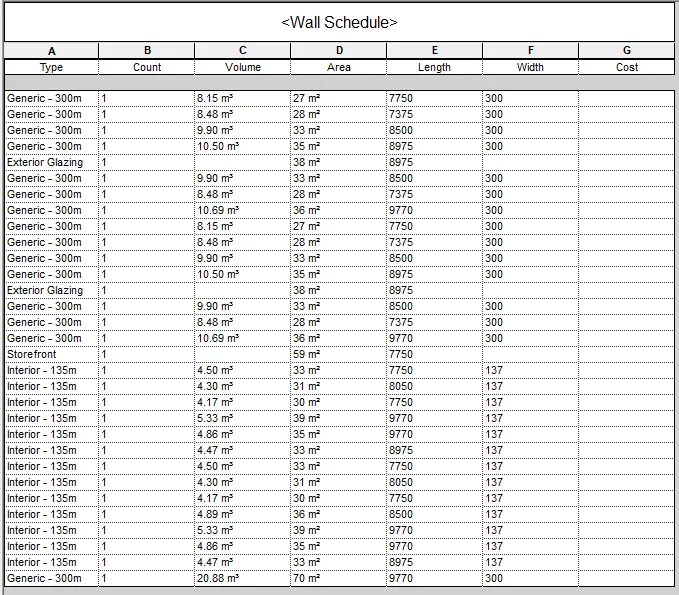

1. Wall Schedule

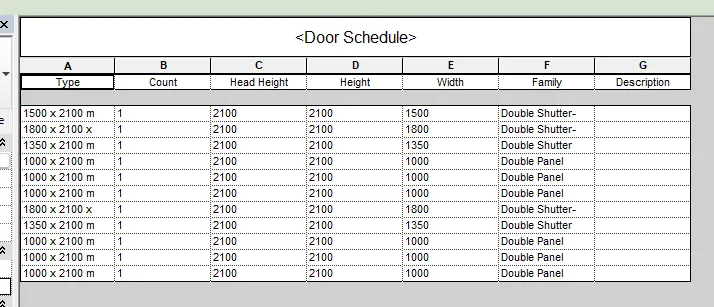

2. Door Schedule

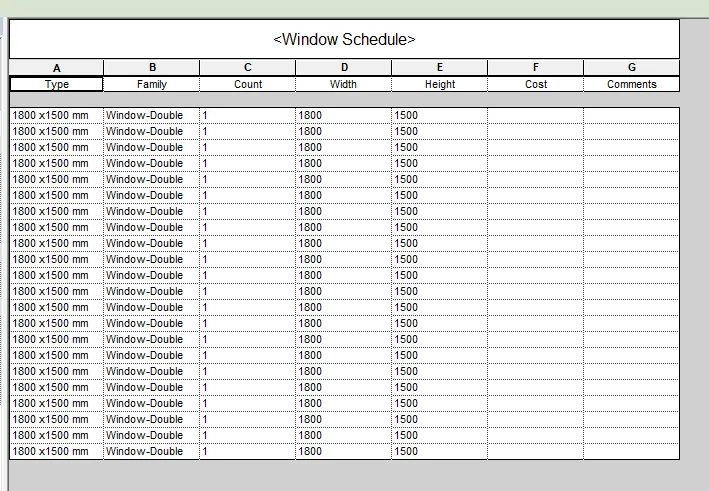

3. Window Schedule

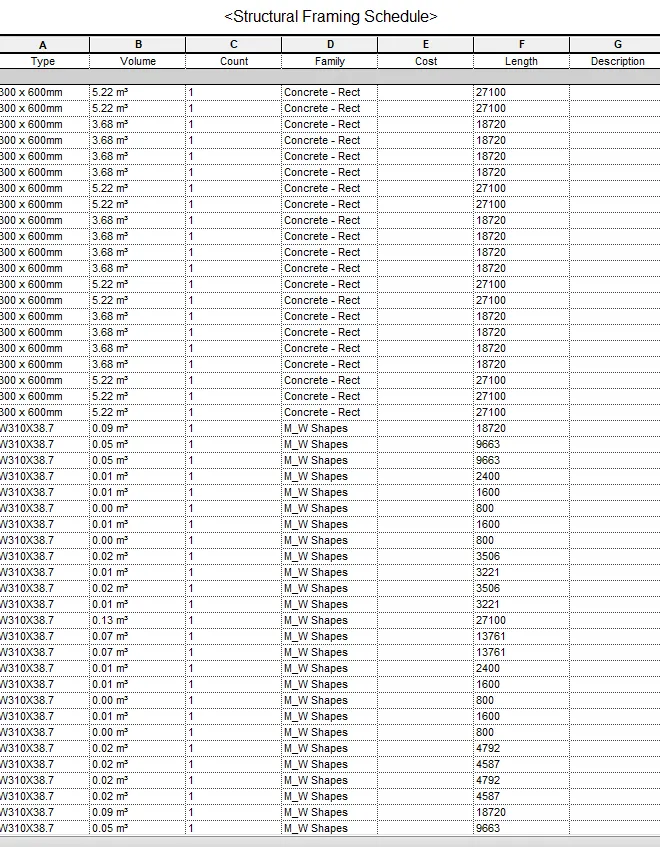

4. Material Schedule

Q 3) Using Revit Calculate the area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for the area and volume of each room.

Aim:- To prepare a schedule report for the area & volume of each room.

Procedure:-

1. go to plan and Tag your each room

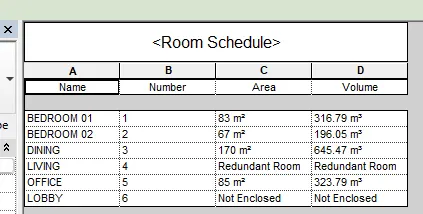

2. Go to view>schedule>room schedule.

Result:-

Q 4) Using the same schedule using the unit cost rate for materials available on the internet, prepare the total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Takeoff

Aim:- To prepare individual material Takeoff schedule.

Procedure:-

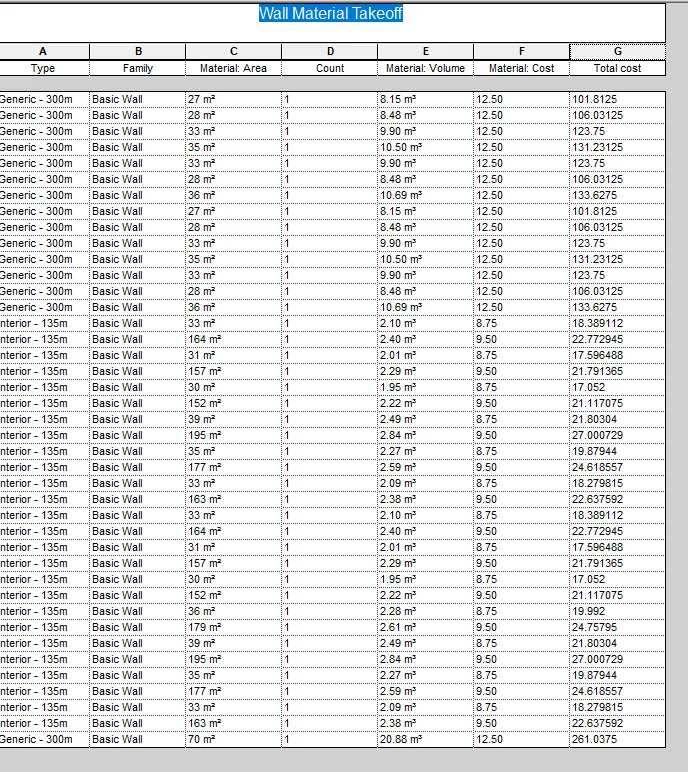

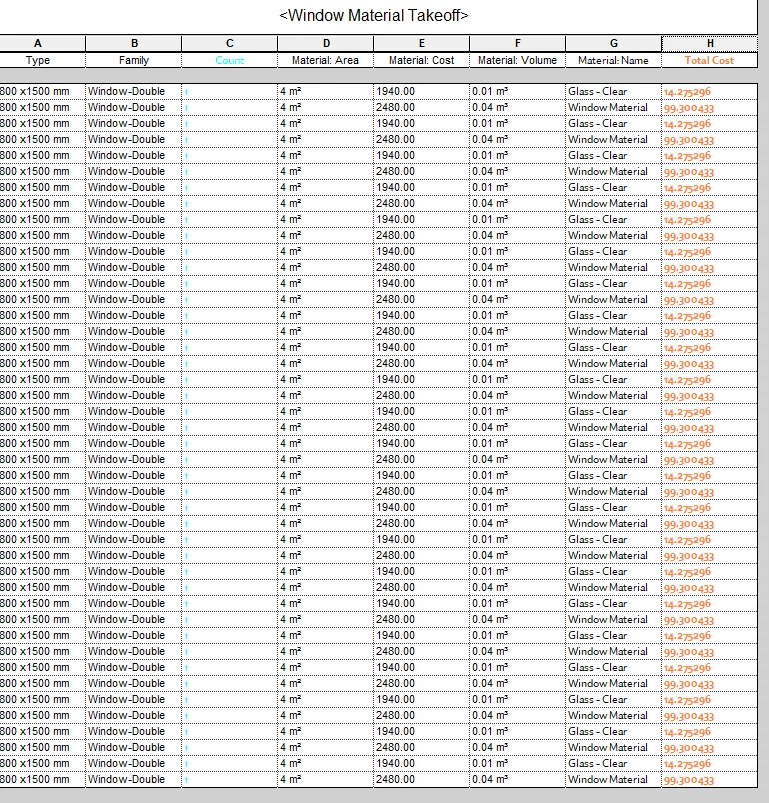

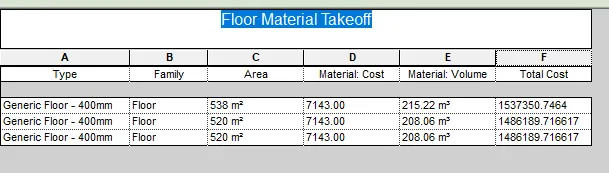

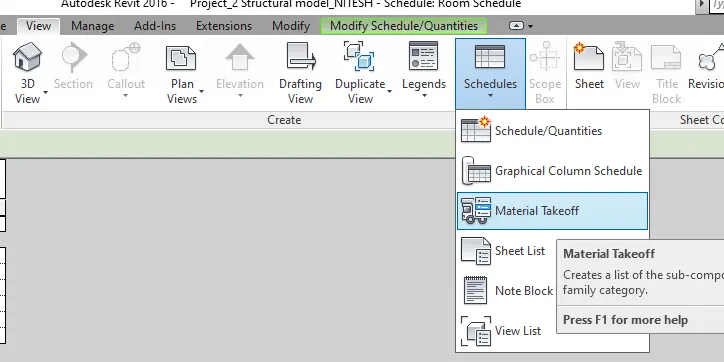

1. go to view>schedule>material takeoff

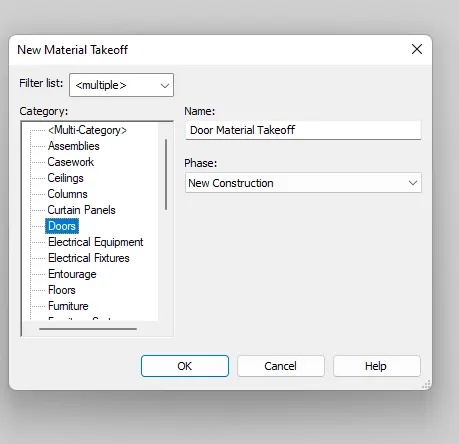

2. select the material for which do you want material takeoff schedule

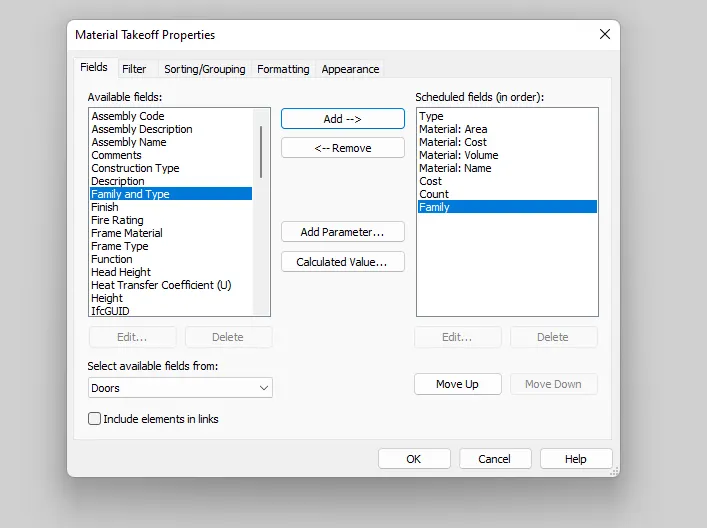

3. select the required parameter.

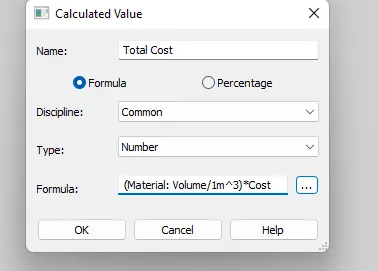

4. use calculate Value to calculate total cost

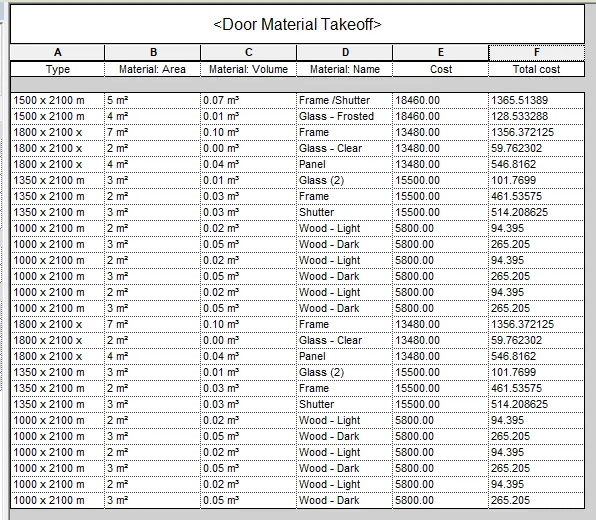

Result:-

Q 5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo?
b. If there is no water coming from the pipes
c. If the request for money from the client has been declined for the project

Answer:-

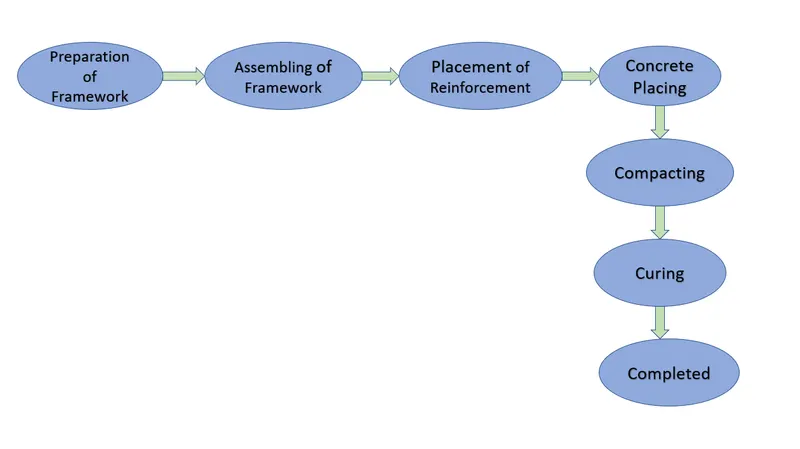

1. How to decide on framings for a structure using Dynamo

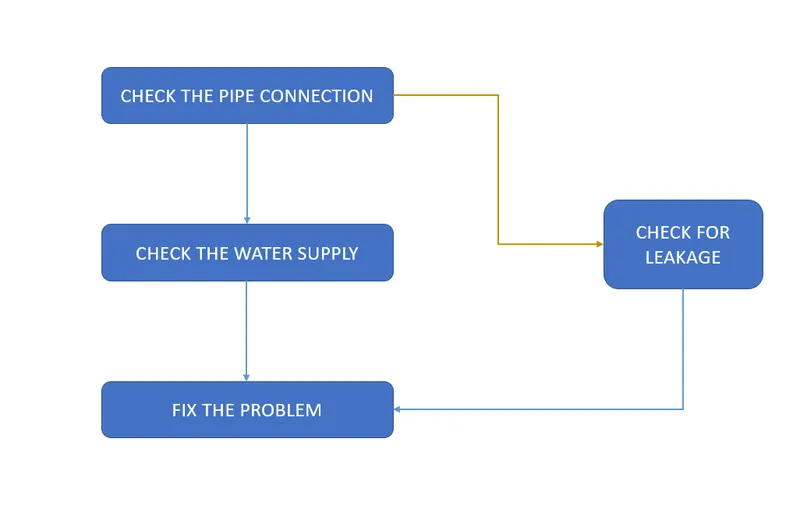

2. If there is no water coming from the pipes

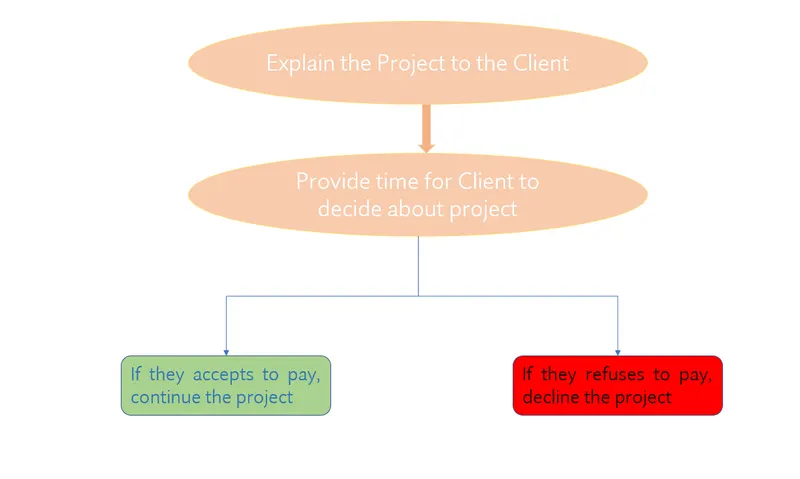

3. If the request for money from the client has been declined for the project


Q 6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Answer:-

WALL:-

1. Construction
2. Graphics
3. Materials and Finishes
4. Analytical Properties
5. Identity Data

FLOOR:

1. Construction
2. Graphics
3. Materials and Finishes
4. Analytical Properties
5. Identity Data

DOOR:

1. Construction
2. Dimensions
3. Analytical Properties
4. Identity Data
5. IFC Parameter
6. Other

WINDOW:

1. Construction
2. Dimensions
3. Analytical Properties
4. Identity Data
5. IFC Parameter
6. Other

TABLE:

1. Construction
2. Materials and Finishes
3. Dimensions
4. Identity Data

BUILDING:

1. Building Type
2. Building Area
3. Building Height
4. Building Parameter
5. Building Material
6. Building Cost and Site Value
7. Building Location
8. Building Volume
