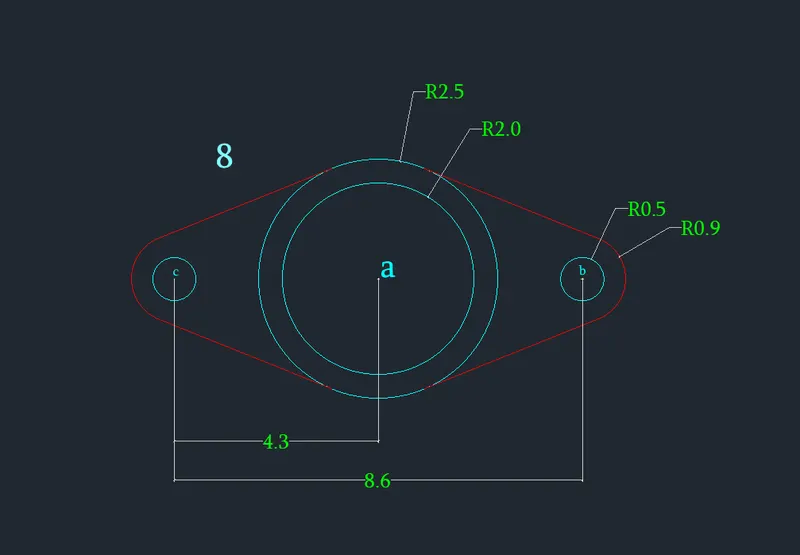

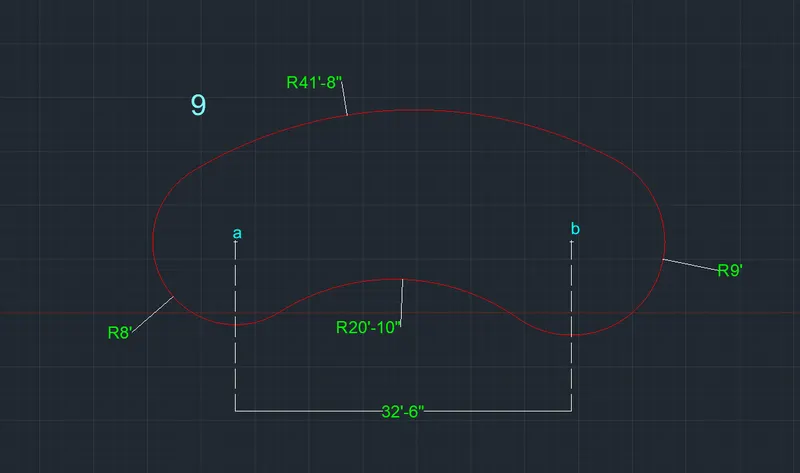

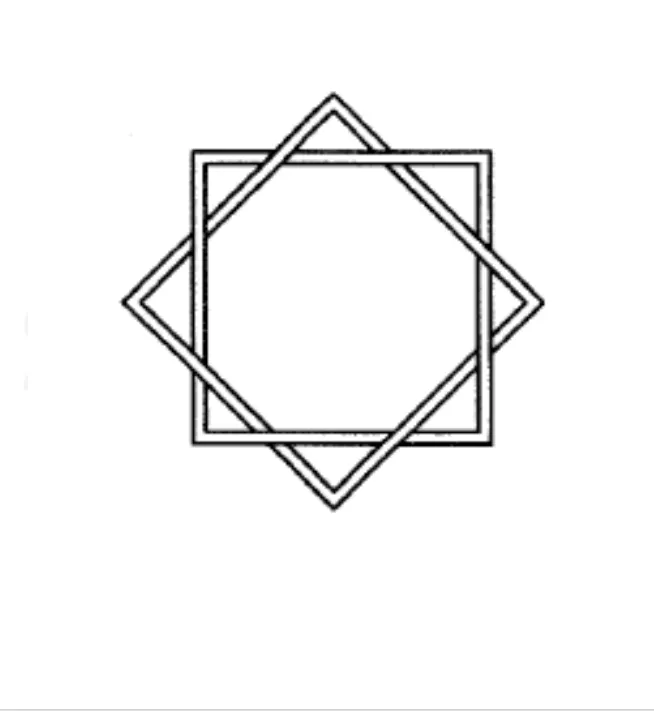

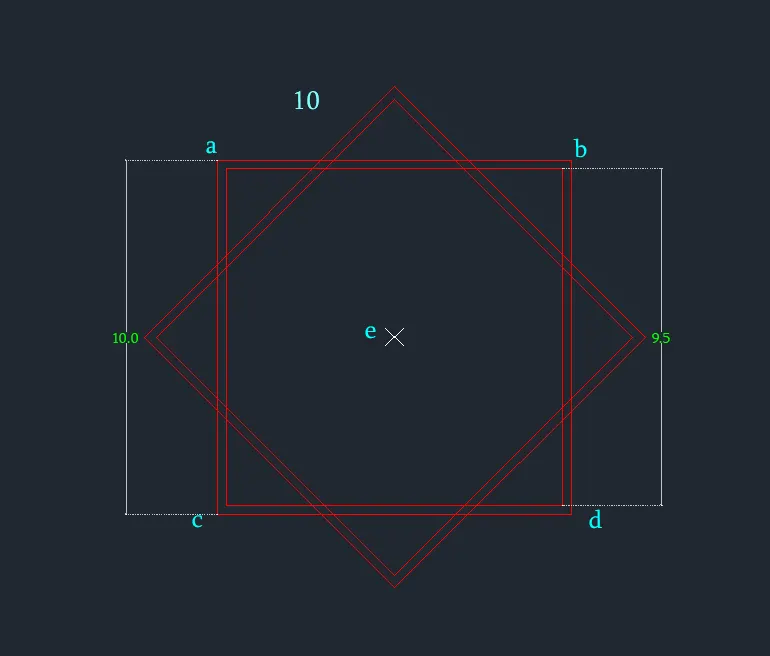

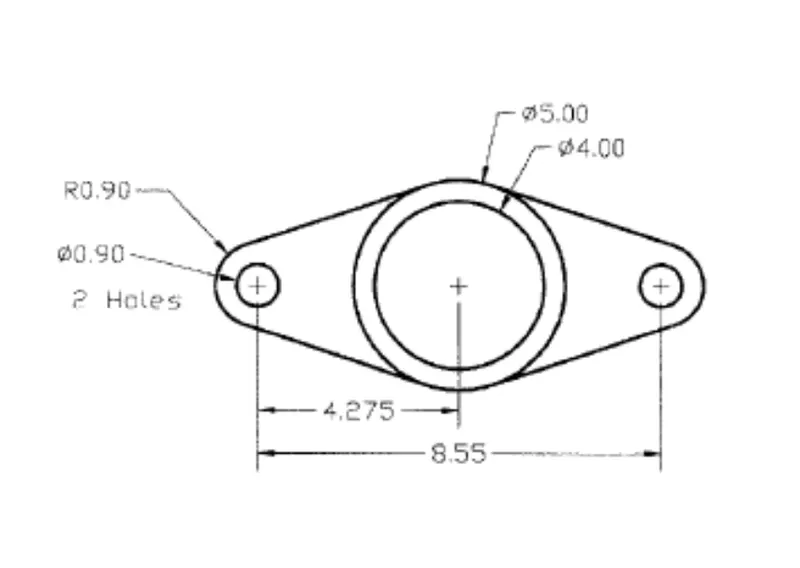

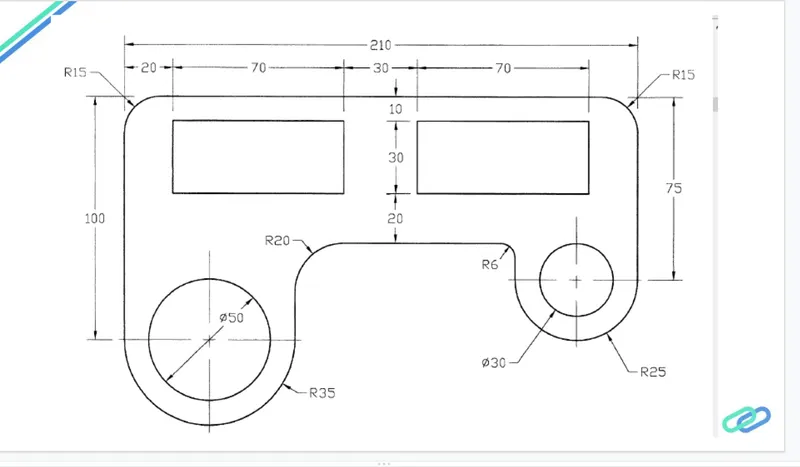

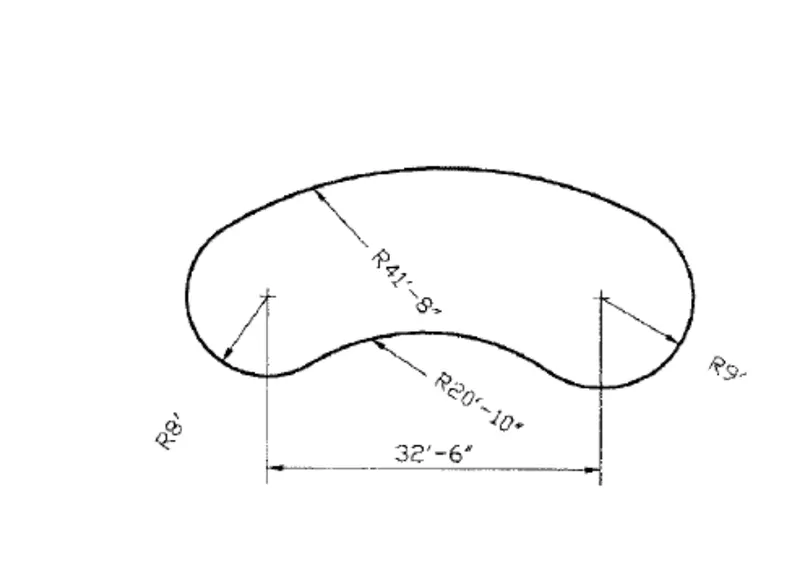

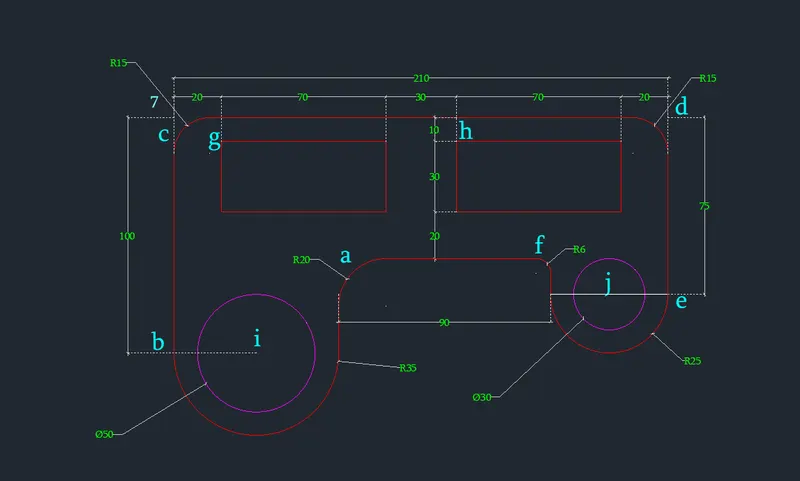

Drafting of various geometries using Chamfer, Fillet tool in AutoCad

    /*  * Ask which type of user are you? Customer , seller, Administrator  * User- Customer, Seller, Administrator  * Customer- View Product, View Cart, Contact Us  * View Product- Add the product, Add a product, View cart- checkout.  * Seller- View your product, Add a product, Contact…

1. 1. How will you assign the Circular section to the column? Answer:-  Open the STAAD pro sofware , Type the project name and select metric >create. Create the model in the STAAD pro >Column Go to properties> Define parameters, Assign circular shape columns, The diameter of the circular column is shown …

1 1. Write the steps involved to upload a .std file through webmail? Answer:-  The steps involved to upload a .std file through web mails are as follows; Open the STAAD pro software and locate the share option available on the introduction screen. After clicking on the share button, select send mail option. Then,…

AIM:  To create a 3D-rendered model for a Residential Building in AutoCAD   2D COMMANDS USED:- LINE (L) XLINE (XL) TRIM (TR) SCALE DIMENSION (DIM) MOVE (M) COPY (CO) MIRROR (MI) ROTATE (RO) EXTEND (EX) FILLET (F) EXPLORE (X) JOIN (J) LIST (LI) RECTANGLE (REC) ARRAY (AR) CIRCLE (C) POLYLINE (PL) ARC LINETYPE (LT)…

Q) Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m)  b. Orientation- Facing East  c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan)   AIM:- To design and draft a layout…

1. Create a 3D Isometric View of the building with plan and elevation given. AIM: To Create a 3D isometric view of the building with plan and elevation using Autocad  PROCEDURE:  open a new AutoCAD file> 3D Modeling let's change the units for that on the command prompt type units>engineering>inches>0"-0".…

Q 1). Create a 3D Furniture element as shown in the Figure. Assume dimensions Which are missing. Aim:- To create a 3D Furniture element as shown in the Figure. Procedure:- open a new AutoCAD file> 3D Modeling. let's change the units for that on the command prompt type units>engineering>inches>0"-0". set…

Q 1). Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use the ATTEDIT command to edit the information in the title block. Use A1 size for the…

Q 1) Create the layouts of the Kitchen and provide a hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances, and others as per the standards. Aim:- To create the layouts of the Kitchen and provide a hatches pattern. Also, use blocks…

Q 1. Create the templates as shown in the Figures. Take the size of the title block as per industry standards or you can assume it as per the size of the paper. Use text and attributes wherever required. After creating the title block you need to save it as a block with the names: Custom1_titleblock and Custom2_titleblock,…

Q 1) Use the Architecture/ Structure Project file developed by you in weeks 6 to 8. Export the Revit architecture and structure model to the Navisworks Cache file following the export settings discussed in class Aim:- To export Revit architecture and structure model to the Navisworks Cache file. Procedure:- First,…

Q 1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. Aim:- To create a set of sinusoidal points and create a curve and create a surface out of the curve by using Dynamo Producer:- open Revit software with a new architectural template to open Dynamo go to manage>dynamo…

Q 1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using a 3D model create a section box           b. To create similar doors and windows in a floor plan layout         …

Q 1) What are HVAC systems? Why are they essential in the modeling of buildings. Answer:-HVAC means Heating Ventilation and Air Conditioning. This system is designed to achieve the environmental requirements of the comfort of occupants and a process. The basic components or equipment of an HVAC system that delivers conditioned…

Q 1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School Answer:- Multi-Unit Residential Apartment. Q 2) Assume reasonable assumptions for geographic…

Q 1) Open an architectural template. Using the Manage tab set the project base point and project shared coordinates for the project? Aim:-  To set the project base point and project shared coordinates for the project. Procedure:- open a new architectural template file.   I had drawn a horizontal…

Q 1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit? Answer:- Revit is a BIM software, it helps us to draw, design and model a structure. Only designing or modeling is not the task, we have to follow some basic set of rules and regulations to ensure the safety and coordination…

Q 1) Based on the project saved from Week 3, proceeds from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.      Aim:- To model a Ceiling from the architecture tab above the walls at the first-floor level.   Tools:-       …

Q. 1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, use the floor tool under the architecture tab and select the floor with appropriate material and thickness using the property browser to create a layout on the Ground floor Level. Align the floor plan with grids…

Q. 1)  What is BIM? Summarize the features of BIM and the benefits of using BIM over 2D CAD tools?   Answer:-   Building Information Modelling (BIM) gives real-time information about our project and it helps Architectural, Structural, MEP, and construction professionals to improve…

Q. 1)       Aim:- To create a new project file, save it and give a proper name to it.     Procedure:-     Open Revit software on your system using the Revit icon.       Now we can see this interface of Revit software, Now we have to click on "New" bottom.  …

  Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Rotate POINT CIRCLE RECTANGLE units Hatch Aim:- To create the 1st, 2nd & 3rd floor Plan and Sections as shown…

Challenge - 6   Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Rotate POINT CIRCLE RECTANGLE units Hatch Q1)     Aim:-  To draw the elevation…

Challenge - 5   Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Rotate PTYPE POINT CIRCLE RECTANGLE units Hatch Array Q1)     Aim:-  To…

Challenge - 4    Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Isometric View Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Rotate PTYPE POINT CIRCLE RECTANGLE units Hatch Array Q1)  Residence…

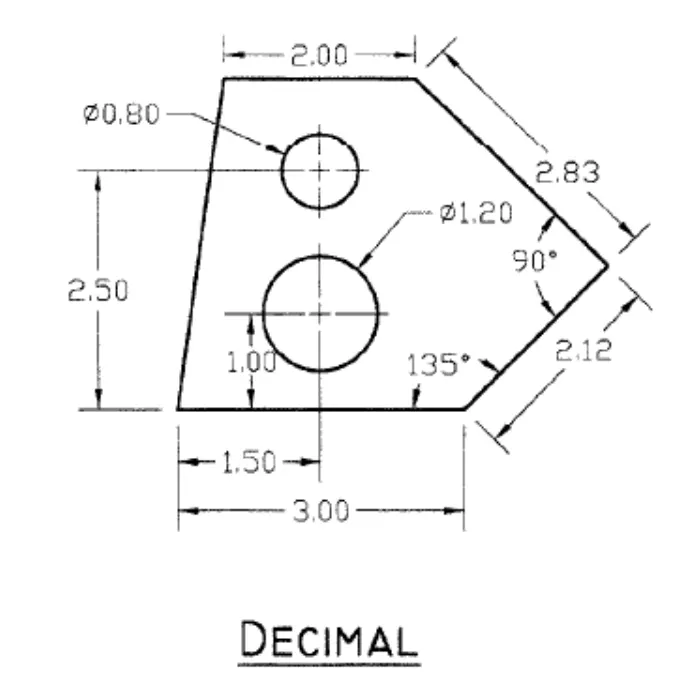

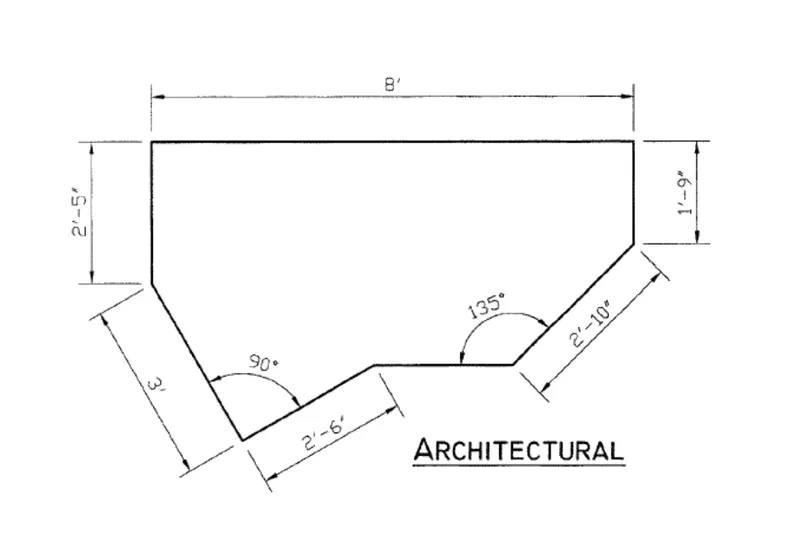

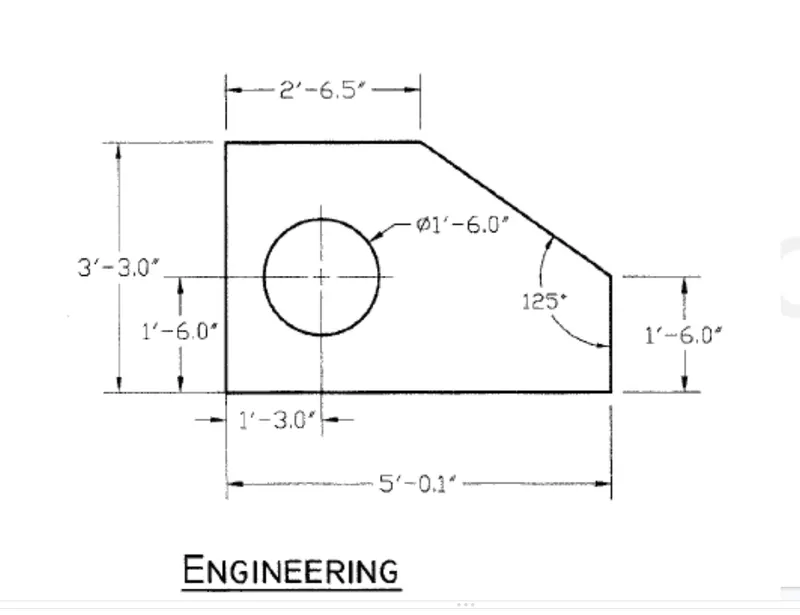

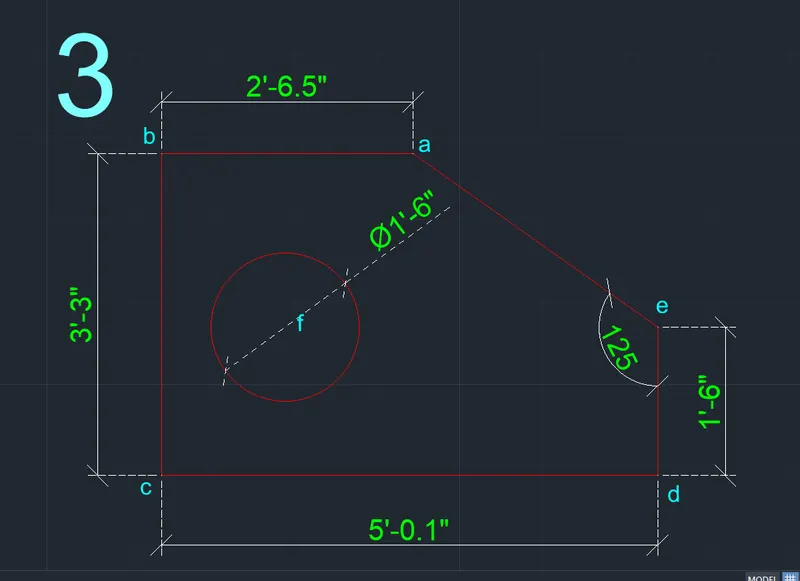

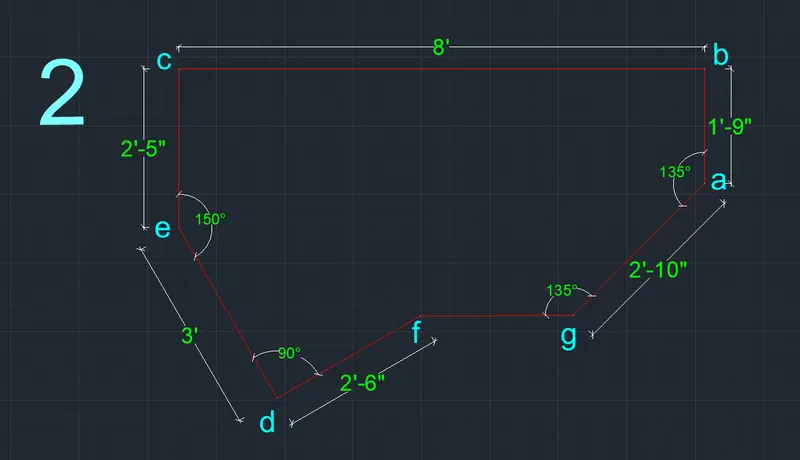

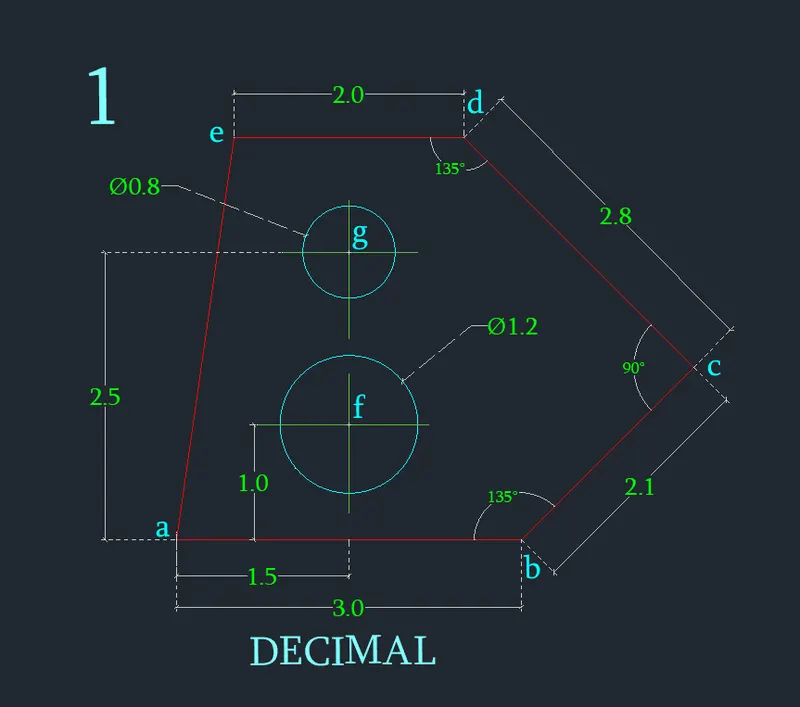

Challenge - 3    Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Isometric View Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Rotate PTYPE POINT CIRCLE RECTANGLE Q.1)      Decimal  …

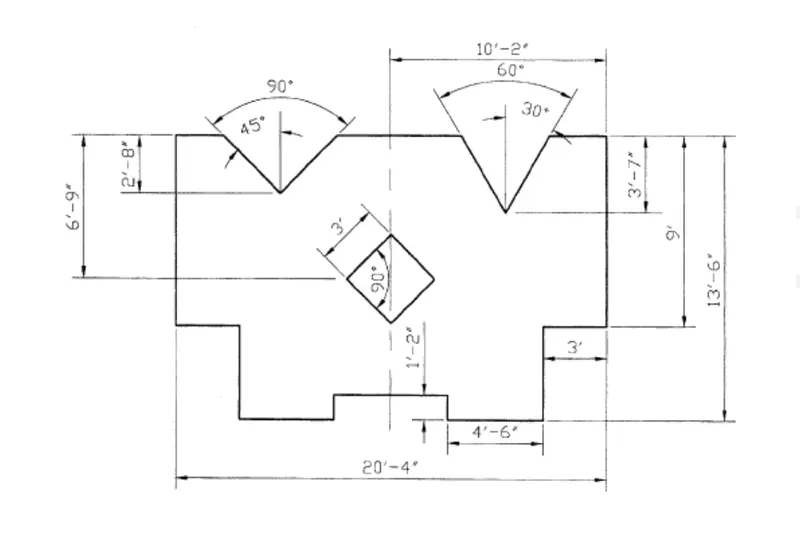

Challenge - 2    Commands used in this challenge are Line 'L' Copy 'CO' or 'CP' PolyLine 'PL' Trim 'TR' Offset 'O' Isometric View Text Dimension 'DIM' Dimstyle 'D' MATCHPROP 'MA' Move 'M' Mirror 'MI' Fillet 'F' Erase 'E' Q.1)      Draw C-1  (C.S. OF LOAD BEARING WALL OVER…

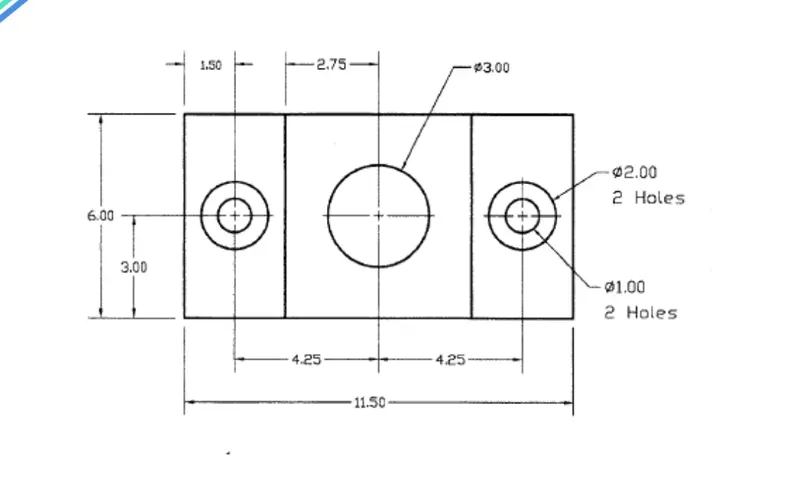

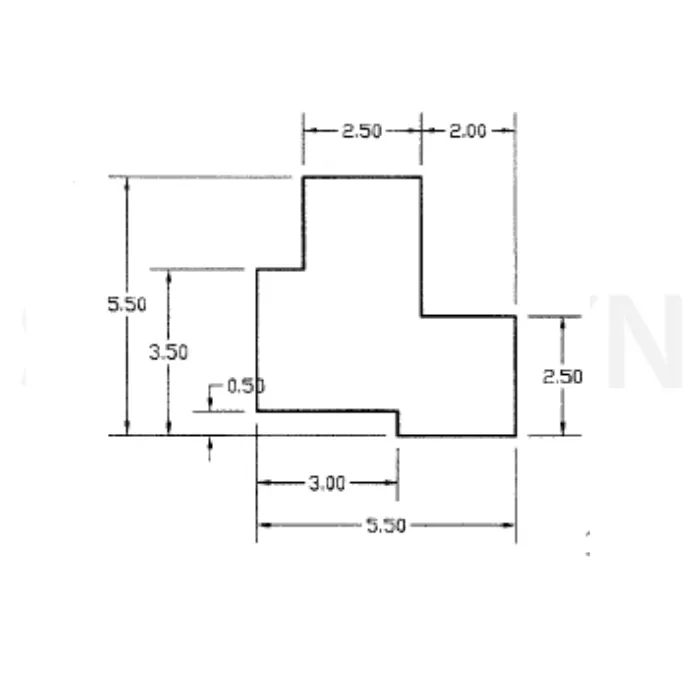

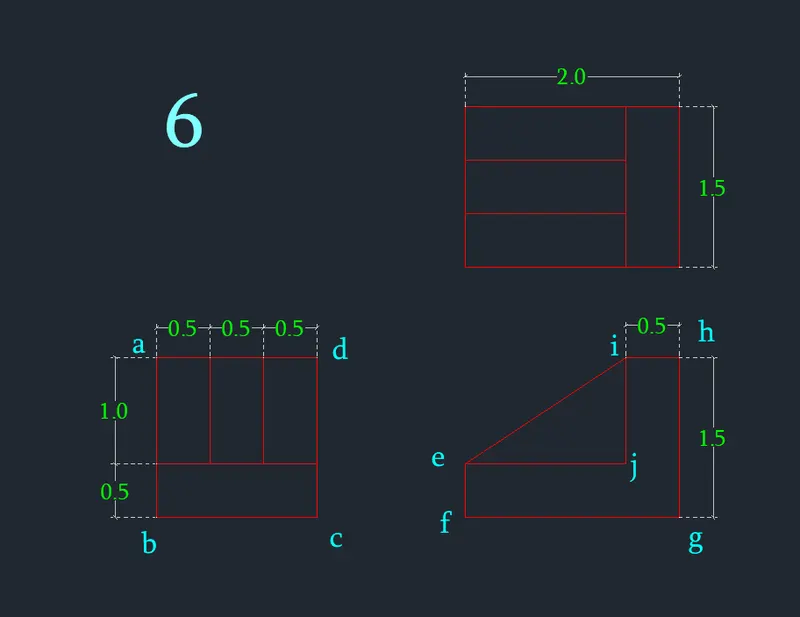

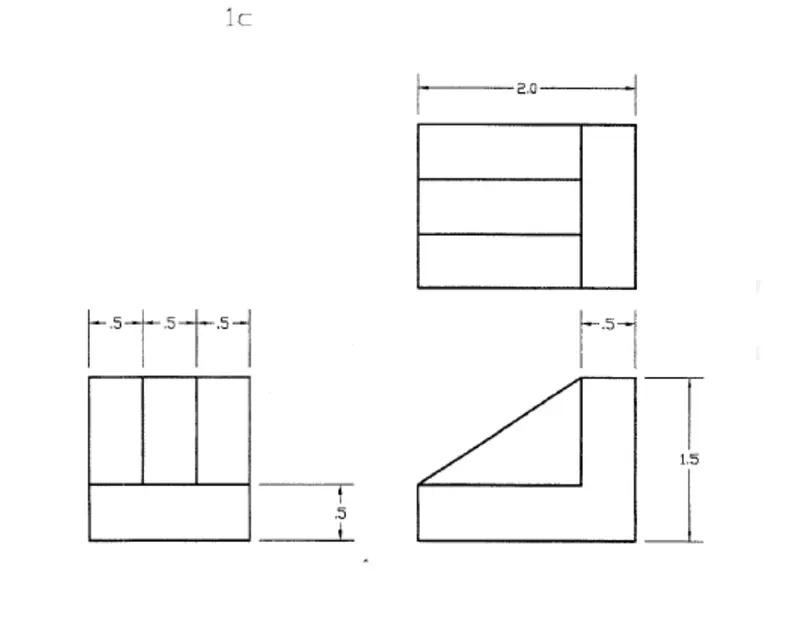

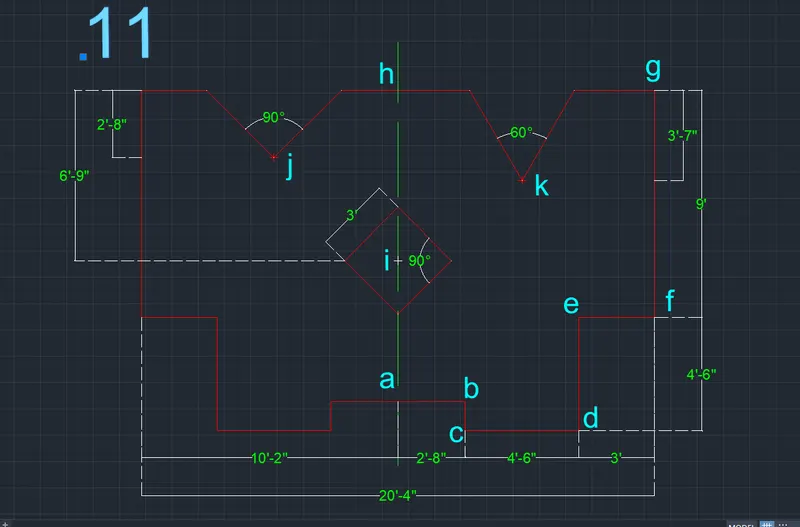

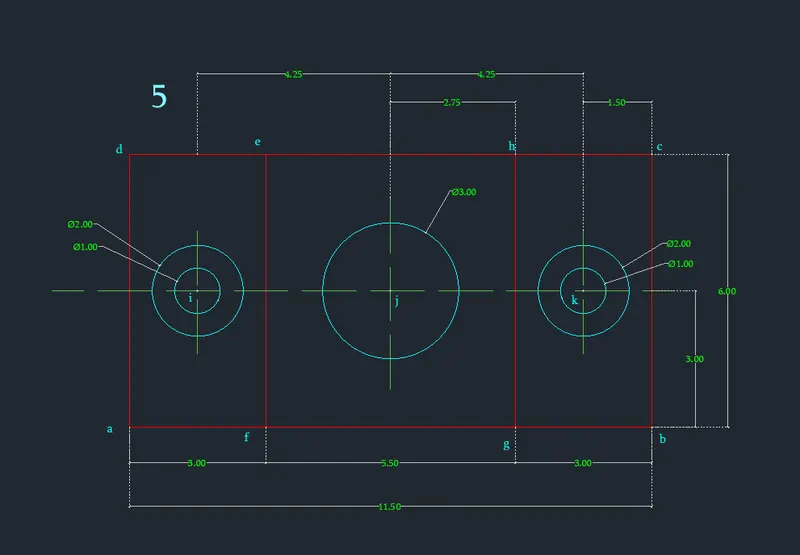

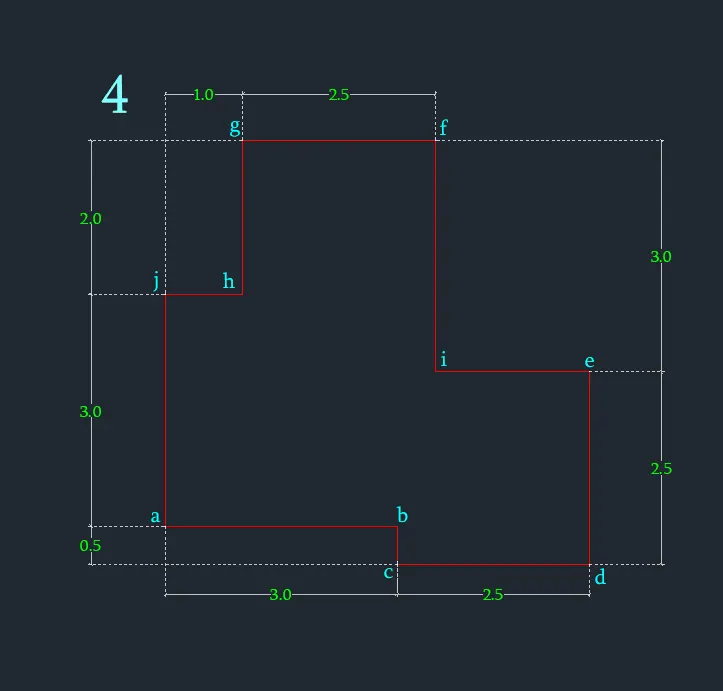

Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool. Answer:- Aim:- Create the geometries from P1 to P2 using all the coordinates system methods Coordinate Systems       …

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members…

# Calculate the Concrete Mix Design for M35 grade concrete with fly ash & M50 grade concrete without Fly ash   Answer:- Mix Design for M35 grade concrete                       Concrete is designed or does mix design as per our requirement to achieve the…
