Preparing Schedule & Cost Estimation for a building using REVIT

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Ans.1.

Aim :- Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Introduction :- Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below
a. Using 3D model create a section box
b. To create similar doors and windows in a floor plan layout
c. To reduce the thickness of lines visible in plan views
d. To apply override settings to a floor in the model section view
e. To increase the range of visibility in a plan view
f. To select the previously selected items
g. To add annotations to the model views
h. To bring the model elements in line
i. To rotate the model elements
j. To move an object to another location
k. To copy a model element
l. To mirror an element about an axis
m. To create an array of model elements

Procedure :-

• Using a 3D model create a section box:

Short cut key used : Section Box - BX

• To create similar doors and window in a floor plan layout

Short cut key used : Create Similar - CS

• To reduce thickness of line visible in plan view

Short cut key used : Thin line - TL

• To apply overide setting to floor in model section view

Short cut key used : Visibility Graphics and Override setting - VG

• To increase range of visibility in a plan view

Short cut key used : View range - VR

• To select previously selected item

Short cut key used : Reselect -Ctrl+<

• To add annotations to the model views

Short cut key used : Dimension - Dl

• To bring the model elements in line

Short cut key used : Align - AL

• To rotate the model elements

Short cut key used : Rotate - R

• To move an object to another location

Short cut key used : Move - MV

• To copy model element

Short cut key used : Copy - CO

• To mirror an element about its axis

Short cut key used : Mirror - MM

• To create an array of model elelments

Short cut key used : Array - AR

Result :-

The results are given above.

2) Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Ans.2.

Aim :- Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Introduction :- Using Revit and the project used from week 6 to 8 prepare a schedule for the following
a. Walls
b. Doors
c. Windows
d. Material – Concrete/Wood

Procedure :-

• Open the Architectural model created previously.
• Go to view tab, then Schedule, in Schedule you will see schedule/quantities

• Now select required field.

a. Walls

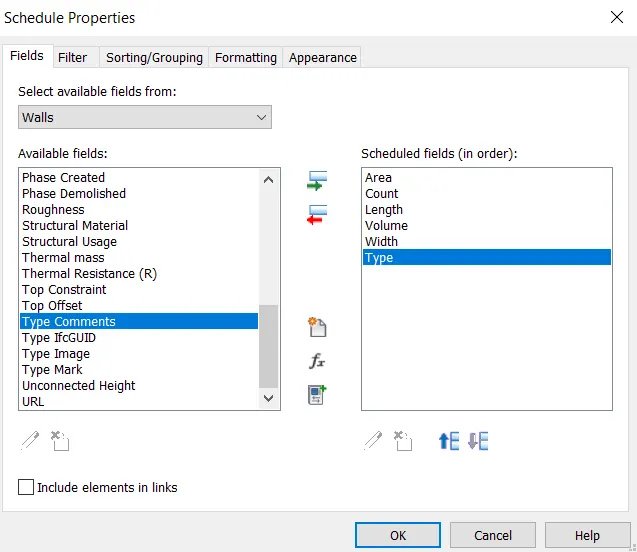

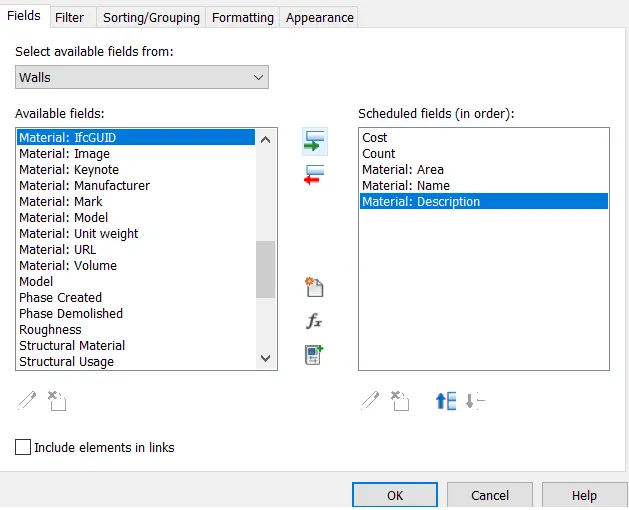

• Now for wall schedule choose the parameters for scheduling then click OK

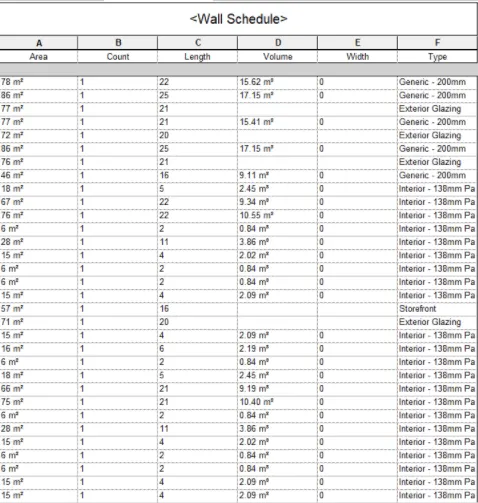

• Wall is prepared as below

• Hence, wall schedule is made

Similarly, Schedule of door and Schedule of window with material concrete/wood schedule is made.

b. Doors

• View , then schedule then in schedule , select quantaties

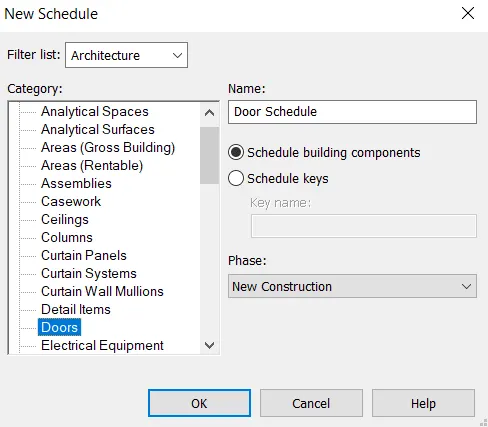

• Select doors

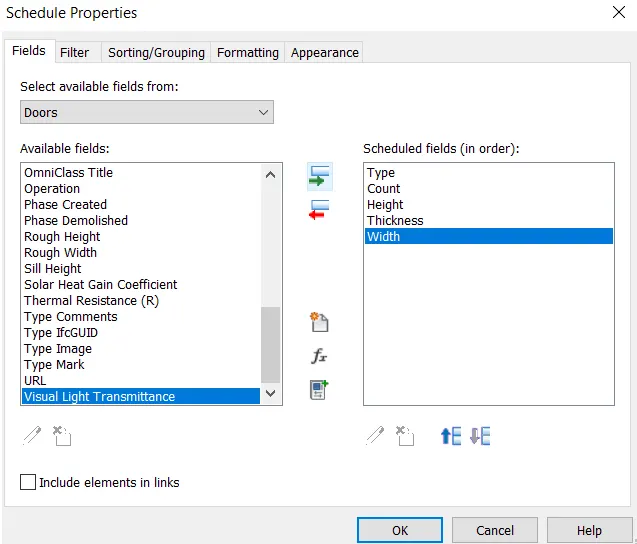

• Now select parameters to be considered for doors.

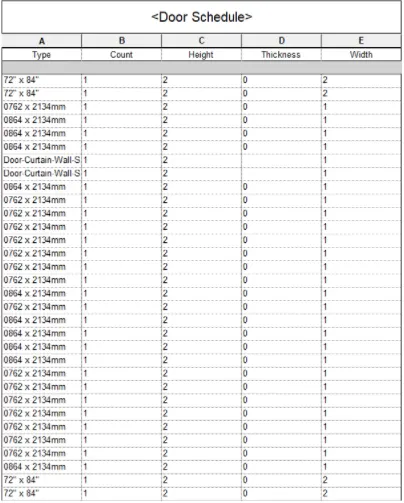

• Schedule of Door is given as below

c. Windows

• View , then schedule then in schedule , select quantaties

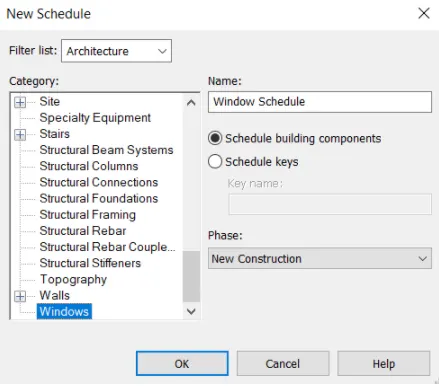

• Select the category windows

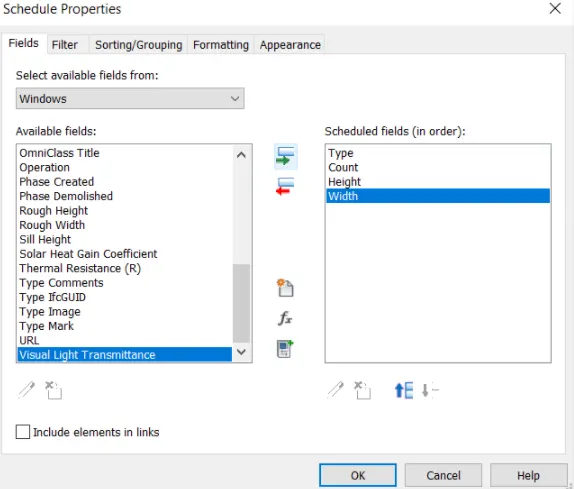

• Now select parameters to be considered for windows.

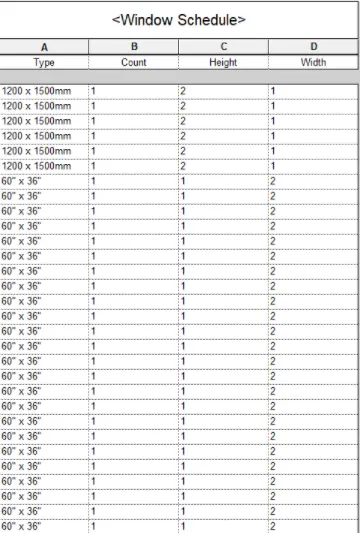

• Schedule of Window is given as below

d. Material – Concrete/Wood

• View , then schedule then in schedule , select takeoff

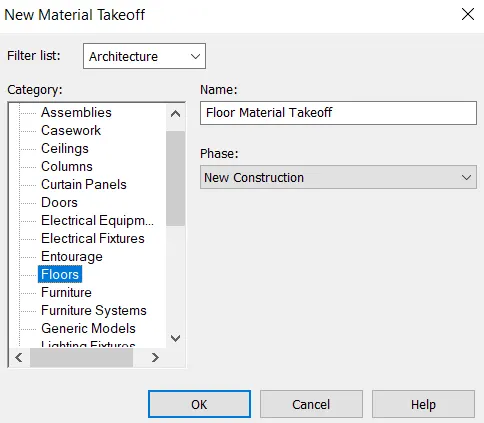

• Select the category as floors

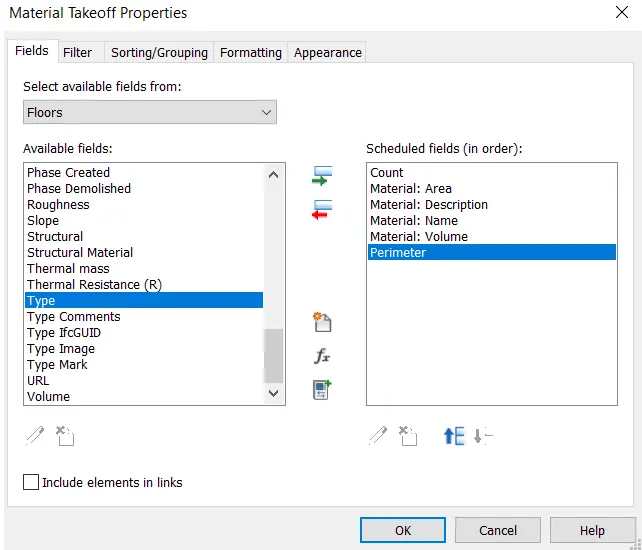

• Select the parameters to be considered for floor material

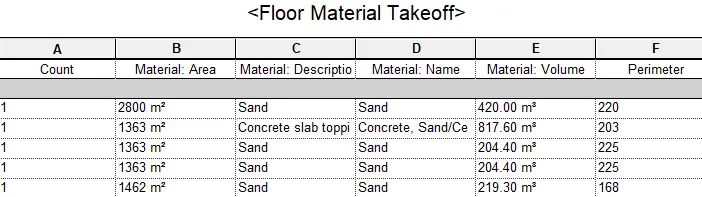

• Material takeoff schedule is given as

• Similarly, Material takeoff scheduleof door is made

Result :-

The results Walls, Doors, Windows, Material – Concrete/Wood are drawn.

3) Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Ans.3.

Aim :- Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Introduction :- Using Revit Calculate area and volume of each room in the model with appropriate room tags applied to each room. Prepare a schedule report for area and volume of each room.

Procedure :-

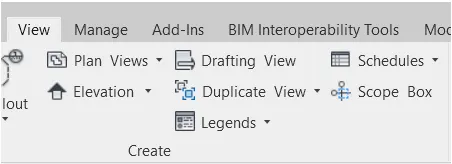

• First we have to open the Revit project and go to the view tab and select the schedules options.

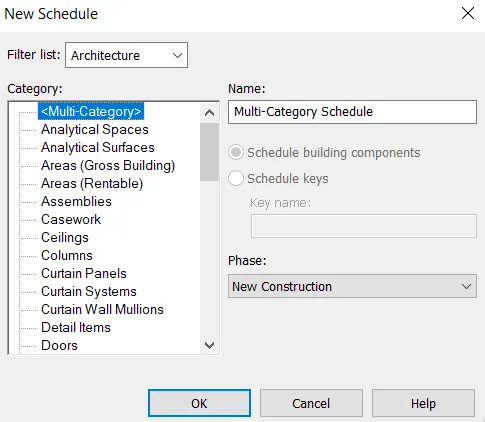

• After selecting the schedule option the new tab will appear, as shown below.

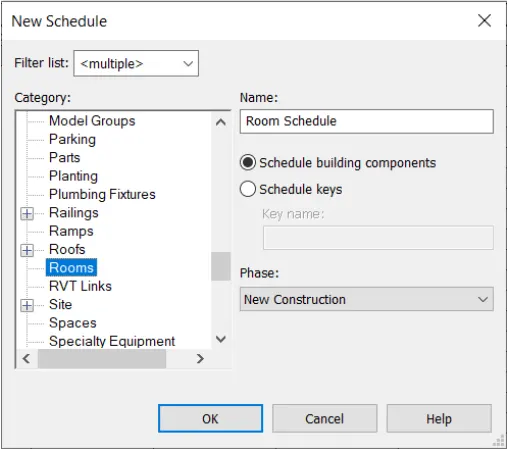

• Next we need to select the room schedule and press ok , as shown below

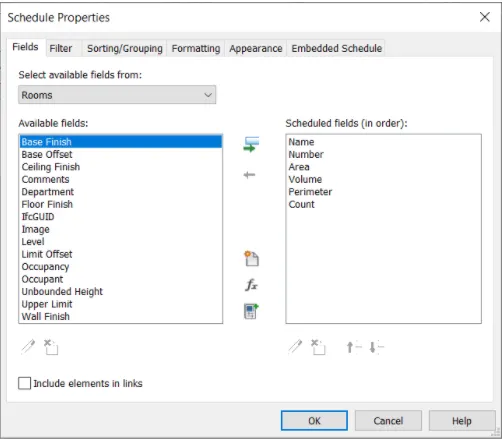

• Next the schedule properties tab will be displayed, as shown below.
• Next we need to select the scheduled fields in order and click Ok

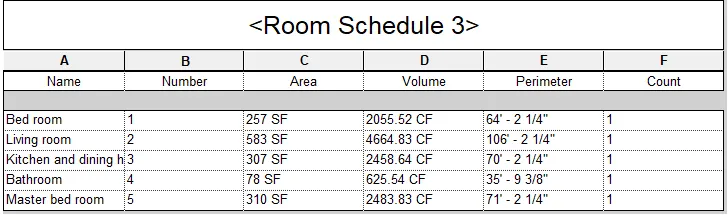

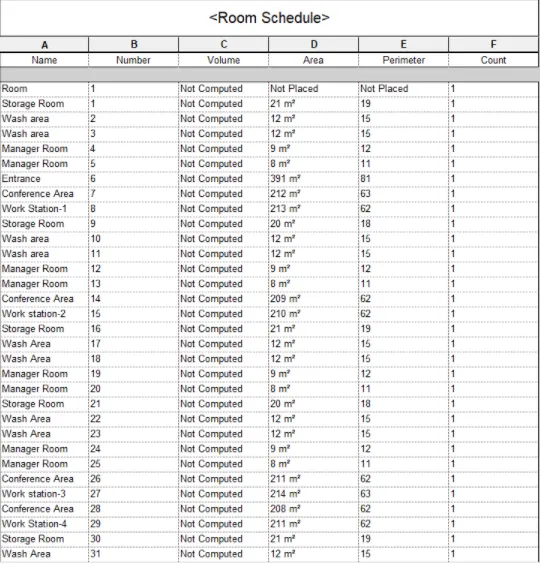

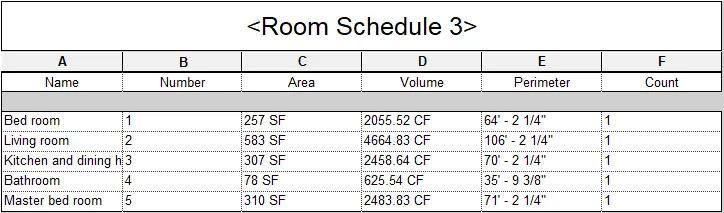

• Next the room schedule tab will be displayed as shown in the below table

Result :-

The results is shown below

4) Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Ans.4.

Aim :- Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Introduction :- Using the same schedule using the unit cost rate for materials available in the internet, prepare total cost of materials used in the project
a. Total Cost of Materials
b. Individual Material Take off

Procedure :-

FOR WALLS

• Go to View tab, then schedule then in schedule , select material takeoff

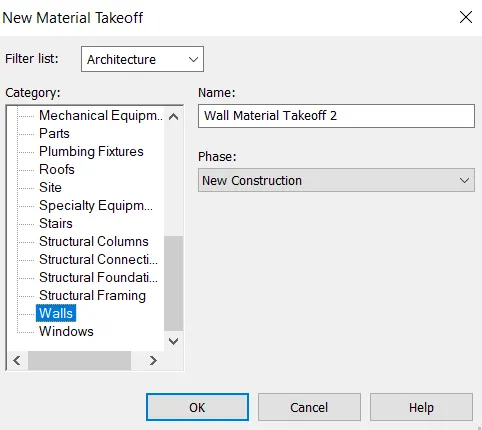

• Select the category as walls

• Now select the parameters of wall

• Now we will include total cost parameters, quantity is calculated

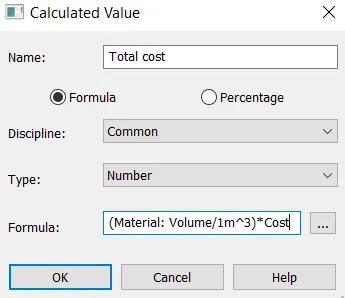

• Fot this go to add calculated quantatity.

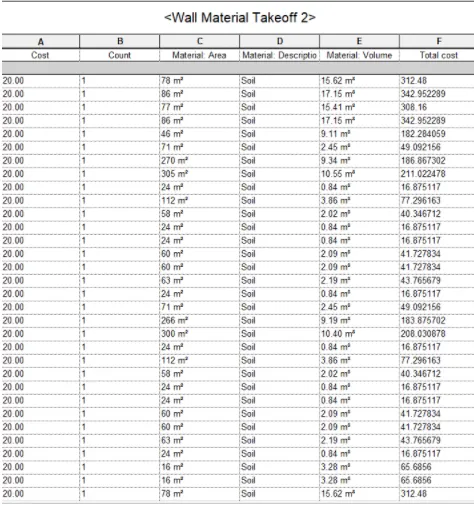

• The wall material take off is given below

• Similarly prepare for doors, window, floors, and furniture materials takeoff schedules

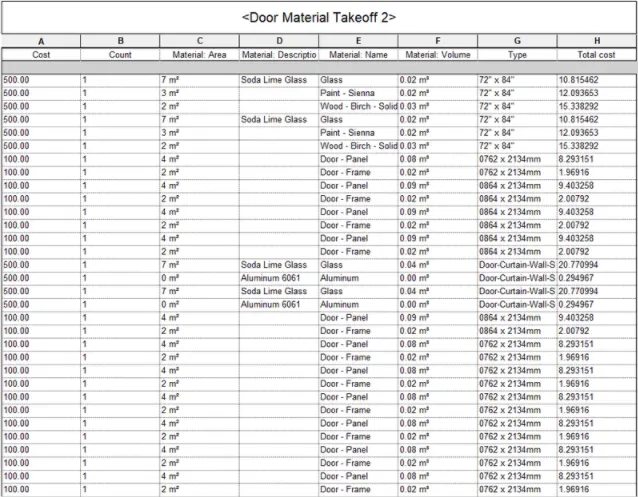

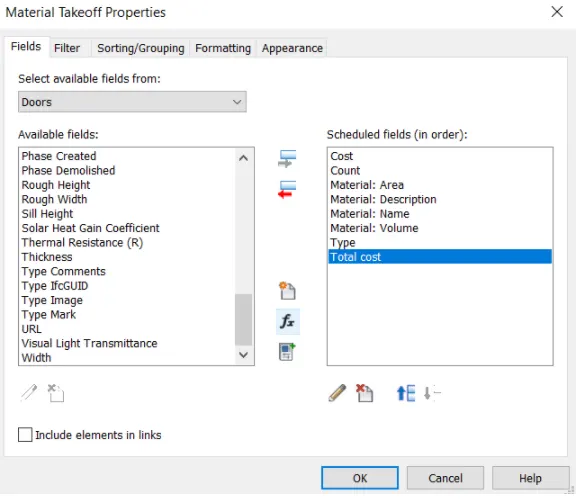

• Door material takeoff schedule

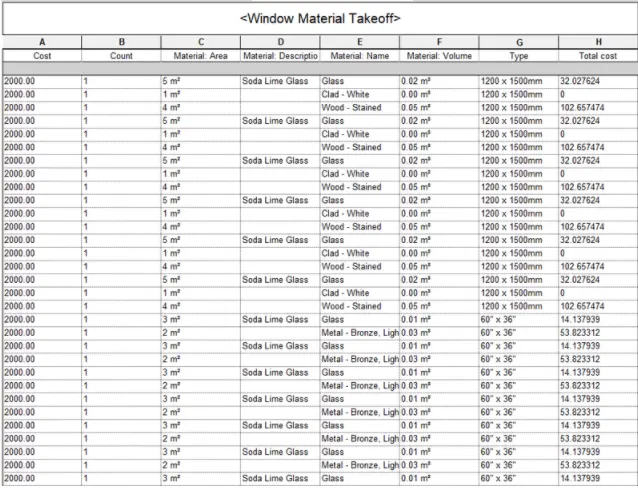

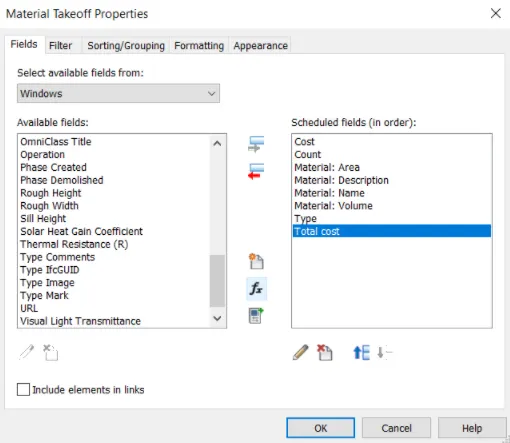

• Window material takeoff schedule

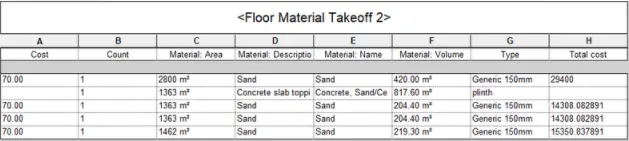

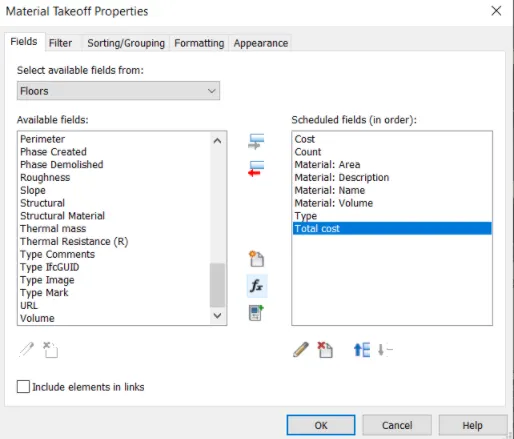

• Floor material takeoff schedule

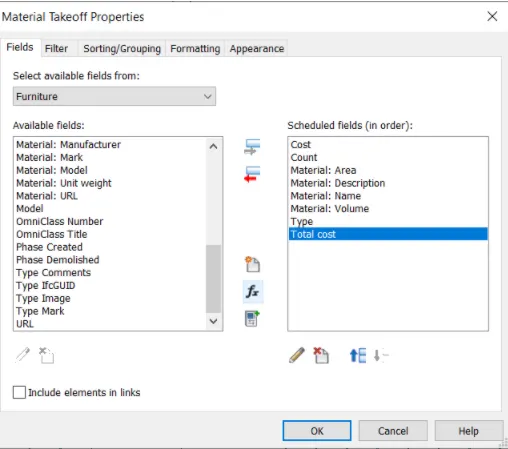

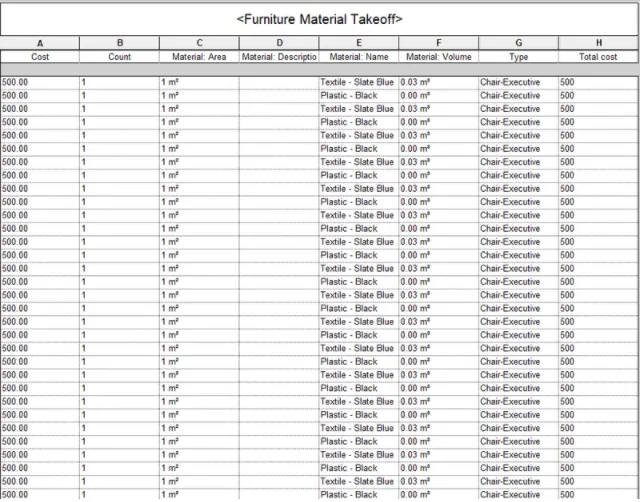

• Furniture material takeoff schedule

Result :-

Hence the total cost of and individual material takeoff schedule is prepared.

5) Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

Ans.5.

Aim :- Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

Introduction :- Using the concept of Visual Programming discussed in class, list a flowchart for the following scenario
a. How to decide framings for a structure using Dynamo ?
b. If there is no water coming from the pipes
c. If request for money from client has been declined for the project

Procedure :-

a. How to decide framings for a structure using Dynamo

Prepartaion of formwork >>> Assemble of formwork >>> Placement of Reinforcement >>> Concrete

placing >>> Compaction >>> Curing >>>Complition of work

b. If there is no water coming from the pipes

Check pipe connection >>> Check water supply >>> Check for leaks (if any) >>> Fix the problem

c. If request for money from client has been declined for the project

Explain the project to client >>> Giving time to Client to decide >>>

a. If accept to pay....continue with Project

b. If not accepte ....decline with Project

6) List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Ans.6.

Aim :- List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Introduction :- List the parameters associated with each model element
a. Wall
b. Floor
c. Door
d. Window
e. Table
f. Building

Procedure :-

a. Wall

• Wall type
• Wall description
• Wall length
• Wall thickness
• Wall height
• Wall material
• Wall location
• Material Cost

b. Floor

• Floor type
• Floordescription
• Floorl length
• Floor thickness
• Floor height
• Floor material
• Material Cost

c. Door

• Door type
• Door description
• Doorl length
• Door thickness
• Door height
• Door material
• Material Cost

d. Window

• Window type
• Window description
• Window length
• Window thickness
• Window height
• Window material
• Material Cost

e. Table

• Table type
• Table description
• Table length
• Table thickness
• Table height
• Table material
• Material Cost

f. Building

• Building type
• Building floor area
• Building perimeter
• Building location
• Building height
• Material
• Possible loads of building
