Matlab program to calculate drag force against a cyclist

Aim:

• To Write and execute a Matlab program to calculate drag force against a cyclist

Drag-force
A drag force is the resistance force caused by the motion of a body through a fluid, such as water or air. A drag force acts opposite to the direction of the oncoming flow velocity. This is the relative velocity between the body and the fluid.

The drag force D exerted on a body traveling through a fluid is given by

`D=(1/2)CrhoAupsilon^2`

Objective:

• To write a program to plot Velocity vs Drag force
• To write a program to plot Drag Co-efficient vs Drag force

Velocity vs Drag force

• Clear all, close all, clc is used to clear the previous process. % function refers to display the content to the viewers
• The following values are determined and inserted accordingly to find and evaluate the Drag force
• The Plot, Label, Grid options are used instantly to show the output

clear all
close all
clc

%Inputs
%Drag coefficient
c_d = 0.8;

%Density kg/m^3
rho = 1.2;

%Area m^2
A = 0.1;

%Velocity m/s
v = [1:25];

%Calculating drag force upon the bicycle
drag_force = rho*A*v.^2*c_d*0.5

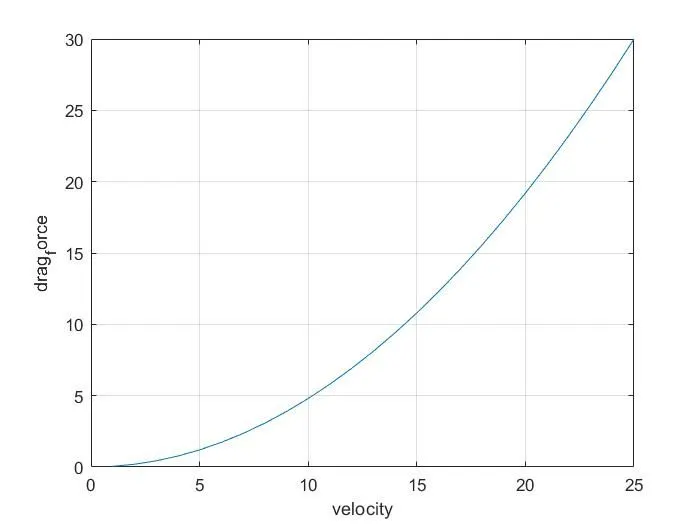

plot(v, drag_force)
xlabel('velocity')
ylabel('drag_force')
grid on

Drag Coefficient vs Drag force

• Clear all, close all, clc is used to clear the previous process. % function refers to display the content to the viewers
• The Drag coefficient values are determined and inserted accordingly to evaluate the Drag force
• The Plot, Label, Grid options are used instantly to show the output

clear all
close all
clc

%Inputs
%Drag coefficient
%Sports car - 0.2
%Bus - 0.6
%Truck - 1.0
%Motorcycle - 1.8
c_d = [0.2, 0.6, 1.0, 1.8];

%Density kg/m^3
rho = 1.2;

%Area m^2
A = 0.1;

%Velocity m/s
v = [25];

%Calculating drag force upon the bicycle
drag_force = rho*A*v^2*c_d.*0.5

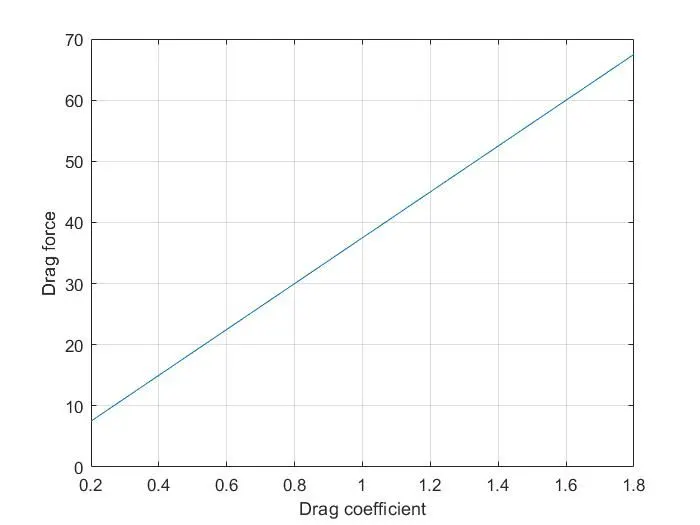

plot(c_d, drag_force)
xlabel('Drag coefficient')
ylabel('Drag force')
grid on

Conclusion:

• The program Velocity vs Drag force and Drag Co-efficient vs Drag force is determined and executed successfully
• In the first case, the graph plots kept increases drastically by determining the velocity opposing force against the subject
• Whereas in the second case, the Drag co-efficient vs Drag force the graph plots linearly because the velocity kept changes according to the subjects eg., Sports Car, Bus, Truck, Motorcycle, etc.
