II. Answer in detail

QUESTION:

Create a G+4 Residential building as per NBC standards and make it a central model file. Your model should contain:

1. The sloped roof at the top level of the building (10 degrees)
2. Architectural components including furniture and home appliances
3. Room tags and Annotations
4. Section cut through each room either longitudinally or transversely
5. Create a camera view on each room and add it in a sheet template.

ANS) AIM: To create a G+4 Residential building as per NBC standards and make it a central model file.

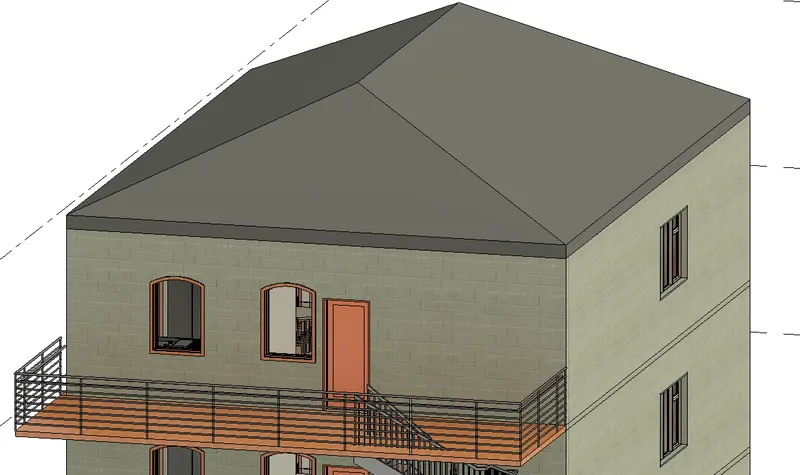

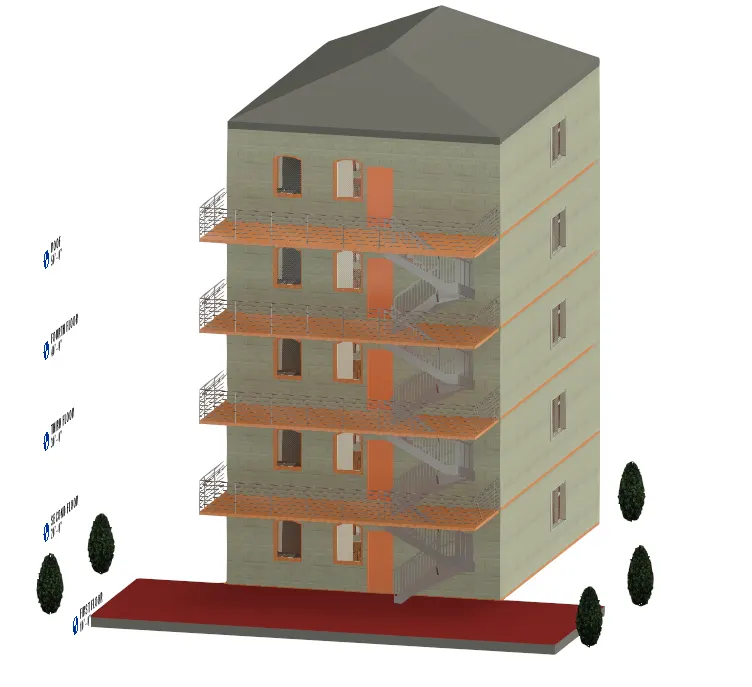

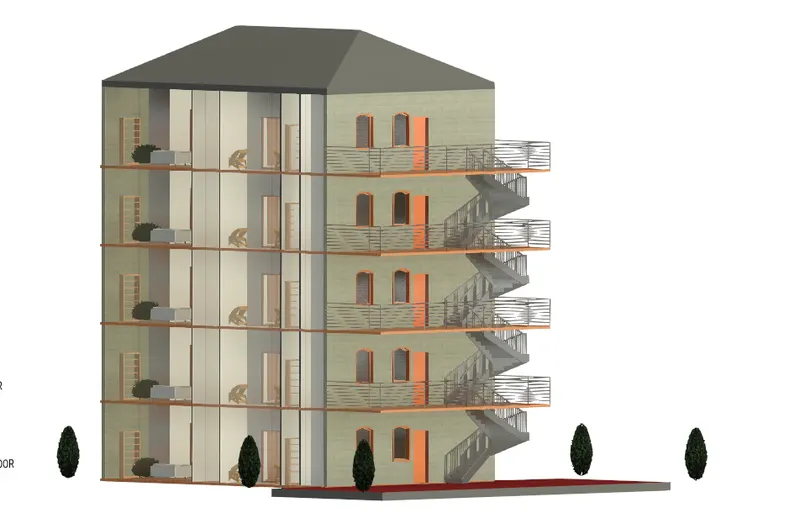

1. The sloped roof at the top level of the building (10 degrees)

TOOLS REQUIRED:

Architectural -> roof -> Properties

PROCEDURE:

• Firstly open the architectural file that you have created.

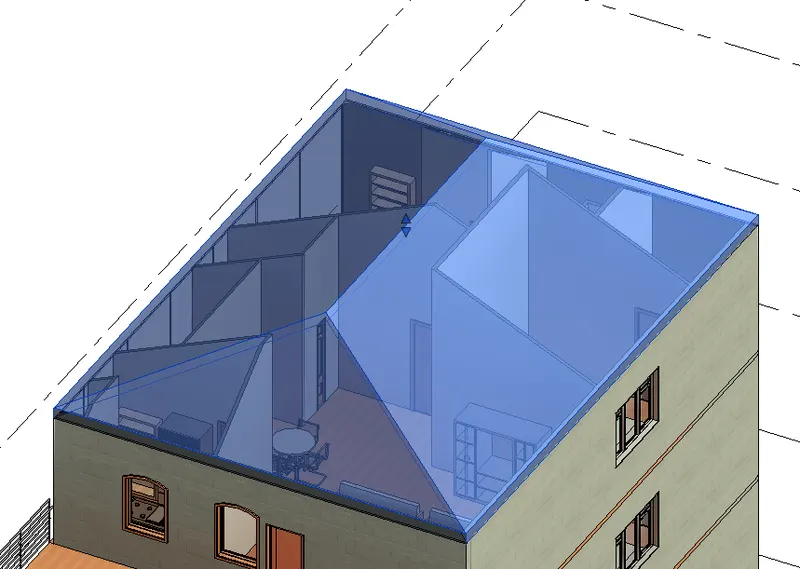

• Now select the roof option and and place the roof on the roof level.

• Now go to the properties option and there change the angle of slope to 10 degrees
• Now the the slope angle of the roof changes ro 10 degrees.

RESULT:

Hence the sloped roof at the top level of the building is converted to 10 degrees.

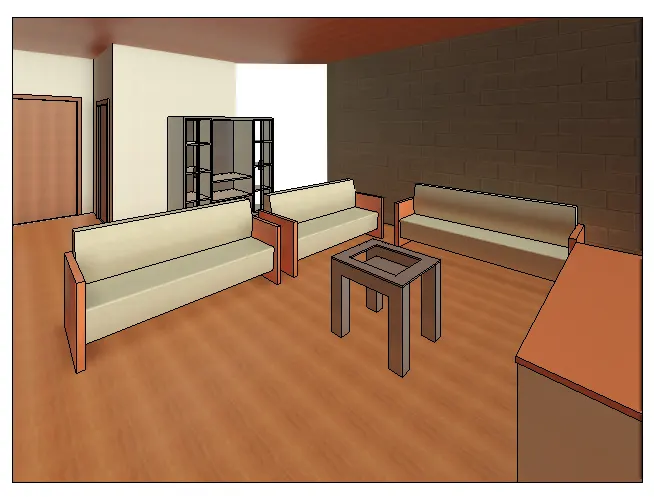

2. Architectural components including furniture and home appliances

TOOLS REQUIRED:

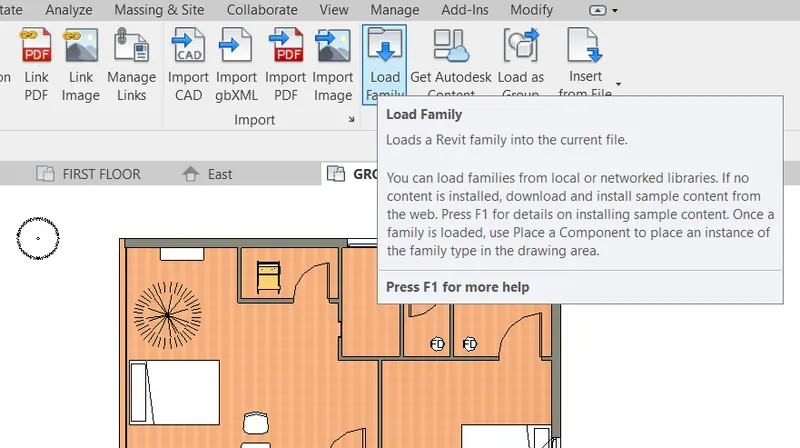

Architectural -> insert -> Load family -> place components

PROCEDURE:

• Firstly open the architectural file that you have created.
• Now select the insert option and go to load family.

• Now click on the windows icon to load the desired window and its is the same case when it comes to downloading the content.
• Now with the help of roatate and move option present under modify tool,we can place the objects in the desired direction.
• Now in the same way place all the desired components.

RESULT:

Hence Architectural components including furniture and home appliances are been placed in the building.

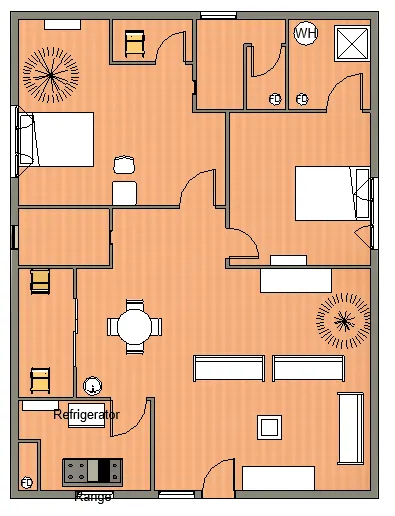

3. Room tags and Annotations

TOOLS REQUIRED:

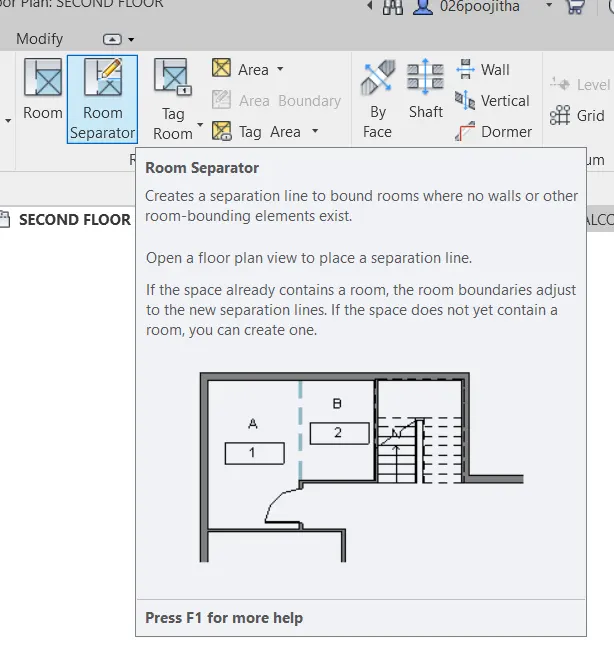

Architectural -> Room seperator -> room tags

PROCEDURE:

• Firstly open the architectural file that you have created.
• Now select the room seporator option and seperate the rooms that arent ahving proper wall seperation.

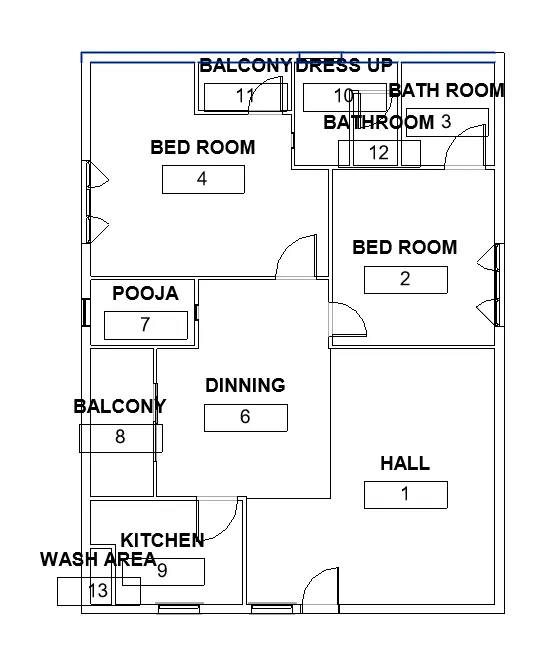

• Now select the room tag option and tag all the rooms.
• Now rename them to the desired name.

RESULT:

Hence Room tags and Annotations are given to the rooms in the building.

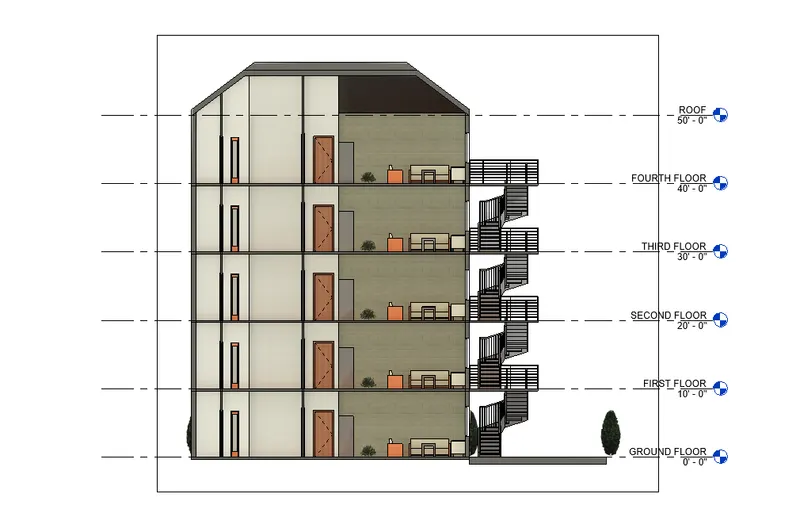

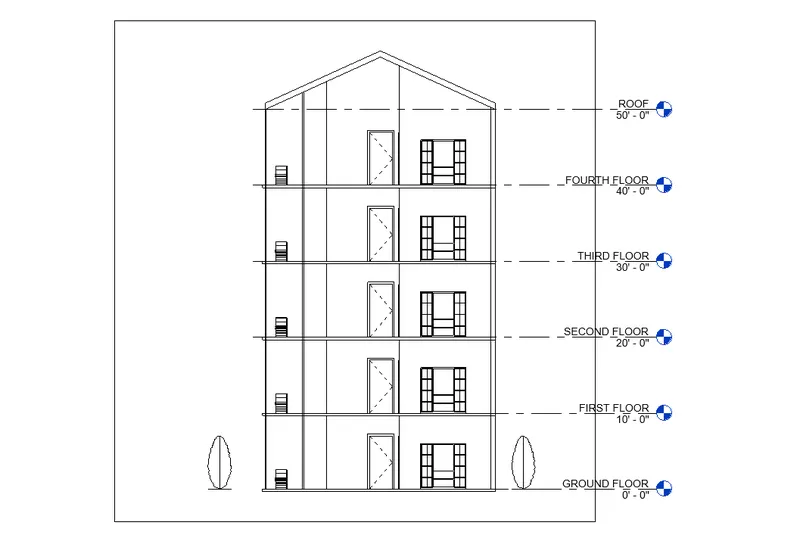

4. Section cut through each room either longitudinally or transversely

TOOLS REQUIRED:

View -> section

Project browser.

PROCEDURE:

• First open the project that you wanted to have section.
• Now go to the view tab and select the section option.
• Now place the cursor on the project where you are intrested to make the section.

• After that place the cursor at the end point to indicate the closing of the section part.
• Draw the line vertically if you wanted a longitutinal section.
• Draw the line horizontally if you wanted a transverse section.

RESULT:

Hence Section cut through each room either longitudinally or transversely is done sucessfully.

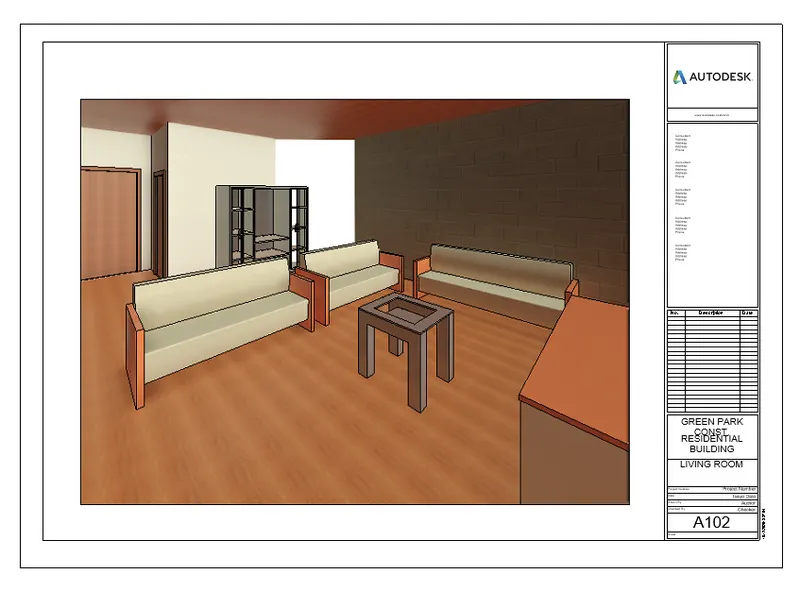

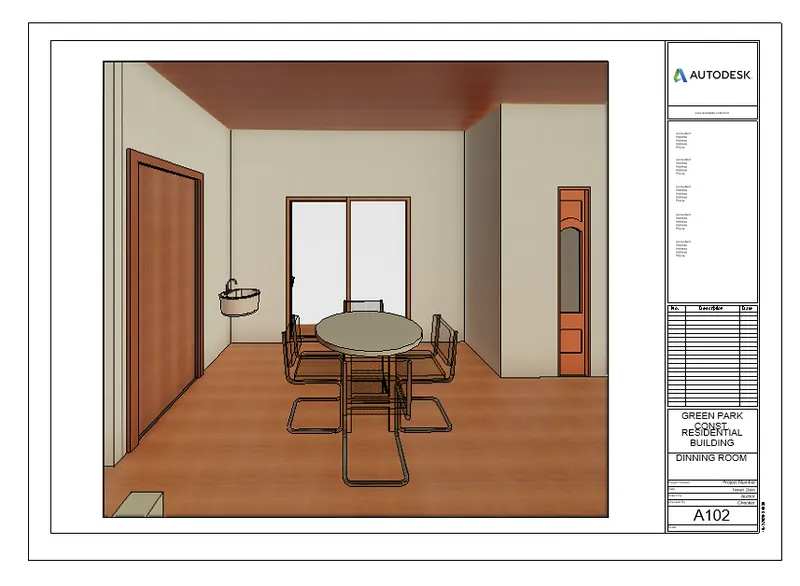

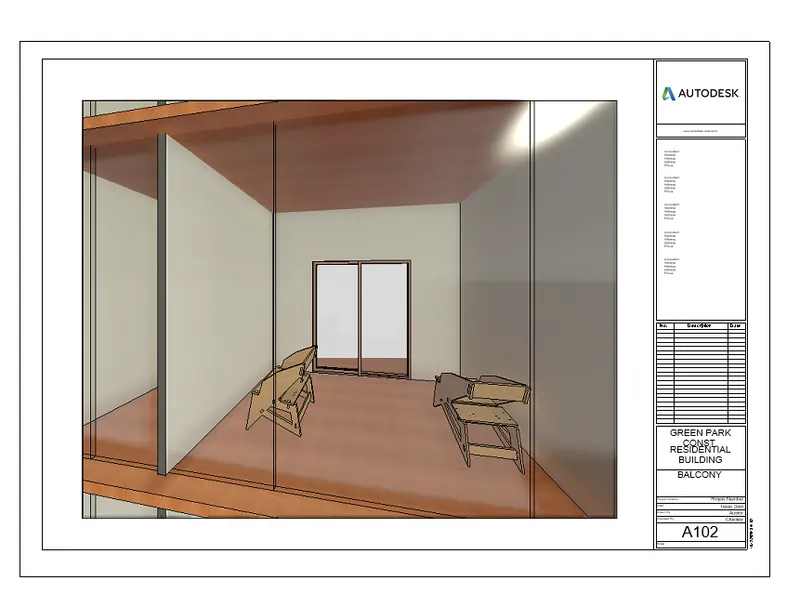

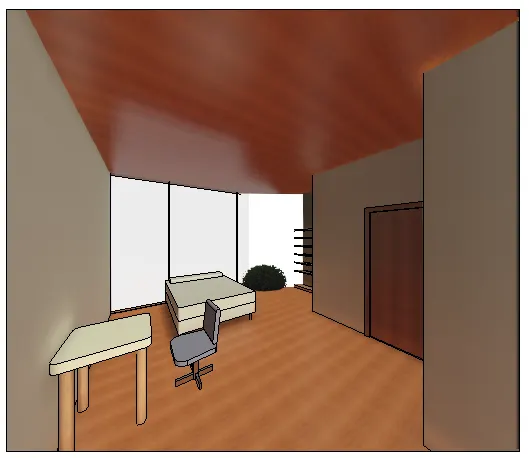

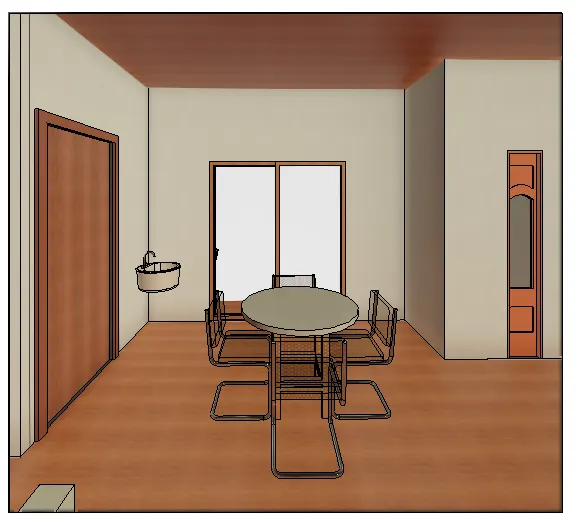

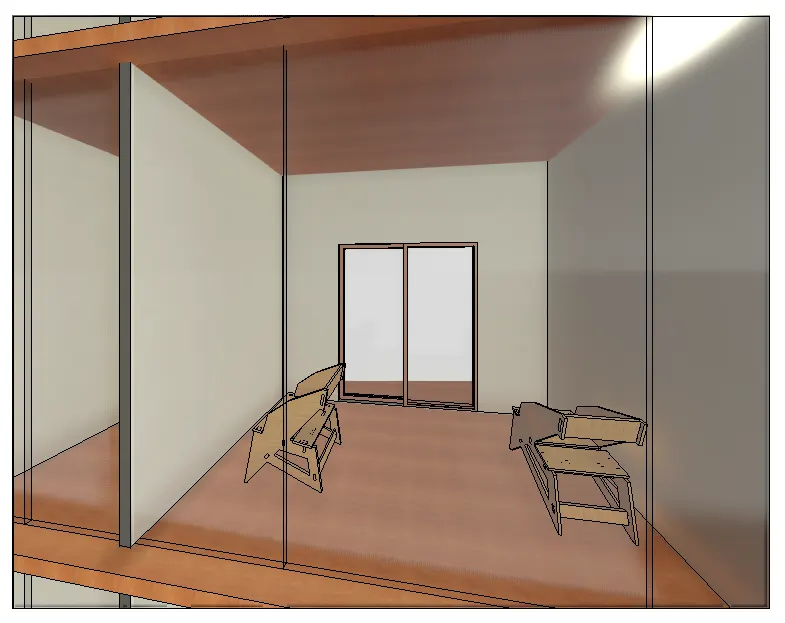

5. Create a camera view on each room and add it in a sheet template.

TOOLS REQUIRED:

Architectural -> view -> camera view

-> sheets -> load sheet

PROCEDURE:

• Firstly open the architectural file that you have created.

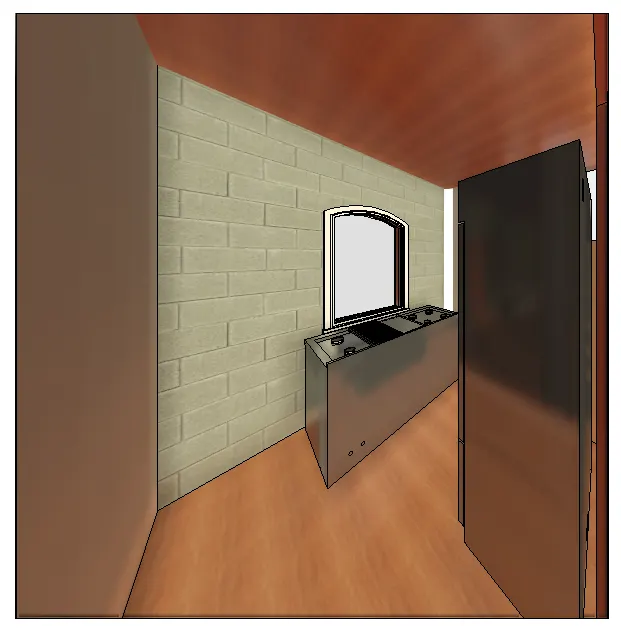

• Now select the camera view option from the view tab.

• Now place the camera icon at the desired loaction to capture the desired area.

• Now the desired view is seen in another file.

• Firstly open the view tab and click on the sheets.

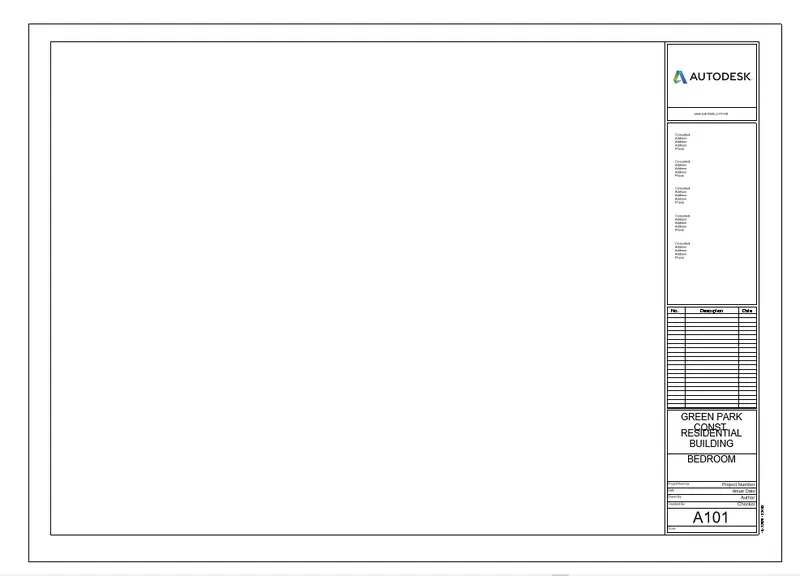

• A new dialog box opens and we need to select the desired type of sheet.

• Now clicking on the a new sheet opens with default naming .

• We can change the names with the help of properties drop down or by just clicking on the particular place itself.

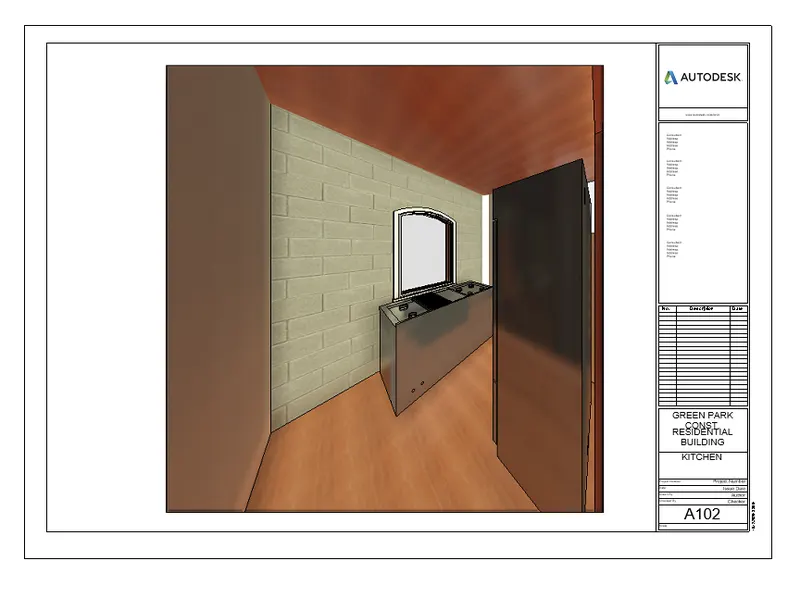

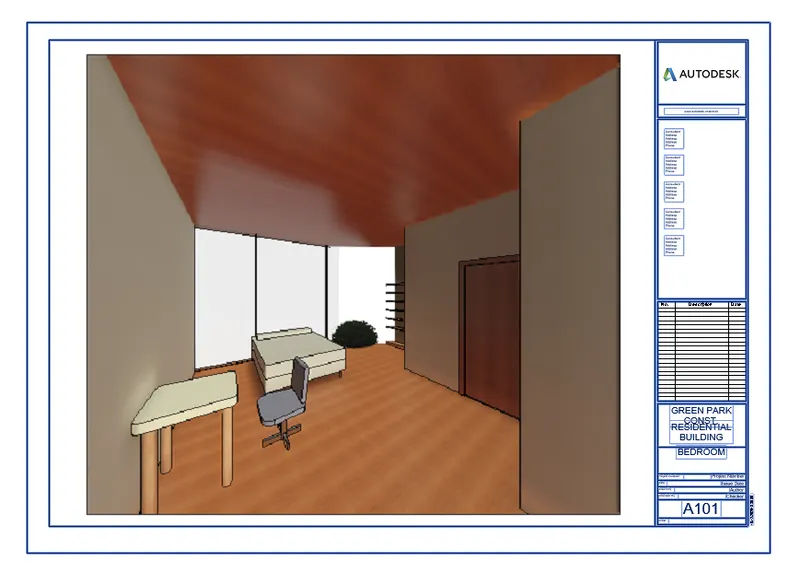

• Now name the sheet as A101 and place the ground floor plan picture there.

RESULT:

Hence camera view on each room is created and added sheet template to them.
