CAR HOOD DESIGN
OBJECTIVE : The aim is to design components of the hood/bonnet of a car and assemble them together.
INTRODUCTION :
This project will make you understand about the hood of a car, explain some sheet metal operations that are commonly used in designing and take you to the step by step procedure of designing hood components like its inner panel, outer panel, reinforcements and setting the trajectory of striker. Designing of the model is carried out in Siemens NX-12 here.
HOOD :
The hood (North American English) or bonnet (Commonwealth English) is the hinged cover over the engine of motor vehicles. Hoods can open to allow access to the engine compartment, or trunk on rear-engine and some mid-engine vehicles for maintenance and repair.
On front-engined cars, the hood may be hinged at either the front or the rear edge, or in earlier models, it may be split into two sections, one each side, each hinged along the centre line. Hoods are typically made out of the same material as the rest of the body work This may include steel, aluminium, fiberglass or carbon fiber. However, some aftermarket companies produce replacements for steel hoods in fiberglass or carbon fiber to make the vehicle lighter. Hood is typically supported by rods or some fixtures, so that it stays at a position and a person can lean onto it hassle free and work. These includes

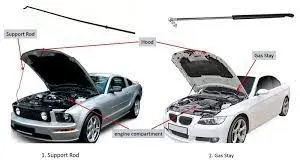

Types of hoods support
There are two types of support available for the hood support
1. Gas Stay
2. Support Rod
Gas Stay
Gas Stay Gas stay is the device for supporting the engine hood of a motor vehicle in its open position using an actuator activated by gas. This is mainly used when the car hood is heavy. In this, no men's power is required. Spring stays are designed to be used on upward lifting doors; once the door is open n slightly, the spring will push the entrance to the fully open position. Euro fits stock various size springs depending on the door size requirement
Support Rod : A hood rod is designed to hold your hood propped open whenever you need to do some work in your car's engine bay. When used, it must be firmly secured to ensure that it provides a stable hold on the hood. Meanwhile, when not in use, it must be kept stable in place and must not move around. The hood rod clip is the part assigned with that function. This clip clamps onto the rod and ensures that it is firm in its place when not in use. It keeps the rod from moving around under the hood and from causing trouble.

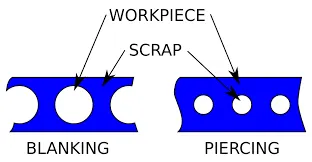

Blanking & Piercing : Blanking and piercing are shearing processes in which a punch and die are used to produce parts from coil or sheet stock. Blanking produces the outside features of the component, while piercing produces internal holes or shapes. The web is created after multiple components have been produced and is considered scrap material The "slugs" produced by piercing internal features are also considered scrap. The terms "piercing" and "punching" can be used interchangeably. Deep Drawing : Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its d

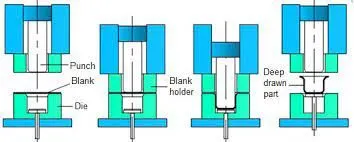

Deep Drawing : Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter
Embossing : Sheet metal embossing is a stamping process for producing raised or sunken designs or relief in sheet metal. This process can be made by means of matched male and female roller dies, or by passing sheet or a strip of metal between rolls of the desired pattern.

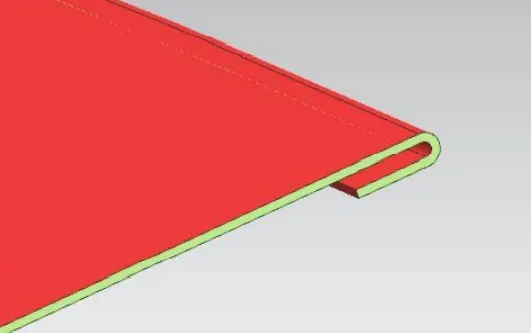

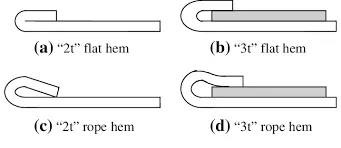

Hemming : Hemming is a forming operation in which the edges of the sheet are folded or folded over another part in order to achieve a tight fit. Normally hemming operations are used to connect parts together, to improve the appearance of a part and to reinforce part edges.
Mastic Points : These are the spots where the inner panel and the outer panel of hood are joined or can say sealed together using a mastic glue. To fix the outer panel, if process like bolting, riveting or welding is used, it will lose all its aesthetics. So, mastic sealant is used which is elastic compound and acts like rubber. It is placed between both the panels. Initially it is in paste form and after hot furnace bath it gets solidify and gives strength to the panels together. One spot normally has influence over diameter of 80 mm.
Parts of a Hood/Bonnet :
Hood Outer Panel
Hood Inner Panel
Hinge Assembly
Latch & Striker

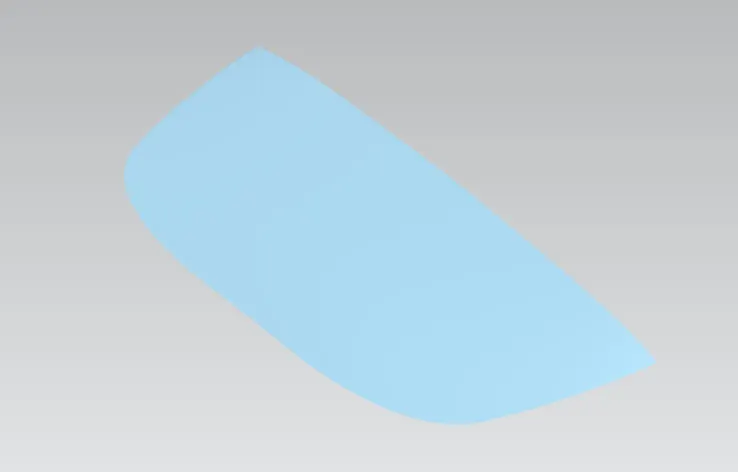

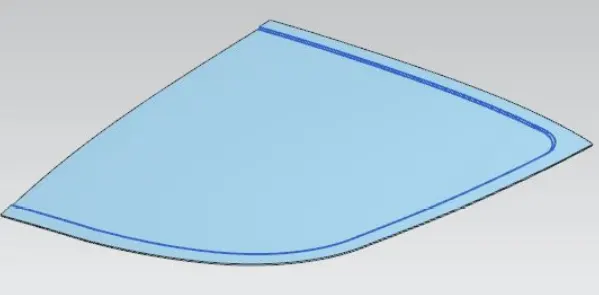

design approach is carried out in a most effective way and step by step procedure is explained. The master sketch of the panel was already provided on the basis of which, the inner panel is created here We will design the inner panel first, so lets start with the given data, a body stretched to full dimension of outer panel.

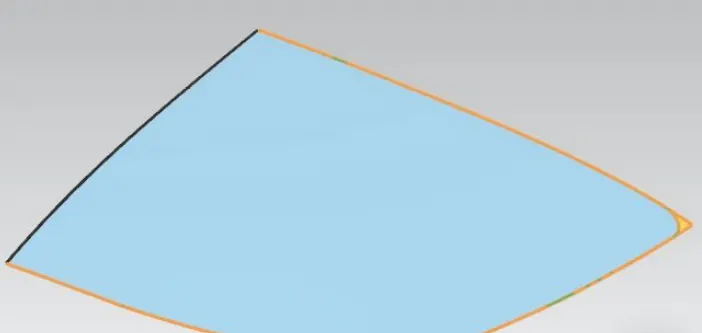

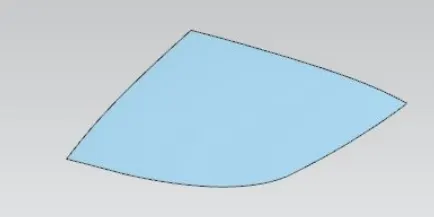

Next trim the sheet into half.

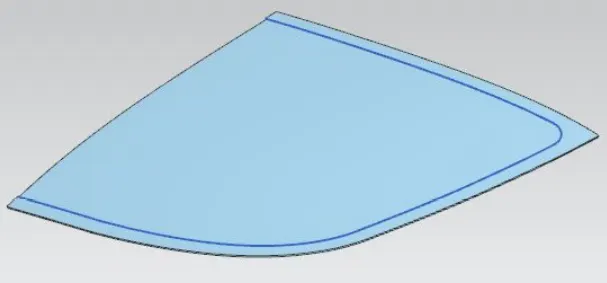

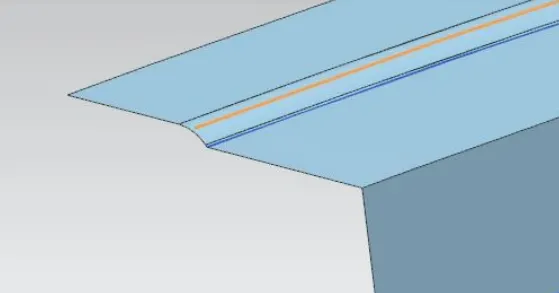

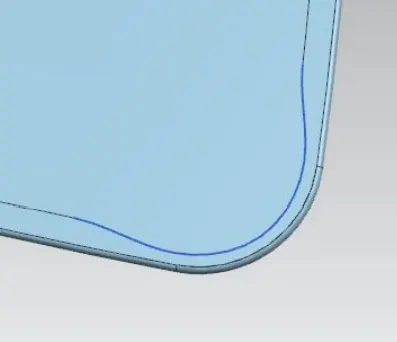

Taking curve offset on surface of 20mm

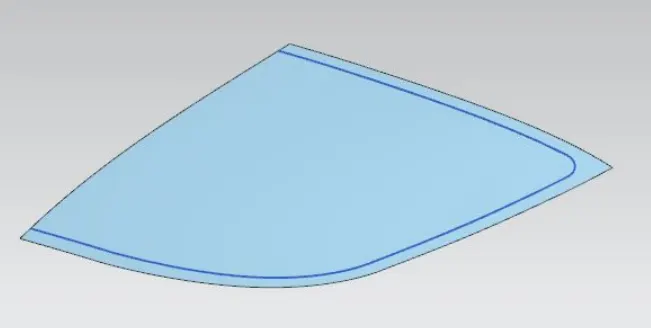

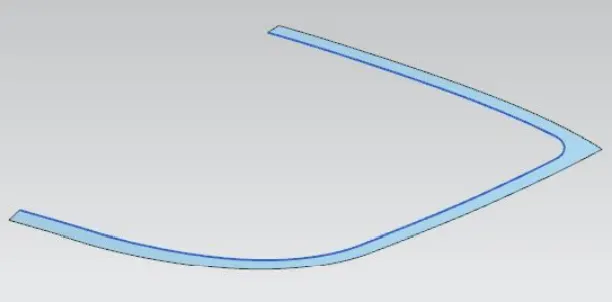

Trim sheet and keep the outer part.

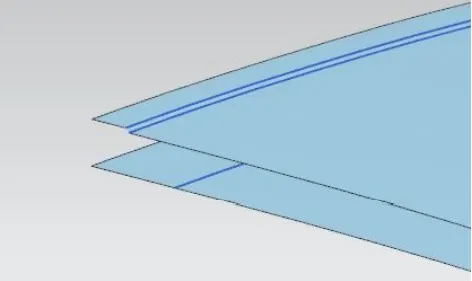

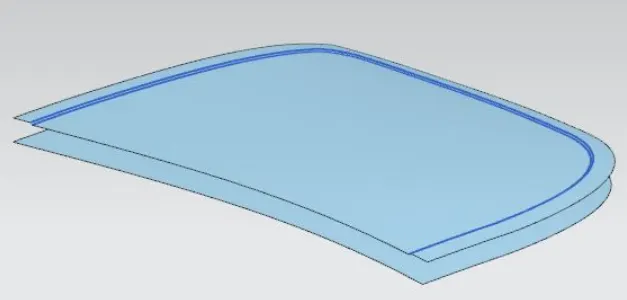

Take another surface offset of 4mm
Now offset curve same way for 22mm inside

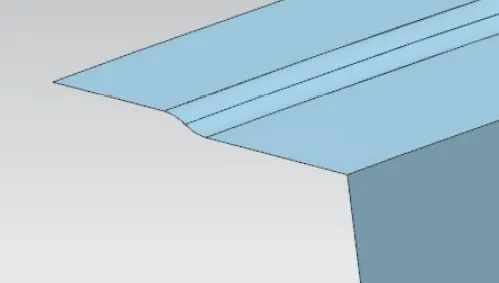

Now we add surface through curve and fill the gap.

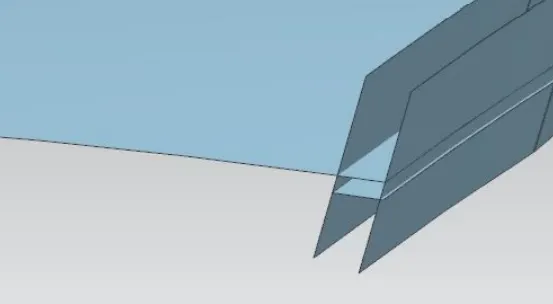

Taking another offset of same surface upto 25mm.
Do curve offset on surface and trim sheet.

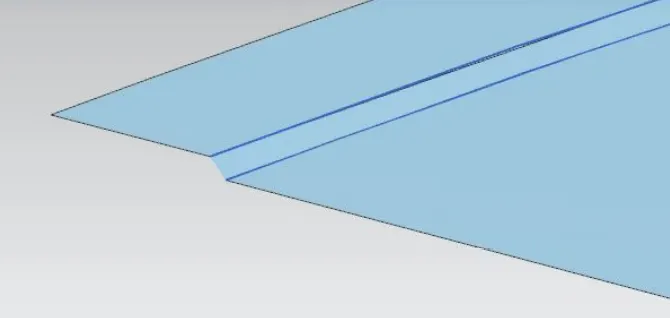

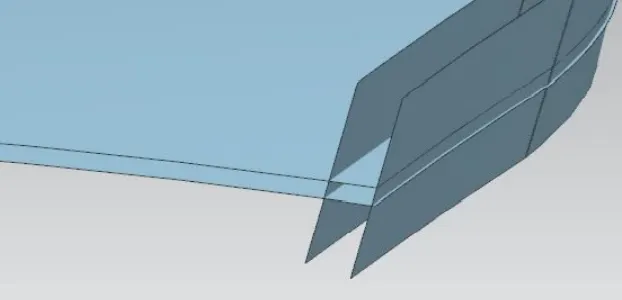

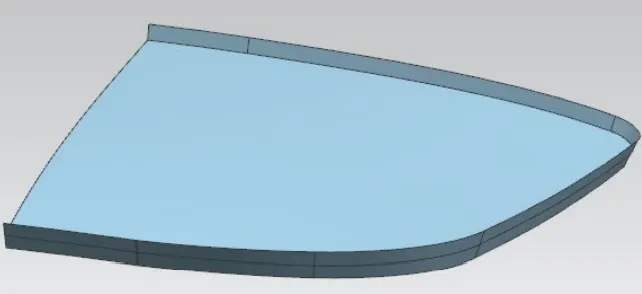

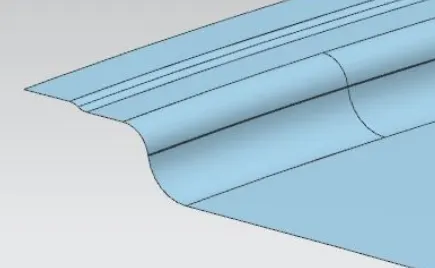

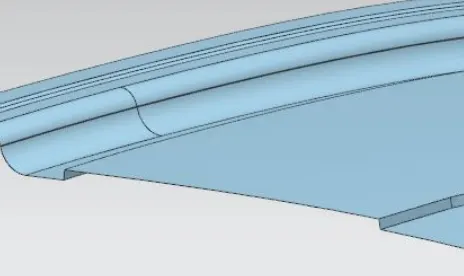

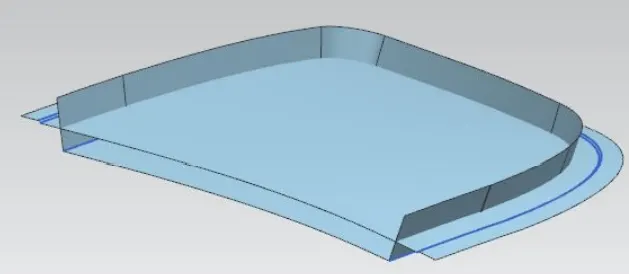

Now to fill gap, we create surface by law extension command and keep draft of 5 degrees outwards.

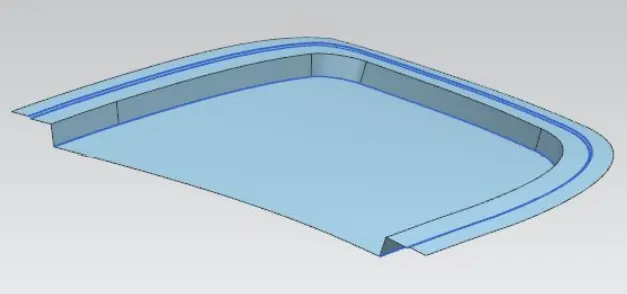

Using trim and extend feature, we eliminate some part and get this structure.

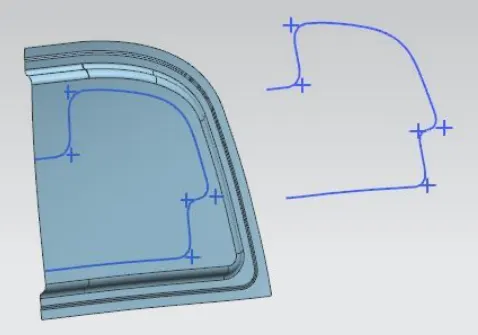

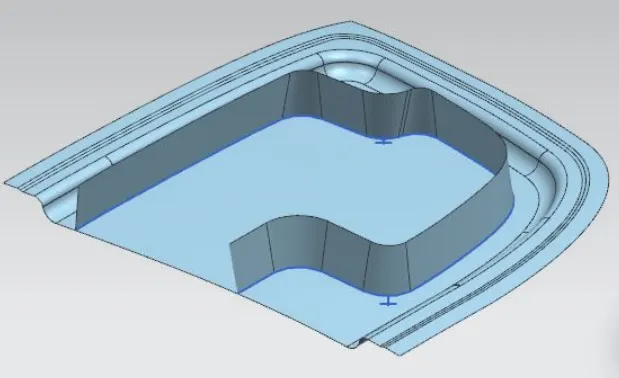

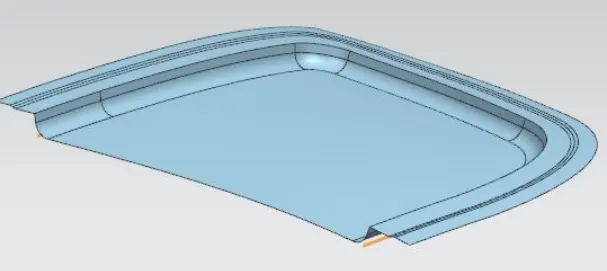

After blending, we will create a sketch and project it to the surface. We keep some space for hinge and striker reinforcement.We follow it by Law extension surface, offset the base surface to 5mm upward and apply trim and extend to get an embossed shape for the profile
Then trim the unwanted part.
We create one more sketch and project it to the same part. Later, use law extension with draft, surface offset of 5mm, trim and extend and trim sheet to get desired output.

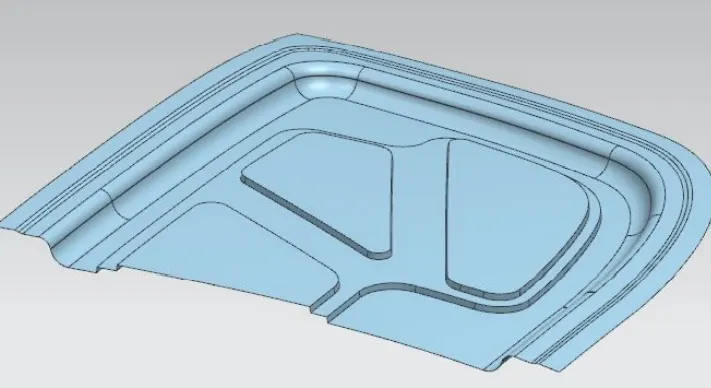

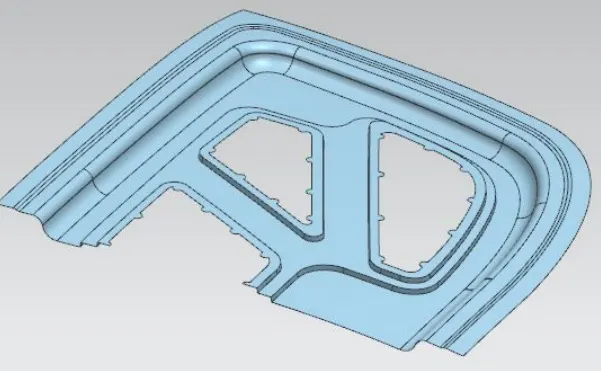

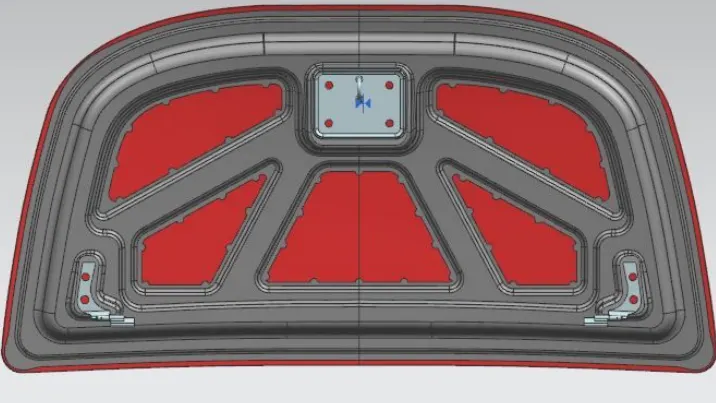

Another sketch we create to remove some material from the workpiece, so we can give some hollowness to the panel for safety reasons. Add spots for mastic points. Then project it in same direction as did before

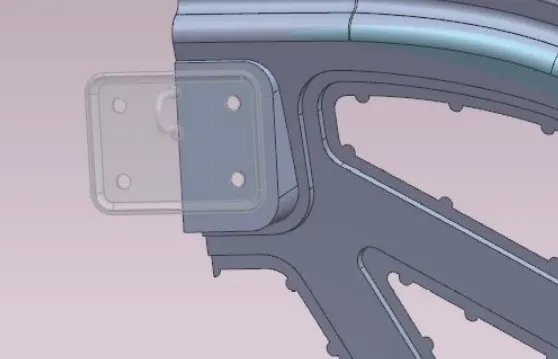

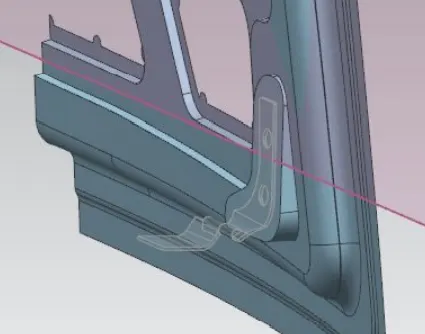

Keep the assembly little away from panel, so that we can add a vertical datum plane and emboss the same profile uptill that plane.

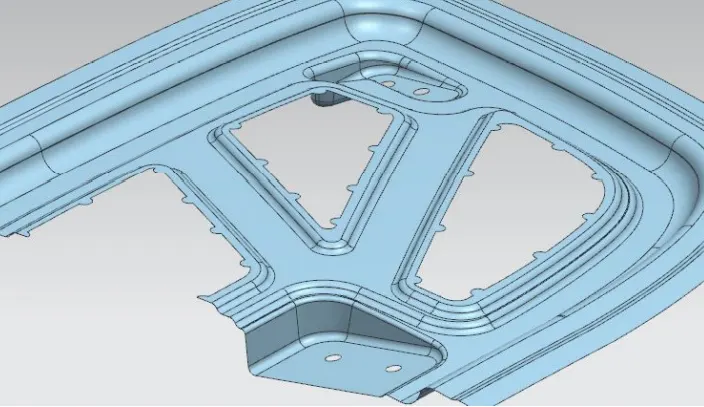

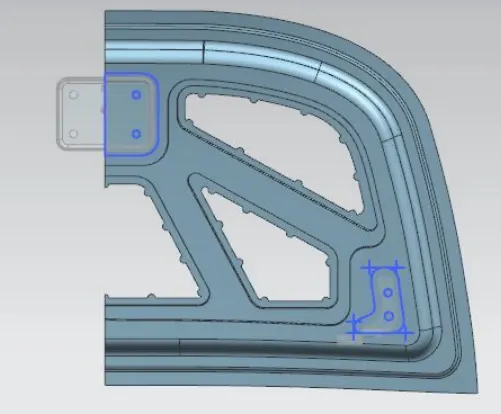

Eliminate the part that is needed for fixation. And you can see the assembly is well set to the embossed surface.
Latch Trajectory : It is simply the path that a striker will follow when the hood is being opened or closed. So, we have to keep it such way that it will hit the latch or the lock mechanism.
For this, we will create a line or an axis where the hinge will rotate. From the midpoint we will connect another line to the line of placement of our striker. The line from midpoint will make an angle with verticle plane and taking that intersection point we will create a circle which
is nothing but the path of striker. Then set a datum plane there and emboss the profile till that plane. Also, eliminate the fixture part

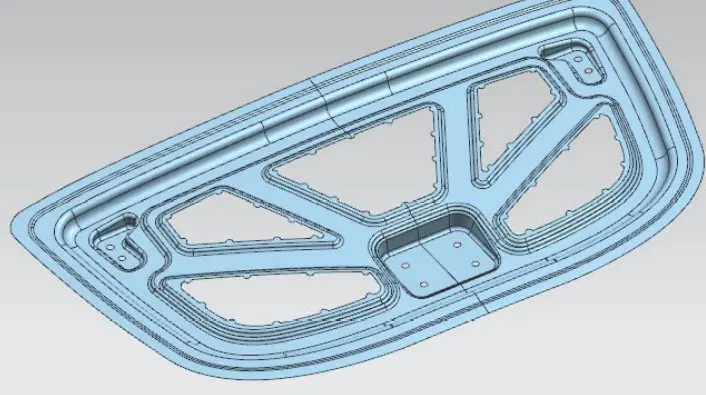

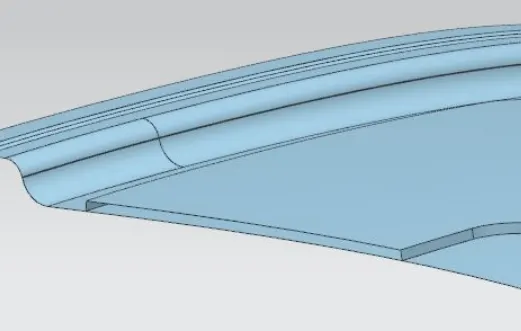

Now add face and edge blends to each and every sharp edge that got created by embossing or drawing. Also make sure to keep tangency realtion all over.
After getting the workpiece, take a curve offset and trim the part by 0.5mm.

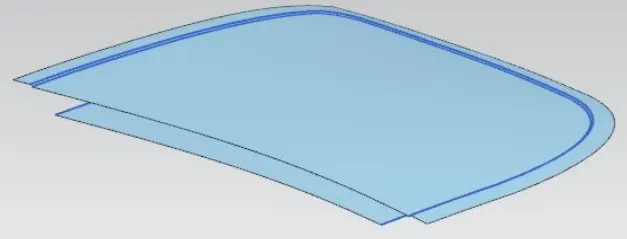

Now, take surface offsets of both the surfaces available. Here, for the law extended one we take 7.5mm inside and for the workpiece we take 2.8mm down. (keeping all the sheet thickness and gaps between them, we are taking 2.8mm)
Trim the unwanted part of offsetted surface.

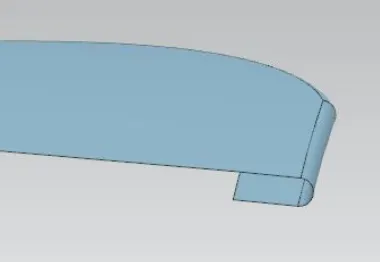

Give thickness of 0.75mm to the part. In this the direction goes down.
Now, we can assemble all the components together and can aslo set the contraints for striker and hinge assembly so that they dont have any freedon of moving.
