HOOD DESIGN IN UG NX

OBJECTIVE:

Design hood outer panel,inner panel and reinforcements with the given outer hood skin,master section and design parameter.

INDROUCTION:

The hood bonnet is the hinged cover over the engine of motor vehicles.Hood can open to allow access to the engine compartment for maintenance and repair.in design perspective hood should meet some specific conditions like pedestrain saftey,hood head zone for the lock striker,force distribution when subjected to frontal collision(occupant saftey),etc.

A typical hood assembly consist of hood outer panel,inner panel,latch and striker,hinge,hood stay.Hood stay is an apprartus for supporting the engine hood of a vehicle in its open position.The purpose of opening the engine hood id for inspecting engine room,replenishing cooling water and engine oil,changing parts and making repairs etc.Common types of hood stays are support rod and gas stays require no man power but they are costly.Hood are typically made out of the same material as the rest of the bodywork.This may include steel and aluminium.Deep drawing,hemming,blanking and piercing are the common sheet metal operations that are used in manufacturing hoods in automotive indusytries.

Design parameters:

• Outer Panel Thickness = 0.75mm
• Inner Panel Thickness = 0.75mm
• Reinforcement Thickness = 1.5mm

COMPONENTS

1.HOOD OUTER PANEL:

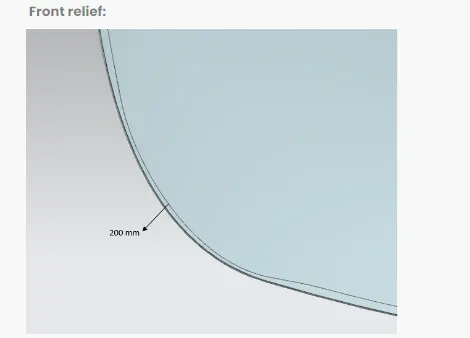

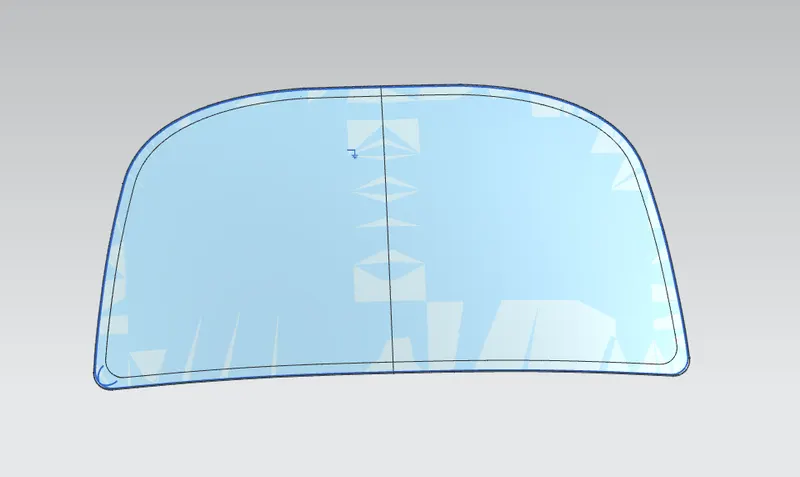

Outer panels are the aesthetic elements of a car.It is the styling team who provides the skin for the outer panel.The shape,position and size of the hood should satisfy the saftey norms.So while designing the hood we should give more importance to pedestrain saftey.The outer panel is attached to the inner panel by hemming.So,it is necessary to provide required hemming flange and reliefs for the hemming operation.We also provide mastic sealants between outer panel and inner panel to reduce the vibration.

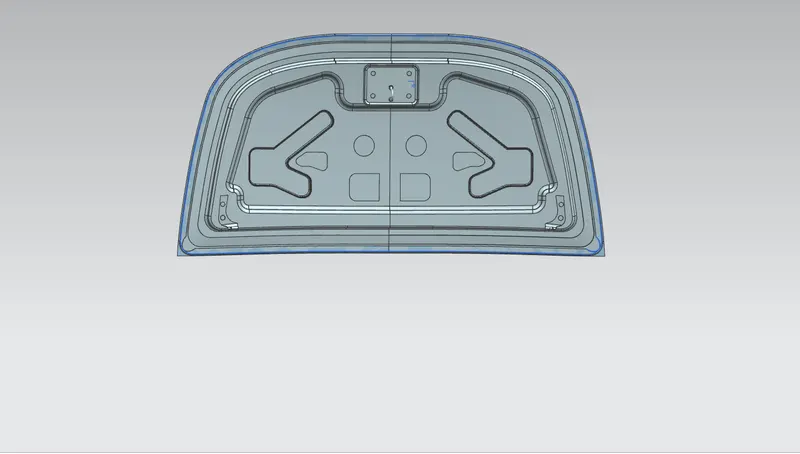

2.HOOD INNER PANEL:

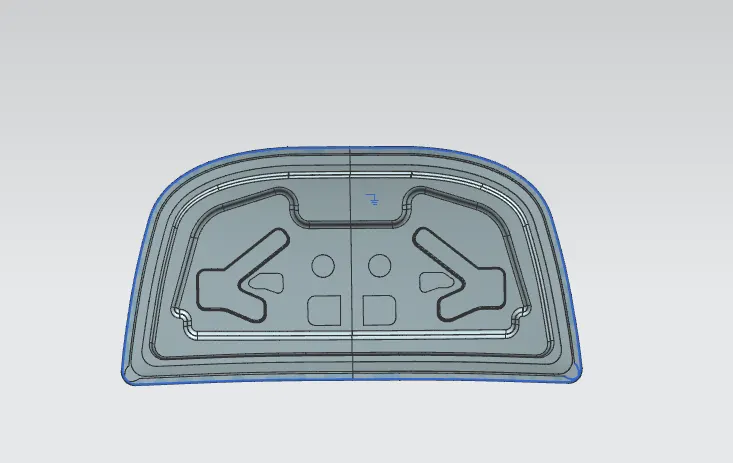

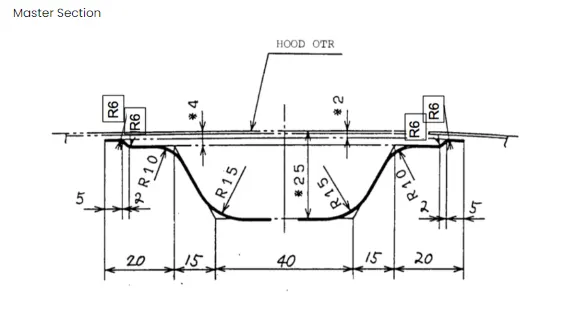

Inner panel is the part that gives strength and rigidity to the outer panel.The master section represents the initial emboss shape and size.Then we provide the emboss for the latch and hinge elements after fixing the location.

3.REINFORCEMENT:

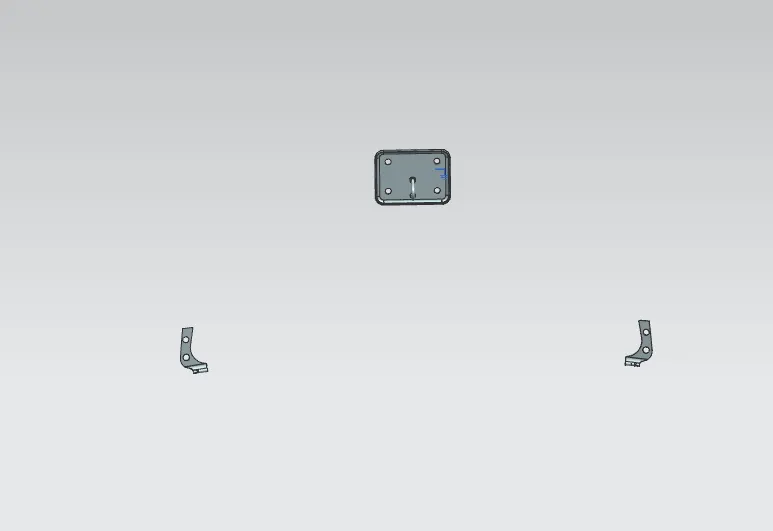

Reinforcements are provided according to the design requirements.Mainly it is provided at the hinge and latch regions to improve the strength locally.Usually thickness of reinforcements will be higher than that inner panels and the value according to cost and requirement.According to the design requirement here it is given 1.5mm thickness to the both hinge and latch reinforcements.

LATCH TRAJECTORY:

Latch trajectory is given by the circle drawn from the hinge axis point.Hinge axis point is the centre point of the hinge axis .First,we can fix either the latch or the hinge.If we have fixed the hinge position then we should plot the trajectory circle for the hatch.For proper mating condition the striker axis through the tip of the striker should be tangential to the latch trajectory.

EMBOSS DEFINITIONS:

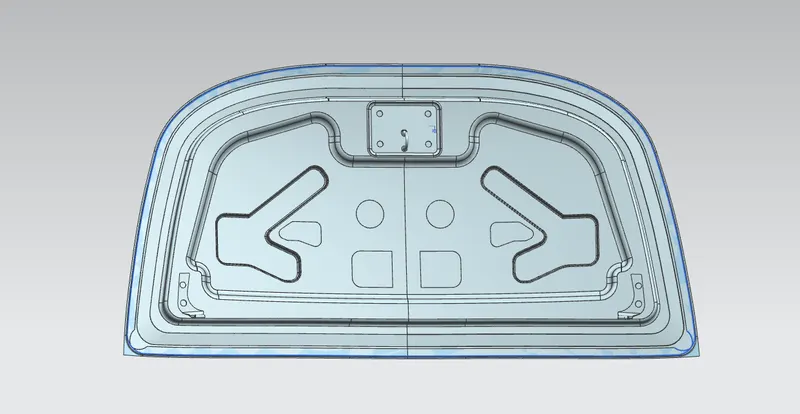

Throughout the inner panel we provide different embosses.We can increase the stiffness of the inner panel through these embosses.The shape and size of the embosses also determines the direction of the force distribution resulted from the frontal collision.The force should be always distributed away from the passengers.Here in the embosses are designed in such a way that the force is directed to either sides of the car.

MASTIC DATA:

Hood commonly possess large surface area and hemming can only be provided through its boundary.We cannot use other joining techniques like welding,riveting etc because they leave marks on the outer panel which spoil its aesthetic apperance.So,mastic sealants are used to stick the inner surfaces of the outer panel and inner panel.Mastic sealents are elastic compound that behave like rubber.It is applied between the inner and outer panels at specifed spots.Each spot of mastic sealents has its effect arouund a circular region of 80mm diameter.Thus,the mastic points are arranged in such a way that it covers the areas away from the hemming which are more vulnerable to vibrate.

DEEP DRAWING:

Deep drawing is one of the most widely used processes in sheet metal forming.Apart from its use in many other sectors,it is applied in the automotive industry for the manufacturing of car body parts.The deep drawing process is a formimg process which occurs under a combination of tensile and compressive condition.

Sheet metal blank is radially drawn into a forming die by the mechanical action of a punch.It is thus a shape transformation process with material retention.The process is considered "deep" drawing when the depth of the drawn part exceeds its diameter.This is achieved by redrawing the part through a series of dies.The flange region(sheet metal in the die shoulder area)experiences a radial drawing stress and a tangential compressive stress due to the material retention property.These compressive stresses(hoop stresses) result in flange wrinkles.Wrinkles can be prevented by using a blank holder,the function of which is to facilitate controlled material flow into the die radius.

HEMMING:

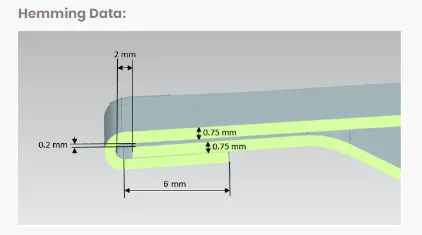

Hemming is a forming operation in which the edges of the sheet are folded or folded over the another part in order to achive a tight fit.Normally hemming operations are used to connect parts together,to improve the apperancen of a part and to reinforce part edges.

In car part production,hemming is used in assembly as a secondary operation after deep drawing,trimming and flanging operations to join two sheeet metal parts(outer and inner)together.Typical parts for the type of assembly are hoods,doors,trunk lids and fenders.

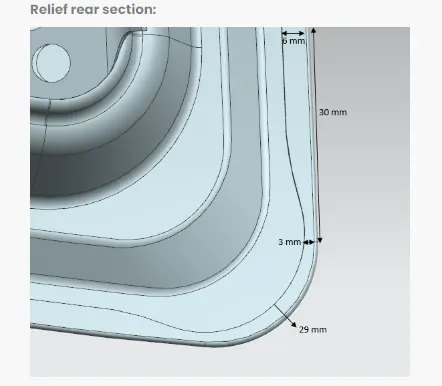

The accuracy of the hemming operation is very important since it affects the apperance of the surface and surface quality.Material deformations,which occur during the hemming process,can lead to dimensional variartions and other defects in parts.Typical hemming defects are splits or important to provide required reliefs at the corner.

There are two types of hemming operation,

1.Conventional die hemming

In conventional die hemming,the flange is folded over the entire length with a hemming tool.

2.Roll hemming

It is the roll hemming process that is useed for automative sheet metals.roll hemming is carried out incrementally with a hemming roller.An industrial robot guides the hemming roller and forms the flange.Roll hemming operation can also be divided into several pre-hemming and final hemming process steps.Roll hemming is very flexible to use and tool costs are significantly lower as copmared to those of conventional die hemming.However,the cycle times are much higher since the hemming is realized a hemming roller which follows a defined parts.
