Wiring harness routing & packaging Rules Week 3 Challenge

AIM

• Downloading the p clamp following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
• Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
• Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

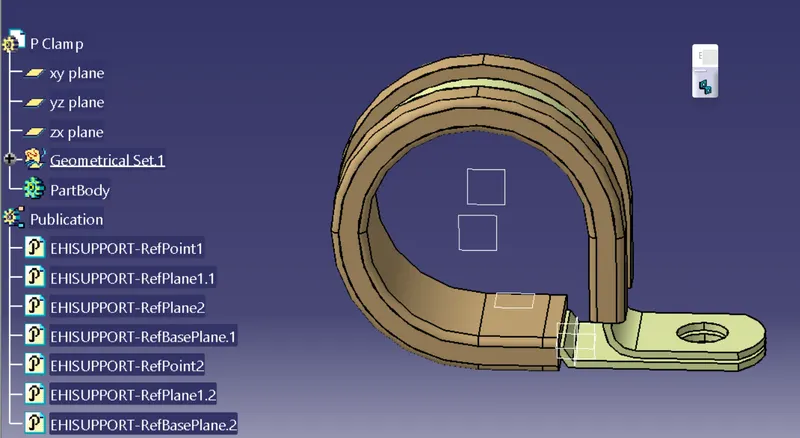

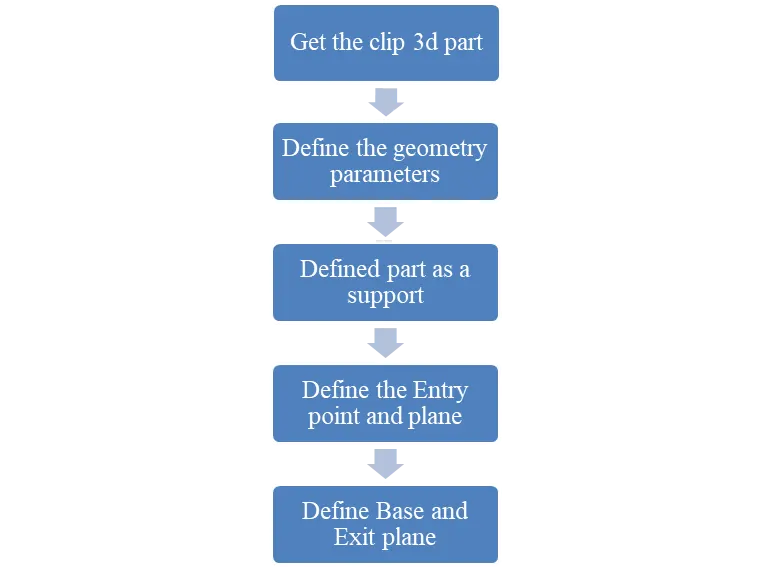

DEFINING THE P CLAMP

• The given clip was download and opened as a part file.
• I have define two points that will be used as a entry and exit point.
• Then a plane has to be defined as a points.
• A base plane has to defined at a distance 2 to 3mm from the clip.
• Again we defined at exit point at first definition as entry point.
• Hence i have two entry and exit point.

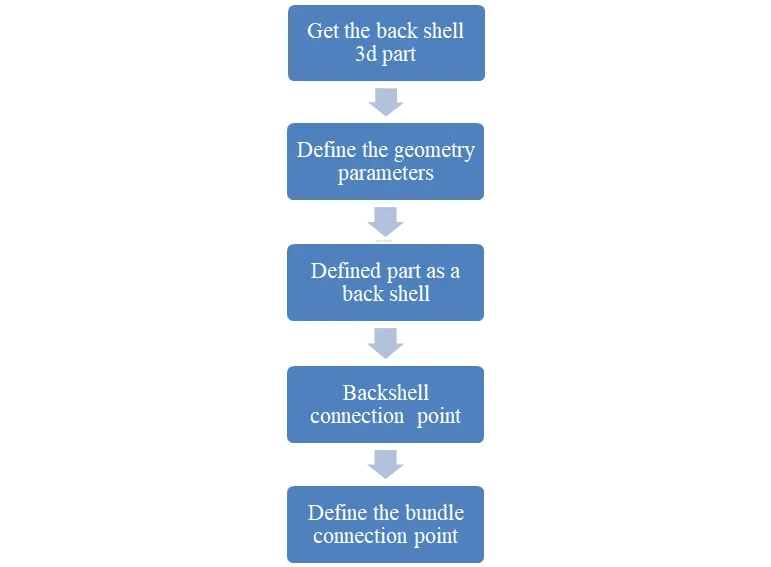

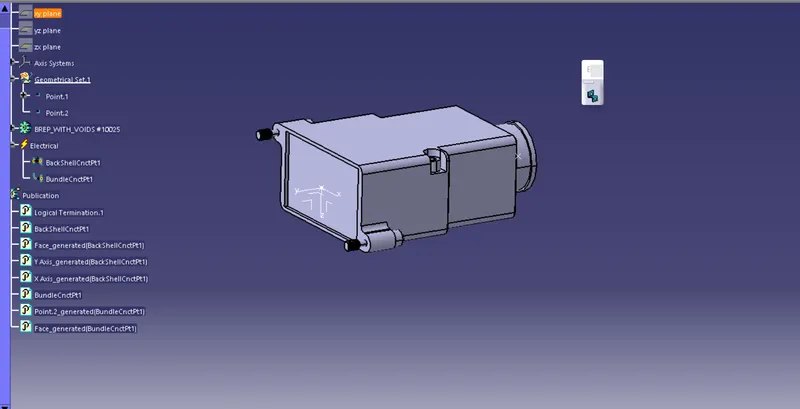

DEFINING THE BACKSHELL

• The backshell data was downloaded from the website.
• we have define the points in the part workbench.
• An axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell defintion and bundle definition.

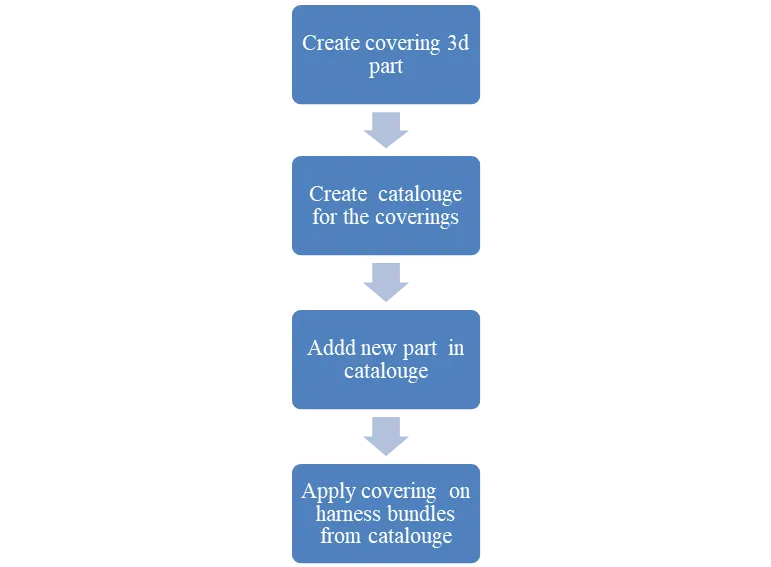

CREATING PROTECTION COVERING

• We define the cot tubes in the electrical part workbench.
• The inner dia&thickness are given as input.

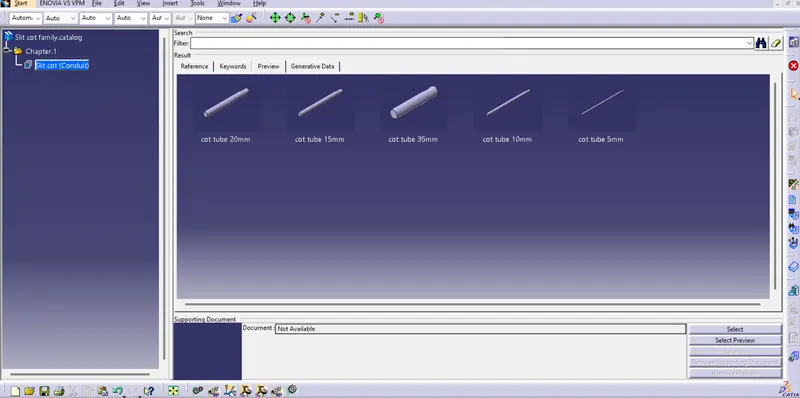

• A catalouge was created for the cot tubes.
• All the cot tubes was created in thecatalouge.
