Hood design-Week 2

PROCEDURE OF ASSEMBLY CREATION OF HOOD ON NX CAD:

1. OPEN NX CAD SOFTWARE AND IMPORT THE GIVEN FILES
2. CREATE THE PART NAME AS OUTER PANEL AND IN THAT CRATE PANEL BY WAVE GEOMETRY LINKER
3. OFFSET THE SURFACE BY ZERO DISTANCE AND USE IT AS WORKING OBJECT

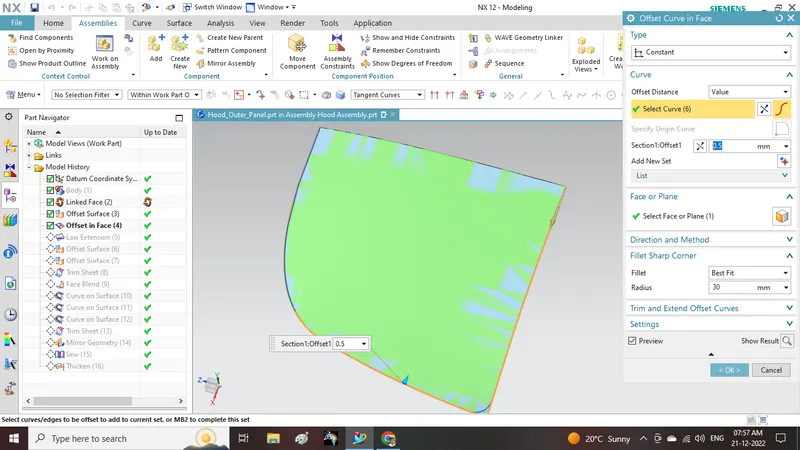

4. OFFSET THE OUTER EDGE BY 0.5mm DISTANCE INSIDE
5.

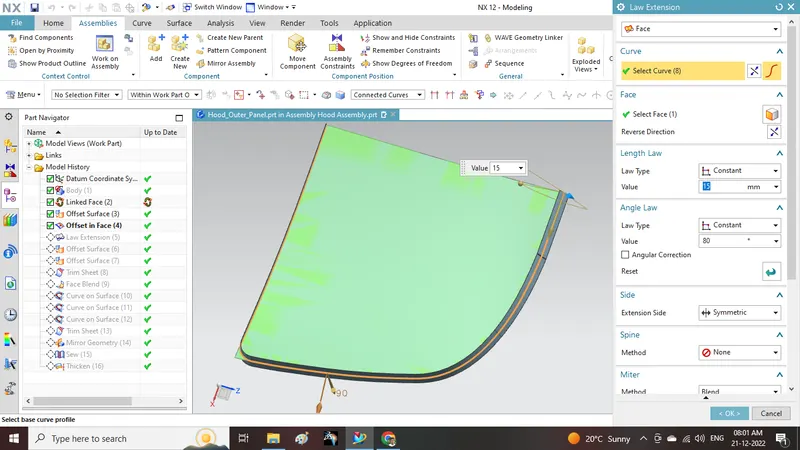

6. EXTEND THE OFFSET CURVE BY USING LAW EXTENSION
7.

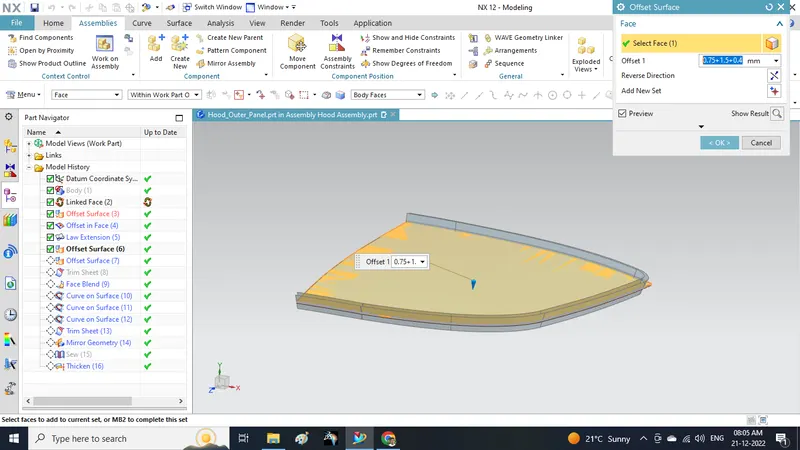

8. OFFSET SHEET TO 2.65 mm DOWNWARDS
9.

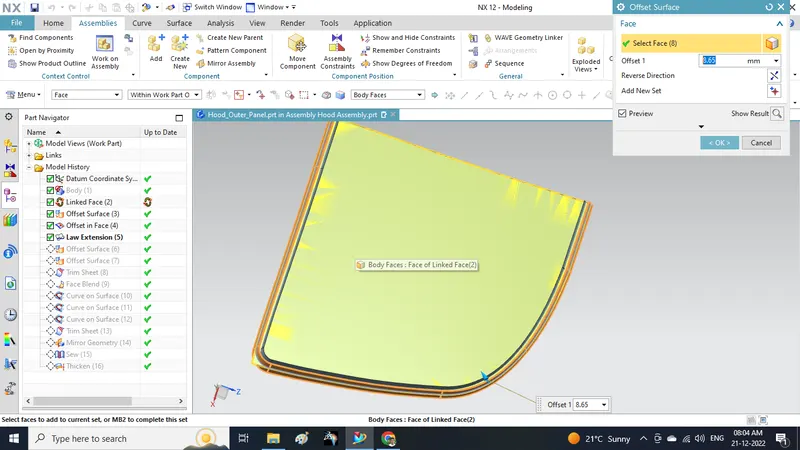

10. OFFSET THE LAW EXTENSION TO 8.65 mm INSIDE
11.

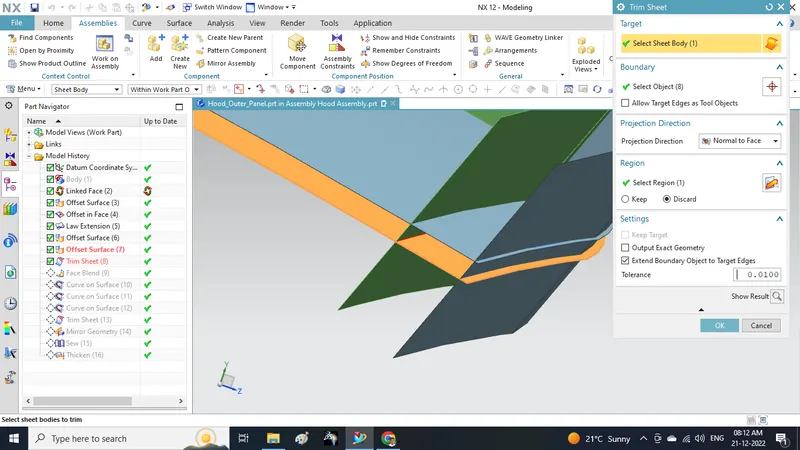

12. NOW TRIM THE SHEET OFFSETTED
13.

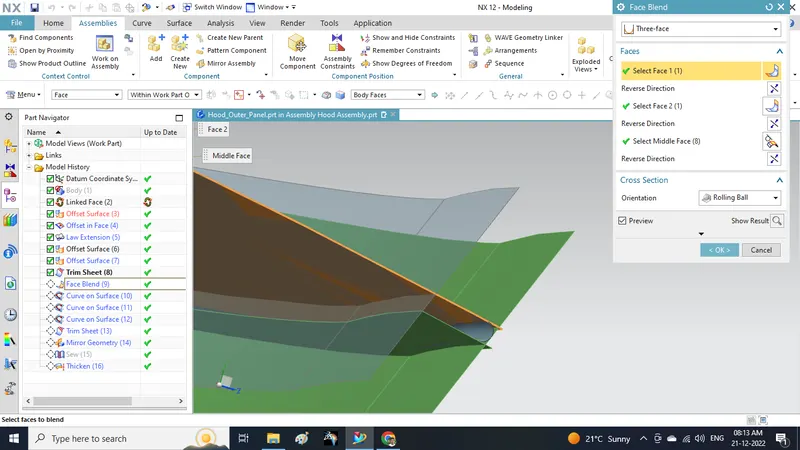

14. BY USING FACE BLEND CREATE HEM FLANGE
15.

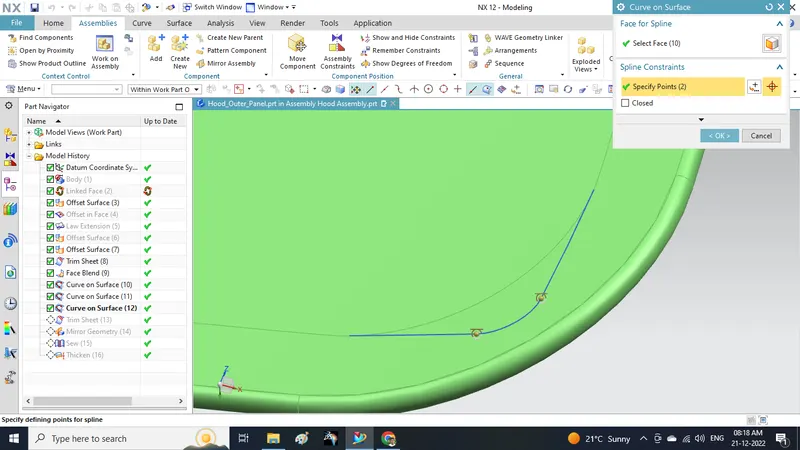

16. NOW GIVE CORNER RELIEF TO SHEET BY USING CURVE ON SURFACE
17.
18. THEN TRIM THE RELIEF, MIRROR GEOMETRY, AND SEW SHEETS

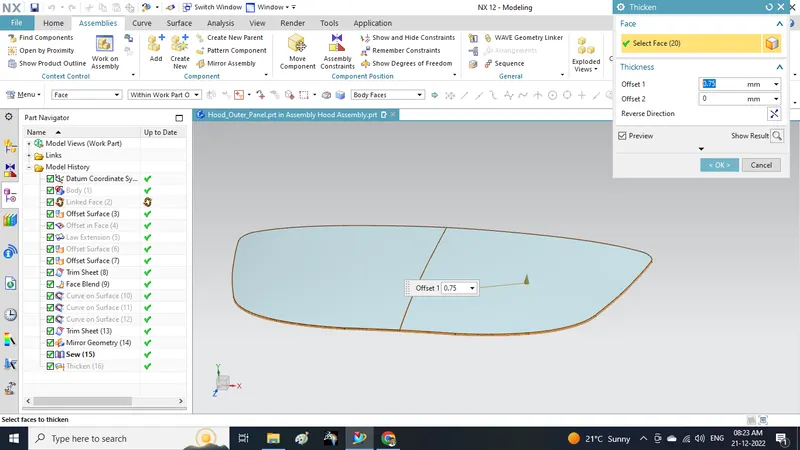

19. THICKEN IT BY 0.75 UPWARDS
20.
21. NOW CREATE INNER PANEL BY USIND GIVEN OUTER PANEL REFERENCE

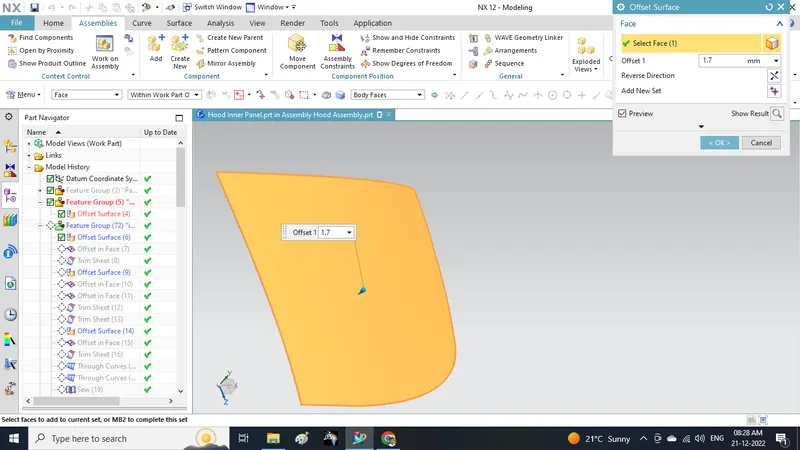

22. OFFSET BY 1.7 mm INSIDE
23.

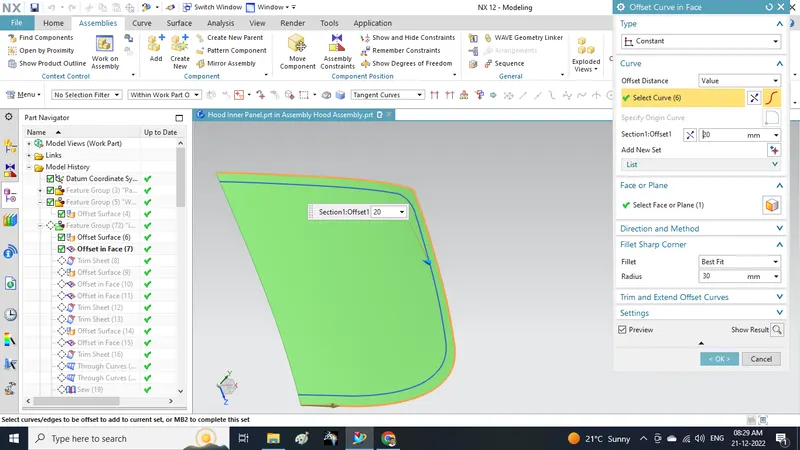

24. OFFSET CURVE 20 mm INSIDE
25.

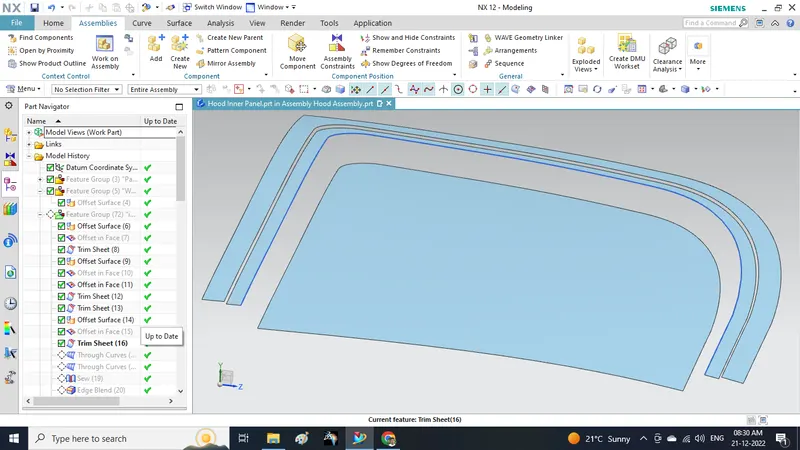

26. LIKEWISE CREATE THREE STEP LAYER SHEET AS PER MASTER SECTION
27.

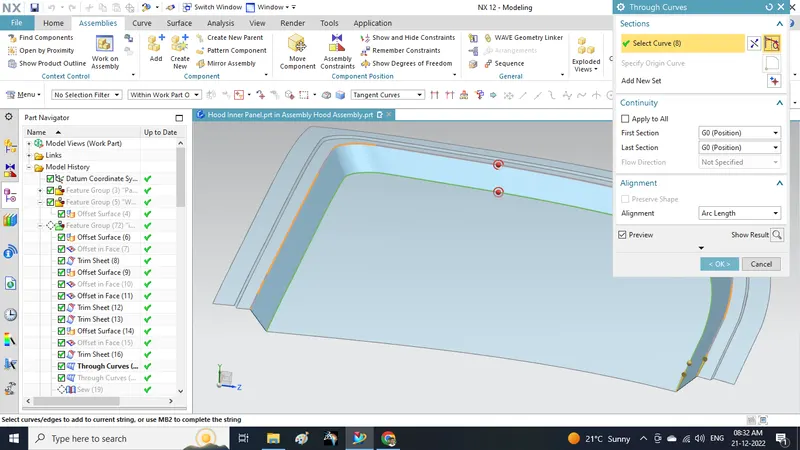

28. JOIN THEM USING THROUGH CURVES
29.
30. THEN SEW IT ALSO APPLY EDGE BLENDS

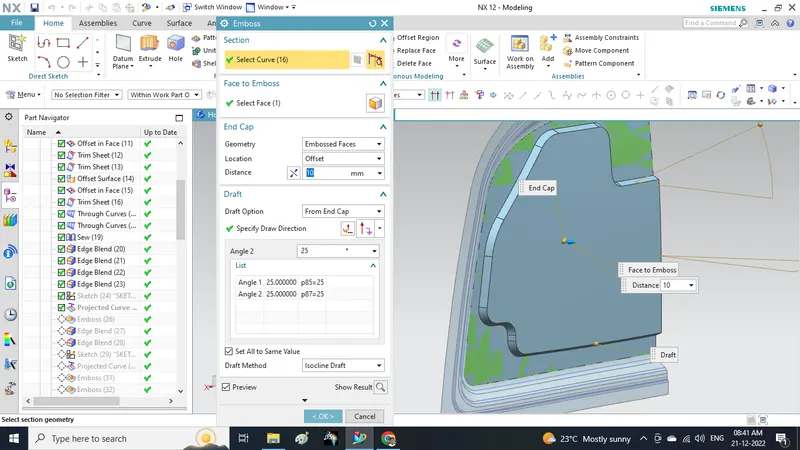

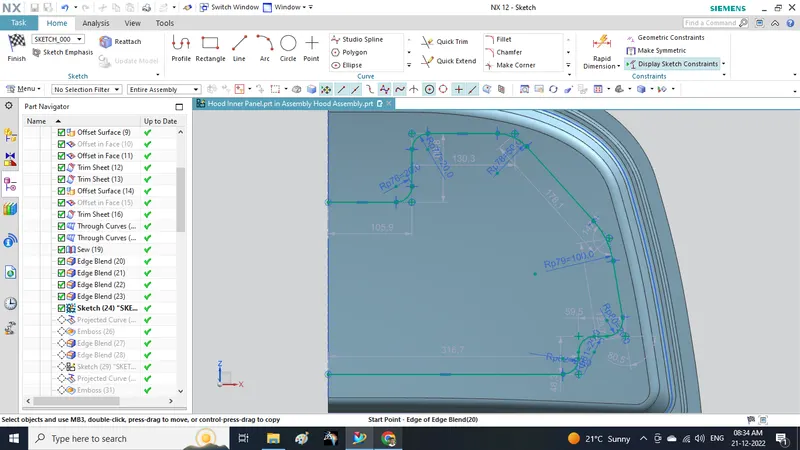

31. NOW CREATE SKETCH FOR FIRST EMBOSS
32.
33. GIVE EMBOSS FOR 10mm
34.

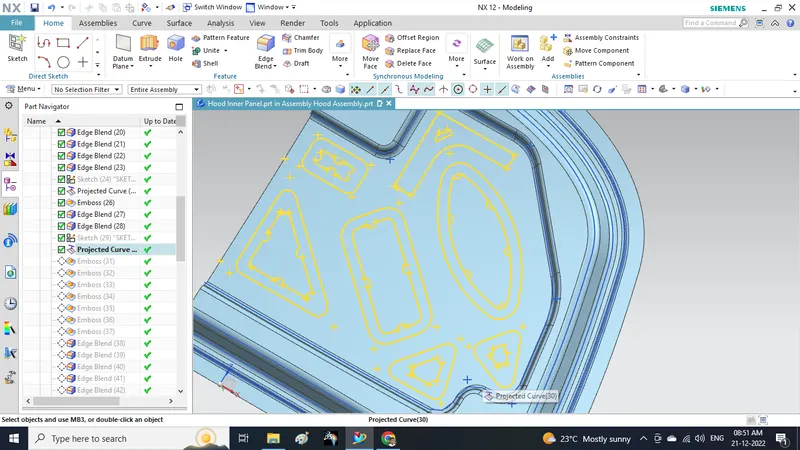

35. CREATE SKETCH FOR SECOND LAYER OF EMBOSS AND FOR MASTICS AND PROJECT IT
36.
37. NOW CREATE A DATUM PLANE FOR EMBOSS CREATION
38. AND HINGE EMBOSS CREATED LIKE PREVIOUS METHOD
39. NOW TRIM THE INSIDE PART AND OUTER EDGE BY 2mm
40. FINALLY MIRROR GEOMETRY AND SEW IT
41. THICKEN IT BY 0.75 UPWARDS

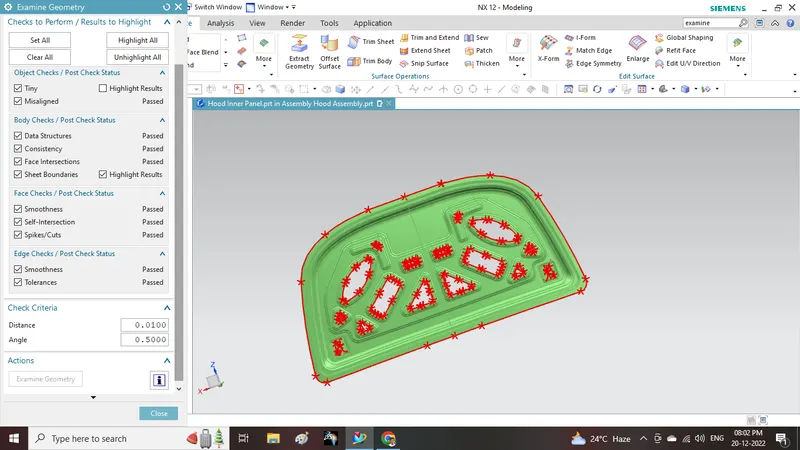

42. NOTE: IF ANY EDGE FLAW IS THERE WE CHECK BY USING EXAMINE GEOMETRY COMMANND
43.

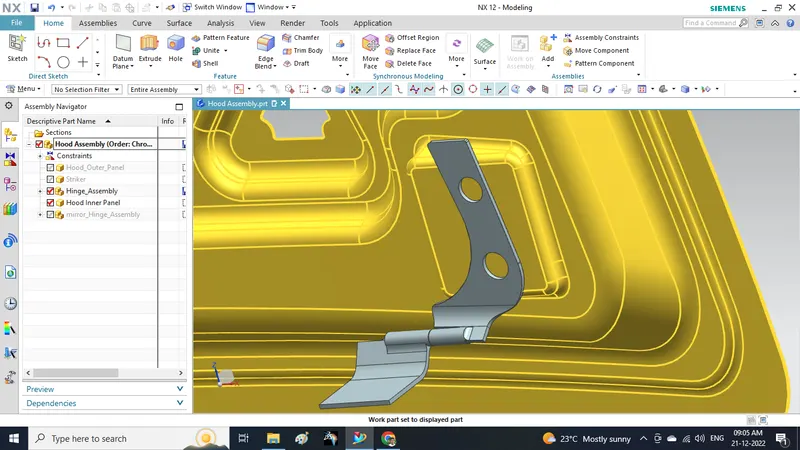

44. NOW FOR HINGE PLACE IT ON EMBOSS BY MOVE GEOMETRY
45.
46. MIRROR OTHER SIDE HINGE
47. CRATE LINE AT THE CENTRE OF STRIKER AS SHOWN
48.

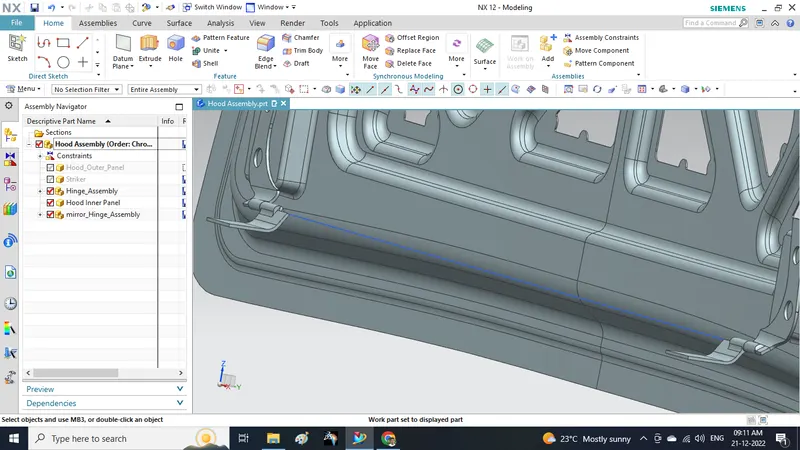

49. CREATE LINE WHICH IS PARELLEL TO X AXIS AND CONNECTS TWO HINGES AT THEIR AXIS COINCIDENT
50.

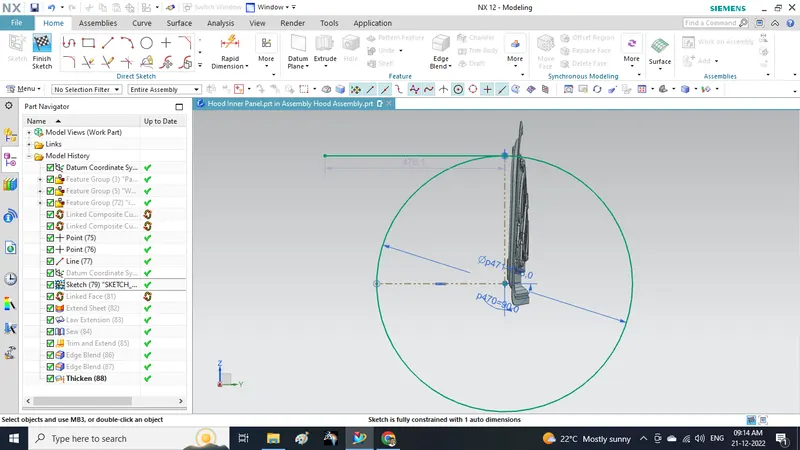

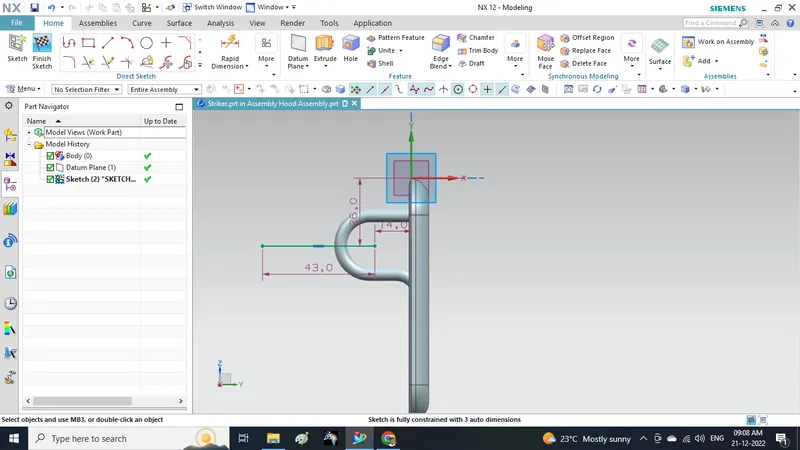

51. DRAW A SKETCH AS SHOWN ON DATUM PLANE
52.
53. NOW GIVE ASSEMBLY CONSTAIN IT TO PLACE STRIKER
54. AFTER PLACING STRIKER VARY ANGLE TO PERFECT POSITION
55. THEN CREATE EMBOSS BY WAVE GEOMETRY LINKER

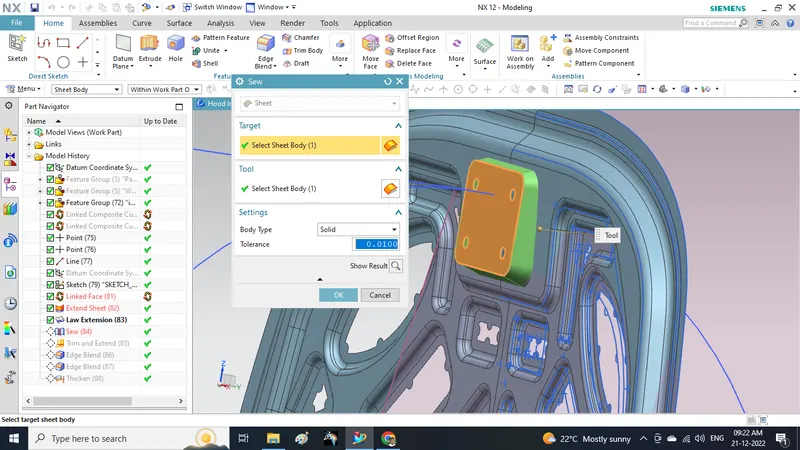

56. AND SEW THE SHEET AND THICKEN IT
57.

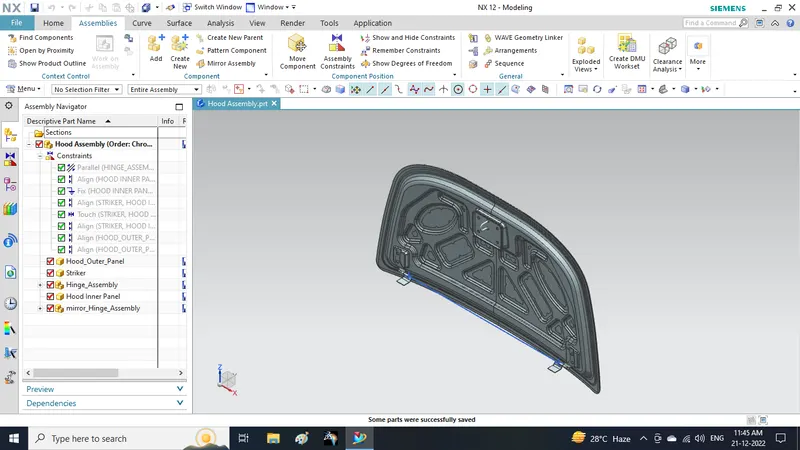

58. FINALLY ASSEMBLY CREATED WITHH SOME ASSEMBLY CONSTRAINTS
59.
