Week 8 - Challenge 4 - Bumper

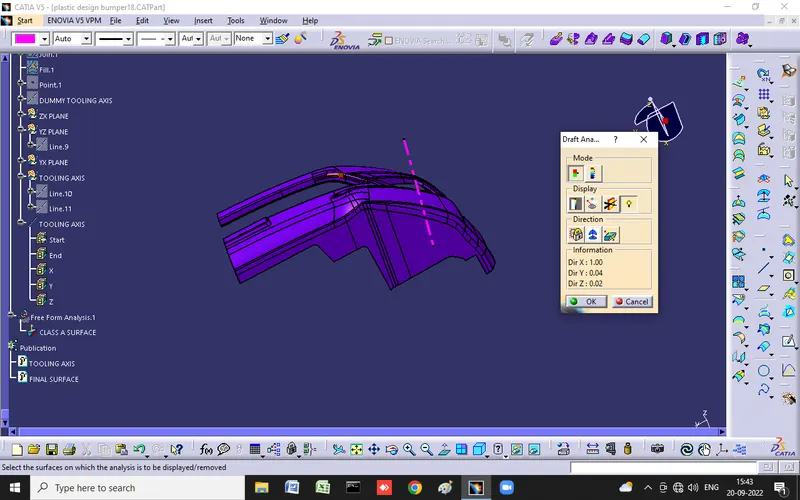

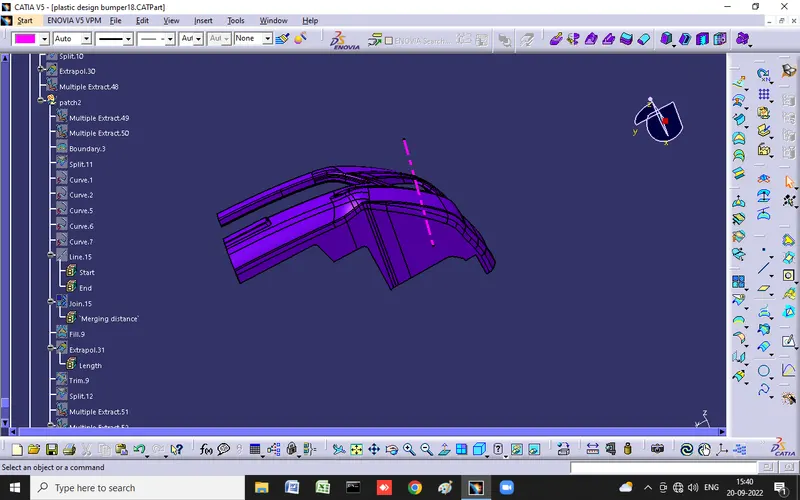

TREE STRUCTURE

TOOLING AXIS AND DRAFT ANALYSIS

• Tooling axis in this case created by trial and error method
• First create approximate tooling axis

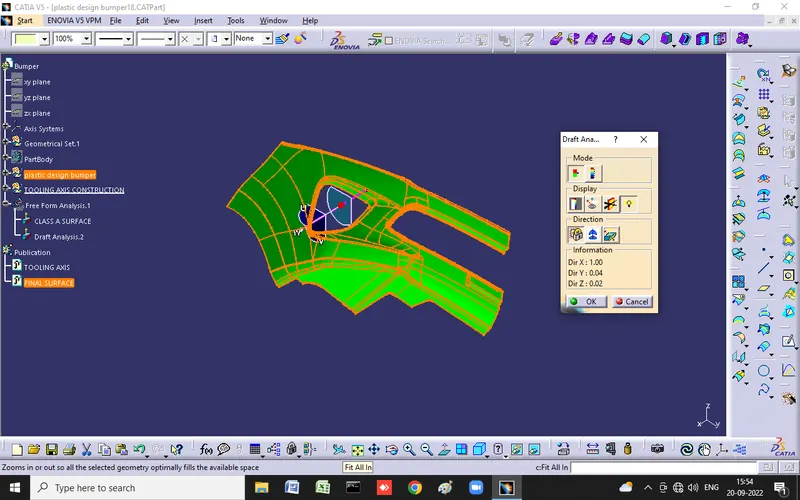

• After that apply draft analysis for given A surface
• And find the green color surface on the surface of given class A surface such that compass positioned
• Then create a line passing through point and in the compass direction

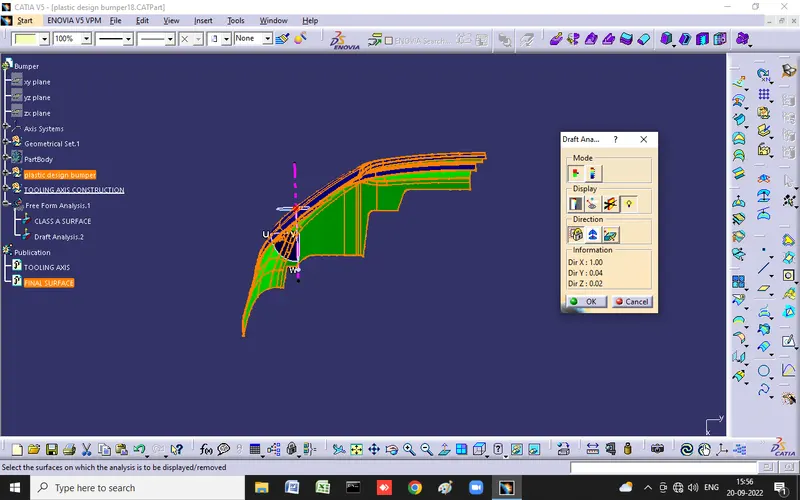

• Then perform draft analysis to the class A surface for better result
• Same steps followed to final surface also
