Fender Design - Wheel Arch Challenge

AIM:

To check whether the given fender passes the European standard.

FENDER REGULATIONS:

EUROPEAN REGULATION:

Measuring the value L at sections SA, SB, SC,SD,SE .

At all five sections the value should be greater than 10mm to satisfy the european regulations.

US REGULATIONS:

Measuring at every 10° intervals(-20° to 180°).

All should have greater than 5mm to satisfy the regulations

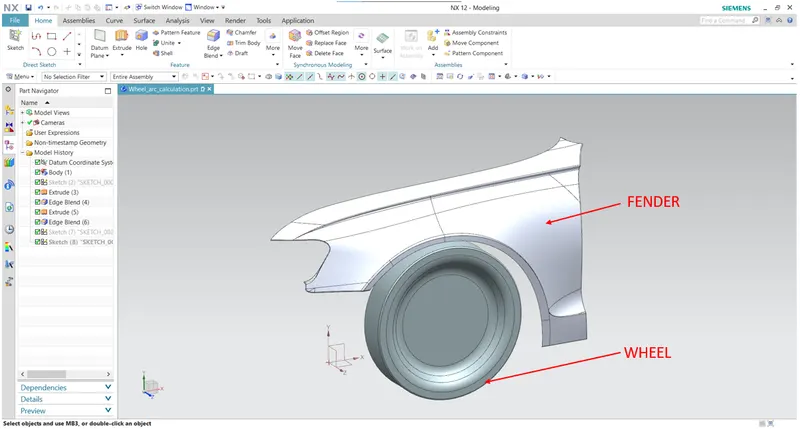

INPUT DESIGN:

PROCEDURE:

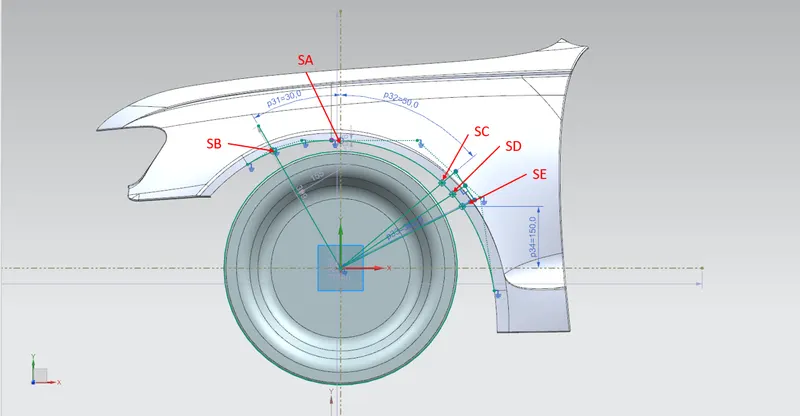

As per the European standards the sketch is drawn on the wheel face and the lines of 30° and 50° and a point of 150mm from horizontal axis line and an mid line between 50° and 150mm line.

CALCULATING THE VALUES OF CLEARANCE:

As per the european standard the clearance should be greater than 10mm from the wheel face and fender face.

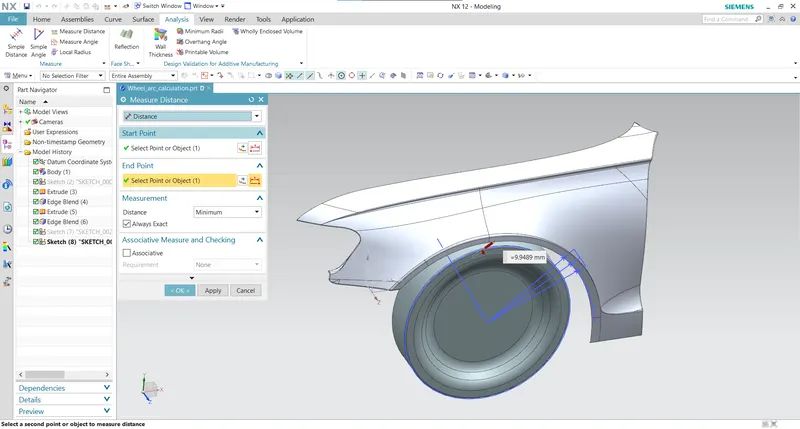

Measuring "L" for the given Wheel and Fender at SA:

The value "L" at SA is 9.9489mm.

Measuring "L" for the given Wheel and Fender at SB:

The value "L" at SB is 10mm.

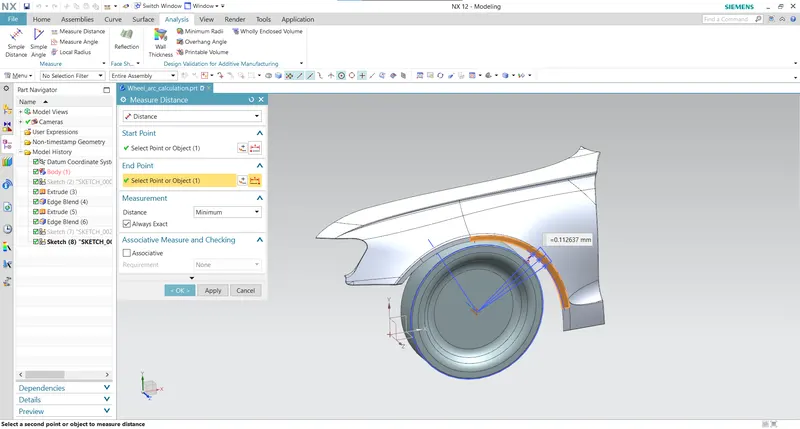

Measuring "L" for the given Wheel and Fender at SC:

The value "L" at SC is 0.112637mm.

Measuring "L" for the given Wheel and Fender at SD:

The value "L" at SD is 2.8468mm.

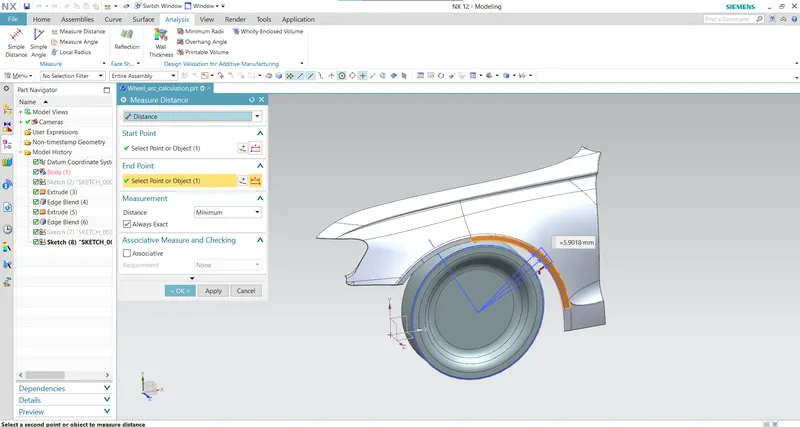

Measuring "L" for the given Wheel and Fender at SE:

The value "L" at SE is 5.9018mm.

RESULT:

CROSS SECTION	DISTANCE	RESULT
SA	9.489	FAIL
SB	10	PASS
SC	0.1126	FAIL
SD	2.8468	FAIL
SE	5.9018	FAIL

CONCLUSION:

As per our study for European standard the given fender wheel and wheel arch data DOESN'T PASS. To PASS the european standards all the cross section distance L must be greater than 10mm.
