Fender Design - Wheel Arch Challenge
Objective:
To check whether the fender design will pass European standards .
Answer:

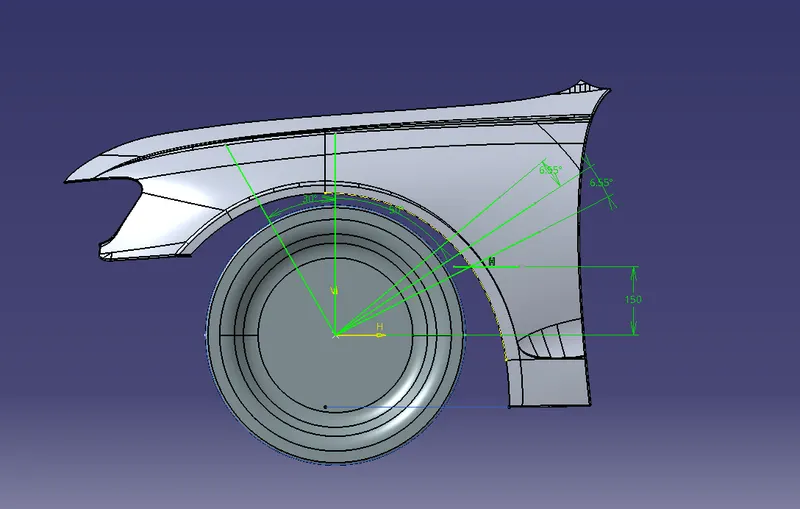

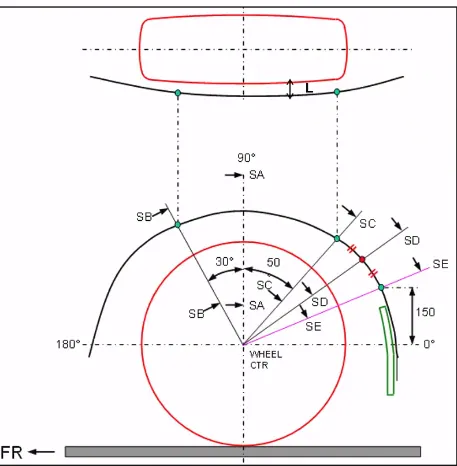

In order to pass EU standards , L at SA,SB,SC,SD,SE should be >10mm .
| SL No | Name |
Distance from fender L in mm |
| 1 | SA | 10 |
| 2 | SB | 24.78 |
| 3 | SC | 0 |
| 4 | SD | 0 |
| 5 | SE | 2.072 |

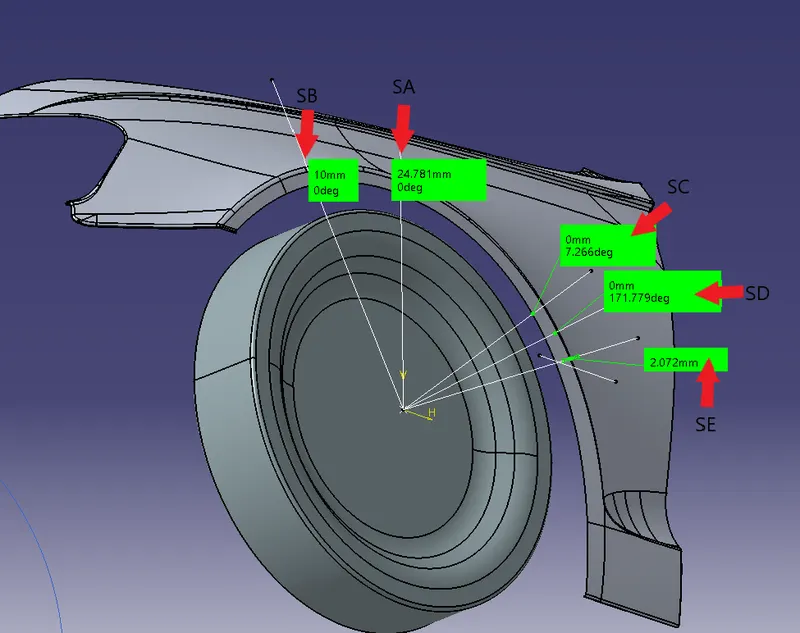

From the measurements we have taken , Fender region corresponding to SC,SD,SE does not meet the requirement of 10mm .

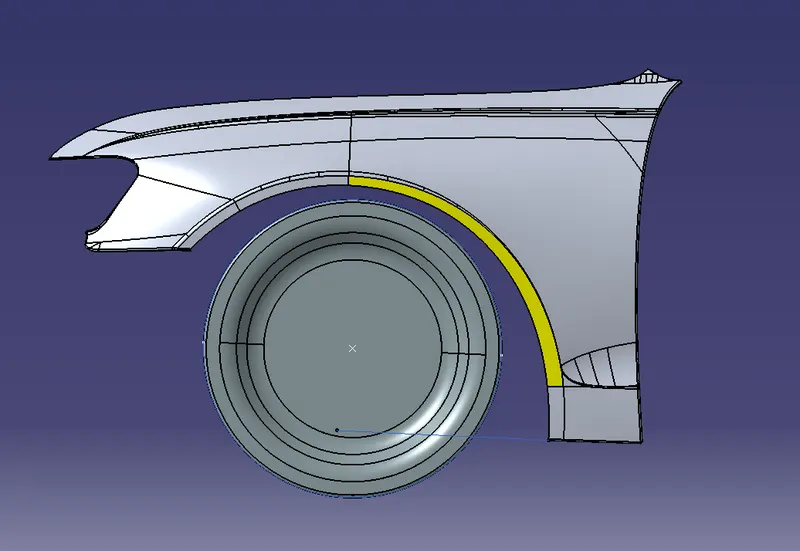

Hence the highlighted surface should protrude by 10mm towards viewing direction inorder to pass EU regulations.
